Furuno NAVNET TZTOUCH2 TZTL15F Manual

1
Number of Pages: 18
Date: July 15, 2015
FLIR Camera Setup Procedures
Model:
TZTL12F/15F
Model:
TZT9/14/BB

2
1. Integration with FLIR M-Series
2. Network Overview
3. Setting up FLIR M-Series
3-1 Assigning Static IP Address – For NavNet TZtouch and TZtouch2
3-2 Additional Setup – For NavNet TZtouch2 Only
4. Setting up NavNet TZtouch and TZtouch2
4-1 NavNet TZtouch Models TZT9/14/BB
4-2 NavNet TZtouch2 Models TZTL12F/15F
5. Troubleshooting
5-1 “No FLIR Detected” – For NavNet TZtouch and TZtouch2
5-2 “FLIR Detected but CGI Service Is Not Available” – For NavNet TZtouch2 Only
INDEX

3
1. Integration with FLIR M-Series
FLIR M-Series cameras can be integrated with NavNet TZtouch models TZT9/14/BB and NavNet TZtouch2 models
TZTL12F/15F to pan, tilt, zoom in/out, move, or lock a camera to a specific target. This document describes how to
configure the FLIR M-Series cameras before integrating them to the NavNet TZtouch and TZtouch2 network.
FLIR M-Series Models
For more information on the FLIR M-Series models, you can view the following FLIR website page.
http://www.flir.com/marine/display/?id=50777
Note:
Controls for the latest model M400 are NOT supported by the TZT9/14/BB or TZTL12F/15F.
2. Network Overview

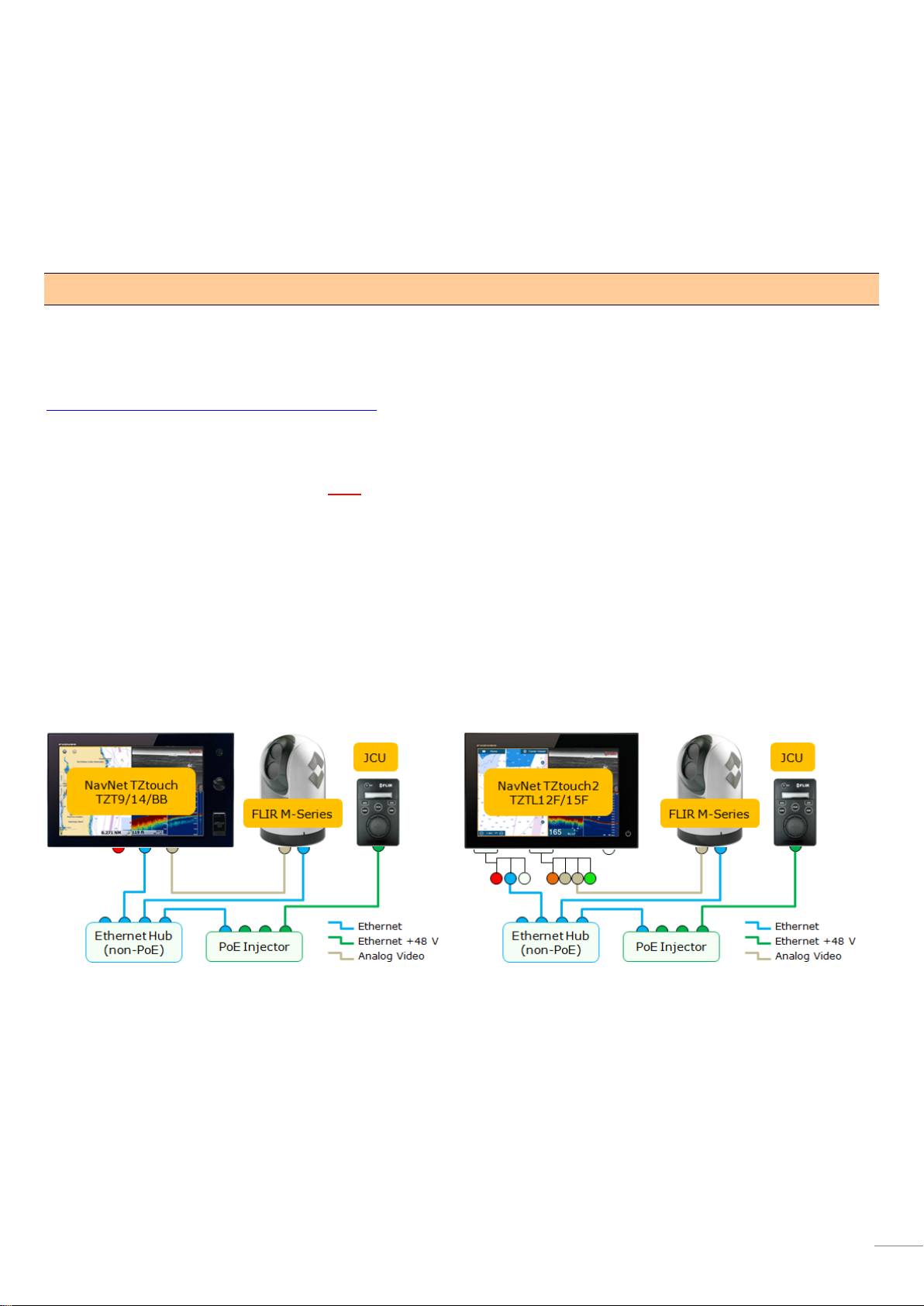

A FLIR M-Series can be networked to the TZT9/14/BB and TZTL12F/15F as shown below. While video images are
provided from the camera directly to the TZT9/14/BB or TZTL12F/15F RCA video input jacks, control commands are
communicated through the Ethernet network.
Note:
A JCU (joystick control unit), included with the FLIR M-Series camera as standard, is necessary to turn on and off the
camera and operate the camera for the functions not supported on the TZT9/14/BB or TZTL12F/15F.

4
3. Setting up FLIR M-Series
Static IP addresses should be assigned to the FLIR M-Series camera and JCU to match with the NavNet TZtouch and
TZtouch2 network. To network with NavNet Touch2, an additional setting is required for the FLIR M-Series camera as
described in Section 3-2.
3-1 Assigning Static IP Address – For NavNet TZtouch and TZtouch2
The recommended IP addresses are shown at right in order
to avoid duplication with the IP addresses of Furuno Ethernet
sensors. For detailed setup, follow the steps below.
M-Series IP Address Subnet Mask
Camera 172.31.200.9 255.255.0.0
JCU 172.31.200.10 255.255.0.0
Getting Started – Setting up a PC
(1) Connect a PC to the M-Series network.
(2) Set the PC to be in the same network domain as
the FLIR M-Series.
Tips:
The FLIR M-Series and the JCU controller are UPnP-enabled devices. You can see the list of UPnP-enabled device on the
PC by opening [My Network Places] (Windows® XP) or [Network] (Windows® 7). Note that devices such as M-Series
cameras, JCUs, and AXIS converters will appear on the PC only if they are in the same network domain.
Tips:
When the PC is connected to the M-Series camera and JCU directly with Ethernet cables or via a hub (without a router
or DHCP server in the network), the M-Series camera and JCU will automatically assign themselves an IP address of
169.254.xxx.xxx/ 255.255.0.0. In order to access the configuration page of the M-Series camera and JCU, set up
the IP address and subnet mask of the PC to 169.254.xxx.xxx and 255.255.0.0.
Note:
If the PC is set to [Obtain an IP address automatically], an IP address of
169.254.xxx.xxx will be automatically assigned in approx. two (2) minutes.
However, it is sometimes easier to manually fix the IP address. In this
example, the IP address is manually fixed to 169.254.1.2 and subnet mask
to 255.255.0.0 as shown at right.

5
Note:
When networking the M-Series camera and JCU, which were previously assigned with other IP addresses, you can
display the JCU IP address by pressing the COLOR button while pushing the puck. You can then assign an IP address to
the PC accordingly and thus be able to access the M-Series camera and JCU configuration page.
(3) Once the PC is in the same network domain as the M-Series camera and JCU, and
the UPnP is enabled, you will be able to see the M-Series camera and JCU icons under
[My Network Places] (Windows® XP) or [Network] (Vista /Windows® 7).
Verify that the M-Series camera and JCU icons are available.
Note:
If the devices do not appear, check if the PC is set up to display UPnP notifications.
Windows® XP
- Open [Control Panel] and access [Add/Remove Programs].
- On the left-hand side, select [Add/Remove Windows® Components].
- From [Windows® Component Wizard], scroll down to [Networking Services], highlight and select the [Details]
button
- Check the box to activate the UPnP User Interface and select [OK].
- Select [Next] when returning to [Windows® Component Wizard].
- Select [Finish].
Windows® 7
- In the [Network] page, turn on [Network Discovery].
Assigning Static IP Address to M-Series Camera
(4) Double click the M-Series camera icon to open its configuration page.

6
(5) In the configuration page, click [Network Setup]
to configure a static IP address.
(6) In the [Network Settings] page, select [Static] (not [Dynamic]).
The screen will refresh, and the [IP], [(Subnet) Mask], and [Gateway]
fields will change from gray to white,
enabling you to enter
information.
(7) Enter a static IP address and subnet mask.
E.g. IP: 172.31.200.9 / Subnet Mask: 255.255.0.0
(8) Click [Save].
Note:
You will not be able to access the M-Series camera configuration page anymore after changing its IP address unless the
IP address and subnet mask of the PC is changed in step (13).
Assigning a Static IP Address to the JCU
(9) Go back to [My Network Places] (Windows® XP) or [Network] (Windows® 7) of the PC
and double click the JCU icon to open its configuration page.
(10) In [Network Addressing], select [Static].
(11) Enter a static IP address and subnet mask
E.g. IP: 172.31.200.10 / Subnet Mask: 255.255.0.0.
(12) Click [Save].

7
Adjusting the PC’s IP Address to a New Domain
(13) After changing the IP address of the M-Series camera and JCU, assign the
PC with an IP address of 172.31.xxx.xxx and subnet mask of 255.255.0.0
to match with the new domain.
In this example, the IP address 172.31.100.100 and
subnet mask
255.255.0.0 are assigned as shown at right.
After the static IP addresses are assigned to all the devices in the same domain, you will be able
to see the M-Series camera and JCU icons again in [My Network Place] (Windows® XP) or
[Network] (Window 7).
3-2 Additional Setup – For NavNet TZtouch2 Only
FLIR M-Series cameras have a setting option called Nexus CGI Interface. To network a FLIR M-Series camera with the
TZTL12F/15F via the Ethernet for PTZ control, etc, activate the Nexus CGI Interface as shown in the following
procedures.
(1) Connect a PC to the M-Series network.
(2) Ensure that the IP address setting of the camera and JCU described in
Section 3-1 has finished.
(3) Set the IP address of the PC to be in the same domain as the FLIR M-Series
to be configured.
In this example, the FLIR M-Series camera is assigned with an IP address of
172.31.200.9, and the PC is assigned with an IP address of 172.31.100.100
and subnet mask of 255.255.0.0 as shown at right.

8
(4) Open a web bro
wser and enter the IP address
assigned to the FLIR M-
Series camera. In this
example, 172.31.200.9 is entered.
(5
) After a login page appears, enter the following
User ID and password.
User: “admin”
Password: “fliradmin” or “indigo” (default)
depending on unit.
(6) Access [Network Remote / VMS] to create Nexus CGI Interface.
Note:
Depending on camera models, UI to access this setting page and other settings may be different. For example you may
have to select [Communications] before you can access [Network Remote / VMS].
(7) Select [Nexus CGI Interface], ensure Device ID is [0]and click [Add].

9
(8) The following page will appear to create a new Nexus CGI Interface under a new Device ID (Device ID must be 1).
Click [Create].
(9) Nexus CGI Interface is now created under the new Device ID: 1.
Change [Port] (port number) to [8090]. (Default: 8080)
(10) Click [Save].

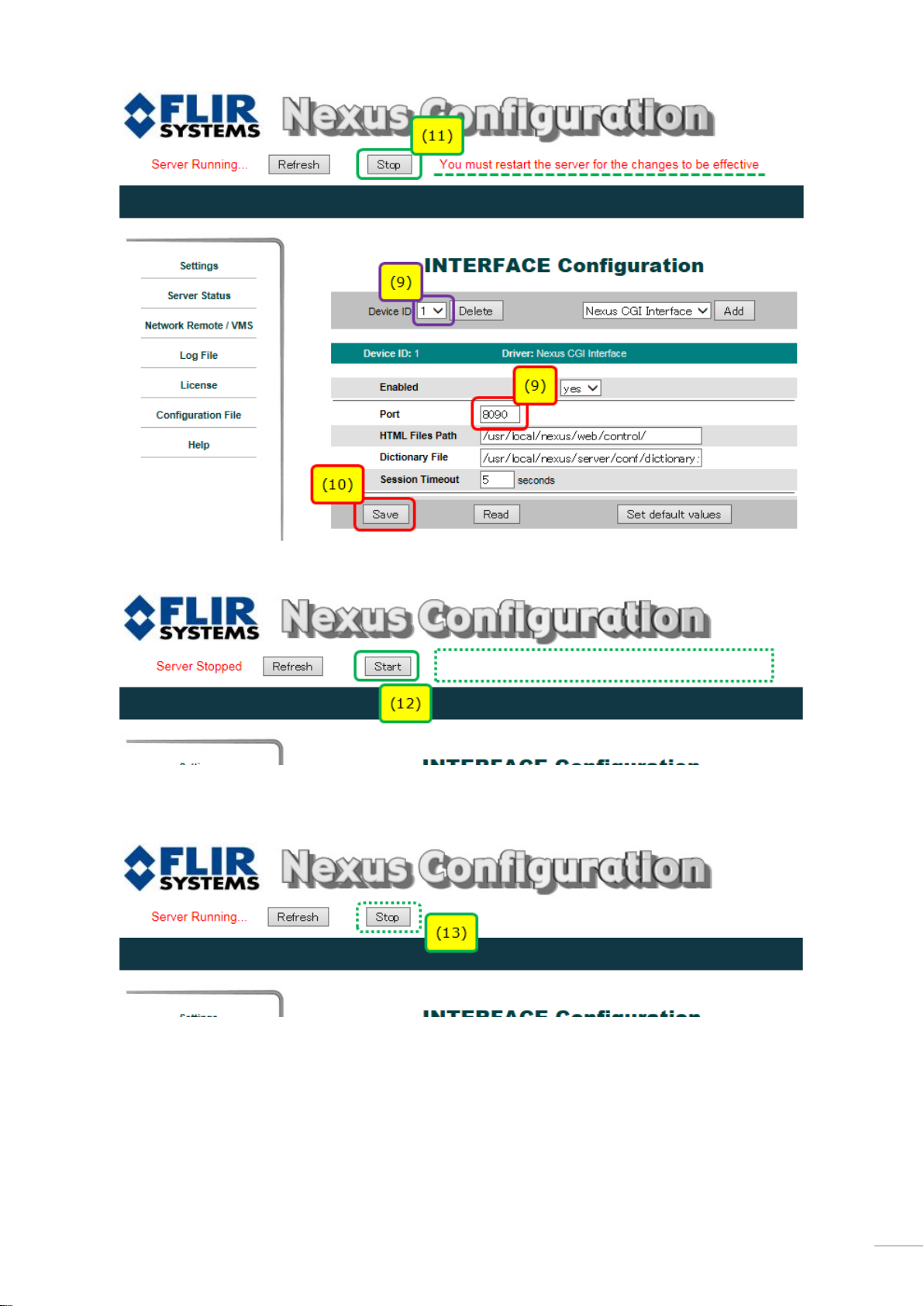

(11) To activate the changed setting, the server should be restarted as instructed in the message below.
Click [Stop].

10
(12) After the message in (11) disappears, click [Start] to restart the server.
(13) If the icon changes to [Stop], the restart process has finished. Proceed to TZTL12F/15F setting.
(14) Recycle power to the FLIR camera.

11
Note:
The new Nexus CGI Interface created must have a device ID of 1 and no other Device ID can exit after 1. If you have
other Device ID’s they must be selected from the dropdown menu and then deleted.

12
4. Setting up NavNet TZtouch and TZtouch2
After the FLIR M-Series setup is complete, the TZT9/14/BB and TZTL12F/15F should be set to detect the camera.
4-1 NavNet TZtouch Models TZT9/14/BB
(1) Access [Home] – [Menu] – [Camera] – [FLIR Installation].
At this stage, the IP address of the camera is not detected yet. You will see the [ ] symbol in [FLIR IP].
(2) In [Scan IP], tap [Scan].
If the M-Series camera is properly detected, you will see the IP address of the camera with the [ ] symbol.
Note:
If the IP address of the FLIR M-Series camera is not detected properly, the message of
[No FLIR Detected] will appear. See Section 5-1 for troubleshooting.
(3) Once the M-Series camera is detected, select the video input
port that the analog video output from the camera is connected.
In this example, [Camera 1] is selected.
After the settings (1) to (3) finishes, all the setting
options related to FLIR M-
Series controls will be
available as shown at left.

13
4-2 NavNet TZtouch2 Models TZTL12F/15F
(1) Access [Home] – [Settings] – [Camera].
(2) Check the analog video port that the analog output from
the FLIR M-Series camera is connected.
In this example, the FLIR camera is connected to the port 1.
(3) Set [VIDEO INPUT 1] – [Connected] – [ON].
(4) Tap [FLIR Installation].
At this stage, the IP address of the camera is not detected yet.
You will not see an IP address indication in [FLIR IP].
(5) Tap [Scan IP].
If the M-Series camera is properly detected, you will see the IP address of the camera.
Note:
If the IP address of the FLIR M-Series camera is not detected
properly, the message of [NO FLIR DETECTED] will appear. See
Section 5-1 for troubleshooting.

14
Note:

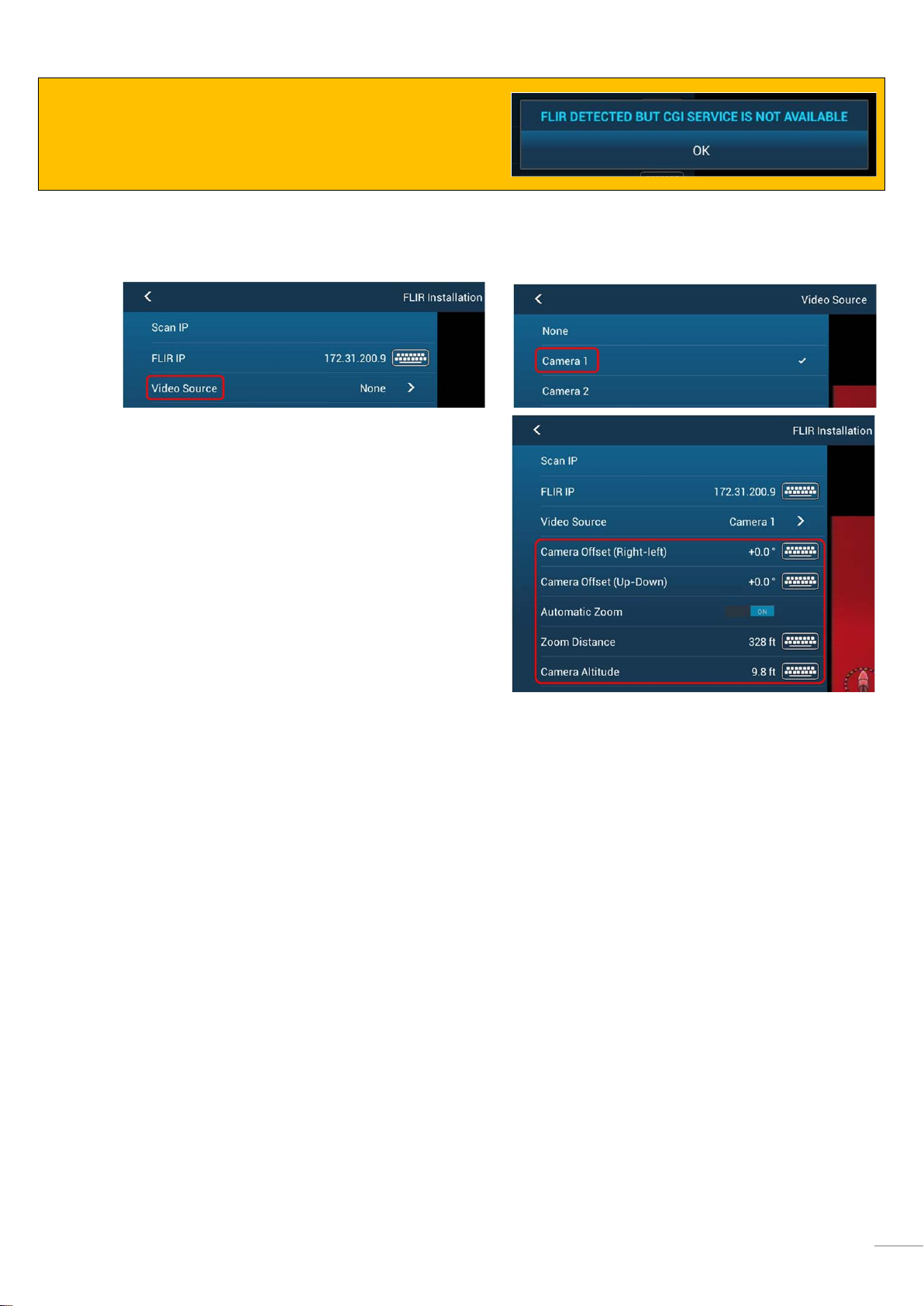

If the message of [FLIR DETECTED BUT CGI SERVICES IS
NOT AVAILABLE] appears, see Section 5-2 to double check
the setting of Nexus CGI Interface.
(6) Once the M-Series camera is detected, select the video input port that the analog video output from the camera is
connected to. In this example, [Camera 1] is selected.
All the setting options related to FLIR M-Series controls will be
available as shown at right.

15
5. Troubleshooting
When failing to scan and detect the IP address of the connected FLIR M-Series camera, you may see the following
messages. This section describes how to cope with each message.
Message Target See…
No FLIR Detected NavNet TZtouch (TZT9/14/BB)
NavNet TZtouch2 (TZTL12F/15F) Section 5-1

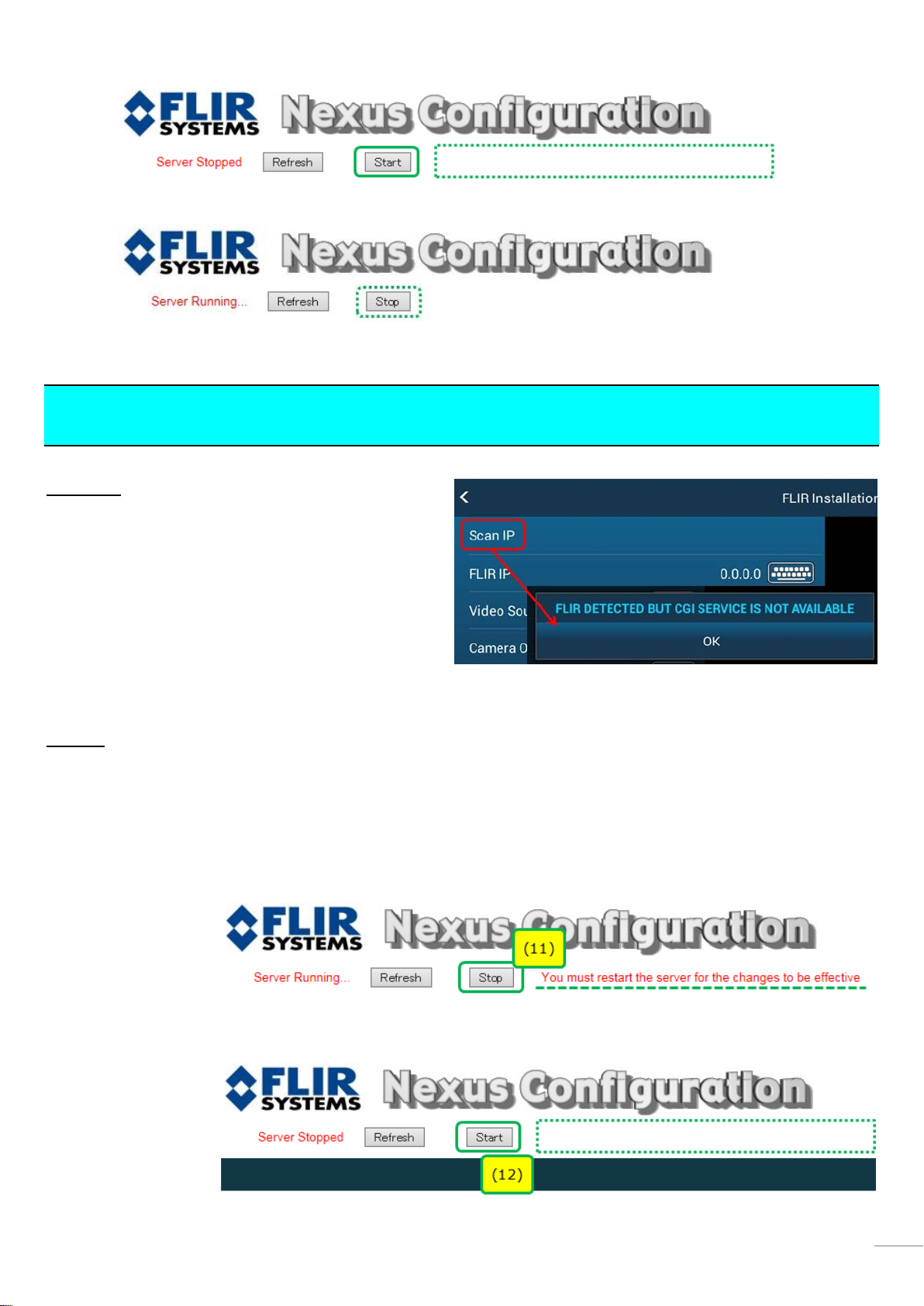

FLIR Detected but CGI Service Is Not Available NavNet TZtouch2 (TZTL12F/15F) Section 5-2
5-1 “No FLIR Detected” – For NavNet TZtouch and TZtouch2
Symptom
When scanning the IP address of the FLIR M-Series camera in the network, the message of [No FLIR Detected]
appears. This message represents that the IP address of FLIR M-Series camera is not detected by the TZT9/14/BB or
TZTL12F/15F.
NavNet TZtouch (TZT9/14/BB) NavNet TZtouch2 (TZTL12F/15F)
Actions
(1) Check if appropriate static IP addresses have been assigned to the FLIR M-Series camera and JCU as described in
Section 3-1.
(2) Check if LAN cables for the FLIR M-Series camera and JCU are properly connected to an Ethernet hub or PoE injector
without loose connections.
(3) If the actions above do not correct the issue, review the Nexus Server setting as described below.
How to enable the discovery and control of the M-Series from the PC
In some instance, the internal server of the FLIR M-Series, called the Nexus Server, is configured in a way that
prevents the PC from discovering and controlling the camera. If you are unable to discover the FLIR M-Series camera

16
from the TZT9/14/BB or TZTL12F/15F but are able to use the Web Control of the FLIR M-Series to control it via a web
browser on the PC, follow the instructions below.
Note:
If the Ethernet connection and IP address settings are not good, you cannot control the FLIR M-Series camera from a
web browser on the PC.
(1) Open a web browser and enter the IP address
assigned to the FLIR M-
Series camera. In this
example, 172.31.200.9 is entered.
(2) After a login page appears, enter the following
User ID and password.
User: “admin”
Password: “fliradmin” or “indigo” (default)
(3) Click [Configuration File].
(4) Click [Download Configuration File] at the bottom of the page.

17
(5) Save the file somewhere on the PC, such as the Desktop.
(6) Open the configuration file “server.ini” with a text editor,
such as Notepad, and look for the section [Networking
Configuration].
(7) Set [Enable Network Discovery], [Enabled] and [Allow
Anonymous Clients] to [yes].
Note:
You can search the text file for
[Discovery], [Enabled], and
[Anonymous] to find the line you need to check.
(8) Save the file.
Note:
Ensure that other items have not been modified.
(9) Access the Nexus Configuration page again and select [Configuration File].
(10) Click [Choose File] at the bottom
of the page and select the modified file
“server.ini”.
(11) Click [Upload].
(12) To activate the changed setting, the server should be restarted as instructed in the message below.
Click [Stop].
(13) After the message in (12) disappears, click [Start] to restart the server.

18
(14) If the icon changes to [Stop], the restart process has finished.
The TZT9/14/BB and TZTL12F/15F will now be able to detect and control the FLIR M-Series camera.
5-2 “FLIR Detected but CGI Service Is Not Available” – For NavNet TZtouch2
Only
Symptom
When scanning the IP address of the FLIR M-Series
camera in the network, the message of [FLIR
DETECTED BUT CGI SERVICE IS NOT AVAILABLE]
appears. This message represents that the Nexus CGI
Interface is
not properly set for the TZTL12F/15F
network. Note that this symptom can occur on NavNet
TZtouch2 only.
Actions
Check if all the Nexus CGI Interface settings are complete as described in Section 3-2, especially Steps (12) to (13).
Tips:
If the Nexus CGI Interface settings are finished at Step (11) without restarting the server, settings made by the previous
steps have not been reflected on the FLIR M-Series camera, so that the message above will appear.
Ensure to restart the server: Click [Start] to restart the server and wait until the icon changes to [Stop].

19
After the icon changes to [Stop], all the setting procedures are complete.
The TZT9/14/BB and TZTL12F/15F will now be able to detect
the FLIR M-Series camera.
--- END ---
- Windows is registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
- All brand and product names are registered trademarks, trademarks or service marks of their respective holders.
