BBWX2 INSTALLATION GUIDE
Page 2 of 15
Do not open the enclosure
unless totally familiar
with electrical circuits.
Only qualified personnel
should work inside the
equipment.
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
Standard
Compass Steering Compass
BBWX2 0.8m 0.5m
Do not install the unit where it may get
wet from rain or water splash.
Water in the unit can result in fire,
electrical shock or damage the equipment.
Use only the specific power cable.
Fire or damage to the equipment can
result if a different cable is used.
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury can
result.

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 3 of 15
Table of Contents
1.0 Preface.......................................................................................................4
1.1 Disclaimer................................................................................................4
2.0 Introduction...............................................................................................5
2.1 System Configuration .............................................................................5
2.2 Receiver/Switch Specifications...............................................................6
2.3 Equipment List........................................................................................6
3.0 BBWX2 Installation...................................................................................7
3.1 Mounting Considerations.........................................................................7
3.2 Mounting the Antenna .............................................................................8
3.3 Cabling....................................................................................................8
3.4 Turning Power ON, LED function..........................................................10
4.0 Sirius Activation.....................................................................................11
5.0 BBWX2 Operation...................................................................................12
5.1 Connecting to and configuring the NavNet 3D MFD (display)...............12
5.2 Connecting to and configuring the NavNet vx2 (display).......................13
5.3 Power synchronization ..........................................................................14
5.4 Troubleshooting.....................................................................................15
5.4 General Maintenance............................................................................15

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 4 of 15
1.0 Preface
1.1 Disclaimer
Advisory – the weather information is subject to service
interruptions and may contain errors or inaccuracies and
consequently should not be relied upon exclusively. The
service is provided as is. You are urged to check
alternate weather information sources prior to making
safety related decisions.
You acknowledge and agree that you shall be solely
responsible for use of the information and all decisions
taken with respect thereto.
By using this service, you release and waive any claims
against Sirius Satellite Radio Inc., WSI, Navcast Inc. and
Furuno with regard to this service.
This Installation Guide represents the product at the time
of printing. Furuno reserves the right to make changes to
the specification without notice.
If you do not have a Sirius Subscription Agreement , you will find a copy at:
www.sirius.com/marineweather/marineweather_terms_and_conditions.pdf
Or call 1-800-869-5480 to have a copy sent to you.

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 5 of 15
2.0 Introduction
The BBWX2 unit combines a Sirius Satellite Receiver (similar to the BBWX1) and an
Ethernet 4-port Switch.
The Receiver provides Sirius Satellite weather services and Sirius Radio (with two audio
jacks). Currently, only Audio Port1 is active. Audio Port 2 is for future development.
The Switch uses an Ethernet interface (100-BASE-TX or 10-BASE-T) to provide the network
communications among the NavNet 3D equipment and PC. Four external ports are provided
on this Switch (there is one internal port dedicated to the Receiver).

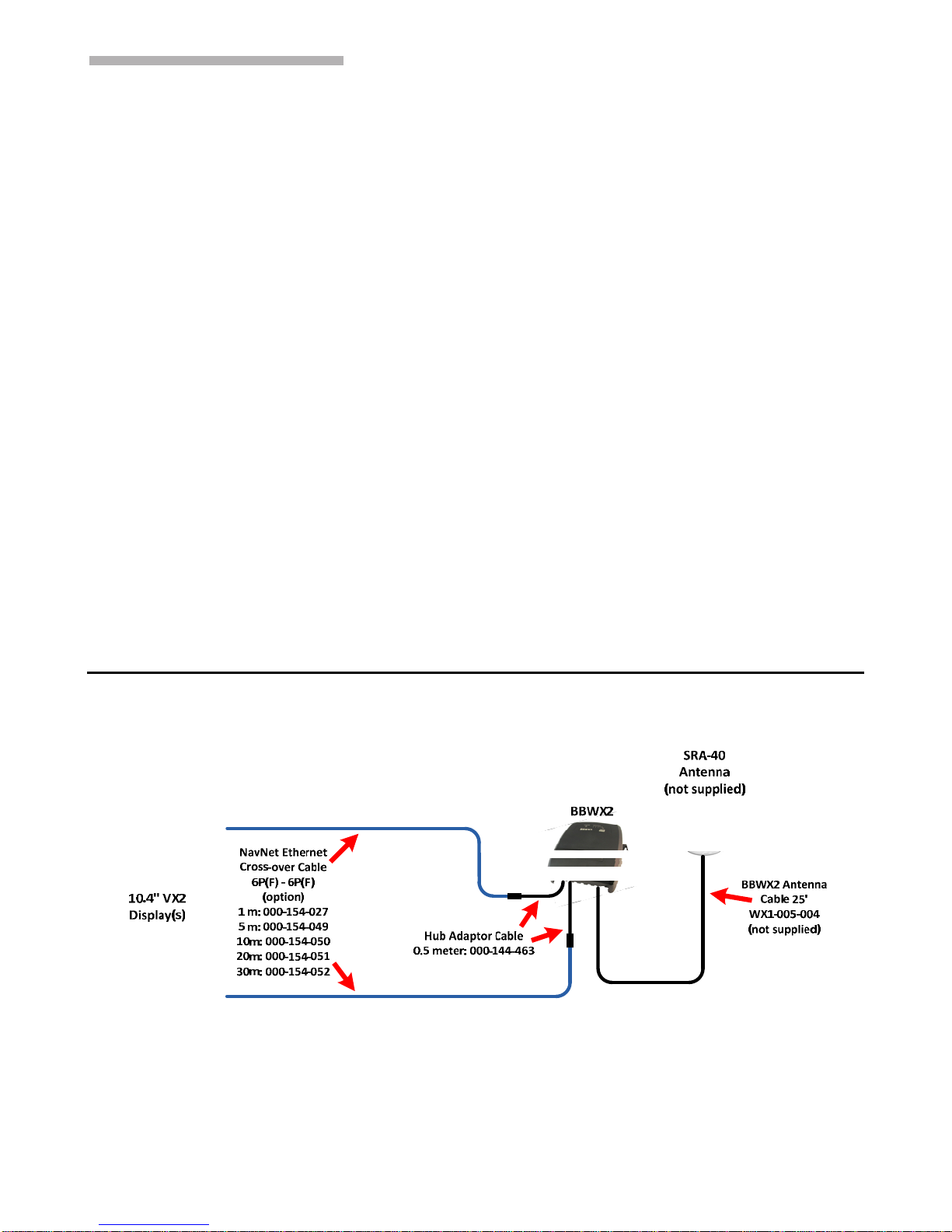

2.1 System Configuration

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 6 of 15
2.2 Receiver/Switch Specifications
Sirius Weather Mariner or Voyager service levels
Sirius Radio Dual Analog Output: 0 dBm into 600 Ω(0 dBv)
Transmission speed Half-duplex/Full-duplex; 10 Mbps/100 Mbps
I/O Ports 4 Ports (Shielded RJ45)
Environmental Conditions Ambient Temperature -15 to 55 °C
Relative Humidity 95%, 66°C, 18 hours
EMC IEC 60945 Rev 4, Sections 9.2 & 9.3
Water Ingress IPX3 (IEC 60529)
Power Supply 12 – 24 VDC, 0.4 A
Body Color Matte Black
2.3 Equipment List
Name Type Code No. Qty Remarks
BBWX2 NA12548 BBWX2 1 Receiver-Hub
Installation
Materials
NA12550 WX1-005-013 1 Power cable
NA12549 WX1-005-014 2 Audio Cables
TBD TBD 1 set Two self-tapping
mounting screws
TBD TBD 1 set Cable grommets
NA12551 WX2-012-551 1 Installation Guide
Not provided
Ethernet
Cables
(not
included)
4 Pair LAN Cable Assy 000-167-175 2m For Navnet 3D
4 Pair LAN Cable Assy 000-167-176 5m For Navnet 3D
4 Pair LAN Cable Assy 000-167-177 10m For Navnet 3D
4 Pair LAN Cable Assy 000-164-609 3m Cable with waterproof
Connector for MFD8/12

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 7 of 15
3.0 BBWX2 Installation
The BBWX2 does not come standard with a Sirius satellite antenna or antenna cable. These
must be purchased separately. The BBWX2 is compatible with two Shakespeare antenna
models: SRA-40
SRA 25
Furuno USA carries the following:
WX1-005-003 Shakespeare SRA-40 antenna
WX1-005-004 25’ BBWX2 Antenna Cable
For installations that require longer cable lengths you may contact your local Shakespeare
outlet for options.
3.1 Mounting Considerations
The BBWX2 can be mounted on a desktop or a bulkhead. When choosing a mounting
location, keep in mind the following points:
Locate the unit well away from areas subject
to water splash, rain and direct sunlight
Locate the unit away from the vessel engines
or where fuel vapor may be present
Locate the unit in an environment inside the
operating and storage temperature ranges
The power cable supplied is 3.0 meters,
however it can be extended up to 20 meters.
If bulkhead mounting, the cables should
protrude out the bottom, not the top. This will
prevent any possible water (moisture) from
wicking into the unit from the cables.
Note: The Antenna and Receiver/Switch should be mounted away from electromagnetic
interference (e.g. >1.5 meters away from an AIS or radio transmitter, >2.0 meters away from
Radar, >1.8 meters from a compass).
Fix the unit to the mounting location with the two self-tapping screws provided (as shown
above).

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 8 of 15
3.2 Mounting the Antenna
• Do not install antenna where it can be damaged by being kicked or trampled.
• The antenna beam is required to have an unrestricted view of the skies; this
constitutes 5 ft [1.5 meters] out from the antenna and 1 ft [0.3 meter] above and below
the antenna.
• The antenna is to be installed on a flat horizontal surface.
• The antenna can be installed as a standard “pedestal” mounting or “surface”
mounting [non metallic surface only].
• Depending on the method of mounting and thickness of mounting substrate, the
hardware screws supplied may not be suitable.
• The antenna must not be installed in the path of a radar beam.
• The antenna cable should not be cut or altered.
3.3 Cabling
Avoid running cables through bilges or doorways or
close to moving or hot objects. Don’t make sharp
bends in cables.
Be careful when pulling cables and/or connectors
through bulkheads as damage can occur. Don’t run
cables in a way that allows water to flow down into
connectors.
Where a cable passes through an exposed bulkhead
or deck head, a watertight gland or “swan neck”
should be used.
Don’t run the Ethernet cables in areas adjacent to
radar transmitter, or large current carrying cables.
The power cable provided is 3 meters long. However, it may be extended to a maximum of
20 meters using a suitable 16 AWG multi-stranded cable. Red is positive, black is negative.
The two audio cables provide are 3 meters long. They have 3.5mm male stereo jacks on
either end of the audio cable. Currently only Audio Port1 is active and available for use.
The antenna cable for the BBWX2 is not standard supply and must be purchased
separately.
The Ethernet cables used with the BBWX2 must be shielded. When connecting the cable,
ensure the appropriate power synchronization toggle switch is set.

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 9 of 15
Cable Tray
Grommets
Cable Tray
Cover
Cable Tray
Screws
Note: For the power synchronization feature to function, 4 pair Ethernet cables must be used.
See page 6 for a list of cable options.
Connecting Cables to the BBWX2
Each cable type has a corresponding color-coded rubber cable grommet (for water
resistance). The cable grommets are inserted into the enclosure cable tray of the Receiver
unit (as shown below).
The following colors correspond to each type of cable:
The yellow grommet is for the antenna cable
The blue grommet is for the power cable
The red grommets are for the Ethernet cables
The green grommets are for the audio cables
The black grommets (solid) are for when there is no cable
To connect the cables to the BBWX2:
1. Undo the tray cover on the BBWX2 enclosure (three screws on the back).
2. Plug the cable into the appropriate connector.
3. Install the corresponding cable grommet in the enclosure cable tray
4. Press the cable into the slot in the grommet. Make sure it is seated well with minimal
strain.
5. Repeat for all cables to be installed.
6. Insert black grommets (with no cable hole) into slots
with no cables.
7. Place the tray cover back on the unit and tighten
screws.
Note: If the unit was already mounted, loosen mounting screws, lift and remove unit to
access tray cover for a cable change.

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 10 of 15
100
Link/Act
10/100 4-Port SwitchSatellite Receiver
Status
U.S.A.
1234
3.4 Turning Power ON, LED function
Power ON
No operation is required for the user. Simply turn on the BBWX2’s DC power source to
power it.
Note: When the BBWX2 is used as a switch, make sure to power it before any other Network
Devices (MFDs)
BBWX2 LEDs
The LEDs are displayed on the top surface of the unit as shown below.
Receiver LED display
There is a single, multi-color LED that provides the status of the Receiver. Generally, when
the LED is GREEN – normal operation; when AMBER – anomalous but trivially fixable
operation required; when RED – something has failed. See the Troubleshooting section for
more details on the LED status/conditions.
Switch LED display
There are LEDs to monitor the LAN communications on the unit. The indicator LEDs blink or
go off according to the equipment status as in the table shown below. The LEDs show link
and data rate.
When the equipment is first powered-up, the power on sequence is as follows:
Receiver LED: Initially ON (Green)
Switch LAN LEDs: All blink once (first 100 row, then Link/Act row), then go off (when
no port activity is detected).

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 11 of 15
Sirius Weather Receiver
P/N: BBWX2
ESN: 012345678912
U.S.A .
Made in China
S/N: 12345MMDDYYNNNN
4.0 Sirius Activation
To enable the weather services and/or the radio services, you must first have a Sirius
subscription to these services. Individual and combination weather and audio subscriptions
are available.
For more information, please visit www.sirius.com/marineweather or
www.sirius.com/radio/packages.
Before calling Sirius, make sure that…
the unit is powered on
the signal strength is Medium or High
you have the ESN number of your BBWX2 Satellite Receiver from the label
shown below (this label is on the retail box, on the back of the unit itself or on the
inside cover of this Installation Guide)
you have the billing information to arrange payment of the subscription
you have a major credit card available (that has a US billing address).
To activate a Sirius subscription, contact Sirius by calling 1-800-869-5480

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 12 of 15
5.0 BBWX2 Operation
5.1 Connecting to and configuring the NavNet 3D MFD (display)
5.2 Connecting to and configuring the NavNet VX2 (display)

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 13 of 15
Power
12-24V Audio1 Audio2
Antenna
Network Ports
1
2
43
4 3 2 14 3 2 1
Power Sync
On/Off
5.3 Power synchronization
When connecting with PC(s), use shielded
2 pair Ethernet cable and set the applicable
network port toggle switch(es) to OFF.
When multiple MFD8/12/BBs are connected to the BBWX2 switch, using shielded 4 pair
Ethernet cables, you can synchronize power to all of them by turning just one of them on.
The port number of the toggle switch on the connector panel maps to a physical Network port
as shown in the connector panel drawing below.
Turn the toggle switch on (to the left, when unit is oriented as above), to enable the power
synchronization.

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 14 of 15
5.4 Troubleshooting
The LEDs on the unit indicate the following conditions:
Satellite Receiver LED Status Actions
GREEN – single long
green every 3 seconds Normal Operation None
AMBER – two flashes
(long-short) every 3
seconds Display not Connected Connect MFD display to BBWX2,
Turn on display, or
Replace Ethernet cable
AMBER – three short
flashes every 3 seconds Antenna not connected Check antenna cable connections
AMBER – alternating
between the two above
conditions
Both Antenna and Display
not connected Connect Display and Antenna
RED – repeating short
red flashing (on/off for
equal intervals) Ethernet failure Unit failure. Call Dealer
RED – repeating long red
flash (on longer than off) Sirius module failure Unit failure. Call Dealer
RED – alternating
between the two above Sirius and Ethernet failure Unit failure. Call Dealer
RED – repeating group of
three short red flashes Antenna shorted Check antenna cable, or Replace antenna cable (if damaged)

U.S.A .
BBWX2 INSTALLATION GUIDE
Page 15 of 15
Switch LEDs - 100 Status Action
GREEN – solid on 100 BASE-T None
OFF 10 BASE-T None
Switch LEDs – Link/Act Status Action
YELLOW – solid on Connected None
YELLOW –blinking Data activity None
OFF Not connected None
5.5 General Maintenance
Always turn your Receiver OFF before carrying
out routine maintenance.
Your Receiver is a sealed unit. DO NOT
SEPARATE the unit. There are no serviceable
parts or adjustments inside.
Any internal adjustments must be carried out by an
approved and qualified technician.
The following routine maintenance checks should be made:
Examine all cables and grommets for signs of wear and/or damage
Check that all cables are supported and are not stressing the connectors
Check that all connectors are fully inserted and support
Wipe the unit with a clean damp cloth
