Furuno FS-1570 User manual

PRINTED IN JAPAN
SSB RADIOTELEPHONE
FS-1570 (150W)
FS-2570 (250W)

Your Local Agent/DealerYour Local Agent/Dealer
9-52 Ashihara-cho,9-52 Ashihara-cho,
Nishinomi
y
a, Ja
p
anNishinomi
y
a, Ja
p
an
Tele
p
hone :Tele
p
hone : 0798-65-21110798-65-2111
Telefax :Telefax : 0798-65-42000798-65-4200
FIRST EDITION :FIRST EDITION :
A
UG.
A
UG. 20022002
Printed in JapanPrinted in Japan
A
ll ri
g
hts reserved.
A
ll ri
g
hts reserved.
B :B : OCT.OCT. 18,200218,2002
PUB.No.PUB.No. IME-56360-BIME-56360-B
*00080934200**00080934200*
*00080934200**00080934200*
(( HIMAHIMA )) FS-1570/2570FS-1570/2570 * 0 0 0 8 0 9 3 4 2 0 0 ** 0 0 0 8 0 9 3 4 2 0 0 *
*IME56360B00**IME56360B00*
*IME56360B00**IME56360B00*
* I M E 5 6 3 6 0 B 0 0 ** I M E 5 6 3 6 0 B 0 0 *

i
SAFETY INSTRUCTIONS
Confirm that the power supply voltage
is compatible with the voltage rating
of the equipment.
Connection to the wrong power supply
can cause fire or equipment damage to the
equipment . The voltage rating appears on
the label at the rear of the display unit.
CAUTION
WARNING
Do not work inside the
equipment unless totally
familiar with electrical
circuits.
Hazardous voltage which can
shock exists inside the equip-
ment.
Turn off the power at the
mains switchboard before
beginning the installation.
Post a sign near the switch
to indicate it should not be
turned on while the equip-
ment is being installed.
Fire, electrical shock or
serious injury can result if the
power is left on or is applied
while the equipment is being
installed.
Standard Steering
compass compass
Keep the following compass safe
distances.
Ground the equipment.
Ungrounded equipment can
give off or receive electro-
magnetic interferenece or
cause electrical shock.
Transceiver
Unit
FS-1570T
FS-2570T
FS-2570C
HS-2001
PP-510
IC-302/303
SEM-21Q
PR-850A
PR-300
IB-581
1.20 m 0.70 m
2.20 m 1.40 m
0.70 m 0.40 m
1.30 m 0.90 m
1.00 m 0.80 m
0.80 m 0.60 m
2.20 m 1.50 m
1.00 m 0.70 m
0.90 m 0.70 m
1.4 m 1.0 m
DANGER
Do not touch cable from
the antenna coupler during
transmission.
Electrical shock, serious
injury or death can result if
the cables are touched during
transmission.
Do not touch the whip
antenna or wire antenna.
Electrical shock, serious
injury or death can result if
the antenna is touched during
transmission.
DANGER
Do not touch this point.
Use copper strap with careful.
An edge of it may harm your hand.

ii
TABLE OF CONTENTS
SYSTEM CONFIGURATION ................................................................................................iii
EQUIPMENT LISTS ..............................................................................................................v
1. MOUNTING ....................................................................................................................1-1
1.1 Control Unit .......................................................................................................................................... 1-1
1.2 Antenna Coupler................................................................................................................................... 1-3
1.3 Transceiver Unit ................................................................................................................................... 1-8
1.4 Handset (w/bracket) ............................................................................................................................. 1-9
1.5 The Antenna ....................................................................................................................................... 1-10
1.6 Mounting of Optional Equipment.........................................................................................................1-11
2. WIRING...........................................................................................................................2-1
2.1 Wiring ................................................................................................................................................... 2-1
2.2 External Equipment.............................................................................................................................. 2-5
2.3 Connection of AC-DC Power Supply Unit (option)............................................................................... 2-9
3. INITIAL SETTING...........................................................................................................3-1
3.1 Performance Check.............................................................................................................................. 3-1
3.2 Manual 2182 kHz Tuning Preset .......................................................................................................... 3-1
3.3 System Setup ....................................................................................................................................... 3-3
3.4 Setting DIP Switches.......................................................................................................................... 3-10
3.5 Preamp Setting (For FAX-5)................................................................................................................3-11
4. OPTION KIT ...................................................................................................................4-1
4.1 DSC Routine Frequency Board............................................................................................................ 4-1
4.2 Connecting of NBDP Terminal Unit ...................................................................................................... 4-3
PACKINGLISTS ................................................................................................................A-1
OUTLINE DRAWINGS ...................................................................................................... D-1
SCHEMATIC DIAGRAMS ................................................................................................. S-1

iii
SYSTEM CONFIGURATION
FS-1570
TRANSCEIVER
UNIT
FSC-1570T
SHIP'S MAINS
24 VDC 100-115/200-220 VAC
1φ, 50/60 Hz
TELEX DISTRESS
ALERT BUTTON
IC-302-DSC
or
DISTRESS MESSAGE
CONTROLLER
DMC-5
INCOMING
INDICATOR
IC-303-DSC
NAVIGATOR
: Option
: Standard
AC/DC POWER
SUPPLY UNIT
PR-300
LOUDSPEAKER
SEM-21Q
HANDSET
HS-2001
Antenna Coupler
AT-1560-15
CONTROL UNIT
FS-2570C
PREAMP
FAX-5
For DSC
distress
CONTROL UNIT
FS-2570C
PRINTER
INTERFACE
IF-8500*
PRINTER
PP-510 NBDP CONTROLLER
IB-581
or
NBDP TERMINAL UNIT
IB-583
POWER STATUS
MONITOR
PSM-01
: Local supply
Category of Units
Unit
Preamp Unit
Antenna Coupler
Other Units
Category
Exposed to weather
Exposed to weather
Protected from weather
*: Required only when IB-581 is connected.

iv
FS-2570
TRANSCEIVER
UNIT
FSC-2570T
SHIP'S MAINS
24 VDC 100-115/200-220 VAC
1φ, 50/60 Hz
INCOMING
INDICATOR
IC-303-DSC
NAVIGATOR
AC/DC POWER
SUPPLY UNIT
PR-850A
PREAMP
FAX-5
For DSC
routine For DSC distress
LOUDSPEAKER
SEM-21Q
HANDSET
HS-2001
Antenna Coupler
AT-1560-25
CONTROL UNIT
FS-2570C
PREAMP
FAX-5
CONTROL UNIT
FS-2570C
PRINTER
INTERFACE
IF-8500*
PRINTER
PP-510
TELEX DISTRESS
ALERT BUTTON
IC-302-DSC
or
DISTRESS MESSAGE
CONTROLLER
DMC-5
RX BOARD
Category of Units
POWER STATUS
MONITOR
PSM-01
: Option
: Standard
: Local supply
Unit
Preamp Unit
Antenna Coupler
Other Units
Category
Exposed to weather
Exposed to weather
Protected from weather
NBDP CONTROLLER
IB-581
or
NBDP TERMINAL UNIT
IB-583
*: Required only when IB-581 is connected.

v
EQUIPMENT LISTS
Standard Supply
Name Type Code no. Qty Remarks
FS-1570T - For FS-1570 (150 W)
Transceiver Unit FS-2570T - 1 For FS-2570 (250 W)
Control Unit FS-2570C - 1
AT-1560-15-AAS - For FS-1570, Resin
AT-1560-15-SUS - For FS-1570, Stainless steel
AT-1560-25-AAS - For FS-2570, Resin
Antenna Coupler
AT-1560-25-SUS -
1
For FS-2570, stainless steel
Accessories FP05-05500* 000-056-947 1 Handset, bracket, etc.
CP05-08800 000-056-950 17JE23150-02
(D8C) 5 m cable
CP05-08810 000-056-951 17JE23150-02
(D8C) 10 m cable
CP05-08820 000-056-952 17JE23150-02
(D8C) 20 m cable
CP05-08830 000-056-953 17JE23150-02
(D8C) 30 m cable
CP05-08840 000-056-954 17JE23150-02
(D8C) 40 m cable
CP05-08850 000-056-955
1 set
17JE23150-02
(D8C) 50 m cable
Between
control
unit &
Trans-
ceiver
unit.
CP05-05700* 000-055-238 1 set For antenna coupler
CP05-08801* 005-951-930 1 set For control unit
CP05-08802* 005-952-180 1 set For transceiver unit
05S0949 L-10 000-130-484 10 m
05S0949 L-20 000-130-485 20 m
05S0949 L-30 000-130-486 30 m
05S0949 L-40 000-130-487 40 m
05S0949 L-50 000-130-488
1
50 m
05S0462 L-10 000-113-360 10 m
05S0462 L-20 000-113-361 20 m
05S0462 L-30 000-113-362 30 m
05S0462 L-40 000-113-363 40 m
Installation Materials
05S0462 L-50 000-113-364
1
50 m
For antenna
coupler
*: See the lists on the back of this manual.

vi
Optional Equipment
Name Type Code no. Qty Remarks
PR-300 - 1 For FS-1570 (150 W)
AC-DC Power
Supply Unit PR-850A - 1 For FS-2570 (250 W)
Printer PP-510 - 1 set
w/installation materials
(CP16-01200),
accessories
(FP16-00100)
Printer Interface Kit IF-8500 000-053-895 1
Distress Alert Unit IC-302-DSC - 1 set w/Installation materials
Incoming Indicator IC-303-DSC - 1 set w/Installation materials
Whip Antenna 04S4176 000-112-845 1 2.6 meter
Preamp Unit FAX-5 000-075-016 1 set
External
Loudspeaker SEM-21Q 000-144-917 1
Control Unit FS-2570C - 1 set
OP05-96 000-056-949 1 set
Terminal Unit IB-581,
DSP print, Accessories
NBDP
Terminal Unit Set OP05-100 000-056-956 1 set
Terminal unit IB-583
(w/accessories, spare
parts)
Handset HS-2001 - 1 set w/Bracket
Flush mount Kit OP05-98 005-951-830 1 For control unit
W/R2 set OP05-99 005-951-840 1 set For FS-2570, P.C.B.
17JE23150-02 (D8C)
5 m 000-146-015 5 m cable
17JE23150-02 (D8C)
10 m 000-146-016 10 m cable
17JE23150-02 (D8C)
20 m 000-146-017 20 m cable
17JE23150-02 (D8C)
30 m 000-146-018 30 m cable
17JE23150-02 (D8C)
40 m 000-146-019 40 m cable
Cable assy.
17JE23150-02 (D8C)
50 m 000-146-020
1
50 m cable

1-1
1. MOUNTING
1.1 Control Unit
1.1.1 Mounting methods
The control unit can be mounted one of four ways;
• In the hanger (overhead, bulkhead or tabletop)
• Flush mounting.
1.1.2 Mounting considerations
• Make sure the location is strong enough to support the unit under the conditions of
continued vibration and shock normally encountered on the boat
• Locate the unit where it is easily accessible and does not interfere with personnel or
operation of other equipment; for example, ship’s wheel.
1.1.3 Hanger mounting
1. Fix the hanger with tapping screws (supplied).
2. Set the control unit to the hanger and fix it with the washers and knobs.
135
110 100
80
80
220±0.5
258
50.5±0.5
108
110
Mounting the control unit

1-2
1.1.4 Flush Mounting
Use the optional flush mount kit.
Name: Flush mount kit
Type: OP05-98
Code No.: 005-951-830
Name Type Code No. Qty Remarks
Mounting metal 05-089-1171 100-299-020 2
Wing bolt M4x30 000-804-799 4
Wing nut M4 000-863-306 4
Hex. bolt M6x12 000-862-127 2
Spring washer M6 000-864-260 2
1. Make a cutout of 251 mm (W) x 100 mm (H).
2. Insert the control unit to the cutout.
3. Attach two mounting metal (supplied with kit) to the control unit with hex bolts (M6 x 12,
supplied with kit) and spring washer (supplied with kit) from the rear side.
4. Screw four wing bolts (supplied with kit) to wing nuts (supplied).
5. Fasten the control unit to the mounting location with four wing bolts and nuts assembled at
step 3.
251+1
100+1
23 (65)
110
(115) 100
(service space)
12
25
14
Cutout dimensions
Flush mounting, side view
Flush mounting

1-3

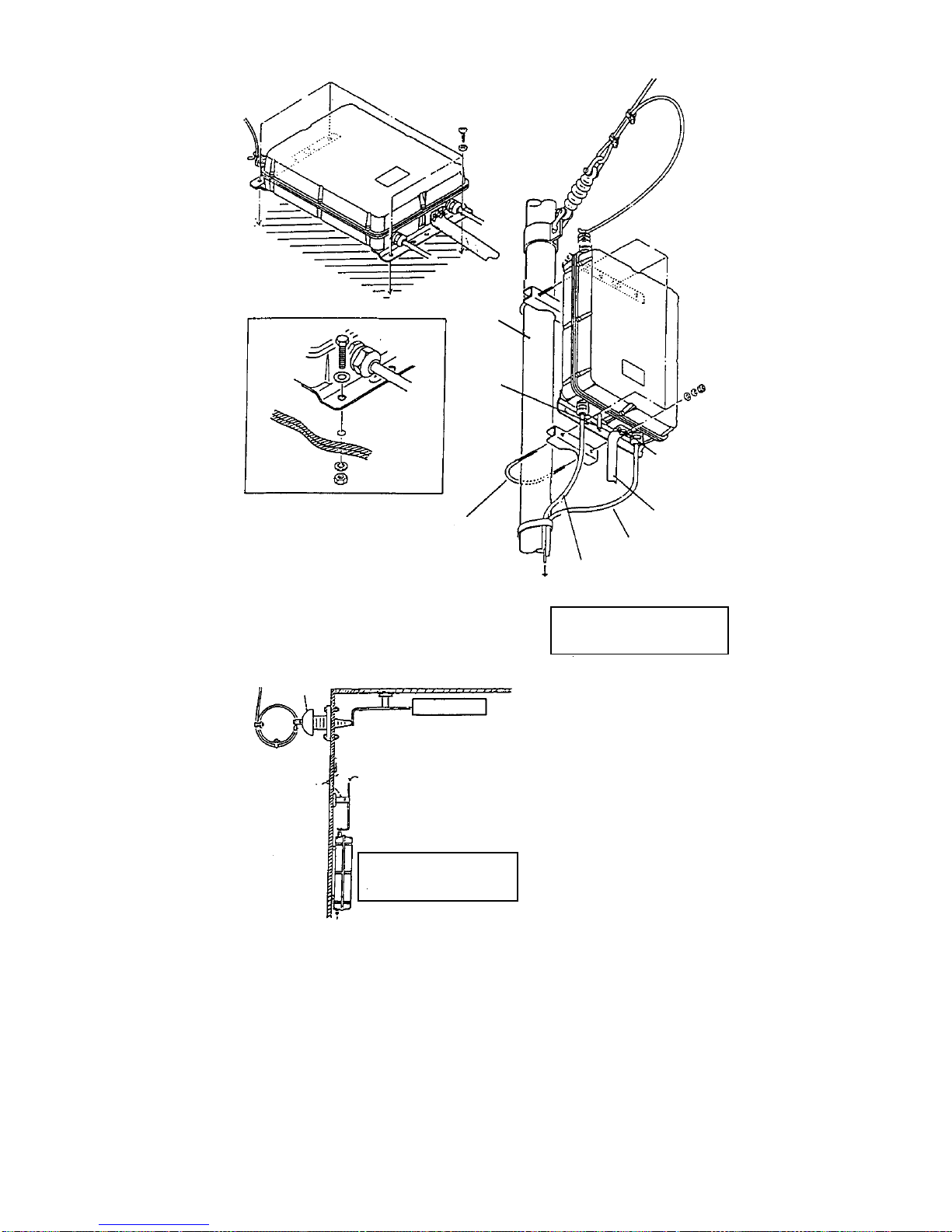

1.2 Antenna Coupler
DANGER
DANGER
ELECTRICAL SHOCK HAZARD
Do not touch cable from the antenna coupler.
Electric shock, fire, serious injury or death can
result if the cables are touched
during transmission.
Do not touch this point.
1.2.1 Introduction
The antenna coupler is installed between the antenna and the transceiver, and tunes the
antenna to the transmitter.
The importance of a good ground system cannot be overemphasized. Without a good ground,
this unit will not work properly – if at all.

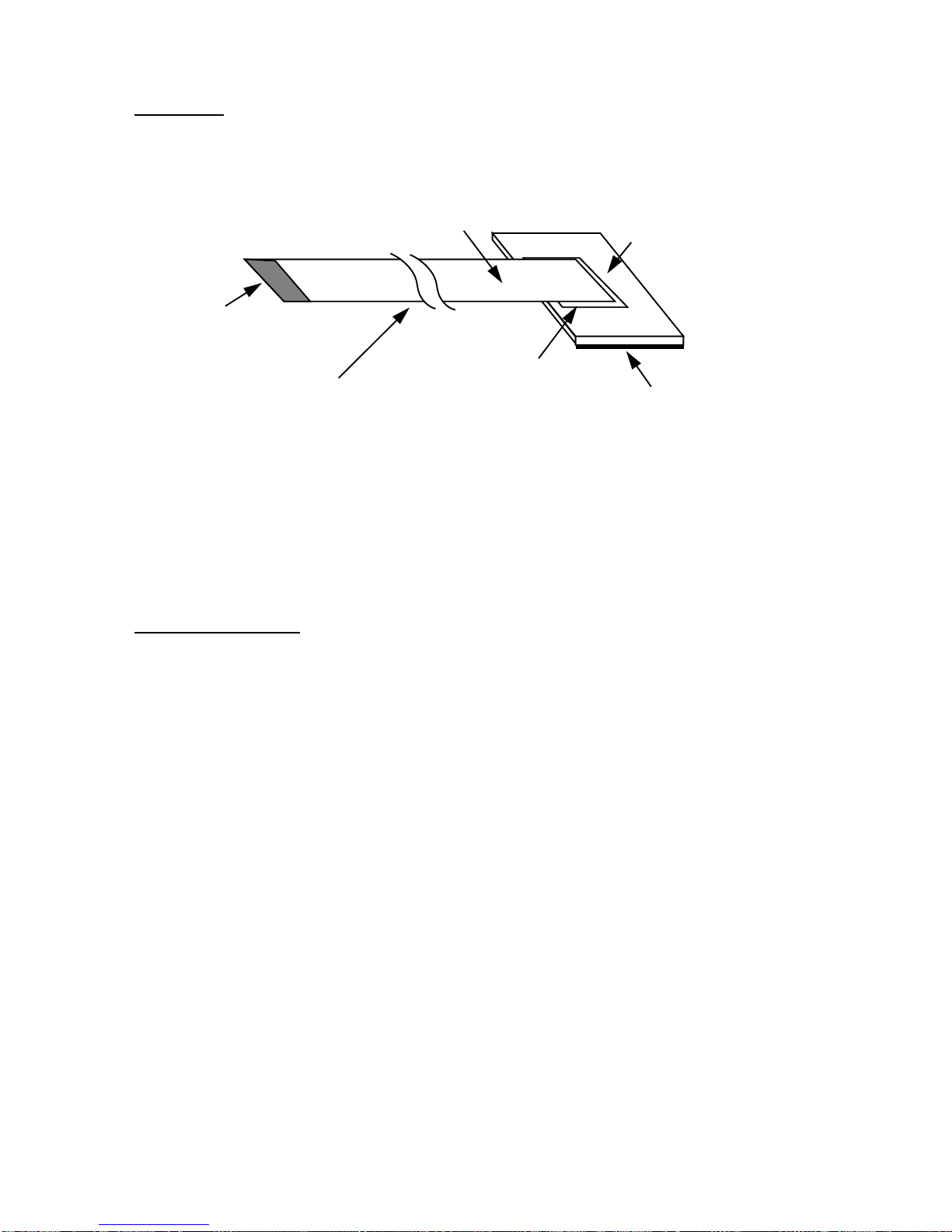

1.2.2 Ground System
A good antenna can work well only when an efficient RF ground is provided. Without a good
ground system, the full potential of this radio cannot be realized.
CAUTION
Ground the equipment.
Ungrounded equipment can
give off or receive electro-
magnetic interference or
cause electrical shock.

1-4
Grounding
Run a copper strap (supplied) between the ground terminal of the antenna coupler and the
ship’s superstructure.
Copper strap
Braze
Ground plate
(a piece of steel plate)
Weld to ship's structure
Solder
For outdoor installation,
apply a coat of paint to prevent rust.
0.4 x 50 x 600
Ground for metallic hull
1.2.3 Mounting considerations
The splashproof construction of the antenna coupler permits installation either indoors or
outdoors. When selecting a location, keep in mind the following points.
Outdoor installation
• Select a location not exposed to salt water spray. Salt water on the antenna insulator may
cause unstable operation of the coupler and in the worst case prevent transmission.
• All wires from the coupler to the antenna radiate radio energy. They should be routed away
from any grounded conductors such as mast shrouds, or fittings.
• For optimum radio energy, locate the coupler as near to the ground as possible.
• The length of the vertical portion of the antenna should be as long as possible.
• Leave enough space around the sides of the unit to permit maintenance and checking.
• Total antenna length should be 7 to 30 meters.

1-5
Indoor installation
• Locate the unit away from GPS and radio equipment to avoid mutual interference.
• The lead-in wire should be as near to the unit as possible.
• Select a place where the unit can be easily maintained, but where it will not interfere with
crew or passengers.
• Overhead mounting is available for indoor installation.
1.2.4 Anti-moisture measure (vent tube)
The vent tube (attached) prevents moisture from being drawn into the enclosure during
atmospheric pressure changes and allows trapped humid air to escape. Install it according to
coupler installation method, before mounting coupler.
Vertical or horizontal installation
Two vent holes are provided on the coupler, one at the bottom and one on the rear. The vent
tube is set to vent hole B at the factory. This location is for vertical installation of the coupler. For
horizontal installation, remove the vent tube from vent hole B and set it to vent hole A. Cover
vent hold B with seal (supplied), from inside the coupler.

1-6
1.2.5 Mounting
The antenna coupler can be fixed to the floor, bulkhead, overhead or mast. For mounting on the
bulkhead, fix the coupler with either tapping screws or M5 bolts and nuts. The resin type
antenna coupler can be mounted on the most, using two U-bolt (Type: OP05-12, Code No.:
005-923-680).
Example for installation
Do not installation with this direction.
Example for antenna coupler mounting

1-7
Drain
tube
Ground
terminal
Ground
plate (copper)
Coaxial
cable
Signal
cable
EXAMPLE OF
OUTDOOR MOUNTING
For thin bulkhead, use
nuts, bolts and washers
instead of tapping screws.
U-bolt
assy.
Stand-off
insulator
Lead-in
insulator
EXAMPLE OF
INDOOR MOUNTING
Mast
Lead-in insulator
Stand-off
Insulator
From Antenna
Switch Box
ANT SW BOX
AS-1E (Option)
Signal
Cable
Coaxial
Cable
Copper Earth
Plate
Ground
Terminal
Drain
Tube
Mast
For thin bulkhead
use nuts, bolts and
washers instead of
tapping screws.
U-bolt
Assy.
Mounting the antenna coupler

1-8
1.3 Transceiver Unit
• Bulkhead mounting only
• Select a location which provides adequate ventilation.
• The location must be clean and dry.
• The mounting location must be able to support the weight of the unit (FS-1570: 11.0 kg,
FS-2570: 14.0 kg) under the continued conditions of vibration normally encountered aboard
the vessel. If necessary, reinforce the mounting location.
• Secure the maintenance space shown in the outline drawing at the back of this manual, for
ease of maintenance and service.
Transceiver unit
Ground the transceiver unit with the cable assy (05S0479, supplied), to prevent interference.
Fasten the transceiver unit to the mounting location with six tapping screws in the order shown
below. (Asterisk-marked holes are not used.) For details, refer to outline drawings at the back of
this manual.
**
11
2
3
**
Transceiver unit (ex. FS-1570T)

1-9
1.4 Handset (w/bracket)
Unfasten six screws to remove the bracket cover, and fasten the bracket to the mounting
location with two tapping screws 4 x 16 (supplied) on the desktop or bulkhead.
Note: The magnet inside the bracket may pull the screwdriver when mounting the hanger.
65
208
(77)
57
12 Cable entrance
145+0.5
22
42
2- 4.5
Fixing hole
Handset
hanger cover
Screws
Handset (w/bracket)

1-10
1.5 The Antenna
The antenna plays the most important role in radio communication. If it cannot receive or
transmit effectively because of improper installation, even the most sophisticated transceiver will
be rendered useless.
1.5.1 Types of antennas
The most commonly used are a long wire and a whip. Whatever antenna is to be used, the
antenna coupler can tune a long wire or whip whose total length is 7 to 30 meters (23.3 to 100
feet). Although a longer antenna is preferable when the radio is operated only on low
frequencies, use this size of antenna to ensure stable automatic tuning on all bands.
Long wire antenna
A long wire antenna is inexpensive and in general provides better performance than a whip
antenna, provided the vertical part is long enough.
Whip antenna
A whip antenna is easier than a long wire antenna to install and provides good overall coverage
of most SSB frequencies. A whip antenna is installed as high as possible, away from any nearby
objects.
Mounting considerations
When selecting a mounting location;
• The length of the vertical portion should be longer than 4 meters, and the slant angle of that
part should be within 10 degrees. Separate it as far as possible from:
stays, metallic objects, direction finder antenna, INMARSAT radome antenna
• Locate the insulator away from funnels and masts.
• If the antenna coupler is installed outdoors, use a lead-in insulator (Furuno type YA-150 for
FS-1570 or YA-218 for FS-2570) to make the connection. If necessary, use a high quality
antenna switch and stand-off insulator.
• If the antenna is connected directly to the coupler, use a strain insulator to prevent insulator
fatigue.

1-11
1.6 Mounting of Optional Equipment
1.6.1 AC-DC power supply unit
Mounting considerations
When selecting a mounting location, keep in mind the following points.
• Select a location which provides adequate ventilation.
• The location should be clean and dry.
• The mounting location must be able to support the weight of the unit (PR-300:14.5 kg,
PR-850A: 35 kg) under the continued conditions of vibration normally encountered aboard
the vessel.
• A magnetic compass will be affected if the power supply unit is placed too close to it.
Observe the following compass safe distances to prevent disturbance to the magnetic
compass: For PR-300, standard: 0.90 m, steering: 0.70 m, for PR-850A, standard: 1.00 m,
steering: 0.70 m.
Mounting
Refer to the outline drawings at the back of this manual.
1.6.2 Preamp unit FAX-5
The body of preamp unit can be mounted two ways:
1. The bottom of the preamp unit is designed to accept a threaded extension mast of 1 inch
diameter. The pitch of the thread should be 14 threads per inch. To prevent undue flexing of
the mast in heavy winds, the mast should not be longer than 5 feet (1.5 m).
2. The side of the preamp unit has a molded channel so that it may be mounted directly to a
stub mast with two stainless steel hose clamps. Hose clamps must be arranged locally.
Screw the 2.6 m whip antenna (option) tightly onto the preamp unit and waterproof the junction
and other exposed metallic parts with sealing compound (silicone rubber, putty, etc.)
Note that a wire antenna of 2 to 3 meters length may be used instead of the whip antenna.
Note: The preamp unit requires 9 VDC power. See paragraph 3.5 for how to provide power to
the preamp unit.

1-12
50
Thread
(14 threads/inch)
1" Pipe
2.6m Whip Antenna
Spring
Washer
Mast
Hose
Clamp Earth
Antenna Wire
Coupling
Nut
Wire Antenna Fixture
Preamp Unit
Mounting of preamp unit
1.6.3 Printer PP-510
Install the unit with the two mounting fixtures (supplied). Refer to the outline drawing at the end
of this manual. Connect the interconnection cable between the printer and the transceiver unit.
For how to load paper and set ribbon cassette, refer to the Operator’s Manual of the printer.
Mounting
1. Select a flat surface. (Compass safe distance: Standard, 1.0 meters, Steering, 0.8 meters).
2. Fix the printer to the mounting location with two mounting fixtures.
405
200
Mounting Fixture (1)
Mounting Fixture (2)
Dimensions of printer PP-510
