Futura FTOH2500 User manual

2500W Infrared Heater
FTOH2500
REGISTER YOUR GUARANTEE
www. .co.uk/guarantee
User Manual—Please read and retain for future reference

Thank you for choosing our Futura Infrared Heater. Please be sure to read this user’s manual
carefully before using the unit. If you should encounter any problems, please contact a qualified
service technician for help.
Contents
Parts List
Technical Information
Safety Instructions
Using your unit
Maintenance
Warranty
Parts List
No.
Description
No.
Description
1
PCB Board
16
Adjusting Nut and bolt
2
Mica Board
17
Adjusting Board
3
Transparent Window
18
Holding Board
4
Switch
19
Right Side Board
5
Left Side Board
20
Clamping
6
Rubber Washer
21
Fixed Board for Lamp
7
Wire Box
22
But
8
Connector
23
Fixed Board for Lamp
9
Side Board
24
Plate
10
Rubber Connector
25
Lamp
11
Ceramics Column
26
Mesh
12
Decorative Strip
27
Wrench
13
Back Board
28
Remote Control
14
Insert Strip
29
Web
15
Bracket
30
Board

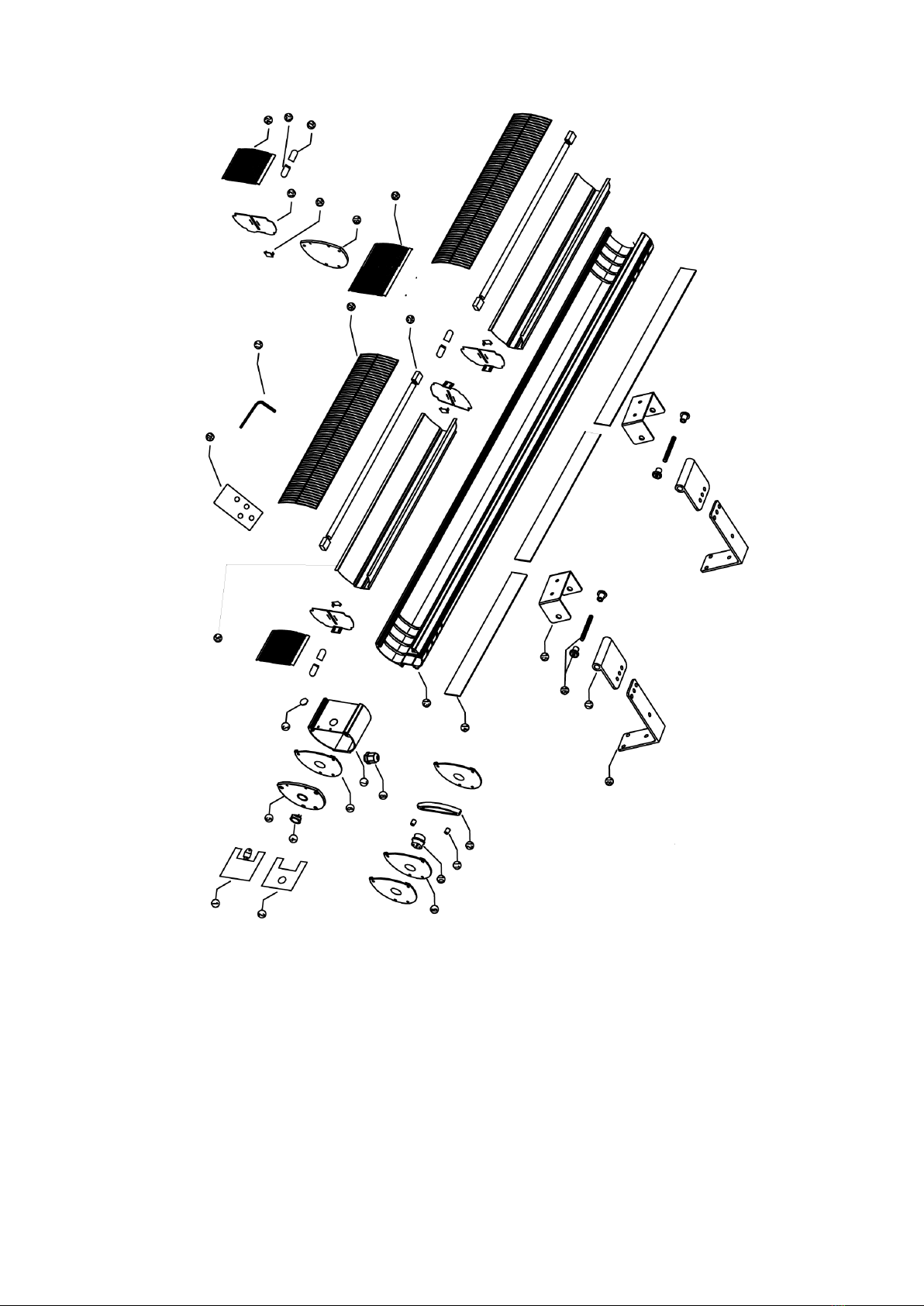

Exploded Assembly Diagram
NOTICE: Actual product may vary from pictures shown.
Technical Information
2500W Infrared Heater
Model: FTOH2500
Voltage: 220 - 240V~ 50Hz
Rated Power: 2500 W
Heating Setting: 800W/ 1600W/ 2500W
Protection against electric shock: Class I
Protection against harmful ingress of water: IP65

IMPORTANT
Read these instructions fully before using the heater. Retain these instructions
for future reference.
Safety Instructions
Warning!
1. Do not use the heater with a programmer, timer, separate remote-control system to
the one supplied or any other device that switches the heater on automatically, a fire risk
exists if the heater is covered or positioned incorrectly.
2. It is dangerous to install the appliance close to curtains and other combustible
materials.
3. Do not use the heater in reach of a shower, bath or a swimming pool.
4. Heater must not be located immediately below a socket-outlet
5. If the power supply cable is damaged, it must be replaced by the manufacturer, its
service agent or a similarly qualified person in order to avoid a hazard.
6. In order to avoid overheating, do not cover the heater.
7. This appliance cannot be used by children under18 years of age and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
8. Keep the appliance and its power cable out of reach of children.
9. WARNING: This heater is not equipped with a device to control the room temperature.
Do not use this heater in small rooms when they are occupied by persons not capable of
leaving the room on their own, unless constant supervision is provided
10. Pay attention that, no combustible material due to Wind or other environmental
influences covers or obstructs the appliance, such as curtains, marquees, flags, plastic
etc.
11. CAUTION: Some parts of this product can be very hot and cause burns. Particular
attention has to be given where children and vulnerable people are present.
When using this electric unit, basic safety precautions should be followed to
reduce the risk of fire, electric shock, and injury to persons, including the
following:
1. Read ALL instructions before using this unit.
2. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.
3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot
surfaces. If provided, use handles when moving this heater.
4. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and
curtains at least 3ft from all sides of the heater. DO NOT place towels or other
combustible objects on the heater.
5. Extreme caution is necessary when any heater is used near children or the disabled,
the heater must never be left operating and unattended.
6. DO NOT operate any heater with a damaged power cable or after the heater
malfunctions, has been dropped or damaged in any manner. Return heater to authorised

service facility for examination, electrical or mechanical adjustment, or repair.
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations. NEVER locate heater where it may fall into a bathtub or other water container.
To protect against electrical hazards, DO NOT immerse in water or other liquids.
8. DO NOT touch the control panel with a wet hand.
9. DO NOT run power cable under carpeting. DO NOT cover power cable with throw rugs,
runners, or similar coverings. Arrange power cable away from traffic areas and where it
will not be tripped over.
10. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as
this may cause an electric shock or fire, or damage the heater.
11. To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner.
12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where
gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away
from heated surfaces and open flames.
13. Avoid the use of an extension cable because the extension cable may overheat and
cause a risk of fire. However, if you have to use an extension cable, the cable shall be
1.5mm2minimum size and fully unwound from reel.
15. To disconnect heater, turn controls to OFF.
16. Always turn off the unit before moving or cleaning, or whenever the heater is not in
use.
17. Use only for intended use as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or injury to persons.
The use of attachments not recommended or sold by unauthorised dealers may cause
hazards.
18. Always use on a dry, level surface. Use on ceiling or wall only.
19. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any
solid-state speed control device.
20. DO NOT attempt to repair or adjust any electrical or mechanical functions on this
unit. Doing so will void your warranty. The inside of the unit contains no user serviceable
parts. Qualified personnel should perform all servicing only.
21. Connect to properly grounded outlets only.
22. This appliance is not intended for use by persons (including children) with reduced
physical. Sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
23. Children should be supervised to ensure that they do not play with the appliance.
24. The marketing concerning covering shall be visible after the heater has been
installed.
25. Save these instructions.
Warning!
The appliance must only be operated in a horizontal position with max±15°slope. In
case of operations in angles larger than 5°in horizontal position or of vertical operations,
the heating loop wire may become faulty.
1. Do not use the appliance in areas where petrol, paints or other flammable substances
are used or stored.
The minimum distance of your appliance from the ground is 1.8 m (6 feet).

2. The minimum distance of your appliance from the ceiling is 0.2 m (2.5 feet).
3. The minimum distance of your appliance from the animals is 1 m (3.5 feet).
4. The minimum distance of heating area of your appliance from the materials such as
wood, carton, cloth etc., is1m (3.5 feet).
5. WARNING: In order to avoid overheating, do not cover the appliance.
6. Do not insert any objects into the protective grid.
7. This appliance cannot be used by children under18 years of age and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Attention! Only authorised and qualified persons can repair and replace parts of this
heater.
Using your Units
Installation of the Heater
1. Attention before installation
1. Products should be put down gently
2. Acid and alkali environment installation is not recommended.
3. The product must be grounding
4. The products are required to check the product brand mark on the voltage and the
local voltage whether conform.
5. Ensure the power rating should have sufficient current carrying capacity.

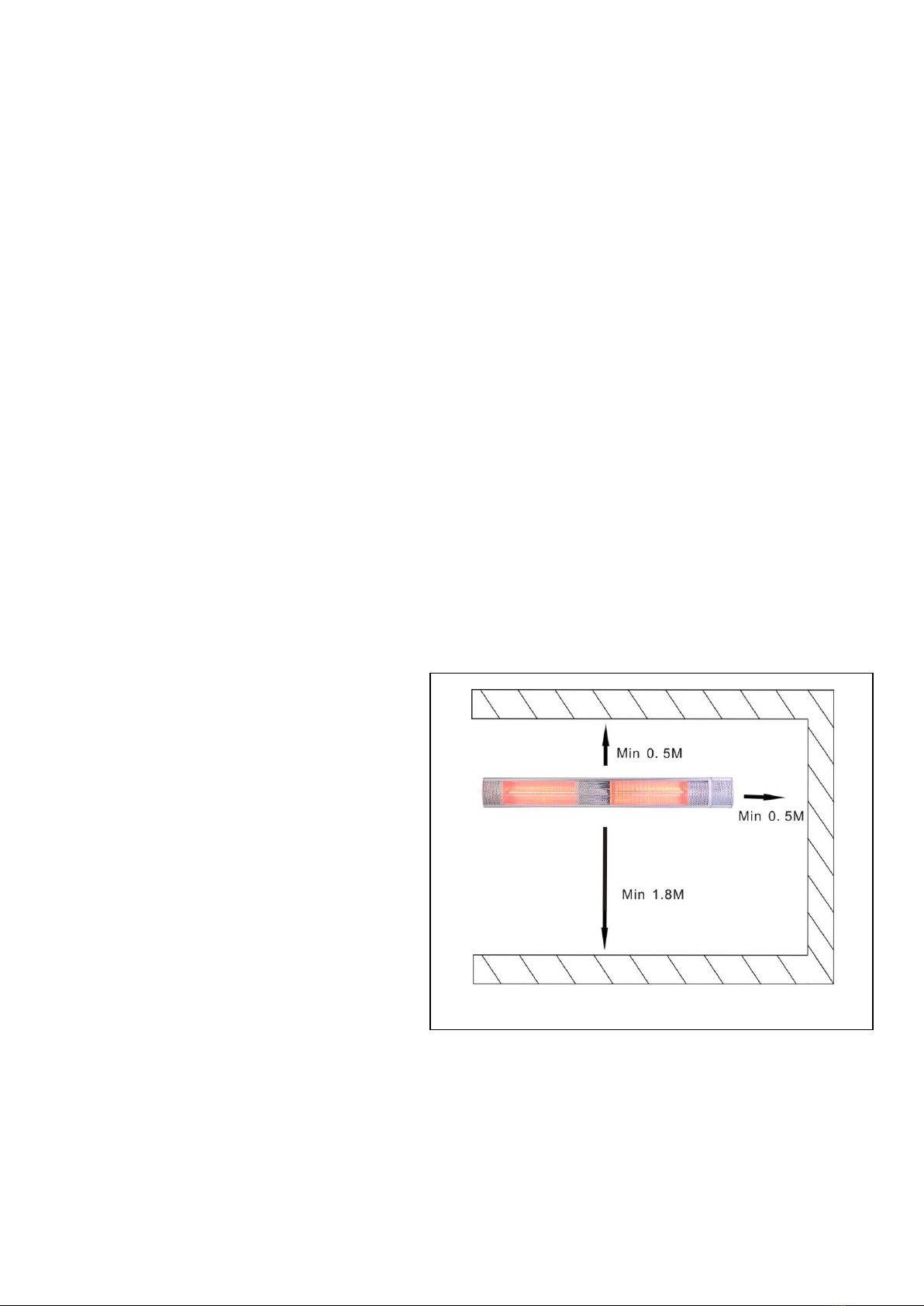

2. Ensure the production's
installation site
For the safe use of the product, the
product installation position should
guarantee the bottom minimum height
of 1.8 m from the ground, ceiling, roof,
or other coverings minimum distance
is 0.5 m, minimum distance with both
sides wall is 0.5 m (as shown in figure
1)
3. Installation Steps:
1. According to where the product installation location is, use a power drill to make four
8 mm round holes.
2. Insert the six plastic wall anchors into the six holes.
3. Fixed the bracket using six ST4*35 screws and make sure the installation points are fixed
securely
4. Before fixing the heater, make sure the rocker power switch on the right side and then fixed the
bracket to the heater using four M6*14 screws and butterfly nuts
Fig. 1 Min. Distance to the Ground

Operating Instructions
1. These appliances must be supplied with proper voltage and frequency
(AC220-240V, 50Hz), and connected to an individual, properly grounded
branch circuit, protected by a circuit breaker which in accordance with
wiring rules. Installation can only be carried out by qualified person in order
Fig. 2
Fig. 3
Fig. 4

to avoid a hazard.
2. Only operate the heater when it is correctly installed.
Our Electric Heater is equipped with a remote control.
3. To operate the heater, please turn on the Power
Switch firstly which is right side of heater. Then using
the remote control select desired heat setting 800W,
1600W or 2500W. Press the red power button on the
remote to turn the heater off.
Remote Control
1. Power indicator
When in use, press any button, the red
indicator will flash.
2. On / Off
Switches on or off the heater or stands it by.
3. First gear
After turn on the heater, you can choose low
heating.
4. Second gear
After turn on the heater, you can choose
moderate heating.
5. Third gear
After turn on the heater, you can choose high
heating.
Maintenance:
Turn off the circuit breaker before maintenance and let the unit cool completely.
1. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You
may use a mild detergent if necessary. After cleaning, dry with a soft cloth.
2. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to
clean the heater. This may cause damage or deterioration to the surface of the heater.
3. Although this heater is outdoor approved (Balconies and patios), DO NOT immerse
the heater in water for your safety. Wait until the unit is completely dry before use.
Storage
If the heater will not be used for a long period of time, store it in a cool, dry location
when not in use. To prevent dust and dirt build-up, use the original packaging to repack
the unit.
Disposal
Fig. 5
Fig. 6

Household Appliances, accessories and packaging should be sorted for
environmentally-friendly recycling.
Only for EC countries:
Do not dispose of appliances into household waste!
According to the European Directive 2002/96/EC on waste electrical and
electronic equipment and its incorporation into national right, products that
are no longer suitable for use must be separately collected and sent for
recovery in an environmentally-friendly manner.
Declaration of Conformity
The declaration is to certify that it conforms to CE, EMC, LVD and RoHS
directives:
EN55014-1:2006 + A1 + A2
EN55014-2: 2015
EN61000-3-2: 2014
EN61000-3-3: 2013
All provisions of Annex 1 of Council Directive 2014/30/EU –EMC directive
EN60335-1: 2012 + A11
EN60335-2-30: 2009 + A11
EN62233: 2008
All provisions of Annex 1 of Council Directive 2014/35/EU –the Low Voltage
Directive
RoHs 2011/65/EU
Mr. Paul Kaye, UK QA Manager

Please read the following carefully
FUTURA Direct Ltd. and/or its distributor have provided the parts list and assembly
diagram as a reference tool only. Neither FUTURA Direct Ltd. or its distributor makes any
representation or warranty of any kind to the buyer that he or she is qualified to do any
repairs or replace any parts of this product. FUTURA Direct Ltd. and its distributor
expressly state that all repairs or parts replacement should be done by certified or
licensed technicians. The buyer assumes all risk and liability arising out of his or her
repairs or parts replacement to the original product.
12 Months Limited Warranty
If within 12 months from the date of purchase you experience any problems with your
product, please return the product to its distributor/dealer for repair or replacement.
This warranty DOES NOT COVER normal wear, or any damage as a result of accidents,
misuse, abuse or negligence.
REGISTER YOUR GUARANTEE
www. .co.uk/guarantee

Contact us at www.futuradirect.co.uk/contact
Register at www. .co.uk/ guarantee
We FUTURA Direct Ltd, England DN6 7AY declare that the heater is exclusively manufactured for Futura Direct Ltd and
has been manufactured according to our full quality assurance procedures.
