FY Lighting LED High Bay User manual

FY Lighting
LED High Bay
Installaon Instrucons



LED HIGH BAY INSTALLATION GUIDE - WARNING
Please read instructions carefully before attempting to install hight bay light. Retain instruction for future reference.
● Disconnect power before installing or servicing. This led high bay must be installed in accordance with the applicable
installation code by a person familiar with the construction and operation of the product and the hazards involved.
● Make sure there is enough support for the position to install the LED high bay light.
● Do not attempt to open the LED high bay light for any reason.
● If the external soft cable or soft wire of the LED high bay light was damaged, please replace it with the cable or wire
specially provided by the manufacturer or its agent.
● This product must be earthed!
● Metal surface is hot when working, please don't touch it before the luminaire cools down adequately!
Installation Instructions
This led high bay has 2 installation methods. Suspended and Pendant Mount.

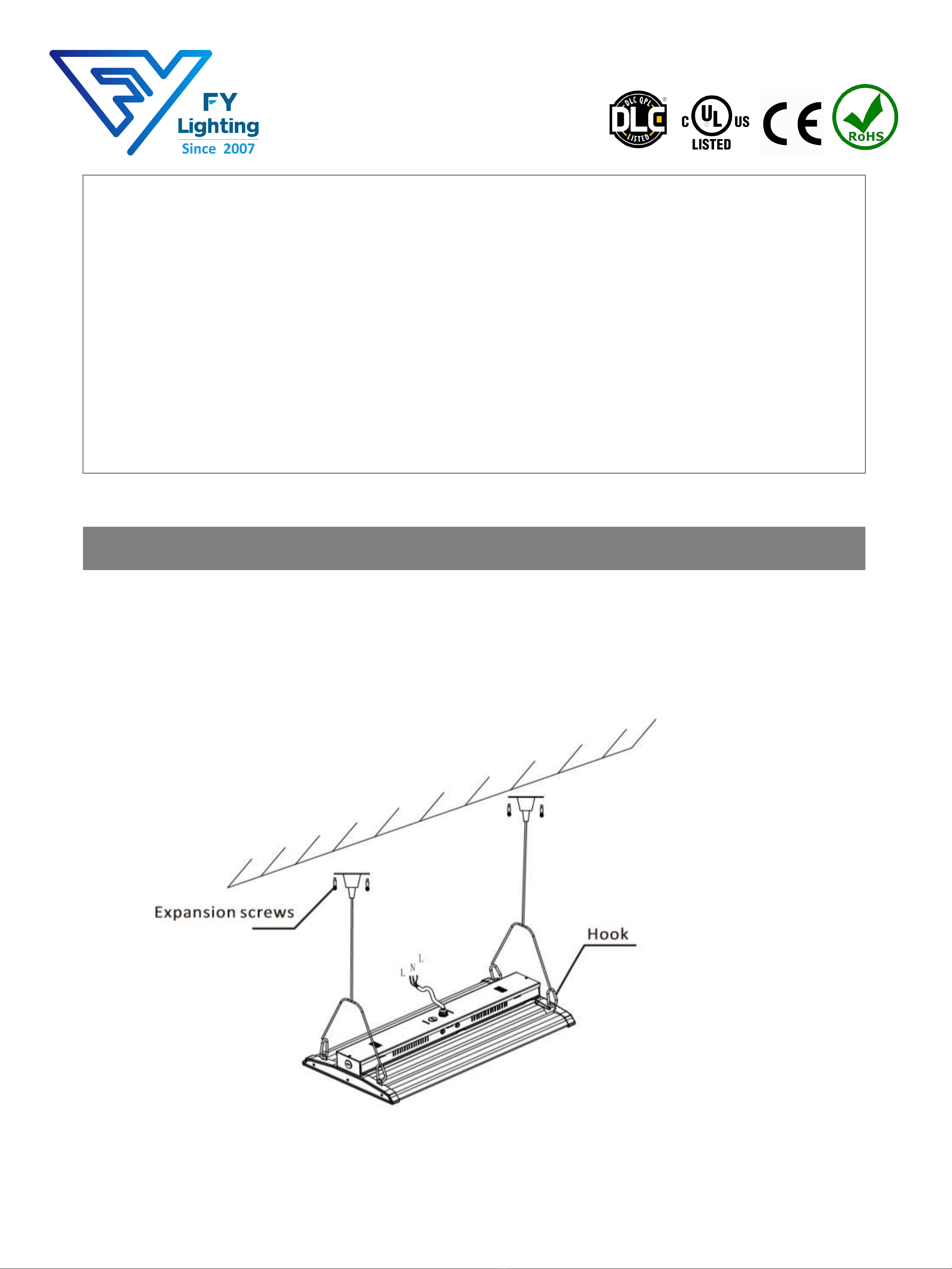

1. Suspended
Step 1: Fix the steel rope on the wall with expansion screws
Step 2: Hang the light with hook
Step 3: Connect with power wire
Figure 1
01


2. Pendant Mount
Step 1: Fix the junction box on the driver box with 4pcs screws (Figure 2)
Step 2: Put power wire through the connecting pole (Figure 3)
Step 3: Lock the junction box by nut and connect AC power wire (Figure 4)
Step 4: Fix two side plate by screws (Figure 5)
（Pendant Mount)
Figure 2 Figure 3
Figure 5Figure 4
02
