Page.7

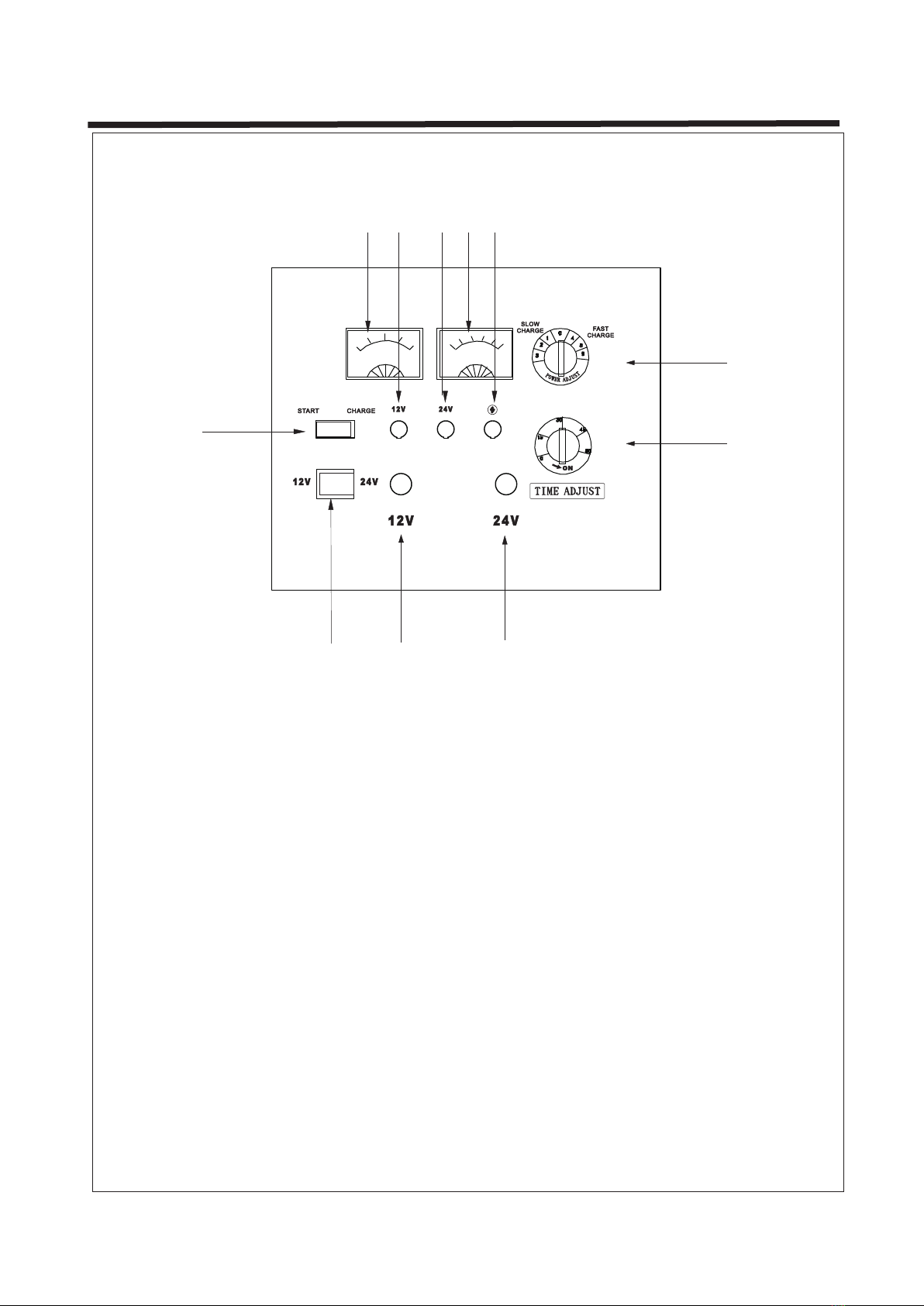

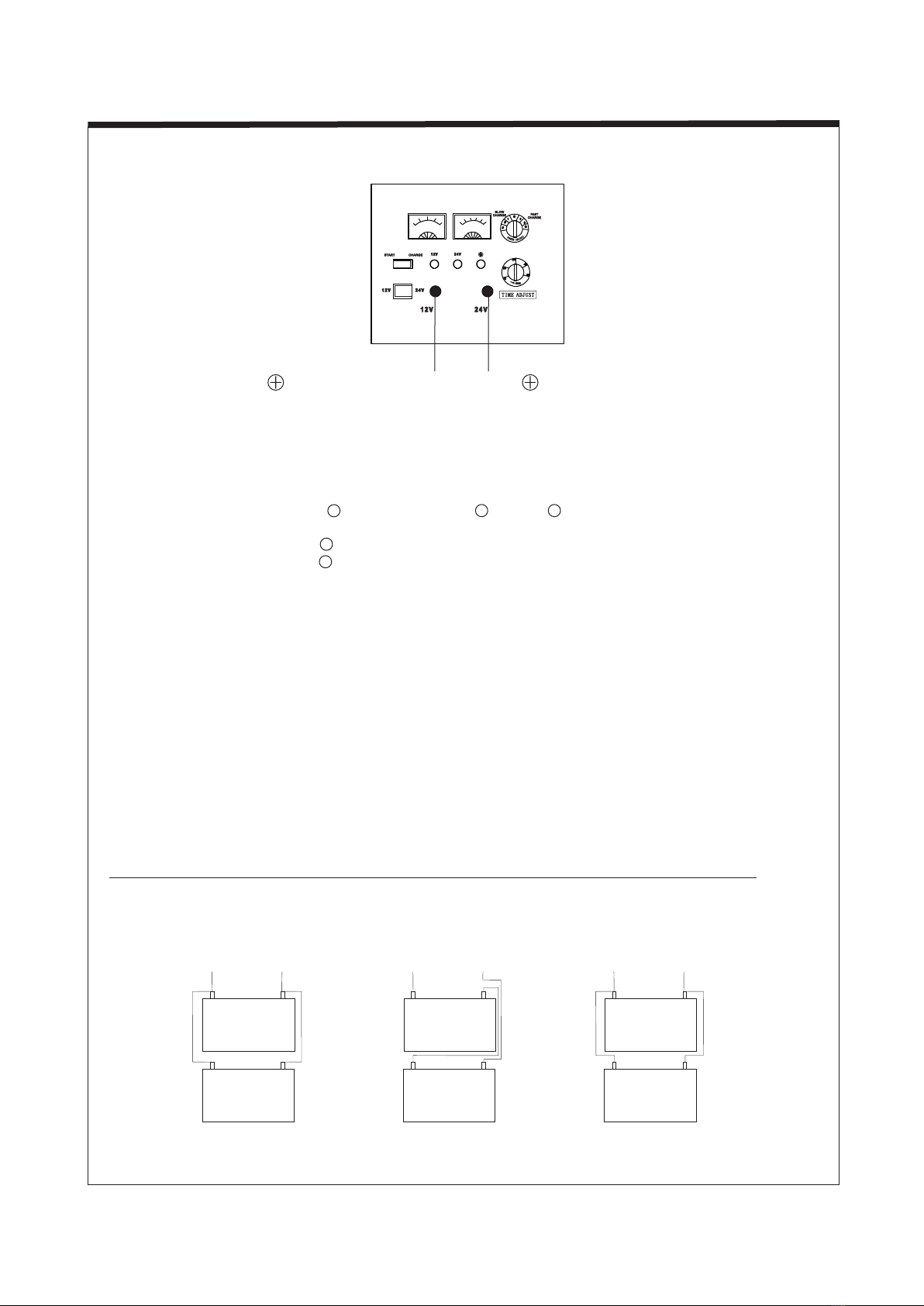

24 +
12V Output terminal
12 +
24V Output terminal
Start/Charge
Jump-starting:
NB! Unplug the charger from the mains before you connect up the battery to
the charger.
1)Connecting the charger to battery:
a)Connect charging cable + (red)to the 12V + or 24V +output terminal on the
charger.
b)Connect charging clip + (red) to positive post of battery,
c)Connect charging clip - (black) to negative post of battery.Turn clips
slightly to ensure a good connection.
Warning! Attach the charging clips to the battery the right way
round,i,e.with the correct polarity.Ensure that there is a good
electrical connection between the charing clips and the battery terminal
posts.
2) Set voltage selector to voltage of battery: 12V or 24V .
3)Set power switch to position 6 for jump-starting.
4)Set timer to ON
5)Plug in battery charger
6)Crank the engine in the normal manner. DO NOT CRANK FOR MORE THAN 15
SECONDS.Check car's owners manual for recommended cranking time limit.
7)When the engine has started, unplug the AC power cord from the outlet
8) Turn off charger and remove clip connected to battery post.
Warning! Do not touch charger clips when the charger is on.
NB: For high power engine, fast charge the battery for 15mins before jump-
starting to get the best result .For diesel engines,pre-heat spark plug
before jump starting.
If charger can not jump start engine, check to make sure the specification
of input power cord to meet mannfacturer's requirement and the connections
of charging cables.
