G.B.C MINI K OD User manual

INSTRUCTION MANUAL
Versione 00 - 2018
MINI K OD
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629

2
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
Index
Presentation of the company and introduction to the Instruction Manual 3
Warranty General Clauses 4
Intended Use Of The Machine 5
Technical Data 6
Available Models 7
Machine Standard Equipment 8
Safety Prescriptions 9
Transport recommendations 10
Machine Stability 11
Workplace 11
Emergency Stop Installation Exemption 11
Use Instructions 12

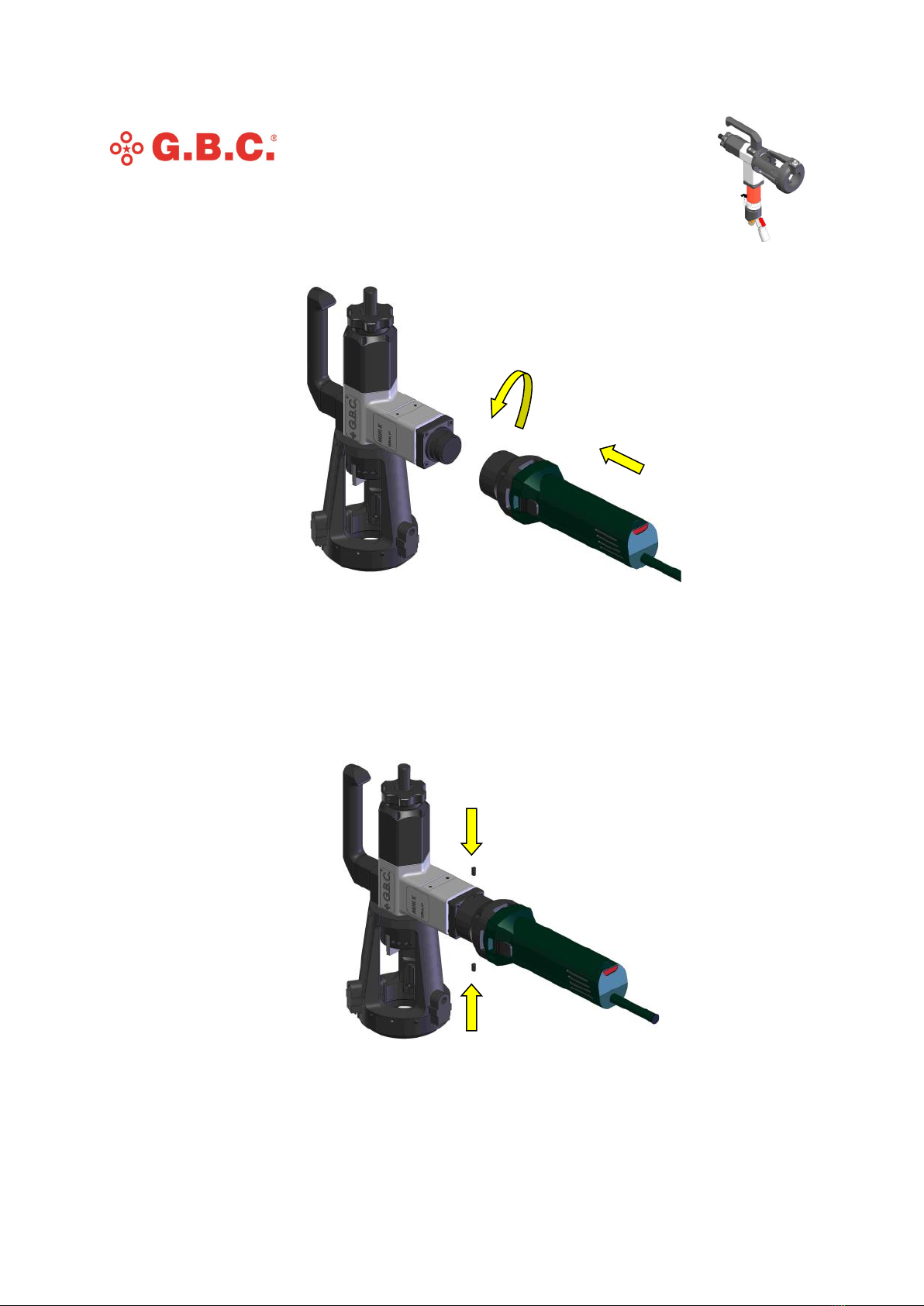

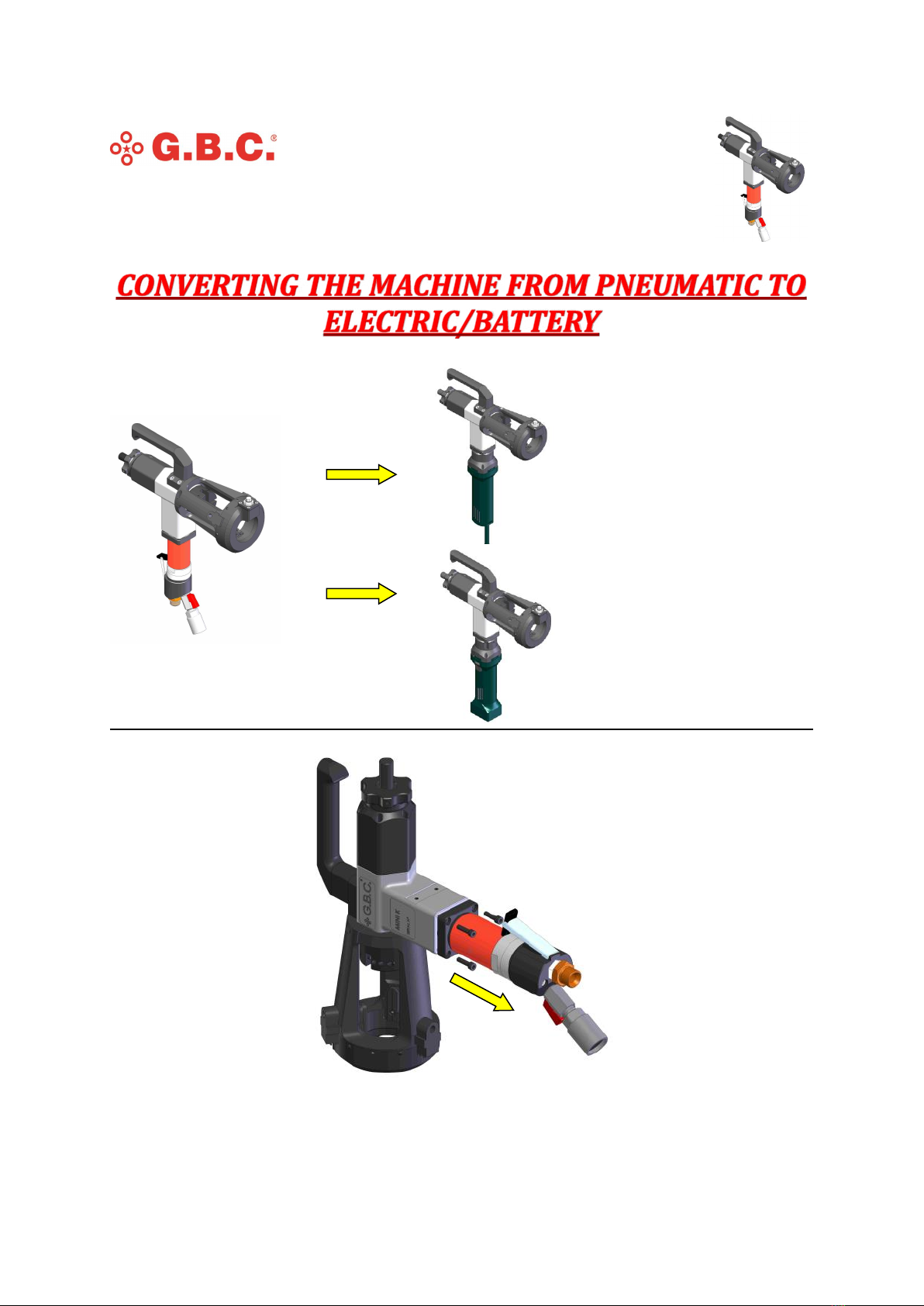

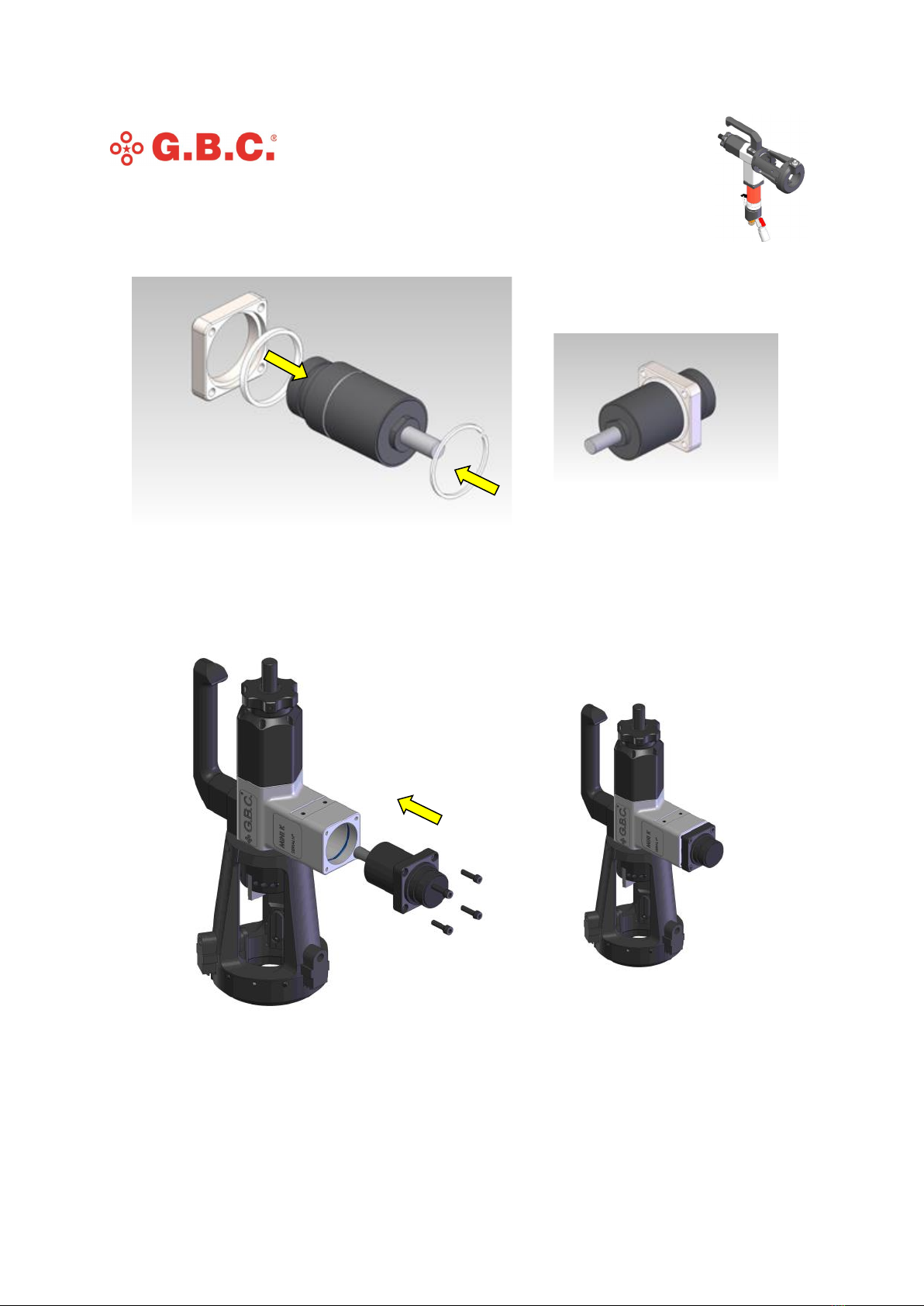

Converting The Machine From Pneumatic to Electric 17
Ordinary Maintenance 18
Troubleshooting And Acoustic Emissions 19

3
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
G.B.C. Industrial Tools S.p.A. is known worldwide for the quality of the machines and accessories
for pipe cutting and beveling procedures of any sort and plate beveling machines..
The Headquarters are located in Cazzago San Martino (BS) where are currently operating the Gen-
eral Management, the sales department, as well as the main workshop and the shipping department.
QUALITY STANDARD—All our machines are assembled according to the highest quality stand-
ard. Since 1996 G.B.C. Industrial Tool S.p.a. has implemented management procedures in compli-
ance with the quality system regulations UNI EN ISO 9001 (SGS ITALIA S.R.L. N° IT 96.088 /
1996).
This Manual is supplied together with the machine it makes reference to. The customer may apply
for further copies to G.B.C. Industrial Tools S.p.a. Our company owns the copyright of this docu-
ment and any partial or complete copy or distribution to natural persons or to corporate bodies is
strictly forbidden unless our prior approval to do so is obtained. G.B.C. Industrial Tools S.p.a.
informs its customers that any operation carried out on the machines which is not prescribed in this
manual entails the automatic invalidation of the warranty. G.B.C. Industrial Tools S.p.a.
recommends to contact the Maintenance Service in Cazzago San Martino – Italy prior to proceed
with any modification on the machine.
You are invited to scrupulously adhere to the information written on the identification tag.
For any further information you are invited to contact us at these numbers:
Tel. +39 - 030 -7451154
Info: [email protected]om

4
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
G.B.C. Industrial Tools S.p.a. guarantees the reliability of the machine and its conformity to the
specifications herewith reported. The warranty covers the machine in its whole for a time period
of one year from the shipment date (ref. Delivery Note) for any flaw not imputable to the user.
The parts subject to wear are excluded from the warranty at sole discretion of G.B.C. Industrial
Tools S.p.a.
In case of any operational malfunction arising during the warranty period, G.B.C. Industrial
Tools S.p.a.
And its Maintenance Service, hereinafter called MSS, will remedy this inconvenient free of
charge , both for handwork and for eventual replaced parts, except when the malfunction is
directly or indirectly imputable to misuse or alteration. In any case the machine must not be
disassembled or altered before the shipment. The warranty is valid only when the warranty docu-
ment is duly signed by G.B.C. Industrial Tools S.p.a. and by a G.B.C. official distributor
connected with the MSS maintenance service.
The shipment of the defective material must be performed within 8 (eight) days from the
notification of the defect and/or the claim and/or the request of technical assistance. On the con-
trary the warranty will be void. G.B.C. Industrial Tools S.p.A. and MSS obligations will cover
the defect resolution, the general maintenance and the inspection of the parts subject of the claim
only. The component replacement is at G.B.C. Industrial Tools S.p.A. discretion only. The ship-
men to costs from and to the MSS as well as the direct and indirect costs rising from repair of the
product are at user’s charge. Any warranty repair or extraordinary repair must be executed by
G.B.C. Industrial Tools S.p.A. and MSS, otherwise the warranty will be void.
Any ordinary maintenance performed by the customer/user or by any service centre non
recognized or approved by G.B.C. Industrial Tools S.p.A. will not be refunded and will make
the warranty void. The warranty is not valid for cases not listed in this certificate or for damage
caused by a misuse of materials, power supply, negligence, unauthorized modifications,
atmospheric events, acts of vandalism, incautious handling and/or transport, use of non original
G.B.C. Industrial Tools S.p.A. parts and damage for causes not specified by G.B.C. Industrial
Tools S.p.A. and for which G.B.C. Industrial Tools S.p.A. declines any responsibility. G.B.C.
Indus-trial Tools S.p.A. reserves the right to modify and to improve its products without any
obligation to modify equipment and components already supplied. Nobody is authorized to modi-
fy the conditions herewith contained or to issue any on behalf of G.B.C. Industrial Tools S.p.A.
The claim terms for defects and/or damages in the material or of the ordered quantities, are those
pre-scribed by the Civil Code; the goods acceptance entails the buyer to automatically accept the
above mentioned warranty clauses.

5
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629

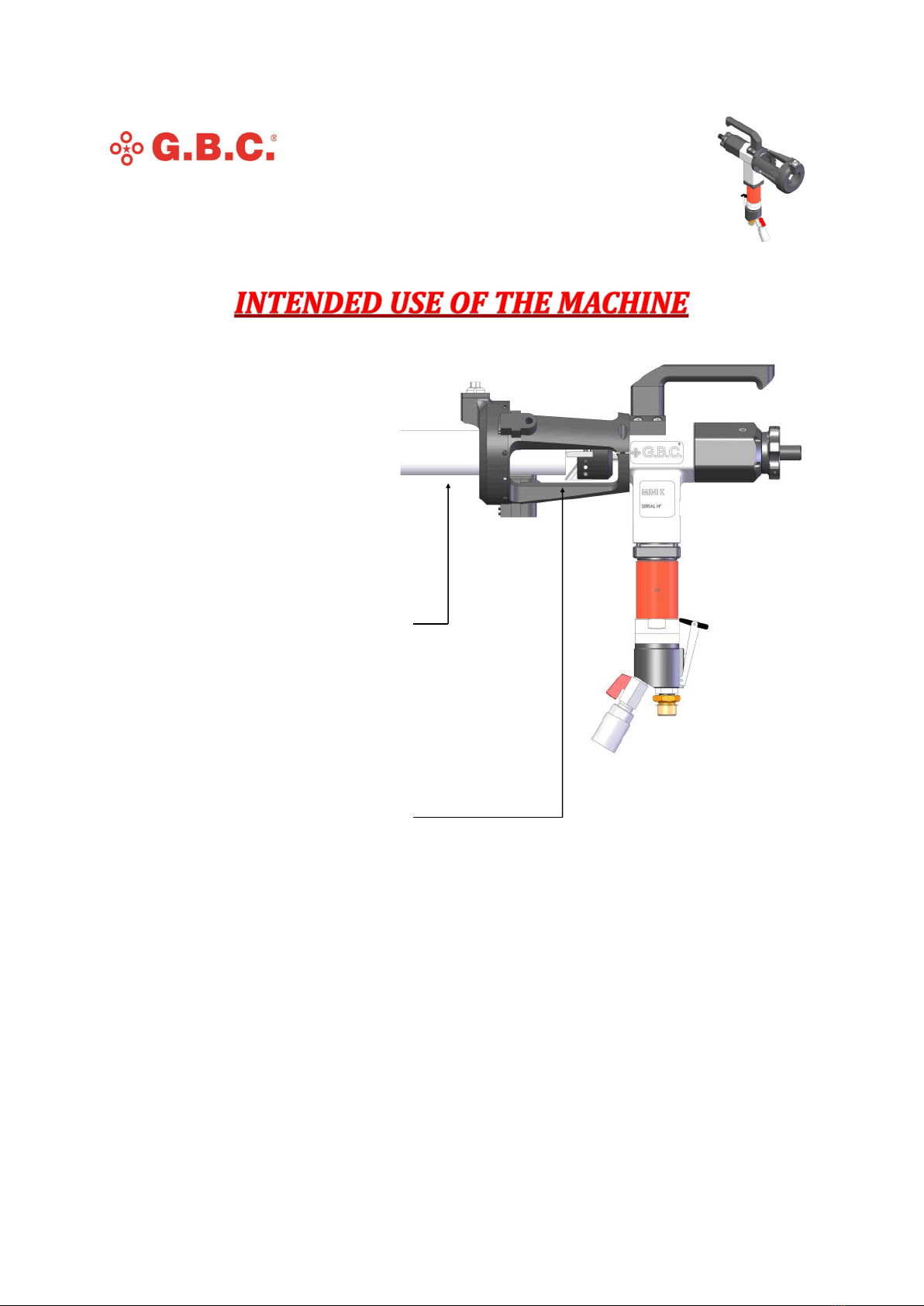

The Mini K OD is conceived
for beveling pipes and prep
them for the subsequent
welding process.
It works while inserted and
locked into the OD of the
pipe.
The bevel is obtained by
bevelling tools of various
shape and materials, depend-
ing by the nature of the mate-
rial to be bevelled.
THE MACHINE SHOULD BE OPERATED ONLY BY SPECIALIZED OPERATORS WHO HAVE
BEEN DULY TRAINED ON THE UNIT.
FOLLOWING TO A SPECIFIC FORMATION WE DO NOT ENVISAGE ANY REASONABLY
PREDICTALBE MISUSE OF THE UNIT

6
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
TECHNICAL DATA
PNEUMATIC ELECTRIC BATTERY
OD Locking Range mm (inches) 10 - 60 (0.39-2.37) 10 - 60 (0.39-2.37) 10 - 60 (0.39-2.37)
Idle Speed gg/min (Rpm) 180 305 151
Chuck Max Torque Nm (Nm)
6 (6 bar)
18 (8 bar)
17 30
Stroke mm (inches) 23 (0.90) 23 (0.90) 23 (0.90)
Pneumatic Motor Power Hp (W) 0.59 (435)
Air Consumption Nl/min (cfm) 615 (21.7)
Air Pressure Bar (psi) 6 ÷ 8 (87 ÷ 116)
Air Hose Connection
Pollici
(inches)
1/2” (1/2”)
Electric Motor Power W720 720
Tension Volt 110 / 230 18V 4.0 Ah
Frequency Hz 50 / 60
Max Acoustic Emission Db 75 75 75
Machine Weight Kg 8.7 9.4 9.6
MACHINE DIMENSIONS
PNEUMATIC ELECTRIC BATTERY
Amm (inches) 438 (17.24) 523 (20.59) 583 (22.95)
Bmm (inches) 339 (13.34) 424 (16.69) 484 (19.05)

7
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
MINI K OD
MINI K OD “ E”
MINI K OD Battery

8
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
The machine is supplied with :
• Service Tools
• Storage Case
• Instruction Manual and Drawings
Storage Case
Mini K OD
Tool Box Instruction Manual

9
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
G.B.C. Industrial Tools S.p.A. designs and assembles its machines in strict compliance with the
safety regulations provided by the applicable EC directives and by the Italian laws regulating this
matter.
G.B.C. Industrial Tools S.p.A. declines any responsibility for misuse of its machines and their use
when in contrast with the regulation listed here in after and with the use and maintenance instruc-
tions hereto.
• Carefully read ALL the following regulations and the instructions here with attached before
starting any operation.
• Carefully ensure that the operator and the foreman using the machine are fully aware of all
the regulations and all the instructions and that they are qualified to operate the unit.
• Strictly attain to the indications given by the international symbols applies on the machine
and/or on its case.
• Do not perform any maintenance operation when the machine is plugged to the power
supply.
• Before every use, ensure the power supply connections to be conform to the specifics given
by our manual.
• The authorized operator in any case will not have to disregard the basic safety rules such as:
• Using gloves and goggles (safety gear supplied by the company responsible for the site or
for the building)
• To properly illuminate the working area
• Ensure you are operating in an area which grants free movements (at least 1,5 metres around
the operator)
• Do not replace the control system and do not replace parts with not original spare parts, and
do not project violent water squirts on the machine
• Keep the hands away from hot and sharpened parts.
• G.B.C. Industrial Tools S.p.A. remarks that for any not specified circumstances it is neces-
sary to obtain the authorization of the manufacturer.

10
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
TRANSPORT RECOMMENDATIONS
Weight of the Machine kg 8.7 9.4 9.6
Shipping Dimensions mm 370x430x120 370x480x120 370x430x120
Shipping Weight kg 18 18.7 18.9
Al di sotto dei 25 Kg non sono richiesti mezzi di sollevamento diversi dalla forza umana di un unico operatore
1 Always wear protective gloves and eyewear.
2 Always disconnect the machine from the power source during the setup.
3 Always use both hands while operating the machine, one on the security
lever and one on the feeding hand wheel.
4 The Instruction Manual and the drawings will supply quick and easy ex-
planations.
Using properly the PPE entails the only risks to be generated by the user’s system and not by in born defects of
our machines.

11
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
Considering the mass of the machine no particular problem has been detected in regard to the operator safety.
By always using both hands for operating the machine, the operator is unable to reach the bevelling tools as
the unit would suddenly stop – motor brake –
As provided for the paragraph 1.2.4.3. of the attachment 1 of the Machinery Directive, portable
machines are exempt to have this feature.

12
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629

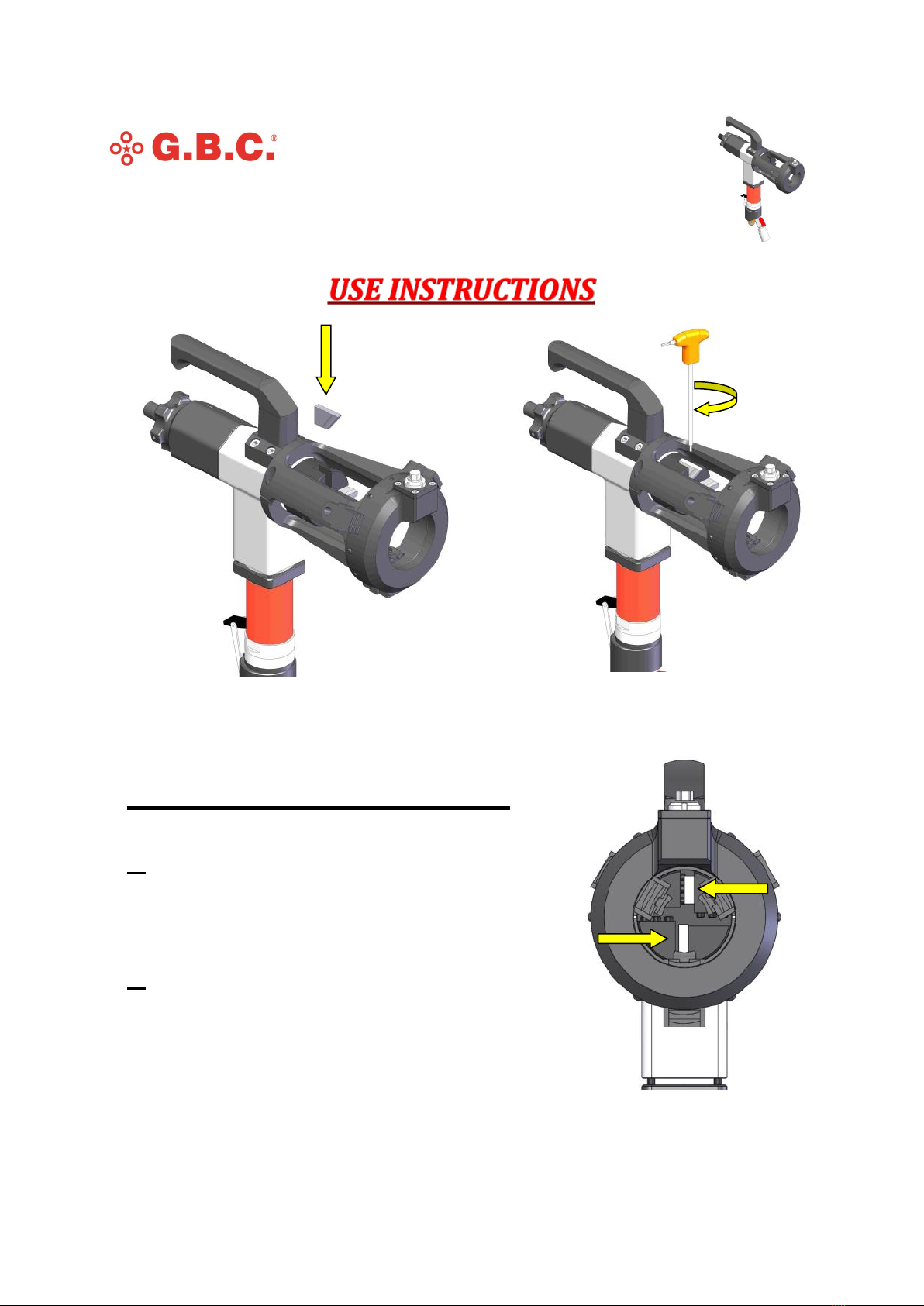

Select the tools for the specific preparation required and place them in the chuck one at a time.
Make sure that all the tools are installed so that they are not protruding from the chuck outside
diameter.
Once the tool is in the correct position, fix it in place by securing the set screw with the Allen key.
IMPORTANT NOTICE
1. The Mini K OD should always work with 2 tools
mounted opposite to each other on the chuck.
This will balance the workload helping the machine
to maintain a stable position during the beveling op-
eration.
2. The feeding hand wheel should be operated with
a moderate force as an excessive feeding may destabi-
lize the machine position.

13
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629

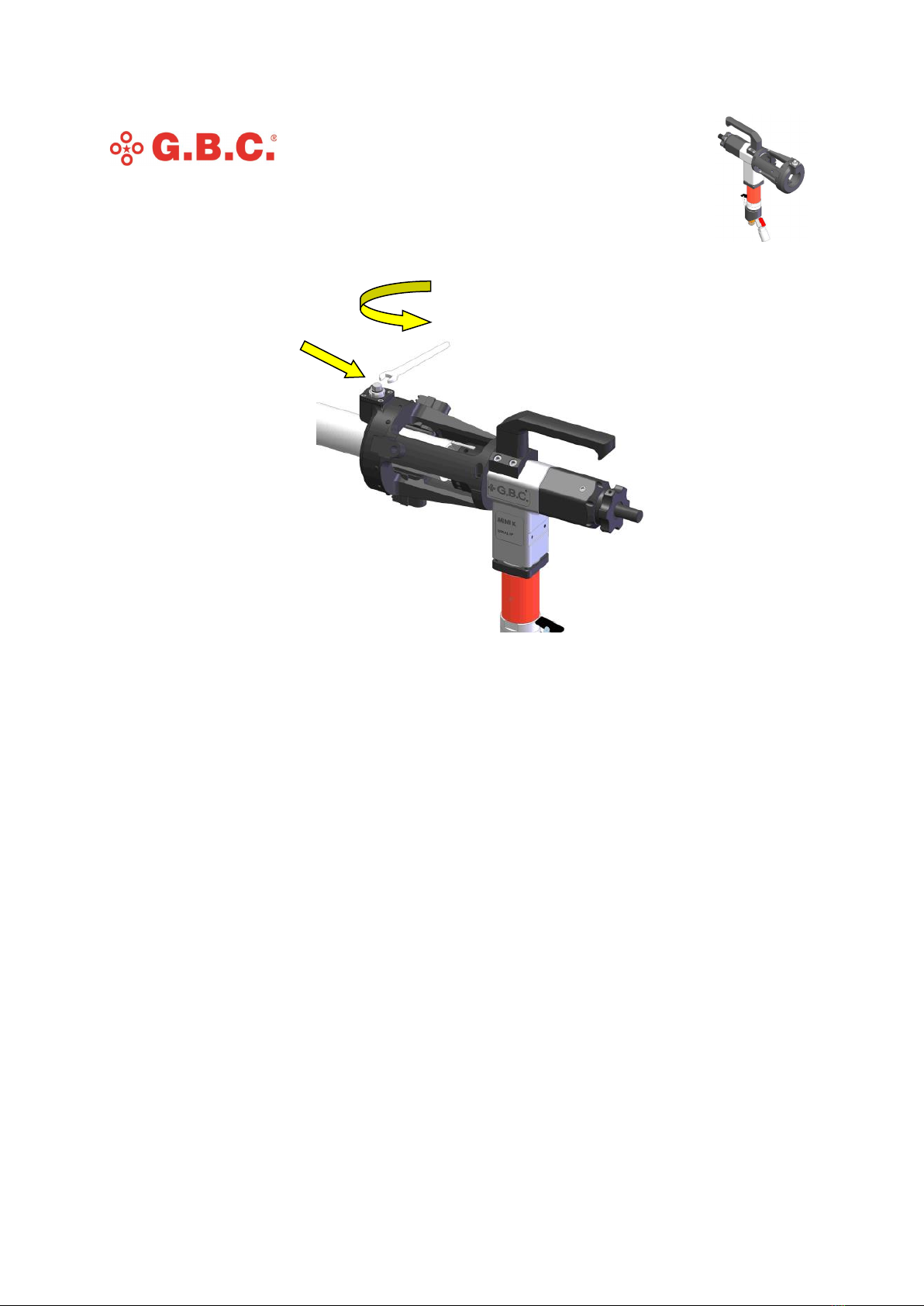

Open the self-centring locking device by turning the locking nut clockwise to accommodate the
pipe size-wise and bring the chuck all the way back its stroke ( Pic.#1 ) by turning the hand wheel
counter-clockwise.
Slide the machine on the pipe ( Pic.#2 )
The 35mm distance is approximate and can be changed depending by the preparation required
( Pic. #3 ).
Turn the locking nut clockwise to secure the Mini K OD onto the pipe OD.
1
2
3

14
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629

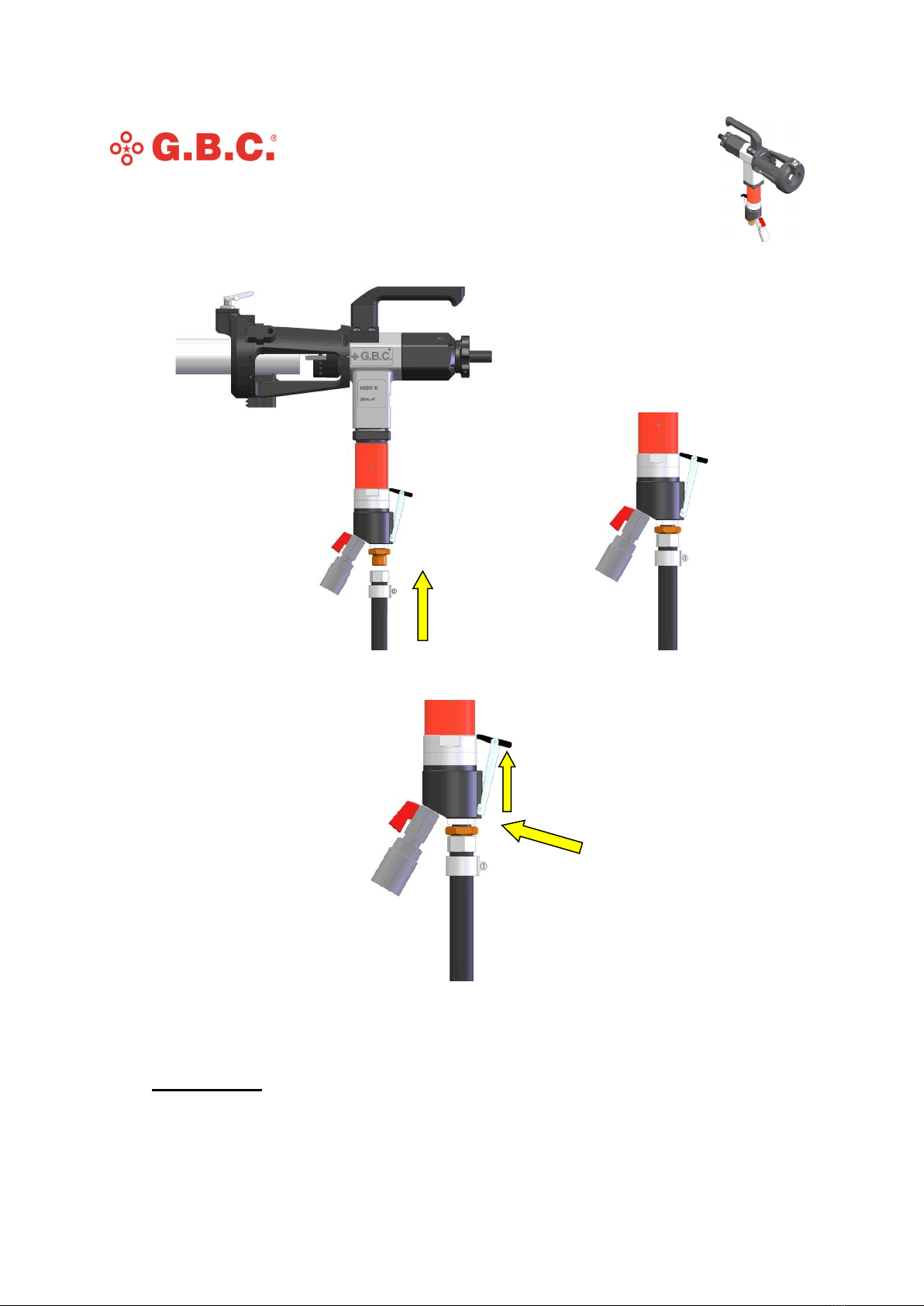

Push the black security lever forward with your thumb and press the silver lever down to start the
machine.
WARNING! This mechanism is a dead man switch therefore it requires a constant
pressure of the hand to keep working.
Connect the air hose to the motor fitting.

15
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
Turn the feeding hand wheel clockwise to move the chuck towards the pipe and as soon as the tools
begin to work, reduce the feeding rate to a comfortable feeling, trying to maintain a constant
feeding ratio.
WARNING! Always check the position of the tools in relation to the locking feet to
prevent them to touch. THIS MAY DAMAGE THE FEET OR THE TOOLS IRREMEDIABLY.
DO NOT stop the machine while it is beveling.
When the final result is achieved, turn the feeding hand wheel counter-clockwise until the tools are
no longer touching the pipe.
Now you can release the lever to stop the machine.

16
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
RELEASE THE MACHINE:
After stopping the machine you can remove it from the pipe by turning the locking nut clockwise and
all the 3 locking feet will withdraw simultaneously releasing the machine.

17
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
Remove the 4 screws located on each corner of the square flange as shown above.
ELECTRIC
BATTERY

18
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
Pull the motor combining the pull with a rotary motion to ease its extraction.
From the motor, you will have to remove the retaining ring, the spacer and the flange.

19
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
Install the retaining ring on the groove on the reducer of the electric motor, slide on the spacer and
the flange you have just removed from the pneumatic motor.
Insert the reducer in the machine body as shown above and fix it in place with the 4 screws
removed previously.

20
MINI K OD
Original Instructions—rev.2011—In compliance with the § 1.7.4 of the Machine Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Sandro Pertini 41/43 – 25046 Cazzago San Martino (Bs) – Italia – Tel. + 39 030 7451154 – Fax. + 39 030 73 56 629
Insert the motor on the portion of the reducer protruding from the machine body and screw it on.
(WARNING!! The motor has a left thread, therefore you will have to screw it with a
counter clock-wise rotation.)
Use the 2 set screws to fix the drive assembly to the reducer.
