GAELCO ATV TRACK User manual

OPERATOR’S MANUAL
© GAELCO 2002
IT IS THE RESPONSIBILITY OF THE OPERATOR TO CARE ABOUT COSTUMER SAFETY AT ALL
TIMES. PLEASE READ AND OBSERVE THE NOTES ON SAFETY DESCRIBED IN THIS MANUAL.

Thank you for purchasing this Gaelco S.A. product. This manual explains how to safely
operate your game machine. Failing to operate the machine correctly could result in
malfunction or accident, so please read the manual carefully before starting operation,
specially the SAFETY NOTES (Section 3).
Unauthorised reproduction of this document or any of its contents is strictly forbidden,
without permission from Gaelco S.A.
Note: Operator's Manual Specifications are subject to change without prior notice
© 2002 Gaelco S.A. - All rights reserved
Copyright law and industrial property law protect the contents of this game, its main data
and design.
ATV TRACK has been manufactured in accordance with European
Community directives. Any changes or modifications to this machine has
to be authorised by Gaelco S.A. and must be in accordance with the
European Community directives.
Using spear parts that do not fit specifications will void the warranty.
Removal of serial numbers and/or bar codes from product or
components will void the warranty.
Published by:
GAELCO S.A.
Escipión 11
08023 Barcelona - SPAIN
Tel. ++34 93 417 36 26
Fax ++34 93 417 28 02
e-mail [email protected]
web www.gaelco.es
FCC Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part A of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operating in a
commercial environment. This equipment uses, and can radiate radio frequency energy, if
not installed and used according to the instruction manual, and may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
GAELCO - ATV QUADS TRACK
2
About ATV TRACK

1. GENERAL INFORMATION
1.1 Manufacturer and Machine data
1.2 Legislation references
1.3 Technical Service
1.4 Responsibility
2. MACHINE SPECIFICATIONS
3. SAFETY NOTES
3.1 General considerations
3.2 Location
3.3 Moving the machine
3.4 Operation
3.5 Motion system

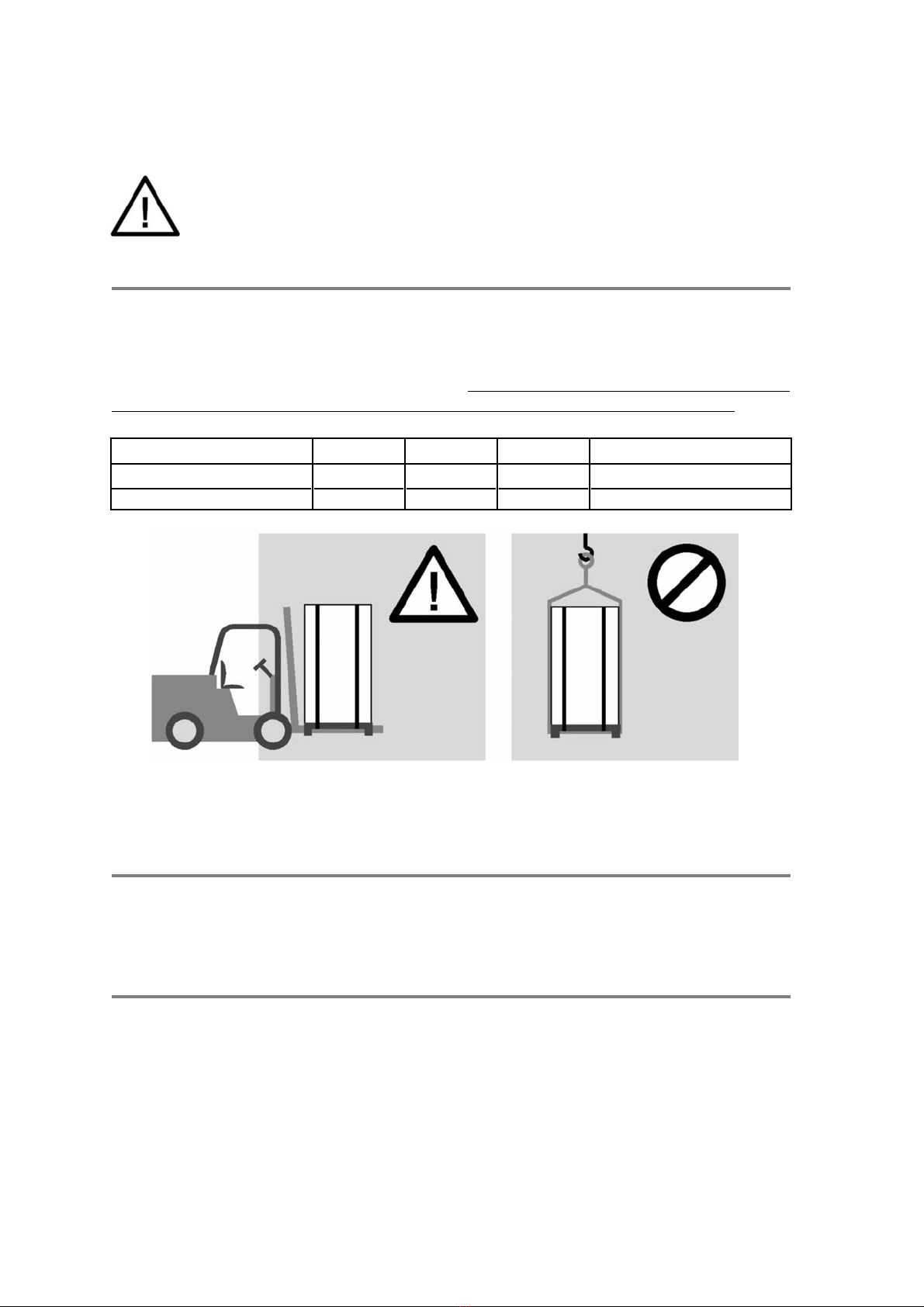

4. MATERIAL HANDLING
4.1 Transport of the packaged units
4.2 Storage
4.3 Reception

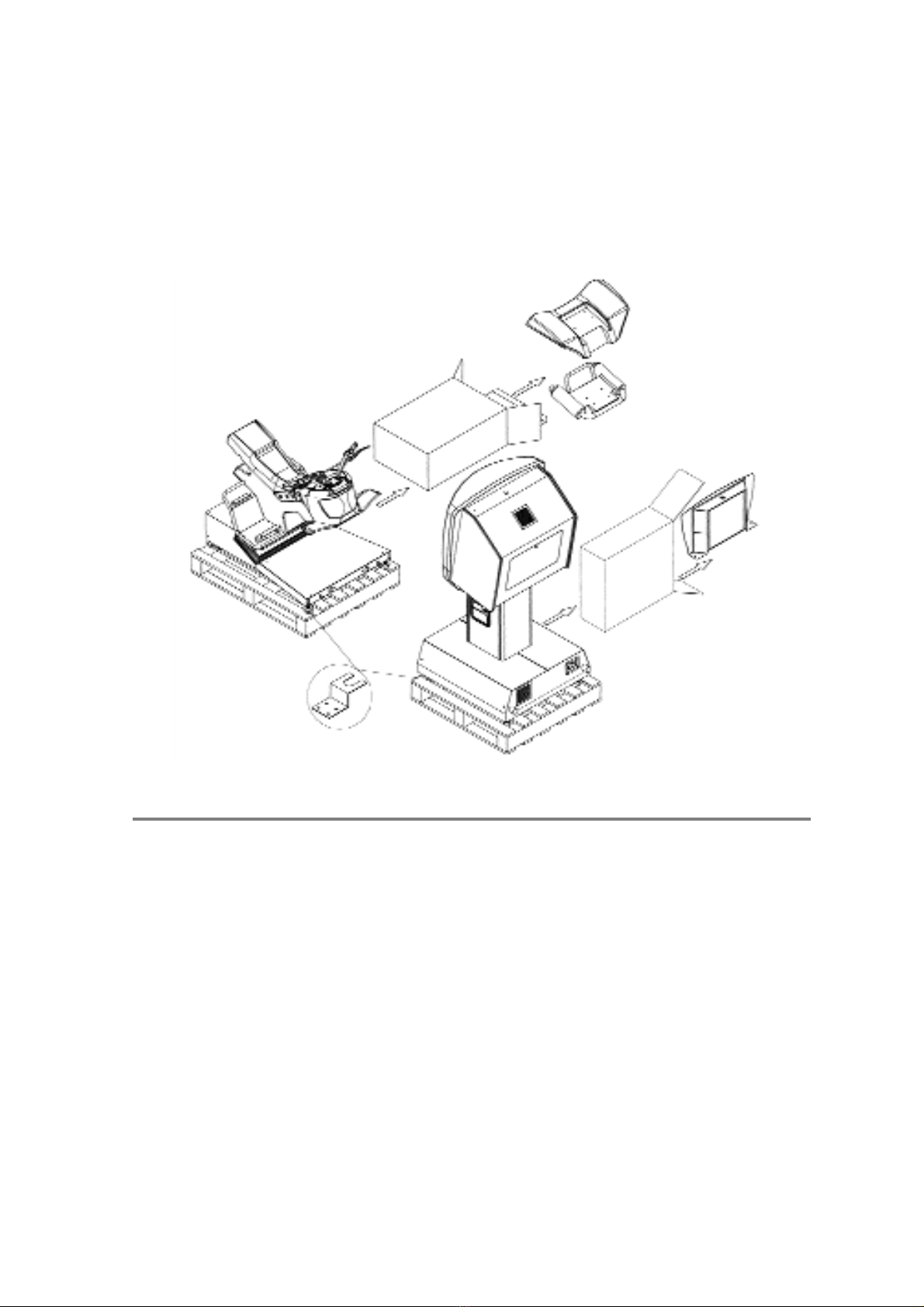

5. UNPACKING, ASSEMBLING AND
INSTALLATION
5.1 Inspection before assembling

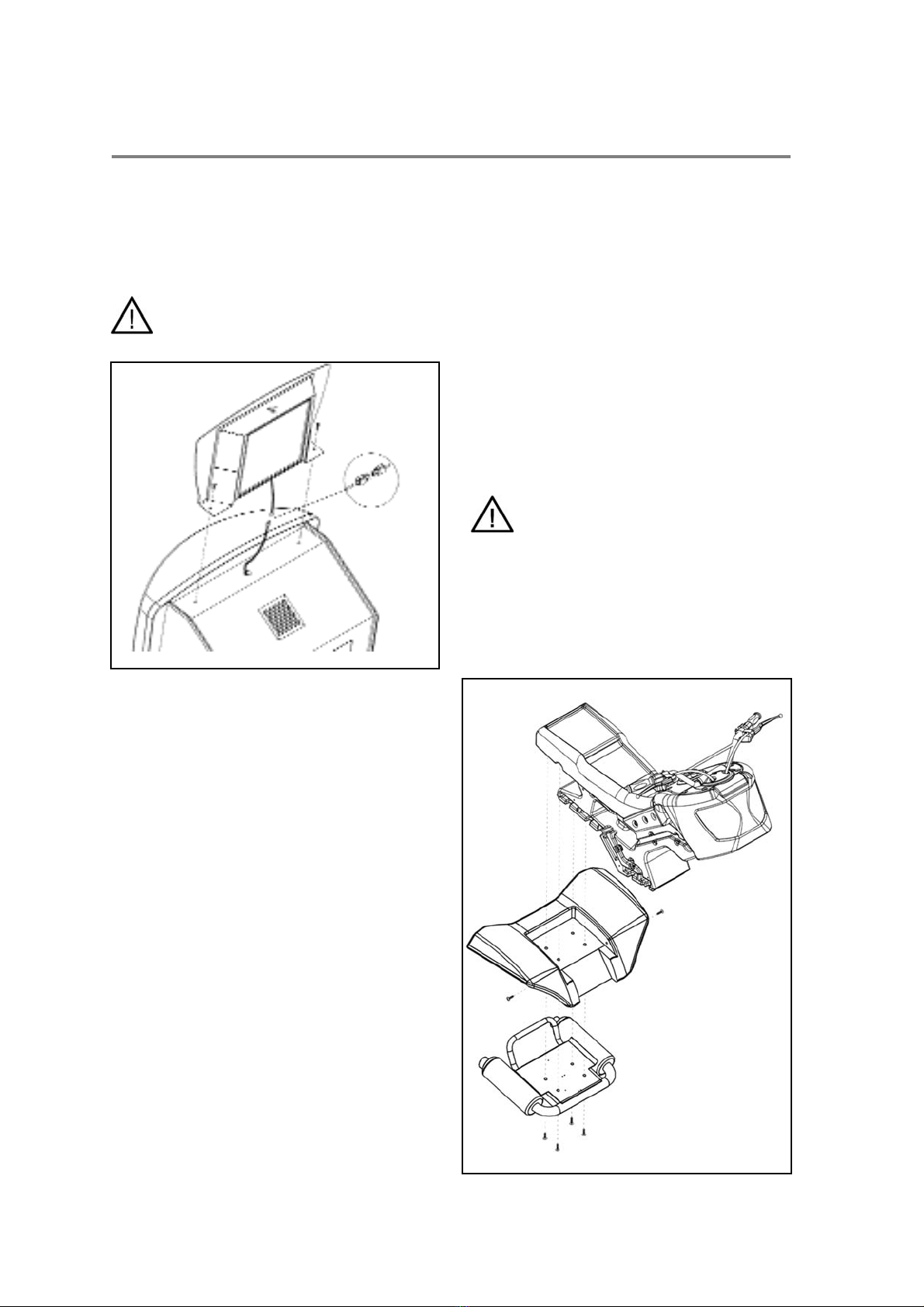

5.2 Assembling
5.3 Installation
5.4 Switching on the machine
6. TEST MODE AND PROGRAMMATION

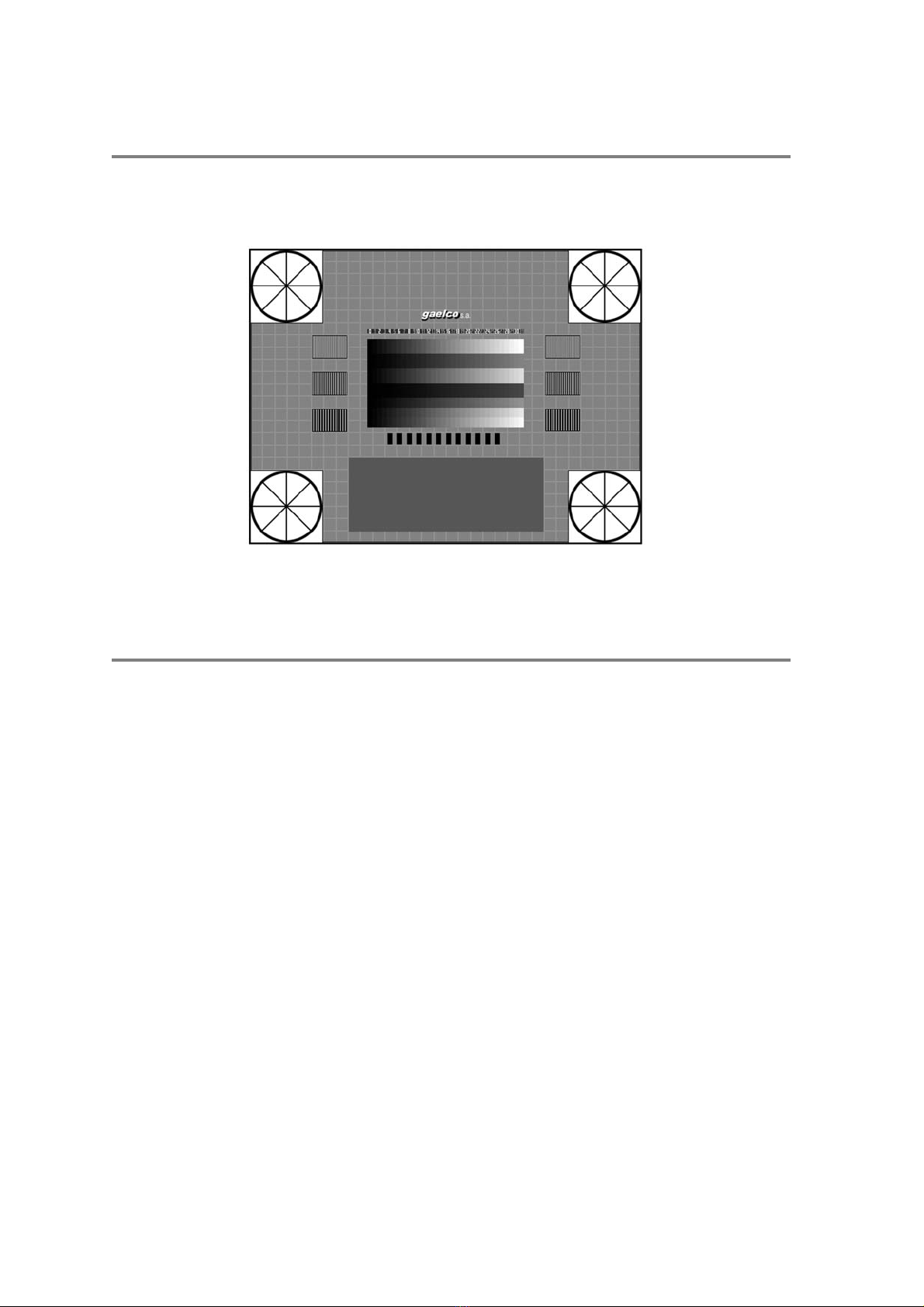

6.1 Screen test
6.2 Input / Output test
6.3 Motion System test
6.4 Settings
6.5 Sound test
6.6 Book Keeping
6.7 Transfer of the program version
6.8 Exit
7. HOW TO PLAY
7.1 Competition on link mode
8. HOW TO LINK TWO MACHINES
9. TECHNICAL SERVICE
9.1 Prior considerations
9.2 Safety precautions
9.3 Brake light
9.4 Handlebar mechanism
9.5 Emergency and safety stops
9.6 Position of the brake levers and the
throttle
9.7 Disassembling and assembling the
throttle
9.8 Adjusting the acceleration potentiometer
9.9 Partial dissasembly of the protection
hood
9.10 Checking position potentiometers
9.11 Asynchronous motors - Circuit diagram
9.12 Checking the Commander SE
parameters
9.13 Troubleshooting
10. PARTS LIST
MONITOR CABINET.
10.1 Monitor subwoofer & accessories
10.2 Service panel, coin door & speakers
10.3 Control panel & cash box
10.4 Plastics and accessories
10.5 Billboard assembly
10.6 Base covers
10.7 Base parts
10.8 Control parts
PLATFORM
10.9 Main assemblies
10.10 Design related parts
10.11 Parts on top
10.12 Steering assembly
10.13 Handlebar assembly
10.14 Throttle assemby
10.15 to 10.18 Steering mechanism
10.19 Mobile platform assembly
10.20 Rider footrest assembly
10.21 Main structure
10.22 Motion Mechanism
11. WIRING DIAGRAMS
12. CREDIT DISTRIBUTOR SETUP
GAELCO - ATV QUADS TRACK
3
INDEX

GAELCO - ATV QUADS TRACK
4

Manufacturer GAELCO, S.A.
Address Escipión 11
ZIP 08023
City Barcelona
Country : SPAIN
Tel. [phone]
Fax [phone]
e-mail [email protected]
Name of the game ATV TRACK
Model MOTION
EM EMISSION
•EN 61000-3-2 (1995), Harmonics
•EN 61000-3-3 (1995), Fluctuations
•EN 55022 (1994), Continuous conducted emission (Class A)
•EN 55022 (1994), Radiated emission (Class A)
EM IMMUNITY
•EN 61000-4-2 (1995), ESD
•EN 61000-4-3 (1996) & ENV 50204 (1995), Radiated field of RF
•EN 61000-4-4 (1995), EFT burst
•EN 61000-4-5 (1995), Surges
•EN 61000-4-6 (1996), RF common mode
•EN 61000-4-8 (1993), 50 Hz H-field
•EN 61000-4-11 (1994), Dips, interruptions
ELECTRICAL SAFETY
UNE EN 60335-1 (1997) + Erratum (1997) + A11 (1997) + A12 (1997) + A13 (1999)
+ A14 (1999) + Erratum (1999).
Note: Test passed in Motion Test mode
GAELCO - ATV QUADS TRACK
5
1. GENERAL INFORMATION
1.1 MANUFACTURER AND MACHINE DATA
1.2 LEGISLATION REFERENCES

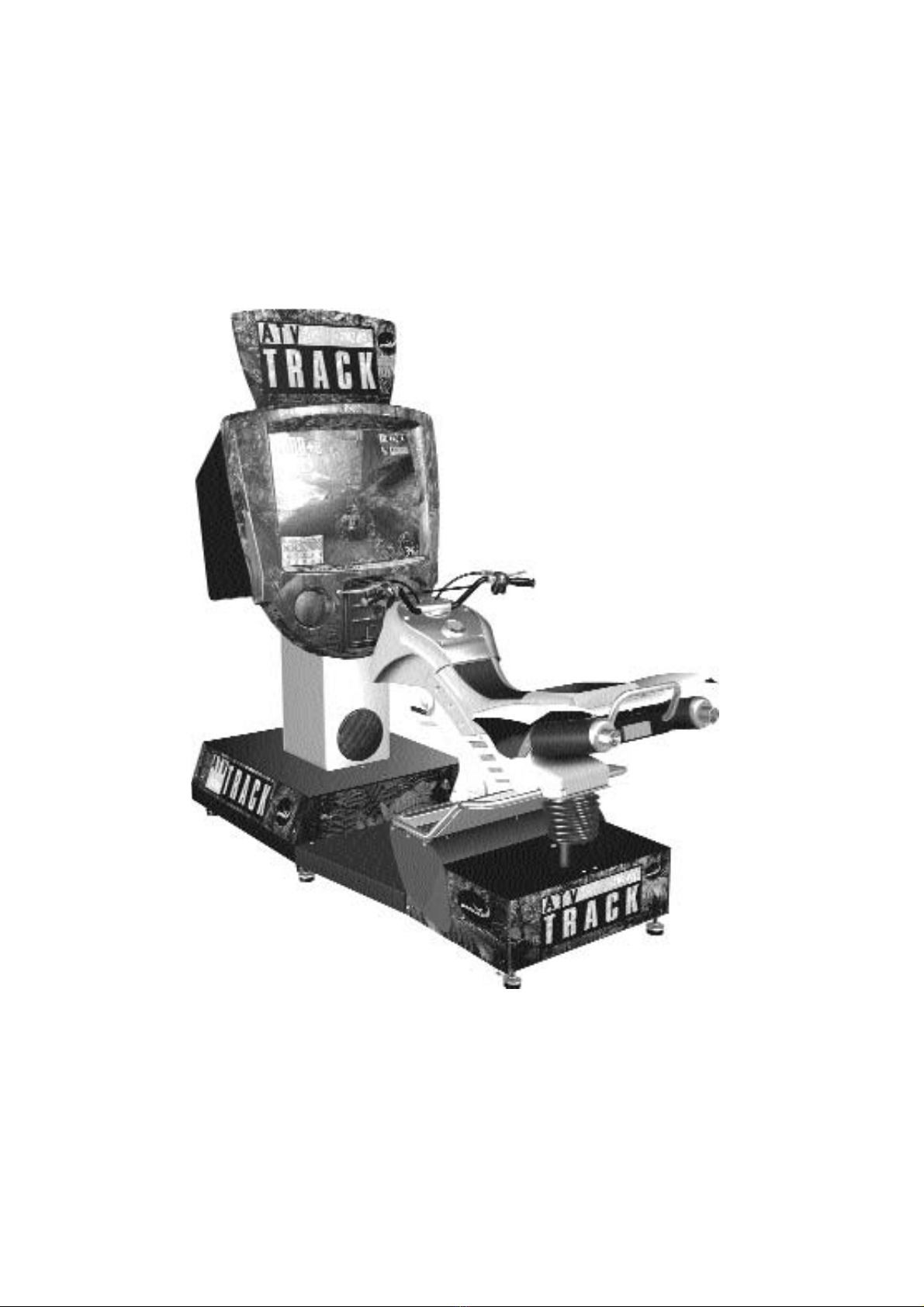

ATV TRACK is an arcade game that challenges the player's ability to ride a QUAD through
a course plenty of natural obstacles, by using a handlebar with throttle and two brake
levers.
The goal of the player is to complete in succession the four phases of the game. The
MOTION model of the ATV TRACK game machine is powered by an electric motion
system that delivers very realistic sensations to the player.
Two players can also compete one against each other when the machines are linked.
DIMENSIONS AND WEIGHT
1) Crate dimensions and shipping weight of each module
2) Dimensions and net weight of each module unpacked
* Without the billboard
Gaelco S.A. or its Distributors carry out technical Service.
Any modifications made to this machine that are not authorised in writing by the
manufacturer will be considered to be at the exclusive responsibility of the operator, who
will consequently become the new "manufacturer" and must operate in compliance with the
European Community directives.
In case of an accident caused by a defective part, the manufacturer will assume
responsibility only if the machine was defective in its original condition. However, this
responsibility shall be diminished or even totally annulled if the operator or the player do
not follow the instructions provided or if the operator uses spare parts that are not covered
by guarantee, are not authorised in writing or do not correspond to the specified technical
characteristics.
GAELCO - ATV QUADS TRACK
6
1.3 TECHNICAL SERVICE
1.4 RESPONSIBILITY
2. SPECIFICATIONS
GAME DESCRIPTION
width depth height weight
990 mm
Monitor cabinet
Seat platform
1190 mm 1920 mm 205 Kg
990 mm 1190 mm 1300 mm 240 Kg
width depth height weight
870 mmMonitor cabinet
Platform
970 mm 1760 mm* 190 Kg
880 mm 1150 mm 1250 mm 225 Kg

3) Total dimensions of the machine, installed on site
POWER SUPPLY
Operating Power: 220-230 VAC, 50 Hz
Output: +5VDC 20A, +12VDC 8A
MONITOR
34" Hantarex Polo/2 STAR PH, code 01297790
CPU BOARD
PCB Gaelco ATV TRACK
CONTROLS
•Interactive handlebar
•Start Button/View change (placed on the throttle)
•Throttle (accelerator grip)
•Right brake lever
•Left brake lever
•Emergency Stop button (placed on top of the fuel tank)
•Safety Stop system (activated when the rider footrest are not pressed)
PCB Gaelco ATV TRACK
MOTION SYSTEM
Degrees of freedom: 2 DOF
Actuators: 2 induction motors (geared), 0.75KW each
Control: 2 frequency inverters SE1120075, input voltage 230V +/-10%, 50/60Hz
ATTACHMENTS
Operator's Manual (1)
Motor driver manual (1)
Monitor Manual (1)
Coin box keys (2)
Monitor cabinet keys (2)
Power cord (3m long) (1)
Link cable (1)
Monitor cable (remote control) (1)
GAELCO - ATV QUADS TRACK
7
width depth height
880 mm 2356 mm 2135 mm

In order to use this machine safely please read carefully this Manual BEFORE the
installation, use or maintenance of the machine.
This Operator's Manual and others manuals delivered with the machine must be available
to the operating and service personnel.
When transporting or reselling the machine, be sure to attach this Manual.
The ATV TRACK machine has been designed for indoor use only, within residential or
commercial areas, and must be used exclusively for the purpose intended.
GAELCO S.A. bears no responsibility for accidents, injury or damage resulting for
unauthorized changes or improper use of the machine.
GAELCO - ATV QUADS TRACK
8
3. SAFETY NOTES
WARNING
To avoid accidents or damages, it is imperative to follow the notes on Safety resumed
bellow, as well as all those included in the following sections:
SECTION 4. MATERIAL HANDLING
SECTION 5. UNPACKING, ASSEMBLING & INSTALLATION
SECTION 9. TECHNICAL SERVICE

GAELCO - ATV QUADS TRACK
9
3.1 GENERAL SAFETY CONSIDERATIONS
•Before operating the machine, check that it has been installed correctly and in
accordance with this Manual.
•As some parts of the machine move during game play, there are places where the
distance between the stationary section and the mobile section changes. Despite the
measures implemented to avoid accidents, if the operator feels that a person is in any
danger, he should warn that person or stop the machine immediately by using the
Emergency Stop button.
•The warning notices (stickers) must be kept in such condition that customers can read
them easily.
•Installation, service or routine maintenance should be carried out by qualified
personnel.
•Before connecting the machine to the mains supply, verify that it is set for the correct
voltage and that the proper fuses are already installed.
•When replacing fuses, use spare fuses of the same type and rating than the originals.
The use of other material can cause serious damages on the electronic circuits or even
a fire hazard. Check the Parts List to know the exact specifications.
•The machine includes areas of high voltage. Care must be taken at all times to avoid
electrical shock whenever inspecting or adjusting the equipment, particularly around
the monitor.
•To ensure safe operation, the machine must be grounded with a plug securely
connected to Earth.
•Do not turn ON the power switch until the machine has been installed on its dedicated
place.
If there is any error or problem with this machine, operation must be
stopped immediately.

GAELCO - ATV QUADS TRACK
10
3.2 SAFETY PRECAUTIONS CONCERNING LOCATION
Do not place the machine where it might be an obstacle in case on emergency (i.e.
close to fire extinguishers or emergency exits).
Install and operate the machine in places where appropriate lighting is available, so
warning labels can be clearly read by the customers.
This machine has been for indoor use only, within residential or commercial
spaces. Absolutely do not set up the machine outdoors or under the following
conditions:
•Direct exposure to sunlight, high humidity, water contact, dust, high heat or extreme
cold.
•In locations near containers holding liquids or liquid dispensing equipment. In general,
precautions should be taken against spilling liquids of any kind whatsoever over the
machine

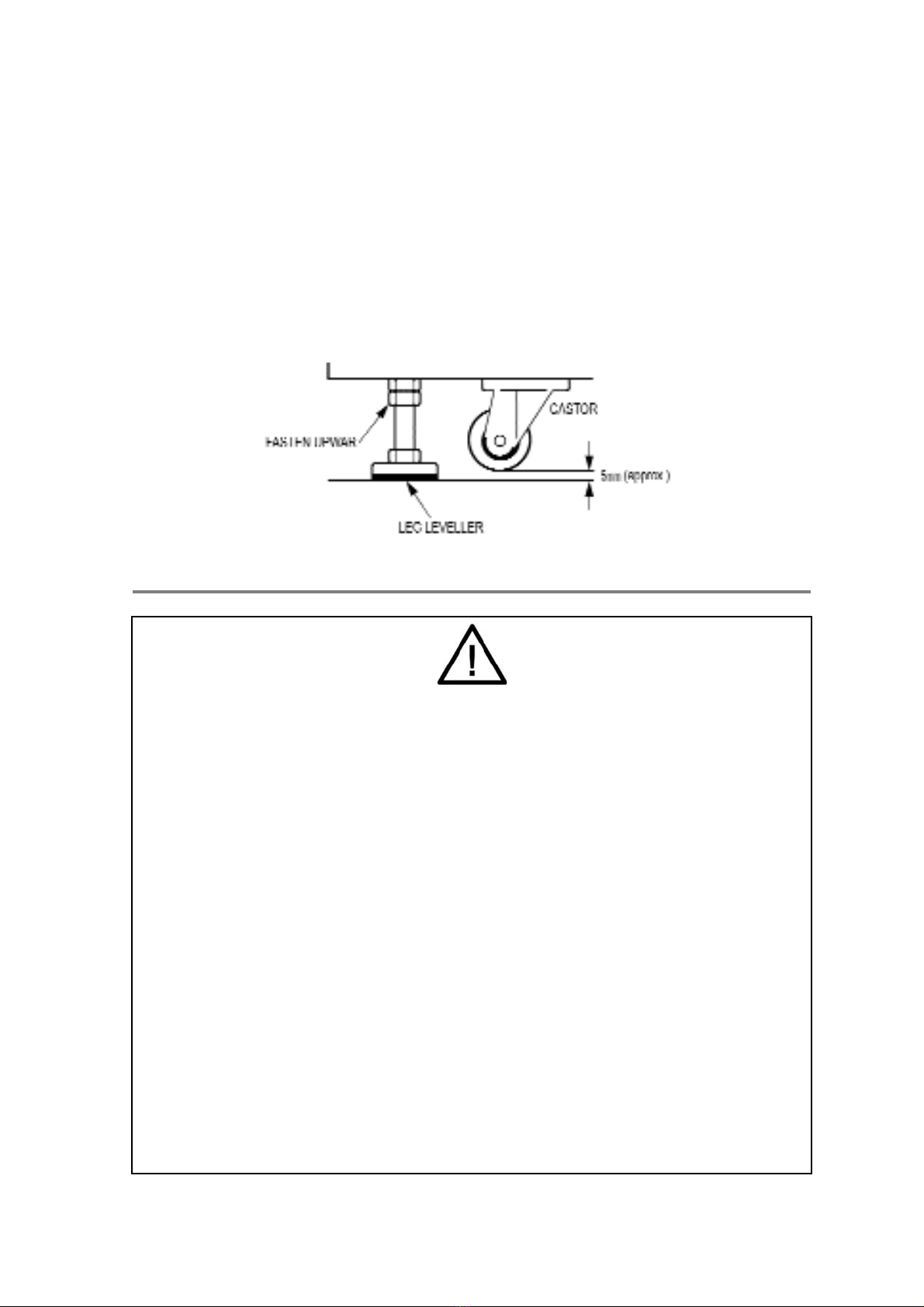

•In a place exposed to vibration. The machine must be installed on a level surface with
levellers properly adjusted.
•In locations near ventilating holes. Doing so could cause internal temperature to rise
excessively, resulting in equipment failure.
•Near hazardous substances
Furthermore:
•In order to have easy access to the PSU, CPU and control devices, please make sure
that the rear an sides of the machine are separated from the wall or other machines by
at least 300mm (12")
•Ventilation slots must be not obstructed, and the machine must be positioned so as to
leave a distance of at least 100mm (4") from possible obstructions
•Do not run the power cord across passages where pedestrian's feet could get caught
on the cord.
•Ensure that the location’s power supply is equipped with an Earth Leakage Breaker
rated at 30mA.
GAELCO shall not be held responsible for any damage resulting from the failure to
observe these instructions.

GAELCO - ATV QUADS TRACK
11
The machine can easily moved by using their castors. When moving the game machine,
always retract the levellers to the extreme up position, so the castors can make contact
with the floor. Please ensure that the levellers are raised fully when moving the machine,
even for short distances. Furthermore:
•Do not use the handlebar or the rear handle to move the platform (rider assembly),
unless the levellers are raised fully.
•When moving the machine on slopping or uneven surfaces or across steps, proceed
with extreme caution to avoid the risk of being crushed!
•If there are steps or step-like differences in grade, move the machine by separating into
each unit. Be sure to catch the bottom part.
•During transportation, pay attention so that de castors do not thread power cords.
•Ensure that there is enough room to get through doors or to avoid any collision with
elements hanging from the ceiling. Read section 4 to know the dimensions of the
machine.
The two units of the machine are not equipped with lifting rings. It is therefore
absolutely prohibited to lift them with ropes or belts!
3.2.1 SECURING IN PLACE
Ensure that all the leg levellers make firm contact with the surface of the floor. This
precaution is crucial for the ATV-TRACK version with motion system, because the machine
can move of itself, causing an accident.
After making the adjustment of all legs, secure the height of each one by fastening upward
the nut.
3.3 PRECAUTIONS TO BE HEEDED WHEN MOVING THE MACHINE

GAELCO - ATV QUADS TRACK
12
3.4 PRECAUTIONS TO BE HEEDED DURING OPERATION
Please heed the following indications in order to ensure the safety of the customers when
using this game machine. Be sure to read and get a good understanding of each item:
•Before starting the operation, please check if all the level adjusters are in firm contact
with the surface of the ground. If they are not, the cabinet can move and cause an
accident.
•Do not use the machine as support for other objects.
•Do not put on the machine or near by any kind of receptacle containing chemicals or
water.
•Ensure to provide enough space around the machine to avoid the risk of injury or
trouble. Insufficient installation space can cause the player to come in contact with
spectators or hit them.
In order to avoid injury and accidents, it is not allowed to use the machine to those
persons who fall under the following cases:
•Intoxicated persons.
•Persons susceptible to motion sickness.
•Persons who are not in good health, such those having problems of high blood
pressure or heart malfunctions.
•Pregnant women
•Persons whose acts do not observe the warning notices.
•Persons whos could be unable to support themselves at both footrests being sitting
(disabled people, children, etc.).
Despite the machine is fitted with protection hoods to avoid access to potentially
dangerous places, do not allow customers to put hands, fingers or extraneous matter in
any opening of the cabinet.
Playing this game with high-heeled shoes is likely to cause a potentially
hazardous situation.

GAELCO - ATV QUADS TRACK
13
The ATV-TRACK / MOTION machine has two dedicated devices that provide additional
safety to the player when the game is running:
•An EMERGENCY STOP BUTTON placed on top of the fuel tank, which can be easily
activated by the player or the operator at any time. The game keeps running but the
motion stops until the button is unlocked manually by turning it clockwise.
•A SAFETY STOP SYSTEM, that stops motion immediately if the player does not press
simultaneously both rider footrest. The game still runs but the machine does not move
until both footrest are pressed.
The combined action of these two devices reduces the possibility of an accident resulting
from sudden sickness or improper use of the machine while it is moving.
3.5 SAFETY DEVICES CONCERNING THE MOTION SYSTEM

GAELCO - ATV QUADS TRACK
14
This machine should be transported or moved by trained persons. Failing
to do so could result in injury or product damage. Please be very careful.
The packaged machine must be transported in a closed means of transport with sufficient
carrying capacity for the gross weight of the machine, which is 205Kg for de monitor
cabinet and 240Kg for the platform. The machine, must remain packaged on its pallet must
be suitably secured to the means of transport. It is very important that the lifting forks are
pushed right to the back of the wooden pallet, to give optimum stability to the load.
It is not allowed to lift the packed machine with ropes or belts, as the package is not
equipped with suitable lifting points for this tape of transport.
Store the packed machine in sheltered and dry areas. Temperatures allowed: maximum
+45ºC / minimum -5ºC.
The ATV-TRACK packaging should be carefully inspected upon receipt to ensure that the
product is delivered in good conditions.
Shipping damage may void warranty. In case of shipping damage, contact your Distributor
and the Transportation Carrier immediately. See section 5.1 for further inspection.
4. MATERIAL HANDLING
4.1 TRANSPORT OF PACKAGED UNITS
MONITOR CABINET
PLATFORM
990 mm
990 mm
CODE width
1190 mm
1190 mm
depth
1920 mm
1300 mm
height
205 Kg
240 Kg
crate weight
4.2 STORAGE
4.3 RECEPTION

GAELCO - ATV QUADS TRACK
15
It is best to unpack the machine where it is going to be used or in a place as near as
possible to this. Two people are needed to lift the cardboard packaging over the top of each
unit.
Once the packaging is removed, the machine looks as shown in the illustration.
Normally, GAELCO products are ready to assemble immediately after transporting to the
location. Nevertheless, some mishandling may occur during transportation. Check the
following points to ensure that the machine has been properly delivered:
•Examine the cabinet exterior for dents, chips, or broken parts
•Verify that castors and levellers are not damaged
•Inspect the major assemblies, such as the video display monitor, handlebar and seat.
Make sure that they are mounted securely and that all ground wires are firmly
connected.
•Ensure that the power supply voltage and frequency requirements meet those of the
location.
•Ensure that the fuses already installed meet the specified rating and type.
•Inspect the power cable to ensure that it is not damaged.
•Verify that the keys delivered with the machine open all doors.
•Check if all the accessories are included.
5. UNPACKING, ASSEMBLING and INSTALLATION
5.1 INSPECTION BEFORE ASSEMBLING

GAELCO - ATV QUADS TRACK
16
To assemble the machine proceed as follows:
1. Take out the boxes containing the accessories.
2. Remove the metal brackets that fix each unit to its pallet.
3. Raise the leg levellers and put the units down on the floor with the help of a
ramp. Be very careful to avoid the risk of being crushed!
4. Assemble the billboard on the
top of the monitor cabinet, using
a step. Do not climb on the
cabinet!
The screws that fix the billboard
are already installed on its place.
Remove those screw and use
them for fixing the billboard. Plug
the connector of the fluorescent
tube.
5. Assemble the back mudguards and the
exhaust pipes. The mudguards are
between the chassis and the exhaust
pipes, as shown in the drawing. The
screws are already installed on the
chassis, four on the bottom and one on
each side. Take out those screws and use
them to fix the assembly. Plug in the the
brake light connector.
5.2 ASSEMBLING & INSTALLATION

GAELCO - ATV QUADS TRACK
17
6. Place the monitor cabinet is at its final location and strictly follow the instructions
described in section 3.2. Ensure that the cabinet is level, then secure the height
of the leg levelers by fastening the adjuster nut upwards.
7. Proceed to assemble the two units together. This must be done where the machine is
to be used. First of all make sure the monitor cabinet is level. Then follow the steps
below:
8. Remove the metallic covers of the cabinet.

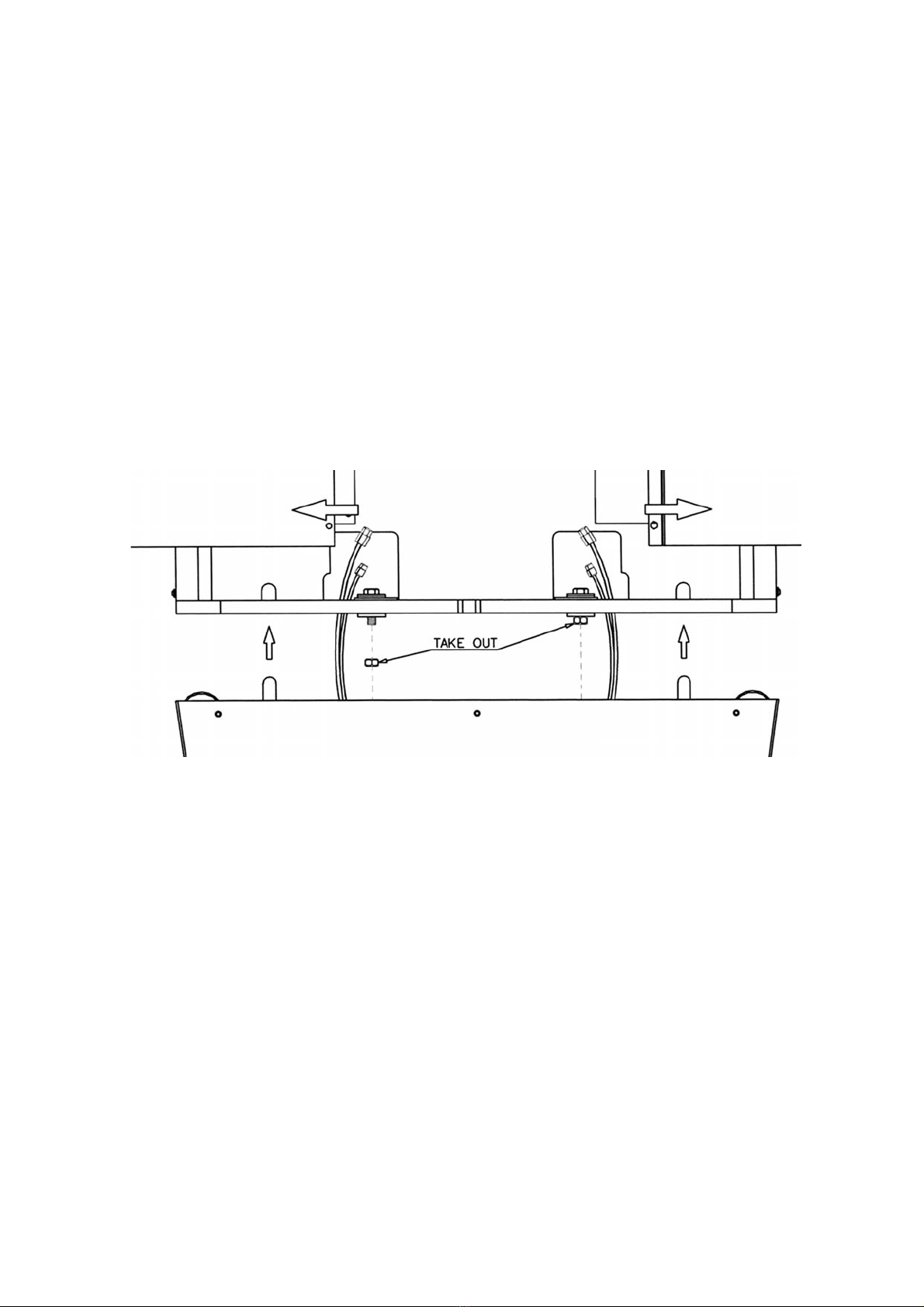

9. Take out the nuts M12. Those nuts are for shipping purposes only. They are useless for
assembling.
10. Approach the two units. Pass the cables coming from the platform through the holes of
the monitor cabinet, then push the lugs on the platform into the holes in the base of the
monitor cabinet.
11. Level the platform to the same height as the monitor cabinet.
12. Connect the cables of the motion system. Check that all the connectors are OK.
Connectors of the monitor cabinet must fit perfectly with those coming from the
platform.
13. Tighten the two bolts M12 that fasten the platform to the monitor cabinet. The
corresponding nuts are welded to the base of the platform.
14. Replace the covers of the monitor cabinet.
15. If the machine has to be moved, even just a little bit, retract the leg levellers first.
16. Carefully adjust all the levellers so that the whole machine rests firm and level on the
floor. (See section 3.2). Remember that the platform contains a motion system!
To clean the game machine, wipe with a soft cloth damped with a neutral detergent
and wrung out. Using organic solvents like thinner may damage the plastic parts.

GAELCO - ATV QUADS TRACK
18
BEFORE SWITCHING ON THE MACHINE, PLEASE CHECK THAT THE
INTALLATION FITS ALL THE REQUIREMENTS DESCRIBED ON CHAPTER
3 (SAFETY NOTES) AND ESPECIALLY THOSE OF SECTION 3.2
The installation of the machine at its final site should be carried out by trained people.
Mains power must be always be turned off, and the machine unplugged, before replacing
any part or handling connectors. Please check the following points again:
•The area chosen for the machine is well away from heat sources.
•The machine does not obstruct emergency exits.
•The whole machine is level and stable on the floor. The leg levellers are secured in
place.
•The power cord can be plugged into a grounded receptacle that provides the specified
voltage and frequency.
•The mains supply is equipped with an Earth Leakage Breaker rated at 30mA.
The mains switch is located in the compact filter assembly, which also contains the fuse
and the socket for the mains cable. It is found in the back of the monitor cabinet.
To start the machine, push the switch to position "I".
The machine can be switched OFF (position "0") whenever necessary. If a game is in
progress on the machine, the credit will be lost.
To avoid possible damage to the electronic components, wait several seconds
before turning the machine on again.
5.3 GETTING READY TO START
5.4 SWITCHING ON THE MACHINE

An automatic check of the memories is made when the machine is switched on. This
coincides with the presentation of the Screen Test. After a few seconds, if no error occurs, it
automatically goes on to show the game. The interface is also adjusted dynamically each
time that a machine is switched on. Any other adjustment should be made in TEST MODE.
The access to the TEST MODE as for the other controls -monitor, sound, etc.- is made
from the CONTROL PANEL, which is situated behind the coin box door. This panel
consists of a button to access TEST MODE, a coin counter, a SERVICE button, and a
commuter to adjust the VOLUME of the loudspeakers.
Pressing the TEST button enters TEST MODE, where the game variables, such as level
of difficulty, linkage of machines, etc., can be adjusted. A check of the motion system and
other controls can also be made. The SERVICE button allows the technician to introduce
game credits without moving the coin counter.
The main menu of TEST MODE offers seven options:
SCREEN TEST
INPUT/OUTPUT
MOTION SYSTEM
SETTING
SOUND
BOOK-KEEPING
EXPORT PROGRAM
EXIT
You can choose the option required by handling the brake levers. Pushing the START
button placed on the handlebar makes the selection.
To make sure that the changes that have been made are kept permanently, you must not
switch off the machine without first leaving TEST MODE with the option exit and save
settings of the EXIT screen.
GAELCO - ATV QUADS TRACK
19
6. PROGRAMMING THE MACHINE AND TEST MODE

This screen is the ADJUSTMENT CARD, which should be used to suitably adjust the
monitor. It shows you, also, information about the installed software version.
You can return to de Main Menu by pushing the TEST button (placed on the control
panel) or the START button (placed on the handlebar).
The INPUT/OUTPUT screen enables you to check the correct functioning of the following
controls:
Start Button Placed on the throttle assembly (handlebar)
Emergency Stop (see warning) Placed on top of the fuel tank
Coin Chute Coin Acceptor
Service Button Placed on the Control Panel
Test Button Placed on the Control Panel
Volume Down Placed on the Control Panel
Volume UP Placed on the Control Panel
Left Brake Lever Rear brake
Right Brake Lever Front brake
Throttle The number on the left goes from 0.00 (no acceleration) to
1.00 (maximum acceleration)
Handlebar Position The number on the left goes from -1.00 (top left position) to
1.00 (top right)
Steering Motor Feedback force. The number of the left goes from 1.00
(handlebar on top left position) to -1.00 (top right)
The control signal is selected by means of the brake levers. The status of each signal
changes when the related control device is activated.
GAELCO - ATV QUADS TRACK
20
6.1 SCREEN TEST
6.2 INPUT/OUTPUT TEST
