Gaggenau VG 232 220 CA User manual

*DJJHQDX
Installation instructions2
Notice de montage17
Instrucciones de instalación33
VG 232 220 CA
Gas cooktop
Table de cuisson gaz
Encimera a gas

2
en-us
Table of Contents
Installation instructions
9Safety Definitions 2
IMPORTANT SAFETY INSTRUCTIONS 3
Appliance Handling Safety 5
Safety Codes and Standards 5
Electric Safety 6
Gas Safety 6
Propane Gas Installation 7
Related Equipment Safety 7
Before you begin 8
Tools and Parts Needed 8
Parts Included 8
Installation accessories 9
Cabinet Requirements 9
Countertop Requirements 9
Technical Data 9
Installation Procedure 10
Prepare Installation Space 10
Install Appliance 10
Connect Gas Supply 11
Connect Electrical Supply 11

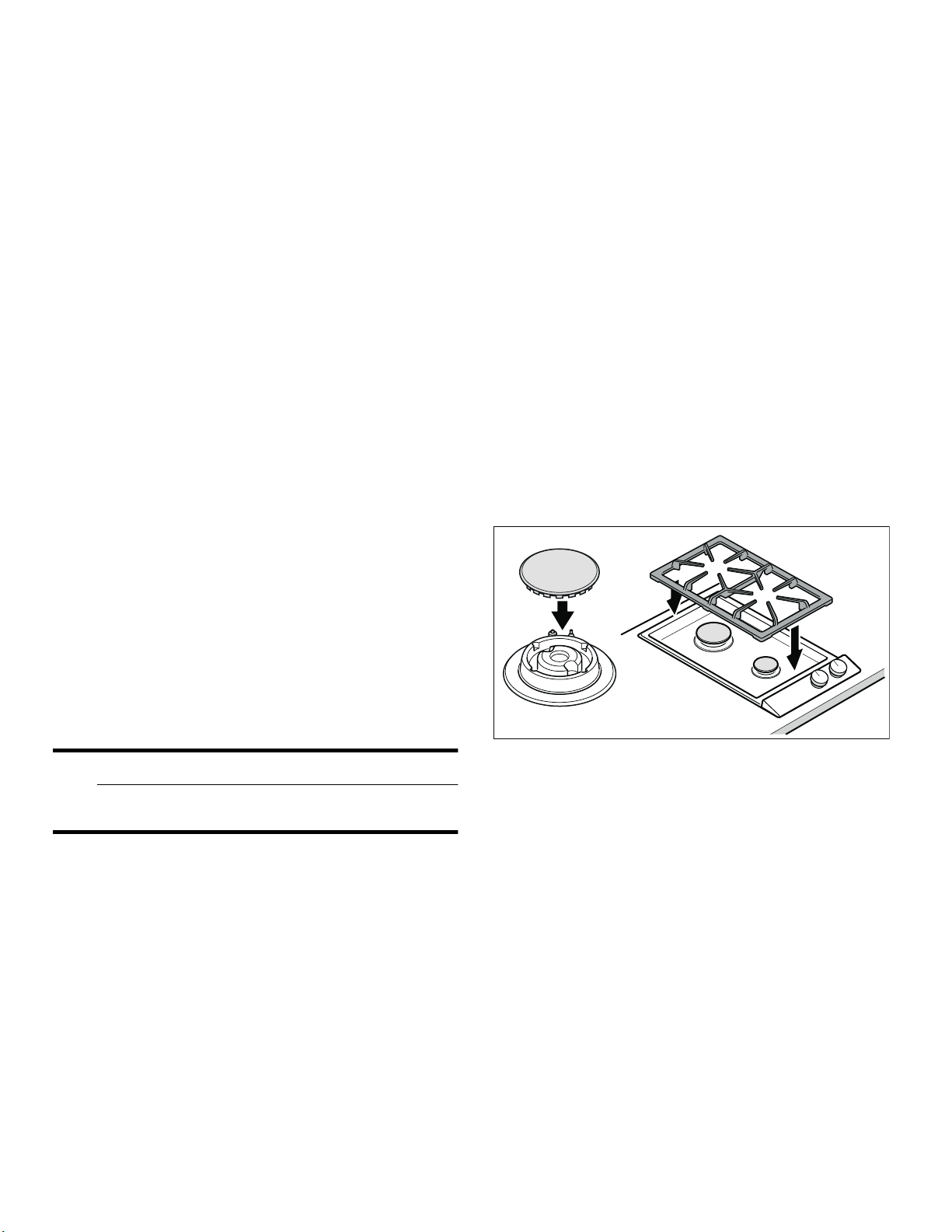

Burner Cap Placement 11
Check the Installation 11
Removing the appliance 12
Conversion to another type of gas 12
Customer Service 16
The wiring diagram is available on the last page of this
manual.
Additional information on products, accessories,
replacement parts and services can be found at
www.gaggenau.com and in the online shop
www.gaggenau.com/zz/store
9Safety Definitions
SafetyDefinitions 9WARNING
This indicates that death or serious injuries may
occur as a result of non-observance of this
warning.
9CAUTION
This indicates that minor or moderate injuries may
occur as a result of non-observance of this
warning.
NOTICE
This indicates that damage to the appliance or property
may occur as a result of non-compliance with this
advisory.
Note: This alerts you to important information and/or
tips.

3
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READANDSAVETHESEINSTRUCTIONSGas Appliance Saf et y
² 'RQRWVWRUHRUXVHJDVROLQHRURWKHUIODPPDEOH
YDSRUVDQGOLTXLGVLQWKHYLFLQLW\RIWKLVRUDQ\
RWKHUDSSOLDQFH
² :+$772'2,)<2860(//*$6
'RQRWWU\WROLJKWDQ\DSSOLDQFH
'RQRWWRXFKDQ\HOHFWULFDOVZLWFK
'RQRWXVHDQ\SKRQHLQ\RXUEXLOGLQJ
,PPHGLDWHO\FDOO\RXUJDVVXSSOLHUIURPD
QHLJKERU·VSKRQH)ROORZWKHJDVVXSSOLHU·V
LQVWUXFWLRQV
,I\RXFDQQRWUHDFK\RXUJDVVXSSOLHUFDOO
WKHILUHGHSDUWPHQW
²
,QVWDOODWLRQDQGVHUYLFHPXVWEHSHUIRUPHG
E\DTXDOLILHGLQVWDOOHUVHUYLFHDJHQF\RUWKH
JDVVXSSOLHU
,IWKHLQIRUPDWLRQLQWKHVHLQVWUXFWLRQVLVQRW
IROORZHGH[DFWO\DILUHRUH[SORVLRQPD\UHVXOW
FDXVLQJSURSHUW\GDPDJHSHUVRQDOLQMXU\RUGHDWK
:$51,1*

9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
4
1HYHU2SHUDWHWKH7RS6XUIDFH&RRNLQJ6HFWLRQRI
WKLV$SSOLDQFH8QDWWHQGHG
)DLOXUHWRIROORZWKLVZDUQLQJVWDWHPHQWFRXOG
UHVXOWLQILUHH[SORVLRQRUEXUQKD]DUGWKDWFRXOG
FDXVHSURSHUW\GDPDJHSHUVRQDOLQMXU\RUGHDWK
,IDILUHVKRXOGRFFXUNHHSDZD\IURPWKHDSSOLDQFH
DQGLPPHGLDWHO\FDOO\RXUILUHGHSDUWPHQW
'2127$77(03772(;7,1*8,6+$12,/*5($6(
),5(:,7+:$7(5

:$51,1*

5
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT: THE APPLIANCE MUST
BE INSTALLED BY A QUALIFIED
INSTALLER.
INSTALLER: LEAVE THESE
INSTRUCTIONS WITH THE APPLIANCE
AFTER INSTALLATION IS COMPLETE.
IMPORTANT: SAVE FOR THE LOCAL
INSPECTOR’S USE.
9WARNING
If the information in this manual is
not followed exactly, fire or shock
may result causing property damage
or personal injury.
9WARNING
Do not repair, replace or remove any
part of the appliance unless
specifically recommended in the
manuals. Improper installation,
service or maintenance can cause
injury or property damage. Refer to
this manual for guidance. All other
servicing should be done by an
authorized service provider.
Improper installation is not covered by
the warranty.
Appliance Handling Safety
Safety Codes and Standards
This appliance complies with one or more
of the following Standards:
▯UL 858, The Standard for the Safety of
Household Electric Ranges
▯UL 923, The Standard for the Safety of
Microwave Cooking Appliances
▯UL 507, The Standard for the Safety of
Electric Fans
▯ANSI Z21.1 / CSA 1.1 Household Cooking
Gas Appliances
▯CAN/CSA-C22.2 No. 113-M1984 Fans and
Ventilators
▯CAN/CSA-C22.2 No. 61-M89 Household
Cooking Ranges
It is the responsibility of the owner and
the installer to determine if additional
requirements and/or standards apply to
specific installations.
Installation must conform with local
codes or, in the absence of local codes,
with the National Fuel Gas Code, ANSI
Z223.1/NFPA 54 or, in Canada, the
Natural Gas and Propane Installation
Code, CSA B149.1.
The appliance must be electrically
grounded in accordance with local codes
or, in the absence of local codes, with the
National Electrical Code, NFPA 70 latest
edition or, in Canada, the Canadian
Electric Code, CSA C22.1-02.
Hidden surfaces may have sharp
edges. Use caution when
reaching behind or under
appliance.

9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
6
Electric Safety
9WARNING
Before you plug in an electrical cord
or turn on power supply, make sure
all controls are in the OFF position.
For appliances equipped with a cord and
plug, do not cut or remove the ground
prong. It must be plugged into a matching
grounding type receptacle to avoid
electrical shock. If there is any doubt as
to whether the wall receptacle is properly
grounded, the customer should have it
checked by a qualified electrician.
Do not use an extension cord.
Do not use an adapter.
If required by the National Electrical
Code (or Canadian Electrical Code), this
appliance must be installed on a separate
branch circuit.
The circuit breaker should have a contact
separation of at least 3 mm on all poles.
Be sure your appliance is properly
installed and grounded by a qualified
technician. Installation, electrical
connections and grounding must comply
with all applicable codes.
Before installing, turn power OFF at the
service panel. Lock service panel to
prevent power from being turned ON
accidentally.
Installer – show the owner the location of
the circuit breaker or fuse. Mark it for
easy reference.
Gas Safety
Install a gas shutoff valve near the
appliance. It must be easily accessible in
an emergency.
Leak testing must be conducted by the
installer according to the instructions in
this manual.
The appliance and its individual shutoff
valve must be disconnected from the gas
supply piping system during any pressure
testing at pressures in excess of ½ psi
(3.5 kPa).
The appliance must be isolated from the
gas supply piping system by closing its
individual manual shutoff valve during any
pressure testing of the gas supply piping
system at test pressures equal to or less
than ½ psi (3.5 kPa).
The minimum supply pressure must be 1"
water column above the manifold
pressure printed on the rating label.
The maximum supply pressure must not
exceed 14.0 inches water column
(34.9 Millibars).
A metal flex line or fixed metal pipe shall
be used to connect gas to the appliance.
If a metal gas line cannot be used,
consult your local certified electrician or
local electric codes for proper grounding.

7
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY NOTICE: Burning
gas cooking fuel generates some by-
products which are on the list of
substances which are known by the State
of California to cause cancer or
reproductive harm. To minimize exposure
to these substances, always operate this
unit according to the instructions
contained in this booklet and provide
good ventilation.
Proposition 65 Warning:
This product may contain a chemical
known to the State of California, which
can cause cancer or reproductive harm.
Therefore, the packaging of your product
may bear the following label as required
by California:
Propane Gas Installation
The propane gas tank must be equipped
with its own high pressure regulator. In
addition, the regulator supplied with this
unit must also be used.
The appliance is shipped from the factory
for use with natural gas. It must be
converted for use with propane. A
qualified technician or installer must do
the conversion.
For use with propane the appliance must
be converted per the LP conversion
instructions.
For Massachusetts installations:
▯Installation must be performed by a
qualified or licensed contractor,
plumber or gas fitter qualified or
licensed by the state, province or
region where this appliance is being
installed.
▯Shut-off valve must be a “T” handle gas
cock.
▯Flexible gas connector must not be
longer than 36 inches.
Installer - show the owner where the gas
shut-off valve is located.
Related Equipment Safety
The appliance should only be used if
installed by a qualified technician in
accordance with these installation
instructions. The manufacturer is not
responsible for any damage resulting
from incorrect installation.
Remove all tape and packaging before
using the appliance. Destroy the
packaging after unpacking the appliance.
Never allow children to play with
packaging material.
Never modify or alter the construction of
the appliance. For example, do not
remove leveling legs, panels, wire covers
or anti-tip brackets/screws.

&DQFHUDQG5HSURGXFWLYH+DUPZZZ3:DUQLQJVFDJRY
67$7(2)&$/,)251,$352326,7,21:$51,1*
:$51,1*

8
en-us Before you begin
To eliminate the risk of burns or fire by
reaching over heated surface units, cabinet
storage space located above the surface
units should be avoided. If cabinet storage
is to be provided, the risk can be reduced
by installing a hood that projects
horizontally a minimum of 5 inches
(127 mm) beyond the bottom of the cabinet.
Verify that cabinets above the cooktop are a
maximum of 13" (330 mm) deep.
When installing a cooktop over a single
oven, be sure to follow both the oven’s and
cooktop’s installation manuals.
Ventilation Recommendations
We strongly recommend the installation of a
ventilation hood above this appliance. The
hood must be installed according to
instructions furnished with the hood.
9CAUTION
The appliance should not be installed
with a ventilation system that blows air
downward toward the burners. This
type of ventilation system may cause
ignition and combustion problems with
the gas cooking appliance resulting in
personal injury or unintended
operation.
Before you begin
Beforeyoubegin Tools and Parts Needed
▯Phillips Head Screwdriver
▯Pencil
▯Drill with ¼" (6 mm) bit
▯Jigsaw
▯Tape Measure
Note: Additional materials may be necessary for
installation in solid surface countertops. Contact the
countertop manufacturer.
Parts Included
▯Burner grate
▯Burner caps
▯Pressure regulator
▯1/2” U.S.A. elbow and fiber gasket
▯Plastic covering parts for installation without
appliance cover

9
Before you begin en-us
Installation accessories
Use the accessories only as indicated. The manufacturer
assumes no liability for incorrect usage of the
accessories.
Cabinet Requirements
The minimum spaces that must be maintained when
installing the gas cooktop shall be:
The distance from the top of the cooktop to the bottom of
cabinets above can be reduced to 26" when the bottom of
the wood or metal cabinet is protected by not less than
¼" (6.35 mm)-thick flame-retardant millboard covered
with not less than No. 28 MSG sheet metal, 0.015 inch
(0.4 mm) stainless steel, 0.024 inch (0.6 mm) aluminum
or copper.
Countertop Requirements
9WARNING
To reduce the risk of ignition of surrounding
combustible materials, install at least 12" (300 mm)
from both sidewalls and at least 2" (51 mm) from
the rear wall.
The countertop must be level and horizontal. The stability
of the countertop must be maintained after the cut-out
has been made.
Technical Data
VD 200 020 Black appliance cover
VV 200 010 Stainless steel connection strip for
combining with other Vario 200
appliances
VV 200 020 Black connection strip for combining
with other Vario 200 appliances
Aminimum 12" (300 mm)
Bminimum 12" (300 mm)
Cminimum 30" (762 mm) clearance between
the top of the cooking surface and the
bottom of combustible constructions
Dminimum 1 9/16" (40 mm)
Eminimum 24" (600 mm)
Fminimum 18" (460 mm)
Gmaximum 13" (330 mm)
$
%
)
'
(
&
*
Total connected load electric 10 W
Total connected load gas
(natural gas)
16,500 BTU/h
(4.9 kW)
Total connected load gas
(propane gas)
16,500 BTU/h
(4.9 kW)
[
¡
PP

PLQPP
PLQ
PLQ PLQ



PLQ
 PP



10
en-us Installation Procedure
Installation Procedure
InstallationProcedure Prepare Installation Space
Prepare Install ati on Sp a c e The kitchen unit must be heat-resistant to at least 200° F
(90°C). The stability of the unit must be maintained after
producing the cut-out.
Create the cut-out in the countertop for one or several
Vario appliances according to the installation diagram.
The angle of the cut surface to the countertop must be
90°.
After creating cut-out, remove shavings. Seal cut
surfaces in a heat-resistant manner.
Some solid surface countertops require special
installations. For example, heat reflective tape and
rounded corners may be necessary. Contact the
countertop manufacturer for instructions specific to your
countertop.
Observe minimum distance between appliance underside
and furniture parts of 3/8" (10 mm).
To improve flame stability, we recommend installing an
intermediate floor underneath the appliance in the
installation cabinet.
When installing multiple Vario appliances: Take into account
spacerequirement for VV 200 connection strip between
the appliances.Appliances can also be installed in
individual cut-outs, bearingin mind a minimum distance
between the appliances of 19/16" (40 mm).
Install Appliance
9WARNING
Before you plug in an electrical cord or turn on
power supply, make sure all controls are in the OFF
position.
1. Secure the appliance cover VD 200 020 (available
separately as special accessories) before fitting on
the appliance (see installation instructions
VD 200 020).
2. Insert appliance evenly into the cutout. Push it firmly
into the cutout from above.
Note: The appliance must be firmly fixed in the cutout
and must not be able to move around (e.g. during
cleaning). If the width of the cutout is at the upper
tolerance limit, fasten the ledges at the sides in the
cutout if necessary.
