Table of Contents
Installation instructions
9Safety Definitions 2
IMPORTANT SAFETY INSTRUCTIONS 3
Safety Codes and Standards 3
Electric Safety 4
Related Equipment Safety 4
Proposition 65 Warning 5
Before you begin 6
Tools and parts needed 6
Parts included 6
Cabinet Requirements 6
Countertop Requirements 6
Prepare Installation Space 7
Cutting out countertop 7
Ventilation 7
Installation Procedure 8
Installing the heat shield 8
Install Appliance 9
Connect Electrical Supply 9
Check the Installation 9
Removing appliance 9
Customer Service 10
9Safety Definitions
SafetyDefinitions 9WARNING
This indicates that death or serious injuries may
occur as a result of non-observance of this
warning.
9CAUTION
This indicates that minor or moderate injuries may
occur as a result of non-observance of this
warning.
NOTICE
This indicates that damage to the appliance or property
may occur as a result of non-compliance with this
advisory.
Note: This alerts you to important information and/or
tips.

3
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READANDSAVETHESEINSTRUCTIONS IMPORTANT: The appliance must be
installed by a qualified installer.
IMPORTANT: Save for the local electrical
inspector’s use.
INSTALLER: leave these instructions with
this unit for the owner. Show the owner
the location of the circuit breaker or fuse.
Mark it for easy reference.
OWNER: Please retain these instructions
for future reference.
9WARNING
If the information in this manual is
not followed exactly, fire or shock
may result causing property damage
or personal injury.
9WARNING
Do not repair, replace or remove any
part of the appliance unless
specifically recommended in the
manuals. Improper installation,
service or maintenance can cause
injury or property damage. Refer to
this manual for guidance. All other
servicing should be done by an
authorized servicer.
Remove all tape and packaging before
using the appliance. Destroy the
packaging after unpacking the appliance.
Never allow children to play with
packaging material.
This appliance is intended for use up to a
maximum height of 13,100 feet
(4,000 meters) above sea level.
Improper installation is not covered by
the warranty.
9WARNING
Wearers of electronic implants!
The appliance may contain
permanent magnets which may affect
electronic implants, e.g. heart
pacemakers or insulin pumps.
Therefore, during installation,
wearers of electronic implants must
maintain a minimum distance of
4 inch (10 cm) from the appliance.
Safety Codes and Standards
This appliance complies with one or more
of the following Standards:
▯UL 858, The Standard for the Safety of
Household Electric Ranges
▯UL 923, The Standard for the Safety of
Microwave Cooking Appliances
▯UL 507, The Standard for the Safety of
Electric Fans
▯ANSI Z21.1, The American National
Standard for Household Cooking Gas
Appliances
Hidden surfaces may have sharp
edges. Use caution when
reaching behind or under
appliance.

9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
4
▯CAN/CSA-C22.2 No. 113 Fans and
Ventilators
▯CAN/CSA-C22.2 No. 61 Household
Cooking Ranges
▯CAN/CSA-E60335-1
▯CAN/CSA-E60335-2-6 Household and
similar electrical appliances - Safety
It is the responsibility of the owner and
the installer to determine if additional
requirements and/or standards apply to
specific installations.
Electric Safety
If required by the National Electrical
Code (or Canadian Electrical Code), this
appliance must be installed on a separate
branch circuit.
The circuit breaker should have a contact
separation of at least 3 mm on all poles.
Be sure your appliance is properly
installed and grounded by a qualified
technician. Installation, electrical
connections and grounding must comply
with all applicable codes.
Before installing, turn power OFF at the
service panel. Lock service panel to
prevent power from being turned ON
accidentally.
9WARNING
IMPROPER GROUNDING CAN RESULT IN A
RISK OF ELECTRIC SHOCK!
Related Equipment Safety
The appliance should only be used if
installed by a qualified technician in
accordance with these installation
instructions. The manufacturer is not
responsible for any damage resulting
from incorrect installation.
Never modify or alter the construction of
the appliance. For example, do not
remove leveling legs, panels, wire covers
or anti-tip brackets/screws.
To eliminate the risk of burns or fire by
reaching over heated surface units,
cabinet storage space located above the
surface units should be avoided. If
cabinet storage is to be provided, the risk
can be reduced by installing a hood that
projects horizontally a minimum of 5
inches (127 mm) beyond the bottom of
the cabinet.
Verify that cabinets above the cooktop are
a maximum of 13" (330 mm) deep.
Consult a qualified electrician if the
grounding instructions are not
completely understood, or if doubt
exists as to whether the appliance
is properly grounded. DO NOT USE
AN EXTENSION CORD.

5
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
DO NOT install refrigerators,
dishwashers, ovens (without ventilation),
or washing machines below the cooktop.
Note: We strongly recommend the
installation of a ventilation system with
this appliance.
Proposition 65 Warning:
This product may contain a chemical
known to the State of California, which
can cause cancer or reproductive harm.
Therefore, the packaging of your product
may bear the following label as required
by California:

&DQFHUDQG5HSURGXFWLYH+DUPZZZ3:DUQLQJVFDJRY
67$7(2)&$/,)251,$352326,7,21:$51,1*
:$51,1*

6
en-us Before you begin
Before you begin
Beforeyoubegin Tools and parts needed
▯Phillips Head Screwdriver
▯Pencil
▯Drill with ¼" (6 mm) bit
▯Jigsaw
▯Tape Measure
Note: Additional materials may be necessary for
installation in solid surface countertops. Contact the
countertop manufacturer.

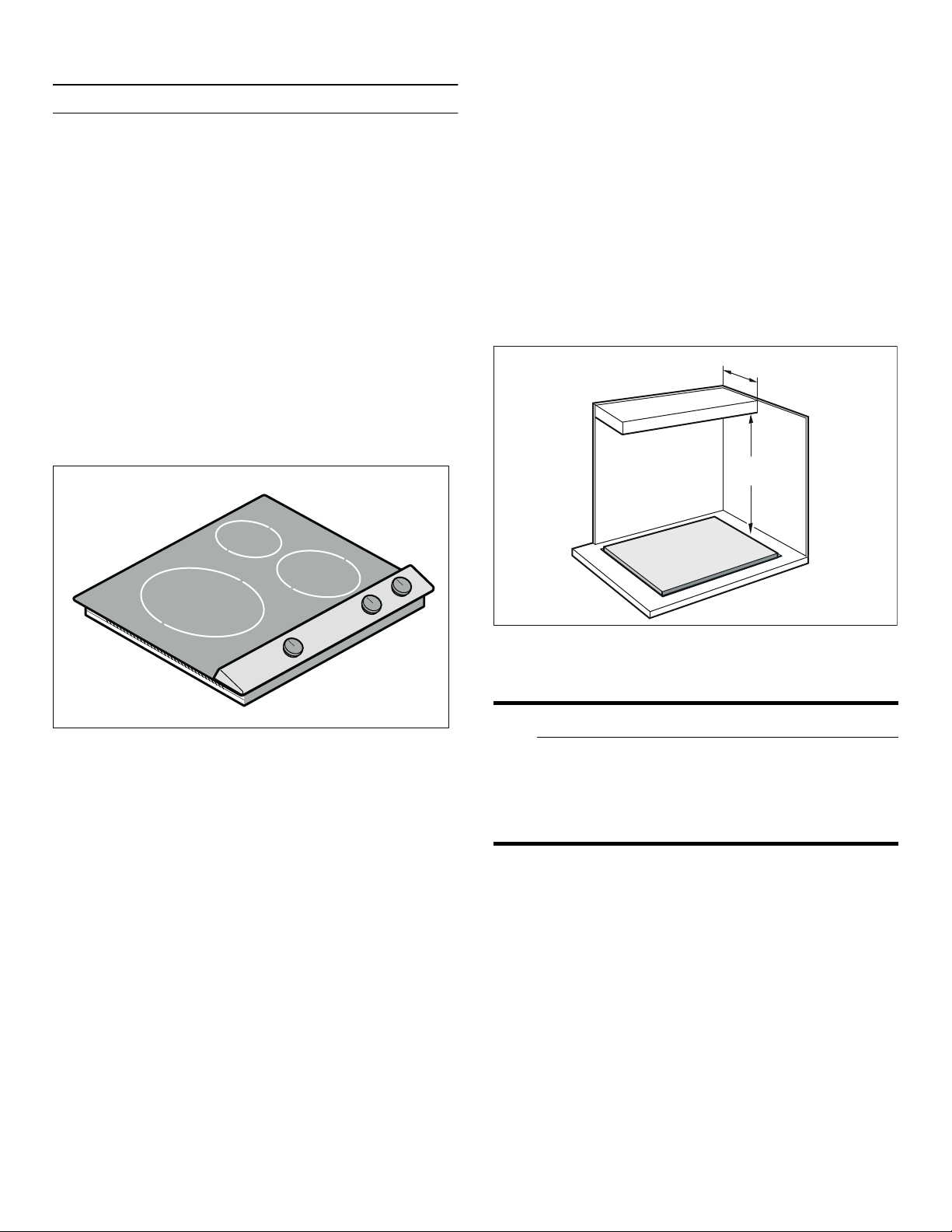

Parts included
Cabinet Requirements
The distance from the top of the cooktop to the bottom of
cabinets above must be a minimum of A=30" (762 mm).
This distance can be reduced to A=24" (610 mm) when
the bottom of the wood or metal cabinet is protected by
not less than ¼" (6.35 mm) flame-retardant millboard
covered with not less than no. 28 gauge sheet metal,
0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm)
aluminum or 0.020" (0.5 mm) copper.
Verify that the cabinets above the cooktop are a maximum
of B=13" (330 mm) deep.
Countertop Requirements
9WARNING
To reduce the risk of ignition of surrounding
combustible materials, install at least 2" (51 mm)
from both sidewalls and the rear wall.
The countertop must be level and horizontal. The stability
of the countertop must be maintained after the cut-out
has been made.
Solid surface countertops often require special
installations. For example, heat-reflective tape and
rounded corners may be necessary. Contact the
countertop manufacturer for instructions specific to your
countertop.
%
$

7
Prepare Installation Space en-us
Prepare Installation Space
PrepareInstallationSpace Create the cut-out in the countertop according to the
installation diagram. The angle of the cut surface to the
countertop must be 90°.
The lateral cut-out edges must be flat in order to ensure
that the retaining springs are positioned properly on the
appliance. With multi-layered countertops, secure strips
laterally in the cut-out if necessary.
After creating cut-out, remove shavings. Seal cut
surfaces in a heat- and water-resistant manner.
Observe minimum distance between device underside
and cabinet surfaces of 3/8" (10 mm).
The worktop into which the cooktop is installed must be
heat-resistant up to 140° F (90 °C).
The worktop must be reinforced if it is less than 13/16 inch
(20 mm) thick.
If the thickness of the worktop into which the cooktop is
installed does not comply with the specifications,
reinforce the worktop using a fire- and water-resistant
material until it reaches the minimum thickness.
Otherwise, sufficient stability cannot be assured.
▯The worktop into which the cooktop is installed should
withstand loads of approx. 133 lbs (60 kg).
▯Confirm the cooktop is level only after it has been
installed.
Cutting out countertop
Combining several Vario appliances: Consider additional
space requirement for the connecting strip VV 200 when
making the cut-out. Appliances can also be installed in
individual cut-outs, if a minimum clearance of 1½"
(40 mm) between the appliances is observed.
Installation accessories
Use the accessories only as indicated. The manufacturer
assumes no liability for incorrect usage of the
accessories.

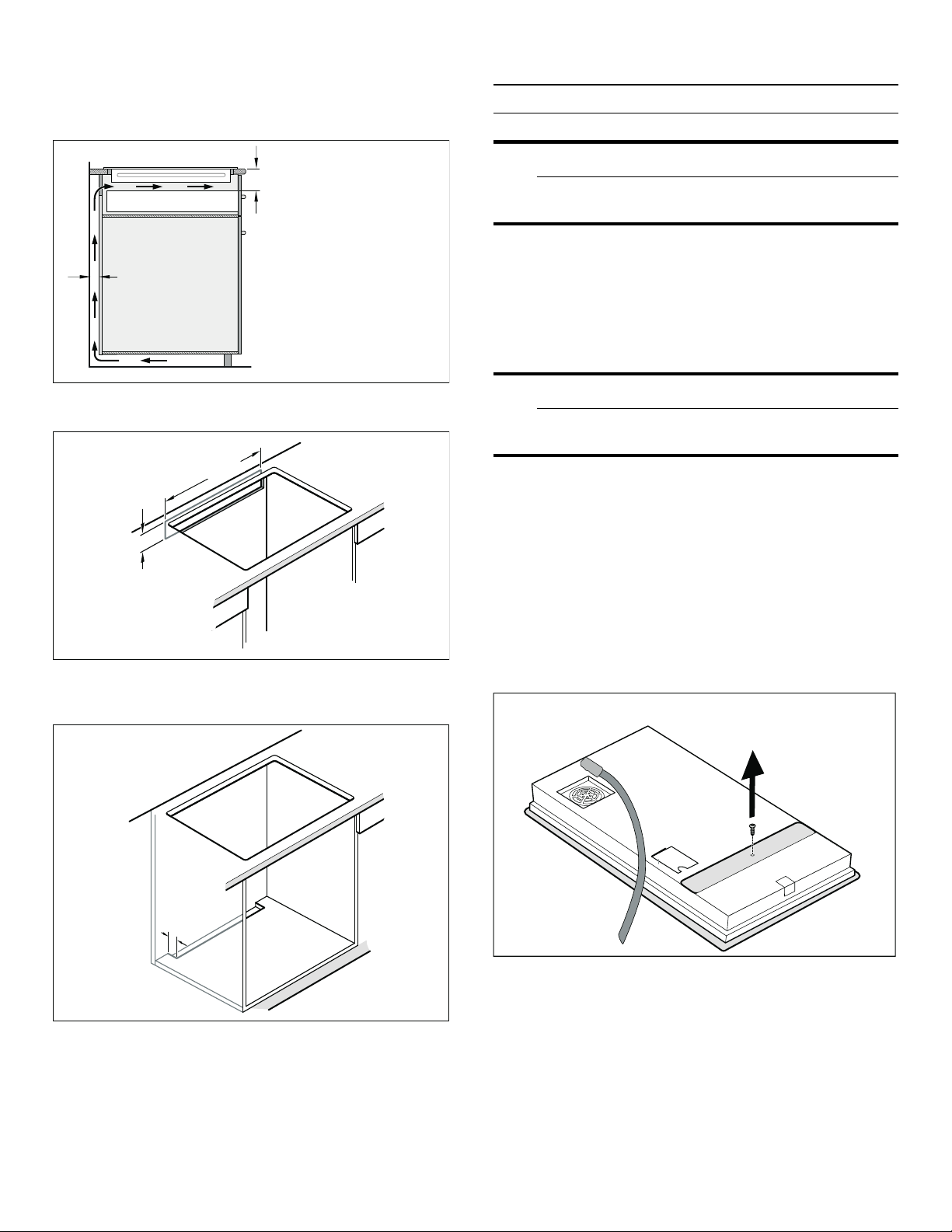

Ventilation
To guarantee that the appliance works correctly, the
cooktop MUST be sufficiently ventilated.
Since the ventilation in the lower section of the appliance
requires a sufficient supply of fresh air, the cabinet must
be designed accordingly. The following is required for
this:
VV 200 010 Stainless steel connection strip for
combining with other Vario 200
appliances
VV 200 020 Black connection strip for combining
with other Vario 200 appliances

PLQë

èʌ¼ʓʘ
5
ââ


PLQ

PLQ

PLQʌ¼ʚ
ç¼ʚ

è¼ʓʘè¼ʓʘ
è¼ʚ

è¼ʓʘ

 PP
è¼ʓʘ

8
en-us Installation Procedure
▯A minimum clearance between the rear of the
cupboard and the kitchen wall, and between the
surface of the worktop and the upper area of the
drawer.
▯An opening at the top to the rear of the cupboard.
▯If the minimum clearance of 13/16 inch (20 mm) is not
provided at the rear of the cupboard, you must create
an opening on the underside.
Note: If the appliance is installed in an island unit or
another installation that is not described here, you must
ensure that the cooktop is sufficiently ventilated.
Installation Procedure
InstallationProcedure 9CAUTION
Sharp edges. Use protective gloves when installing
the cooktop.
Note: The appliance is heavy. It is advisable to install it
with a second person.
Installing the heat shield
9CAUTION
Sharp edges. Use protective gloves when installing
the plate.
For safety reasons, the heat shield must be properly
installed. This prevents components from overheating as
a result of the recirculation of hot air from the cooktop.
The heat shield is the same width as the cooktop. For
shipping, it is screwed to the burner box.
After unpacking the cooktop, unscrew the heat shield.
PLQèç¼ʓʘ
 PP
PLQ
 PP
PLQë
PLQʌ¼ʚ
PLQë
 PP

9
Installation Procedure en-us
The heat shield will be able to rotate freely, as shown in
the illustration.
Install Appliance
9WARNING
Before you plug in an electrical cord or turn on
power supply, make sure all controls are in the OFF
position.
1. Evenly insert appliance into cut-out. Press appliance
firmly into the cut-out.
The fixing clamps are already attached to the sides of
the cooktop on delivery. By pressing the appliance
firmly into the cut-out, the clamps will be wedged,
holding the appliance securely in place.
9CAUTION
Do not pinch or kink the connecting cable or
route it over sharp edges. If the cooktop is
installed over a built-under oven, route the cable
on the rear corners of the oven to the power
outlet. The cable must be installed such that it
does not come into contact with any hot pars of
the cooktop or oven.
Connect Electrical Supply
Refer to data plate for more information. See "Service"
for data plate location.
The maximum current raing of the branch-circuit breaker,
the wire sizes and the connections must be conform to
the requirements of the National Electrical Code or
Canadian Electrical Code and all local codes and
ordinances.
Attach flexible conduit to the junction box. Connect the
lead wires to the junction box supply wires in proper
phase:
▯black (L1) to black
▯red (L2) to red
▯green or bare to ground
Check the Installation
9WARNING
Before you plug in an electrical cord or turn on
power supply, make sure all controls are in the OFF
position.
Remove everything from the cooktop surface. Clean
cooktop surface with cooktop cleaning creme.
Switch on the circuit breaker.
Verify that elements function properly.
Removing appliance
Disconnect the appliance from the power supply. For
flush-mounted appliances, remove the silicone joint. Push
out the appliance from below.
9CAUTION
Damage to appliance! Don't lever device out from
above at the frame.

10
en-us Customer Service
Customer Service
Customer Service If your appliance needs repairs, our customer service is
there for you. We work hard to help solve problems
quickly and without unnecessary service calls, getting
your appliance back up and running correctly in the least
amount of time possible.
When you call, please indicate the product number
(E-Nr.) and serial number (FD-Nr.) so that we can support
you in a qualified manner. You will find the type plate with
these numbers on the bottom of the appliance. To avoid
having to search for a long time when you need it, you
can enter your appliance data and the customer support
telephone number here.
Please read the installation instructions and use and care
instructions provided with your appliance. Failure to do
so may result in an error in using the appliance. This
could result in a service call that instead of fixing a
mechanical issue is only needed for customer education.
Such calls are not covered by the appliance warranty.
Please find the contact data of all countries in the
enclosed customer service list.
To book a service visit and product advice
E-Nr. FD-Nr.
Customer Service O
USA 877 442 4436
toll-free
CANADA 877 442 4436
toll-free
