Gaggenau VL 200 120 User manual

*DJJHQDX
Installation instructions2
Notice de montage12
Instrucciones de instalación23
VL 200 120
Downdraft ventilation
Aérateur de plan de cuisson
Extractor de superficie

2
en-us Safety Definitions
Table of Contents
Installation instructions
9Safety Definitions 2
IMPORTANT SAFETY INSTRUCTIONS 3
Appliance Handling Safety 5
Safety Codes and Standards 6
Electric Safety 6
Related Equipment Safety 7
Proposition 65 Warning 7
Before you begin 8
Tools and parts needed 8
Parts included 8
Preparing fitted units 8
Appliance dimensions 8
Countertop Requirements 9
Installation Procedure 9
Install Appliance 9
Connecting device 11
Removing appliance 11
Customer service 11
9Safety Definitions
SafetyDefinitions 9WARNING
This indicates that death or serious injuries may
occur as a result of non-observance of this
warning.
9CAUTION
This indicates that minor or moderate injuries may
occur as a result of non-observance of this
warning.
NOTICE
This indicates that damage to the appliance or property
may occur as a result of non-compliance with this
advisory.
Note: This alerts you to important information and/or
tips.

3
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READANDSAVETHESEINSTRUCTIONS INSTALLER: LEAVE THESE
INSTRUCTIONS WITH THE APPLIANCE
AFTER INSTALLATION IS COMPLETE.
IMPORTANT: SAVE THESE
INSTRUCTIONS FOR THE LOCAL
ELECTRICAL INSPECTOR'S USE.
9WARNING
If the information in this manual is
not followed exactly, fire or shock
may result causing property damage
or personal injury.
9WARNING
Do not repair, replace or remove any
part of the appliance unless
specifically recommended in the
manuals. Improper installation,
service or maintenance can cause
injury or property damage. Refer to
this manual for guidance. All other
servicing should be done by an
authorized servicer.
9WARNING
WARNING – TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
▯Installation work and electrical
wiring must be done by qualified
person(s) in accordance with all
applicable codes and standards,
including fire-rated construction.
▯Sufficient air is needed for proper
combustion and exhausting of
gases through the flue (chimney)
of fuel burning equipment to
prevent back drafting. Follow the
heating equipment manufacturer’s
guideline and safety standards
such as those published by the
National Fire Protection
Association (NFPA), and the
American Society for Heating,
Refrigeration and Air Conditioning
Engineers (ASHRAE), and the
local code authorities.
▯When cutting or drilling into wall
or ceiling, do not damage
electrical wiring and other hidden
utilities.
▯Ducted fans must always be
vented to the outdoors.

9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
4
9WARNING
The applicable regulations of the
energy supply companies and the
regional construction regulations
must be observed when installing
the hood.
9WARNING
Risk of fire!
If the downdraft ventilator is installed
next to a gas appliance, an air baffle
must be used (available as
accessory). This prevents the flame
from being drawn into the fan. Thus,
a filter soaked in grease cannot be
ignited by the gas flame.
9WARNING
Risk of injury!
From sharp edges during
installation. Always wear protective
gloves while installing the appliance.
9WARNING
Risk of fire!
Grease deposits in the grease filter
can catch fire. Never work with a
naked flame near the appliance (e.g.
flambéing). Install the unit near a
heat-producing appliance for solid
fuels (e.g. wood or coal) only if there
is a closed, non-detachable cover.
There must be no flying sparks.
9WARNING
Fire risk!
Grease deposits in the grease filter
can ignite. If the appliance is used
next to a gas appliance, a ventilation
molding must be fitted during
cooking. The ventilation molding
improves extraction when using gas
appliances. The ventilation molding
prevents extinction of small flames
due to the draft.
9WARNING
To reduce risk of fire and to properly
exhaust air, be sure to duct air
outside. Do not vent exhaust air into
spaces within walls, ceilings, attics,
crawl spaces or garages.
9WARNING
To reduce the risk of fire, use only
metal ductwork.

5
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
9WARNING
When the hood is operated in
exhaust-air mode simultaneously with
a different burner which also makes
use of the same chimney (such as
gas, oil or coal-fired heaters,
continuous-flow heaters, hot-water
boilers) care must be taken to
ensure that there is an adequate
supply of fresh air which will be
needed by the burner for
combustion.
Safe operation is possible provided
that the under pressure in the room
where the burner is installed does
not exceed 4 Pa (0.04 mbar).
This can be achieved if combustion
air can flow through non-lockable
openings, e.g. in doors, windows
and via the air-intake/exhaust-air wall
box or by other technical measures,
such as reciprocal interlocking, etc.
9WARNING
Avoid carbon monoxide poisoning –
Provide adequate air intake so
combustion gases are not drawn
back into the room.
An air-intake/exhaust-air wall box by
itself is no guarantee that the limiting
value will not be exceeded.
Note: When assessing the overall
requirement, the combined ventilation
system for the entire household must be
taken into consideration. This rule does
not apply to the use of cooking
appliances, such as cooktops and ovens.
9CAUTION
For general ventilating use only. Do
not use to exhaust hazardous or
explosive materials and vapors.
Appliance Handling Safety
Unit is heavy and requires at least two
people or proper equipment to move.
Hidden surfaces may have sharp edges.
Use caution when reaching behind or
under appliance.
9WARNING
Risk of injury!
The appliance may fall from the wall
if it is not attached properly. All
fastening components must be fixed
firmly and securely in place.

9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
6
9WARNING
Risk of tipping over!
The appliance is very narrow and can
tip over easily. Do not place
appliance upright on the floor. Place
the appliance flat on the floor.
Safety Codes and Standards
This appliance complies with the latest
version of one or more of the following
standards:
▯UL 507 - Electric Fans
▯CAN/CSA C22.2 No. 113 - Fans and
Ventilators
It is the responsibility of the installer to
determine if additional requirements and/
or standards apply to specific
installations.
Electric Safety
9WARNING
GROUNDING INSTRUCTIONS!
This appliance must be grounded. In
the event of an electrical short
circuit, grounding reduces the risk of
electric shock by providing an
escape wire for the electric current.
This appliance is equipped with a
cord having a grounding wire with a
grounding plug. The plug must be
plugged into an outlet that is
properly installed and grounded.
9WARNING
Improper grounding can result in a
risk of electric shock. Consult a
qualified electrician if the grounding
instructions are not completely
understood, or if doubt exists as to
whether the appliance is properly
grounded. Do not use an extension
cord. If the power supply cord is too
short, have a qualified electrician
install an outlet near the appliance.
9WARNING
Before you plug in an electrical cord
or turn on power supply, make sure
all controls are in the OFF position.
For appliances equipped with a cord and
plug, do not cut or remove the ground
prong. It must be plugged into a matching
grounding type receptacle to avoid
electrical shock. If there is any doubt as
to whether the wall receptacle is properly
grounded, the customer should have it
checked by a qualified electrician.
If required by the National Electrical
Code (or Canadian Electrical Code), this
appliance must be installed on a separate
branch circuit.
9WARNING
To reduce the risk of fire or electric
shock, do not use this fan with any
solid-state speed control device.

7
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Installer – show the owner the location of
the circuit breaker or fuse. Mark it for
easy reference.
Before installing, turn power OFF at the
service panel. Lock service panel to
prevent power from being turned ON
accidentally.
9WARNING
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE
FOLLOWING:
▯Use this unit only in the manner
intended by the manufacturer. If
you have questions, contact the
manufacturer.
▯Before servicing or cleaning unit,
switch power off at service panel
and lock the service
disconnecting means to prevent
power from being switched on
accidentally.
When the service disconnecting
means cannot be locked, securely
fasten a prominent warning
device, such as a tag, to the
service panel.
Be sure your appliance is properly
installed and grounded by a qualified
technician. Installation, electrical
connections and grounding must comply
with all applicable codes.
9WARNING

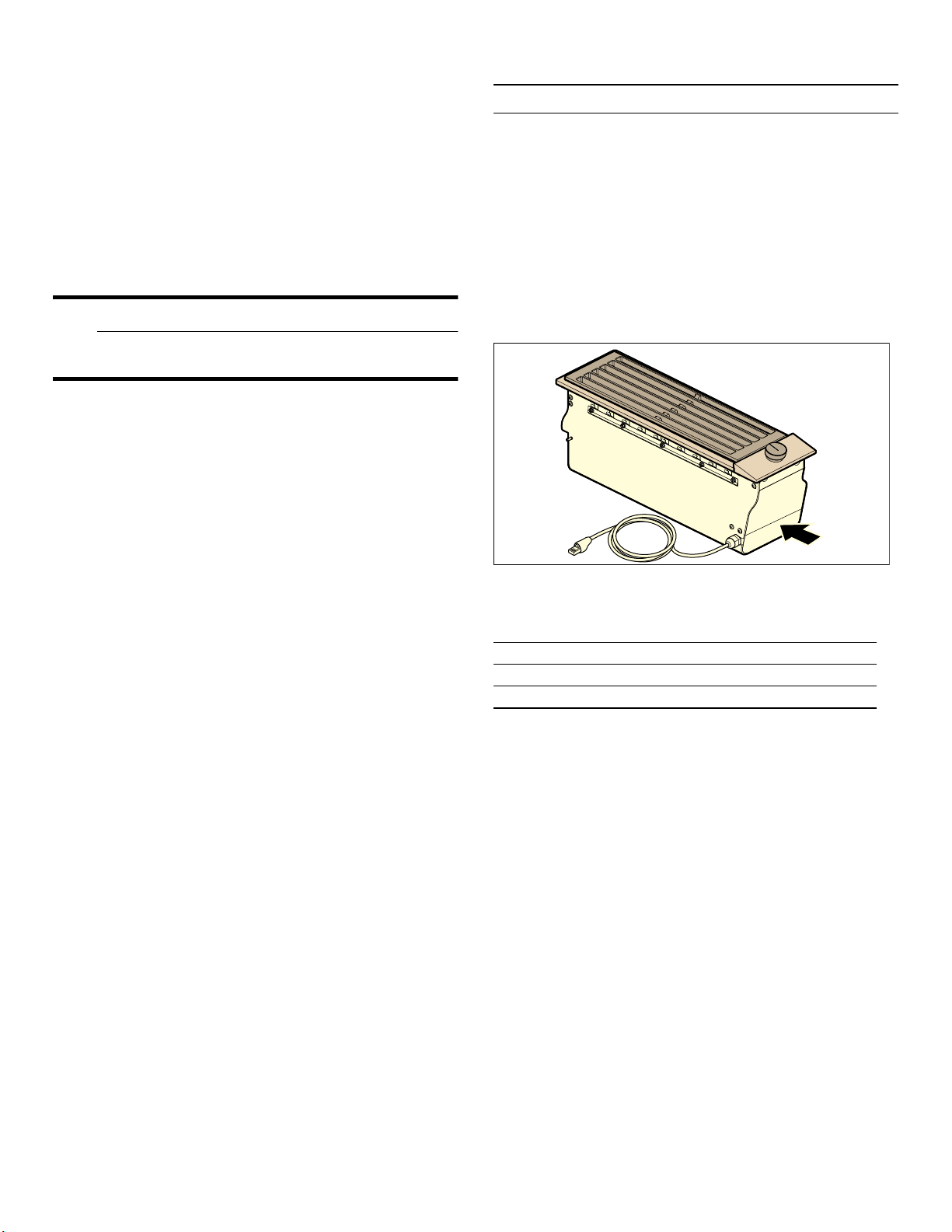

Risk of electric shock!
Parts inside the appliance can have
sharp edges. The connection cable
can be damaged. Do not bend or
pinch connection cables during
installation.
Related Equipment Safety
Remove all tape and packaging before
using the appliance. Destroy the
packaging after unpacking the appliance.
Never allow children to play with
packaging material.
The appliance should only be used if
installed by a qualified technician in
accordance with these installation
instructions. The manufacturer is not
responsible for any damage resulting
from incorrect installation.
Never modify or alter the construction of
the appliance. For example, do not
remove leveling legs, panels, wire covers
or anti-tip brackets/screws.
Proposition 65 Warning:
This product may contain a chemical
known to the State of California, which
can cause cancer or reproductive harm.
Therefore, the packaging of your product
may bear the following label as required
by California:

&DQFHUDQG5HSURGXFWLYH+DUPZZZ3:DUQLQJVFDJRY
67$7(2)&$/,)251,$352326,7,21:$51,1*
:$51,1*

8
en-us Before you begin
Before you begin
Beforeyoubegin Tools and parts needed
▯Phillips Head Screwdriver
▯Pencil
▯Drill with ¼" (6 mm) bit
▯Jigsaw
▯Tape Measure
Note: Additional materials may be necessary for
installation in solid surface countertops. Contact the
countertop manufacturer.

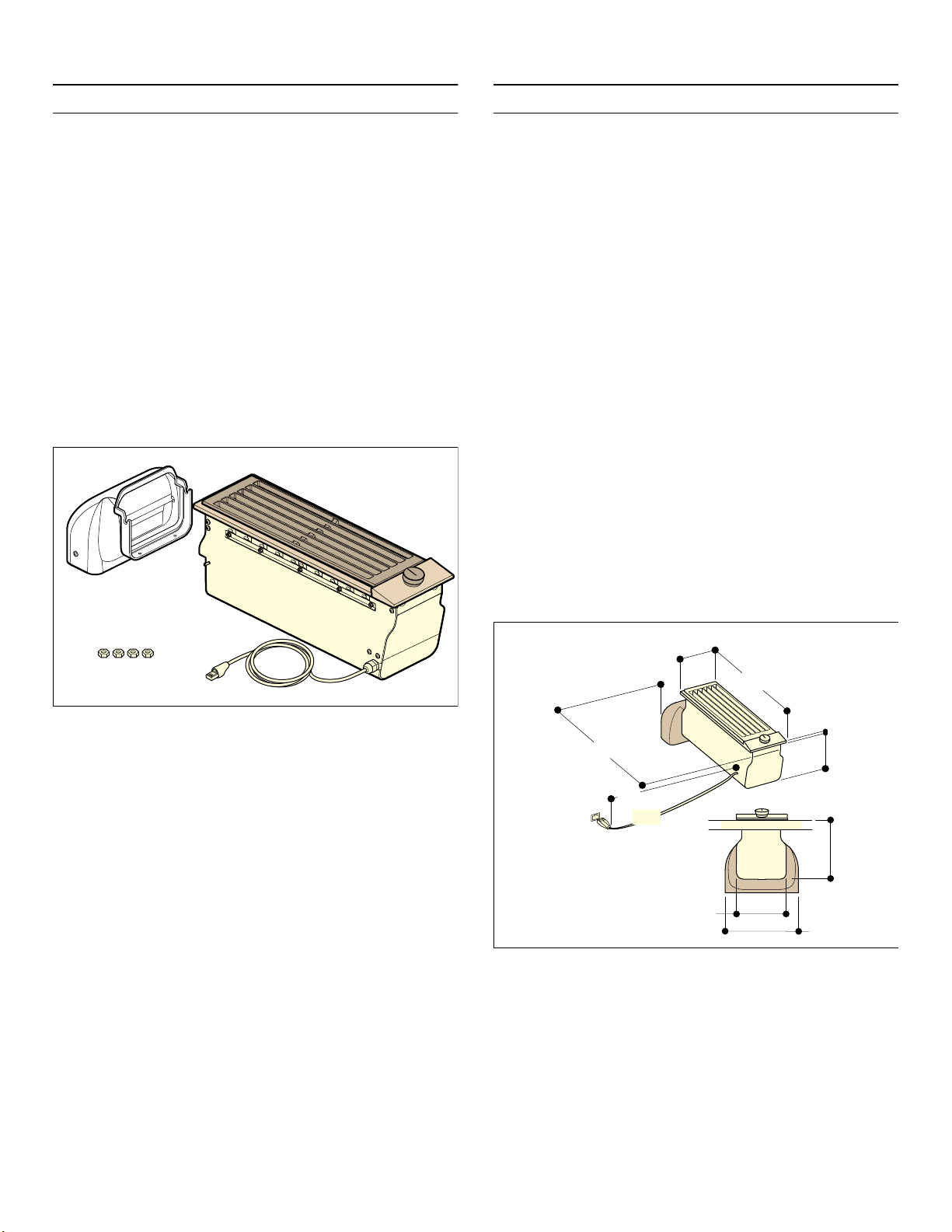

Parts included
Preparing fitted units
Fitted units must be heat-resistant up to 90 °C. The
stability of the fitted unit must be guaranteed even after
the cut-outs have been made.
Make the cut-out in the worktop for one or more Vario
appliances in accordance with the installation drawing.
The angle between the cut surface and the worktop must
be 90°.
After making the cut-outs, remove any shavings. Seal cut
surfaces with heat-resistant material.
Observe the minimum clearance of 10 mm between the
bottom of the appliance and unit parts.
When installing multiple Vario appliances: Remember to
take the space required for the VV 200 010/020
connection strip between the appliances into account.
The appliances can also be installed in individual
cutouts, keeping a minimum clearance of 40 mm between
them.
Appliance dimensions
'1
I
ODWGXFW
é
èʌ¼ʓʘ 
ç¼ʓʘ


ʎ¼ʚ


ʌ¼ʓʘ
èè¼ʓʘ 
èè¼ʓʘ
ʎ¼ʚ

 PP

9
Installation Procedure en-us
Countertop Requirements
The countertop must be level and horizontal. The stability
of the countertop must be maintained after the cut-out
has been made.
Installation Procedure
InstallationProcedure Install Appliance
9WARNING
Before you plug in an electrical cord or turn on
power supply, make sure all controls are in the OFF
position.
Note: Observe the installation sequence. First fit the
downdraft ventilation in the cut-out on the worktop. Then
install the other appliances.
1. Use four nuts to screw the exhaust-air elbow tightly to
the appliance.
¡é 
 PP
ë 
PLQ

[

 PP
ç¼ʓʘ

PLQʌ¼ʓʘ

PLQʐ¼ʓʘ

PD[


10
en-us Installation Procedure
2. Insert the VV 200 010/020 connection strip (mounting
accessories) into the cut-out on the worktop.
3. Insert the downdraft ventilation into the cut-out on the
worktop.
4. Press the connection strip firmly against the
appliance; you should hear the appliance's clamp
springs clicking into the recesses in the connection
strip.
5. Install the other appliances and connection strips.
6. Insert the metal grease filter.
7. Put the filter cover on.
FOLFN
FOLFN
