Galaxy Innovations Gi FLY T2 User manual

0

1
Contents
Safety Rules........................................................................................................ 2
1. Summarization................................................................................................3
1.1 Preface:.........................................................................................................................3
1.2 Main Features................................................................................................................3
2. Hardware........................................................................................................ 4
2.1 Front panel....................................................................................................................4
2.2 Side panel .....................................................................................................................4
2.3 Rear panel ....................................................................................................................5
2.4 Remote Control .............................................................................................................6
3. System Connection .........................................................................................7
4. Quick Installation Guide..................................................................................8
5. Functions ........................................................................................................9
5.1 Starting Up Guidance ....................................................................................................9
5.2 TV Interface ..................................................................................................................9
5.2.1 Main UI and EPG .................................................................................................. 9
5.2.2 Switch Channel .................................................................................................. 10
5.2.3 Program List ...................................................................................................... 10
5.2.4 Program Search ................................................................................................. 10
5.2.5 Volume.............................................................................................................. 10
5.2.6 Parent Lock........................................................................................................ 11
5.2.7 Audio Settings.................................................................................................... 11
5.2.8 Video Aspect Ratio.............................................................................................. 11
5.2.9 Program Info...................................................................................................... 12
5.3 Main UI........................................................................................................................12
5.3.1Program Management .......................................................................................... 12
5.3.2 Internet ............................................................................................................ 16
5.3.3 Multimedia......................................................................................................... 18
5.3.4 More Applications ............................................................................................... 19
5.3.5 Games .............................................................................................................. 19
5.3.6. System Setup ................................................................................................... 19
5.4 Application Function....................................................................................................19
5.5 System Setup ..............................................................................................................19
5.5.1 Wireless & Internet ............................................................................................. 20
5.5.2 Ethernet Settings ............................................................................................... 20
5.5.3 Sound Setup ...................................................................................................... 20
5.5.4 Display Setup..................................................................................................... 21
5.5.5 SD Card and Storage Device ................................................................................ 21
5.5.6 Applications ....................................................................................................... 21
5.5.7 Personal Settings................................................................................................ 21
5.5.8 System Update................................................................................................... 22
6. Technical Parameter ..................................................................................... 23
7. Abnormal phenomenon and ruled out............................................................ 24
8. Glossary........................................................................................................ 25
Appedix：Accessories........................................................................................ 25

2
Safety Rules
1. Please do read user manual before you operate this machine.
2. Please don’t open the case of the machine by yourself in case of electric
shock and damage to the machine, unless you are professional.
3. Please keep the machine power off when not working, don’t use damaged
power line.
4. Don’t touch the power line with wet hands. When liquid permeated in
the box by accidental, please shut down power immediately, at the same
time get contact with our after sale service to repair it.
5. Please keep the machine away from heat source, a ventilate place will better.
6. Please keep the machine in horizontal.
7. When move machine into another place where the temperature varies a lot,
please don’t turn on at once until 1-2 hours later.
8. Please pay attention to putting the machine in certain place that should be:
ventilate appropriate temperature; avoiding under sunshine, water penetrating
and severe vibrating.
9. Please don’t put heavy stuff onto the machine.
10. Please don’t make water splash on the machine, and put the container filled
with water away from this machine, e.g. vase, wine, drinks.
11. When the main plug or appliance connector are detachable device, please
keep it under easy operate situation
Notice ： The USB electrostatic discharge is C Level, when
electrostatic discharge, it may lead USB storage device can’t work
properly. If so, you need to pull out USB device or reboot the
machine.

3
1. Summarization
1.1 Preface:
Thanks for choosing our Android TV box.
This Android TV BOX is based on Android 4.0 version, with CPU A9-1GHz and
GPU Mail-400 that can fluently run all Android 2D/3D application. Fully support HD
H.264 decoding and HDMI high definition digital video output, giving you the
cinema–class audio and visual enjoyment. This Android TV BOX also enables you
easy to use user interface to surf the internet and experience a variety of Android
software application.
This user manual will give you specific guidance on installation, use, and
maintenance. To ensure you can fully enjoy every feature of this machine, please
read this manual carefully before using.
Disclaimer : The company reserves the right to improve the
content. If there has discrepancy between pictures and text,
please subject to the final in-kind operation.
1.2 Main Features
Android 4.0，DVB-S2 STB
Support MPEG2、H.264、AVS Full 1080P HD Decode
Fully compliant HD DVB-S2 standard
Support USB 2.0
Support HDMI 1.4、CVBS Output
Support HTML5，HLS
Support EPG、Subtitle、Teletext, Time shift, Playback
Support Whole Satellite Channel Search
Support PVR into outside storage device through USB
Support Youtube、Youku，etc.
Support Skype、QQ、MSN，etc.
Support multi-screen interactive function with DLNAand Airplay protocols
Support airmouse, game handle and voice recognition control

4
2. Hardware
2.1 Front panel
STANDBY：Standby Button
INDICATOR ：Run:Green; Standby:Red
2.2 Side panel
SD CARD：SD Card Slot
USB：USB Slot

5
2.3 Rear panel
LNB IN：Signal Input
ETHERNET：Ethernet Slot
USB：USB Slot
HDMI：HDMI Output
AV：AV Output
RS 232：Serial Port
DC 12V：DC 12V Input

6

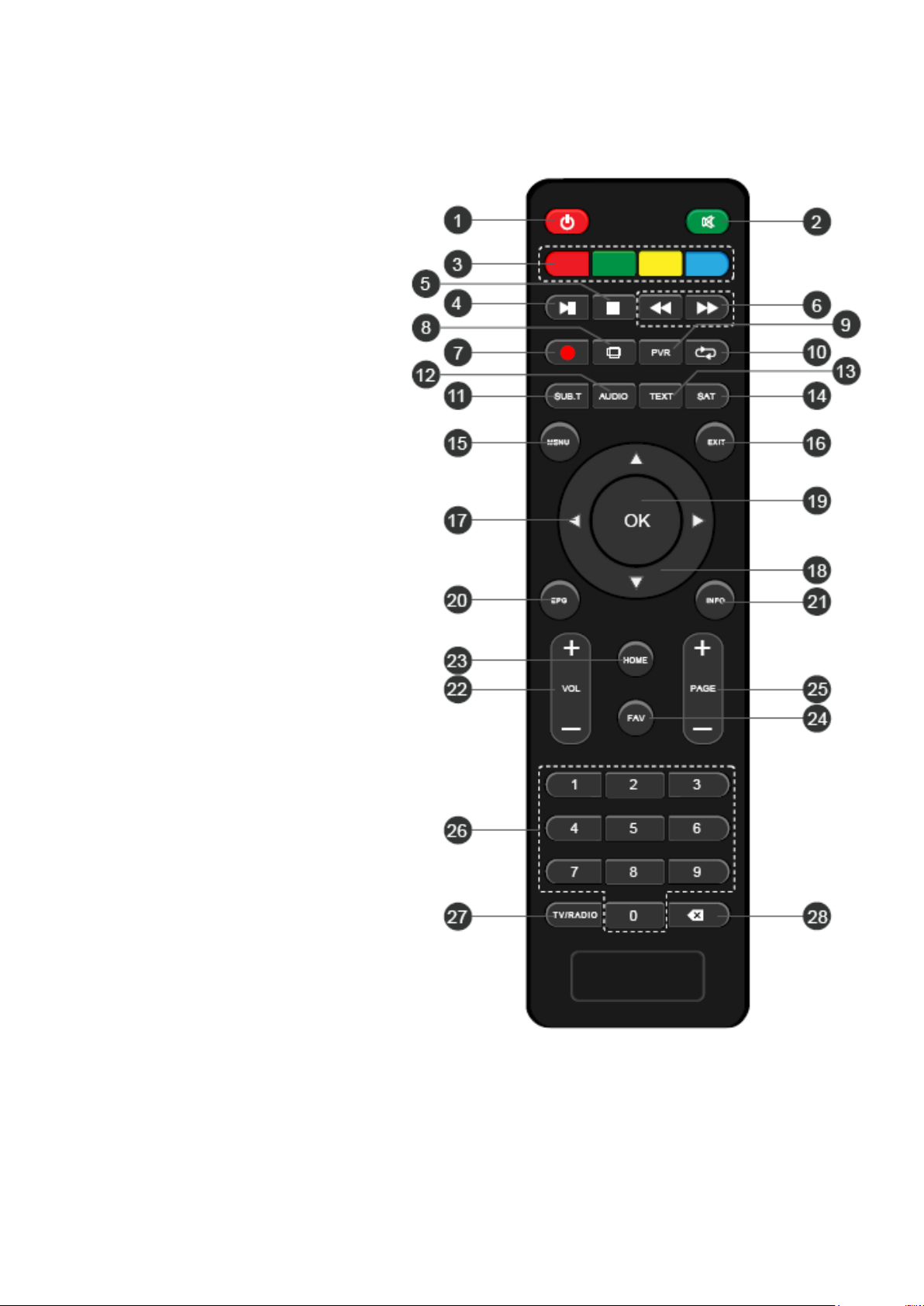

2.4 Remote Control
1. Power/Standby key
2. Mute key
3. Their functions depend on certain
application
4. Pause key
5. Stop key
6. Fast backward /Fast forward
7. Record key
8. V.RATIO: video aspect ratio settings
9. PVR：Access to recorded content in
USB storage device
10. Recall key: Back to the last program
11. SUBT：Switch/turn off subtitle
12. AUDIO: Audio settings
13. TEXT：Teletext
14. SAT: Their functions depend on
certain application
15. MENU：Menu shortcut key
16. EXIT：Exit key
17. Left and right key
18. Up and down direction key
19. OK：Confirm key
20. EPG：Electronic program guide
21. INFO ：Display the information of
current program
22. VOL+/-：Volume +/-
23. HOME：HOME shortcut key
24. FAV：Favourite program
25. PAGE +/-：page up/ down
26. 0～9：Numeric Key
27. TV/RATIO: switch between TV and Ratio
28. Delete key

7

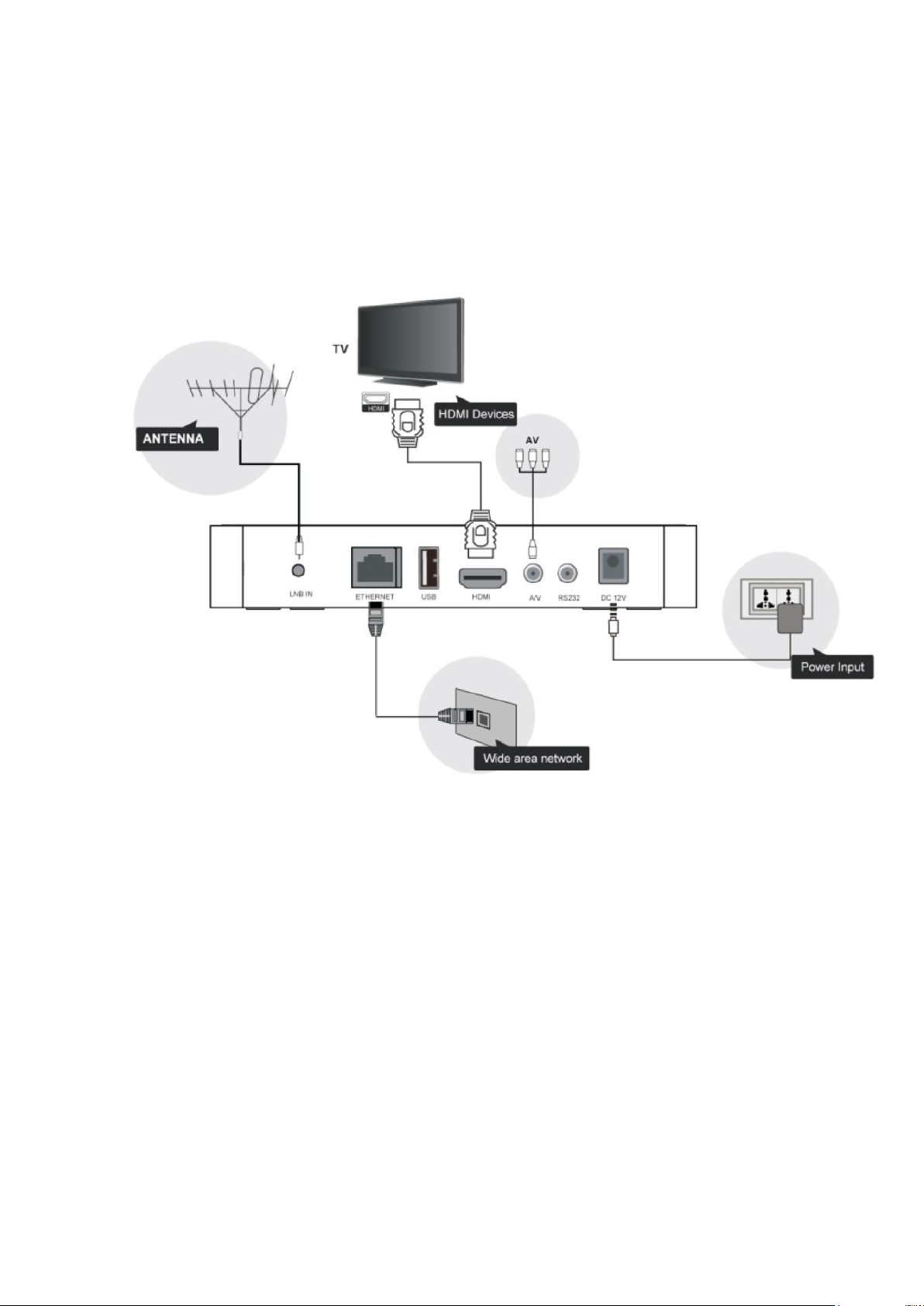

3. System Connection
Please connect with your power, TV set, and other related devices according to the picture shows
below, if you need to connect with more devices, please contact with your local operator.

8
4. Quick Installation Guide
Step 1：Check system connection
Please make sure antenna, TV, STB connected correctly, you can take a reference on system
connection picture.
Step 2 ：Switch TV into Video Status
Make sure all the port in rear panel connect properly, turn on the TV, and switch the TV into Video
Status.
Step 3：Plug the power line of Android box, turn on the box.
After power line connected, press POWER button to power on the BOX, the indicator LED light in
front of panel will on.
Step 4：Standby and Standby Recovery
When machines in turned on ,press standby button ,machine will in standby mode ,and Standby
indicator light will on, the box will in low power consumption status .Press standby button again will end
standby mode and recover to normal working mode .
Step 5：Power off
After powered off, please pull up the power line.
Note: All features can be achieved through your remote control buttons, also you can achieve
parts of functions through the buttons in front panel of the box, if you have difficulty on using
this unit, please refer to the instructions in the relevant chapters. If you still can not resolve the
problems encountered, please contact the operator to find a solution.

9
5. Functions
This Android TV box is based on Android 4.0
operating system of smart phone, aiming at
providing full variety of Internet applications,
keeping your family in heart full of enjoyment on
widescreen beyond which smart phone can bring
to you.
5.1 Starting Up Guidance
When first booting or after upgrading the
system, it will enter a simple setting up
interface which guides users to some basic
settings of system in order to facilitate the use of
in the future.
Figure 5-1-1
In this guidance, you can setup the
system language, the region, country, city and
time-zone of your place. Besides, you can set
the display position to adjust the video output
with your TV Set. What’s more, you can setup
the configuration of the network.
You can choose to install the XBMC in the
guidance.
Figure 5-1-2
5.2 TV Interface
After setting up boot guidance interface, it
will enter into the full-screen broadcasting TV
program interface, as shown in figure 5-2-1:
Figure 5-2-1
5.2.1 Main UI and EPG
1. Press【MENU】, skip to main interface. Press
【EXIT】or【MENU】to return to televise interface,
The main UI as shown in figure 5-2-2:
Figure 5-2-2
2. On televise interface, press【EPG】, jump to
EPG interface, then press【EXIT】, return to
televise interface. EPG interface is shown in
figure 5-2-3:
