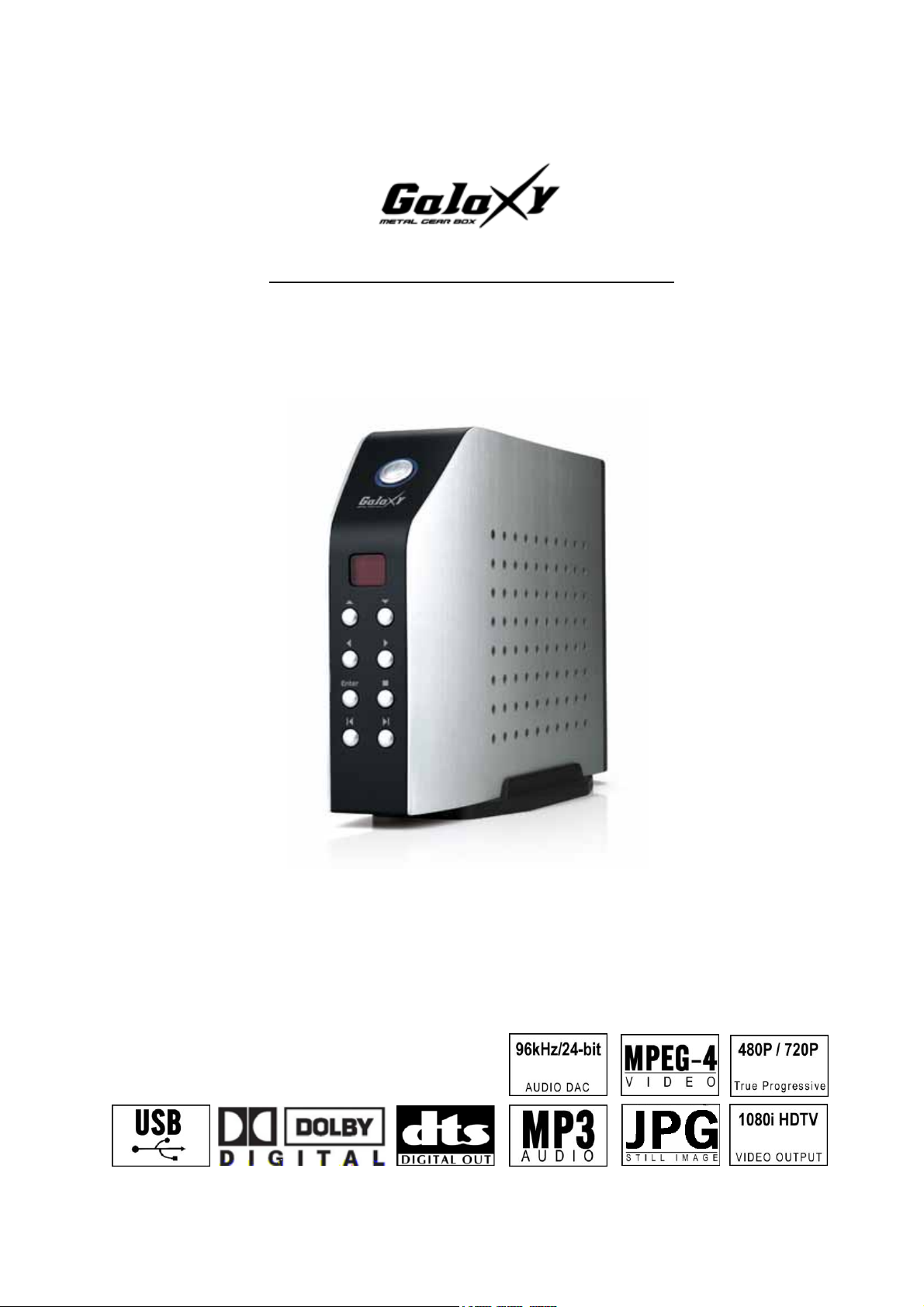

Galaxy TVisto User manual

TVisto
User Guide & Manual
Version 1.0

■

■
August, 2005
Congratulations in buying your TVisto Multimedia Center.
TVisto is a Digital Multimedia Player as well as Data Storage Solution that you can connect to
any PC or Mac, either via USB 2.0 or Firewire (plug & play) in order to copy your favorite
contents (music, movies, pictures, and/or data files). Once you have transferred your data to
TVisto, you can connect it to any TV set to enjoy your movies, music, and photos. You can
watch your favorite films in top quality video and Dolby Digital audio.
TVisto is designed for a single 3.5” desktop size hard drive, offering plenty of storage capacity.
This document will provide you with full and comprehensive instructions on how to use your
TVisto and benefit from its unique features.
Please start reading the “TVisto Features” chapter in order to have an overview of the
enhanced capabilities of your device. A more technical description of these features is
presented in the “Specifications” chapter.
Before using the TVisto, be sure that you have received the complete set of accessories by
checking the “Package Contents” section.
To have a detailed description of TVisto functionality, read the “PC/MAC Connection” and “TV
Connection” chapters in order to explore the full set of operations.
In order to maintain your TVisto device in safe operating conditions and to guarantee life
extension, please read the “Safety Information” section.
TVisto is not designed or intended to, and may not be used to violate any copyrights or
other IP (Intellectual Property) rights. Each user of TVisto may only use it in connection
with materials legally owned by or licensed to the user and only extend such ownership
or license rights that will permit such use.
All rights reserved. Windows is a registered trademark of Microsoft Corporation. Macintosh, Mac, Mac OS are registered trademarks of Apple
Computer, Inc. DivX®Certified and DivX® Video are registered trademarks of DivXNetworks, Inc. Dolby® and Dolby® Digital are registered
trademarks of Dolby Laboratories, Inc. All other trademarks and registered trademarks are property of their respective owners.

■

■
Table of Contents
FEATURES OF TVISTO..........................................................................................................1
EXCLUSIVE DESIGN....................................................................................................................1
PC CONNECTION........................................................................................................................2
TV CONNECTION ........................................................................................................................2
AUDIO FEATURES ....................................................................................................................... 2
VIDEO FEATURES ....................................................................................................................... 2
MULTILINGUAL............................................................................................................................ 2
REMOTE ....................................................................................................................................3
FIRMWARE UPDATE....................................................................................................................3
FORMATTING THE HDD.........................................................................................................4
FORMATTING ON A PC (WIN2000/XP)........................................................................................4
FORMATTING ON A MAC (OS X)..................................................................................................4
CREATING THE DIRECTORIES.............................................................................................5
FONT SUPPORT..........................................................................................................................5
PC/MAC CONNECTION..........................................................................................................6
SAFE REMOVAL .........................................................................................................................7
TV CONNECTION....................................................................................................................8
ANALOG AUDIO SETUP ..............................................................................................................9
DIGITAL AUDIO SETUP ...............................................................................................................9
THE REMOTE CONTROL ...........................................................................................................10
UNIQUE CONTROL KEYS........................................................................................................... 12
MENU FUNCTIONS...............................................................................................................13
MAIN MENU.............................................................................................................................. 13
MOVIES ................................................................................................................................... 13
MUSIC ..................................................................................................................................... 14
PICTURES ................................................................................................................................14
SETTINGS ................................................................................................................................15
BACKGROUND IMAGE CUSTOMIZATION...................................................................................... 15
.ISO COMPATIBILITY ...........................................................................................................18
XVID COMPATIBILITY..........................................................................................................18
DIVX COMPATIBILITY..........................................................................................................19
SPECIFICATIONS .................................................................................................................20
PACKAGE CONTENTS.........................................................................................................21
STANDARD PACKAGE...............................................................................................................21
SAFETY INFORMATION.....................................................................................................222
POWER ON/OFF PRECAUTIONS..................................................................................................22
LOCATION AND PLACING PRECAUTIONS ....................................................................................22
ELECTRICITY AND POWER PLUG................................................................................................22
FAQ........................................................................................................................................23

■
1
Everything you love about multimedia, movies,
music, and photos is brought to you with
TVisto.
TVisto features an elegant, fashionable, and
high quality case to protect your device.
The buttons on the front panel of TVisto offer
quick access to basic functions for the
Multimedia Player, even without remote
control. Convenient power on/off switch
located on the top, with following indicative
colors:
•TV mode: blue when power-on and red
when in stand-by mode. It “blinks” (red
intervals) to confirm a command, whenever
a button on the remote control is pressed.
•PC mode: blue when power-on
On the rear panel, there are following
interfaces:
•Firewire 400: IEEE 1394a connection for
data transfer (supports daisy chain)
•USB 2.0: High Speed USB 2.0 connection
for data transfer
•TV: Multi-Connector for Analog
Audio/Video. This multi-pin connector
provides all the video and analog audio
signals for your TV set.
•SPDIF: Digital audio output for copper
coaxial or optical cable
•Mini DIN Jack: Power supply
Features of TVisto
Exclusive Design
15.2 cm
22.2 cm
USB 2.0
Firewire 400
TV Multi-connector
SPDIF
Mini DIN Jack
4.8 cm

■
2
PC connection
TVisto can be connected to any PC or Mac via USB or Firewire interface, supporting following
file formats: FAT32, NTFS, HFS+. With high speed USB or Firewire connection, you can
quickly move large multimedia files from your computer to TVisto. Please note that you will
always need an external power adaptor.
TV connection
TVisto provides the optimum multimedia quality in both audio and video outputs when
connected to your TV set and audio system.
Audio features
•Audio file formats supported: WMA, WAV, MP3, MPEG-4 (AAC), AC3 (Dolby Digital), OGG
Vorbis.
•Audio Output Formats: Dual Stereo analog audio, Coaxial/SPDIF digital Audio (supports
compressed Dolby Digital 5.1 and DTS pass through).
Video features
•Video file formats supported: MPEG-1, MPEG-2 (AVI, VOB, ISO),
MPEG-4(AVI, DivX, XviD).
•Video Output Formats: NTSC/PAL composite and S-video, Analog YPbPr video
(progressive or interlaced) scalable up to 1920x1080i or 1280x720p. RGB via SCART.
VGA scalable up to 1024x768.
DivX compatibility
Supports DivX 3.11, 4.x, 5.x
Supports external text subtitles (SUB (MicroDVD format), SRT (SubRIP format), SMI (SAMI
format), embedded multiple subtitles)
Supports any language text subtitles
Please refer to the “DivX Compatibility” chapter for more details.
XviD compatibility
Please refer to the “XviD Compatibility” chapter for more details.
DVD (.ISO) compatibility
ISO=One Image file backup of the complete DVD.
TVisto will play the ISO file exactly the same as if it was running from the original DVD.
Supports .ISO of any size (FAT32/up to 4GB, NTFS/unlimited, HFS+/unlimited).
Supports any language text subtitles.
Only with TVisto can you create your own Virtual DVD Library by storing your private
collection of DVDs (.ISO format) and watch them as if they were running from the original
DVDs. Please refer to the “.ISO Compatibility” chapter for more details.
Multilingual
TVisto has been designed to meet everyone’s expectations. With sophisticated Unicode
character handling, it supports most of the major languages used in the menu selection and
the subtitle feature. Refer to “Font Support” for further details.

■
3
Remote
TVisto is equipped with an elegant infrared remote control, providing standard DVD
functionality buttons and more. Please refer to the chapter “TV Connection” for a detailed
description of the remote control.
Firmware update
You will be able to upgrade your device with new features and capabilities by following the
firmware1upgrade procedure:
•Get the latest update from your vendor’s web site.
•Connect TVisto to your computer and copy the firmware file to the “firmware” folder.
•Connect TVisto to the TV and choose “Firmware Update” from Settings.
•Wait a few minutes for the new firmware to be updated.
•Never disconnect or turn off your unit before the firmware has been completely
updated!!
•Turn off TVisto by disconnecting the power supply, wait a few seconds, and then
connect the power supply again. Wait a few seconds and your TVisto will appear.
•Done!
Powerful Media Processor
The heart of your TVisto device is a powerful media processor supporting the demanding
MPEG-1, MPEG-2 (AVI, VOB, ISO) and MPEG-4(AVI, DivX, XviD) decoding.
Enjoy
TVisto is the ultimate Digital Multimedia Center that can be addressed to a wide variety of
users:
•Home users who want to build a state-of-the-art, versatile home theatre.
•Stores, Agencies, Exhibitors, and Companies that want audio/visual promotion of their
products (indoor advertising).
•Business people who want to have a presentation.
•Parents who want to back-up and replay their family videos.
•Movie and music lovers who want to enjoy their favorites at all times.
•People downloading large number of movies and music from the internet.
•Everyone who wants to organize their stack of CDs & DVDs.
•Parents who want to create a “DVD/CD-safe” environment.
•DivX enthusiasts that want to enjoy their DivX/MPEG4 videos with exceptional Dolby
Digital (AC3) sound.
•Every computer fan owning a TV, home theatre, or other A/V equipment.
1Firmware is the software stored in the TVisto flash memory that contains the programs running in your
device. These programs remain stored even when the system is switched off.

■
4
Formatting the HDD
Formatting on a
PC (Win2000/XP)
Use the Disk Management
Utility
•Right click on “My
Computer” and choose
“Manage”
•Select “Disk Management”
•Choose the drive you want
to format and right click on
the Disk or drive field for
further commands
•Create a primary NTFS
partition and format it
•Follow the Wizard
instructions
You can also format TVisto using FAT32 but this will have the limitation of max disk being
32GB and max file size being 4GB. Note: To be able to use the TVisto on all Operating
Systems, you will need to use FAT32. To create one single disk over 32GB use the DOS
command prompt and the “fdisk” command on Win98/SE or WinME. You may also use
3rd party software to create the partition but make sure it is a primary partition.
Formatting on a Mac OS X
Use the Disk Utility to format
your drive and create a single
partition on your external disk.
•Select “Disk Utility” in the
utilities folder
•Choose your external
drive and format it
according to your
requirement. For Mac only,
choose “Mac OS
Extended”
Be aware that formatting the
drive will erase all data on it!
NOTE: To be able to use the TVisto on all Operating Systems, you will need to use
FAT32, also called MS-DOS on the Mac OS (max file size limited to 1GB!). To create one
single primary partition over 32GB for files up to 4GB, use the DOS command prompt
and the “fdisk” command on Win98/SE or WinME.

■
5

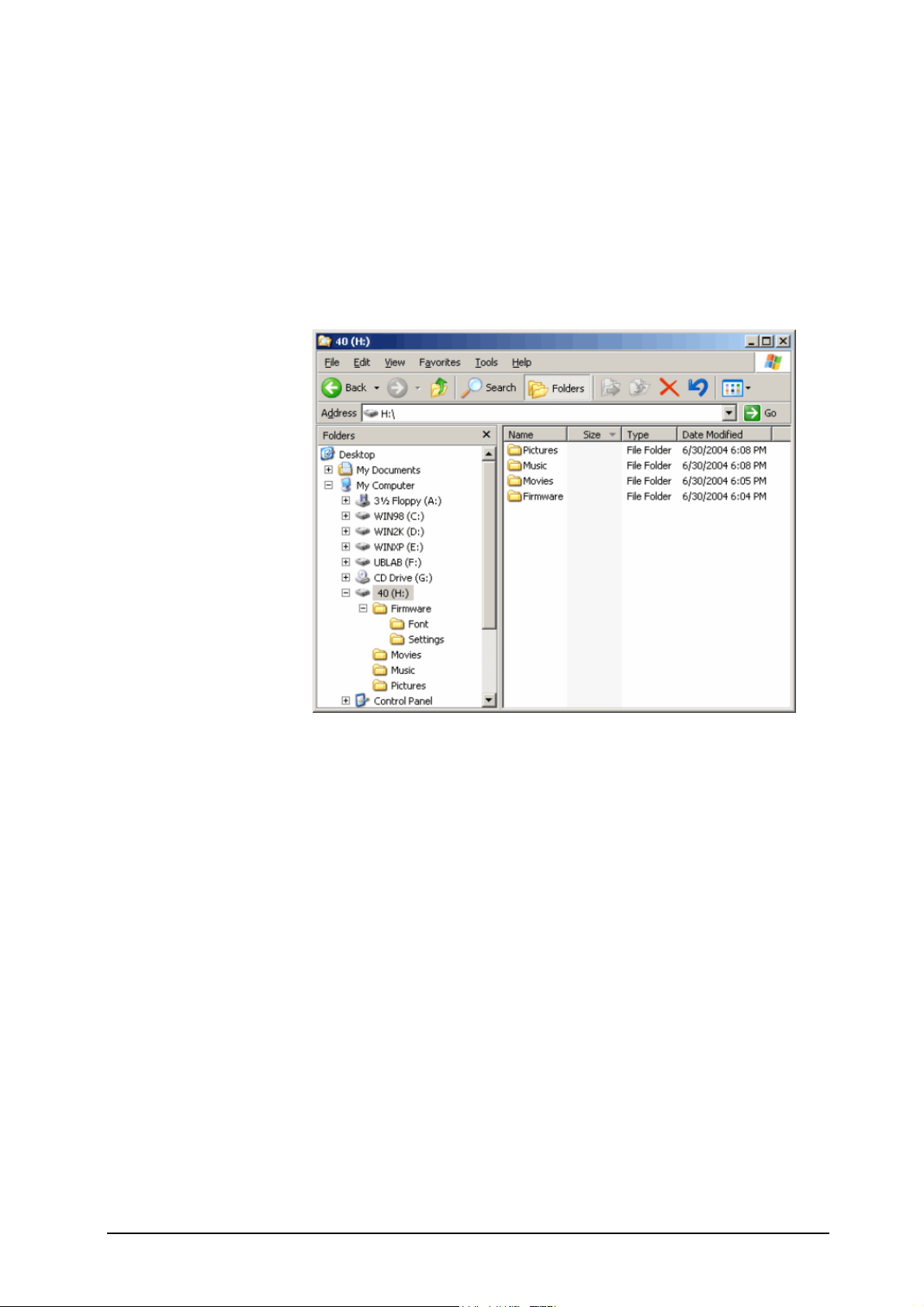

Creating the Directories
For TVisto to be able to find the files on the hard drive, four (4) folders with the exact name
shown below must be created first! ALL the prerequisite folders should have the READ
ONLY attribute and should never be deleted or renamed, because your TVisto uses
these exact names as a reference to locate the respective files. Under these directories
you can have any directory structure that is convenient to you. Create the folders as shown
below, now.
“Firmware”: this folder
contains the TVisto
firmware files. Inside this
folder there are two (2)
subfolders:
•“Font,” for Europe and
US, this is an empty
directory.
•“Settings” contains the
“Settings.txt” file. This
file is a Unicode text
file with two strings.
The first line string is
the default TV mode
(PAL or NTSC) in
which TVisto should
start before the user
applies his settings.
The second line string
is the string used from
the TVisto screen saver. This string is user editable and should not be more than 16
characters. Create this file if required, otherwise leave the folder empty.
“Movies”: This folder contains your movie files.
“Music”: This folder contains your music files.
“Pictures”: This folder contains your image files.
If you need a directory to transfer your files from one computer to another, you may certainly
create more directories and name it whatever you like. These folders won’t affect TVisto but
will NOT show up on your TV screen!
Font Support
For additional font support other then English, we recommend copying the ‘Arial Unicode MS’
font to the “Font” folder located in the “Firmware” directory. On a PC, you can find this font by
going to Control Panel and then selecting Fonts. After copying the font to TVisto, rename the
file to “font.ttf”. Example: If the original is “arialuni.ttf,” rename it to “font.ttf”.
You may use any other Unicode true type font (TTF) you have or which is available on the
internet, but remember to rename the file to “font.ttf’ after copying it to TVisto.

■
6
PC/Mac Connection
TVisto automatically operates as an external USB 2.0
or Firewire hard disk when connected to a PC or
Macintosh. Use the included cables to connect your
device to the computer system. Always connect the
USB or Firewire cable to your computer first, before
you turn on the device. Your system will automatically
recognize TVisto as an external hard disk in which you
then can copy any file(s) you want (music, movie,
picture, and/or data). It is strongly recommended to
empty the “Recycle Bin” after your file(s) deletions
to free the HDD space.
TVisto supports all file formats: FAT32 (Windows 98SE,
Windows ME, Mac) NTFS (Windows 2000, Windows
XP), HFS+ (Mac). If your computer system does not have
a Firewire or USB 2.0 interface, but only USB 1.1, you will
receive a warning. You can still use the device with USB 1.1,
but with a slower performance level.
TVisto is an external USB 2.0/Firewire hard disk device that can be connected to a variety of
Operating Systems supporting the USB or Firewire interface:
•Win98SE (Install driver from CD first)
•Windows Me/2000/XP
•Mac OS9.2, OSX or higher
NOTE: You will always need the external power adapter when connected to the
computer. The ON/OFF switch is located at the rear of the unit. When connected to the
computer, the ON/OFF button on the front is not in use.
NOTE: Always connect the USB or Firewire cable to your computer first, before you turn
on the device.
“Firmware”: this is the folder in which you copy the latest TVisto firmware files found at your
vendor’s web site. Inside this folder, you may create two (2) subfolders:
•“Font” for your external Unicode true type font.
•“Settings” for the “Settings.txt” file, which includes your initial standard setting.
“Movies”: You will copy your favorite movie files to this folder.
“Music”: You will copy your favorite music files to this folder.
“Pictures”: You will copy your favorite image files to this folder.
NOTE: ALL the prerequisite folders listed above have the READ ONLY attribute and
should never be deleted or renamed because your TVisto uses these exact names as a
reference to locate the respective files. Under these directories you can have any directory
structure that is convenient to you.
If you need a directory to transfer your files from one computer to another, you may certainly
create more directories and name it whatever you like. These folders won’t affect TVisto but
will NOT show up on your TV screen!
T
Visto
USB or
Firewire
cable
PC or Mac

■
7

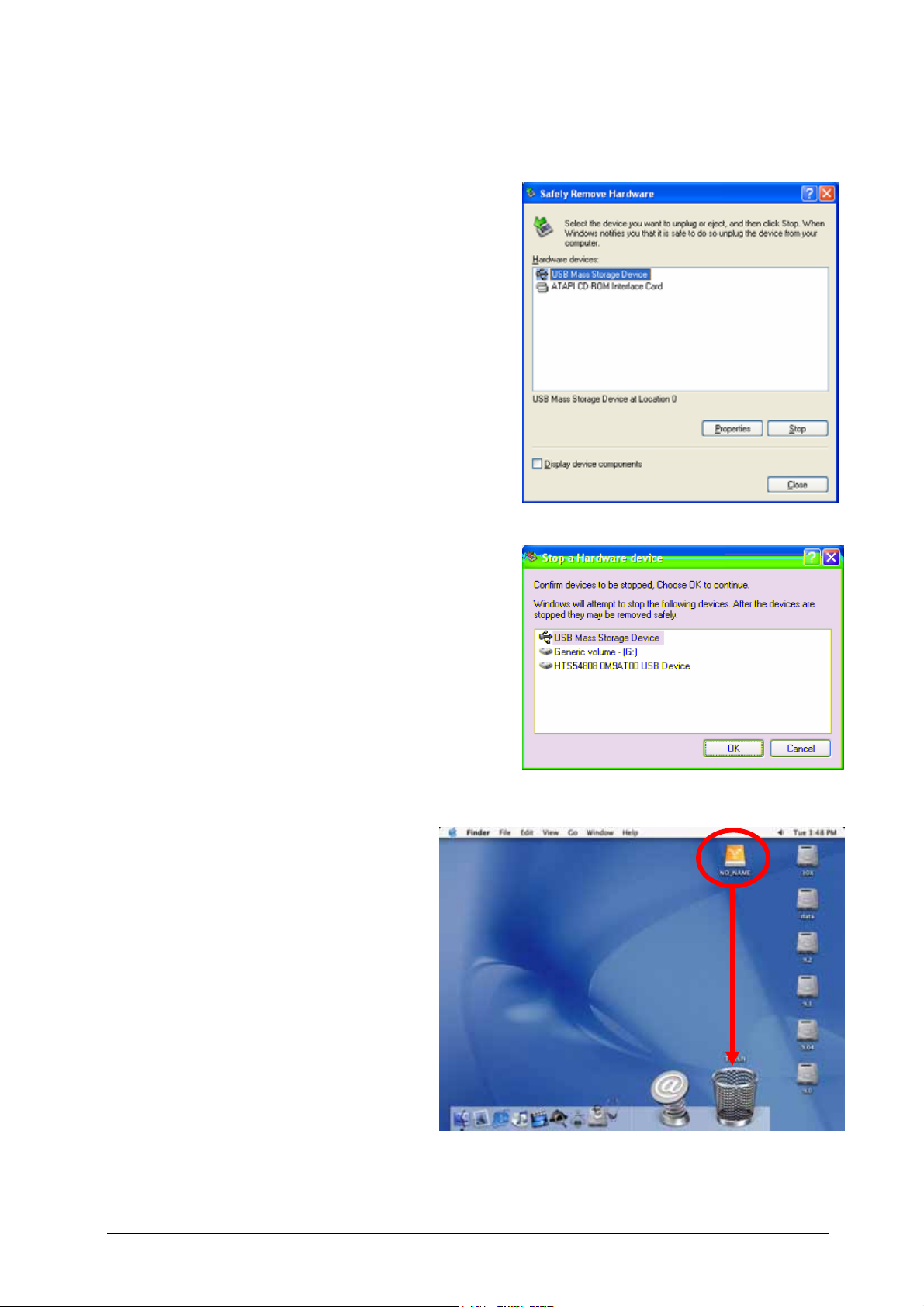

Safe Removal
In order to safely remove your TVisto from your
system, please follow the same procedures as for
any external Plug & Play disk drive. Specifically:
PC:
Double click on the taskbar icon to “Unplug or Eject
hardware”. The adjacent dialogue box will appear,
displaying the external Plug & Play devices. In the
current example, you can see TVisto as a USB
Mass Storage Device.
In order to remove it, click the device in the list and
then click Stop.
Click OK on the next dialogue box. The operating
system will automatically stop the device and inform
you for its safe removal. If you are using TVisto (e.g.
you are working on a Word document or a picture
located in its disk), the operating system will notify
you that it is unable to remove the device. In this
case, close all the applications affecting or
accessing TVisto and try again.
Mac:
Drag the drive icon into the trash bin,
to eject and remove the drive.

■
8
TV Connection
TVisto provides high quality video and audio output when connected to your TV set and audio
system.
The TV connection is straightforward. Just connect TVisto to your TV set (NTSC or PAL) using
the included AV cable, plug in the power supply and turn it on.
When using the default AV Cable provided with TVisto, you have Composite video signal,
S-Video, and stereo (Left/Right) analog audio out connected to your TV set. If your TV does
not have Composite or S-Video, then use the optional SCART adapter to connect it to the
SCART port on your TV.
You have the choice to purchase the following optional cables (See page 21):
•AV Cable with Analog YPbPr video (progressive or interlaced) scalable up to
1920x1080i or 1280x720p
•AV Cable with full SCART (RGB) support
•VGA AV adaptor for VGA interface
•SPDIF optical audio cable
Both YPbPr and VGA video cables provide analog L/R audio. The VGA cable provides VGA
out scalable up to 1024x768.
TVisto offers the option for two kinds of audio connections, analog or digital. Each requires a
cable setup in which the following paragraphs will describe.

■
9
Analog Audio Setup
The simplest configuration is when
the analog audio system on your TV
set is used. In this case, no matter
what type of AV cable you use (the
default providing Composite/S-Video
signal, one of the optional cables
providing Video Component YPbPr,
or SCART), the analog audio is
provided to the stereo input of your
TV by the Left/Right RCA jacks.
This configuration uses only one AV
cable connected to the multi-
connector port on TVisto.
With this simple setup, you can get the highest video quality, but the audio quality remains the
stereo analog quality provided by the TV set speakers.
Digital Audio Setup
This configuration provides the best mix
of video and audio quality.
In this setup, you can connect any of the
available AV cables except the stereo
L/R RCA jacks to the TV set speakers.
Instead, you use the Digital Audio Port of
TVisto. Connect this port using the
SPDIF copper coaxial or the optional
optical audio cable to the digital input of
your Dolby Digital or DTS Hoopt atre
Receiver/Processor. Provided the quality
of this receiver and the correct setup of
the 5.1 Speaker System, you can
experience optimum multimedia quality in both audio and video.
TVisto
S-VIDEO
or
Composite
or
Video Component YPbPr
or
SCAR
T
T
V
Analog
L-R Audio
Dolby Digital o
r
DTS Home Theatre
Receiver/Processo
r
Digital Audio Out
(SPDIF)
S-VIDEO
o
r
Composite
o
r
Video Component YPbP
r
o
r
SCART
T
V
T
Visto
5.1 Speaker
System

■
10
The Remote Control
The TVisto remote has all the functional capabilities to fully control your device and enjoy your
multimedia files. The next figure describes each button’s function.
POWER On/Off
DVD MENU
HOME, displays the main menu
External SUBTITLE position
ZOOM to image
THUMBNAILS On/Off
ROTATE picture
VOL +, increase volume
VOL -, decrease volume
TV out, toggle video output format
DVD TITLE
PLAY ALL Files
SEARCH for Time or Title/Chapter
NAVIGATION BUTTONS
REPEAT chapter or title
A1, not used
FAST FORWARD
NEXT TRACK
PAUSE/STEP
SLOW forward function
PREVIOUS TRACK
SHUFFLE, play all files randomly
ANGLE, view DVD with different angle
INFO, displays details during playback
REVERSE PLAY
STOP PLAYBACK
MUTE
REPEAT between points A-B
MUSIC, jumps to Music folder
MOVIES, jumps to Movie folder
NUMERICAL PAD
RETURN, to the previous menu
A2, not used
SETTINGS, jumps to Settings
PICTURES, jumps to Pictures folder
SUBTITLE, toggle subtitle language
AUDIO, toggle audio language
PLAY

■
11
Button Functionality
Movies Music Pictures Settings
HOME Displays the main menu Displays the main menu Displays the main menu Displays the main menu and saves new settings
POWER POWER On/Off POWER On/Off POWER On/Off POWER On/Off (not during Firmware update)
SHUFFLE Play all files randomly Play all files randomly Play all files randomly N/A
PLAY/ENTER SELECT/PLAY movie SELECT/PLAY song SELECT/DISPLAY image SELECT
PLAY ALL PLAY ALL Files PLAY ALL Files PLAY ALL Files N/A
REVERSE PLAY REVERSE PLAY REVERSE 10 seconds of the song N/A N/A
PAUSE/STEP PAUSE/STEP PAUSE N/A N/A
FAST FORWARD FAST FORWARD FORWARD 10 seconds of the song N/A N/A
PREVIOUS TRACK PREVIOUS TRACK (.ISO), PREVIOUS 5 MIN
(DivX), PREVIOUS page in file list
Select PREVIOUS song and display PREVIOUS
page in file list
Select PREVIOUS image and display PREVIOUS
page in file list N/A
STOP PLAYBACK STOP PLAYBACK STOP PLAYBACK STOP DISPLAY N/A
NEXT TRACK NEXT TRACK (.ISO), NEXT 5 MIN (DivX), NEXT
page in file list
Select NEXT song and display NEXT page in file
list
Select NEXT image and display NEXT page in file
list N/A
ROTATE N/A N/A Rotate picture N/A
ZOOM Use arrow keys to stretch image, then press Enter
and use arrow keys to scroll N/A ZOOM IN (using ⇒key), ZOOM OUT (using ⇐
key), press Enter and use arrow keys to scroll N/A
RETURN Return to the previous menu Return to the previous menu Return to the previous menu Return to the previous menu and cancel command
TITLE DVD TITLE (.ISO files only) N/A N/A N/A
MENU DVD MENU (.ISO files only) N/A N/A N/A
MUTE Mute Mute N/A N/A
VOL + Increase volume Increase volume N/A N/A
VOL - Decrease volume Decrease volume N/A N/A
AUDIO Toggle audio language N/A N/A N/A
SUBTITLE Toggle subtitle language N/A N/A N/A
SUBTITLE cd Text SUBTITLE position for DivX files N/A N/A N/A
NUMERICAL PAD Use for Time Search Used for Time Search N/A N/A
INFO Displays file information (e.g. size, format, etc) Displays file information (e.g. size, format, etc) Displays file information (e.g. size, format, etc) N/A
SEARCH SEARCH for Time or Title/Chapter
applicable ONLY for .ISO files Search for Time N/A N/A
MOVIES Go to top folder Jump to Movies folder Jump to Movies folder N/A
MUSIC Jump to Music folder Go to top folder Jump to Music folder N/A
PICTURES Jump to Pictures folder Jump to Pictures folder Go to top folder N/A
SETTINGS Jump to Settings Jump to Settings Jump to Settings Leave Settings and go to Home
SLOW SLOW forward function (.ISO files only) N/A N/A N/A
ANGLE View DVD with different angle (.ISO files only) N/A N/A N/A
THUMBNAILS N/A N/A Image preview ON/OFF N/A
TV OUT
VIDEO OUTPUT, toggle video out format. You can
switch between the individual video outputs
pressing this button. The video output selected at
any time will be shown on the screen. If you cannot
see the correct image on the TV or VGA screen,
press this button until the image appears.
VIDEO OUTPUT, toggle video out format. You can
switch between the individual video outputs
pressing this button. The video output selected at
any time will be shown on the screen. If you cannot
see the correct image on the TV or VGA screen,
press this button until the image appears.
VIDEO OUTPUT, toggle video out format. You can
switch between the individual video outputs
pressing this button. The video output selected at
any time will be shown on the screen. If you cannot
see the correct image on the TV or VGA screen,
press this button until the image appears.
VIDEO OUTPUT, toggle video out format. You can
switch between the individual video outputs
pressing this button. The video output selected at
any time will be shown on the screen. If you cannot
see the correct image on the TV or VGA screen,
press this button until the image appears.
REPEAT REPEAT chapter or title,
applicable ONLY for .ISO files N/A N/A N/A
REPEAT A-B REPEAT between points A-B,
applicable ONLY for .ISO files N/A N/A N/A
A1 N/A N/A N/A N/A
A2 N/A N/A N/A N/A
INFO 0 1 2 RETURN
By pressing the buttons consecutively: INFO 0 1 2
RETURN, TVisto is set to factory default
By pressing the buttons consecutively: INFO 0 1 2
RETURN, TVisto is set to factory default
By pressing the buttons consecutively: INFO 0 1 2
RETURN, TVisto is set to factory default
By pressing the buttons consecutively: INFO 0 1 2
RETURN, TVisto is set to factory default
(not when you select Firmware update)

■
12
Unique Control Keys
TVisto’s Remote Control has a full set of buttons in order to provide the user with complete
control of the device. The following paragraphs describe the functions of some important
buttons; while in the previous table, there is a list of all the keys and their functions.
This key toggles the video out format. You can switch between the individual video outputs
pressing this button. The video output selected at any time will be shown on the screen. If
you cannot see the correct image on the TV or VGA screen, press this button until the image
appears. The video indication banner appears for a few seconds each time you press the TV
OUT button and also each time you switch on TVisto.
Toggling TV OUT does not save the video settings. To do so, select the “Video
Settings” from the Settings menu.
INFO, 0, 1, 2, RETURN
To return to factory default settings, press the above keys successively.
This key allows you to position the external subtitles of DivX movies. When it is pressed, a
dual set of white template lines will appear for you to position using the cdkeys. Press the
button again when done positioning.
Pressing this key, turns the image preview of your photos ON or OFF.
Pressing this key will shuffle all the content in the present folder randomly and start playing
back all files inside the folder continuously.
See previous page for a summary of all control keys for the remote control!

■
13
Menu Functions
This paragraph presents the various menus and their functions when operating TVisto.
Main Menu
This is the menu (as shown in the
adjacent figure) that appears when
you turn on TVisto.
You have four (4) main selections that
you can access with the navigation
buttons and by pressing
PLAY/ENTER:
•Movies
•Music
•Pictures
•Settings
Please look at the following paragraphs for a more detailed description of these menus.
Movies
Selecting the Movies menu will bring
you to the adjacent image on your TV
screen. On the right side, you will see
the directory list of the Movies
organized in your device’s hard disk.
Each directory is named under
left/right brackets: “[“, “]”.For example,
in the directory “[DivX]” we store
various DivX movie files. You can
make any directory you want with
your desired name and store any
movie you want in it (use your
computer to create and change
directories!). Please note that every
directory can contain one or more
subdirectories and that the directory
organization is free to the user.
By using the navigation buttons and the PLAY/ENTER on your remote, you can select the
movie you want to play.
Please note that on the left side of the screen are the four main menus also available for your
selection.

■
14

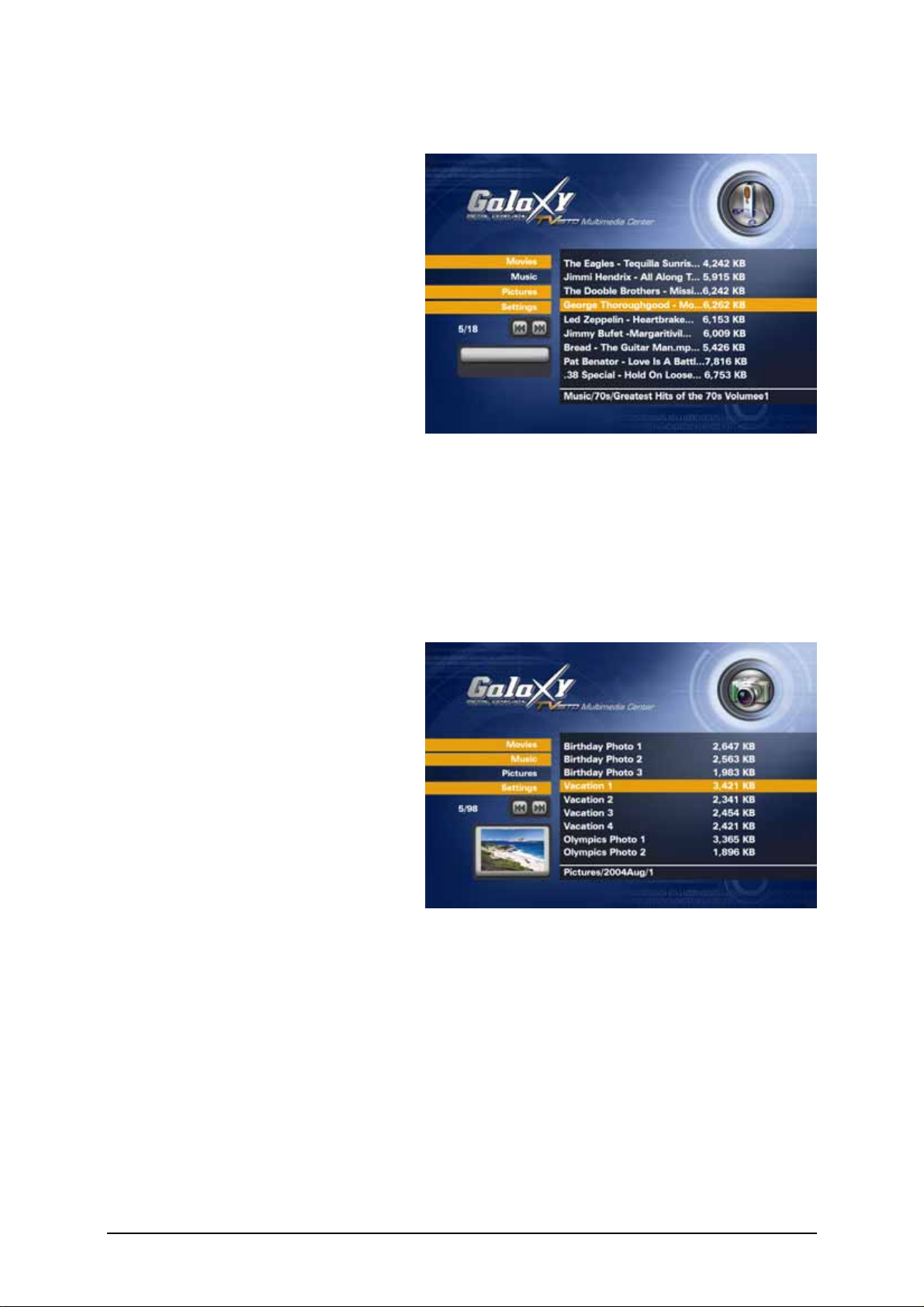

Music
Selecting the Music menu will bring you
to the adjacent image on your TV
screen. On the right side you will see
the directory list of the Music files
organized in your device’s hard disk.
Each directory is named under left/right
brackets: “[“, “]”. You can make any
directory you want with your desired
name and store any music file you want
in it. Please note that every directory
can contain one or more subdirectories
and that the directory organization is
free to the user (Use your computer to
create and change directories!).
By using the navigation buttons and the PLAY/ENTER on your remote, you can select the
music file you want to play. Use the INFO button during playback for further details of your
present song or see the progress bar on the left side.
Please note that on the left side of the screen are the four main menus also available for your
selection.
Pictures
Selecting the Pictures menu will bring
you to the adjacent image on your TV
screen. On the right side you will see
the directory list of the Pictures
organized in your device’s hard disk.
Each directory is named under left/right
brackets: “[“, “]”. You can make any
directory you want with your desired
name and store any movie you want in
it. Please note that every directory can
contain one or more subdirectories and
that the directory organization is free to
the user (Use your computer to create
and change directories!).
By using the navigation buttons and the PLAY/ENTER on your remote, you can select the
digital picture you want to display. Press the THUMBNAILS button to turn on the image
preview on the left corner of your screen. For further commands, refer to page 11.
Please note that on the left side of the screen are the four main menus also available for your
selection.
If you like to listen to some music during the slideshow presentation, create a folder
named 'autoMusic' in the root directory of your TVisto and copy your audio files
(MP3 – bit rate up to 128kbps) that you wish to playback during the slideshow into that
folder. The files will be played in random order until the slideshow is stopped.

■
15
Settings
The TVisto Settings menu is extremely important in order to correctly configure your device
and benefit from its advanced features. In the following paragraphs, there are detailed
descriptions of the various settings and parameters.
Languages
TVisto provides the unique feature to support a multilingual audience. With sophisticated
Unicode character handling, it supports most of the major languages used in the menu
selection and the subtitle feature of movies. Refer to the “Font Support” paragraph for
further details on how to enable languages other than English.
Use the ▲▼ navigation buttons to select your language and press the PLAY/ENTER button
to activate it. Press the HOME button of the remote to save the language setting. Once
activated, all the menu selections and wording will switch to the selected language.
Audio Settings
These settings configure the provided Audio Output Format:
•Analog for the Dual Stereo analog audio,
•Digital for the Coaxial SPDIF digital audio (supports compressed Dolby Digital 5.1 and
DTS pass through).
Use the ▲▼ navigation buttons to select your audio setting and press the PLAY/ENTER
button to activate it. Press the HOME button on the remote to save the audio setting.
Selecting analog audio out will output the stereo audio to the L/R RCA jack from your AV
cable.
Selecting digital audio output will provide digital sound through its SPDIF Digital Audio Port.
In this case, you have to connect this port using the SPDIF copper coaxial or optical cable to
the digital input of your Dolby Digital or DTS Home Theatre Receiver/Processor in order to
take advantage of the high audio quality.
Background Image Customization
The background images seen on your TV can be customized! To do this, connect your
TVisto to the computer and create a new folder inside the Firmware folder called “img”.
Prepare your new background images and save them inside the “img” folder.
The files have to be saved as JPG, the dimension should be 720x480 with a DPI of 72. Name
them exactly as followed: Main.jpg, Movies.jpg, Music.jpg, Photos.jpg and Settings.jpg. If one
of these images is missing or not spelled exactly as seen above, none of the customized
images will appear on your TV screen! If you don’t like the new look, either change the
images or simply delete the folder, empty the trash bin and your original background images
will show up again.
