Gamber Johnson 7160-1728-00 User manual

7160-1728-XX
TOUGHBOOK 40 Laptop Docking Station
Rev A INST-1100
Printing Spec: PS-001
© Copyright 20XX Gamber-Johnson, LLC
This instruction sheet is for the Panasonic TOUGHBOOK 40 Laptop docking station only.
For instructions on features, set-up, and operation of the computer, please refer to the
manual provided by Panasonic with the computer.
This docking station is designed to be used with a variety of Gamber-Johnson mounting
systems. Installation instructions for other Gamber-Johnson products are provided with each
individual product.
1/1
This instruction sheet is for the following products:
Item No. 7160-1728-00 No RF
(External Power Adapter sold separately)
Item No. 7160-1728-02 Quad RF
(External Power Adapter sold separately)
Item No. 7160-1728-06 No RF Lite
(External Power Adapter sold separately)
Item No. 7160-1728-07 Quad RF Lite
(External Power Adapter sold separately)
Panasonic recommends using a Lind Auto Adapter to power the docking station. The
following power adapters have 15.6Vdc output (120W) and are sold separately unless
ordering a KIT.
7300-0461 - Auto (11-16Vdc input) Bare Wire -
Available in KIT 7170-0943
7300-0462 - Auto (11-16Vdc input) Cig Adapter
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Form Revision Product
INSTALLATION INSTRUCTIONS
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brake lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

Conduct a "Bench Test"
Gamber-Johnson strongly advises a "bench test" be conducted to verify all electronic and
software issues are resolved prior to installation:
Make sure the computer is operational by itself. 1.
Insert computer into the docking station and verify that the computer is 2.
operating in the dock.
Interconnect entire assembly and verify start-up of all components, including 3.
other equipment (printers, modems, scanners, etc.)
Gamber-Johnson recommends positioning of all mounts and equipment in the vehicle
prior to the actual install to verify that mounting locations are safe and practical.
PRE-INSTALLATION RECOMMENDATIONS
During Installation:
DO NOT connect this docking station to the vehicle battery until:
All other electrical connections are made 1.
Mounting of all components is complete 2.
Verification that no shorts exist in the entire system 3.
DO NOT install equipment or route wires or cords in the deployment path of any air bag.
DO NOT over tighten mounting hardware - recommended torque = 30 in/lbs
When drilling into the vehicle, DO make sure that both sides of the surface are clear of
anything that could be damaged.
CAUTION: If wiring is shorted to the frame, high current conductors can cause
hazardous sparks resulting in electrical fires or flying molten metal.
After installation:
Test the docking station to ensure that it is working properly.
File these instructions in a safe place and refer to them when performing maintenance or
re-installing.
WARNING : Failure to follow all safety precautions and instructions may result in property
damage, serious injury, or death.
Safety is dependent on the proper installation and servicing of this docking station. It is
important to read and follow all instructions before installing this product.
To properly install a Gamber-Johnson docking station you must have a good understanding
of automotive electrical procedures and systems, along with proficiency in the installation
and service of aftermarket vehicle equipment.
There are no adjustments required at any time of the electrical components within the
docking station. Opening the docking station will void the product warranty.
IMPORTANT SAFETY INFORMATION FOR INSTALLERS
2 / 7

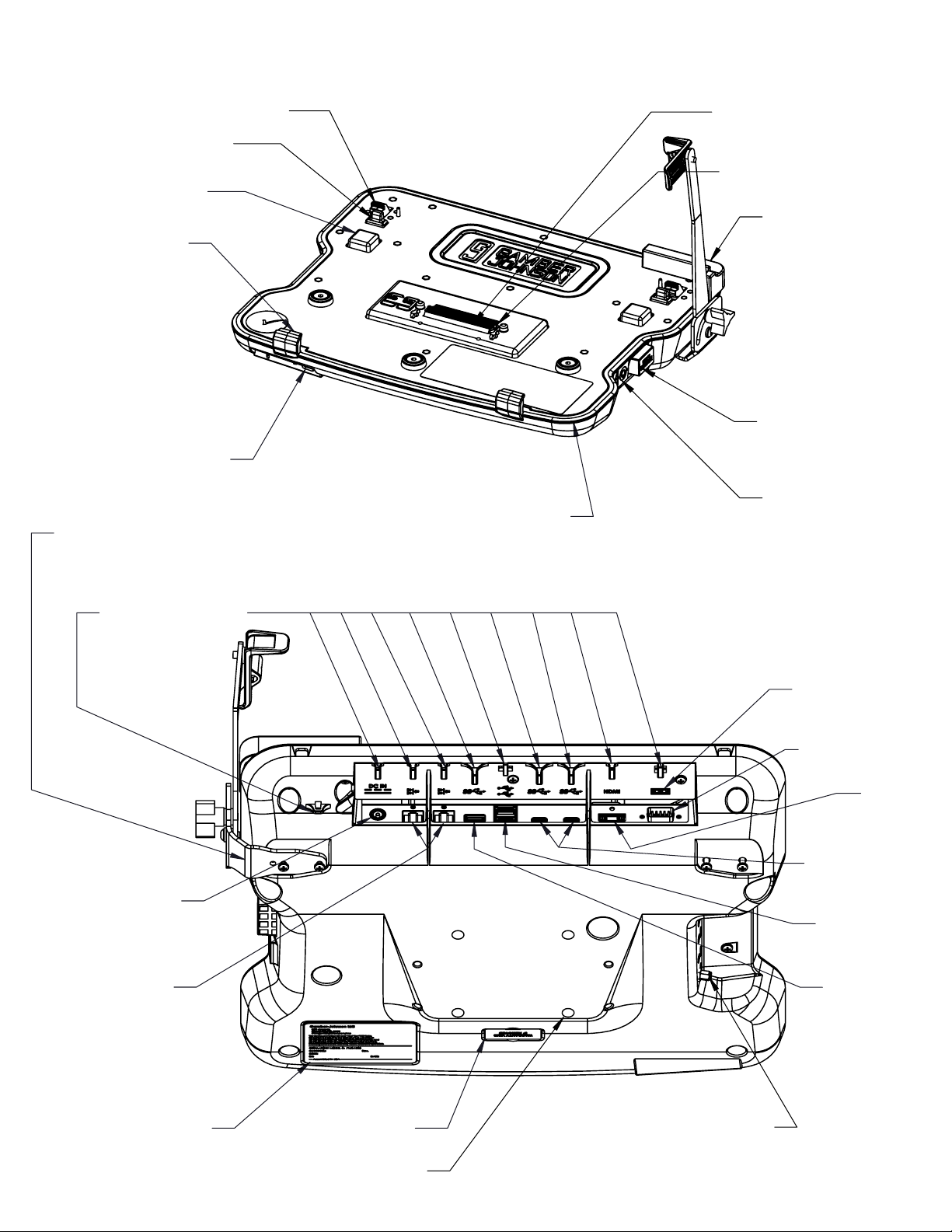

Barrel Key
Lock
Release Button
Computer I/O
Port Blocker
Connector Guard
Protects the connector
and prevents mis-docking
Rear Guide Posts
Rear Latch Hooks
Docking Connector
Ejection Plunger
Front Hooks
(1) USB-C 2.0
500 mA
Contact friendly edges
Cable Tie Slots
(Port Specific)
Power
Ethernet (2)
USB (2)
HDMI
Port Identification
Markings
Power Input
15.6 Vdc
Part# / Serial# Label
VESA 75mm Hole Pattern
1/4-20 x 2.000" hardware provided
Recommended Torque - 30 in/lbs
Warranty Label
Ethernet (2)
(RJ45)
Serial
(RS232)
(2) USB 3.2
900 mA
(2) USB 2.0
500 mA
HDMI
(2) USB-C 3.2
(Max 1.5A@5V)
DP alternate mode
External Antenna - SMA
Quad RF (Optional)
(Configurable on Computer)
Screen Support mount location
(Sold Separately as 7110-1401)
Mounts to either side, or both
3 / 7
TOUGHBOOK 33 LAPTOP DOCK FEATURE IDENTIFICATION

Squeeze both
corners until
latched
Insert Front First
Dock "Latched"

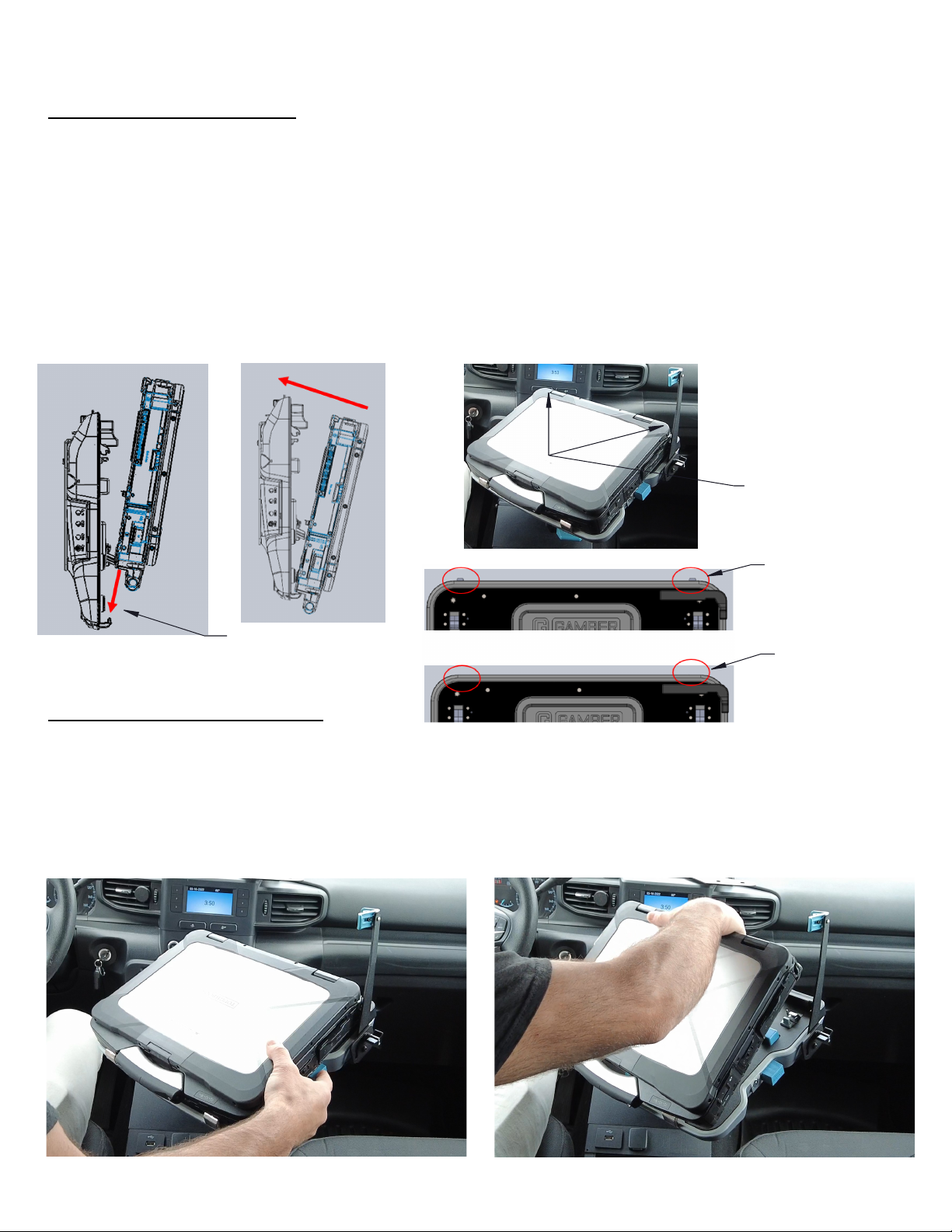

TO UNDOCK THE COMPUTER
1. Turn the lock to the "UNLOCKED" position (Clockwise).
2. Push blue Release Button until the computer springs upward. There will be an audible
recognition as well. At this point, the computer is free to be removed.
3. Remove the computer by pulling it away from the dock.
TO DOCK THE COMPUTER
Ensure the Dock is in the UNLATCHED position. 1.
Insert the front of the computer into the front silver Hooks of the dock. 2.
Rotate the rear of the computer onto the dock, squeeze on both corners, overcoming the 3.
resistance until the Indicators on the back of the dock recess to the "Latched" position. There
will also be an audible confirmation as the latch system springs downward.
With the dock in the "Latched" position, turn the lock to the "LOCKED" position (Counter
4.
Clockwise).
DOCKING AND UNDOCKING THE COMPUTER
Dock "UN-Latched"
4 / 7

SCREEN SUPPORT INSTALLATION
Screen supports are recommended on all laptop dock/cradles in
high-vibration environments.
Screen support can be purchased from www.GamberJohnson.com
Part Number: 7110-1401
Remove the two #6-32 screws that are currently on the docking station
and slide the screen support in between the metal plate and plastic.
once the holes line up use the screws that were removed and tighten
to the recomended torque.
This can be done on either side of the dock, do not over-torque screws.
Reccomended torque is 8-11 in/lbs.
Screen Support
Mounting Locations
5 / 7

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions. (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Certifications:
EN 55032: 2012/AC: 2013 Class A •
EN 50498: 2010 •
EN 50581: 2012 •
EN 62368-1:2014/A11:2017 •
UL 62368-1:2014 •
IEC 62368-1:2014 •
Can/CSA C22.2 No. 62368-1:2014 •
GJ Model #'s & Description:
7160-1728-00 DOCK-PANASONIC FZ40 LAPTOP-NO RF
7160-1728-02 DOCK-PANASONIC FZ40 LAPTOP-QUAD RF
7160-1728-06 DOCK-PANASONIC FZ40 LAPTOP LITE- NO RF
7160-1728-07 DOCK-PANASONIC FZ40 LAPTOP LITE-QUAD RF
Regulatory Model #: 7160-1728
Regulatory Certification Information
Gamber-Johnson LLC, 5001 Joerns Dr., Stevens
Point, WI, 54481, USA, 715-344-3482
6 / 7

EN: Safety instructions for proper use
Precautions for Operating the Car Mounter
If a Malfunction Occurs, Immediately Unplug the Car Plug and Remove the Computer From this product •
Use Only the Specified Car Adaptor With This Product •
Avoid a Lot of Water, Moisture, Steam, Dust, Oily Vapors, etc •
Portions of your car mounter may differ somewhat from the illustrations in the operating instructions, but this should present •
no problems in actual use
For business users in the European Union. If you wish to discard electrical and electronic equipment, please contact your dealer
or supplier for further information.
Precautions for Installing the Car Mounter
Do Not Install This Product in Unstable State •
Do Not Install This Product Wherever There is a Lot of Water, Moisture, Steam, Dust, Oily Vapors, etc •
