Garden Oasis D71 M34522 User manual

USE AND CARE GUIDE
Date of Purchase: _____/ _____/ _____
Arch Swing
Product Code: D71 M34522
KSN: 05220156-3
UPC Code: 849275000915
1

2
Thank you for your purchase
Thank you for your purchase!
We are pleased that you have chosen Sears for your outdoor furniture
purchase. We hope that you enjoy the unmatched quality, comfort, and
style of your new patio set. Every piece is meticulously considered all the
way down to the smallest details, exclusively for you, by our world class
design team. We know you have a choice when it comes to your patio
furniture needs, so from our team to yours, thank you for letting us be a
part of your outdoors.
Table of Contents
Table of Contents................................................ 2
Safety Information.............................................. 3
Set Up your Furniture Properly................ 3
Examine your Furniture.............................. 3
Warranty................................................................. 3
Care and Maintenance...................................... 4
What is Covered........................................... 3
What is Not Covered.................................... 3
Pre-Assembly........................................................ 4
Planning Assembly...................................... 4
Observe weight Limits................................ 5
Parts included................................................ 5
Hardware Contents...................................... 5
What you Need.............................................. 5
Assembly Instructions....................................... 6
Customer Service................................................ 10

3
Safety Information
SET UP YOUR FURNITURE PROPERLY
Ensure that all parts are assembled properly and fully tightened as per
the instructions.
When placing in the desired location, ensure that all legs are resting on
the same surface. You may adjust the legs levelers as required to
ensure that the item stands in a rigid position.
Warranty
1 YEAR WARRANTY
Frame warrant only!
We warrant to the original purchaser for one year from the date of purchase.
WARRANTY
This limited warranty is extended to the original purchaser and applies to
defects in material and workmanship of your Patio furniture, provided your
furniture is maintained with care and used only for personal, residential
purposes.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charges
to and from our service center. This warranty does not cover commercial
use, acts of nature, re, freezing, and abusive use. Discoloration or fading
of the nish or fabrics as a result of chemicals or spills is not covered.
Proof of purchase (dated register receipt) is required for warranty claims.
We reserve the right to make substitutions with similar merchandise, if the
model is no longer in production. Warranty is to the original purchaser and
is not transferable. As some states do not allow exclusions or limitations on
an implied warranty, the above exclusions and limitations may not apply.
this warranty gives you specic rights, and you may also have other rights,
which vary from state to state.
EXAMINE YOUR FURNITURE
Examine occasionally to ensure that there are no loose parts. If loose
parts are found, they must be retightened fully before additional use.

4
Warranty
Exclusions: Items used for commercial, contract, or other non-residential
purposes, or items damaged due to acts of Nature, vandalism, misuse, or
improper assembly is not covered. Discoloration and fading of the nish
or fabrics as a result of chemicals or spills are not covered. If , within the
stated warranty period, this product is found to be defective in material
or workmanship, the purchaser must contact the customer service
department at 1-877-747-3660. The manufacturer, at its option, will repair
or replace the defectives parts. Proof of purchase(date register receipt) is
required for warranty claims. It remains the customer’s responsibility to
pay for freight and packing charges to and from the service center.
Warranty is to The original purchaser and is non-transferable. Any
replacement of warranted items will be in the original style and color,
or a similar style and color if the original is unavailable or has been
discontinued. As some states do not allow exclusions or limitations on
an implied warranty, the above exclusions and limitations may not apply.
This warranty gives you specic rights, and you may also have other rights.
which vary from state to state.
Care and Maintenance
For daily care, wipe with soft dry cloth. Wipe spills with clean dry cloth. Avoid
the use of harsh cleaners and abrasives. Store indoors during long period of
inclement weather. Make sure furniture is completely dry before storage. Use
a proper outdoor cover when left outside during inclement weather or when
not in use.
Pre-Assembly
Customer service 1-877-747-3660
PLANNING ASSEMBLY
To prevent damage, place all parts on a soft surface during assembly.
Remove all protective caps before beginning assembly. It takes about
60 minutes for 3 persons to complete all the assembly.
WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT
FABRIC. This tent meets the ammability requirements of CPAI-84.
The fabric may burn if left in continuous contact with any ame source.

5
ITEM# HARDWARE DESCRIPTION Q’TY
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
4
4
8
4
4
12
14
4
2
6
38
68
2
2
2
Eye Bolt
Eye Bolt
Hook
Chain
Bolt
Bolt
Bolt
Thread Bolt
Thread Bolt
Bolt Cap
Nut
Washer
Handle
Wrench
Allen Wrench
ITEM# PARTS DESCRIPTION Q’TY
Q
S
U
W
P
R
T
V
2
3
2
2
2
2
2
2
Left Arch Leg
Stand Stop
Bed Stretcher
Bottom Connecter
X 1Bed
Y 1Canopy
Z 2Pillow
Right Arch Leg
Arch Top
Bed Stop
Bottom Stop
Pre-Assembly
OBSERVE WEIGHT LIMITS
The recommended weight limits for the Arch Swing is 440 lbs.
Caution: if you overload your furniture, injuries can occur.

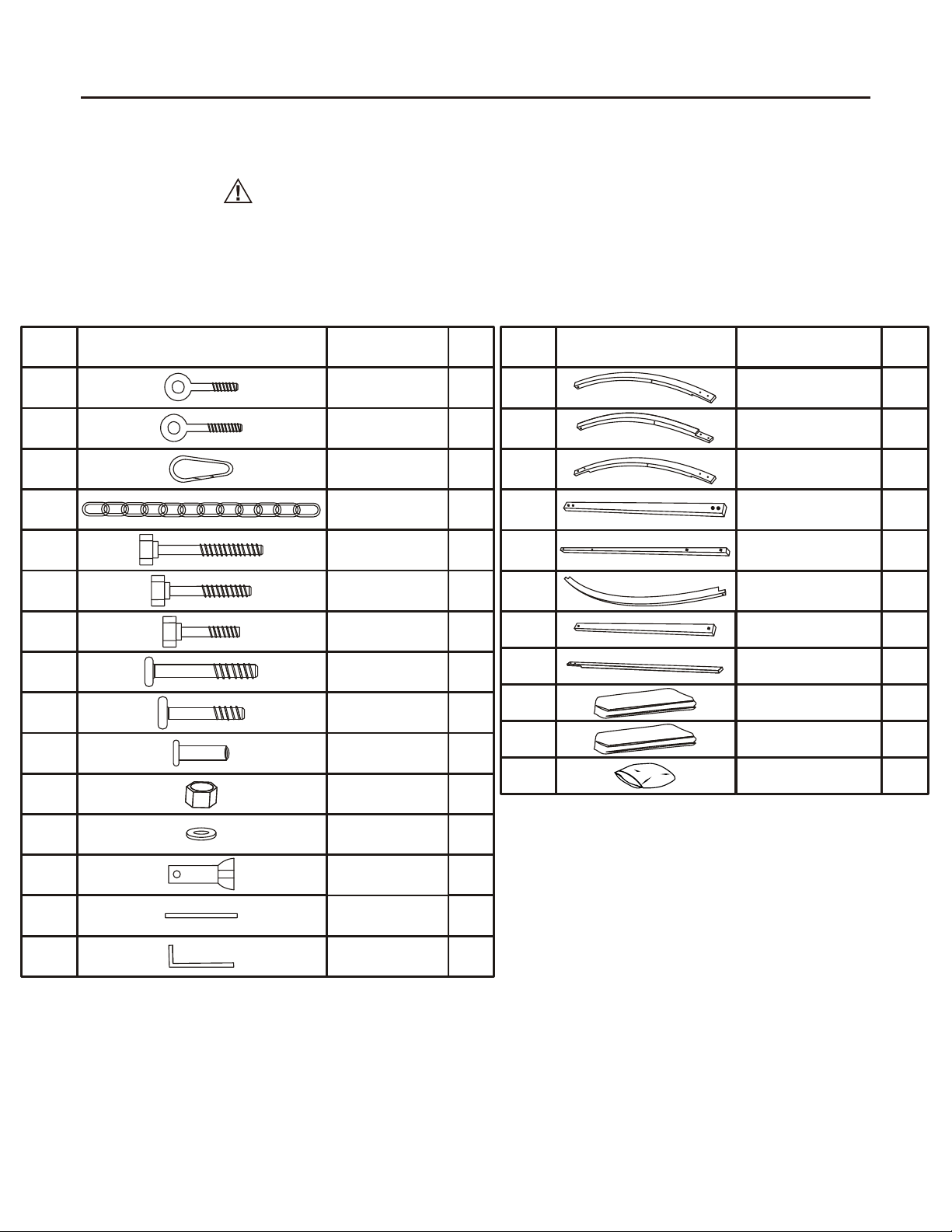

PARTS INCLUDEDHARDWARE INCLUDED
WHAT YOU NEED
Screwdriver required(not included).
Allen wrench required(included).
Noted: Hardware and parts not shown to actual size.

6
Assembly Instructions

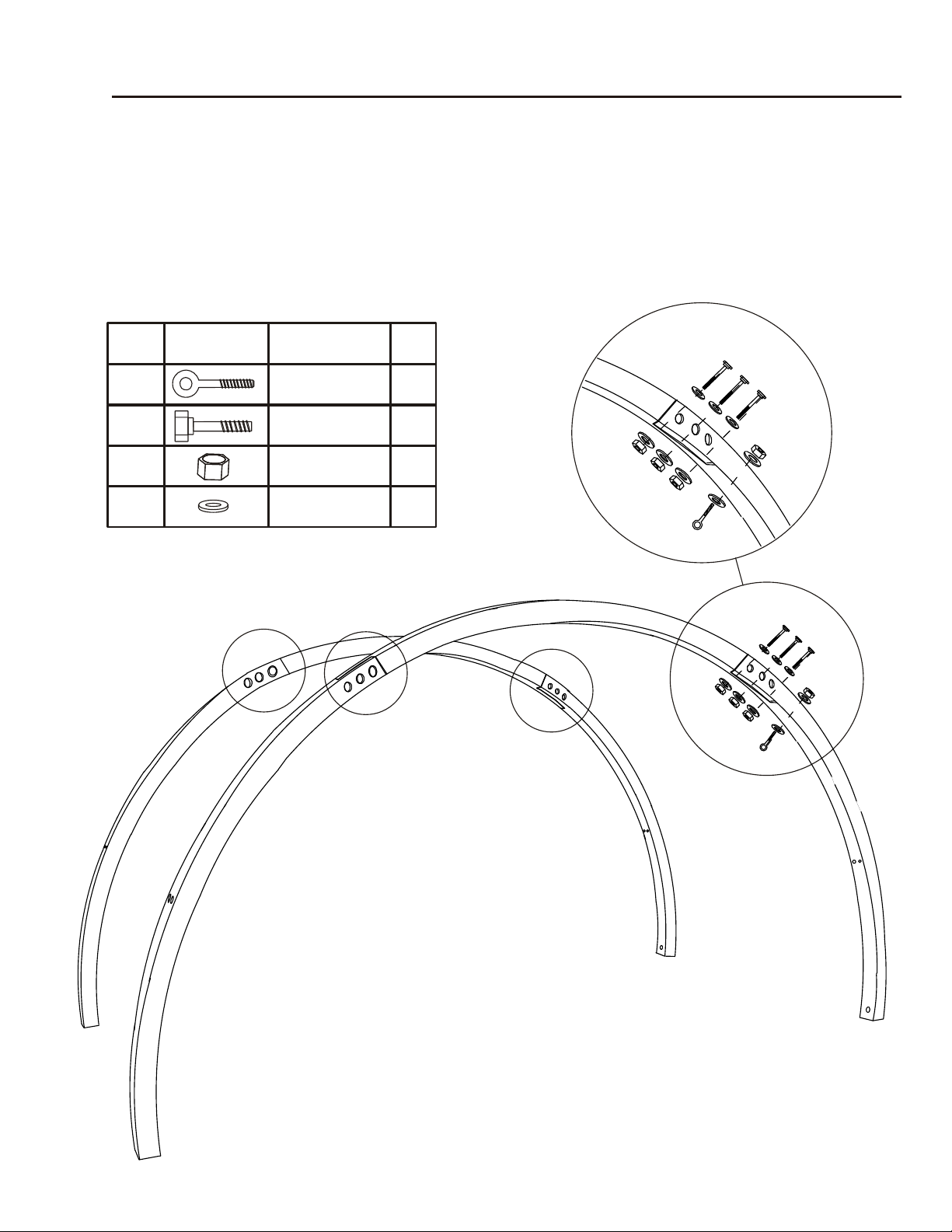

1 ATTACHING ARCH FRAME
Attach left arch leg “Q” to arch top “R” and right arch leg “P” to
arch top“R” and repeat the step for another side.
Fasten bolt “G” and nut “K”. Fasten eye bolt“B” and nut “K”.
Every bolt needs to be used with 2 washers.
Repeat the assembly on other 3 joint(circled) area.
G
GG
LL
L
L
LL
KKK
B
L
L
K
R
R
P
P
Q
Q
G
GG
LL
L
LLL
KK
K
BL
L
K
ITEM# HARDWARE DESCRIPTION Q’TY
B
G
K
L
4
12
16
32
Eye Bolt
Bolt
Nut
Washer

7
Assembly Instructions

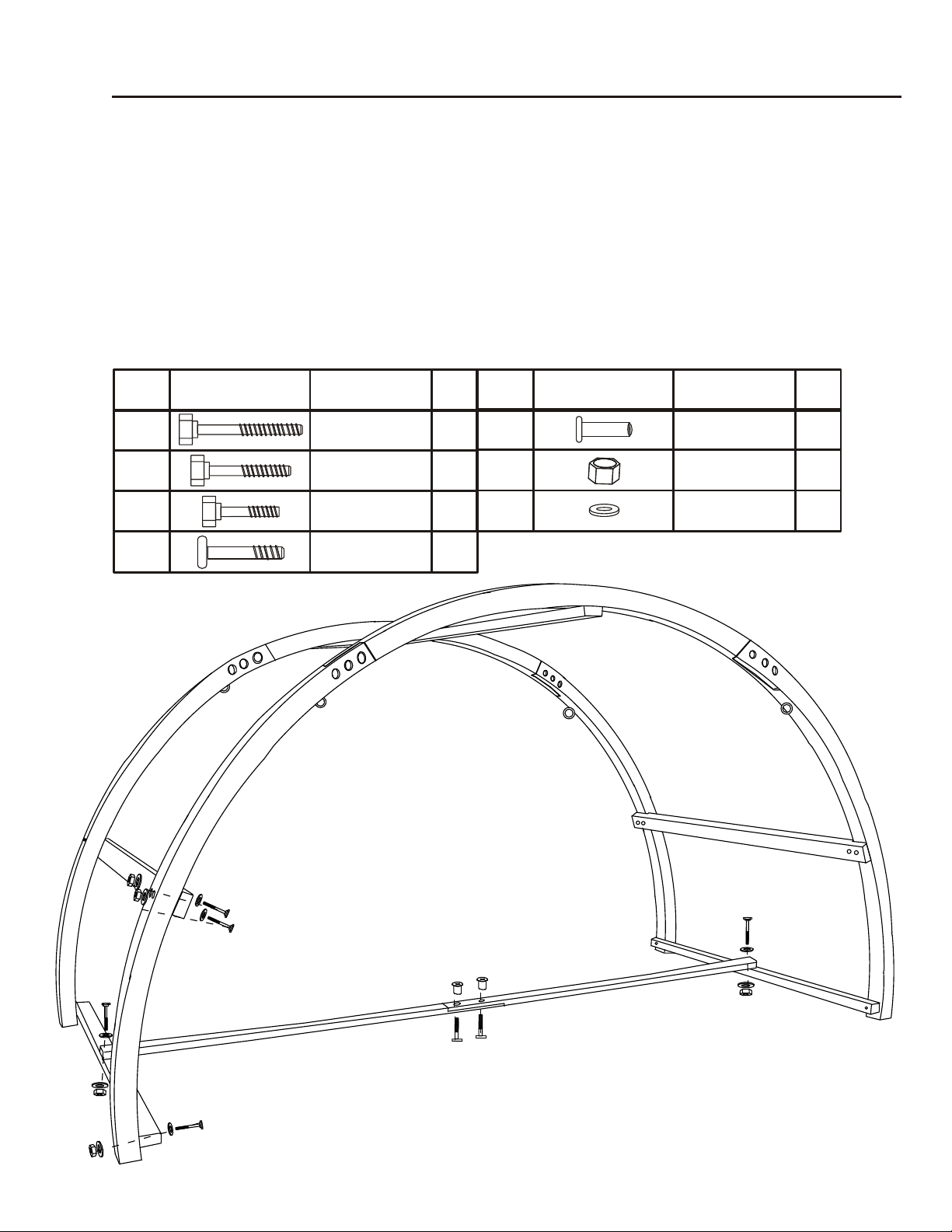

2 ATTACHING ARCH FRAMES AND STAND
Attach stand stop“S” onto the 2 arch frames and fasten bolt “F” and
nut “K”. Repeat this step for the other 5 places.
Attach bottom stop “V” onto the 2 arch frames and fasten bolt “E”
and nut “K”. Repeat this step for the other 3 places.
Attach bottom connector “W” and fasten thread bolt “I” and bolt
cap “J” then attach to the bottom stop “V”. Fasten bolt “G”and nut “K”.
Repeat this step on another side.
Every bolt needs to be used with 2 washers except for thread bolt “I”.
S
S
S
V
V
F
F
L
L
L
L
G
G
L
L
L
K
K
K
K
K
L
L
L
II
JJ
W
W
E
ITEM# HARDWARE DESCRIPTION Q’TY
E
F
G
I
4
12
2
2
Bolt
Bolt
Bolt
Thread Bolt
ITEM# HARDWARE DESCRIPTION Q’TY
J
K
L
2
16
32
Bolt Cap
Nut
Washer

8
Assembly Instructions

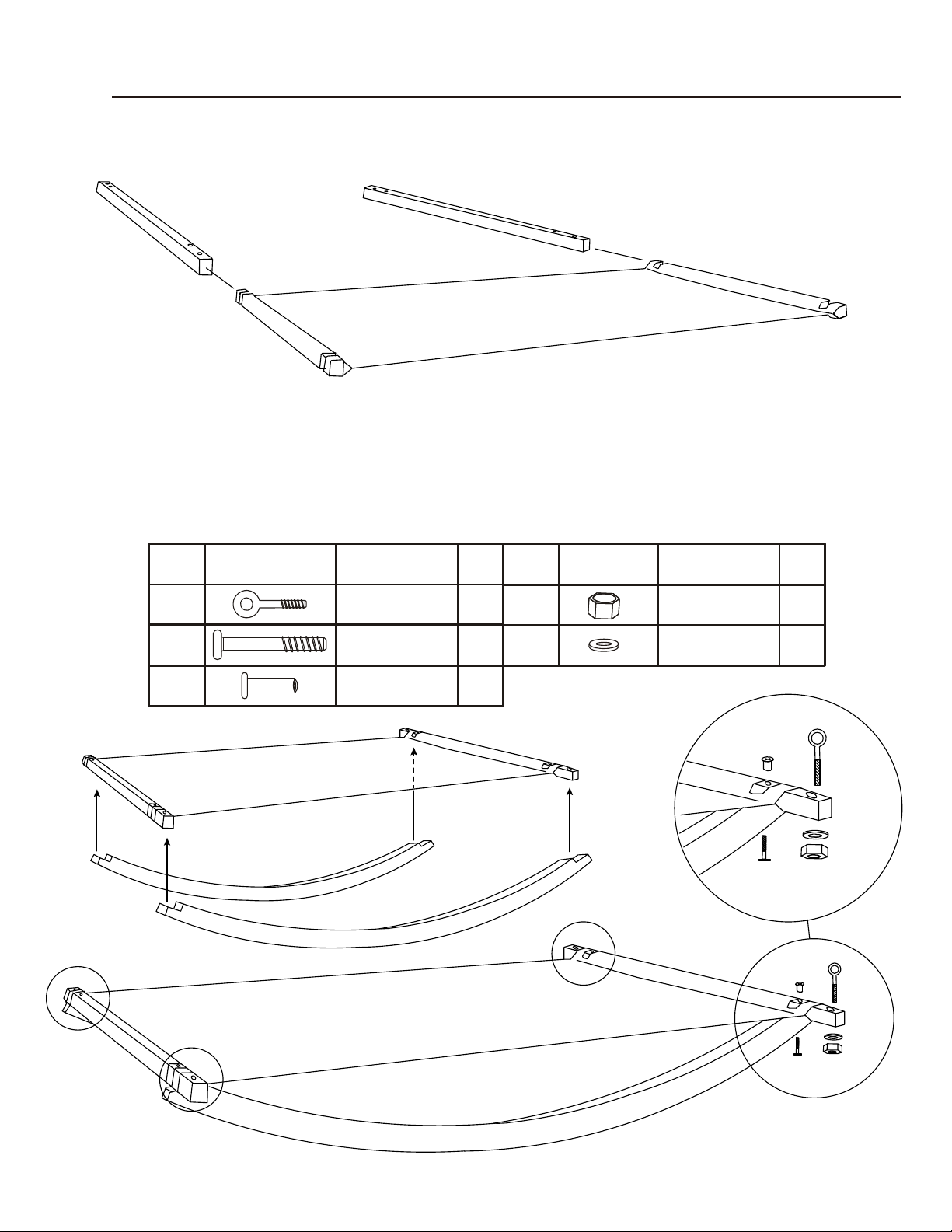

3 ATTACHING CANVAS BED
Insert bed stop “T” into the end sides of the canvas bed “X”.
4 ATTACHING BED STRETCHER
Attach bed stretcher “U” with canvas bed(from step 3).
Fasten thread bolt“H”and bolt cap “J”. Fasten eye bolt “A” with
nut “K”, need to be used with 1 washer.
Repeat the step for other 3 circled areas.
ITEM# HARDWARE DESCRIPTION Q’TY
A
H
J
4
4
4
Eye Bolt
Thread Bolt
Bolt Cap
ITEM# HARDWARE DESCRIPTION Q’TY
K
L
4
4
Nut
Washer
TT
X
L
K
A
J
H
L
K
A
J
H
U
U
U

9
Assembly Instructions

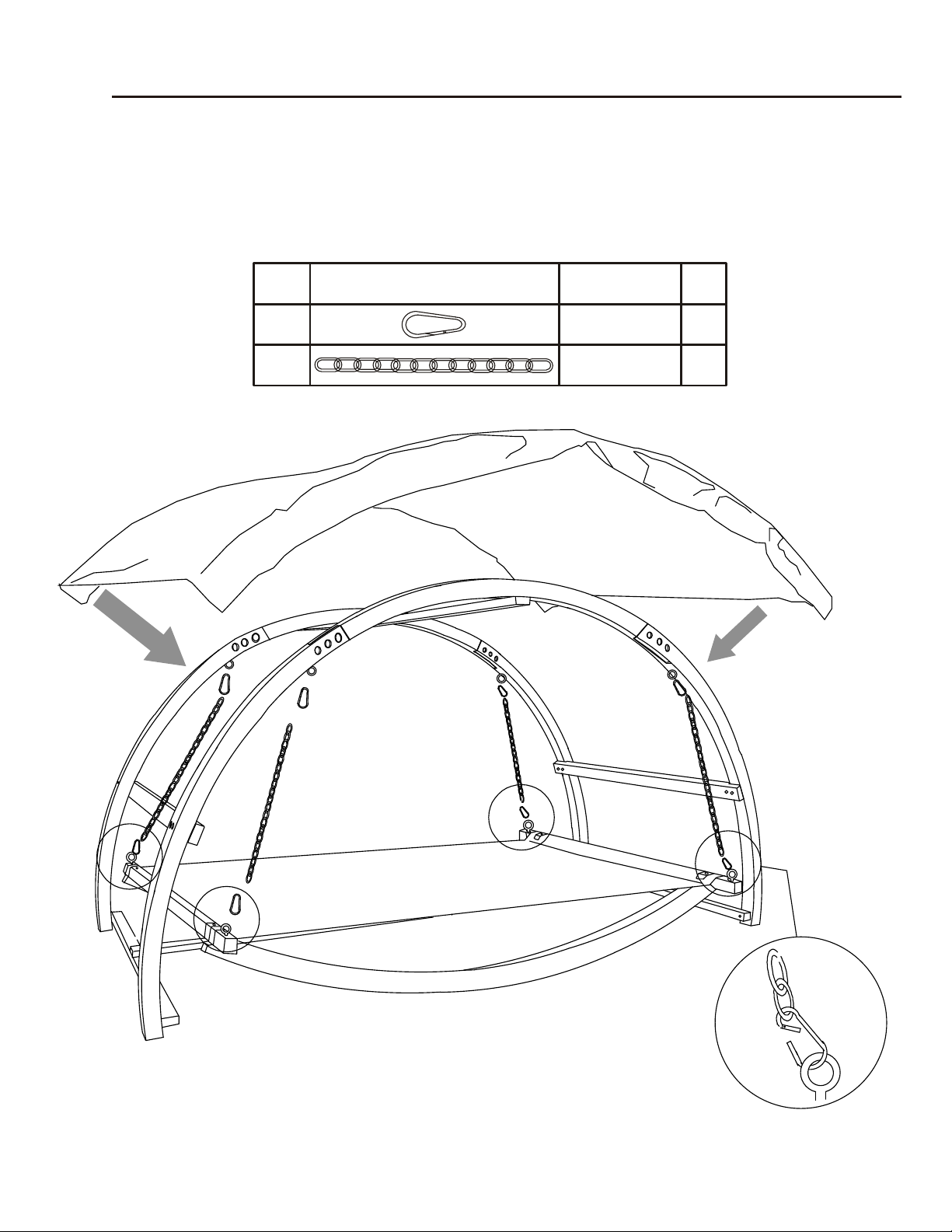

5 ATTACHING BED AND CANOPY
Attach canvas bed onto the arch frames with hook “C” and chain “D”.
Cover canopy onto the top of the arch frames and axed by
Velcro which on insides of the canopy.
ITEM# HARDWARE DESCRIPTION Q’TY
C
D
8
4
Hook
Chain
C
D
D
Y
C
C
C
C
C
C
C
C
D
D
D
D

10
Made in / Hecho en CHINA
Distributed by Sears, Roebuck and Co., Homan Estates, IL 60179
For questions or comments about product:
Email: [e-mail] or Call toll-free: 1-877-747-3660
Monday thru Friday from 8:30am - 5:00pm Central time
Please refer to part numbers when reordering
See our extensive assortment of outdoor living products
on-line at www.sears.com and www.kmart.com
