Garden Oasis EMERY D71 M20355 User manual

EMERY 2 PERSON SWING
Product code: D71 M20355
UPC code: 471 333112 178 3
1
Vendor Item: SC-K-429N-1GS
Date of purchase: _____/ _____/ _____
USE AND CARE GUIDE

Thank you for your purchase
Thank you for your purchase
We are pleased that you have chosen Sears for your outdoor furniture purchase.
We hope that you enjoy the unmatched quality, comfort, and style of your new patio
set. Every piece is meticulously considered all the way down to the smallest details,
exclusively for you, by our world class design team. We know you have a choice when
it comes your patio furniture needs, so from our team to yours, thank you for letting us
be a part of your outdoors.
Table of Contents
Table of Contents.................................... 2
Safety Information................................... 3
Set Up your Furniture Properly..............3
Examine your furniture..........................3
Warranty................................................... 3
Care and Maintenance............................ 4
Pre-Assembly.......................................... 4
Planning Assembly.............................. 4
Hardware Included.............................. 4
Assembly Instructions
Package Contents................................. 5
Swing...................................................... 6
Customer Service..................................11
2

Safety Information
SET UP YOUR FURNITURE PROPERLY
Ensure that all parts are assembled properly and fully tightened as per the instructions.
When placing in the desired location, ensure that all legs are resting on the same
surface. You may adjust the legs levelers as required to ensure that the item stands
in a rigid position.
EXAMINE YOUR FURNITURE
Examine occasionally to ensure that there are no loose parts. If loose parts are found,
they must be retightened fully before additional use.
Warranty
WARRANTY
We warrant our products to be free of manufacturing defects to the original purchaser for
the period listed below. We reserve the right to make substitutions with similar merchandise,
if the model in question is no longer in production.
EXCLUSIONS
This warranty does not cover: Furniture used for commercial or non-residential purposes;
failures caused by improper care; unreasonable or abusive use; freeze damage; acts of
nature. Steel products are not covered against rust. Tempered glass table tops are not
covered against breakage.
FINISH
Frame finish is warranted to be free of manufacturing defects for a period of one (1) year.
Discoloration or fading of the finish as a result of exposure to the elements, chemicals, or
spills is not covered.
FABRIC
Fabric is warranted to be free of manufacturing defects for a period of one (1) year.
Discoloration or fading of the finish as a result of exposure to the elements, chemicals, or
spills is not covered.
FRAMES
Frame is warranted to be free from defects in material or workmanship for a period of
one (1) year for steel frame.
FREIGHT & PACKAGING
Freight and packaging are the responsibility of the original purchaser.
CUSTOMER SERVICE
In case of a problem, call
1-800-457-4652
between 9:00 am to 5:00 pm Eastern standard
time Mmonday through Friday or contact us at www.numarkcustomerservice.com
for
any question or problems you may have.
3

Ja (8 + 1 spare)
M6 x 20L Bolt
Jb (4)
M6 x 36L Bolt
Jk (2)
Triangle Bracket
Jg (20)
M6 Metal Washer
Jm(2)
Knob
Jl (4)
Hook
Jc (4）
M6 x 70L Bolt
Jd (12 + 1 spare)
M8 x 45L Bolt
Je (2)
M8 x 50L Bolt
Jf (4)
M8 x 105L Bolt
Jn (2)
Open Hex Wrench
Jh (20)
M8 Metal Washer
Ji (10 + 1 spare)
M8 Nut
Jj (4)
M6 Nut
Jo (2)
Allen Wrench
Jp (1)
Assembly
Instructions Sheet
Care and Maintenance
Pre-Assembly
Read through all the instructions before beginning assembly. Unpack and identify all the parts.
Place them on a flat, non-abrasive surface. Assembly by two people is recommended.
PLANNING ASSEMBLY
Though its powder-coated finish is rust-resistant, steel is prone to rust over time with
exposure to the elements. In case of rust or scratches, lightly sand the affected area
and apply touch-up paint. To maintain the finish, periodically apply wax with a soft cloth.
Wash frames and cushions with a mild solution of soap and water; rinse thoroughly.
Dry completely and drip-dry cushions. Do not use bleach or solvents.
HARDWARE INCLUDED
NOTED: Hardware not shown
to actual size.
4

Safety Information
Do not completely tighten bolts and nuts until indicated in assembly step.
Assembly Instructions

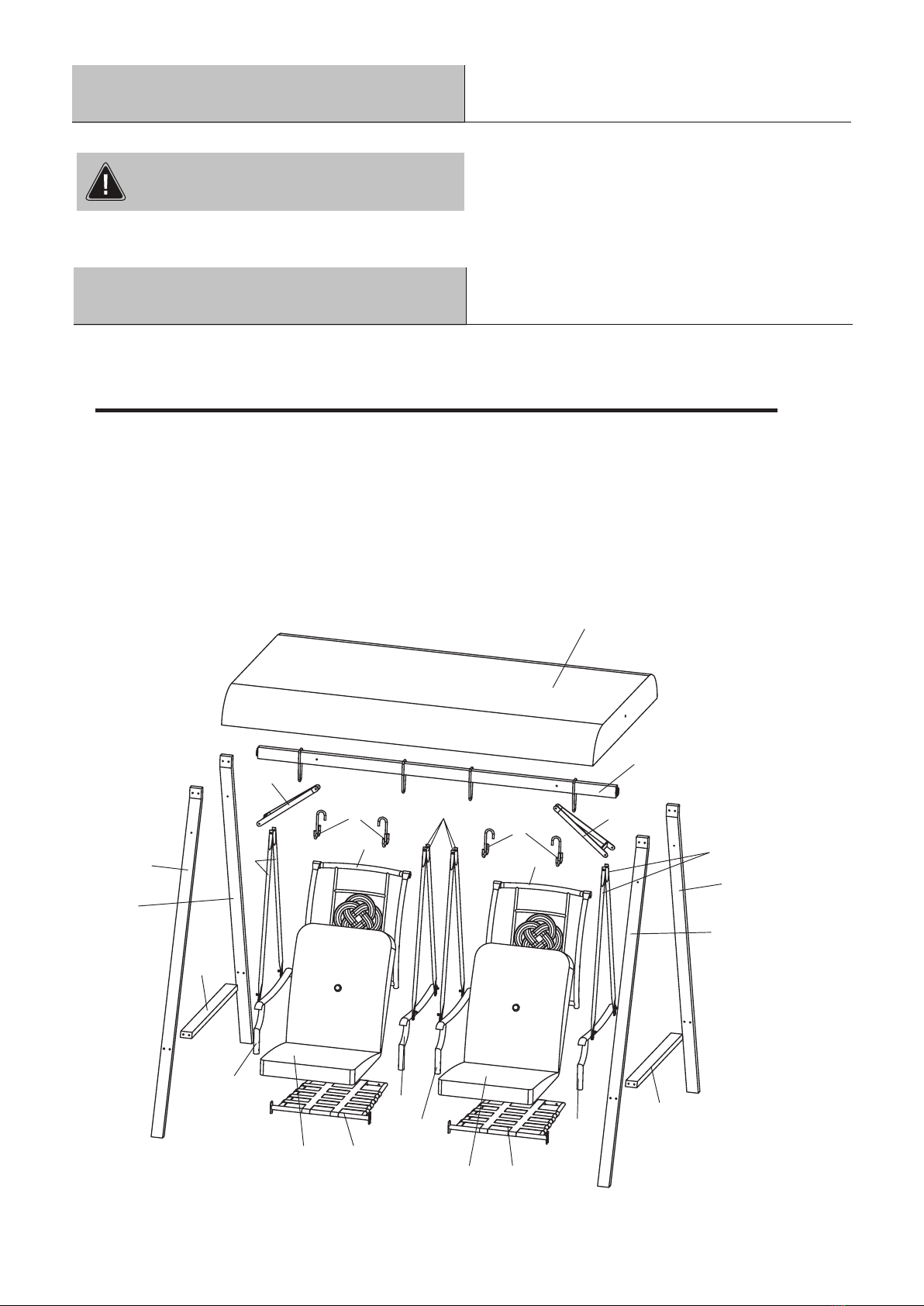

Package Contents
ITEM DESCRIPTION QUANTITY ITEM DESCRIPTION QUANTITY
A Leg Post
B Top Beam
C Leg Connection Bar
D Hanging Bar
E Back
4
1
2
8
2
5
Pre-Assembly
F1 Left Arm
F2 Right Arm
G Seat
H Canopy
I Cushion
2
2
2
1
2
G
H
B
A
A
C
Jk
D
Jl
Jl
Jk
E
E
G
A
D
I
I
F1
F2
F2
F1
A
C
D

6
1
Assembly Instructions
A
A
B
Jf
Jh
Jh
Ji
Attaching the top beam to the leg post
Jf x 4
M8 x 105L Bolt
Jh x 8
M8 Metal Washer
Ji x 4
M8 Nut
2Attaching the leg connection bar to the leg post
JdJh
C
A
A
Jd x 8
M8 x 45L Bolt
Jh x 8
M8 Metal Washer
Don’t tighten completely.
Repeat procedure for the other side.
Don’t tighten completely.
Repeat procedure for the other side and leg post.

3
Don’t tighten completely.
Repeat procedure for the other side.
4
Assembly Instructions

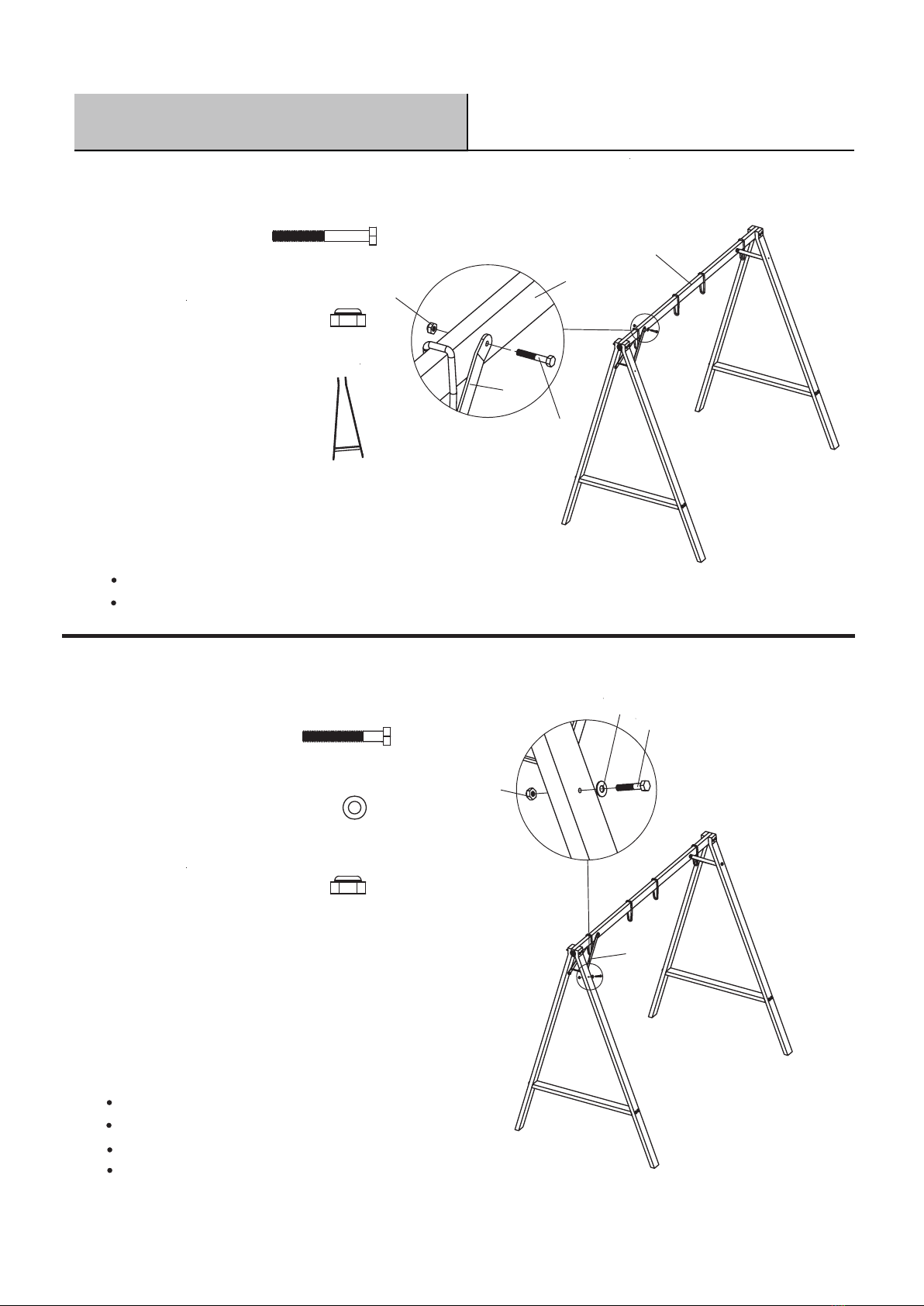

Attaching the triangle bracket to the top beam
7
B
Jk
Je
B
Ji
Je x 2
M8 x 50L Bolt
Ji x 2
M8 Nut
Jk x 2
Triangle Bracket
Jk
Ji
Jh
Jd
Jd x 4
M8 x 45L Bolt
Jh x 4
M8 Metal Washer
Ji x 4
M8 Nut
Don’t tighten completely.
Repeat procedure for the other side.
Repeat procedure for the other triangle.
Securely tighten all bolts and nuts on above steps.
Attaching the triangle bracket to the leg post

8
5
Don’t tighten completely.
Repeat procedure for the other side.
Repeat procedure for the other chair frame
6

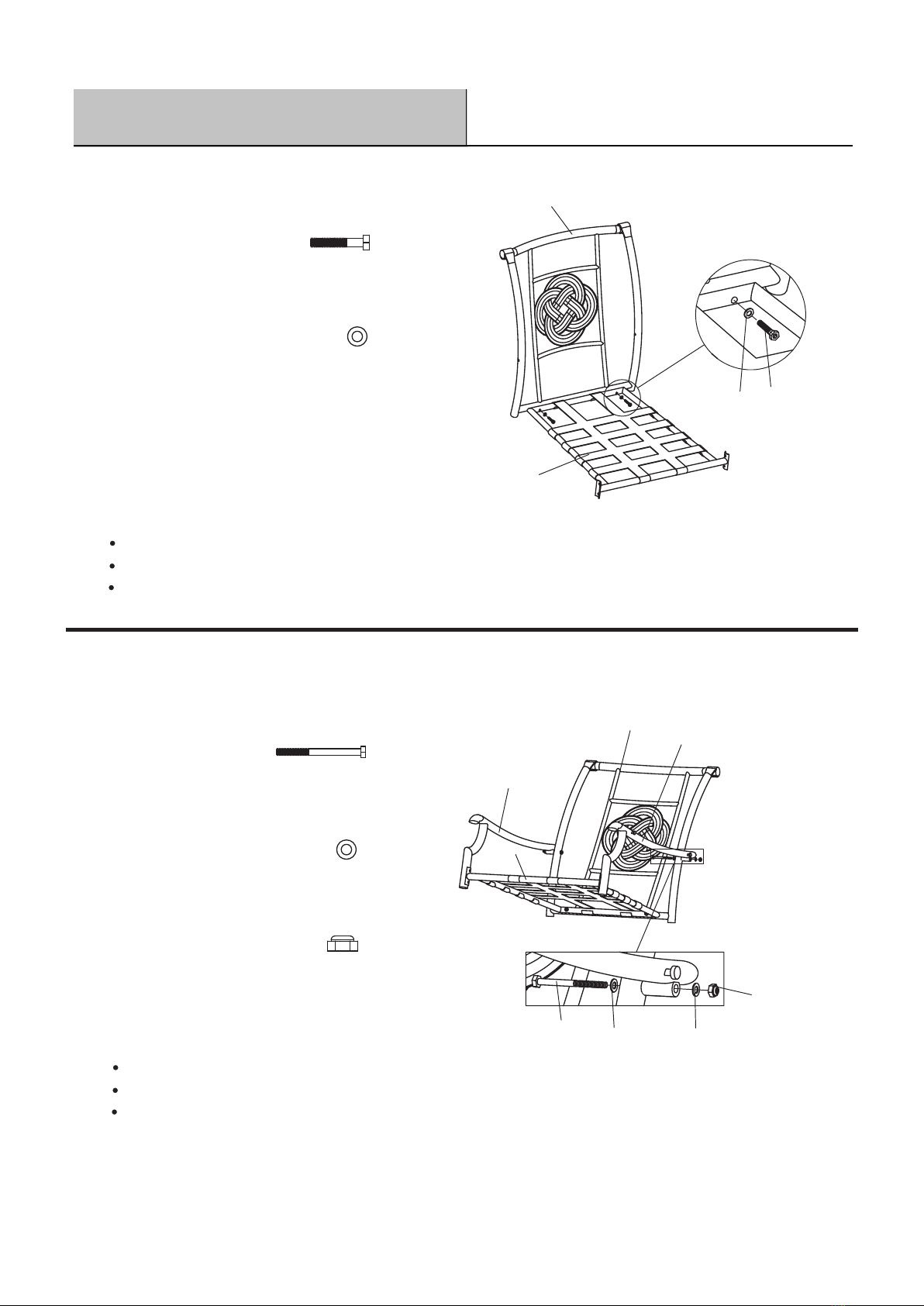

Attaching the arm to the back
Assembly Instructions
Jb
Jg
E
G
Attaching the back to the seat
Jb x 4
M6 x 36L Bolt
Jg x 4
M6 Metal Washer
F1
F2
E
G
Jg
Jc Jg
Jj
Jc x 4
M6 x 70L Bolt
Jj x 4
M6 Nut
Jg x 8
M6 Metal Washer
Don’t tighten completely.
Repeat procedure for the other side.
Repeat procedure for the other chair frame

7
8
Assembly Instructions
Attaching the arm to the seat
9
Ja x 8
M6 x 20L Bolt
Jg x 8
M6 Metal Washer
E
G
F1
F2
Ja Jg
Don’t tighten completely.
Repeat procedure for the other side.
Repeat procedure for the other chair frame.
Securely tighten all bolts and nuts on above steps.
Jl x 4
Hook
Attaching the hook to the hanging bar
Jl
D

9
10
Assembly Instructions
Attaching the hanging bar to the chair arm
Attaching the hook to the ring of top beam
10
D
F1
F1
D
E
F1
D
D
F2
F1
D
F1 D
B
Jl

11
12
Assembly Instructions
Putting on the canopy and attaching the knob to the canopy and top beam
Putting cushions onto the chair and fasten all bolts and nuts
11
Don’t tighten completely.
Repeat procedure for the other side.
Jm x 2
Knob
See our extensive assortment of outdoor living products
on-line at www.sears.com and www.kmart.com
Made in / Hecho en CHINA
Distributed by Sears, Roebuck and Co., Hoffman Estates, IL 60179
For questions or comments about product:
Call toll-free: 1-
800-457-4652
Please refer to part numbers when reordering
between 9:00 am to 5:00 pm Eastern standard time Monday through Friday
or contact us at www.numarkcustomerservice.com
