Gardena T 1030 D User manual

GARDENA
®
T 1030 D
Art. 1825-28
GBFINSDKNESTLTLV
GB Operating Instructions
Water Timer electronic
FIN Käyttöohje
Elektroninen kasteluajastin
SBruksanvisning
Bevattningstimer electronic
DK Brugsanvisning
Vandingsur electronic
NBruksanvisning
Vanningstimer electronic
EST Kasutusjuhend
Kastmistaimer electronic
LT Eksploatavimo instrukcija
Elektroninis laistymo laikmatis
LV Lietošanas instrukcija
Elektroniskais laistīšanas taimeris

Contents
2
GB
GARDENA Water Timer electronic T 1030 D
Welcome to the Garden of GARDENA...
Translation of the original instructions from German.
Please read these operating instructions carefully and observe the notes given. Use these
instructions to familiarise yourself with the Water Timer electronic and its proper use as well
as the notes on safety.
AFor safety reasons, children and young people under 16 as well as anyone who is not
familiar with these operating instructions may not use the Water Timer.
Persons with reduced physical or mental abilities may use the product only if they are
supervised or instructed by a responsible person.
vPlease keep these operating instructions in a safe place.
1. Where to Use Your GARDENA Water Timer . . . . . . . . . . . . . . . . . . . . 3
2. Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4. Putting Your Water Timer into Operation . . . . . . . . . . . . . . . . . . . . . . . 6
5. Operating Your Water Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6. Putting Your Water Timer Out of Operation . . . . . . . . . . . . . . . . . . . 13
7. Trouble-Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9. Service / Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3
GB
1. Where to Use Your GARDENA Water Timer
The GARDENA Water Timer is intended for private use in
domestic and hobby gardens, exclusively for outdoor use, to
control sprinklers and watering systems.
The GARDENA Water Timer must not be used for industrial
purposes or in conjunction with chemicals, foodstuffs,
easily flammable and explosive materials.
Intended use
Please note
2. Safety Instructions
Warning!
VOnly use the Water Timer outdoors.
The water timer is not approved for indoor use.
The minimum operating pressure is 0.5 bar, the maximum oper-
ating pressure is 12 bar. The minimum flow rate is 20 I/h.
vCheck the filter in the sleeve nut regularly and clean if
necessary.
vDo not pull the hose connected to the Water Timer and avoid
tensile strain.
Use:

GB
4
For functional safety reasons, only use a 9V alkali-
manganese (alkaline) battery type IEC 6LR61.
The Water Timer will only run for approx. 1 year if the new
alkaline battery has a nominal voltage of at least 9V.
vCheck the battery before you buy it.
To prevent water entering the battery compartment, the Water
Timer must only be mounted in a perpendicular position with
the sleeve nut pointing upwards.
After you have selected the watering program, the Water Timer
opens at the selected starting time. To avoid getting wet when
operating the Water Timer, connect the hose or turn off the tap
before selecting the program. Alternatively, the control unit can
be removed for programming.
The max. temperature for the water is 40°C.
vOnly use clear fresh water.
Battery:
Putting your Water Timer
into operation:
Water flow:

GB
5
3. Function
The GARDENA Water Timer electronic allows you to set different
watering cycles for different watering times independent of whether
you are using a sprinkler, a sprinkler system installation or drip-
head watering system to irrigate your garden.
Your Water Timer electronic will water your garden completely
automatically according to the program you choose.You can set
the timer to water your garden early in the morning or late at night
when water evaporates the least, or while you are away on holiday.
You simply program the time (to the nearest hour), day, watering
starting time / cycle / days and duration by turning the pointer B
of the control knob Ato the correct time and pressing the
OK button C.
The Water Timer opens at the starting time you have selected.
The 2 LEDs Time and Day flash to indicate that the battery is flat.
vReplace the battery (see 4. Putting Your Water Timer into
Operation “Inserting the Battery”).
The functional safety of the water timer depends on the capability
of the battery.
If you change the battery the program is not saved. You must
reprogram the Water Timer (see 5. Operation).

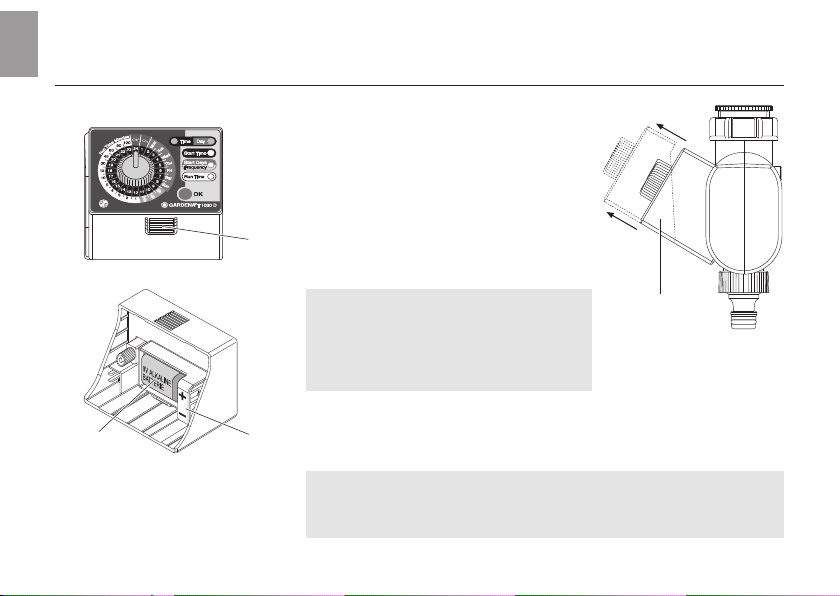

Control knob and OK button:
A
Control knob
B
Control knob pointer
C
OK button
Battery status display:
C
BA

6
GB
4. Putting Your Water Timer into Operation
1. Press the release button 1and
remove the control unit 2from
the housing of the Water Timer.
2. Insert the battery 3in the battery
compartment. Pay attention to the
polarity z
P(+/– markings).
The Time LED flashes.
3. Re-attach the control unit 2to
the housing.
Make sure you exchange the battery
at the right time to prevent the Water
Timer failing due to a low battery
when you are away for longer periods
of time.
Make sure that the time the battery has been in operation and the
time you are planning to be away does not add up to more than
a year.
Even if the battery is almost empty, the Water Timer ensures that
an open valve is always closed since less energy is required to
close the valve than to open it.
Inserting the battery:
2
3 z
P
1

7
GB

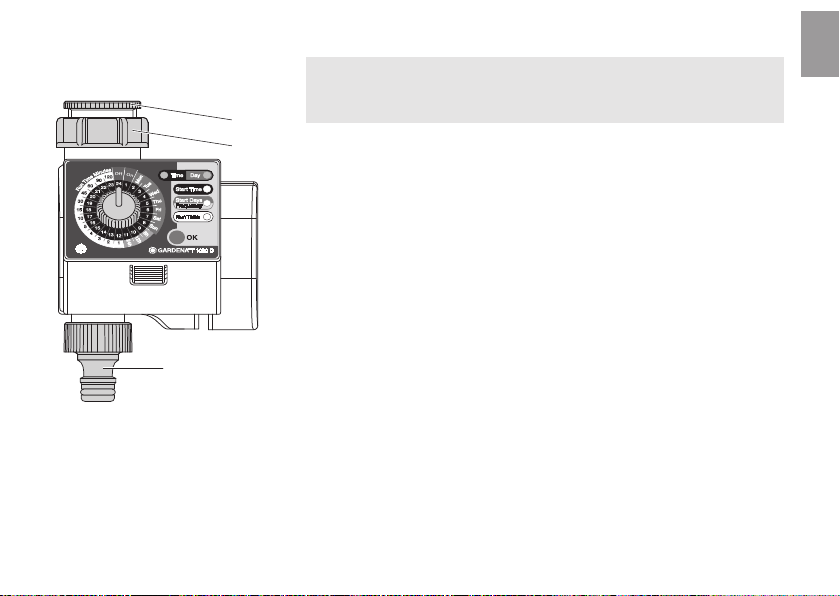

The Water Timer is fitted with a sleeve nut 4for taps with G1 "
(33.3 mm) thread. The adaptor supplied 5allows the Water
Timer to be connected to taps with a G ³⁄₄ " (26.5 mm) thread.
1. For tap with a G ³⁄₄ " (26.5 mm) thread: Screw adaptor 5
on to the tap manually (do not use pliers).
2. Screw sleeve nut 4of the Water Timer on to the adaptor
thread by hand (do not use pliers).
3. Screw tap connector 6on to the Water Timer.
4. Open the tap.
Connecting your Water Timer:
6
5
4

8
GB

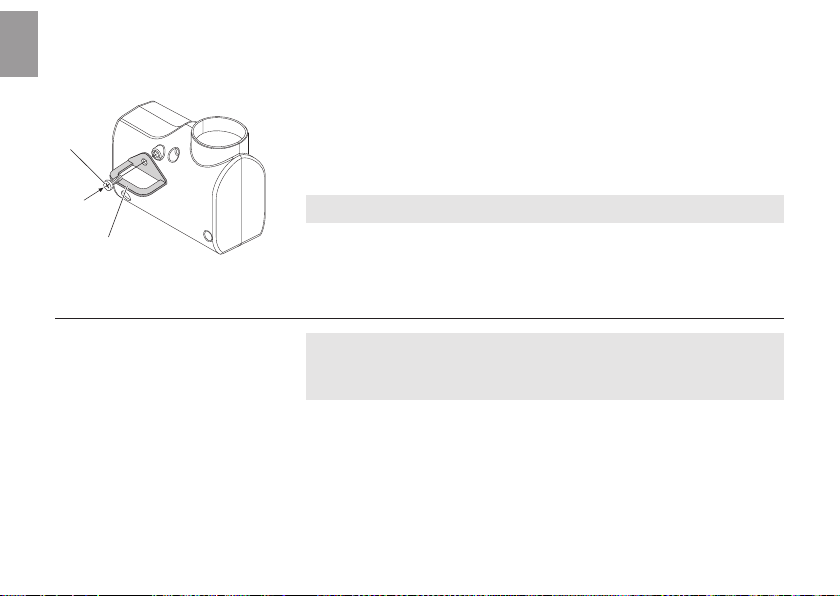

To protect your Water Timer against theft, the GARDENA Anti-
Theft Protection Art. No. 1815-00.791.00 is available from the
GARDENA Service.
1. Fasten the bracket 7to the back of the Water Timer using
the screw 8.
2. The bracket can be used to attach a chain, for example.
The screw cannot be loosened once it has been screwed in.
5. Operation
The Water Timer control unit 2can be removed. This allows
you to set the watering program somewhere other than where
the Water Timer is to be used.
Notes to program the water timer:
•The current time is entered to the nearest hour. We recommend
that you select the time to the full hour.
•Confirm the selected point of the program within 120 seconds
by pressing the OK button, otherwise the program has not
been stored.
Installing the anti-theft
protection (optional):
Setting the
watering program:
8
7

9
GB

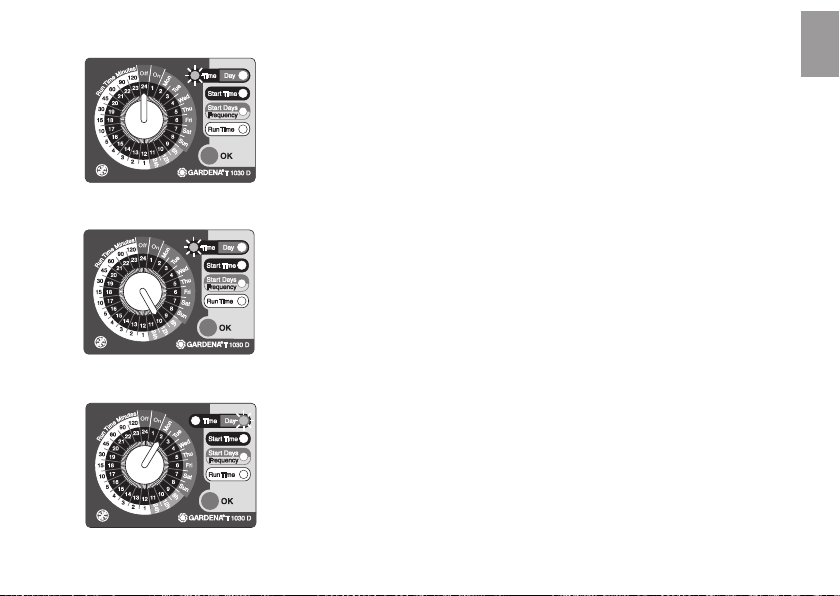

1. Turn the control knob to Off and confirm by pressing the
OK button.
The program stored in the memory is overwritten.
The
Time LED flashes.
Setting the current time:
2. Set the current time on the inner black scale by turning
the control knob and confirm the time you have selected by
pressing the OK button (e.g.: 10:00 am).
The Time LED lights up for half a second and the current
time is entered to the nearest hour.
The
Day LED flashes.
Setting the current day:
3. Set the current day on the outer grey scale by turning the
control knob and confirm the day you have selected by
pressing the OK button (e.g.: Mon Monday).
The Day LED lights up for half a second and the current day
has been stored.
The
Start Time LED flashes.
1.
2.
3.

Setting the watering starting time:
4. Set the watering starting time on the inner black scale
by turning the control knob and confirm the time you have
selected by pressing the OK button (e.g.: 20:00).
The Start Time LED lights up for half a second and the
watering starting time has been stored.
The
Start Days / Frequency LED flashes.
If the start-up time corresponds to the current time of day
entered immediately beforehand, watering starts at the next
start-up time.
Setting the watering days:
If watering is to be carried out every day, this point can be omitted
and you can continue with point 6 “Setting the watering cycle
(Frequency)”.
5. Set the watering day on the outer grey scale using the control
knob and confirm your selection by pressing the OK button
(e.g.: Mon Monday).
The Start Days LED lights up for half a second and the
watering day has been stored.
Repeat the process for all desired days.
The Start Days / Frequency LED continues flashing.
4.
5.
GB
10

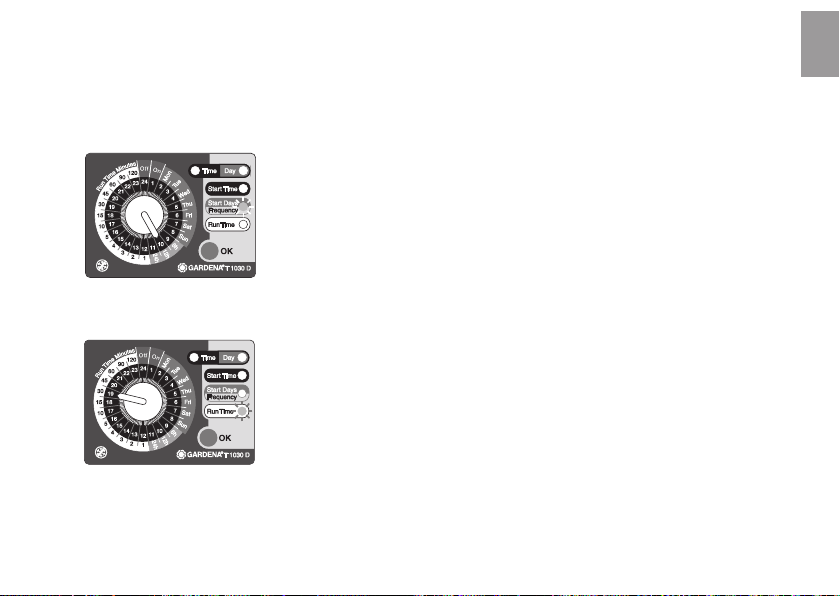

Setting the watering cycle (Frequency):
24h: 1 watering cycle per day
12h: 2 watering cycles per day from start time
8h: 3 watering cycles per day from start time
6. Set the watering cycle on the outer blue scale using the
control knob and confirm your selection by pressing the
OK button (e.g.: 12 hour cycle = 2 x daily).
The Frequency LED lights up for half a second and the
watering cycle has been stored.
The Run TimeLED flashes.
Setting the watering time:
7. Set the watering time on the outer white scale (Run Time
Minutes) using the control knob and confirm your selection
by pressing the OK button (e.g.: 30 minutes).
The Run Time LED lights up for half a second and the
watering time has been stored.
The program you have selected is now active.
6.
7.
GB
11

Manual watering (On):
GB
12
Changing the
watering time:
On hot or cooler days you can change the watering time.
The program you have set remains unchanged.
vSelect the new watering time on the outer white scale (Run
Time Minutes) by turning the control knob and confirm your
selection by pressing the OK button (e.g.: 15 minutes).
The Run Time LED flashes for a half second and the watering
time is changed.
The program with the new watering time is now active.
On especially hot days the programmed watering cycle is some-
times insufficient. You can then turn on your irrigation system
manually. The program you have set remains unchanged.
vTurn the control knob to On.
The valve opens for 30 minutes independent of the set
program.
To activate the set program again, you must reset the watering
time to the time originally set.

Bad-weather function (Off):
On rainy days the programmed watering cycle is often unneces-
sary. You can therefore stop the programmed watering cycle
(bad-weather function). The program you have set remains
unchanged.
vTurn the control knob to Off.
The valve closes and remains closed, independent of the
watering cycle you have set.
To activate the set program again, you must reset the watering
time to the time originally set.
6. Putting Your Water Timer Out of Operation
vStore your Water Timer in a dry place away from frost before
the first frost sets in.
vPlease return flat batteries to a GARDENA dealer or dispose of
them properly at your nearest recycling centre.
Only dispose of batteries when they are flat.
The product must not be added to normal household waste. It
must be disposed of in line with local environmental regulations.
vImportant: Make sure that the unit is disposed of via your
municipal recycling collection centre.
Storage/ Wintering :
Disposing of flat batteries:
Disposal:
(in accordance with
RL2002/96/EC)
GB
13

GB
14
7. Trouble-Shooting
Fault Possible cause Remedy
Not able to open the Battery capacity too low vInsert a new alkaline
Water Timer manually (2 LEDs flash). battery.
using On/Off Tap turned off. vTurn on tap.
Watering not initiated Control knob turned to vTurn the control knob to
Frequency or On/Off. “Run Time Minutes”.
Battery capacity too low vInsert a new alkaline
2 LEDs flash). battery.
Data input/changes made vInput data or make changes
while the program was starting before or after the starting
or immediately before. times you have chosen.
Tap turned off. vTurn on tap.
Valves do not close No hose attached to outlet. vAttach hose with consumer.
Battery flat after working The battery you inserted vUse an alkaline battery.
for a short time is not an alkaline battery.
AIn the event of other faults please contact GARDENA Service.
Repairs should only be carried out by GARDENA service centres or dealers
authorised by GARDENA.

8. Technical Data
Min. /max. operating pressure: 0.5 bar / 12 bar
Minimum flow rate: 20 I/h
Flow medium: clean fresh water
Max. water temperature: 40 °C
Number of program-controlled every 8, 12, 24 hours
watering cycles per day:
Watering cycles per week: each day can be selected / not selected
Watering time per program: 1, 2, 3, 4, 5, 10, 15, 30, 45, 60, 90 or 120 minutes
Battery: 1 x 9V alkali-manganese (alkaline)
type IEC 6LR61
Running time: Approx. 1 year
GB
15

16
GB
9. Service / Warranty
GARDENA guarantees this product for 2 years (from date of
purchase). This guarantee covers all serious defects of the unit
that can be proved to be material or manufacturing faults.
Under warranty we will either replace the unit or repair it free of
charge if the following conditions apply:
• The unit must have been handled properly and in keeping with
the requirements of the operating instructions.
• Neither the purchaser or a non-authorised third party have
attempted to repair the unit.
• Faults which occur as a result of incorrectly installed or leaking
batteries are not covered by the guarantee.
• Damage caused by frost is not covered by the warranty.
This manufacturer’s guarantee does not affect the user’s existing
warranty claims against the dealer/seller.
If you have any problems with your Water Timer, please con-
tact our Customer Service or return the defective unit together
with a short description of the problem directly to one of the
GARDENA Service Centres listed on the back of this leaflet.

122
GB Product Liability
We expressly point out that, in accordance with the product liability law, we are not liable for any damage caused
by our units if it is due to improper repair or if parts exchanged are not original GARDENA parts or parts approved
by us, and, if the repairs were not carried out by a GARDENA Service Centre or an authorised specialist.
The same applies to spare parts and accessories.
FIN Tuotevastuu
Korostamme nimenomaan, että tuotevastuulain nojalla emme ole vastuussa laitteistamme johtuneista vahingoista,
mikäli nämä ovat aiheutuneet epäasianmukaisesta korjauksesta tai osia vaihdettaessa ei ole käytetty alkuperäisiä
GARDENA- varaosia tai hyväksymiämme osia ja korjauksen on suorittanut muu kuin GARDENA -huoltokeskus tai
valtuuttamamme ammattihenkilö. Tämä pätee myös lisäosiin ja lisävarusteisiin.
SProduktansvar
Tillverkaren är inte ansvarig för skada som orsakats av produkten om skadan beror på att produkten har repare-
rats felaktigt eller om, vid reparation eller utbyte, andra än Original GARDENA reservdelar har använts. Samma
sak gäller för kompletteringsdelar och tillbehör.
DK Produktansvar
Vi gør udtrykkeligt opmærksom på at i henhold til produktansvarsloven er vi ikke ansvarlige for skader forårsaget
af vores udstyr, hvis det skyldes uautoriserede reparationer eller hvis dele er skiftet ud og der ikke er anvendt
originale GARDENA dele eller dele godkendt af os, eller hvis reparationerne ikke er udført af GARDENA-service
eller en autoriseret fagmand. Det samme gælder for ekstra udstyr og tilbehør.
EST Tootevastutus
Juhime teie tähelepanu sellele, et tootevastutusseaduse kohaselt ei vastuta me meie seadmete poolt põhjustatud
kahjude eest, kui need on tekkinud asjatundmatu paranduse tagajärjel või kui detaili vahetamisel ei kasutatud
GARDENA originaalvaruosi ega meie poolt kasutada lubatud varuosi ja kui parandustöid ei ole teinud GARDENA
klienditeenindusspetsialistid ega meie volitatud spetsialistid. Sama kehtib lisadetailide ja tarvikute kohta.

123
LT Atsakomybė už produkciją
Prašome atkreipti dėmesį, kad remdamiesi „Mašinų saugos“ įstatymu, neatsakome už nuostolius, sukeltus
mūsų prietaisų, jei jie atsirado dėl netinkamo remonto, arba, jei keičiant dalis, buvo naudojamos neoriginalios
GARDENA dalys arba dalys, kurių mes neleidome naudoti, o remontą atliko ne GARDENA serviso centras ar
įgaliotas specialistas. Tas pats galioja papildomoms dalims ir priedams.
LV Produkta atbildība
Mēs skaidri norādām uz to, ka saskaņā ar Produktu atbildības likumu, mēs neatbildam par mūsu iekārtu radītiem
zaudējumiem, ciktāl tos ir izraisījis neatbilstošs remonts vai daļu nomaiņa ar neoriģinālām GARDENA daļām vai
ne ar mūsu norādītajām detaļām un remontu nav veicis GARDENA serviss vai pilnvarots speciālists. Tas pats
attiecas uz papildinošajām daļām un piederumiem.
GB EU Certificate of Conformity
The undersigned Husqvarna AB, 561 82 Huskvarna, Sweden, hereby certifies that, when leaving our factory, the
units indicated below are in accordance with the harmonised EU guidelines, EU standards of safety and product
specific standards. This certificate becomes void if the units are modified without our approval.
FIN EY-vaatimustenmukaisuusvakuutus
Allekirjoittanut Husqvarna AB, 561 82 Huskvarna, Sweden vakuuttaa, että allamainitut laitteet täyttävät tehtaal-
tamme lähtiessään yhdenmukaistettujen EY-direktiivien, EY-turvallisuusstandardien ja tuotekohtaisten standardien
vaatimukset. Laitteisiin tehdyt muutokset, joista ei ole sovittu kanssamme, johtavat tämän vakuutuksen raukeami-
seen.
SEU Tillverkarintyg
Undertecknad firma Husqvarna AB, 561 82 Huskvarna, Sweden, intygar härmed att nedan nämnda produkter
överensstämmer med EU: s direktiv, EU:s säkerhetsstandard och produktspecifikation. Detta intyg upphör att
gälla om produkten ändras utan vårt tillstånd.

124
DK EU Overensstemmelse certificat
Undertegnede Husqvarna AB, 561 82 Huskvarna, Sweden bekræfter hermed, at en-heder listet herunder, ved
afsendelse fra fabrikken, er i overensstemmelse med harmoniserede EU retningslinier, EU sikkerhedsstandarder
og produkt-specifikationsstandarder. Dette certifikat træder ud af kraft hvis enhederne er ændret uden vor god-
kendelse.
EST ELi vastavusdeklaratsioon
Allakirjutanu Husqvarna AB, 561 82 Huskvarna, Sweden kinnitab, et kirjeldatud seade vastab meie poolt ringlusse
viidud kujul ELi harmoniseeritud direktiividele, ELi ohutusstandarditele ja tootega seotud standarditele. Meiega
kooskõlastamata muudatuse tegemise korral seadmel kaotab see deklaratsioon kehtivuse.
LT ES Atitikties deklaracija
Pasirašanti Husqvarna AB, 561 82 Huskvarna, Sweden patvirtina, kad žemiau nurodyti prietaisai ir jų modeliai,
kuriuos paleidome į apyvartą, patenkina harmonizuotas ES direktyvas, ES saugumo standartus ir specifinius
gaminio standartus. Atlikus bet kokį prietaiso pakeitimą, kuris nėra suderintas su mumis, ši deklaracija praranda
galiojimą.
LV ES-atbilstības deklarācija
Parakstījusies Husqvarna AB, 561 82 Huskvarna, Sweden, Vācija apstiprina, ka sekojoši apzīmētās iekārtas,
kuras mēs izplatām, savā izpildījumā atbilst harmonizētajām ES direktīvām, ES drošības standartiem un
produkta specifiskajiem standartiem. Ar mūsu neapstiprinātām izmaiņām iekārtā šī deklarācija zaudē savu
derīgumu.

125
Description of the unit: Water Timer electronic Type: Art. No.:
Laitteiden nimitys: Elektroninen kasteluajastin Tyypit: Art.-n:o. :
Produktbeskrivning: Bevattningstimer electronic Typ: Art.nr.
Beskrivelse af enhederne: Vandingsur electronic Type: T 1030 D Varenr. : 1825
Seadmete nimetus: Kastmistaimer electronic Tüübid: Toote nr :
Gaminio pavadinimas: Elektroninis laistymo laikmatis Tipas: Gaminio Nr.:
Iekārtu apzīmējums: Elektroniskais laistīšanas taimeris Tipi: Art.-Nr.:
EU directives: Year of CE marking :
EY-direktiivit: 2004/108/EC CE-merkin kiinnitysvuosi :
EU direktiv: CE-Märkningsår :
EU Retningslinier: 93/68/EC CE-Mærkningsår : 2004
ELi direktiivid: CE-märgistuse paigaldamise aasta:
ES direktyvos: 2011/65/EC CE- marķējuma uzlikšanas gads:
ES-direktīvas: Metai, kuriais paženklinta CE-ženklu:
Hinterlegte Dokumentation: GARDENA Technische Dokumentation Ulm, 20.11.2008 Authorised representative
E. Renn 89079 Ulm Ulmissa, 20.11.2008 Valtuutettu edustaja
Deposited Documentation: GARDENA Technical Documentation Ulm, 2008.11.20. Behörig Firmatecknare
E. Renn 89079 Ulm Ulm, 20.11.2008 Teknisk direktør
Documentation déposée : Documentation technique GARDENA Ulm, 20.11.2008 Volitatud esindaja
E. Renn 89079 Ulm Ulm, 2008.11.20 Įgaliotasis atstovas
Ulma, 20.11.2008 Pilnvarotā persona
A. Disch
Vice President
