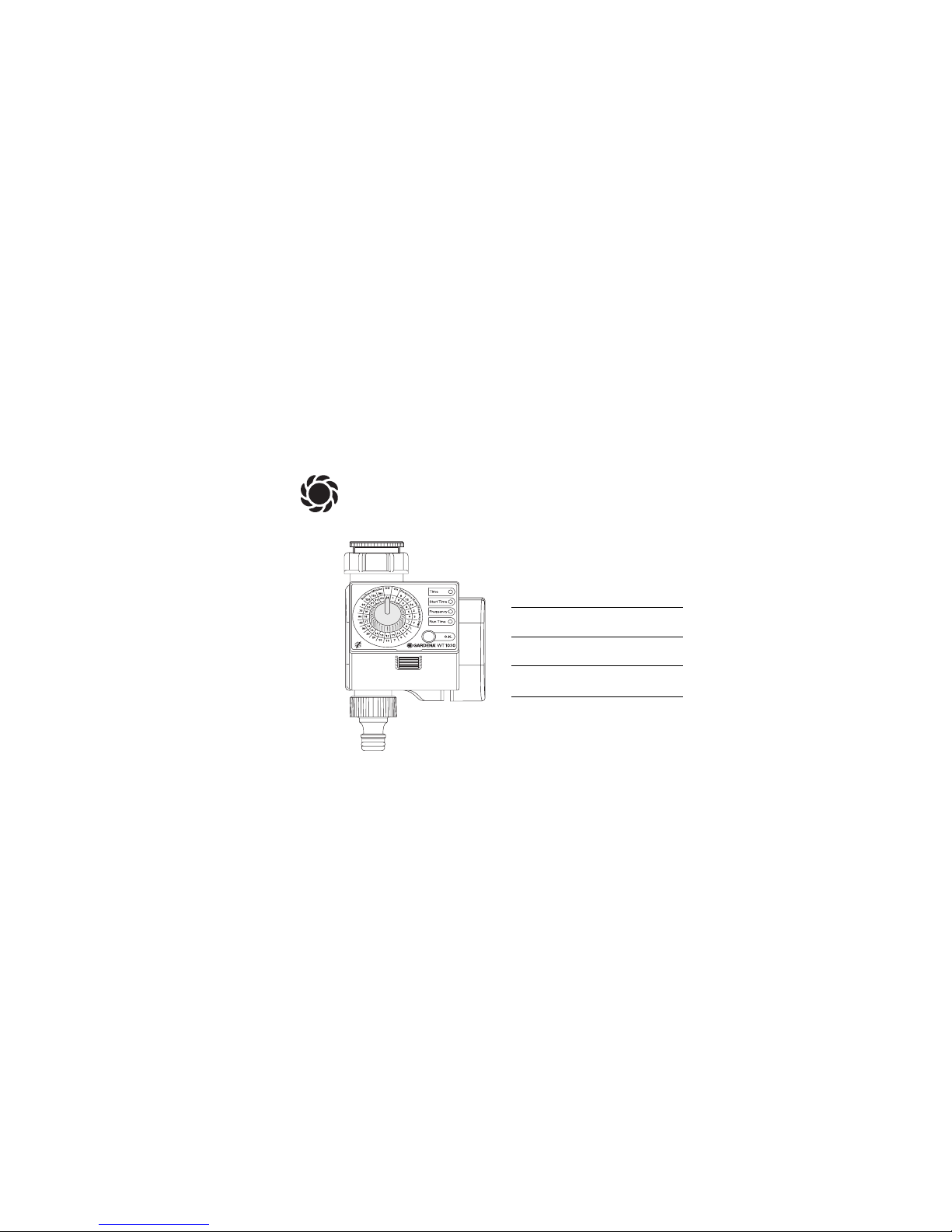

Gardena WT 1030 User manual

GARDENA
®
GB Operating Instructions
Water Timer electronic
SBruksanvisning
Bevattningstimer electronic
NL Gebruiksaanwijzing
Elektronische watertimer
DGebrauchsanweisung
Bewässerungsuhr electronic
FIN Kä ttöohje
Elektroninen kasteluajastin
WT 1030
Art. 1825

3
G
2
G
Contents
GARDENA Water Timer electronic WT 1030
Welcome to the Garden of GARDENA...
Please read these operating instructions carefully and observe
the notes given. Use these instructions to familiarise yourself with
the Water Timer electronic and its proper use as well as the notes
on safety.
For safety reasons, children and young people under 16 as well
as anyone who is not familiar with these operating instructions
may not use the Water Timer.
vPlease keep these operating instructions in a safe place.
1. Where to Use Your GARDENA Water Timer . . . . . . . . . . . . . . . . . . 3
2. For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4. Putting Your Water Timer into Operation . . . . . . . . . . . . . . . . . . . . . 6
5. Operating Your Water Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6. Trouble-Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7. Putting Your Water Timer Out of Operation . . . . . . . . . . . . . . . . . . 13
8. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
9. Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1. Where to Use Your GARDENA Water Timer
The GARDENA Water Timer is intended for private use in do-
mestic and hobby gardens, exclusively for outdoor use, to control
sprinklers and watering systems.
The GARDENA Water Timer must not be used for industrial
purposes or in conjunction with chemicals, foodstuffs,
easily flammable and explosive materials.
Intended use
Please note
2. For Your Safety
Warning!
vOnly use the Water Timer outdoors.
The water timer is not approved for indoor use.
The minimum operating pressure is 1 bar, the maximum oper-
ating pressure is 12 bar.
vCheck the filter in the sleeve nut regularly and clean if neces-
sary.
vDo not pull the hose connected to the Water Timer and avoid
tensile strain.
Use:

5
G
4
G
3. Function
The GARDENA Water Timer electronic allows you to set different
watering cycles for different watering times independent of whether
you are using a sprinkler, a sprinkler system installation or drip-
head watering system to irrigate your garden.
Your Water Timer electronic will water your garden completely
automatically according to the program you choose. You can set
the timer to water your garden early in the morning or late at
night when water evaporates the least, or while you are away on
holiday.
You simply program the time (to the nearest hour), watering start-
ing time / duration and cycle by turning the pointer "of the con-
trol knob !to the correct time and pressing the OK button §.
The Water Timer opens at the starting time you have selected.
The 3 LEDs Time, Start Time and
Frequency flash to indicate that the
battery is flat.
vReplace the battery
(see 4. Operation “Inserting the
Battery”).
Control knob and OK button:
!
Control knob
"
Control knob pointer
§
OK button
Battery status display:
For functional safety reasons, only use a 9 V alkali-manga-
nese (alkaline) battery type IEC 6LR61.
The Water Timer will only run for approx. 1 year if the new
alkaline battery has a nominal voltage of at least 9 V.
vCheck the battery before you buy it.
To prevent water entering the battery compartment, the Water
Timer must only be mounted in a perpendicular position with
the sleeve nut pointing upwards.
After you have selected the watering program, the Water Timer
opens at the selected starting time. To avoid getting wet when
operating the Water Timer, connect the hose or turn off the tap
before selecting the program. Alternatively, the control unit can
be removed for programming.
The max. temperature for the water is 40°C.
vOnly use clear fresh water.
Battery :
Putting your Water Timer
into operation:
Water flow:
§
"!

7
G
6
G
The functional safety of the water timer depends on the capability
of the battery.
If you change the battery the program is not saved. You must
reprogram the Water Timer (see 5. Operation).
4. Putting Your Water Timer into Operation
1. Press the release button 1and remove the control unit 2from
the housing of the Water Timer.
2. Insert the battery 3in the battery
compartment.
Pay attention to the polarity
(+/ – markings).
3. Re-attach the control unit 2to
the housing.
Make sure you exchange the battery
at the right time to prevent the Water
Timer failing due to a low battery when
you are away for longer periods of
time.
Make sure that the time the battery has been in operation and the
time you are planning to be away does not add up to more than
a year.
Inserting the battery :
Even if the battery is almost empty, the Water Timer ensures
that an open valve is always closed since less energy is re-
quired to close the valve than to open it.
The Water Timer is fitted with a sleeve nut 4for taps with a
33.3 mm (G1”) thread. The adapter supplied 5allows the Water
Timer to be connected to taps with a 26.5 mm (G¾”) thread.
Connecting the Water Timer to taps with a 33.3 mm (G1”)
thread:
1. Screw the sleeve nut 4of the Water Timer onto the thread
of the tap by hand (do not use pliers).
2. Screw the threaded tap connector 6onto the Water Timer.
Connecting the Water Timer to taps with a 26,5 mm (G ¾”)
thread:
1. Screw the adapter 5onto the tap by hand (do not use pliers).
2. Screw the sleeve nut 4of the Water Timer onto the thread
of the adapter 5by hand (do not use pliers).
3. Screw the threaded tap connector 6onto the Water Timer.
Connecting your Water Timer:
2
3 z
P
6
5
4
1
P

9
G
8
G
To protect your Water Timer against theft, the GARDENA Anti-
Theft Protection Art. No. 1815-00.791.00 is available from the
GARDENA Service.
1. Fasten the bracket 7to the back of the Water Timer using
the screw 8.
2. The bracket can be used to attach a chain, for example.
The screw cannot be loosened once it has been screwed in.
5. Operation
The Water Timer control unit 2can be removed. This allows
you to set the watering program somewhere other than where
the Water Timer is to be used.
The time of day and watering starting time are entered to the
nearest hour.
1. Turn the control knob to OFF and confirm by pressing the
OK button.
The program stored in the memory is overwritten.
The Time LED flashes.
Installing the anti-theft
protection (optional) :
Setting the watering program:
1.

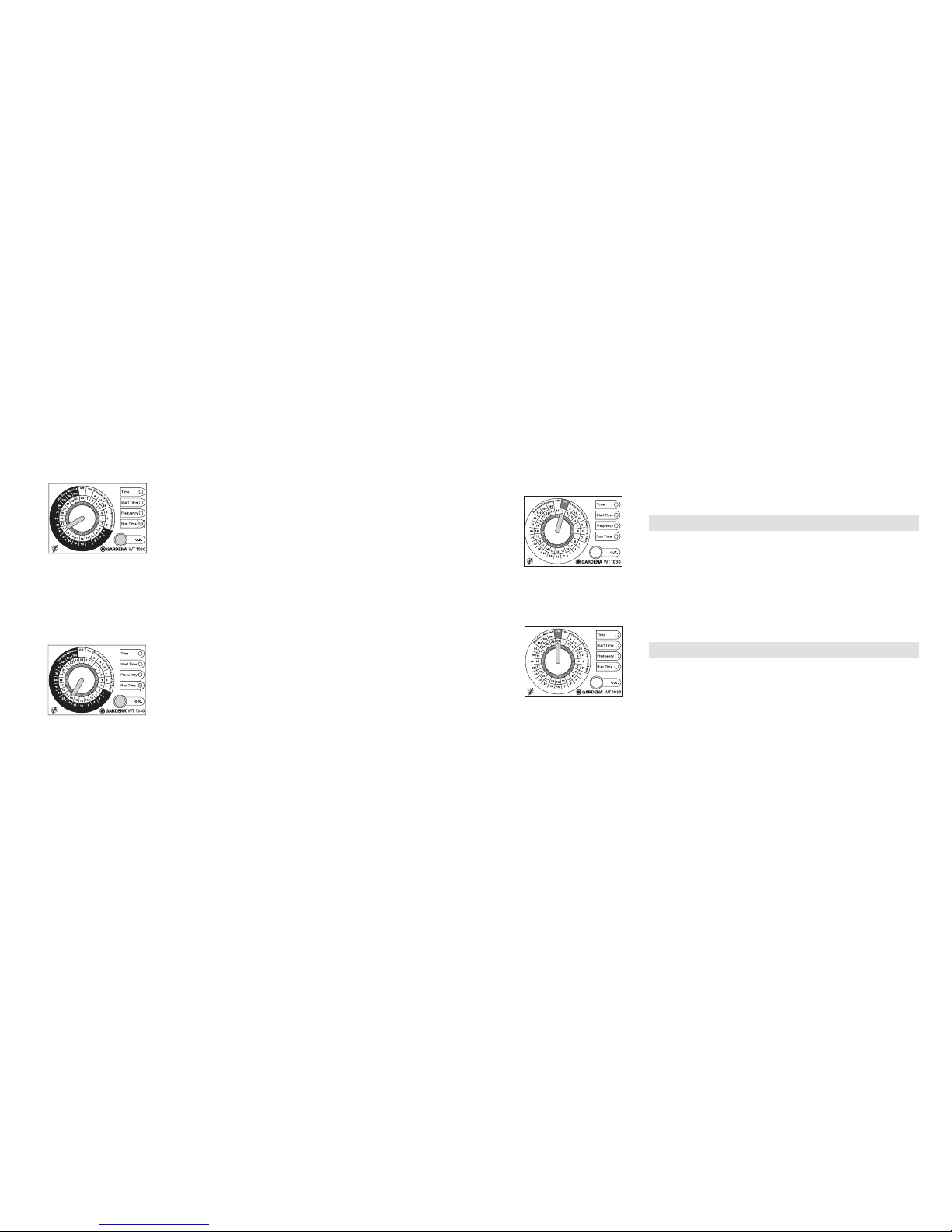

Setting the time of day:
2. Set the time on the inner light-grey scale by turning the con-
trol knob and confirm the time you have selected by pressing
the OK button (e.g.: 10:00 am).
The Start Time LED flashes.
Setting the watering starting time :
3. Set the watering starting time on the inner light-grey scale by
turning the control knob and confirm the time you have selected
by pressing the OK button (e.g.: 20:00).
The Frequency LED flashes.
Setting the Watering Cycle:
4. Set the watering cycle on the outer grey scale (Frequency
Hours / Days) using the control knob and confirm your selection
by press-ing the OK button (e.g.: 12 hour cycle).
The Run Time LED flashes.
2.
3.
4.
8
7

11
G
10
G
Setting the Watering Time:
5. Set the watering time on the outer black scale (Run Time
Minutes) using the control knob and confirm your selection
by pressing the OK button (e.g.: 30 minutes).
The program you have selected is now active.
On hot or cooler days you can change the watering time before the
program starts without having to re-enter the time of day, watering
starting time or watering cycle.
1. Select the changed watering time on the outer black scale
(Run Time Minutes) by turning the control knob. (e.g.: 20 min-
utes).
The Run Time LED flashes.
2. Confirm the watering time you have selected by pressing the
OK button.
The changed watering time is now active.
5.
Changing the watering time:
On especially hot days the programmed watering cycle is some-
times insufficient. You can then turn on your sprinkler or irrigation
system manually.
The program you have set remains unchanged.
vTurn the control knob to ON.
The valve opens for 30 minutes independent of the set pro-
gram.
To activate the set program again, you must reset the watering
time to the time originally set.
On rainy days the programmed watering cycle is often unneces-
sary. You can therefore stop the programmed watering cycle
(bad-weather function).
The program you have set remains unchanged.
vTurn the control knob to OFF.
The valve closes and remains closed, independent of the
watering cycle you have set.
To reactivate the set program, you must first reset the watering
time.
Manual watering (ON):
Bad-weather function (OFF) :

13
G
12
G
7. Putting Your Water Timer Out of Operation
vPlease return flat batteries to a GARDENA dealer or dispose of
them properly at your nearest recycling centre.
Only dispose of batteries when they are flat.
vStore your Water Timer in a dry place away from frost before
the first frost sets in.
8. Technical Data
Min./ max. operating pressure : 1 bar / 12 bar
Flow medium: Clean fresh water
Max. water temperature : 40 °C
Number of program-controlled watering cycles
per day: Up to 3
Watering cycles per week: Every day, every 2nd, 3rd or 7th day
Watering time per program: 1, 3, 5, 7, 10, 15, 20, 25, 30, 45, 60, 75, 90,
120, 150 or 180 minutes
Battery: 1 x 9 V alkali-manganese (alkaline)
type IEC 6LR61
Running time: Approx. 1 year
Disposing of flat batteries:
Storage/ Wintering :
6. Trouble-Shooting
Fault Possible cause Remedy
Not able to open the Battery capacity too low vInsert a new alkaline
Water Timer manually (3 LEDs flash). battery.
using “ON / OFF”. Tap turned off. vTurn on tap.
Watering not initiated. Control knob turned to vTurn the control knob to
“Frequency” or “ON /OFF”. “Run Time Minutes”.
Battery capacity too low vInsert a new alkaline
3 LEDs flash). battery.
Data input/changes made vInput data or make changes
while the program was starting before or after the starting
or immediately before. times you have chosen.
Tap turned off. vTurn on tap.
Battery flat after working The battery you inserted vUse an alkaline battery.
for a short time. is not an alkaline battery.
If you have any other problems with your Water Timer, please contact GARDENA Service.

15
G
14
G
We expressly point out that, in accordance with the product
liability law, we are not liable for any damage caused by our units
if it is due to improper repair or if parts exchanged are not original
GARDENA parts or parts approved by us, and, if the repairs were
not carried out by a GARDENA Service Centre or an authorised
specialist. The same applies to spare parts and accessories.
Product Liability
9. Service
GARDENA honours the guarantee legally required for this pro-
duct (starting from the date of purchase). This guarantee covers
all serious defects of the unit that can be proved to be material
or manufacturing faults.
Under warranty we will either replace the unit or repair it free of
charge if the following conditions apply:
•The unit must have been handled properly and in keeping with
the requirements of the operating instructions.
•Neither the purchaser or a non-authorised third party have
attempted to repair the unit.
•Faults which occur as a result of incorrectly installed or leaking
batteries are not covered by the guarantee.
This manufacturer’s guarantee does not affect the user’s existing
warranty claims against the dealer/ seller.
If you have any problems with your Water Timer, please con-
tact our Customer Service or return the defective unit together
with a short description of the problem directly to one of the
GARDENA Service Centres listed on the back of this leaflet.
Warranty
EU Certificate of Conformity
The undersigned GARDENA Kress + Kastner GmbH · Hans-Lorenser-Str. 40 · D-89079 Ulm
hereby certifies that, when leaving our factory, the unit indicated below is in accordance with
the harmonised EU guidelines, EU standards of safety and product specific standards.
This certificate becomes void if the unit is modified without our approval.
Description of the unit: Water Timer electronic WT 1030
Art. No. : 1825
EU directives: Electromagnetic Compatibility Ulm, 20.07.2001
89/336 /EC
Directive 93/ 68/EC
Year of CE marking: 2001 Thomas Heinl
Technical Dept. Manager

7574
Deutschland
GARDENA Kress + Kastner GmbH
GARDENA Service
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen: (07 31) 490-123
Reparaturen: (07 31) 490- 290
Argentina
Argensem S.A.
Venezuela 1075
(1618) El Talar - Buenos Aires
Australia
NYLEX Corporation Ltd.
25-29 Nepean Highway
P.O. Box 68
Mentone, Victoria 3194
Austria
GARDENA Österreich Ges.
m.b.H.
Stettnerweg 11-15
2100 Korneuburg
Belgium
MARKT (Belgium) NV/SA
Sterrebeekstraat 163
1930 Zaventem
Brazil
M. Cassab
Av. das Nações Unidas, 20.882
Santo Amaro, CEP 04795-000
São Paulo - S.P.
Bulgaria / България
ДЕНЕКС ООД
бул. „Черни връх“ 43
София 1407
Canada
GARDENA Canada Ltd.
100, Summerlea Road
Brampton, Ontario
Canada L6T 4X3
Chile
Antonio Martinic Y CIA. LTDA.
Gilberto Fuenzalida 185 Loc.
Las Condes - Santiago de Chile
Costa Rica
Compania Exim
Euroiberoamericana S.A.
350 Sur del Automercado
Los Yoses
San Pedro
Cyprus
FARMOKIPIKI LTD
P.O. Box 7098
74, Digeni Akrita Ave.
1641 Nicosia
Czech Republic
GARDENA spol. s.r.o.
Ripská 20
62700 Brno
Denmark
GARDENA Danmark A /S
Naverland 8
2600 Glostrup
Finland
Habitec Oy
Martinkyläntie 52
01720 Vantaa
France
GARDENA France
Service Après-Vente
BP 50080
95948 ROISSY CDG Cedex
Great Britain
GARDENA UK Ltd.
27-28 Brenkley Way
Blezard Business Park
Seaton Burn
Newcastle upon Tyne
NE13 6DS
Greece
Agrokip G. Psomadopoulos & Co.
20, Lykourgou str.
Kallithea - Athens
Hungary
GARDENA Magyarország Kft.
Késmárk utca 22
1158 Budapest
Iceland
Heimilistaeki hf
Saetun 8
P.O. Box 5340
125 Reykjavik
Republic of Ireland
Michael McLoughlin & Sons
Hardware Limited
Long Mile Road
Dublin 12
Italy
GARDENA Italia S.r.l.
Via Donizetti 22
20020 Lainate (Mi)
Japan
KAKUDAI Mfg. Co. Ltd.
1-4-4, Itachibori Nishi-ku
Osaka 550
Luxembourg
Magasins Jules Neuberg
Grand Rue 30
Case Postale No. 12
Luxembourg 2010
Netherlands
MARKT (Holland) BV
Postbus 219
1380 AE Weesp
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao
New Zealand
NYLEX New Zealand Limited
Private Bag 94001
South Auckland Mail Centre
10 Offenhauser Drive
East Tamaki, Manukau
Norway
GARDENA Norge A/S
Postboks 214
2013 Skjetten
Poland
GARDENA Polska Sp. z o.o.
Szymanów9d
05-532 Baniocha
Portugal
MARKT (Portugal), Lda.
Recta da Granja do Marquês
Edif. GARDENA
Algueirão
2725-596 Mem Martins
Russia / Россия
АО АМ ДА ТТЦ
ул. Моcфилмовcкая 66
117330 Моcква

Singapore
Variware
Holland Road Shopping Centre
227-A 1st Fl., Unit 29
Holland Avenue
Singapore 1027
Slowenia / Croatia
Silk d.o.o. Trgovina
Brodišče 15
1236 Trzin
South Africa
GARDENA South Africa (Pty.) Ltd.
P.O. Box 11534
Vorna Valley 1686
Spain
ANMI Andreu y Miriam S.A.
Calle Pere IV, 111
08018 Barcelona
Sweden
GARDENA Svenska AB
Box 9003
20039 Malmö
Switzerland
GARDENA Kress + Kastner AG
Bitziberg 1
8184 Bachenbülach
Ukraine / Украина
АОЗТ АЛЬЦЕСТ
ул. Гайдара 50
г. Киев 01033
Turkey
Dost Diþ Ticaret Mümessillik
A.Þ.
Yeþilbaðlar Mah. Baþkent
Cad. No. 26
endik - Ýstanbul
USA
GARDENA
3085 Shawnee Drive
Winchester, VA 22604
1825-28.960.01/0012
GARDENA Kress + Kastner GmbH
Postfach 27 47, D-89070 Ulm
http: //www.gardena.com
