Gardena T 1030 card User manual

GB
S
HCZ
RUS
GARDENA
®
T 1030 card Art.1830
GB Operating Instructions
Water Timer
SBruksanvisning
Bevattningstimer
HHasznбlati ъtmutatу
Vнzprogramozу уra
CZ Nбvod k pouћitн
Zavlaћovacн hodiny
RUS Инструкция по
эксплуатации
Карта датчика часов
полива

2
GB
Contents
GARDENA Water Timer T 1030 card
Welcome to the Garden of GARDENA...
Translation of the original instructions from German.
Please read these operating instructions carefully and observe
the notes given. Use these instructions to familiarise yourself
with the Water Timer and its proper use as well as the notes
on safety.
For safety reasons, children and young people under 16 as well
as anyone who is not familiar with these operating instructions
may not use the Water Timer.
vPlease keep these operating instructions in a safe place.
1. Where to Use Your GARDENA Water Timer . . . . . . . . . . . . . . . . . . . . 3
2. For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4. Putting Your Water Timer into Operation . . . . . . . . . . . . . . . . . . . . . . . 6
5. Operating Your Water Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6. Trouble-Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7. Putting Your Water Timer Out of Operation . . . . . . . . . . . . . . . . . . . 12
8. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9. Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3
GB
2. For Your Safety
Use:
The water timer is not approved for indoor use.
The minimum operating pressure is 0 bar, the
maximum operating pressure is 12 bar.
vCheck the filter in the sleeve nut regularly
and clean if necessary.
vDo not pull the hose connected to the Water
Timer and avoid tensile strain.
Battery:
To ensure safe operation, only 4 x LR-6-AA
(Mignon) alkali-manganese (alkaline)
batteries may be used.
The Water Timer will only run for approx.
1 year if the new alkaline batteries has a
nominal voltage of at least 1.5 V.
vHave the batteries checked before purchase.
1. Where to Use Your GARDENA Water Timer
The GARDENA Water Timer is intended for private use in
domestic and hobby gardens, exclusively for outdoor use,
to control sprinklers and irrigation systems.
The GARDENA Water Timer must not be used for industrial
purposes or in conjunction with chemicals, foodstuffs,
easily flammable and explosive materials.
Intended use
Please note

4
GB
Putting your Water Timer into operation:
To prevent water entering the device, the
Water Timer must only be mounted in a
perpendicular position with the sleeve nut
pointing upwards.
After you have selected the watering program,
the Water Timer opens at the selected starting
time. To avoid getting wet when operating the
Water Timer, connect the hose or turn off the
tap before selecting the program.
Alternatively, the control unit can be removed
for programming.
The max. temperature for the water is 40 °C.
vOnly use clear fresh water.
3. Function
The GARDENA Water Timer allows you to set different watering
cycles for different watering times independent of whether you
are using a sprinkler, a sprinkler system installation or drip-head
watering system to irrigate your garden.
Your Water Timer will water your garden completely automatically
according to the program you choose. You can set the timer to
water your garden early in the morning or late at night when water
evaporates the least, or while you are away on holiday.

5
GB
1Card slot: - To hold the programming card
2Red LED: - Indicates a fault
3Green LED: - Indicates the system is operating
4Red button: - Start reading in the program
- Manual operation
5Storage - For storing the programming card
compartment:
5
23
4
1

6
GB
4. Putting Your Water Timer into Operation

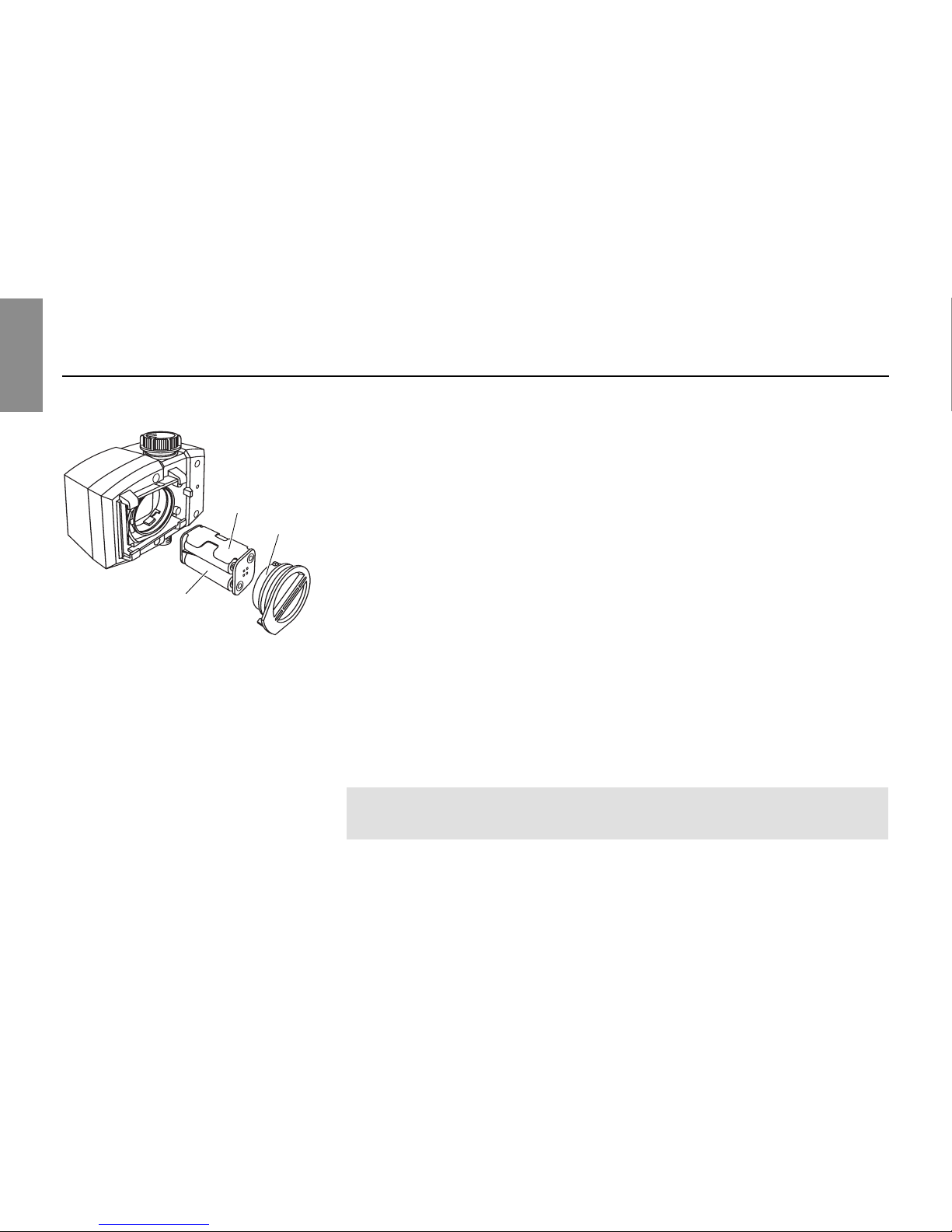

1. Turn battery cover 1anticlockwise and remove battery
holder 2.
2. Insert 4 x LR-6-AA (Mignon) alkaline batteries 3in the battery
holder.
Ensure that polarity is correct (+/-).
3. Insert the battery holder 2in the correct position and close the
battery cover 1.
Both LEDs are illuminated for 2 seconds and the Water
Timer performs a self-test. The valve is closed automati-
cally during this process.
Make sure you exchange the batteries at the right time to prevent
the Water Timer failing due to low batteries when you are away for
longer periods of time.
Make sure that the time the batteries have been in operation and
the time you are planning to be away does not add up to more
than 1 year.
Even if the batteries are almost empty, the Water Timer ensures
that an open valve is always closed.
If both LEDs flash, the batteries are flat and must be replaced.
Inserting the batteries:
Battery warning:
2
1
3

7
GB
The functional safety of the water timer depends on the capability
of the batteries.
If you change the batteries the program is not saved. You must
reprogram the Water Timer (see 5. Operation).

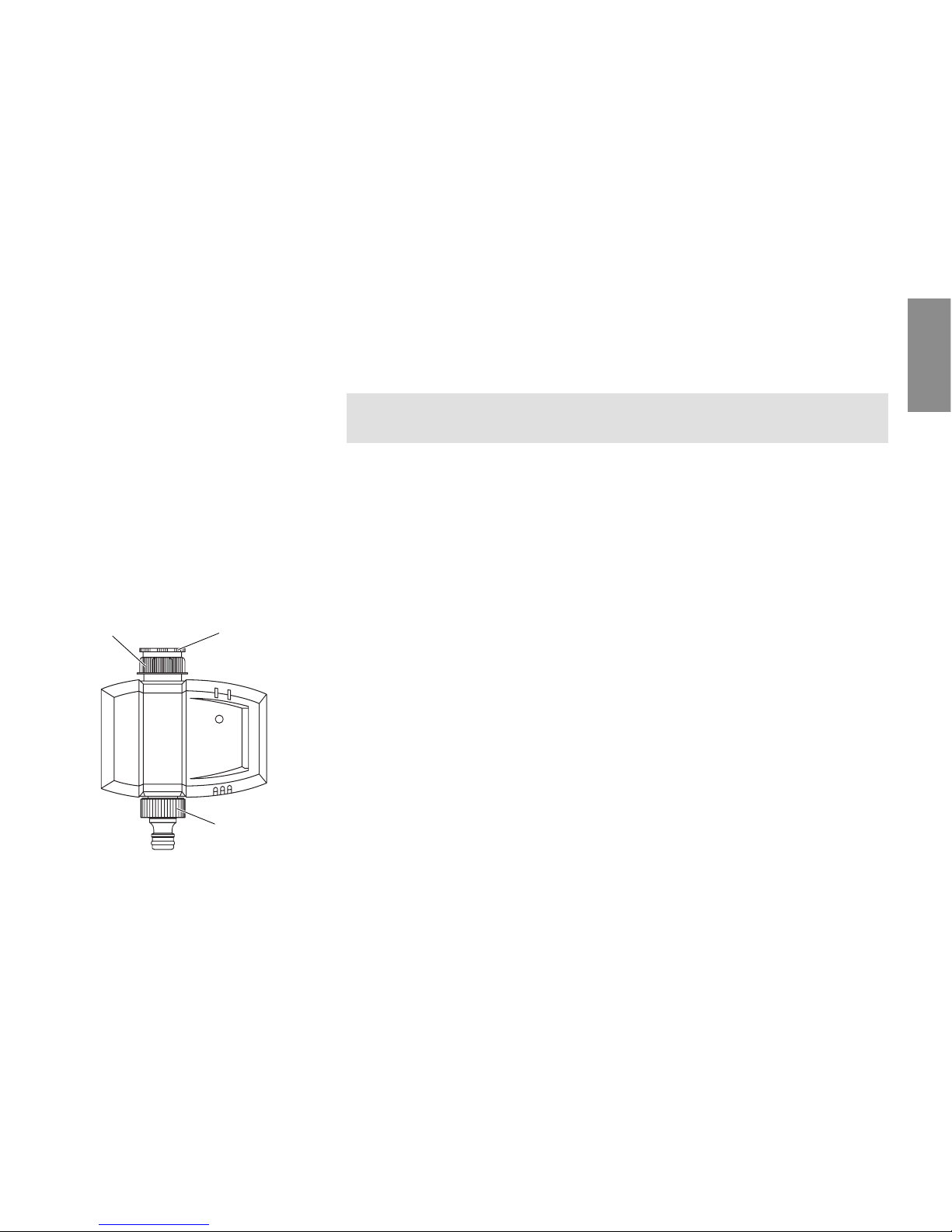

The Water Timer is fitted with a sleeve nut 4for taps with a
33.3 mm (G1”) thread. The adapters supplied 5allows the
Water Timer to be connected to taps with a 26.5 mm(G 3/4”)/
23 mm (G 5/8”) / 21 mm (G 1/2”) thread.
Connecting the Water Timer to taps with a 33.3 mm (G1”)
thread:
1. Screw the sleeve nut 4of the Water Timer onto the thread
of the tap by hand (do not use pliers).
2. Screw the threaded tap connector 6onto the Water Timer.
Connecting the Water Timer to taps with a 26.5 mm (G 3/4”)/
23 mm (G 5/8”) / 21 mm (G 1/2”) thread:
1. Screw the adapter 5onto the tap by hand (do not use pliers).
2. Screw the sleeve nut 4of the Water Timer onto the thread
of the adapter 5by hand (do not use pliers).
3. Screw the threaded tap connector 6onto the Water Timer.
Connecting your Water Timer:
6
4 5

8
GB
In addition to time-based watering, it is also possible to include
the soil moisture or rain in the watering program.
If the soil is moist enough, the program will be stopped, or a pro-
gram will be prevented from starting. Manual operation via man.
On/Off is unaffected by this.
1. Place soil moisture sensor in the watered area
– or –
place rain sensor (with extension cable if necessary)
outside the watered area.
2. Insert the sensor in the sensor connection 7of the Water
Computer.
5. Operating Your Water Timer
The time of day and the watering starting time are set to the near-
est hour. One of the following 6 watering cycles can be selected:
8 hours (8h), 12 hours (12h), 24 hours (24h), 2 days (2D), 3 days
(3D) or 7 days (7D). The watering time can be set between 1 and
180 minutes.
Connect soil moisture
or rain sensor (optional):
Programming the
Water Timer:
7

9
GB

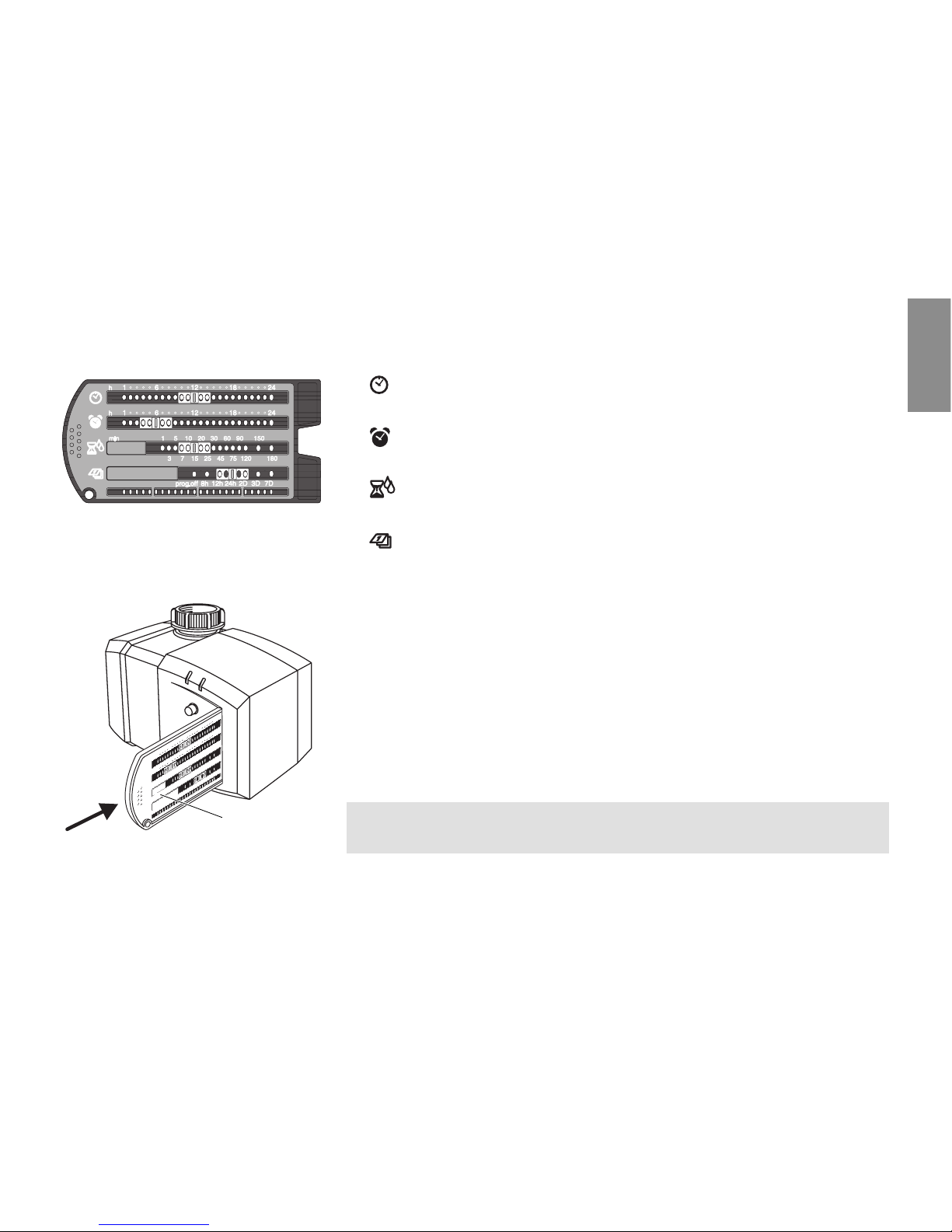

1. Setting the watering program on the programming card 8:
Push the timer slide to the actual time of day
(e.g.: 12 o’clock).
Push starting time slide to the starting time required
(e.g.: 6 o’clock).
Push watering time slide to the length of time required.
(e.g.: 15 minutes).
Push cycle slide to the cycle required
(e.g.: 24 hours = every day).
2. Insert programming card 8in the card slot of the Water Timer.
3. Press red button briefly.
The green LED flashes for 10 seconds.
4. Remove programming card 8at a constant speed whilst
keeping it straight (while the green LED flashes).
The green LED goes on for 5 seconds and the program has
been transferred.
If the green LED flashes at 10 second intervals, the Watering
Timer has been programmed and the program is active.
8

10
GB
On especially dry days the programmed watering cycle is
sometimes insufficient. You can then turn on your water
timer manually.
The program you have set remains unchanged.

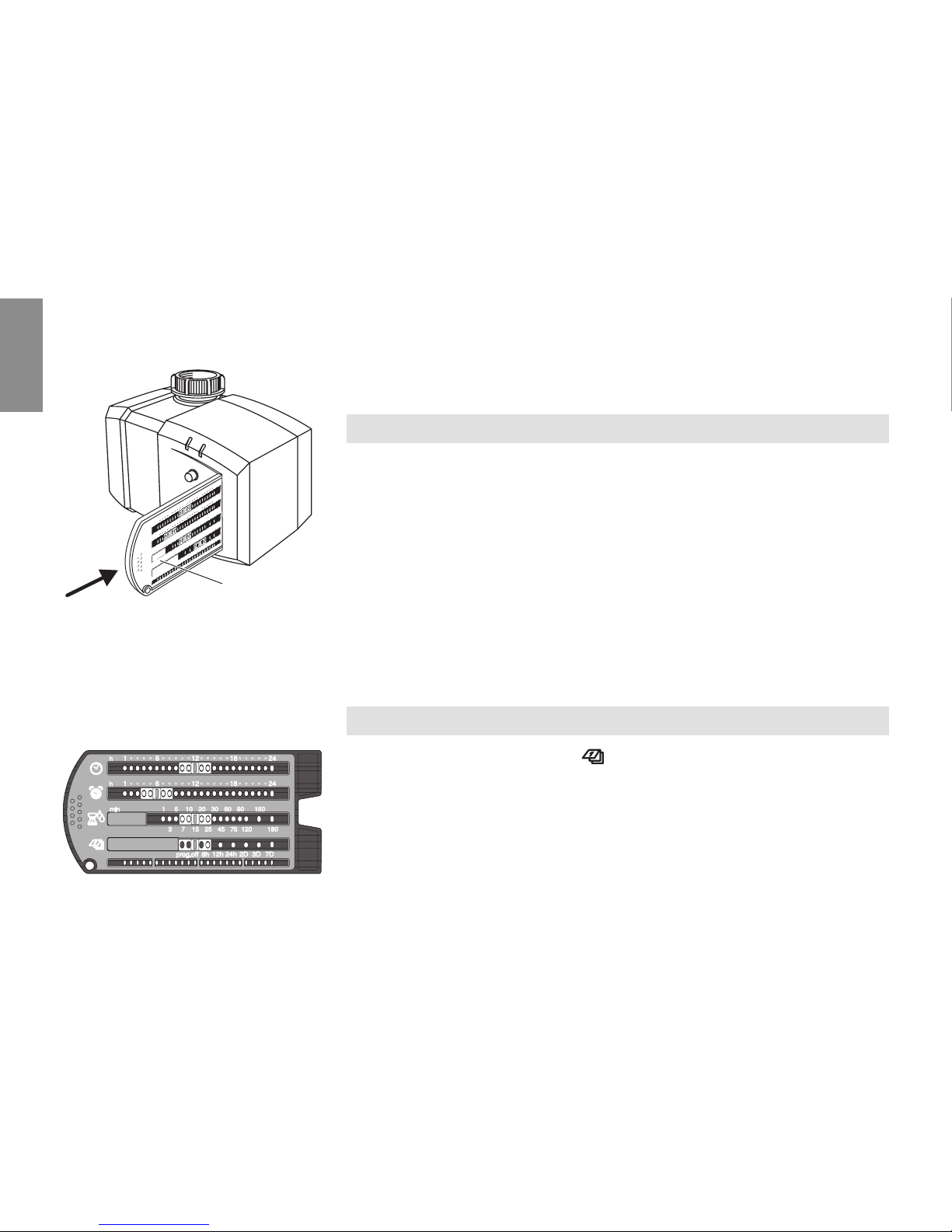

1. Insert programming card 8in the card slot of the Water Timer.
2. Keep red button pressed for 3 seconds.
The valve opens for 30 minutes regardless of the program set.
On rainy days the programmed watering cycle is often un-
necessary. You can therefore stop the programmed watering
cycle (bad-weather function). The program set is retained on
the programming card in this case.
Manual watering remains possible.
1. Push watering cycle slide to prog off.
2. Transfer program
(see Programming the Water Timer) .
To reactivate the program set previously, the watering cycle set
previously has to be set again and the program has to be transfer-
red
(see Programming the Water Timer) .
8
Watering manually:
Bad-weather function:

11
GB
6. Trouble-Shooting
Fault Possible cause Remedy
Red LED is illuminated Programming card has been re- vRemove the programming
for 5 seconds moved too fast or too slowly when card at a constant speed.
(reading error) reading in the programming data.
Dirty or wet programming card. vClean / dry programming
card.
Slide on the programming card is vEngage the slide on the
not in an unambiguous position. programming card.
Both LEDs are flashing Battery level is too low. vInsert new alkaline batteries.
(Opening manually impossible)
Valve is blocked. 1. Remove batteries.
2. Remove blockage and
clean filter.
Watering has not been Water tap off. vTurn tap on.
initiated Sensor active (shows there vSee instructions for
is sufficient moisture). the sensor.
Battery flat after working Alkaline batteries were vUse alkaline batteries.
for a short time not used.
If you have any other problems with your Water Timer, please contact GARDENA Service.

12
GB
12
7. Putting Your Water Timer Out of Operation
vStore your Water Timer in a dry place away from frost before
the first frost sets in.
Device may not be added to normal household refuse but must
be disposed of in the technically correct way.
vPlease return flat batteries to a GARDENA dealer or dispose
of them properly at your nearest recycling centre.
Only dispose of batteries when they are flat.
8. Technical Data
Min./max. operating pressure: 0 bar / 12 bar
Flow medium: Clean fresh water
Max. water temperature: 40 °C
Number of program-controlled
watering cycles per day: Up to 3 (8h), 2 (12h)
Watering cycles per week: Every day(24h), every 2nd day (2D), 3rd day (3D)
7th day (7D)
Watering time per program: 1, 3, 5, 7, 10, 15, 20, 25, 30, 45, 60, 75, 90,
120, 150 or 180 minutes
Storage/ Wintering:
Disposal:
(in accordance with
RL2002/96/EC)
Disposing of flat batteries:

13
GB
9. Service
GARDENA guarantees this product for 2 years (from date of
purchase). This guarantee covers all serious defects of the unit
that can be proved to be material or manufacturing faults.
Under warranty we will either replace the unit or repair it free of
charge if the following conditions apply:
•The unit must have been handled properly and in keeping with
the requirements of the operating instructions.
•Neither the purchaser or a non-authorised third party have
attempted to repair the unit.
Faults which occur as a result of incorrectly installed or leaking
batteries are not covered by the guarantee.
This manufacturer’s guarantee does not affect the user’s existing
warranty claims against the dealer/seller.
If you have any problems with your Water Timer, please con-
tact our Customer Service or return the defective unit together
with a short description of the problem directly to one of the
GARDENA Service Centres listed on the back of this leaflet.
Warranty
Battery: 4 x 1,5 V LR-6-AA (Mignon) alkaline
Running time: Approx. 1 year

G
Product Liability
We expressly point out that, in accordance with the product liability law, we are not liable for any damage
caused by our units if it is due to improper repair or if parts exchanged are not original GARDENA parts
or parts approved by us, and, if the repairs were not carried out by a GARDENA Service Centre or an
authorised specialist. The same applies to spare parts and accessories.
S
Produktansvar
Tillverkaren är inte ansvarig för skada som orsakats av produkten om skadan beror på att produkten har
reparerats felaktigt eller om, vid reparation eller utbyte, andra än Original GARDENA reservdelar har an-
vänts. Samma sak gäller för kompletteringsdelar och tillbehör.
H
Termйkfelelхssйg
Nyomatйkosan utalunk arra, hogy a termйkfelelхssйgi tцrvйny йrtelmйben nem felelьnk a kйszьlйkeink бltal
okozott kбrokйrt, amennyiben nem eredeti GARDENA csatlakozу elemek kerьlnek felhasznбlбsra, ha a
Vevхtбjйkoztatуban foglaltakat nem tartjбk be йs ha a javнtбst nem a GARDENA meghatalmazott szervizei
vйgzik el. Ennek megfelelхen ugyanez kiegйszнtхkre йs tartozйkokra is йrvйnyes.
C
Ruиenн za produkt
Vэslovnм upozorтujeme na to, ћe podle zбkona o ruиenн za produkt nejsme odpovмdni za љkody zpщso-
benй naљimi pшнstroji, pokud byly tyto zpщsobeny neodbornou opravou, nebo pokud byly pro vэmмnu
pouћity jinй dнly neћ originбlnн dнly GARDENA nebo nбmi schvбlenй dнly, a oprava nebyla provedena
servisem GARDENA nebo autorizovanэm odbornнkem. Totйћ platн pro pшнdavnб zaшнzenн a pшнsluљenstvн.
UОтветственность
Мы обращаем Ваше внимание на то, что в соответствии с законом об ответственности мы не несем
ответственности за ущерб, причененный нашими приборами в случае, если ущерб вызван неквали-
фицированным ремонтом или заменой частей, не являющихся продукцией GARDENA или не допу-
стимых нами частей, или же ремонтом прибора в не GARDENA сервисе. Это правило действует
также на запасные части и принадлежности.
64

GEU Certificate of Conformity
The undersigned GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, hereby certifies
that, when leaving our factory, the unit indicated below is in accordance with the harmonised EU guidelines,
EU standards of safety and product specific standards. This certificate becomes void if the unit is modified
without our approval.
SEU Tillverkarintyg
Undertecknad firma GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, intygar
härmed att nedan nämnda produkter överensstämmer med EU:s direktiv, EU:s säkerhetsstandard och
produktspecifikation. Detta intyg upphör att gälla om produkten ändras utan vårt tillstånd.
HEU azonossбgi nyilatkozat
Alulírott, GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, igazolja, hogy az alább
felsorolt, általunk forgalomba hozott termékek megfelelnek az EU elvárásoknak, EU biztonsági normáknak
és a termékspecifikus szabványoknak egyaránt. A készülék velünk nem egyeztetett változtatása esetén ez
a nyilatkozat érvényét veszti.
CProhlбљenн o shodм EU
Nнћe podepsanб spoleиnost GARDENA Manufacturing GmbH, se sнdlem Hans-Lorenser-Str. 40,
D-89079 v Ulmu potvrzuje, ћe nнћe oznaиenэ pшнstroj v provedenн, kterй jsme uvedli na trh, splтuje
poћadavky uvedenй vм harmonizovanэch smмrnicнch EU, vм bezpeиnostnнch standardech EU a ve
standardech pro pшнsluљnй produkty. V pшнpadм zmмny pшнstroje, kterб nбmi nebyla odsouhlasena,
stбvб se toto prohlбљenн neplatnэm.
UСвидетельство о соответствии ЕС
Мы, нижеподписавшиеся GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm,
настоящим подтверждаем, что нижеуказанное устройство, отгруженное с нашего предприятия,
имеет исполнение, соответствую-щее требованиям согласованных директив ЕС, стандартам по
технике безопасности ЕС и производственным стандартам. При несогласованном с нами изменении
устройства настоящее свидетельство теряет силу.
65

Description of the unit: Water Timer Type: Art. No.:
Produktbeskrivning: Bevattningstimer Type: Art.nr. :
A kйszьlйk megnevezйse: Vнzprogramozу уra Tнpus: T 1030 card Cikkszбm: 1830
Oznaиenн pшнstroje: Zavlaћovacн hodiny Typ:И.vэr:
Название устройства: Карта датчика часов Тип: Арт. № :
полива
EU directives: Year of CE marking:
EU direktiv: 2004/108/EC CE-Märkningsår :
EU irбnyelvek: CE jelzйs bevezetйsi йve: 2004
Smмrnice ES: 93/68/EC Rok umнstмnн znaиky CE:
Директивы ЕС: Год CE маркировки :
Peter Lameli
Ulm, 01.06.2004 Technical Dept. Manager
Ulm, 2004.06.01. Technical Director
Ulm, 01.06.2004 Mыszaki vezetйs
Ulm, 01.06.2004 Technickй vedenн
Ульм, 01.06.2004 Руководитель технического отдела
66

67
Deutschland / Germany
GARDENA
Manufacturing GmbH
Service Center
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen:
([phone]
Reparaturen:
([phone]
[e-mail]
Argentina
Argensem®S.A.
Calle Colonia Japonesa s/n
(1625) Loma Verde
Escobar, Buenos Aires
Phone: [phone]
[e-mail]
Australia
Nylex Consumer Products
50-70 Stanley Drive
Somerton, Victoria, 3062
Phone: [phone]
[e-mail]
Austria / Österreich
GARDENA
Österreich Ges.m.b.H.
Stettnerweg 11-15
2100 Korneuburg
Tel.: (+ 43) 22 62 7 45 45 36
[e-mail]
Belgium
GARDENA Belgium NV/SA
Sterrebeekstraat 163
1930 Zaventem
Phone: [phone]
Mail: [e-mail]
Brazil
alash Comércio e
Importação Ltda.
Rua São João do Araguaia, 338
Jardim Califórnia –
Barueri – SP - Brasil –
CEP 06409-060
Phone: [phone]
[e-mail]
Bulgaria
Хускварна България ЕООД
1799 София
Бул. „Андрей Ляпчев” Nº72
Тел.: 02 / 8755148, 9753076
www.husqvarna.bg
Canada
GARDENA Canada Ltd.
100 Summerlea Road
Brampton, Ontario L6T 4X3
Phone: [phone]
[e-mail]
Chile
Antonio Martinic y Cia Ltda.
Cassillas 272
Centro de Cassillas
Santiago de Chile
Phone: [phone]
[e-mail]
Costa Rica
Compania Exim
Euroiberoamericana S.A.
Los Colegios, Moravia,
200 metros al Sur del Colegio
Saint Francis - San José
Phone: [phone]
[e-mail]
Croatia
KLIS d.o.o.
Stanciceva 79, 10419 Vukovina
Phone: [phone]
[e-mail]
Cyprus
FARMOKIPIKI LTD
P.O. Box 7098
74, Digeni Akrita Ave.
1641 Nicosia
Phone: [phone]
[e-mail]
Czech Republic
GARDENA spol. s r.o.
Tuшanka 115
627 00 Brno
Phone: (+ 420) 800 100 425
[e-mail]
Denmark
GARDENA Norden AB
Salgsafdeling Danmark
Box 9003, S-200 39 Malmö
[e-mail]
Finland
Oy Husqvarna Ab
Lautatarhankatu 8b / PL 3
FI-00581 HELSINKI
France
GARDENA
PARIS NORD 2
69, rue de la Belle Etoile
BP 57080
ROISSY EN FRANCE
95948 ROISSY CDG CEDEX
Tél. [phone]
service.consommateurs@
gardena.fr
Great Britain
Husqvarna UK Ltd
Preston Road
Aycliffe Industrial Park
Newton Aycliffe
County Durham
DL5 6UP
[e-mail]
Greece
Agrokip
Psomadopoulos S.A.
Ifaistou 33A
Industrial Area Koropi
194 00 Athens Greece
V.A.T. EL093474846
Phone: (+ 30) 210 66 20 225
[e-mail]
www.agrokip.gr
Hungary
GARDENA
Magyarország Kft.
Késmárk utca 22
1158 Budapest
Phone: [phone]
[e-mail]
Iceland
Ó. Johnson & Kaaber
Tunguhalsi 1
110 Reykjavik
[e-mail]
Ireland
Michael McLoughlin & Sons
Hardware Limited
Long Mile Road
Dublin 12

68
Italy
GARDENA Italia S.p.A.
Via Donizetti 22
20020 Lainate (Mi)
Phone: [phone]
[e-mail]
Japan
KAKUICHI Co. Ltd.
Sumitomo Realty &
Development Kojimachi
BLDG., 8F, 5-1 Nibanncyo,
Chiyoda-ku, Tokyo 102-0084
[e-mail]
Phone: [phone]
Luxembourg
Magasins Jules Neuberg
39, rue Jacques Stas
Luxembourg-Gasperich 2549
Case Postale No. 12
Luxembourg 2010
Phone: [phone]
[e-mail]
Netherlands
GARDENA Nederland B.V.
Postbus 50176
1305 AD ALMERE
Phone: [phone]
[e-mail]
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200, Curaçao
Phone: [phone]
[e-mail]
New Zealand
NYLEX New Zealand Limited
Building 2, 118 Savill Drive
Mangere, Auckland
Phone: [phone]
[e-mail]
Norway
GARDENA Norden AB
Salgskontor Norge
Karihaugveien 89
1086 Oslo
[e-mail]
Poland
GARDENA Polska Sp. z o.o.
Szymanów 9 d
05-532 Baniocha
Phone: [phone]
[e-mail]
Portugal
GARDENA Portugal Lda.
Sintra Business Park
Edifício 1, Fracção 0-G
2710-089 Sintra
Phone: [phone]
[e-mail]
Romania
MADEX INTERNATIONAL SRL
Soseaua Odaii 117-123,
Sector 1,
Bucureєti, RO 013603
Phone: [phone]
Russia / Россия
ООО ГАРДЕНА РУС
123007, г. Москва
Хорошевское шоссе, д. 32А
Тел.: (+ 7) 495 540 99 57
[e-mail]
Singapore
Hy - Ray PRIVATE LIMITED
40 Jalan Pemimpin
#02-08 Tat Ann Building
Singapore 577185
Phone: [phone]
[e-mail]
Slovak Republic
GARDENA Slovensko, s.r.o.
Panónska cesta 17
851 04 Bratislava
Phone: [phone]
[e-mail]
Slovenia
GARDENA d.o.o.
Brodiљиe 15
1236 Trzin
Phone: [phone]
[e-mail]
South Africa
GARDENA
South Africa (Pty.) Ltd.
P.O. Box 11534
Vorna Valley 1686
Phone: [phone]
[e-mail]
Spain
GARDENA IBÉRICA S.L.U.
C/ Basauri, nº 6
La Florida
28023 Madrid
Phone: [phone]
[e-mail]
Sweden
GARDENA Norden AB
Försäljningskontor Sverige
Box 9003
200 39 Malmö
[e-mail]
Switzerland / Schweiz
GARDENA (Schweiz) AG
Bitziberg 1
8184 Bachenbülach
Phone: [phone]
[e-mail]
Turkey
GARDENA / Dost Diþ Ticaret
Mümessillik A.Þ. Sanayi
Çad. Adil Sokak No.1
Kartal - Ýstanbul
Phone: [phone]
[e-mail]
Ukraine / Украина
ALTSEST JSC
4 Petropavlivska Street
Petropavlivska, Borschahivka
Town, Kyivo Svyatoshyn Region
08130, Ukraine
Phone: [phone]
[e-mail]
USA
Melnor Inc.
3085 Shawnee Drive
Winchester, VA 22604
Phone: [phone]
[e-mail]
1830-28.960.05 /1207
©GARDENA
Manufacturing GmbH
D-89070 Ulm
http://www.gardena.com
