Attention! Risk of fire Change each broken
when dry-running. cover glass.
Keep distance.
n
Please adhere to the
following safety instructions:
Attention! GARDENA Indoor Fountain Lamps are designed
exclusively for 9 V low-voltage operation. Connecting to a 230 V
power supply can be life-threatening!
Attention
n
nFor your Safety
The transformer must be operated over a residual-current circuit
breaker (FI switch) with a nominal residual current of ≤30 mA.
(DIN VDE 0100-702 and 0100-738).
Please ask your electrical retailer.
Carry out a visual inspection before using, in order to determine
whether the lamp is damaged. A damaged lamp may not be
used. In case of damage, have the lamp checked by GARDENA
Service or an authorised electrician.
Carry out a
visual inspection
Use of the
transformer
GARDENA Indoor Fountain Lamp
Welcome to GARDENA aquamotion …
Please read these operating instructions carefully and observe
the notes given.
Use the instructions to familiarise yourself with their correct use,
and the notes on safety.
The Applications Range for your Indoor Fountain Lamp
The GARDENA Indoor Fountain Lamp is a 9 V low-voltage system
for illuminating indoor fountains and GARDENA balcony and patio
ponds.
Intended purpose
Keep these operating instructions in a safe place.
For safety reasons, children under 16 as well as persons not
familiar with these operating instructions should not use this
Indoor Fountain Lamp.
n

Putting into Operation – Installation

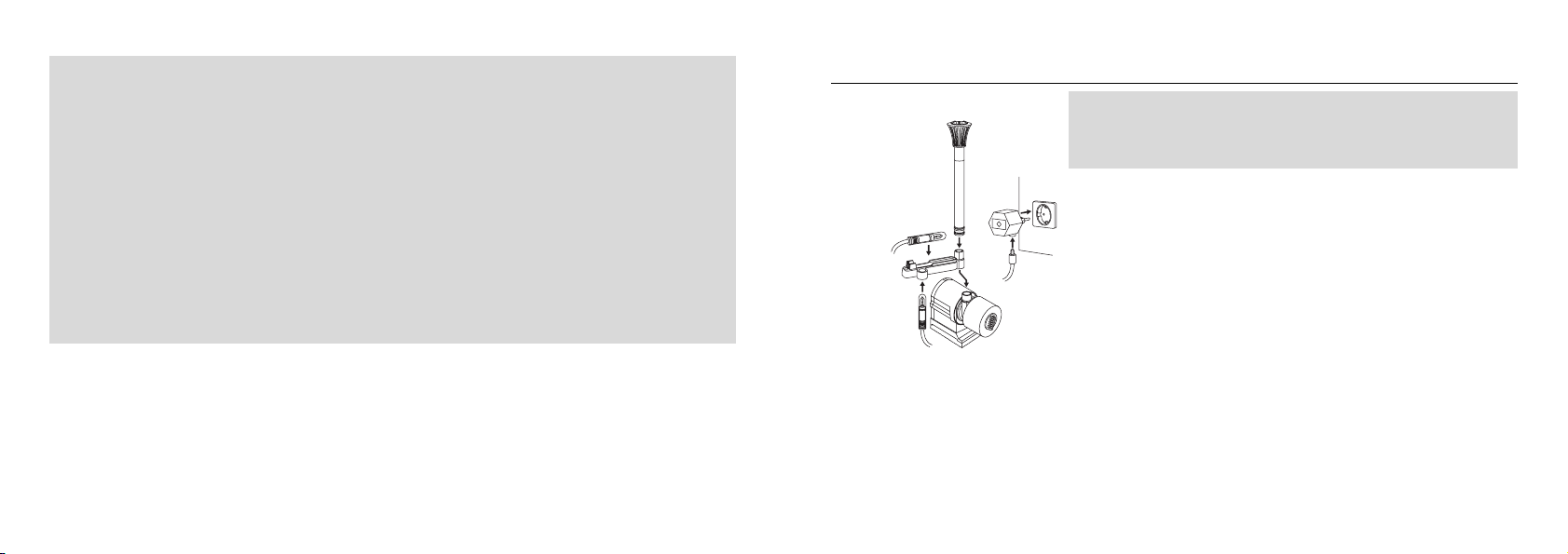

xInsert the halogen lamp through one of the holes in the holder.
xPlace the holder on the pipe joint for the pump.
(It may be necessary to remove the waterworks beforehand and
install again afterwards.)
xPlace the pump under water and align the lamp as desired.
xInsert the plug for the lamp in the socket of the plug-in trans-
former and then plug the transformer into a 230 V a.c. outlet
socket.
xA distance of minimum 15 cm away from combustible parts must
be maintained when setting up in dry areas.
xThe lamp may not be covered!
Set up the small halogen
lamp in a dry place
Lamp in
the water
Set up the transformer in a dry place not endangered by
flooding!
The area for the connecting cables must be dry.
Setting up the transformer
n
G
15
G
14
The information given on the type plate of the transformer must
comply with the data for the mains power.
Do not carry the lamp by its cable, and do not use the cable
to pull the plug from plug-in connections. Protect the cable from
heat, oil and sharp edges.
Pull the mains plug after putting the lamp out of operation,
when not in use and before carrying out any maintenance work.
The GARDENA Indoor Fountain Lamp and plug-in connections
are exclusively designed for 9 V low-voltage operation.
Connecting to a 230 V power supply can be life-threatening!
Do not expose transformers to direct irradiation from the sun.
Transformers and
sunshine
Caution!
9 V low voltage
Pulling the mains plug
Do not carry the
lamp by its cable
Observe the mains voltage

G
17
G
16
5. Now replace the lamp:
Note: Do not touch the glass body of the halogen lamp with your
fingers as this can shorten the service life considerably.
6. Pay attention during the subsequent assembly that the seal is
pressed down until the limit stop is reached.
Spare parts are available as required from the GARDENA customer
service.
Trouble-Shooting or Defects
If you have any problems with your Indoor Fountain Lamp please
contact our Service or return the defective unit together with a
short description of the problem – in case of guarantee, with the
warranty card duly completed and signed – postage paid to one
of the GARDENA Service Centres listed on the back of this leaflet.
We expressly point out that, in accordance with the product
liability law, we are not liable for any damage caused by our
units if it is due to improper repair or if parts exchanged are not
original GARDENA parts or parts approved by us, and, if the
repairs were not carried out by a GARDENA Service Centre or
an authorised specialist. The same applies to spare parts and
accessories.
Product liability
Notes on Care
xCheck the plug-in connections of transformer output/lamp cable
at regular intervals of time for contamination and clean when
necessary.
xWater can condense and collect in the protective glass from long
periods of operation. Remove the protective glass. Clean the
lamp as well (➞refer to ”Replacing the lamp” for disassembly).
n
1. Pull the mains plug!
2. Take the lamp out of the water and wipe dry.
3. Carefully take the lamp out the hold.
4. Remove the protective glass. Hold the lamp firmly by its socket
and remove the protective glass from the rubber socket.
Only 12 V halogen lamps of max. 5 watts may be used!
Replacing the lamp
n
Do not use any corrosive or abrasive cleaning agents.
Contamination in the
protective glass
Checking plug-in
connections

G
19
Guarantee
In the event of a fault, please
send the defective unit together
with the receipt and a descrip-
tion of the fault, postage paid,
to one of the GARDENA
Service Centres on the back
of this page.
We will return your Indoor
Fountain Lamp free of charge
once it has been repaired.
xments of the operating
instructions. Neither the pur-
chaser nor a non-authorised
third party have attempted to
repair the unit.
The bulb is a wearing part
and is not covered by the
guarantee.
The manufacturer‘s guarantee
does not affect the user’s exist-
ing warranty claims against the
dealer/seller.
GARDENA honours the
guarantee legally required
for this product (starting from
the date of purchase). This
guarantee covers all serious
defects of the unit that can
be proved to be material or
manufacturing faults. Under
warranty we will either replace
the unit or repair it free of
charge if the following condi-
tions apply:
xThe unit must have been
handled properly and in
keeping with the require-
G
18
Technical Data
Indoor Fountain Lamp
Article No. 7841
Rated power 5 W halogen lamp
Connected load 9 V~
