Gardena 6500 SP User manual

D
GBFNLS
I
E
P
DK
GARDENA
®
DBetriebsanleitung
Schmutzwasserpumpe
GB Operating Instructions
Dirty Water Pump
FMode d’emploi
Pompe d’évacuation pour eaux chargées
NL Instructies voor gebruik
Vuilwaterpomp
SBruksanvisning
Spillvattenpump
IIstruzioni per l’uso
Pompa sommersa per acqua sporca
EManual de instrucciones
Bomba para aguas sucias
PInstruções de utilização
Bomba para águas sujas
DK Brugsanvisning
Dykpumpe til urent vand
6500 SP Art. 1792
8000 SP Art. 1794
13000 SP Art. 1796

11
GB
Intended use
Liquids to be pumped
Please note
GARDENA Dirty Water Pump
6500 SP / 8000 SP / 13000 SP
Welcome to the garden of GARDENA ...
Translation of the original instructions from German.
Please read these operating instructions carefully and observe
the notes given. Use the instructions to familiarise yourself with
the dirty water pump, its correct use, and the notes on safety.
For safety reasons, children under 16 as well as persons not
familiar with these operating instructions should not use this
dirty water pump.
vKeep these operating instructions in a safe place.
1. Applications Range of Your GARDENA Dirty Water Pump . . . . 11
2. For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3. Initial Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5. Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6. Trouble-Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7. Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9. Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1. Applications Range of Your GARDENA Dirty Water Pump
GARDENA Dirty Water Pumps have been designed for private use
around your house and garden. They are predominantly destinated
for drainage after flooding, transfer of liquids, draining containers,
taking water from wells and shafts, draining boats and yachts as
well as for water aeration and circulation for a limited period of
time.
Liquids which can be handled by the GARDENA Dirty Water
Pumps are the following: clean and slightly contaminated water,
swimming pool water (prerequisite is the recommended dosage
of additives) and soapy water.
GARDENA Dirty Water Pumps are able to convey dirty water con-
taining particles with a diameter of up to 25 mm (for model 6500 SP)
or 30 mm (for model 8000 SP / 13000 SP).
The pumps are fully submersible (waterproof sealed) and can be
submerged down to a depth of 9 m into the liquid.
The GARDENA Dirty Water Pumps are not designed for con-
tinuous operation (e.g. continuous circulating operation) in a
pond. Your pump’s life will be shortened correspondingly
by such operation.
Corrosive, easily combustible or explosive substances
(e.g. gasoline, petroleum, nitro thinner), fats, oils, salt-water
and waste water of toilets and urinals must not be pumped.
The temperature of the liquid handled should not exceed 35°C.
Contents

12
GB
2. For Your Safety
According to DIN VDE (German Electrical Engineers’ Associa-
tion) 0100, dirty water pumps may only be used in swimming
pools, garden ponds, and fountains if the pump is operated via a
residual-current device with a residual-current rating of ≤30 mA.
The pump must not be operated when there are persons in the
swimming pool or garden pond.
For safety reasons we recommend that you always operate
the pump via a residual-current device (DIN VDE 0100-702 and
0100-738).
vPlease contact your electrician.
In Austria, according to ÖVE B/EN 60 555 part 1 to 3, pumps
which are used in swimming pools and garden ponds, and
equipped with firm power cable should be fed via an ÖVE
approved isolating transformer – rated voltage must not exceed
230 V.
In Switzerland mobile appliances which are used outdoors,
must be connected via a residual-current device.
According to DIN VDE (German Electrical Engineers’ Associa-
tion) 0620, mains power cables must not have a smaller cross-
section than the rubber-sheathed cables of the designation
H05 RNF (model 6500 SP and 8000 SP) or H07 RNF (model
13000 SP). The cable length must be at least 10 m.
Data indicated on the type plate must match technical data of
the mains supply.
vTake care that the electrical connections are made within
dry area, protected from flooding.
Protect plug and power cable from heat, oil and sharp edges.
vDon’t use the power cable for plugging off.
The power cable or the float switch must not be used for mount-
ing or relocating the pump. For submerging or lifting/securing
the pump, fix a rope to the pump’s carrying handle.
vBefore operating the pump, first make a visual check, if there
is any damage of the pump (esp. regarding power cable and
plug).
vObserve the minimum water level and the max. delivery
height (see 8. Technical Data).
A damaged pump must not be used.
vIn case of damage, please have the pump checked by our
GARDENA Service Centre.
During manual operation, the pump must be switched off as
soon as all the liquid has been pumped away.
vObserve the pump at all times during manual operation.
Residual-current device
In Austria
In Switzerland
Mains power
Visual check
Manual operation

13
GB
vClear the outlet line before use.
Dry-running operation causes increased wear and is to be
avoided. Therefore, in manual operation the pump must be
immediately unplugged when water fails to flow.
Avoid running of the pump for more than 10 min. against closed
delivery side of the pump.
Take care that the pump is located where the inlet openings at
the suction base are obstructed neither completely nor partly.
Stand the pump on a brick if using in a pond.
The pump is automatically switched off on overheating by
the built-in thermal motor protector. After having cooled down,
the motor automatically switches on again (see 6. Trouble
Shooting).
The automatic deaerating valve eliminates any air pockets in
the pump. During this process, air escapes through the vent
bores 4and air bubbles appear underwater. This is not a defect
of your pump, but serves to deaerate the pump.
It may take several seconds for the air to escape when the
pump is immersed for the first time.
Notes on use
Thermal motor protector
Automatic deaerating
valve
3. Initial Operation
13 mm (1/2”)
Hose diameter 15 mm (5/8”) 25 mm (1”) 38 mm (1 1/2”)
19 mm (3/4”)
Hose connection
of universal fitting 7
Hose connection Cut off topmost Do not cut off Cut off top two
nipple at a. any nipples. nipples at b.
The following connection kits are required for 13 mm to 19 mm
connections:
13 mm (1/2”): GARDENA Pump Connection Set, Art. No. 1750
15 mm (5/8”): GARDENA Tap Connector, Art. No. (2)902, and
Standard Hose Connector, Art. No. (2)916
19 mm (3/4”): GARDENA Pump Connection Set, Art. No. 1752
Best results in delivery capacity are achieved when using
38 mm (1 1/2”) hoses.
7
a
b
4

14
GB
Automatic operation:
The universal fitting 7allows you to connect all the hoses listed
in the previous table.
1. Cut off nipples of the universal fitting 7, which are not needed,
to match the hose connection.
2. Screw the universal fitting 7onto the pump.
3. Connect the hose to the universal fitting 7.
We recommend that you secure 38 mm (1 1/2”) and 25 mm (1”)
hoses additionally with a GARDENA Hose Clip Art. No. 1591.
Only for 13 mm (1/2”) hose:
The universal fitting 7can also be equipped with a GARDENA
Regulator Valve Art. No. 977 so that the contents of the out-
let line do not flow back through the pump after pumping. The
Regulator Valve can be ordered from your GARDENA dealer.
4. Operation
To ensure that the pump draws the water out, the water to be
drained must be at least 10 cm deep.
The float switch 5turns the pump on automatically when the
water level exceeds the cut-in height and the water is pumped out.
The float switch 5turns the pump off again as soon as the water
level falls below the cut-out height.
1. Stand the pump on a firm surface
– or –
use a rope attached through the bore hole in the carrying
handle 2to immerse the pump in a well or shaft.
During automatic operation, ensure that the float switch
5
can move freely.
2. Plug the power cable 1into a mains socket.
Adjusting the Cut-in and Cut-out Height:
The maximum cut-in height and minimum cut-out height (see
8. Technical Data) can be adjusted.
vPush the cable of the float switch 5into the float switch lock 3.
Do not select a cable length that is too long or short to ensure
that the float switch can turn on and off properly.
•The higher the opening of the float switch lock 3, the higher
the cut-in and cut-out height.
•The shorter the length of cable between the float switch 5
and the float switch lock 3, the lower the cut-in height and the
higher the cut-out height.
The cable length between the float switch 5and the float switch
lock 3must always be at least 10 cm.
Connecting the hose:
7
1 2
5
3

15
GB

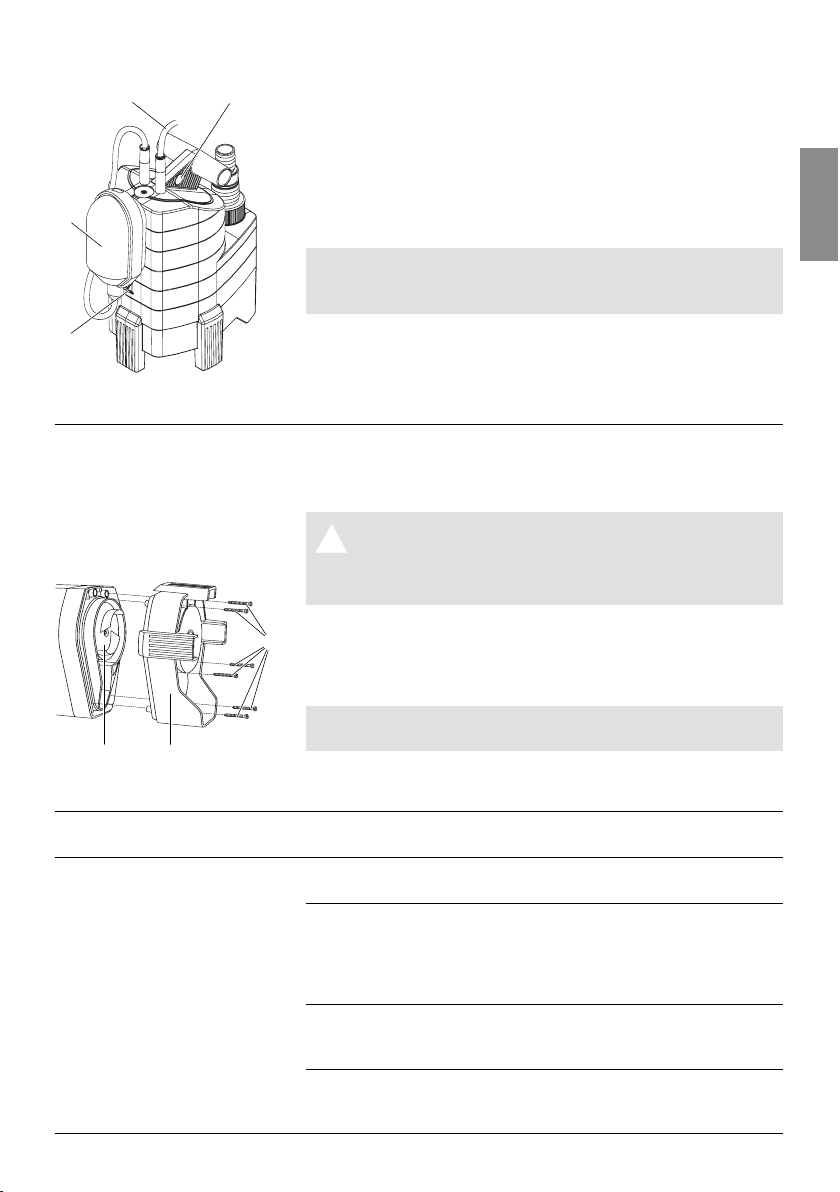

Flushing the pump:
Cleaning the suction
base and feed impeller:
The pump remains in constant operation because the float switch
is bypassed.
1. Push the float switch 5onto the float switch lock 3with the
cable downward.
2. Stand the pump on a firm surface
– or –
use a rope attached through the bore hole in the carrying
handle 2to immerse the pump in a well or shaft.
3. Plug the power cable 1into a mains socket.
The residual water height is only reached during manual opera-
tion since the float switch turns off the pump during automatic
operation before this water level is reached.
5. Cleaning
The pumps are virtually maintenance-free.
After having pumped chlorinated swimming pool water or other liq-
uids leaving residues, the pump should be rinsed with clear water.
Warning! Electric shock!
ARisk of injury due to electric shock.
VDisconnect the pump from the mains before clean-
ing the suction base and feed impeller.
1. Unscrew the 6 Phillips screws 8(model 6500 SP: 4 Phillips
screws) and pull the suction base 6off the pump.
2. Clean the suction base 6and the feed impeller 9.
3. Reinstall the suction base 6and screw in the Phillips screws 8.
For safety reasons a damaged feed impeller 9can only be
exchanged by the GARDENA Service Centre.
6. Trouble-Shooting
Problem Probable cause Remedy
Pump is running, Air cannot escape, since vOpen pressure line
but doesn’t deliver. pressure line is closed. (e.g. kinked pressure pipe).
Air locks in the suction base. vWait for max. 3 minutes
until the pump deaerates
automatically over the vent
valve. If necessary, switch
off and start it again.
Feed impeller clogged. vDisconnect plug and clean
feed impeller (see 5. Clean-
ing).
When starting the pump, vSubmerge pump deeper.
water height falls below the
min. water level.
Manual operation:
96
8
1 2
3
5

Frost-free storage
16
GB
Problem Probable cause Remedy
Pump doesn’t start or Thermal overload switch has vDisconnect plug and clean
suddenly stops during switched the pump off due feed impeller (see 5. Clean-
operation. to overheating. ing).
Observe max. media temper-
ature of 35 °C.
No power. vCheck fuses and electric
connections.
Dirt particles are jammed vDisconnect plug and clean
in the suction base. suction base (see 5. Clean-
ing).
Pump runs, but output Suction base is clogged. vDisconnect plug and clean
suddenly decreases. suction base (see 5. Clean-
ing).
Attention! Repairs on electrical parts should only be done by our
GARDENA Service Centres.
If you have any problems with your Pump, please contact our Service.
7. Storage
Store the pump away from frost before the first frost sets in.
The product must not be added to normal household waste. It
must be disposed of in line with local environmental regulations.
8. Technical Data
Type 6500 SP 8000 SP 13000 SP
(Art. 1792) (Art. 1794) (Art. 1796)
Rated power 250 W 380 W 680 W
Max. delivery capacity 6,500 l/h 8,000 l/h 13,000 l/h
Max. pressure 0.5 bar 0.5 bar 0.9 bar
Max. delivery height 5m5m9m
Max. submersion depth 9m9m9m
Residual water height 30 mm 35 mm 35 mm
Contaminated water
with particle size of max. Ø 25 mm Ø 30 mm Ø 30 mm
Power cable 10 m H05 RNF 10 m H05 RNF 10 m H07 RNF
Pump connection 38 mm (1 1/2”) / 25 mm (1”) graduated nipple,
option GARDENA Water hose Plug-in-system
Min. water level for operation 80 mm 100 mm 100 mm
Weight approx. 4.3 kg 5.4 kg 7.0 kg
Max. media temperature 35 °C 35 °C 35 °C
Disposal:
(in accordance with
RL2002/96/EC)

17
GB

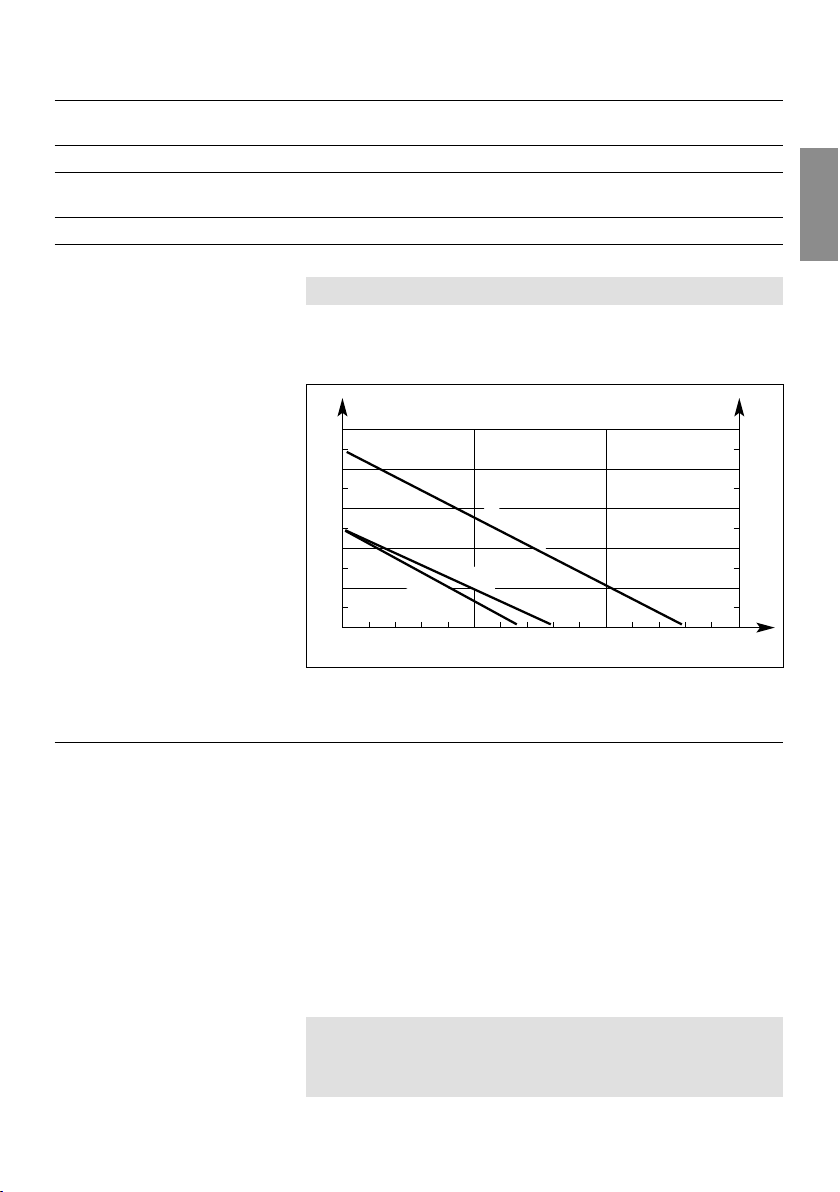

Cut-in / Cut-out height
Performance characteristics
m
10
8
6
4
2
00 5000 10000 15000
l/h
bar
1.0
0.8
0.6
0.4
0.2
8000 SP
6500 SP
13000 SP
Warranty
9. Service
GARDENA guarantees this product for 2 years (from date of
purchase). This guarantee covers all serious defects of the unit
that can be proved to be material or manufacturing faults. Under
warranty we will either replace the unit or repair it free of charge
if the following conditions apply:
•The unit must have been handled properly and in keeping
with the requirements of the operating instructions.
•Neither the purchaser or a non-authorised third party have
attempted to repair the unit.
The feed impeller is a wearing part and is not covered by the
guarantee.
This manufacturer’s guarantee does not affect the user’s existing
warranty claims against the dealer/seller.
If you have any problems with your pump, please contact our
Customer Service or return the defective unit together with
a short description of the problem directly to one of the
GARDENA Service Centres listed on the back of this leaflet.
Type 6500 SP 8000 SP 13000 SP
(Art. 1792) (Art. 1794) (Art. 1796)
Mains voltage /
mains frequency 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz
Min. cut-in height approx. 200 mm 205 mm 235 mm
Min./max. cut-out height
approx. 65 mm / 165 mm 65 mm / 195 mm 65 mm / 225 mm
Noise level LWA1) 46 dB(A) 47 dB(A) 50 dB(A)
1) Measuring method according to EN 60335-1
The cut-in and cut-out height varies.
The residual water height is only reached during manual operation
(see 4. Operation).

18
GB
EU Certificate of Conformity
The undersigned
GARDENA Manufacturing GmbH Hans-Lorenser-Str. 40 · D-89079 Ulm
hereby certifies that, when leaving our factory, the units indicated below are in accordance with the
harmonised EU guidelines, EU standards of safety and product specific standards.
This certificate becomes void if the units are modified without our approval.
Description of the units: Dirty-Water Pump
Types: 6500 SP / 8000 SP / 13000 SP
Art. No.: 1792 / 1794 / 1796
EU directives: Machinery Directive 98/37/EC : 1998
2006/42/EC : 2006
Electromagnetic Compatibility 2004/108/EC
Low Voltage Directive 2006/95/EC
Directive 93/68/EC
Harmonised
European standards: EN 292-1 Ulm, 29.05.2001
EN 292-2
EN 60335-1
EN 60335-2-41
Year of CE marking: 2001 Thomas Heinl
Technical Dept. Manager
We expressly point out that, in accordance with the product
liability law, we are not liable for any damage caused by our
units if it is due to improper repair or if parts exchanged are not
original GARDENA parts or parts approved by us, and, if the
repairs were not carried out by a GARDENA Service Centre or
an authorised specialist. The same applies to spare parts and
accessories.
Product Liability

Deutschland / Germany
GARDENA
Manufacturing GmbH
Service Center
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen:
([phone]
Reparaturen:
([phone]
[e-mail]
Argentina
Argensem®S.A.
Calle Colonia Japonesa s/n
(1625) Loma Verde
Escobar, Buenos Aires
Phone: [phone]
[e-mail]
Australia
Nylex Consumer Products
50-70 Stanley Drive
Somerton, Victoria, 3062
Phone: [phone]
[e-mail]
Austria / Österreich
GARDENA
Österreich Ges.m.b.H.
Stettnerweg 11-15
2100 Korneuburg
Tel. : [phone]
[e-mail]
Belgium
GARDENA Belgium NV/SA
Sterrebeekstraat 163
1930 Zaventem
Phone: [phone]
Mail: [e-mail]
Brazil
Palash Comércio e
Importação Ltda.
Rua Américo Brasiliense,
2414 - Chácara Sto Antonio
São Paulo - SP - Brasil -
CEP 04715-005
Phone: [phone]
[e-mail]
Bulgaria
DENEX LTD.
2 Luis Ahalier Str. - 7th floor
Sofia 1404
Phone: [phone]
[e-mail]
Canada
GARDENA Canada Ltd.
100 Summerlea Road
Brampton, Ontario L6T 4X3
Phone: [phone]
[e-mail]
Chile
Antonio Martinic y Cia Ltda.
Cassillas 272
Centro de Cassillas
Santiago de Chile
Phone: (+ 56) 2 20 10 708
[e-mail]
Costa Rica
Compania Exim
Euroiberoamericana S.A.
Los Colegios, Moravia,
200 metros al Sur del Colegio
Saint Francis - San José
Phone: [phone]
[e-mail]
Croatia
KLIS d.o.o.
Stanciceva 79
10419 Vukovina
Phone: [phone]
[e-mail]
Cyprus
FARMOKIPIKI LTD
P.O. Box 7098
74, Digeni Akrita Ave.
1641 Nicosia
Phone: [phone]
[e-mail]
Czech Republic
GARDENA spol. s r.o.
Шнpskб 20a, и.p. 1153
627 00 Brno
Phone: (+ 420) 800 100 425
[e-mail]
Denmark
GARDENA Norden AB
Salgsafdeling Danmark
Box 9003
S-200 39 Malmö
[e-mail]
Finland
Habitec Oy
Martinkyläntie 52
01720 Vantaa
France
GARDENA
PARIS NORD 2
69, rue de la Belle Etoile
BP 57080
ROISSY EN FRANCE
95948 ROISSY CDG CEDEX
Tél. (+ 33) 0826 101 455
service.consommateurs@
gardena.fr
Great Britain
GARDENA UK Ltd.
27-28 Brenkley Way
Blezard Business Park
Seaton Burn
Newcastle upon Tyne
NE13 6DS
[e-mail]
Greece
Agrokip
Psomadopoulos S.A.
Ifaistou 33A
Industrial Area Koropi
194 00 Athens Greece
V.A.T. EL093474846
Phone: (+ 30) 210 66 20 225
[e-mail]
Hungary
GARDENA
Magyarország Kft.
Késmárk utca 22
1158 Budapest
Phone: [phone]
[e-mail]
Iceland
Ó. Johnson & Kaaber
Tunguhalsi 1
110 Reykjavik
[e-mail]
Ireland
Michael McLoughlin & Sons
Hardware Limited
Long Mile Road
Dublin 12
Italy
GARDENA Italia S.p.A.
Via Donizetti 22
20020 Lainate (Mi)
Phone: [phone]
[e-mail]
Japan
KAKUICHI Co. Ltd.
Sumitomo Realty &
Development Kojimachi
BLDG., 8F
5-1 Nibanncyo, Chiyoda-ku
Tokyo 102-0084
Phone: [phone]
[e-mail]
Luxembourg
Magasins Jules Neuberg
39, rue Jacques Stas
Luxembourg-Gasperich 2549
Case Postale No. 12
Luxembourg 2010
Phone: [phone]
[e-mail]
Netherlands
GARDENA Nederland B.V.
Postbus 50176
1305 AD ALMERE
Phone: [phone]
[e-mail]
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200, Curaçao
Phone: [phone]
[e-mail]
New Zealand
NYLEX New Zealand Limited
Building 2, 118 Savill Drive
Mangere, Auckland
Phone: [phone]
[e-mail]
Norway
GARDENA Norden AB
Salgskontor Norge
Karihaugveien 89
1086 Oslo
[e-mail]
Poland
GARDENA Polska Sp. z o.o.
Szymanów 9 d
05-532 Baniocha
Phone: [phone]
[e-mail]
Portugal
GARDENA Portugal Lda.
Recta da Granja do Marquês
Edif. GARDENA Algueirão
2725-596 Mem Martins
Phone: [phone]
[e-mail]
Romania
MADEX INTERNATIONAL SRL
Soseaua Odaii 117-123,
Sector 1,
Bucureєti, RO 013603
Phone: (+ 40) 21 352 76 03
[e-mail]
Russia / Россия
ООО ГАРДЕНА РУС
123007, г. Москва
Хорошевское шоссе, д. 32А
Тел.: (+ 7) 495 647 25 10
[e-mail]
Singapore
Hy - Ray PRIVATE LIMITED
40 Jalan Pemimpin
#02-08 Tat Ann Building
Singapore 577185
Phone: [phone]
[e-mail]
Slovak Republic
GARDENA Slovensko, s.r.o.
Panónska cesta 17
851 04 Bratislava
Phone: [phone]
[e-mail]
Slovenia
GARDENA d.o.o.
Brodiљиe 15
1236 Trzin
Phone: [phone]
[e-mail]
South Africa
GARDENA
South Africa (Pty.) Ltd.
P.O. Box 11534
Vorna Valley 1686
Phone: [phone]
[e-mail]
Spain
GARDENA IBÉRICA S.L.U.
C/ Basauri, nº 6
La Florida
28023 Madrid
Phone: [phone]
[e-mail]
Sweden
GARDENA Norden AB
Försäljningskontor Sverige
Box 9003
200 39 Malmö
[e-mail]
Switzerland / Schweiz
GARDENA (Schweiz) AG
Bitziberg 1
8184 Bachenbülach
Phone: [phone]
[e-mail]
Turkey
GARDENA / Dost Diþ Ticaret
Mümessillik A.Þ. Sanayi
Çad. Adil Sokak No.1
Kartal - Ýstanbul
Phone: [phone]
[e-mail]
Ukraine / Украина
ALTSEST JSC
4 Petropavlivska Street
Petropavlivska
Borschahivka Town
Kyivo Svyatoshyn Region
08130, Ukraine
Phone: [phone]
[e-mail]
USA
Melnor Inc.
3085 Shawnee Drive
Winchester, VA 22604
Phone: [phone]
[e-mail]
1792-20.960.09 / 0507
©GARDENA
Manufacturing GmbH
D-89070 Ulm
http://www.gardena.com
