Contents
Pack contents /parts 2
Description of Symbols 3
General safety instructions 4
Safety rules for Petrol Blower Vacs 6
Parts List 12
Assembly /Preparation of the Blower Vac prior to use 14
Setting up for use as a Blower 14
Attaching the Blower Tube 14
Setting up for use as a Vac 15
Fitting the Vac Tube to the Blower Vac Housing 16
Fitting the Bag tube into the Collection bag 16
Fitting the Collection Bag 18
Adding and Checking the oil 20
Fuelling 22
Operation / Choke control / Starting the Blower 23
Stopping the Blower 24
Blowing 24
Use of the Petrol Blower 25
Operating as a Vacuum 26
Clearing a blocked Impeller/Mulcher 27
Use of the Petrol Blower Vac 27
Emptying the Collection Bag 28
Maintenance 28
Checking the Spark Plug 28
Air Filter 29
Servicing 30
Storage and maintenance after use 30
Troubleshooting 31
Product Disposal 32
Vibration 32
Warranty 31
Environmental protection 33
What your 3 year warranty means 33
Service Support 34
Accessories and After Sales Parts 34
Technical Specications 35

24.5cc 4 Stroke Petrol Blower Vacuum
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754 (toll free)
4
Pack contents / parts
Congratulations on the purchase of your Gardenline® 24.5cc 4 Stroke Petrol
Blower Vacuum. When you open your packaging, first remove all items and
check there are no parts damaged or missing. If you find anything wrong,
do not operate the product until the parts have been replaced or the fault
has been rectified. Failure to do so could result in serious personal injury.
Intended use of the 24.5cc 4 Stroke Petrol Blower Vacuum
NOTE: This product is for private domestic DIY use only.
It is not suitable for commercial, industrial or trade use.
This Blower Vac has been designed for moving leaves and other small garden
debris by using either the blowing function to move or disperse, or the vacuum
function for collection in the bag.
IMPORTANT INFORMATION.
NOTE: This is a 24.5cc 4 Stroke Petrol Blower Vacuum.
The motor MUST be filled with 60ml of SAE 10W-30
BEFORE starting. Fresh unleaded fuel must be used in this unit.
Do NOT use Ethanol based fuels. Do NOT mix oil with fuel.
NOTE: First time users or inexperienced operators pay particular attention to the
operation of the Blower Vacuum, including details of starting and stopping and
correct use of the Blower Vacuum on pages 23 - 24, as well as the maintenance
instructions on pages 28 - 30.
Contents of carton
2
1 x Blower Vacuum
1 x Upper blow tube (not fitted)
1 x Blow tube nozzle (not fitted)
1 x Bag tube (not fitted)
1 x Lower vac tube (not fitted)
1 x Vac tube nozzle
(+1 x assembly screw) (not fitted)
1 x Toolfree blower lock knob (fitted)
1 x Toolfree vacuum guard lock knob
(fitted)
1 x Spark plug spanner
1 x 4mm hex key
1 x 5mm hex key
1 x Oil bottle
1 x Collection bag
1 x Shoulder strap
1 x Instruction Manual
1 x Warranty Card & details
1 x Quick Start Guide

24.5cc 4 Stroke Petrol Blower Vacuum
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754 (toll free)
3
Description of symbols
The rating plate on your lawn mower may show symbols. These represent im-
portant information about the product or instructions on its use.
Conforms to relevant standards
for electromagnetic compliance.
Warning.
Explosive material.
Extremely hot surface. Do not touch a hot muffler, gear box or cylinder,
you may get burned. These parts get extremely hot from operation and
remain hot for a short time after the unit is turned off.
Wear safety gloves.
Wear safety footwear.
Wear hearing protection. Wear eye protection. Wear breathing protection.
Risk of hand and feet injuries
Risk of hair entanglement
Risk of clothing entanglement
Read these instructions for use carefully.
Keep spectators away. Beware of objects being flung out.
Do not put in water or expose to rain.
Use at a distance of at least 15m from other people.
Before carrying out any maintenance operation stop the engine,
disconnect the spark plug and refer to your manual.
Noise label rating 78dbBA (taken at 7.5 metres)
You must wear ear protection at all times.
NOISE dB
A
78

General safety warnings
Safety instructions
WARNING Read and understand all instructions. Failure to follow
all instructions listed below may result in electric shock, fire and/or
serious injury. The term“power tool” in all of the warnings below refers
to your mains-operated (corded) power tool, garden power tool,
battery-operated (cordless) power tool or your petrol operated
garden tool.
Save these instructions
Work area
• Ensuretheareatobemowedisclearandfreeofdebris,rocks,gravel,
garden furniture etc.
• Keepworkareacleanandwelllit.Clutteredanddarkareasinvite
accidents.
• Donotoperatepowertoolsinexplosiveatmospheres,suchasinthe
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
• Ensureallanimals,childrenandbystandersareatleast20mawaywhile
operating this lawn mower. Distractions can cause you to lose control.
Personal safety
• Stayalert,watchwhatyouaredoingandusecommonsensewhen
operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol, or medication. A moment of
inattention while operating power tools may result in serious
personal injury.
• Usesafetyequipment.Alwaysweareyeprotection.Safetyequipment
such as a dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
• Removeanyadjustingkeyorwrenchbeforeturningthetoolon.
A wrench or a key that is left attached to a rotating part of the power
tool may result in personal injury.
4

• Donotoverreach.Keepproperfootingandbalanceatalltimes.
This enables better control of the power tool in unexpected situations.
• Dressproperly.Donotwearlooseclothingorjewellery.Keepyourhair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
• Ifdevicesareprovidedfortheconnectionofdustextractionand
collection facilities ensure that these are connected and properly used.
Use of these devices can reduce dust-related hazards.
Power tool use and care
• Donotforcethepowertool.Usethecorrectpowertoolforyour
application. The correct power tool will do the job better and safer at
the rate for which it was designed.
• Donotusethepowertooliftheswitchdoesnotturnitonando.Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
• Turntoolocompletelybeforemakinganyadjustments,changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
• Storeidlepowertoolsoutofthereachofchildrenanddonotallow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained
users.
• Maintainpowertools.Checkformisalignmentorbindingofmoving
parts, breakage of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained power tools.
• Keepcuttingtoolssharpandclean.Properlymaintainedcuttingtools
with sharp cutting edges are less likely to bind and are easier to control.
• Usethepowertool,accessoriesandtoolbitsetc.,inaccordancewith
these instructions and in the manner intended for the particular type
of power tool, taking into account the working conditions and the work
to be performed. Use of the power tool for operations different from
intended could result in a hazardous situation.
5

General safety warnings
Safety rules for Petrol Blower Vacs
Training
• Readtheinstructionscarefully.Getfamiliarwiththecontrolsandproper
use of the equipment.
• Non-skilledpersonsandrsttimeusersshouldreadandunderstandthe
full instruction manual before proceeding with use of the product or
recommended maintenance tasks.
• Onlyusetheblowervacforthepurposeforwhichitwasdesigned,i.e.
blowing or vacuuming garden debris. Any other use can be hazardous,
causing damage to the machine.
• Neverallowchildrenorpeopleunfamiliarwiththeseinstructionstouse
the blower vac. Local regulations may restrict the age of the operator.
• Neverusetheblowervac:
– When people, especially children, or pets are nearby.
– If the operator has taken medicine or substances that can affect his
ability to react and concentrate.
• Rememberthattheoperatororuserisresponsibleforaccidentsor
hazards occurring to other people or their property.
• Donotuseunitaroundpeoplewithlonghair.
• Dressappropriately.Donotoperatewithlooseclothingorjewelry.
Ensure there is a gap between the air intake and the operator.
Preparation
• Whileblowingorvacuuming,alwayswearsturdynonskidfootwearand
long trousers.
Do not operate the equipment with bare feet or open sandals.
WARNING: DANGER!
Engine fuel is highly flammable:
– Store fuel in containers specifically designed for this purpose.
6

– Refuel using a funnel and outdoors only.
Do not smoke while refuelling or whenever handling the fuel.
– Add fuel before starting the engine. Never remove the cap of the fuel
tank or add fuel while the engine is running or when the engine is hot.
– If fuel is spilled, do not attempt to start the engine but move the
machine away from the area of spillage and avoid creating any source
of ignition until the fuel has evaporated and the vapour dispersed.
– Replace all fuel tanks and containers caps securely.
- Add 4 stroke oil to the oil reservoir. Do not use 2 stroke oil.
Do not mix fuel and oil.
• Substitutefaultysilencers.
• Beforeuse,alwaysinspectthemachineandcheckthatthescrewsare
not worn or damaged.
• Itisadvisabletowearsuitableeyeprotection(safetyglasses)ear
protection, and sturdy gloves when operating the blower vac.
Maintenance and storage
• Keepallnuts,boltsandscrewstighttobesuretheequipmentisinsafe
working condition. Regular maintenance is essential for safety and
performance.
• Neverstoretheequipmentwithfuelinthetankinsideabuildingwhere
vapour may reach a flame or a spark or a source of extreme heat i.e a
water heater.
• Allowtheenginetocoolbeforestoringinanenclosedspace.
• Toreducetherehazard,keeptheengine,exhaustsilencer,battery
compartment (if applicable) and fuel storage area free of grass, leaves, or
excessive grease.
• Ifthefueloroiltankhastobedrained,thisshouldbedoneoutdoorsand
when the engine is cool.
• Forreasonsofsafety,donotusetheequipmentwithwornor
damaged parts.
Parts are to be replaced and not repaired. Parts that are not of the same
quality can damage the equipment and be dangerous for your safety.
• Fuelgoesofairlyquickly.Ifyoundyourblowervacdoesnotstart,1st
change the fuel in the tank with newly purchased fuel.
7

AFTER SALES SUPPORT
(toll free)
24.5cc 4 Stroke Petrol Blower Vacuum
e-mail: [email protected]1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754
Service
• Haveyourpowertoolservicedbyaqualiedrepairpersonnelusingonly
identical replacement parts (recoil starter, spark plug, collection bag,
tubes, blades / impellor. This will ensure that the safety of the power tool
is maintained.
Operation safety instructions
WARNING. Stop the engine and unplug the spark plug before any
repairs or maintenance operations.
• Checkthatallnuts,boltsandscrewsarewelltightenedbeforeeveryuse.
• Donotruntheengineinanenclosedand/orpoorlyventilatedarea.The
gas of the engine contains carbon monoxide, which is dangerous to
your health.
• Workonlywhenthereissucientlight.
• Donotusetheblowerwhenitisrainingorwhenthegrassiswet.
• Donotusetheblowernearopenwindowsduetopossible
debris entering.
• Cautionmustbetakenwhileblowingandvacuumingonslopes.
• Turnotheengineifyoumustleavetheblowervacunattended.
• Neverchangetheratedspeedoftheengineinanyway.
• Stoptheengineandremovethesparkplugcoverinthesecases:
– Before any maintenance, repairing or checking operations.
– If you leave the blower vac unattended.
– If the blower vibrates in an abnormal way, take the blower vac to an
authorised service centre.
– Check the bolts and nuts regularly. Bolts and nuts may vibrate loose
over time.
WARNING.
Fuel is highly flammable.
• Keepfuelinafuelcanspeciallymadeforthispurpose.
• Fillthefueltankwithafunnelandoutside.Donotsmokeoruseamobile
phone during this process.
8

AFTER SALES SUPPORT
(toll free)
24.5cc 4 Stroke Petrol Blower Vacuum
e-mail: [email protected]1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754
11
• Fillwithbothfuelinthefueltankand4strokeoilintheoilreservoir
before starting the engine. Never open the cap of the fuel tank to add
fuel while the engine is running or still hot. Do not mix oil and fuel.
Do not use 2 stroke oil.
• Donotstarttheengineifthereisspiltfuelontheblowervacorinthe
area surrounding. Take the blower away from the zone where fuel has
been spilt and avoid any contact from a hot source as long as the spilt
fuel is completely evaporated.
• Tightenthefueltankcapandfuelcancaptightly,andensuretheoil
dipstick is secure in position.
Additional safety rules for Petrol Blower Vacs
• Donotoperateinahazardouslocation.Suchareasincludewherethere
is a risk of explosion of petrol fumes, leaking gas or explosive dust.
• Donotoperateinaconnedarea.Exhaustgases,smokeorfumescould
reach dangerous concentrations.
• Protectyourblowervac.ThisblowervacisNOTWEATHERPROOFand
should not be exposed to direct sunlight, high ambient temperature and
damp, wet or high humidity conditions.
• Donotsmokewhilerefuelling.Thisispotentiallydangerousasitmay
ignite the fuel and cause an explosion.
• Takecarenottospillfuel.Whenrefuellingtheblowervacensurethatthe
motor has been switched off. Prevent the spilling of fuel as this may also
ignite with the hot motor. Never refuel whilst the engine running.
• Becarefulwhereyoustoretheblowervac.Storetheblowervacinadry
area away from flammable liquids.
• Keepyourdistance.Theblowervacemitsexhaustfumes.Ensure
bystanders keep a safe distance.
• Fillwithbothfuelinthefueltankand4strokeoilintheoilreservoir
before starting the engine. Never open the cap of the fuel tank to add
fuel while the engine is running or still hot. Do not mix oil and fuel.
Do not use 2 stroke oil. If not, the engine will overheat and cause
damage to your blower vac.
• Neverllfueltankindoors.Neverllfueltankwhenengineisrunning
or hot.
Do not smoke when filling fuel tank.
9

AFTER SALES SUPPORT
(toll free)
24.5cc 4 Stroke Petrol Blower Vacuum
e-mail: [email protected]1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754
• Stoptheenginebeforere-fuelling.
• Stoptheengineanddisconnectthesparkplugwire:
– If the blower vac vac starts to vibrate abnormally (find and remove the
cause of the vibration immediately).
• Reducethethrottlebeforeturningotheengineandturnthefuelo
when you have finished blowing or vacuuming.
• Theuserisresponsibleforthesafetyofotherpeople,animalsand
objects in the working area. Keep children and domestic animals at a
safe distance while the blower vac is in use.
• Filltheoilreservoirwith4strokeoil.Donotuse2strokeoil.
We recommend Gardenline® Full Synthetic 4 stroke oil
or equivalent SAE 10W/30.
10

AFTER SALES SUPPORT
(toll free)
24.5cc 4 Stroke Petrol Blower Vacuum
e-mail: [email protected]1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754
13
11

24.5cc 4 Stroke Petrol Blower Vacuum
AFTER SALES SUPPORT
e-mail: [e-mail] 1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754 (toll free)
12
AFTER SALES SUPPORT
(toll free)
24.5cc 4 Stroke Petrol Blower Vacuum
e-mail: [email protected]1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754
Parts List
1. Main handle
2. Throttle trigger
3. ON/OFF switch
4. Outlet exhaust
5. Upper blow tube
6. Blow tube nozzle
7. Bag tube
8. Intake Cover
9. Upper Vac tube
10. Collection bag
11. Vac Tube nozzle
12. Primer
13. Fuel cap
14. Oil reservoir / dipstick
15. Air filter cover
16. Air filter
17. Choke lever (red)
18. Spark plug cover
19. Spark Plug
20. Recoil starter
21. Motor (internal)
22. Fuel tank
23. Shoulder strap
24. Discharge port
25. Toolfree blower lock knob
26. Toolfree vacuum guard lock knob
27. Spark Plug Spanner
28. 4mm Hex Key
29. 5mm Hex Key
30. 1 x Oil bottle
31. Fuel tank bracket / feet
Spark plug
18
14
4710 21
19
11
24
9

24.5cc 4 Stroke Petrol Blower Vacuum
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754 (toll free)
AFTER SALES SUPPORT
(toll free)
24.5cc 4 Stroke Petrol Blower Vacuum
e-mail: [email protected]1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754
13
23 25
2231
658
12 18 263
4
15
16
13
20
12 17
27 28 29 30

24.5cc 4 Stroke Petrol Blower Vacuum
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754 (toll free)
14
AFTER SALES SUPPORT
(toll free)
24.5cc 4 Stroke Petrol Blower Vacuum
e-mail: [email protected]1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754
Assembly
Preparation of the Blower Vac prior to use
The petrol blower vac requires some assembly prior to use. This includes
joining of the vac tubes, joining of the blower tubes, and depending if the
tool is to be used for blowing or vacuuming, fitting of the tube assembly to
the housing and fitting the collection bag assembly to the housing.
Setting up for use as a Blower
IMPORTANT. Blower tube installation affects both blower balance and
performance.
WARNING. Danger from rotating impeller!
Stop the engine before installing or removing the blower tubes.
Never perform any maintenance or assembly procedures on this machine
while the engine is running.

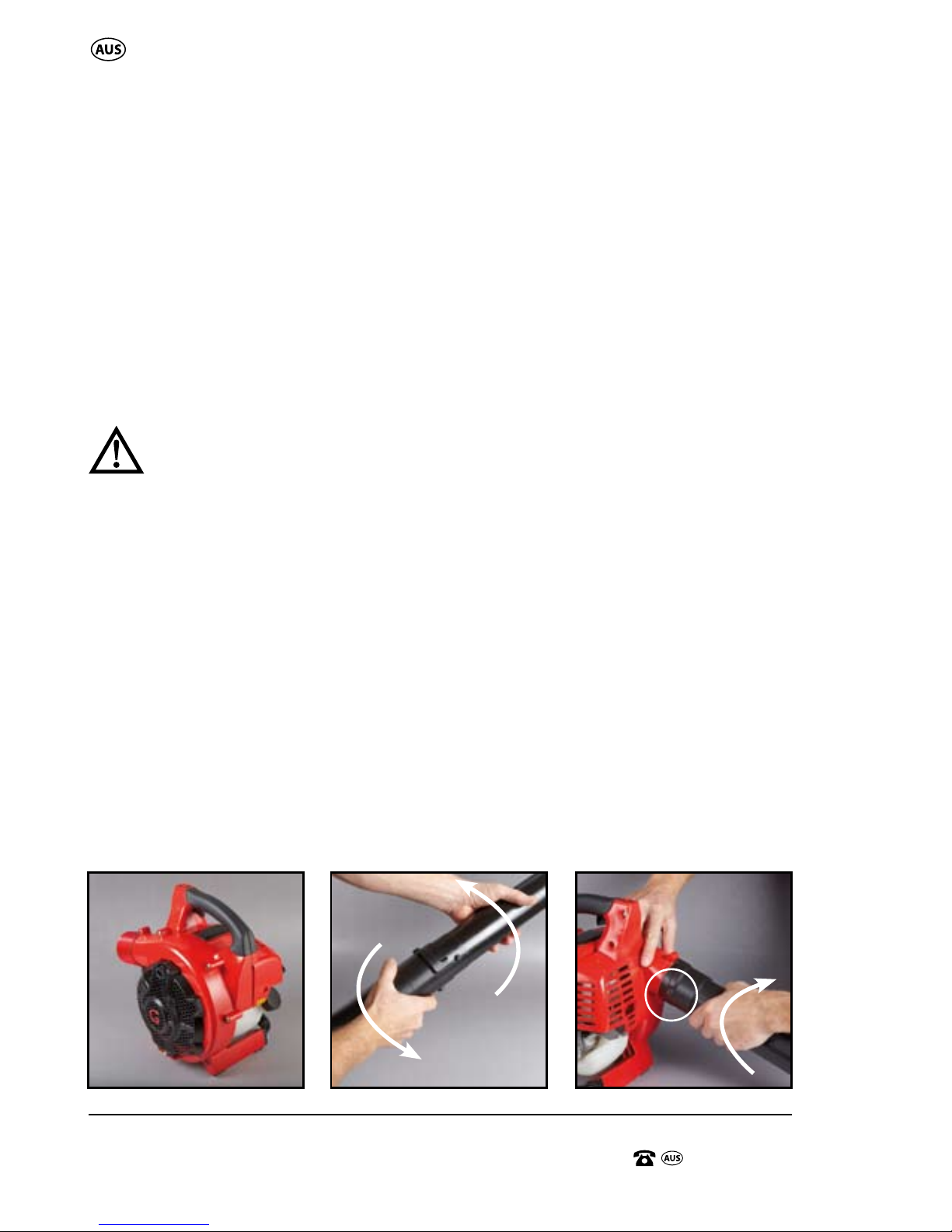

Attaching the Blower Tube
1. Place the blower upright on the ground or on a sturdy work surface (Fig A).
2. Push the blower tube nozzle tube (6) over the upper blow tube (5), lining
up the protruding locking pin/s on the end of the upper blow tube (5)
with the protruding channel/s on the blow tube nozzle (6) (Fig B).
3. Rotate the blow tube nozzle (6) clockwise on the upper blow tube (5)
locking it into place.
4. Remove the toolfree blower lock knob (25) from the discharge port (24).
Align and push the assembled blower tube assembly over the discharge
port (24) on the blower outlet and then rotate clockwise until it locks in
place and the screw hole can be seen (Fig C).
C.A. B.

24.5cc 4 Stroke Petrol Blower Vacuum
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754 (toll free)
AFTER SALES SUPPORT
(toll free)
24.5cc 4 Stroke Petrol Blower Vacuum
e-mail: [email protected]1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754
15

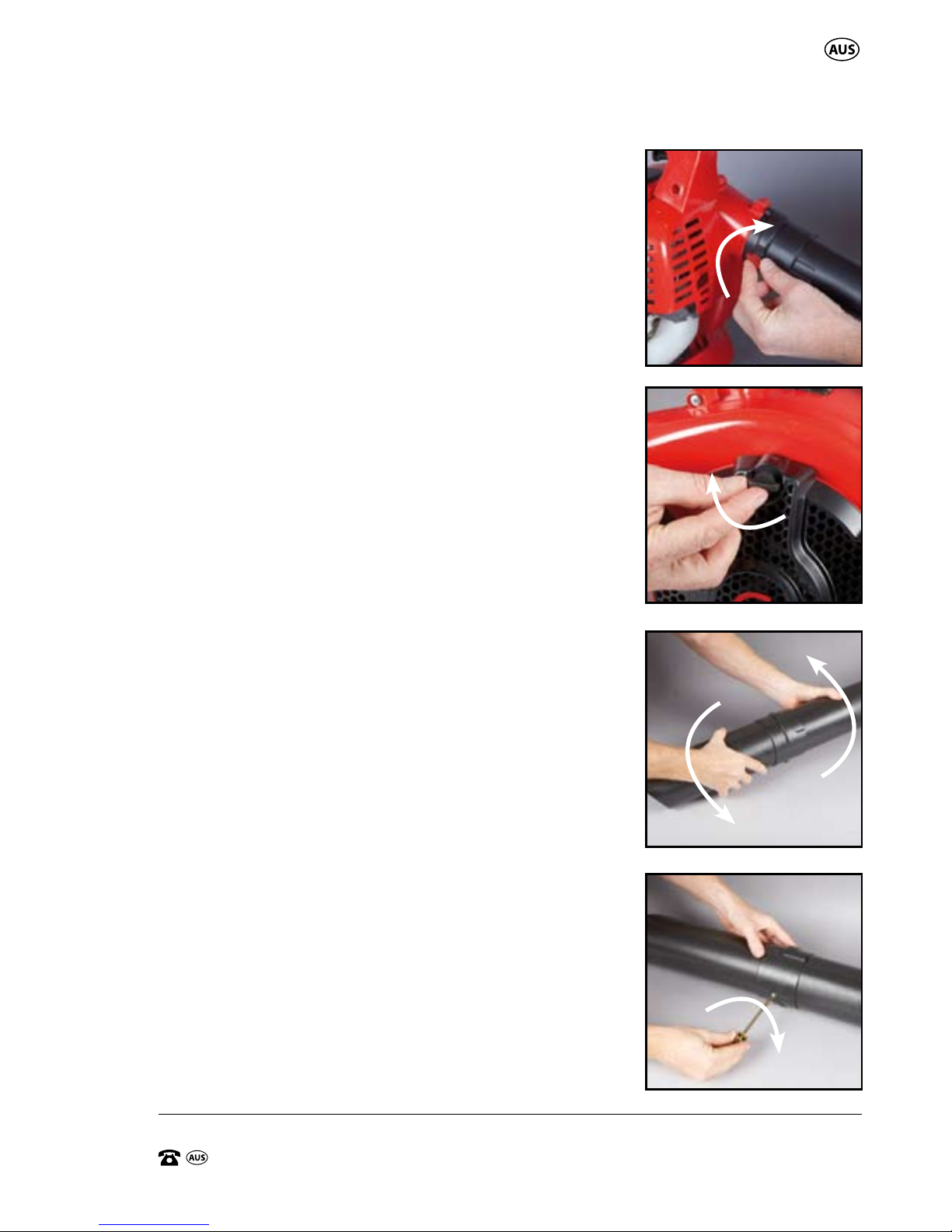

5. Using the toolfree blower lock knob (25), screw
it into the screw hole located on the left hand
side of the discharge port (24) to secure the
blower tubes into place. Finger tighten the
toolfree lock knob (25) until secure (Fig D).
Check the intake cover (8). For use of the blower
vac as a blower, the vac tubes should not be
fitted, but the intake cover MUST be closed and
secured with the supplied tool free vacuum
lock knob (26) (Fig E).
The blower vac is now ready for use as a blower.
NOTE: The vac tubes (9/11) and the collection
bag (10) are not required for the blower
operation.
Setting up for use as a Vac
Assembly of the vac tubes
1. Align the upper vac tube (9) and the vac tube
nozzle (11) so that the protruding pins on the
upper vac tube (9) align with the protruding
channels on the vac tube nozzle (11).
2. Slide the upper vac tube inside the vac tube
nozzle (11) until it will enter no more, then
rotate the vac tube nozzle in an anti clockwise
direction until securely locked together (Fig F).
3. Using the supplied assembly screw for the vac
tubes, insert the screw into the screw hole on
the protruding pin and firmly tighten using the
phillips head end of the supplied spark plug
spanner (27) (Fig G).
D.
G.
F.
E.
TIGHTEN

24.5cc 4 Stroke Petrol Blower Vacuum
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754 (toll free)
16
AFTER SALES SUPPORT
(toll free)
24.5cc 4 Stroke Petrol Blower Vacuum
e-mail: [email protected]1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754

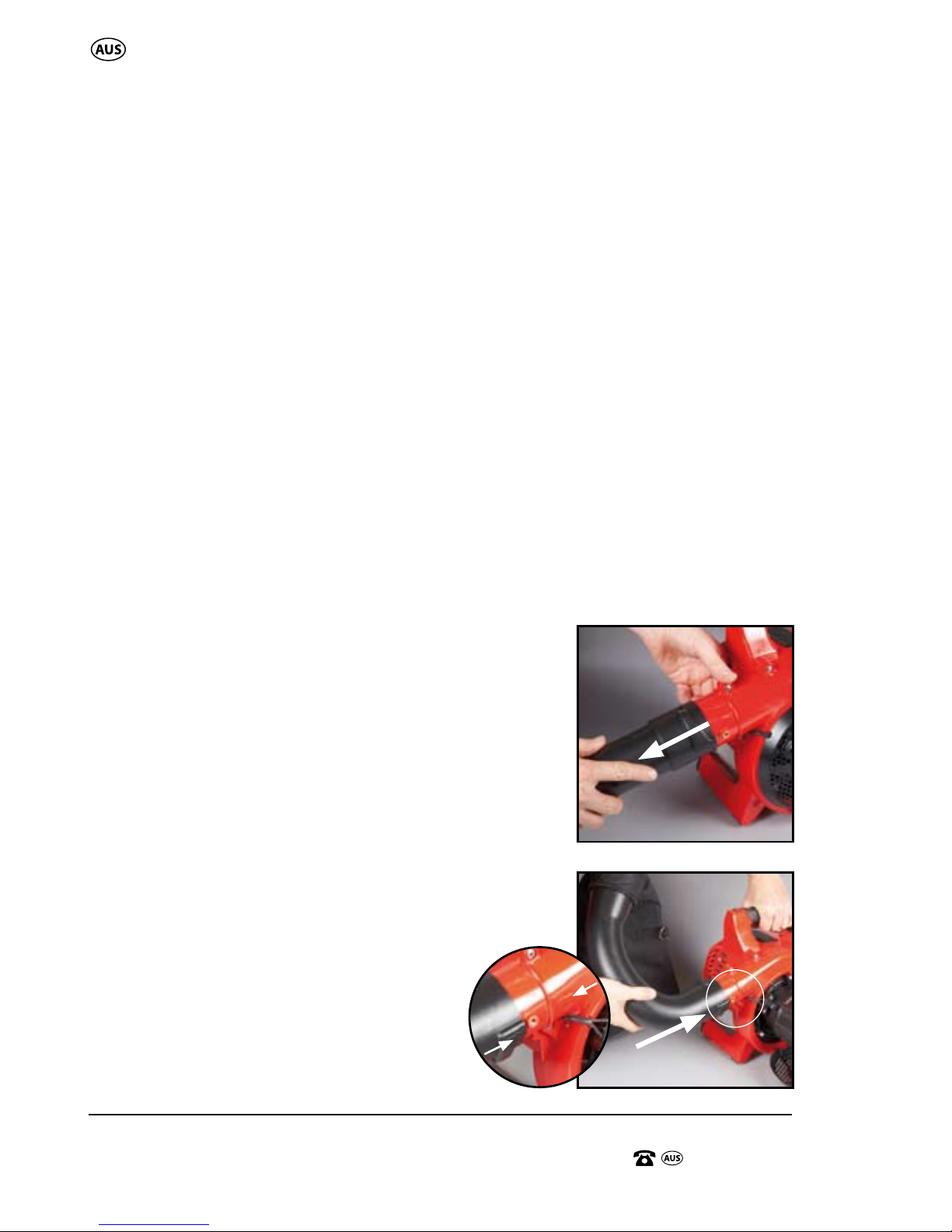

Fitting the Vac Tube to the
Blower Vac Housing
1. Loosen and remove the toolfree vacuum guard
lock knob (26) on the intake cover (8) (Fig H).
2. Open the intake cover (8) and insert the lower
vac tube (9) so it fits inside the round entry of
the vac housing by aligning the external pins
protruding from the port with the 2 channels
on each side of the upper vac tube (9) (Fig I).
3. Push the tube assembly onto the port as far as it
will go, and then rotate the lower vac tube (9) in
a clockwise direction until it can be rotated no
further.
 Thetubeshouldnowbesucientlylockedin
place and ready for use.
Fitting the Bag tube into the Collection bag.
Before the collection bag (10) can be fitted to the outlet of the blower vac,
the collection bag tube (7) must be fitted to the collection bag (10).
1. Layout the bag flat so you can see the full shape and identify where the
zip and the inlet hole are situated (Fig J).
I.
H.
LOOSEN
INLET HOLE
J. INLET HOLE
ZIP ZIP

24.5cc 4 Stroke Petrol Blower Vacuum
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754 (toll free)
AFTER SALES SUPPORT
(toll free)
24.5cc 4 Stroke Petrol Blower Vacuum
e-mail: [email protected]1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754
17

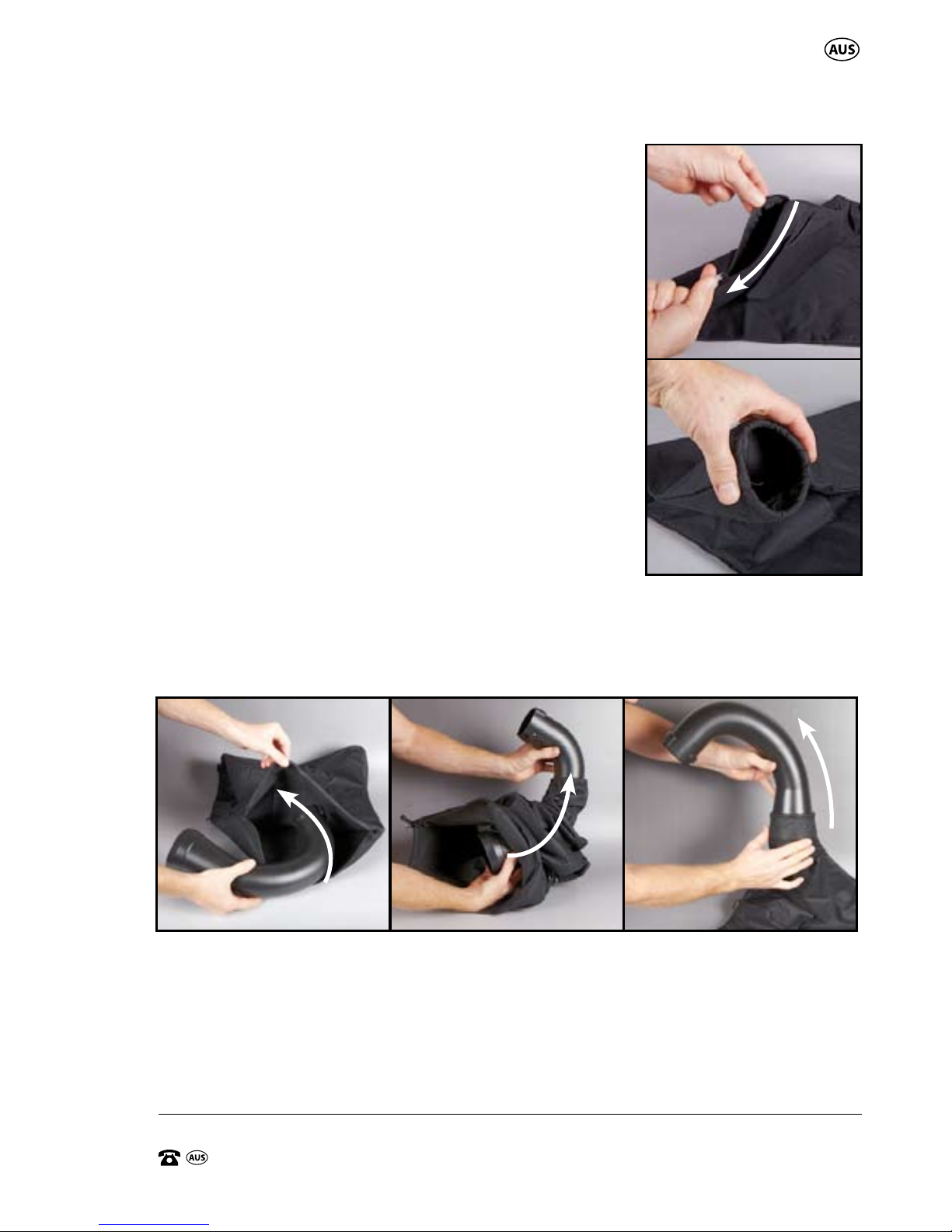

2. Open the zip at the end of the collection bag
(10) and extend and pull out the inlet hole to
create a funnel type shape (Fig K).
3. The bag tube (7) has a funnel shape at one end
and a bayonet type shape at the other which
will later join directly onto the blower vac. Place
the bag tube (7) inside the collection bag (10),
and push the bayonet end of the bag tube (7)
through the inlet hole of the collection bag (10).
You need to lift the walls of the inlet hole of the
collection bag (10) over the first parts of the
bayonet fitting of the bag tube (7). Once the
bag tube (7) has entered the inlet hole of the
collection bag (10), and past the bayonet part,
pull the bag tube (7) through the inlet hole until
the tube is firm in the outlet hole (Fig L).
NOTE: the bag can be rotated on the tube later
to find the most comfortable position.
4. Close the zip on the collection bag (10).
K.
L.

24.5cc 4 Stroke Petrol Blower Vacuum
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754 (toll free)
18
AFTER SALES SUPPORT
(toll free)
24.5cc 4 Stroke Petrol Blower Vacuum
e-mail: [email protected]1800 909 909
MODEL: №. EBV245A • 08/2016 • 52754
Fitting the Collection Bag
WARNING: Never operate the vacuum without collection bag attached.
Serious personal injury could be the result if the blower vac is used without
the bag fitted.
IMPORTANT. Before using this appliance as a vacuum, ensure the correct
vacuum tubes are in position as per the instructions on the previous page,
and the collection bag zip is done up before fitting.
NOTE: Always make sure the collection bag (10) zipper is closed when the
vacuum function is in use.
For use as a vacuum, the collection bag (10) must be fitted.
The collection bag (10), via the bag tube (7), fits on to the discharge port (24)
of the blower vac housing, where the blow tubes are fitted when used in
blowing operation.
If the blow tubes are fitted, these need to be removed by removing the
toolfree blower lock knob (25), then rotating the tube, in a clockwise
direction, as far as possible and then pulling the full blow tube/s assembly
off the blower (Fig M).
1. Align the arrows on the blower vac housing and
on the bag tube (Fig N).
2. Align the collection bag tube (7) onto the
discharge port (24) by aligning the external pins
protruding from the port with the 2 channels
on each side of the bag tube (7) . Then push the
bag tube (7) onto the discharge port (24) outlet
housing as far as possible (Fig N).
N.
M.
