Gardenline PBV26CC User manual

26cc Petrol Blower Vac
User Guide
After Sales Support
Now you have purchased a Gardenline®
product you can rest assured in the knowledge
that as well as your 3 year parts and labour
guarantee you have the added peace of
mind of dedicated helplines
and web support
AFTER SALES SUPPORT
1800 909 909
www.powertoolsupport.com
MODEL: PBV26CC PRODUCT CODE: 43669 10/2014
YEAR WARRANTY
2
AUS

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
2
Contents
03 Introduction
03 Environmental protection
04 Description of symbols
04 Specifications
05 General safety rules
08 Additional safety rules for blower vacs
09 Contents of carton
10 Parts list
11 Unpacking
11 Assembly
11 Setting up for the use as a blower
11 Attaching the blower tube
12 Setting up for the use as a vac
12 Fitting the vac tube to the blower vac housing
13 Fitting the collection bag
14 Mixing the fuel
15 Filling the fuel tank
16 Operation
16 Starting the blower
17 Stopping the blower
17 Blowing
17 Use of the petrol blower
18 Operation as a vacuum
19 Clearing a blocked impeller/mulcher
19 Use of the petrol blower vac
19 Emptying the collection bag
20 Maintenance
20 Checking the spark plug
21 Air filter
21 Servicing
22 Problems
22 Starting a flooded engine
23 Service Support and Accessories

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
3
Introduction
Your new Gardenline®Blower Vac will more than satisfy
your expectations. It has been manufactured under stringent
Gardenline®Quality Standards to meet superior performance
criteria.
You will find your new blower vac easy and safe to operate, and, with proper
care, it will give you many years of dependable service.
CAUTION. Carefully read through this entire instruction manual before using
your new Gardenline®Blower Vac. Take special care to heed the Cautions and
Warnings.
Your Gardenline®Blower Vac has many features that will make your job faster and
easier. Safety, performance, and dependability have been given top priority in the
development of this blower vac, making it easy to maintain and operate.
Environmental protection
Recycle unwanted materials instead of disposing of them as waste.
All tools, hoses and packaging should be sorted, taken to the local
recycling centre and disposed of in an environmentally safe way.
What your 3 year warranty means
Great care has gone into the manufacture of this product and it should there-
fore provide you with years of good service when used properly. In the event of
product failure within its intended use over the course of the first 3 years after
the date of purchase, we will remedy the problem as quickly as possible once it
has been brought to our attention. In the unlikely event of such an occurrence, or
if you require any information about the product please contact us via our after
sales support services, details of which can be found in this manual and on the
product itself.
After Sales Support TEL: [phone]
1
YEAR WARRANTY

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
4

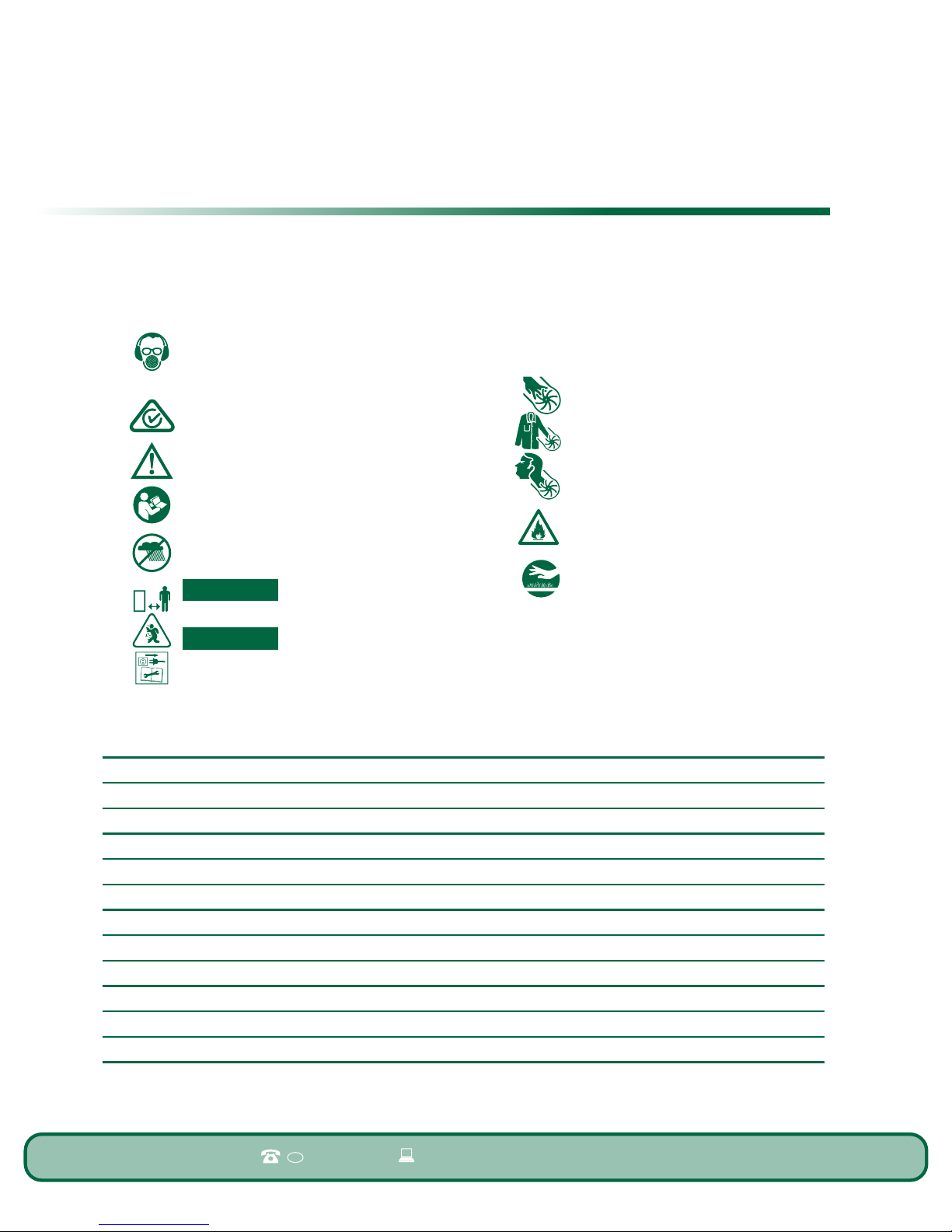

Description of symbols
The rating plate on your tool may show symbols. These represent important
information about the product or instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Conforms to relevant standards for
electromagnetic compatibility.
Warning.
Read the instruction manual carefully.
Do not use in the rain, or leave
outside while it is raining.
WARNING. Keep spectators away.
Beware of objects being flung out.
WARNING. Remove the plug from
the wall socket before carrying out
any kind of maintenance.
Specifications
Engine: 26cc, 2 stroke
Max. air velocity: 250 km/h
Max. air volume: 11 m3/min
Max. engine speed: 8500 RPM
Fuel tank capacity: 600ml
Fuel type: Unleaded petrol
Fuel mixture: Unleaded petrol/oil (40:1)
Collection bag: 35 Litre
Mulching ratio: 10:1
Spark Plug: Torch L7RTC
Equivalent spark plugs: CHAMPION RCJ6Y, NGK BPM6A
Noise label rating: 85dBA
Weight (no fuel): 5.7 kg
Noise label rating 85dBA (taken at 7.5 metres) you must wear ear protection
at all times.
General Information & Safety Instructions
2
Blowers and blower vacuums.
Rotating impeller blades can
cause sever injury.
Explosive material.
Extremely hot surface. Do
not touch a hot muffler, gear
box or cylinder. You may
get burned. These parts get
extremely hot from operation
and remain hot a short time
after the unit is turned off.

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
5
General safety rules for blower vacs
Training
• Read the instructions carefully. Get familiar with the controls and proper use of
the equipment.
• Only use the blower vac for the purpose for which it was designed, i.e. blowing
garden debris. Any other use can be hazardous, causing damage to the machine.
• Never allow children or people unfamiliar with these instructions to use the
blower vac. Local regulations may restrict the age of the operator.
• Never use the blower vac:
– When people, especially children, or pets are nearby.
– If the operator has taken medicine or substances that can affect his ability to
react and concentrate.
• Remember that the operator or user is responsible for accidents or hazards
occurring to other people or their property.
• Do not use unit around people with long hair.
• Dress appropriately do not operate with loose clothing ensure there is a gap
between the air intake and the operator.
Preparation
• While blowing or vacuuming, always wear sturdy footwear and long trousers.
Do not operate the equipment with bare feet or open sandals.
WARNING. DANGER! Engine fuel is highly flammable:
– Store fuel in containers specifically designed for this purpose.
– Refuel using a funnel and outdoors only. Do not smoke while re-fuelling or
whenever handling the fuel.
– Add fuel before starting the engine. Never remove the cap of the fuel tank or add
fuel while the engine is running or when the engine is hot.
General Information & Safety Instructions
2

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
6
– If fuel is spilled, do not attempt to start the engine but move the machine away
from the area of spillage and avoid creating any source of ignition until the fuel
has evaporated and the vapour dispersed.
– Replace all fuel tanks and containers caps securely.
• Substitute faulty silencers.
• Before use, always inspect the machine and check that the screws are not worn
or damaged.
• It is advisable to wear suitable eye protection when operating the blower vac.
Maintenance and storage
• Keep all nuts, bolts and screws tight to be sure the equipment is in safe working
condition. Regular maintenance is essential for safety and performance.
• Never store the equipment with fuel in the tank inside a building where vapour
may reach a flame or a spark or a source of extreme heat.
• Allow the engine to cool before storing in an enclosed space.
• To reduce the re hazard, keep the engine, exhaust silencer, battery compartment
(if applicable) and fuel storage area free of grass, leaves, or excessive grease.
• If the fuel tank has to be drained, this should be done outdoors and when the
engine is cool.
• For reasons of safety, do not use the equipment with worn or damaged parts.
Parts are to be replaced and not repaired. Parts that are not of the same quality
can damage the equipment and be dangerous for your safety.
• Fuel goes off fairly quickly. If you nd your blower vac does not start, 1st change
the fuel in the tank with newly purchased fuel.
Service
• Have your power tool serviced by a qualied repair personnel using only
identical replacement parts. This will ensure that the safety of the power tool is
maintained.
General Information & Safety Instructions
2

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
7
Operation safety instructions
WARNING. Stop the engine and unplug the spark plug before any repairs or
maintenance operations.
• Check that all nuts, bolts and screws are well tightened before every use.
• Do not run the engine in an enclosed and/or poorly ventilated area. The gas of
the engine contains carbon monoxide, which is dangerous to your health.
• Work only when there is sufcient light.
• Do not use the blower when it is raining or when the grass is wet.
• Caution must be taken while blowing and vacuuming on slopes.
• Turn off the engine if you must leave the blower vac unattended.
• Never change the rated speed of the engine in any way.
• Stop the engine and remove the spark plug cover in these cases:
– Before any maintenance, repairing or checking operations.
– If you leave the blower vac unattended.
– If the blower vac vibrates in an abnormal way, take the blower vac to an
authorised service centre.
– Check the bolts and nuts regularly. Bolts and nuts may vibrate loose over time.
WARNING. Fuel is highly flammable.
• Keep fuel in a jerry can specially made for this purpose.
• Fill the fuel tank with a funnel and outside. Do not smoke or use a mobile phone
during this process.
• Fill with Fuel oil mix before starting the engine. Never open the cap of the fuel
tank to add gasoline while the engine is running or still hot.
• Do not start the engine if there is spilt fuel on the blower vac or in the area
surrounding. Take the blower away from the zone where fuel has been spilt and
avoid any contact from a hot source as long as the spilt gasoline is completely
evaporated.
• Tighten the fuel tank cap and jerry can cap tightly.
General Information & Safety Instructions
2

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
8
Additional safety rules for petrol blower vacs
• Do not operate in a hazardous location. Such areas include where there is a risk
of explosion of petrol fumes, leaking gas or explosive dust.
• Do not operate in a conned area. Exhaust gases, smoke or fumes could reach
dangerous concentrations.
• Protect your blower vac. This blower vac is NOT WEATHERPROOF and should not
be exposed to direct sunlight, high ambient temperature and damp, wet or high
humidity conditions.
• Do not smoke while refuelling. This is potentially dangerous as it may ignite the
fuel and cause an explosion.
• Take care not to spill fuel. When refuelling the blower vac ensure that the motor
has been switched off. Prevent the spilling of fuel as this may also ignite with the
hot motor. Never refuel whilst the engine running.
• Be careful where you store the blower vac. Store the blower vac in a dry area
away from flammable liquids.
• Keep your distance. The blower vac emits exhaust fumes. Ensure bystanders keep
a safe distance.
• Ensure you use oil-mix fuel. Ensure that you mix 40 parts unleaded fuel to 1
part engine grade oil. If not, the engine will overheat and cause damage to your
blower vac.
• Never ll fuel tank indoors. Never ll fuel tank when engine is running or hot.
Do not smoke when filling fuel tank.
• Stop the engine before re-fuelling.
• Stop the engine and disconnect the spark plug wire:
– If the blower vac vac starts to vibrate abnormally (find and remove the cause of
the vibration immediately).
• Reduce the throttle before turning off the engine and turn the fuel off when you
have finished blowing or vacuuming.
• The user is responsible for the safety of other people, animals and objects in the
working area. Keep children and domestic animals at a safe distance while the
blower vac is in use.
General Information & Safety Instructions
2

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
9
Unpacking
Due to modern mass production techniques, it is unlikely that your petrol blower
vac is faulty or that a part is missing. If you find anything wrong, do not operate
the tool until the parts have been replaced or the fault has been rectified. Failure
to do so could result in serious personal injury.
Contents of carton
1 x 26cc Blower Vac 1 x 35L Collection Bag with Shoulder Strap
1 x Blow Tube (two parts) 1 x Vacuum Tubes (two parts)
4 x Tube Assembly Screws 1 x Fuel Mixing Bottle
1 x spare inlet cover screw 1 x Spark Plug Wrench
1 x Instruction Manual 1 x Warranty Card & Details
General Information & Safety Instructions
2

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
10
Parts List
5
13
11
12 1
4
18
2
16
3
9
7
10
15
8
6
3
14
1. Throttle trigger
2. Rubber grip handle
3. Motor
4. Lower blow tube
5. Blow tube nozzle
6. Recoil starter
7. Petrol cap
8. Spark plug
9. Primer
10. Air filter cover
11. Outlet exhaust
12. ON/OFF button
13. Tube locking screw
14. Fuel tank
15. Choke
16. Bag tube
17. Shoulder strap
(not shown)
18. Collection bag
19.Lower Vac tube
20.Vac Tube nozzle
21.Intake Cover
19
21
20

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
11
Assembly
Preparation of the blower vac prior to use
The petrol blower vac requires some assembly prior to use. This includes joining
of the vac tubes, joining of the blower tubes, and depending if the tool is to be
used for blowing or vac, fitting of the tube assembly to the housing and fitting
the collection bag assembly to the housing. A medium size phillips screw driver is
required to make the above assemblies.
Setting up for use as a blower.
IMPORTANT. Blower tube installation affects both blower balance and
performance. Both tube and nozzle must be screwed together.
WARNING. Danger from rotating impeller!
Stop the engine before installing or removing the blower tubes. Never perform
any maintenance or assembly procedures on this machine while the engine is
running.
Attaching the blower tube
1. Place the blower upright on the ground
or on a sturdy work surface.
2. Push the blower tube nozzle tube (5) over
the lower blow tube (4), lining up the
locking pins.
3. Rotate the blow tube nozzle clockwise on
the lower blow tube locking it into place.
4. Lock the tubes together using the 2
screws provided.
5. Align and then push the assembled
blower tube assembly over the discharge
port on the blower outlet and rotate until
locks in place and the screw hole can
be seen.
Getting Started 4

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
12
6. Screw the tubes together using the screws provided.
Check the intake cover. For using the blower vac as a blower,
the vac tubes should not be fitted, but the intake cover MUST
be closed and secured with the supplied screw.
The blower vac is now ready for use as a blower.
Note. The vac tubes and the collection bag are not required
for the blower operation.
Setting up for use as a vac

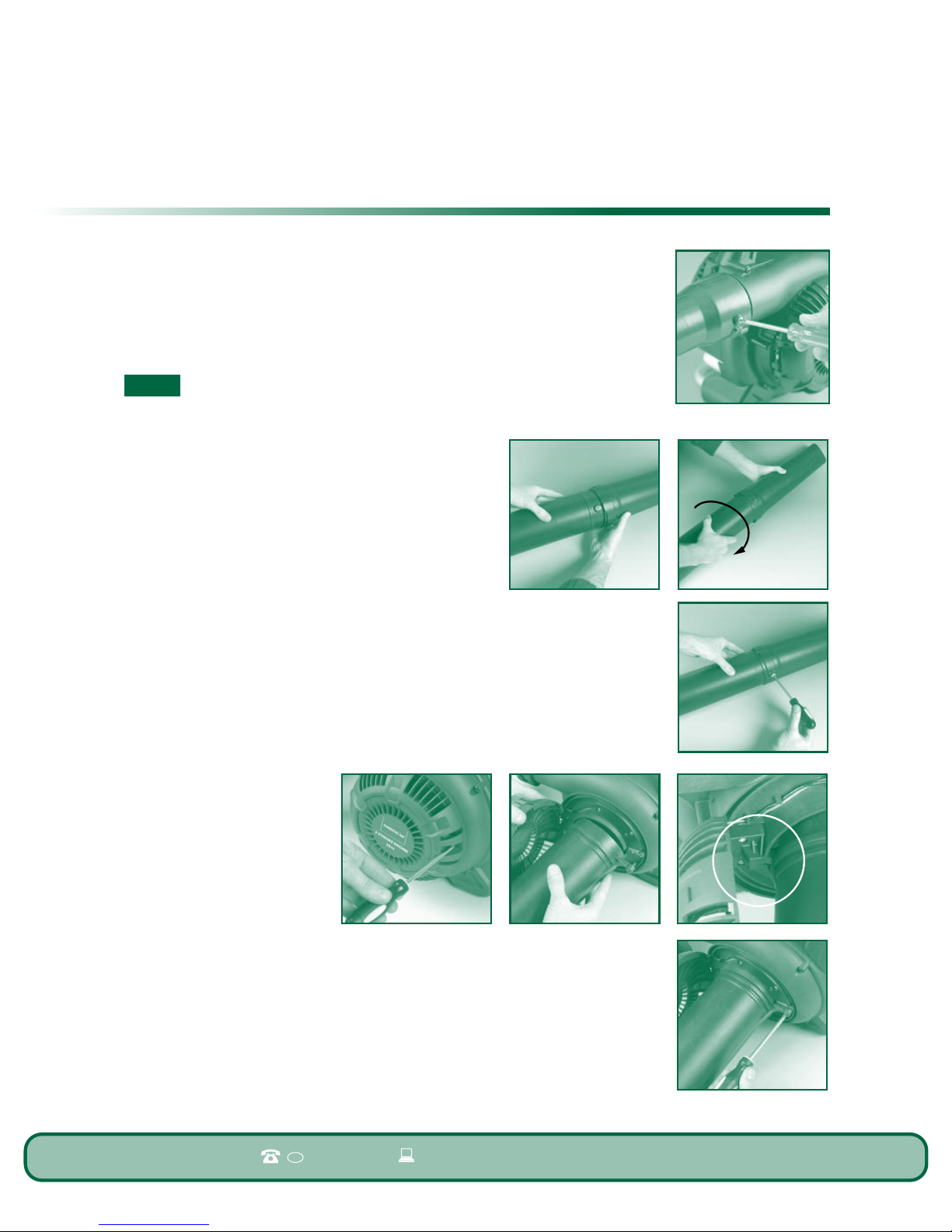

Assembly of the vac tubes
1. Align the lower vac tube and the vac tube
nozzle and slide the vac tube inside the vac
tube nozzle until it will enter no more.
2. Rotate the two tubes and lock them
together.
3. Fix the two tubes together with the supplied assembly screws.
Fitting the vac tube to the blower vac housing
1. Using a Phillips type screw driver loosen and remove the
single assembly screw
in the intake cover.
2. Open the intake cover
and insert the vac
tube so it fits inside
the round entry of
the vac housing. It is
important to locate
the square tab of the vac tube under and into the locating
keyway as the vac tube is fitted. (Refer to pic)
3. Secure the tube in place with the screw previously removed
from the inlet cover.
Instructions 5

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
13
Fitting the collection bag
WARNING Never operate the vacuum without collection bag attached.
Serious personal injury could be the result if the blower vac is used without the
bag fitted.
IMPORTANT Before using this appliance, ensure the vacuum bag tube is in
position and the zip is done up.
Note. Always make sure the bag zipper is closed when the unit is in use.
For use as a vacuum, the collection bag (18) must be fitted.
The collection back fits on to the outlet of the blower vac
housing, where the blow tubes are fitted when used in
blowing operation. If the blow tubes are fitted, these need to
be removed. Remove the two retaining screws, rotate the tube
as far as possible and then pull the tube off the blower.
1. Align the collection bag tube to the outlet of the vac. Push the
collection bag tube onto the outlet housing as far as possible.
2. Rotate the tube until the retaining holes
align. Check the orientation of the tube
to ensure the tube is pointing downward
and NOT upward. (Refer pic). If upward
rotate the tube in the reverse direction
to assembly, and remove from vac. Turn
the tube 180° and refit. Again, check the
orientation of the tube with the pic.
3. Fit the two retaining screws to hold the
collection tube in place.
Note. If your collection bag becomes worn replacement
bags are available for purchase. Please refer to page 23 for
further detail.
Instructions 5

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
14
Mixing the fuel
ENGINE FUEL: MIX AT 40:1
WARNING. When mixing fuel it is recommended to
wear eye protection, and to mix fuel in a well ventilated location.
IMPORTANT. Use good quality air cooled 2-stroke engine oil.
This product is powered by a 2-stroke engine and requires the pre-mixing of fuel
with 2-stroke oil.
1. Use fresh unleaded petrol and a good grade of 2-stroke oil for air cooled
2-stroke engines.
2. Mix the petrol and oil in an approved container. Never mix fuel directly in the
blower fuel tank.
A fuel mixing container is provided with this blower.
Directions. Place the plastic mixing bottle on a level surface.
Fill with unleaded fuel in the container to the top 500 marker
in the column GAS.
Then with 2-stroke oil, fill to the top line maker in the 40:1
column. Replace the cap on the mixing bottle and shake the
container to mix the fuel and oil.
The fuel is now correctly mixed at 40:1 and is ready to be
poured into the petrol tank of the blower.
NOTE,
this container provided is NOT a fuel storage container.
WARNING. Never use any type of pre-mixed fuel/oil direct from fuel stations.
This may include special blends intended for use in mopeds, motorcycles, etc.
3. Mix the fuel thoroughly and also each time before fuelling.
4. Always pre-mix in small quantities. Never mix quantities larger than what will be
used in a 30 day period.
Note.
Do not store petrol in plastic containers.
Keep fuel out of the reach of children
.
Instructions 5
40:1

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
15
Instructions 5
Filling the fuel tank
WARNING. Always shut off the engine before fuelling.
Never add fuel to a machine with a running or hot engine. Move at least 3 m (10
ft) away from the re-fuelling site before starting engine. Do not smoke when re-
fuelling or operating the blower.
WARNING. Do not use fuel that is more than 2-3 months old. Empty the tank
during longer breaks and fill it up again as soon you wish to use the blower
again.
Note. It is normal for smoke to be emitted from a new engine during and after
first use.
1. Place the blower upright on the ground or on a sturdy bench and wipe any debris
from around the fuel cap.
2. Unscrew the petrol cap (7) and pour the mixture into the
tank using a funnel (not supplied).
3. Be careful not to spill any mixture. If this happens,
wipe up the spill with a clean rag.
4. Start the engine at least three metres away from the area
where the fuel tank has been filled up in order to avoid any
risk of fire.
• Danger of re and burn injuries.
• Always use extreme care when handling fuel! Fuel is highly
flammable.
• Never attempt to fuel the blower if the fuel system
components are damaged or are leaking.
• Never attempt to refuel the blower while the engine is
running or still warm, allow it to cool before fuelling.
• Never smoke or light any res near the blower or fuels.
• Always transport and store fuels in an approved container.
• Never place ammable material close to the engine mufer.
• Do not use petrol which contains ethanol or methanol as it may
damage the fuel lines and other engine parts.

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
16
Instructions 5
• Mix only enough fuel for your immediate needs. If fuel must be stored longer
than 30 days, it should first be treated with a stabilizer or similar product.
Operation
During operation of the blower it is recommended to wear eye protection, a dust
mask, and full hearing protection.
Choke control
If the engine is cold you will need to use the choke control.
Start position (choke closed).
Run position (choke open).
Starting the blower
To start the engine, proceed as follows:
1. Press the primer (9) 5 to 10 times or until
there are no air bubbles are visible in the
fuel discharge line.
Note. This is not necessary if the engine
is warm.
2. If the engine is cold, move the choke (15) lever upwards closed.
Note. Again this is not necessary if the engine is warm.
3. Press the I symbol on the On / Off switch to turn the ignition ON.
4. Place the blower vac on the ground and hold the blower vac handle firmly with
your left hand.
5. Pull the recoil starter (6) until the engine
sounds like it wants to run or starts.
6. Slowly move the choke lever halfway
down. If the motor is not running re try to
start in the half way choke position.
7. Allow the motor to run for approx 20 sec
in the half choke position and then slowly
move to the full run position.

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
17
Instructions 5
8. Allow the engine to run for 10 seconds to let it warm up.
9. To increase the engine speed, increase pressure on the throttle trigger. To decrease
the engine speed, reduce pressure on the throttle trigger. Release throttle trigger
(1) completely to return to idle.
Note. If the motor stalls, move the choke back to the full choke position and
repeat from point 4 unless the motor is already warm. If already warm, start in
the half or no choke position.
Stopping the blower
Stop the engine by pressing the On /Off switch on the symbol
marked “O” to turn off the ignition.
Blowing
Start the blower engine, as previously described. Hold the
blower firmly about 10–20 cm from the ground and move it in
a sweeping motion from left to right, directing the debris to
the desired location.
• Use low throttle settings when clearing lightweight materials from around lawns
or shrubbery.
• Use medium to higher throttle settings to move lightweight grass or leaves from
driveways or paths.
• Use full throttle when moving heavy loads such as dirt or snow.
IMPORTANT. Blower noise increases at higher throttle settings. Always use the
lowest throttle setting required to get the job done.
• Never operate the blower unless it is properly assembled and in good working
condition.
• Never operate the blower without a properly functioning mufer and spark
arrestor installed.
Use of the petrol blower
• The petrol blower vac can efciently move a wide variety of debris ranging from
grass clippings to gravel. As a general rule try to operate the blower at the lowest
throttle setting necessary to get the job done.
• Prior to use of the blower ensure you have read and understood this instruction
manual.

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
18
Instructions 5
• Ensure you are wearing suitable clothing and also safety equipment like safety
glasses, ear protection and a mask if necessary.
• Keep a gap between the air intake and clothing and body parts as blocking
the intake will reduce the performance of the blower and may result in injury.
Operating as a vacuum
IMPORTANT. Ensure the vacuum bag is securely fitted and the
zip is closed.
The blower vac is fitted with safety switches to prevent the
operation of the unit when the large side door is opened
where the vac tube is to be fitted.
NEVER attempt to open the side cover when the unit is
operating.
NEVER attempt to use the vac without the bag secured to the housing.
This appliance is designed to be used as a garden vacuum in dry conditions.
Debris to be collected should be in a dry condition to aviod jamming and clogging
of the inlet tube.
1. Fit the vacuum tubes as previously mentioned.
2. Start engine as previously described.
3. Place the shoulder strap over your head, onto your shoulder, and adjust it
properly.
4. Hold the vacuum, tilting the blower vacuum tube slightly and use a sweeping
action to collect light debris. Small leaves and twigs will flow into the vacuum bag
and be mulched as they pass through the fan housing, allowing the vacuum bag
to hold more debris.
Warning. Avoid loose stones, glass and cans. The blower vac is not a garbage
collection unit and will be damaged if this type of debris is drawn into the vac.

Instructions 5
19
SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
Clearing a blocked impeller/mulcher
WARNING. Ensure the blower/vacuum ON/OFF switch is in the STOP (0) position
and the spark plug cover (8) is removed to prevent accidental starting which may
cause serious injury.
1. Switch the On/Off switch to the STOP (O) position. Wait for the impeller to stop
rotating.
2. Disconnect the spark plug cover (8) to prevent the unit from starting.
3. Remove the blower/vacuum tube and/or the vacuum bag.
4. Carefully remove the material blocking the tube or impeller. Inspect the blades
to ensure there is no damage. Rotate the impeller blades by hand to ensure the
blockage is completely cleared.
5. Reinstall the vacuum bag and blower/vacuum tube.
6. Reconnect the spark plug cover.
7. Empty the collection bag.
Use of the petrol blower vac
The GARDENLINE® Petrol Blower Vacuum can efficiently collect a wide variety
of debris ranging from grass clippings and leaves. Debris should be collected or
vacuumed in a dry condition. As a general rule try to operate the blower vacuum
at the lower throttle setting necessary to get the job done.
• Prior to use of the blower vacuum ensure you have read and understood this
instruction manual.
• Ensure you are wearing suitable clothing and also safety equipment like safety
glasses, ear protection and a mask if necessary.
• Keep a gap between the air intake and clothing and body parts as this will reduce
the performance and may result in injury.
Emptying the collection bag
The collection bag should be emptied as soon as a noticeable reduction in
performance of the vac is noticed. In general it is suggested to empty the bag
when it becomes 1/2 full so as to keep the overall weight down and also to
maintain max performance.
When emptying the debris bag it is suggested to wear a face mask and eye
protection.

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]
AFTER SALES SUPPORT 43669
20
It is not necessary to remove the bag from the vac machine, but if it is preferred,
you need to remove the two retaining screws on the vac outlet tube and rotate
the tube off the vac housing.
With the bag assembly on or off the vac, open the zip on the bottom edge of the
bag, and empty the contents from the bag. It is suggested to give the bag a good
shake to dislodge as much dust as possible.
Check the teeth on the zip are not clogged or fouled with debris. Close the zip
fully. Replace the bag assembly on to the vac outlet if the bag was removed.
Maintenance
WARNING. Before performing any
maintenance on this blower, stop the
engine and disconnect the spark plug wire.
Checking the spark plug
Check the spark plug every 10 - 15 hours
of use.
1. Remove the spark plug cover.
2. Use the spark plug wrench to remove
the spark plug, by turning it counter-
clockwise.
3. Clean and adjust the spark plug gap to 0.6
- 0.7mm. Replace any damaged or visibly
worn plug with a CHAMPION RCJ6Y, NGK
BPM6A or equivalent spark plug.
4. Install the spark plug finger tight in the cylinder head, then tighten it firmly with
the spark plug wrench.
Note. If your spark plug becomes worn replacements are available for purchase.
Please refer to page 23 for
further detail.
Instructions 5
