PANOPTIX™LIVESCOPE™

INSTALLATION INSTRUCTIONS

Important Safety Information

WARNING

See the Important Safety and Product Information guide in the chartplotter product box for product warnings

and other important information.

You are responsible for the safe and prudent operation of your vessel. Sonar is a tool that enhances your

awareness of the water beneath your boat. It does not relieve you of the responsibility of observing the water

around your boat as you navigate.

CAUTION

Failure to install and maintain this equipment in accordance with these instructions could result in damage or

injury.

To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling,

cutting, or sanding.

NOTICE

When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.

To obtain the best performance and to avoid damage to your boat, you must install the Garmin® device

according to these instructions.

Read all installation instructions before proceeding with the installation. If you experience difficulty during the

installation, go to support.garmin.com for more information.

Software Update

You must update the Garmin chartplotter software when you install this device. For instructions on updating

the software, see your chartplotter owner's manual at support.garmin.com.

Tools Needed

• Drill

• 4 mm (5/32 in.) and 3.2 mm (1/8 in.) drill bits

• Masking tape

• #2 Phillips screwdriver

• Marine sealant

• 32 mm (1 1/4 in.) hole saw (optional)

• Cable ties (optional)

GUID-8ABE5659-3192-4519-8A48-66421E004620 v5March 2021

Mounting Considerations

• You must angle the transducer correctly for your selected mode to work properly.

• You must install the sonar module in a location with adequate ventilation where it will not be exposed to

extreme temperatures.

• You should mount the transducer in a location where it will not be jarred when launching, hauling, or storing.

• You should mount the transducer in a location where it is not behind strakes, struts, fittings, water intake or

discharge ports, thru-hull transducers, or anything that creates air bubbles or causes the water to become

turbulent. Turbulent water may interfere with the sonar beam.

• You should mount the transducer as close to the center line of the boat as possible.

•When mounted farther from the center of the transom, a greater deadrise can cause the boat hull to

interfere with the sonar beam , and can cause inconsistent detection on the opposite side of the boat .

The transducer is shown from behind.

• On single-drive vessels, you must not mount the transducer in the path of the propeller.

• On twin-drive vessels, you should mount the transducer between the drives, if possible.

• You should mount the sonar module in a location where the LEDs are visible, where the cables can be

connected, and where the device will not be submerged.

Cable Considerations

NOTICE

Zip ties and cable clamps can over-tighten and damage or break the cable, or cause cable fatigue due to

repeated rotation of the motor.

You should use black electrical tape to secure the cable above and below the rotating joint. If you secure the

cable with zip ties, do not over-tighten the zip ties.

You should secure the cable above and below the pivot joint of your trolling motor.

You should create a service loop at least 25 cm (10 in.) long in the cable, with the rotating joint centered on the

loop.

Routing the Transducer Cable

You should test-fit the transducer and cable before installation.

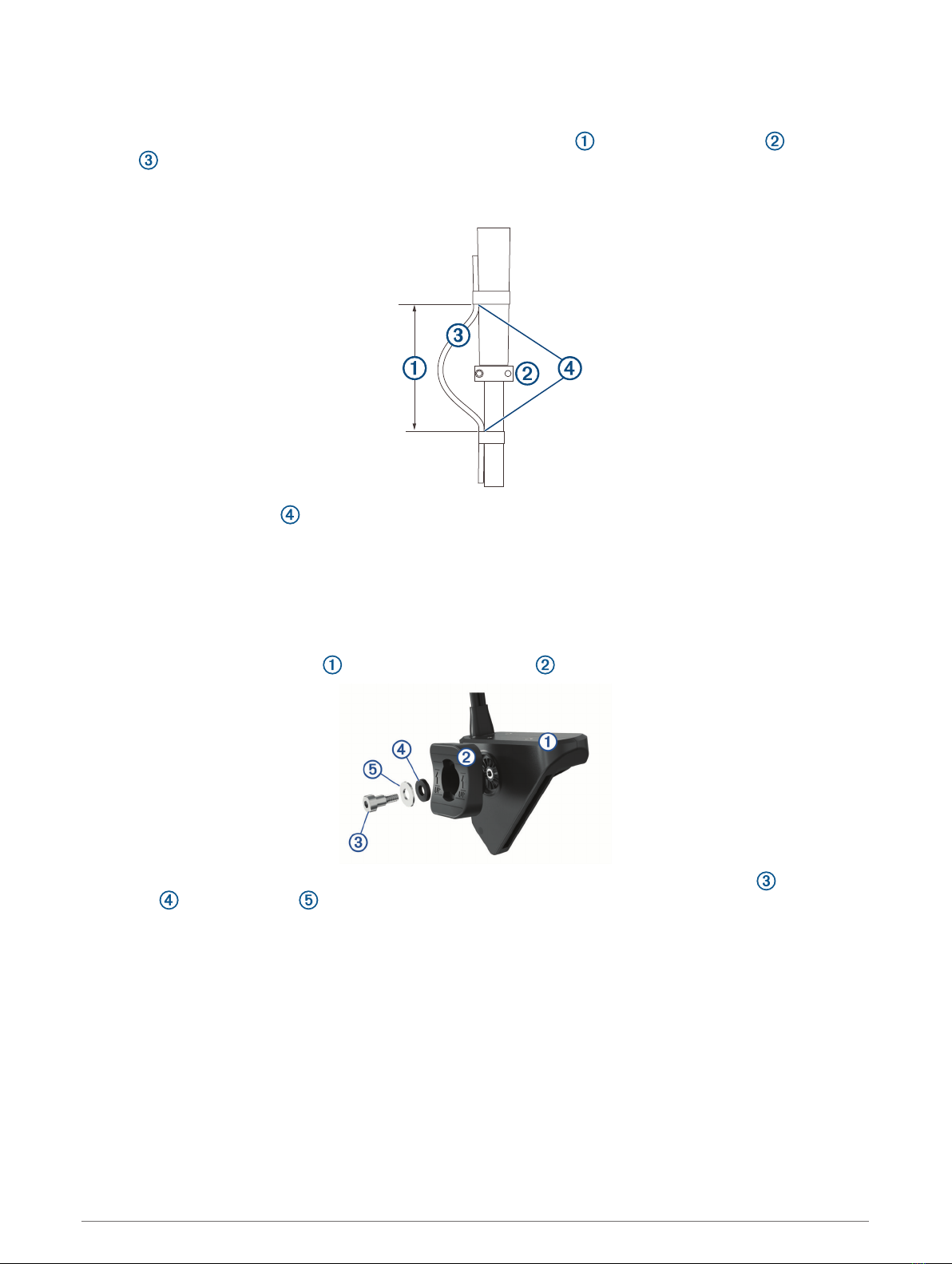

1Allow a loose gap of at least 10 cm ( 4 in.) above and 10 cm (4 in.) below the rotating joint to create a

loop in the cable. The loop must be large enough to allow full rotation of the transducer in both

directions. Allow a minimum of 25 cm (10 in.) of cable to cover the 20 cm (8 in.) section between mounting

points.

2Use black electrical tape to secure the transducer cable to the shaft.

3Test the full rotation of the trolling motor to ensure the cable clears the rotating joint and is not pulled tight

due to tension during rotation.

Installing the Transducer on a Trolling Motor

Assembling the Trolling Motor Barrel Mount Hardware

1Align the top of the transducer with the top of the bracket .

2Using the included hex wrench, attach the bracket to the transducer with the shoulder screw , rubber

washer , and flat washer .

NOTE: You must fully tighten the mount to the transducer. The recommended torque applied to the shoulder

screw is 2.5 lb-ft. (3.4 N-m).

Installing the Transducer on a Trolling Motor

NOTICE

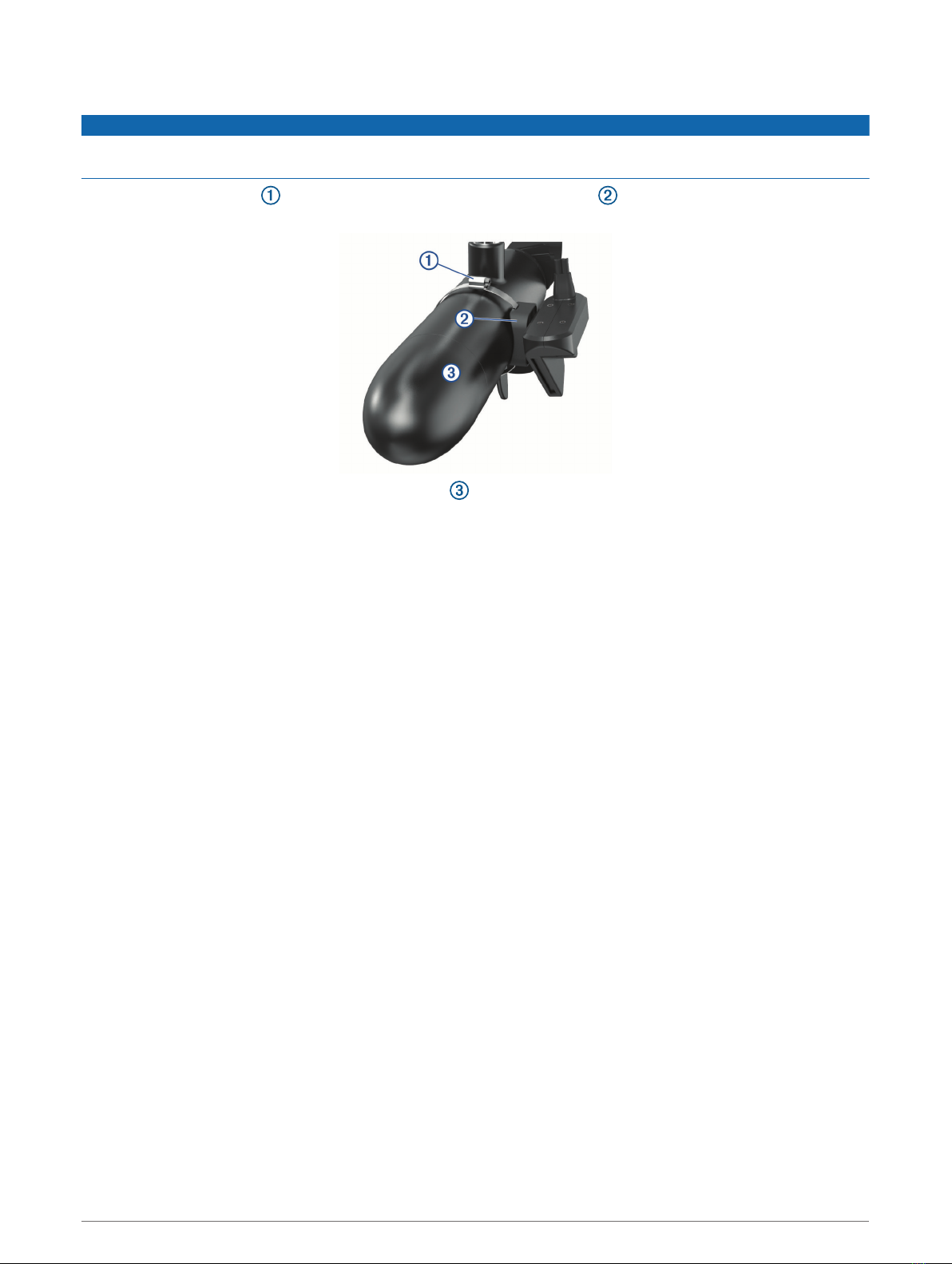

You must secure the transducer cable to the shaft or other secure location during installation. Damage to the

transducer cable wires or cable jacket can cause transducer failure.

1Insert the hose clamp through the slot on the trolling motor mount until equal lengths extend on both

sides of the mount.

2Secure the hose clamp around the trolling motor .

NOTE: Do not rotate the transducer.

3Secure the transducer cable to the motor shaft or other secure location.

4Route the transducer cable to the installation location of the sonar module while taking these precautions.

• You should not route the cable close to electrical wires or other sources of electrical interference.

• You must route the cable so it is not pinched when the trolling motor is deployed or stowed.

NOTE: If necessary, for extra cable length you can connect an optional extension cable, available at

buy.garmin.com or from your Garmin dealer.

5Position the transducer to your desired angle (Trolling Motor Mount Orientation, page 5).

Trolling Motor Mount Orientation

The orientation depends on which side of the trolling motor you have mounted the transducer on, and your

desired field of view.

TIP: No tools are necessary to change the orientation from forward to down. Turn the mount one click to

change the orientation from forward to down.

Starboard side, forward view

Starboard side, downward view

Port side, forward view

Port side, downward view

Installing the Transducer on a Trolling Motor Shaft

Trolling Motor Shaft Bracket Orientation

The trolling motor shaft bracket features an 8-degree cant to reduce the effects of the trolling motor barrel

interference with the transducer beam. You must orient the arrow and the narrow end of the angle to the

top when you attach the bracket to the trolling motor shaft.

Assembling the Trolling Motor Shaft Mount Hardware

With the trolling motor bracket oriented correctly (Trolling Motor Shaft Bracket Orientation, page 5), use the

included hex wrench to attach the transducer to the trolling shaft bracket with the shoulder screw ,

flat washer , and rubber washer .

NOTE: You must fully tighten the mount to the transducer. The recommended torque applied to the shoulder

screw is 2.5 lb-ft. (3.4 N-m).

Installing the Transducer on the Trolling Motor Shaft

NOTICE

You must secure the transducer cable to the shaft or other secure location during installation. Damage to the

transducer cable wire or the cable jacket can cause transducer failure.

You should mount the transducer as far from the motor as possible.

You should use the included rubber insert on a 25 mm (1 in.) trolling motor shaft.

1Using the included hex wrench, insert the M6 screws and attach the shaft trolling bracket to the

transducer bracket around the trolling motor shaft.

2Secure the transducer cable to the motor shaft or other secure location.

3Route the transducer cable to the installation location of the sonar module while taking these precautions.

• You should not route the cable close to electrical wires or other sources of electrical interference.

• You must route the cable so it is not pinched when the trolling motor is deployed or stowed.

4Position the transducer to your desired angle (Trolling Motor Shaft Orientation, page 7).

Trolling Motor Shaft Orientation

The angle of installation depends on the side of the trolling motor shaft you mount the bracket on, and your

desired field of view.

TIP: No tools are necessary to change the orientation from forward to down. Turn the mount one click to

change the orientation from forward to down.

Port side, forward view

Port side, downward view

Starboard side, forward view

Starboard side, downward view

Installing the Transducer on a Transom

Optional Spray Shield Accessory

If necessary, to reduce spray from the transducer, you can install an optional spray shield (010-12406-00). Go

to buy.garmin.com or contact your Garmin dealer for information.

Assembling the Transom-Mount Hardware

1Attach the transducer mount bracket to the transducer using the mounting screws and lock

washers .

2Attach the transducer mount bracket to the transom mount bracket using the bolts , flat washers ,

and lock nuts .

NOTE: The recommended torque applied to the bolts is 15 lb-ft. (20 N-m).

Installing the Transom-Mount Hardware

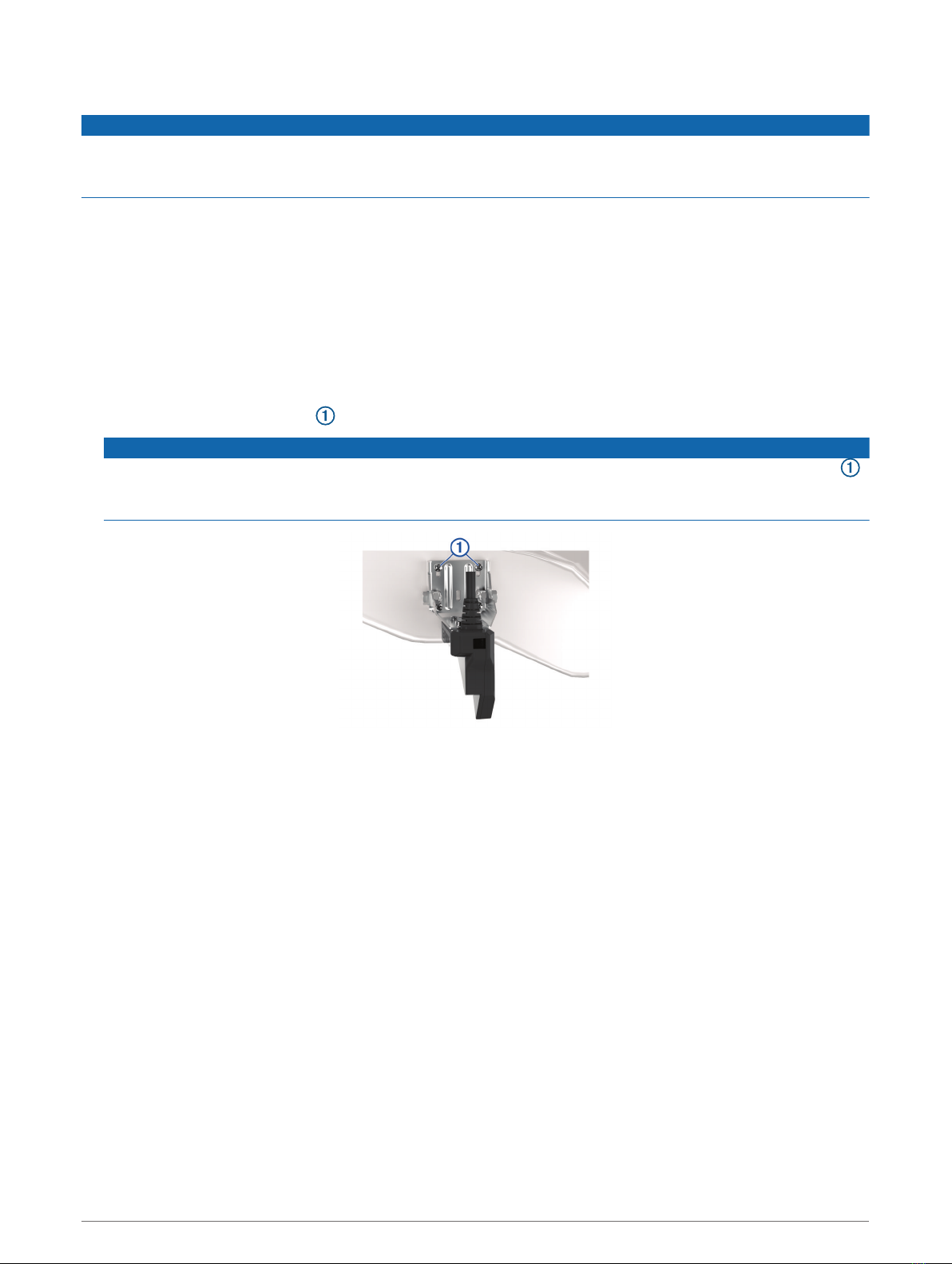

NOTICE

If you are mounting the bracket on fiberglass with screws, it is recommended to use a countersink bit to drill a

clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer

when the screws are tightened.

1Place the transducer mount so the top of the transducer is even with or up to 12.7 mm (1/2 in.) above the

bottom edge of the transom.

2Using the transom mount as a template, mark the location of the pilot holes.

3Wrap a piece of tape around a 4 mm (5/32 in.) bit at 19 mm (7/10 in.) from the point of the bit, to avoid drilling

the pilot holes too deep.

4If you are installing the bracket on fiberglass, place a piece of tape over the pilot-hole location to reduce

cracking of the gel coat.

5Using the 4 mm (5/32 in.) bit, drill the pilot holes approximately 19 mm (3/4 in.) deep at the marked locations.

6Apply marine sealant to the included 20 mm screws.

7Using the four 20 mm screws , attach the transducer mount to the transom.

NOTICE

When mounting the transducer, be sure to secure all four corners of the mount with the included screws .

This is especially important on vessels that operate at high speeds. If only the top or bottom holes are used,

the bracket may bend or break when the vessel moves at high speeds, dislodging the transducer.

8If you must route the cable through the transom, choose a pilot-hole location well above the waterline and

mark it.

9If you marked a pilot hole in step 8, use a 32 mm (1 1/4 in.) hole saw to drill a pass-through hole completely

through the transom.

10 Route the transducer cable to the sonar module:

• If you are routing the cable using a pass-through hole, push it through the hole you drilled in step 9.

• If you are not routing the cable using a pass-through hole, route the cable up and over the top of the

transom .

You should avoid routing the cable close to electrical wires or other sources of electrical interference.

Mounting the GLS 10 Black Box Device

NOTICE

If you are mounting the device in fiberglass, when drilling the pilot holes, use a countersink bit to drill a

clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer

when the screws are tightened.

NOTE: Screws are included with the device, but they may not be suitable for the mounting surface.

Before you mount the device, you must select a mounting location, and determine what screws and other

mounting hardware are needed for the surface.

1Place the black box device in the mounting location, and mark the location of the pilot holes.

2Drill a pilot hole for one corner of the device.

3Loosely fasten the device to the mounting surface with one corner, and examine the other three pilot-hole

marks.

4Mark new pilot-hole locations if necessary, and remove the device from the mounting surface.

5Drill the remaining pilot holes.

6Secure the device to the mounting location.

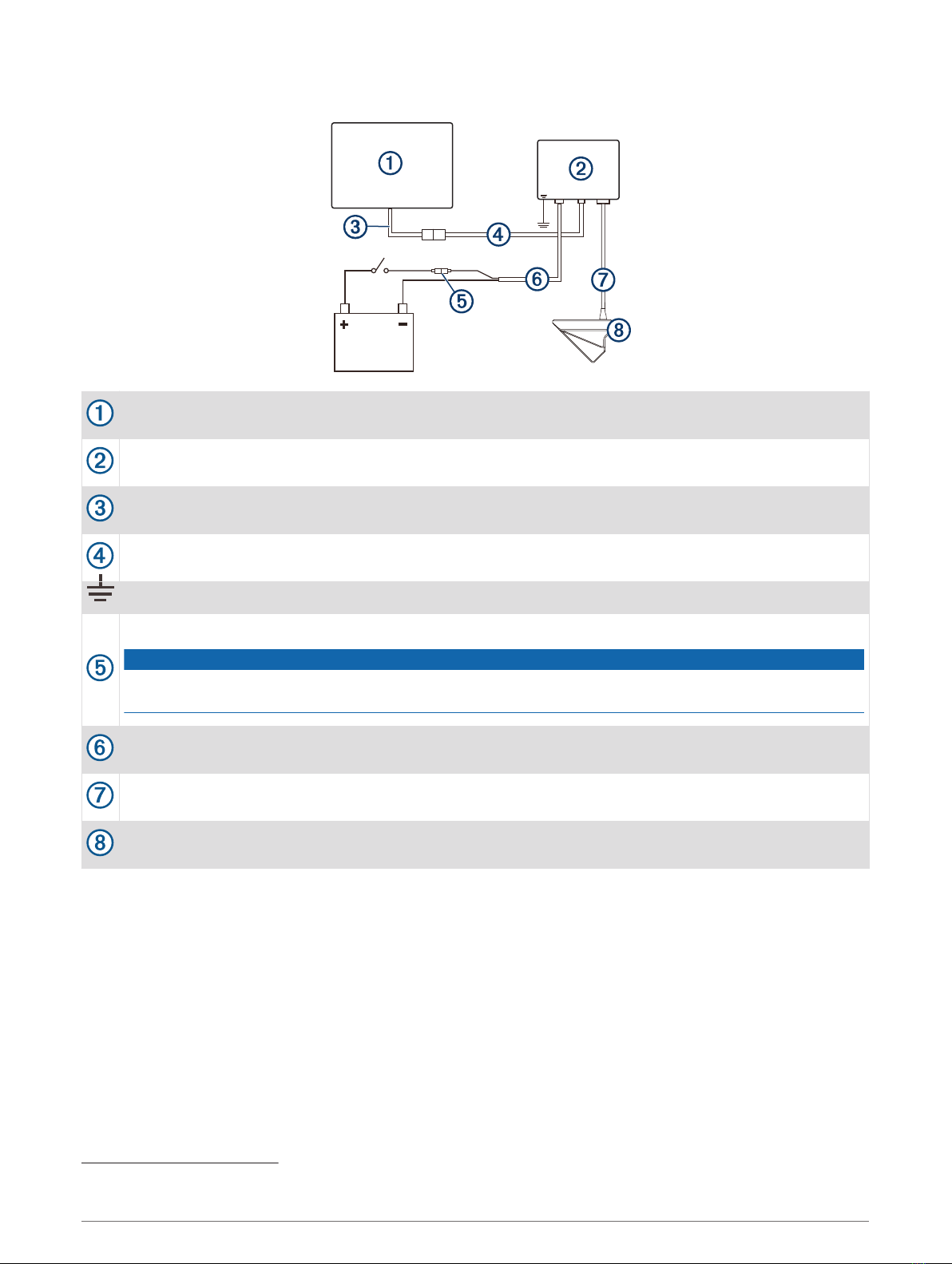

Installation Diagram

Compatible Garmin chartplotter1

Panoptix LiveScope GLS 10 sonar module

Garmin Marine Network adapter cable (Garmin part number 010-12531-01)

Garmin Marine Network cable, small connector to NETWORK port

Water ground

7.5 A, fast-acting fuse

NOTICE

Do not remove the fuse. Removing the fuse may cause the device to malfunction and will void the

warranty.

Panoptix LiveScope GLS 10 power cable to POWER port

Transducer cable to XDCR port

Panoptix LiveScope LVS32 transducer

1 For chartplotter connections, refer to your chartplotter installation instructions.

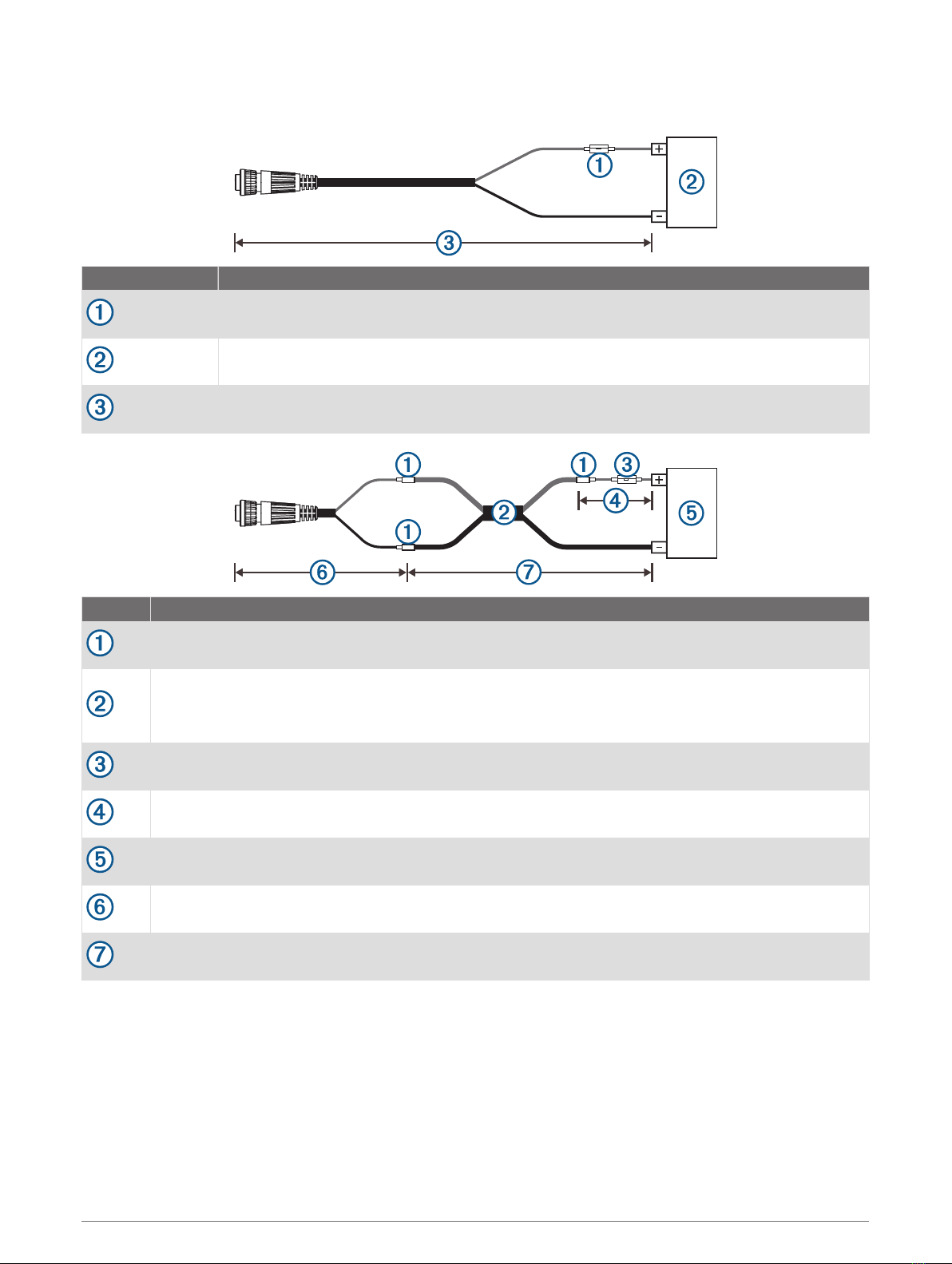

Power Cable Extensions

If necessary, you can extend the power cable using the appropriate wire gauge for the length of the extension.

Item Description

Fuse

Battery

9 ft. (2.7 m) no extension

Item Description

Splice

• 10 AWG (5.26 mm²) extension wire, up to 4.6 m (15 ft.)

• 8 AWG (8.36 mm²) extension wire, up to 7 m (23 ft.)

• 6 AWG (13.29 mm²) extension wire, up to 11 m (36 ft.)

Fuse

8 in. (20.3 cm)

Battery

8 in. (20.3 cm)

Maximum extension 36 ft. (11 m)

Blink Codes

After the sonar module is installed, it turns on when the chartplotter is turned on. The color status LED on the

sonar module indicates its operational status.

LED Color State Status

Green Blinking The sonar module is connected to a chartplotter and is operating

properly. You should see sonar data on the chartplotter.

Red Blinking

The sonar module is turned on, but is not connected to a chartplotter,

or is waiting to connect to a chartplotter. If the sonar module is

connected to the chartplotter and this code persists, check the wiring

connections.

Orange Blinking A software update is in progress.

Red/Green Blinking Reserved

Red Two blinks followed by a

3-second pause Other sonar failure.

Red Three blinks followed by a

3-second pause

The transducer is not detected by the sonar module. If this code

persists, check the wiring connections.

Red Five blinks followed by a

3-second pause The sonar module input voltage exceeds the maximum input voltage.

Transducer Settings and Operation

For transducer settings and operation information, see your chartplotter owner's manual.

Calibrating the Compass

Before you can calibrate the compass, the transducer must be installed on the shaft far enough away from the

trolling motor to avoid magnetic interference, and deployed in the water. Calibration must be of sufficient

quality to enable the internal compass.

NOTE: To use the compass, you must mount the transducer on the transom or the trolling motor shaft. The

compass may not work when you mount the transducer on the motor.

NOTE: For best results, you should use a heading sensor such as the SteadyCast™ heading sensor. The heading

sensor shows the direction the transducer is pointing relative to the boat.

You can begin turning your boat before calibrating, but you must fully rotate your boat 1.5 times during

calibration.

1From an applicable sonar view, select MENU > Sonar Setup > Installation.

2If necessary, select Use AHRS to turn on the AHRS sensor.

3Select Calibrate Compass.

4Follow the on-screen instructions.

Specifications

Panoptix LiveScope LVS32 Specifications

Dimensions (L x H x W) 136.4 x 96.5 x 44.5 mm (5.37 x 3.8 x 1.75 in.)

Weight (transducer only) 850 g (1.87 lb.)

Frequencies From 530 to 1.1 MHz

Operating temperature From 0 to 40°C (from 32 to 104°F)

Storage temperature From -40 to 85°C (from -40 to 185°F)

Maximum depth/distance161 m (200 ft.)

Field of view Front to back: 135 degrees

Side-to-side: 20 degrees

Panoptix LiveScope GLS 10 Sonar Module Specifications

Dimensions (W x H x D) 245 x 149 x 65 mm (9.7 x 5.9 x 2.6 in.)

Weight 1.96 kg (4.33 lbs.)

Operating temperature From -15 to 70°C (from 5 to 158°F)

Storage temperature From -40 to 85°C (from -40 to 185°F)

Power input From 10 to 32 Vdc

Power usage 21 W typical, 24 mW min., 58 W max.

Compass-safe distance 178 mm (7 in.)

Data output Garmin Marine Network

Open-Source Software License

To view the open-source software license(s) used in this product, go to developer.garmin.com/open-source

/linux/.

Cleaning the Transducer

Aquatic fouling accumulates quickly and can reduce your device's performance.

1Remove the fouling with a soft cloth and mild detergent.

2Wipe the device dry.

Garmin®, ActiveCaptain®, and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. LiveScope™ and Panoptix™ are

trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.

Android™ is a trademark of Google Inc. Apple® and Mac® are trademarks of Apple Inc., registered in the U.S. and other countries. Wi‑Fi® is a registered trademark of Wi-Fi

Alliance Corporation. Windows® is a registered trademark of Microsoft Corporation in the United States and other countries. Other trademarks and trade names are those

of their respective owners.

1 Dependent upon water salinity, bottom type, and other water conditions.
