Garrett ACE 350 User manual

© 2014 Garrett Electronics, Inc. PN 1533000.D.1214
1881 W. State Street
Garland, Texas 75042
Tel: [phone]
Email: [email protected]
Fax: [phone]
ACE 350 Owner’s Manual
Owner’s Manual
Ideally suited for locating
deeply buried relics, jewelry
and coins!

ACE 350™ 1
THANK YOU FOR CHOOSING
GARRETT METAL DETECTORS!
Congratulations on the purchase of your new Garrett
ACE 350™metal detector. This enhanced metal detector
has been specifically designed for use in more challenging
environments such as mineralized grounds and iron-cluttered
relic and coin hunting areas.
The ACE 350 includes Garrett's exclusive Target ID
technology and patented discrimination features. This
technology features two indicator scales that allow you to see
the detector’s discrimination setting (Lower Scale) as well as
the analysis of each detected target (Upper Scale). The ACE
350 also features Enhanced Iron Resolution™(additional
resolution for separating desirable targets from iron junk in
cluttered areas) and a standard 8.5" x 11" elliptical Double-D
searchcoil engineered for optimum performance in more
challenging mineralized soils.
Backed by more than 45 years of extensive research
and development, your Garrett ACE 350 metal detector is
the most advanced of its kind in the industry. Whether you
are experienced or a beginner, this machine is well suited
for a wide variety of your detecting environments. With One-
Touch™operation, the ACE 350 powers on with the touch
of a single button, adjusts easily for ground minerals and is
immediately ready to begin searching.
In order to take full advantage of the special features and
functions of the ACE 350, you are urged to carefully read this
instruction manual in its entirety.

2Garrett Metal Detectors

ACE 350™ 3
TABLE OF CONTENTS
ACE 350 Control Panel ........................................................... 4
Quick Start Guide.................................................................... 5
ACE 350 Components ............................................................ 6
List of Parts ............................................................................. 7
Detector Assembly .................................................................. 8
ACE 350 Display Elements...................................................10
Audio Features ......................................................................13
Pushbutton Controls .............................................................14
Setting Custom Modes (Discrim. Patterns) ............................19
Enhanced Iron Resolution ....................................................22
Bench Tests ...........................................................................24
Hunting Tips With Your ACE 350 Detector...........................27
Target Pinpointing Methods..................................................31
Troubleshooting Guide..........................................................35
Metal Detecting Code of Ethics............................................36
Cautions.................................................................................37
Caring For Your ACE 350 Detector.......................................38
ACE 350 Warranty / Service ................................................39
ACE 350 Accessories............................................................ 41
Suggested Reading...............................................................43

4Garrett Metal Detectors

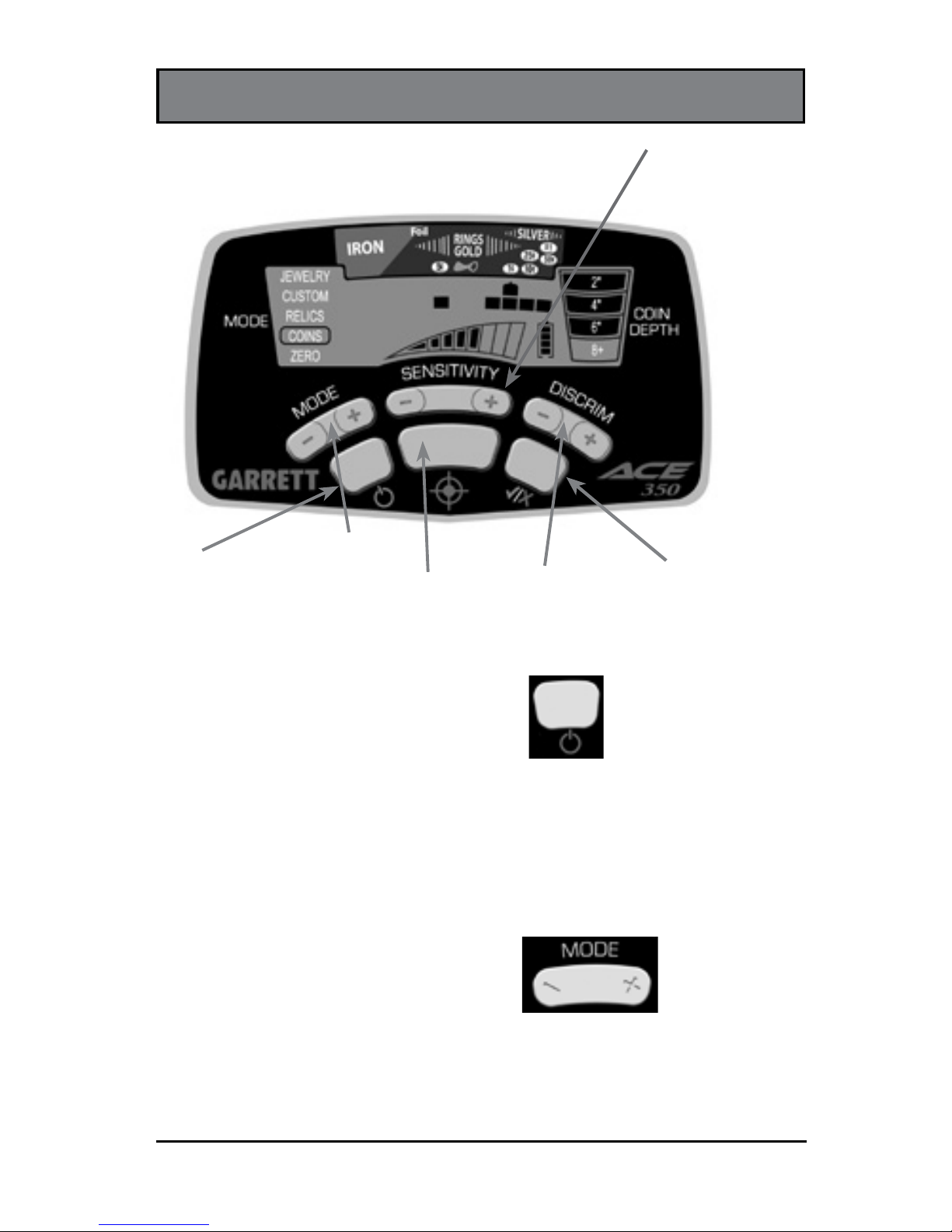

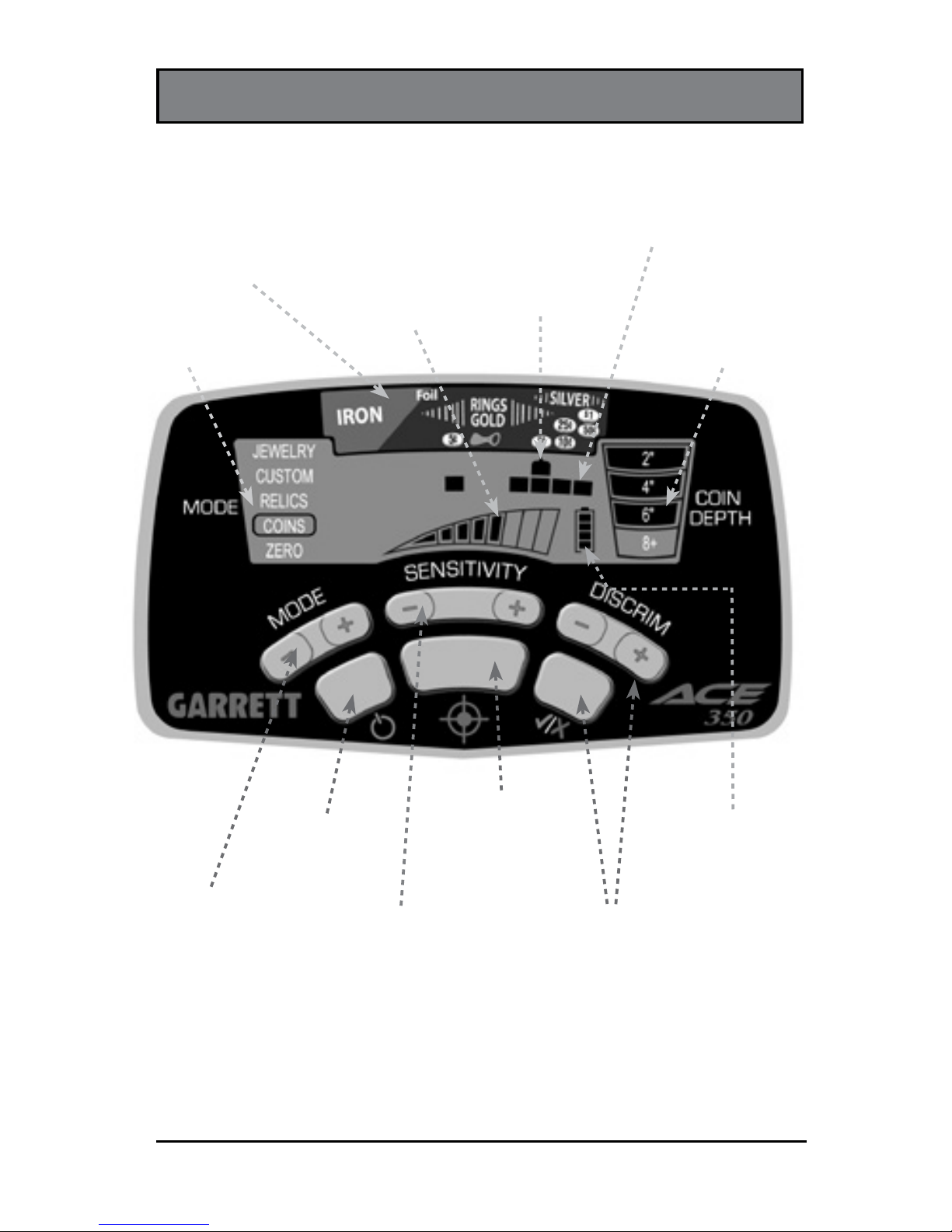

ACE 350 CONTROL PANEL
Battery Level
Indicator
DISCRIM and Accept/
Reject Pushbuttons
Use DISCRIM (+) or (-) to select a
cursor. Then use (/X) button to set
its discrimination on or off.

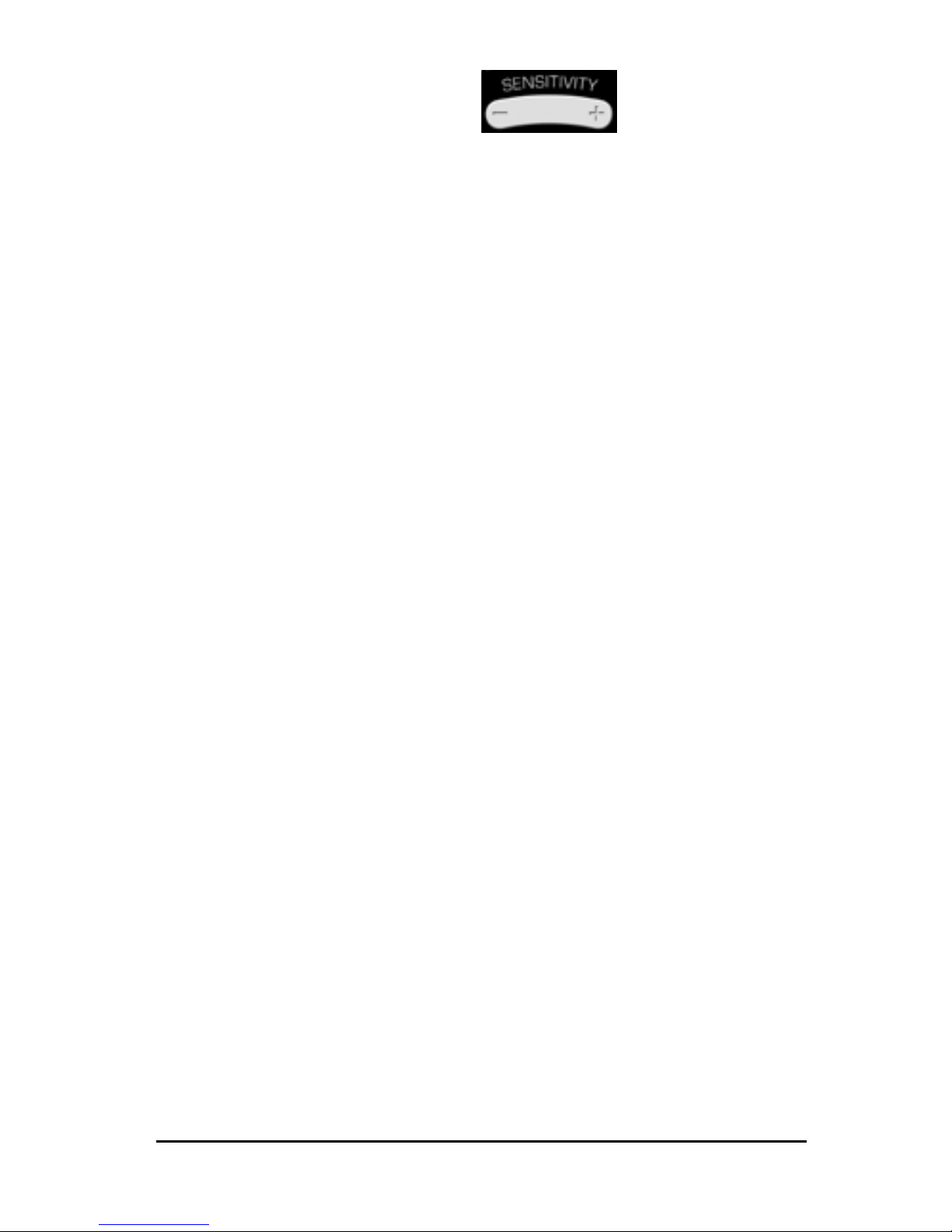

SENSITIVITY
Pushbutton
increases or
decreases
sensitivity.
MODE
Pushbutton
selects detection
mode (i.e.
discrimination
pattern).
ON / OFF
Power
Coin Depth
Indicator
indicates depth of
coin-sized target.
Mode
Indicator
Target ID Legend
indicates metal types.
Lower Scale
indicates notch
discrimination pattern.
Target ID Cursor
indicates probable
target identity.
Sensitivity
Setting
PINPOINT
Pushbutton
allows static detection
to precisely locate the
object.

ACE 350™ 5

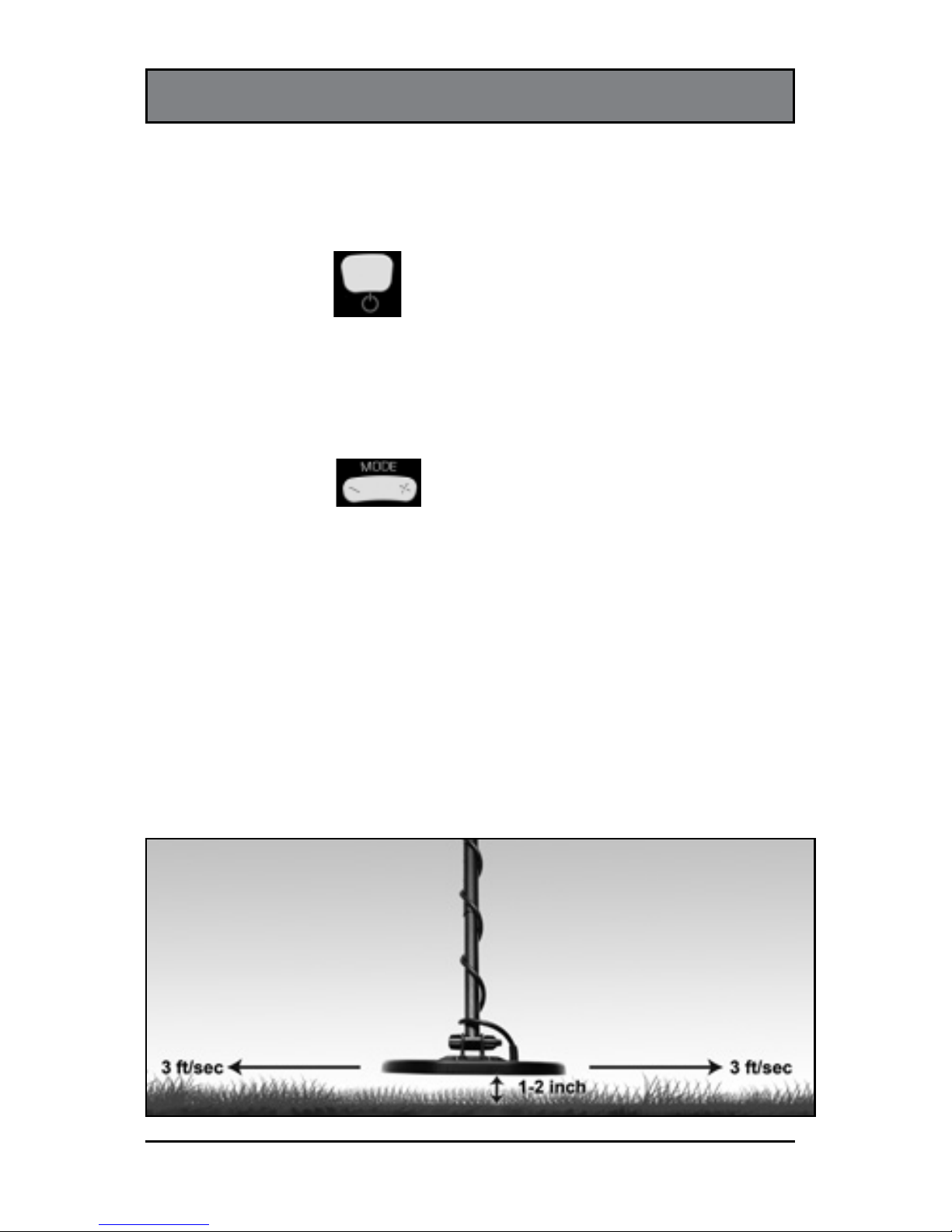

QUICK START GUIDE

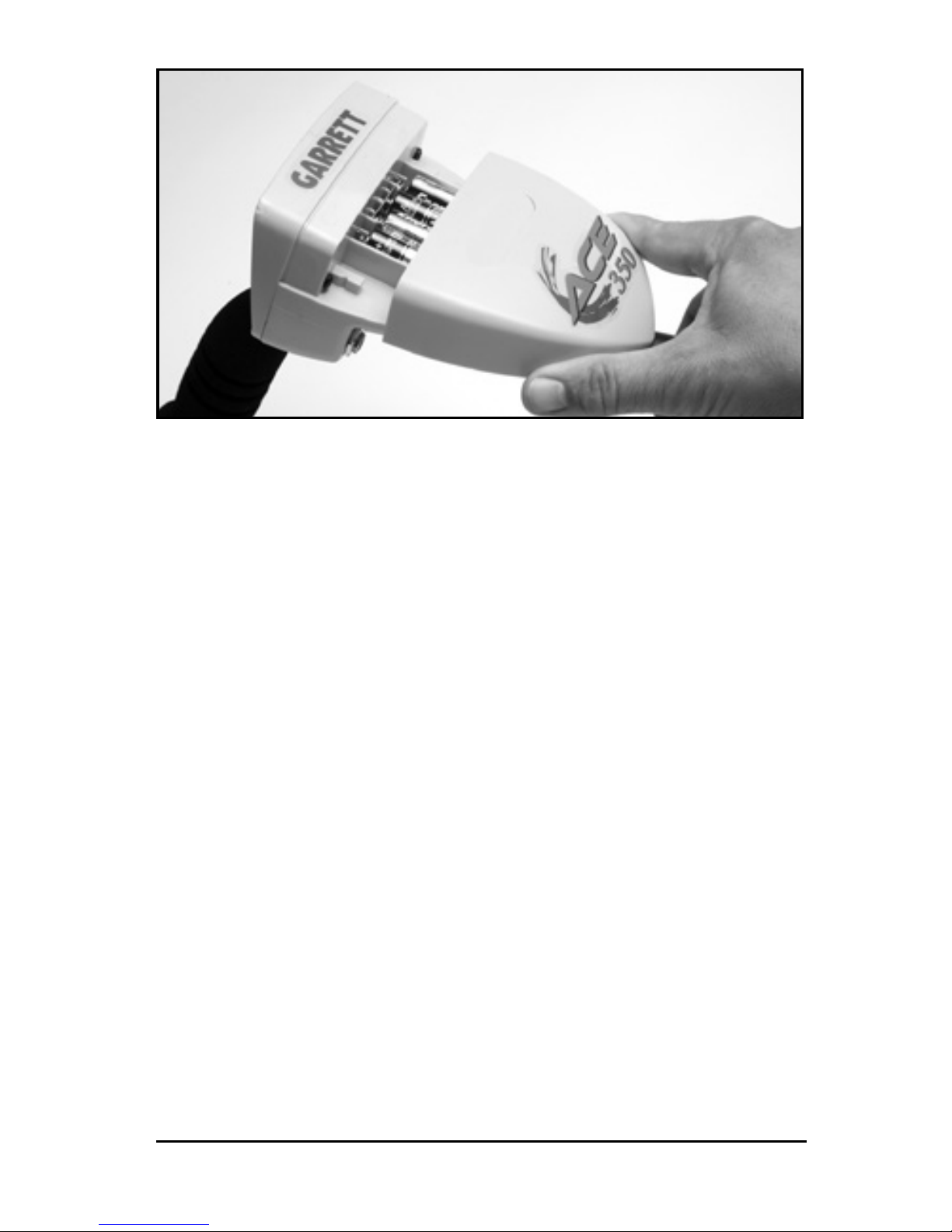

1. Install batteries.
The ACE 350 operates with four (4) AA batteries which are
already installed by Garrett.
2. Power ON.
Press and release the ON / OFF Power button. The ACE 350
powers on in the last mode used, automatically adjusts for
ground minerals and is ready to search. (Factory default
mode is Coins.)
3. Select Mode.
Use the Mode Pushbutton to select a different detection
mode, when desired.
4. Adjust settings.
Adjust Sensitivity or Discrimination settings, if desired.
5. Begin scanning.
Lower the searchcoil to 1 to 2 inches above the ground and
scan the coil left and right at approximately 3 ft/second.

6Garrett Metal Detectors
ACE 350 COMPONENTS
Control
Housing
S-shaped
Stem
Upper
Stem
Lower
Stem
Search
coil
Handle
Grip
Padded
Arm Cuff
LCD
Screen
Detector
Stand
Pushbutton
Controls
Arm
strap
Spring
Clip

One (1) control housing with
S-shaped stem
One (1) upper stem and one
(1) lower stem connected
One (1) wing nut, two (2)
mounting washers and
one (1) threaded bolt
One (1) 8.5″x11″DD
searchcoil
Owner's manual
Warranty Card
ACE 350™ 7






LIST OF PARTS
No tools are required to assemble the ACE 350. Four (4) AA
batteries are included with the detector. The box for your
detector contains the following parts:
If any part is missing, please contact your local dealer.

DETECTOR ASSEMBLY
8Garrett Metal Detectors
1. Align the holes in the mounting washers with the
small posts on the lower stem and press firmly into
place.
2. Slide the searchcoil onto the stem.
3. Insert the threaded bolt through the holes of the
lower stem and searchcoil. Hand-tighten the
searchcoil assembly with the wing nut.
4. Depress the spring clip in the S-stem and insert the
control housing into the upper stem.
1. 2.
3. 4.

ACE 350™ 9
5. Depress the spring clip in the lower stem and adjust to
the most comfortable operating length.
6. Wrap the cable snugly about the stem with the
first turn of the cable over the stem.
7. Insert the cable connector into the connector of the
control housing and hand-tighten.
5. 6.
7. 8.
8. Adjust the arm cuff by removing the screw on the
bottom and moving it to the other hole.
