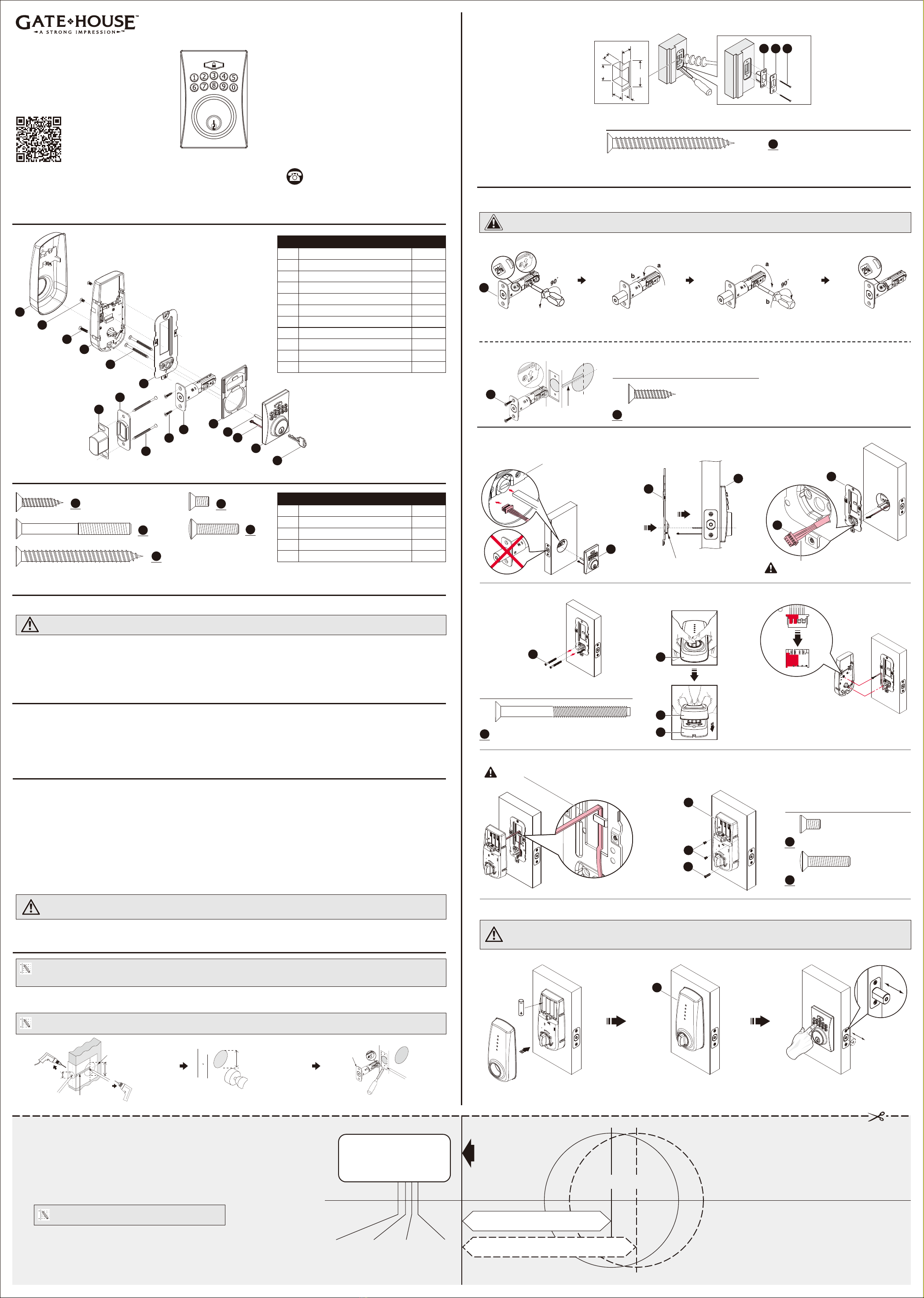

Gate House GCX2D01 User manual


Install interior cover (G).Install four AA alkaline batteries
(not included).
Enter default Master Code 123456 and
the lock will set up bolt direction to
complete installation.
AA
INSTALLING THE LATCH
Turn to extend the latch bolt.
Backset
2-3/4 should be visible.
Hardware Used
3/4 in. (19 mm) Wood Screw Qty. 2
A. Deadbolt Latch Adjustment (SKIP THIS if your door has a 2-3/8 in. (60 mm) backset)
B. Install latch (H). Insert screws and tighten.
a. Hold latch back and twist
outward.
b. Pull backward to the end.
a. Then twist inward to x at 2-3/4 in.
(70mm) backset.
b. Turn back to retract the latch bolt.


L
L
INSTALLING THE LOCK ASSEMBLIES

Hardware Used
1-13/16 in. (46 mm) Mounting Bolt Qty. 2
Insert screws and tighten.

M
M
TEMPLATE
1-3/4 in.
(45 mm)
2 in.
(51 mm)
1-3/8 in.
(35 mm)
1-9/16 in.
(40 mm)
Backset 2-3/8 in. (60 mm)
Backset 2-3/4 in. (70 mm)
Fold here
Place on door edge
NOTE: Double check your product for the correct hole sizes.
Drill 1 in. (25 mm) hole at center of
door edge.
WARNING :
If the door needs to be drilled, please be familiar with how to use a drill safely and understand all of the door preparation steps before proceeding.
CAUTION :
Please use four alkaline batteries (not included) for the best performance.
CAUTION :
Use alkaline batteries for better performance. Be sure to insert them correctly by matching the + and – polarity markings.
Do not mix old batteries and new batteries or standard (carbon-zinc) with alkaline batteries.
The following instructions should be followed to properly protect and maintain your lockset:
A. Remove locks, or do not install locks, prior to painting your door.
B. Periodically clean with mild soap and a soft cloth only.
C. Do not use any abrasives or chemical products containing alcohol, benzene, or acids, and avoid using sharp or abrasive objects to clean this lockset.
D. Do not allow any water or liquids into the lockset during installation.
A. Do not attempt to disassemble any internal components of the lockset. Doing so will void the limited warranty.
B. Do not drop or hit the lockset. Too much shock may result in permanent damage.
C. Do not use pins or sharp objects to press the keypad.
D. Always create a backup of information you wish to keep (Master Code, user code, etc.) Please use the last page of this booklet as a reference.
E. Promptly change the Master Code before operating this lockset.
A. Before beginning installation of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble, install or operate the product.
B. Make sure backset of lock is same as backset of your door. If an adjustable latch is to be used, please adjust the backset to t your door.
C. Please read these instructions completely before attempting to install lock.
Tools Required for Assembly (not included): Phillips screwdriver
Helpful Tools (not included):
Prepare the door jamb: Use the strike plate as a template to drill the latch and screw holes and chisel out the mortise.
The strike plate must fit flush with the surface of the door jamb.
Cut out TEMPLATE and use to mark the door, drill holes, and chisel out the mortise.

Backset
Centerline
Outline
Faceplate
NOTE :
If replacing an existing lock or installing in a pre-drilled door, please skip to INSTALLATION INSTRUCTIONS.
Use TEMPLATE to measure your hole size and backset.
NOTE :
Drill from both sides of the door to prevent wood splitting.
ITEM #0788482
ELECTRONIC KEYPAD DEADBOLT
MODEL #GCX2D01
PACKAGE CONTENTS
Read the precautions and instructions in this manual before installing and using this lock. Save this manual for future reference.
HARDWARE CONTENTS
SAFETY INFORMATION
INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
PREPARATION
DOOR PREPARATION
F Interior Assembly
A Exterior Assembly
B Power Strip
C Torque Blade
E Mounting Plate
D Exterior Gasket
1
1
1
1
1
1
PART DESCRIPTION QUANTITY
K Dust Box
G Interior Cover
H Latch
I Key
J Strike Plate
1
1
2
1
1
1 in. (25 mm) 2-1/8 in. (54 mm)
2-1/8 in. (54 mm)
Chisel 13/64 in. (5 mm) deep.
GCD-KPDDW12 Rev. 16/03-00
https://goo.gl/ENGLFG
ATTACH YOUR RECEIPT HERE
Serial Number _______________
Purchase Date_______________
Call customer service at 1-877-442-8347,
8:00 a.m. - 8:00 p.m., EST, Monday - Friday.
Questions?
L 3/4 in. (19 mm) Wood Screw
M 1-13/16 in. (46 mm) Mounting Bolt
N 13/16 in. (20 mm) Screw
2
2
1
PART DESCRIPTION QUANTITY
O 5/16 in. (8 mm) Screw 2
2
P 2 in. (51 mm) Strike Screw
CAUTION:
Be sure the latch cam is upright before making any backset adjustment.
Remove the interior cover (G)
from the interior assembly (F).
Hardware Used
Install interior assembly (F).
Insert screws and tighten.
5/16 in. (8 mm) Screw Qty. 2
13/16 in. (20 mm) Screw Qty. 1



Note: The metal connector side should face outward.
Connect the cable rmly
into connector port.
N
O
N
The cable must be arranged as shown in the diagram.
Scan for
Installation
Ø 2-1/8 in. (54 mm)


H
L
C
I
E
F
M
O
N
G
B
A
D
P
J
K
N
O
P
M
L
Strike slot dimension:
d. 5/32 in. (4 mm)
e. 2-3/4 in. (70 mm)
f. 1-1/8 in. (28 mm)
Hardware Used
NOTE: The dust box (K) is optional.
2 in. (51 mm) Strike Screw Qty. 2
b. 1-9/16 in. (40 mm)
a. 1-3/16 in. (30 mm)
c. 1 in. (25 mm)
Door jamb hole dimension:
P
K J P
cf
a
d
be
The bulged part of the mounting
plate must face towards the door.
Thread the cable through the
hole and under the latch.
Insert the blade.
O
• Pencil
• Chisel • Tape Measure
• Hammer • 2-1/8 in. (54 mm) Hole Boring Bit
• 1 in. (25 mm) and 1/8 in. (3 mm) Drill Bits
• 2 in. (51 mm) 6d Common Nail• Power Drill
• Flathead Screwdriver
ESTIMATED ASSEMBLY TIME: 40 - 60 MINUTES
H
A
A
E
G
G
F
F
G
Slide the cable through the
notch in mounting plate.
E
B

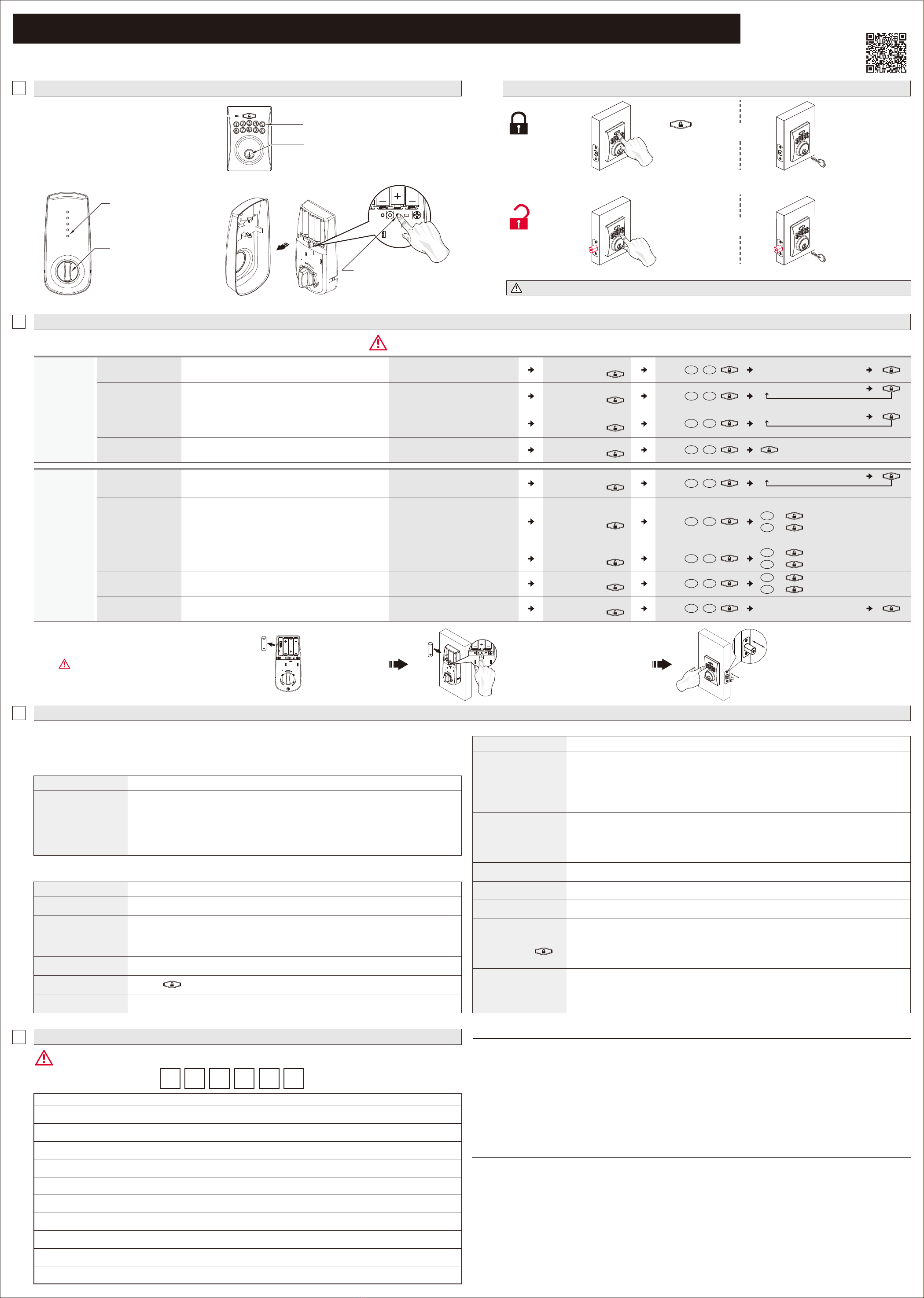

PROGRAMMING
1OVERVIEW OF FUNCTIONS
2PROGRAMMING
HOW TO LOCK / UNLOCK
MASTER CODE (6 digits)
After changing your Master Code, do not pass your Master Code to anyone else.
WRITE YOUR MASTER CODE HERE FOR EASY ACCESS
KEYPAD
Unlock the lockset with a valid key.
KEY OVERRIDE
Yellow light ashes when the
batteries are low in power.
INTERIOR INDICATOR LIGHT
Lock or unlock the lockset
manually.
INTERIOR THUMBTURN
Scan for
Programming
https://goo.gl/ENGLFG
To unlock Enter valid User Code or
Master Code.
RESTORE TO FACTORY SETTINGS
HOW TO PROGRAM THE LOCKSET BY FUNCTION CODES (Programming Mode)
Press and hold SET button while inserting the
battery back. Hold the set button until a long
beep is heard followed by a short beep.
Enter the default Master Code (123456)
to complete the bolt direction setting.
Remove one battery
AA
AA AA
SET
AA
SET BUTTON
SET
AA
AA
AA
AA
SETSET
To lock Use a valid key to lock.
Use a valid key to unlock.
This will erase all stored information, including bolt direction.
The preset Master code is 123456.
Alarm sounds for 10 seconds and unit deactivates for 1 minute after 4 consecutive incorrect code access attempts.
4ACCESS CODE LIST
WARRANTY
The retailer of this product hereby warrants, subject to the conditions set forth below, that it will either repair or replace, at its option, this product if it proves
to be defective by reason of improper workmanship or materials within the original purchaser's limited time. In order to obtain repairs or replacement under
this limited warranty you must bring this product to the retailer's store in which you bought it.
Original purchaser: This limited warranty is limited to the original purchaser at retail of this product from retailer. Limited 25 years mechanical and 1 year
electronic warranty.
Except to the extent prohibited by applicable law, no other warranties, whether express or implied, including the warranties of merchantability and tness for
a particular purpose, shall apply to this product. Under no circumstances shall retailer be liable for consequential or incidental damages in connection with
this product. To the extent retailer is prohibited by applicable law from excluding implied warranties, the duration of such implied warranties which are not
excludable shall be the original purchaser's limited warranty time. Some states do not allow the limitation on how long an implied warranty lasts, so the
above limitation on the duration of implied warranties which are not excludable, if any, may not apply to you. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion of incidental or consequential damages may not apply to you.
Retailer neither assumes nor authorizes any representative or other person to assume for it any obligation or liability other than such as is expressly set forth
herein. This limited warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
For warranty service, please call 1-877-4GATEHS, 8:00 a.m. - 8:00 p.m., EST, Monday - Friday.
FEDERAL COMMUNICATIONS COMMISSION STATEMENT
This device complies with Part 15 of the FCC. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Name User Code (4-6 digits)
OR
OR
AA AA
AA AA
SETSET
AA
→
→
ENTER / LOCK BUTTON
Exterior indicator light:
1. Green light indicates the user code entered is a
valid code.
2. Red light indicates the user code entered is an
invalid code or the unit is in programming mode.
3. Yellow light ashes when the batteries are low
in power.
Press button
3TROUBLESHOOTING
INSTALLATION

OPERATION

ANSWERSQUESTIONS
A. The latch does not operate
correctly after installation.
B. Feel bump while turning
the thumbturn or the key?
1. The batteries may be low in power. Replace with four new batteries for best performance.
(Alkaline batteries only)
ANSWERSQUESTIONS
A. Battery indicator keeps
ashing.
ANSWERSQUESTIONS
B. Keypad not responding.
C. Master Code cannot be
changed.
D. What should I do if wrong
code was entered?
E. Cannot delete all
User Codes.
1. Make sure the whole code entering process is completed within 10 seconds, otherwise the unit will time out.
2. Make sure the Master Code has been entered correctly.
F. Cannot add a new
User Code.
G. "Auto Lock" does not
function.
H. Lockset is not able
to unlock / lock by keypad.
I. Lockset is unable to reset.
J. How to operate the
lockset in darkness?
If the lock appears to be damaged or does not operate properly,
please contact customer service at 1-877-442-8347, 8 a.m - 8 p.m., EST, Monday - Friday.
K. The red indicator is still on
after setting is completed.
M. I cannot remove my key
unless it is in the locked
position.
1. Make sure the backset on the latch is set to the proper length.
2. Make sure prior to installation that the latch bolt is retracted and key is not in lockset when installing the deadbolt.
3. Please restore to factory setting and enter the default Master Code to set up the lock.
1. Please execute lock & unlock function to allow the motor to reposition itself again.
2. Please restore to factory setting and enter the default Master Code to set up the lock.
C. Fail to set up the lock. 1. Please make sure the lock is installed correctly.
2. Please install fresh batteries and make sure the cable is connected correctly.
1. Check to make sure the batteries are installed properly.
2. The batteries are getting low if the battery indicator keeps ashing. Replace batteries for best performance
(Alkaline batteries only).
3. Make sure the cable is well-connected to the port and was not damaged during installation.
4. Please make sure the lock has been set up and complete the bolt direction determination.
1. Make sure you have entered the correct User Code.
2. The battery is low if the battery indicator light keeps ashing. Please replace with four new batteries.
3. Make sure the cable is rmly connected.
4. Check the cable for any damage that may have occurred during installation.
5. Make sure the batteries are properly installed. (Alkaline batteries only)
6. Check the strike plate to make sure it is properly aligned and clear so the bolt can freely move in the hole.
1. Press any button to activate the lockset back light.
1. Check if [SET] button is jammed.
2. Re-install the batteries.
1. Please refer to the instructions given above to restore factory settings and reprogram all codes.
2. The battery is low if the battery indicator light keeps ashing. Please replace with four new batteries.
1. Make sure the whole code entering process is completed within 10 seconds, otherwise the unit will time out.
2. Make sure the Master Code has been entered correctly.
3. The new User Code will not be accepted when the capacity is full. Try to delete some existing User Codes
and then add new one(s) again. A User Code must be at least 4 to 6 digits.
1. The batteries are low on power if the battery indicator keeps ashing. Please replace with four new batteries for
best performance. (Alkaline Batteries Only).
2. Please refer to the instructions given above to enable the Auto-Lock function.
1. Un-install the interior and exterior assemblies.
Before re-installation, please follow these guidelines:
1) Make sure the bolt is in the retracted position.
2) Do not have any key in the cylinder during installation.
3) Make sure the torque blade is inserted horizontally.
2. Reset the unit to factory settings and reprogram the Master Code and user codes.
1. Un-install the interior and exterior assemblies.
Before re-installation, please follow these guidelines:
1) Make sure the bolt is in the retracted position.
2) Do not have any key in lock cylinder.
3) Make sure the torque blade is inserted horizontally.
1. Please refer to the instructions given above to restore factory settings and reprogram all codes.
L. The lockset locks when I
enter my code and unlocks
when I press the .
1. Press button once and continue to input code according to regular procedures.
・A Master Code can be used to program or unlock the lockset.
・The preset Master Code is 123456.
・Please change the Master Code before operating the lock.
Change the existing
Master Code Enter New Master Code (6 digits)
Add user code(s) ・The unit can store up to 10 customized User Codes (4-6 digits long).
Enter New User Code (4-6 digits)
Enter unwanted User Code (4-6 digits)
Delete individual user or
single-entry code(s)
Delete all user /
single-entry codes
・Delete one or more codes at a time, including User Codes or Single-
entry Codes.
・Users/Single-entry codes cannot be retrieved after they are deleted.
・Delete ALL User Codes at once.
・Use the existing Master Code (6 digits) to unlock the unit after the
deletion of User/Single-entry Codes.
Delete another code
Add another code
BASIC
SETTINGS
Press and hold the [SET] button until the
unit beeps, then release the [SET] button
Press and hold the [SET] button until the
unit beeps, then release the [SET] button
Press and hold the [SET] button until the
unit beeps, then release the [SET] button
Press and hold the [SET] button until the
unit beeps, then release the [SET] button
Press
01
Press
02
Press
03
Press
04
Enter current Master Code
(6 digits) then press
Enter current Master Code
(6 digits) then press
Enter current Master Code
(6 digits) then press
Enter current Master Code
(6 digits) then press
・The single-entry user code can be used for only one successful entry
and will be invalid when the lockset is locked again.
・The unit can store up to 5 single-entry user codes (4 digits long).
Add single-entry code(s)
Enter New Single-entry Code (4 digits)
Vacation mode
・Disabled by default.
・All User / Single-entry Codes (if any) will be temporarily disabled
when Vacation Mode is enabled. Only the existing Master Code can
unlock the unit.
・The existing User / Single-entry Codes will be re-activated once the
Vacation Mode is turned off.
Volume Control ・The beeper can be turned off if desired. Beeps will still sound during
programming.
Auto-lock function
・Disabled by default.
・When enabled, the lock will automatically re-lock after unlocking
(Default: 10 seconds).
Auto-lock delay timer Enter new digits (10 - 99 seconds)
・Auto-lock timer can be set from 10 to 99 seconds according to your
demand.
Add another code
ADVANCED
SETTINGS
Press and hold the [SET] button until the
unit beeps, then release the [SET] button
Press and hold the [SET] button until the
unit beeps, then release the [SET] button
Press and hold the [SET] button until the
unit beeps, then release the [SET] button
Press and hold the [SET] button until the
unit beeps, then release the [SET] button
Press and hold the [SET] button until the
unit beeps, then release the [SET] button
Press
12
Press
0
5
Press
0
6
Press
0
8
Press
0
7
Enter current Master Code
(6 digits) then press
Enter current Master Code
(6 digits) then press
Enter current Master Code
(6 digits) then press
Enter current Master Code
(6 digits) then press
Enter current Master Code
(6 digits) then press
Turn On.
1
＋
Turn Off.
0
＋
Turn On.
1
＋
Turn Off.
0
＋
Turn On.
1
＋
Turn Off.
0
＋
・Programming Mode will automatically time out after 10 seconds of inactivity.
・If you make a mistake during programming, press the interior SET BUTTON (as shown in above diagram) to leave Programming Mode and start over.
AB16206 Printed in Taiwan
