GCS ArtINJECTOR User manual

사용설명서
User manual

제품�사용�전�사용설명서를�반드시�읽으십시오.
Please make sure to read before using the product
使用产品之前请仔细阅读使用说明书

· 구성�및�사양
· 세팅�방법
· 가이드�교체�방법
· 실린지�홀더�제거�방법
· 충전�방법
· 시술�테크닉
· 품질보증서
Components and Spec
How to set up
How to change the guide
How to remove the syringe holder
Charging
Treatment Technic
Warranty
构成品,详细
组装方法
架子交换方法
注射器holder去掉方法
充电方法
技术方法
品质保证书
3
5
8
9
9
10
11
- 2 -

- 3 -
구성품
Components 构成品
가이드
Guide 架子(深度调节)
(0.25mm × 1ea / 1.5mm × 1ea)
실린지 홀더
Syringe holder 注射器固定配件
(1cc × 1ea / 3cc × 1ea)
카트리지
Cartridge 针头
(2ea)
충전 케이블
Charge cable 充电线
핸드피스
handpiece 本机
푸시 스위치
Push switch
自动传染部分
카트리지 브라켓
Cartridge bracket
针头方形支架
밀대
Plunger pusher
注射器支架

- 4 -
제품명
Product Name 名称
모델명
Model Name 产品
제조국
Manufactured in 原产地
사용목적
Purpose 产品用途
제품크기
Size 尺寸
제품중량
Weight 产品净重
배터리
Battery 电池详细
카트리지
Cartridge 针头深度
도즈볼륨
Dose Volume 药量调节范围
실린지
Syringe 注射器尺寸
Skin Beauty Device
Art Injector
대한민국
Republic of Korea 大韩民国
솔루션 흡수
Solution inject 水光注射
핸드피스 Handpiece 本机
- 35mm X 88mm X 246mm
핸드피스 Handpiece 本机 : 220g
리튬폴리머 li-polymer 锂离子聚合物电池, 500mAh
사용시간 Using duration 使用时间
- 연속시간 Continuous time 继续使用 : 6 hours
- 충전시간 Recharging time 充电时间 : 3 hours
0.25mm / 1.5mm
0.01c / 0.02cc / 0.03cc
1cc / 3cc
사양
Spec 详细

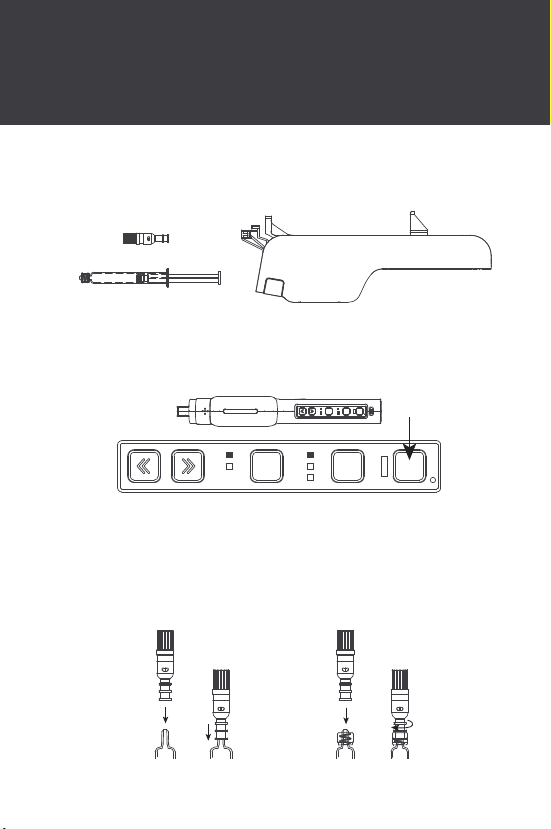

① 본체와�실린지, 카트리지를�준비한다.
Prepare the main device and pre-filled syringe and cartridge.
准备本机，注射器，架子和针头
② 본체에�스타트�버튼을 2초간눌러�전원을 ON 한다.
Turn on the device by pressing the “start” button for 2 seconds.
长按 START按钮开机
③ 실린지�입구�쪽에�카트리지를�밀어�넣거나�시계�방향으로�돌려�결합한다.
Connect a cartridge to the syringe.
把针头和注射器结合，按顺时针方向来拧紧
※ 끼우거나�돌릴�때�너무�세게�하면�부품�손상의�원인이�된다.
Don‘t connect too heavily to avoid damaging cartridge.
如果插入或转动时太用力，可能会导致损坏部件。
- 5 -
세팅�방법
How to set up 组装方法
SYRINGE
1CC
3CC
5CC
0.01
0.02
0.03
DOSE START
SYRINGE
1CC
3CC
0.01
0.02
0.03
DOSE START
OR

④ 실린지에�알맞은�크기(1cc 실린지용�또는 3cc 실린지용)의�실린지�홀더를�끼운다.
Put the syringe holder into the syringe. (1cc syringe holder or 3cc syringe holder)
安装注射器的固定架，确认正确的尺寸（1cc或者3cc）
※ 실린지와�디바이스가�평행이�되도록�결합한다.
Make sure the syringe and device must be parallel.
确认注射器和装置必须得平行
- 6 -
⑥ 카트리지의�사각형�부분을�카트리지�브라켓에�맞추고, 실린지�밀대를�주사기�끝에
밀착시킨다. 그리고�실린지�홀더를�디바이스에�끼운다.
Put square part of cartridge on the bracket and closely place the plunger to the
plunger pusher. Also, push the syringe holder on to the device until lock.
首选把活塞柄夹在推器，然后把针头夹在方形架

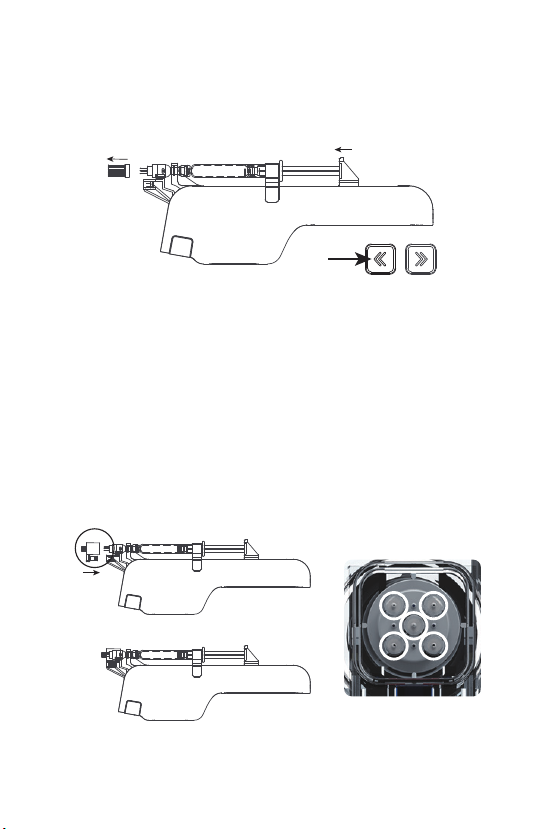

⑤ 밀대�조정�버튼으로�밀대를�카트리지�및�실린지�길이에�맞춘다.
(후진�버튼의�경우�더블�클릭�시�자동으로�움직인다)
Press '<<', '>>' buttons to adjust the plunger pusher to match with the syringe length.
[Double clicking of the backward button(only) reverse the plunger pusher to the end]
按 ‘<<’, ‘>>’ 调推器和注射器安装的总长
(双击 >>推器会推到最外面(请勿按<<，没有往里面的功能))
O
X

⑦ 카트리지�뚜껑을�제거한�후�밀대�전진�버튼으로�공기를�제거한다.
After removing the cartridge cap, remove air from new cartridge by pushing
the ‘<<’, ‘>>’ button.
去除针头的保护盖，然后调‘<<’, ‘>>’来抽取药液将空气排除，为了避免注入空气
- 7 -
⑧ 원하는�길이의�가이드를�선택�후�카트리지가�끝까지�나올�때까지�밀어�끼운다.
(카트리지�길이는�가이드의�종류를�바꾸면서�조절할�수�있다)
Insert your choice of guide and push forward to the end until cartridge comes
out to right length. (You can control the cartridge depth by changing guide)
请插入所要的架子，并向前推，针会伸出正确的长度 (架子可以调节针头的深度)
※ 가이드를�끼울�때�카트리지가�가이드�구멍에�제대로�위치했는지�확인�후�끼워�카트리지의�휘어짐을
방지한다.
Before insert the guide, make sure that cartridge must be fit in the guide hole otherwise it may
cause damage.
请确保针头的微针正确，防止针头的损坏

- 8 -
가이드�교체�방법
How to change the guide 架子交换方法

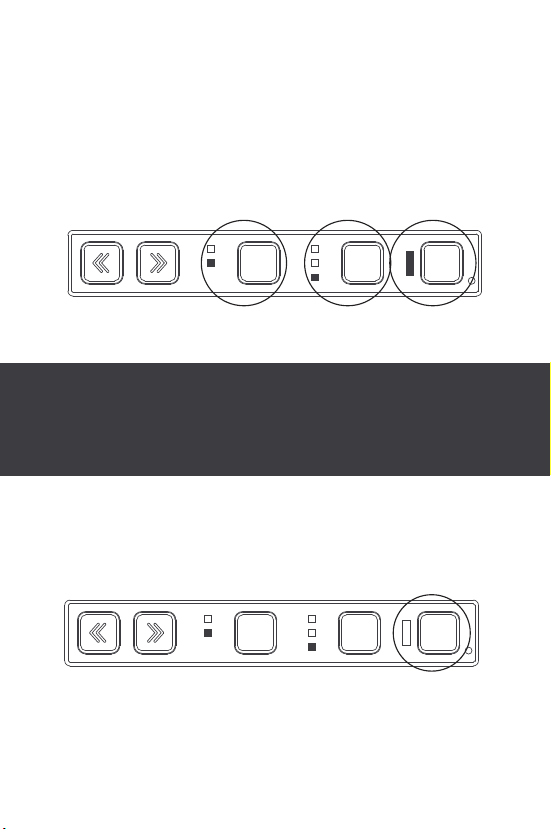

⑨ 실린지�설정�버튼과 (실린지�내경�기준, 1,3cc) 분출량�설정�버튼으로 (0.01cc,
0.02cc, 0.03cc) 실린지�크기와�분출량을�설정하고, 스타트�키를�짧게�누르면�초록색
불이�들어오고�사용할�수�있는�상태가�된다.
Select syringe size (Base on inner diameter / 1,3cc) and dose volume (0.01, 0.02,
0.03) by pressing button. After, press start button to activate the injection (Green
light will be appeared)
调节注射器的尺寸 (标准为内径- 尺寸范围/ 1, 3cc) 调节药量 (0.01, 0.02, 0.03cc)
之后按START 确认准备使用
① 스타트�버튼을�눌러�제품을�비활성화하고 (초록색�불�꺼짐), 가이드를�잡아당겨서
탈착한다.
Turn off the injection system by pressing start button (Green light off).
Remove the guide by pulling out.
按Start把绿灯灭了之后拔出架子，从本机上分离
② 가이드를�장착한다.
Insert guide.
请插入所要的架子，并向前推
SYRINGE
1CC
3CC
0.01
0.02
0.03
DOSE START
SYRINGE
1CC
3CC
0.01
0.02
0.03
DOSE START

- 9 -

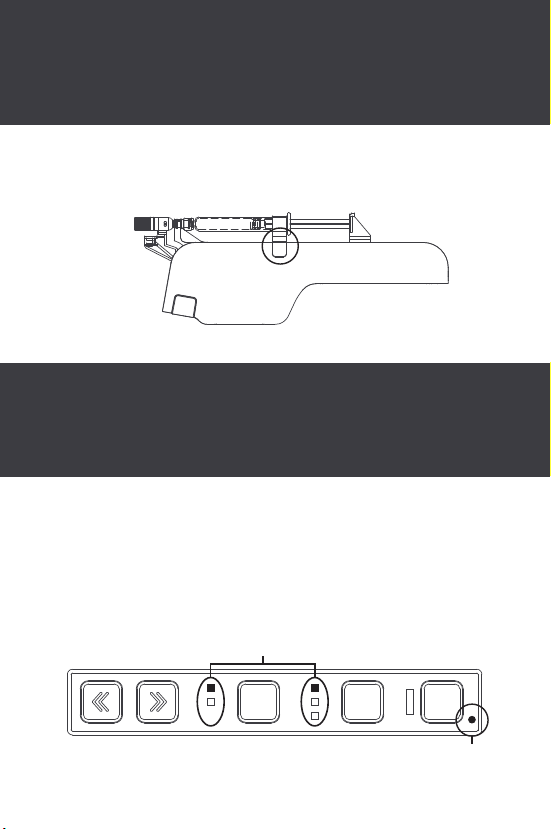

실린지�홀더�제거�방법
How to remove the syringe holder 注射器holder排除方法
① 실린지�홀더의�아랫부분을�눌러서�뺀다.
Press bottom part of the holder to remove
按下底部的注射器holder拔出
충전�방법
Charging 充电方法
① 충전�중 : 빨간�불
For charging : Red light
充电中 : 红色灯
③ 충전�필요�시 : 분출량�및�실린지�설정�램프�점멸 (깜빡임)
When charging is required : The syringe size lamp and dose volume lamp blink.
需要充电时 : 注入量及注射器选择显示灯灭 (闪烁)
② 충전�완료�시 : 불�꺼짐
Charging complete : Light off
充电完 : 灭灯
③
① & ②
SYRINGE
1CC
3CC
0.01
0.02
0.03
DOSE START

- 10 -
시술�테크닉
Treatment Technic 技术方法

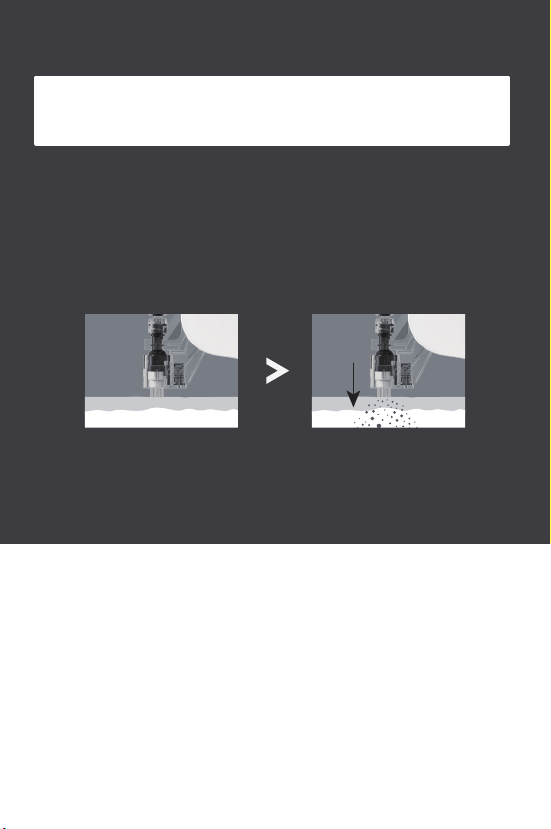

제품을�끝까지�누른�후�삐�소리가�날�때까지�기다린다.
Push all the way to inject solution and hold until
beep sound finished.
等到第二个响声结束才拿出
끝까지�눌러준다
Push all the way
按到底
