APE08
©
Write the model and serial
numbers here:
Model #
Serial #
You can lind them on a label on
the back of the air conditioner.
66126283 49-7538 11-05JR

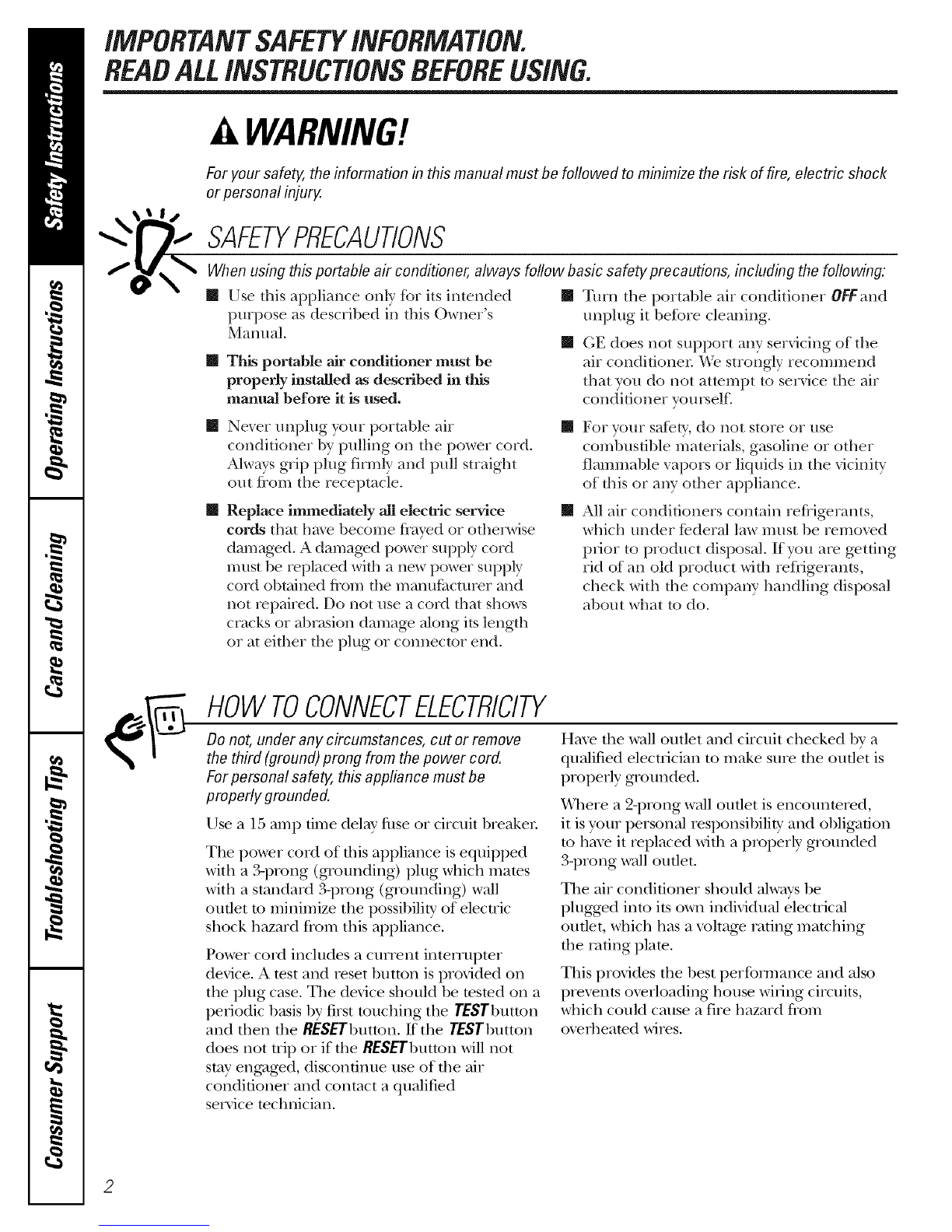

iMPORTANTSAFETYiNFORMATiON.
READALLiNSTRUCTiONSBEFOREUSING.
WARNING!
For your safe_ the information in this manual must be followed to minimize the risk of fire, electric shock
or personal injury.
SAFETYPRECAUTIONS
When using this portable air conditioner, always follow basic safety precautions, including the following:
[] Use this appliance only for its intended [] Turn tile portable air conditioner OFFand
[]
[]
[]
purpose as described in this Owner's
Manual.
This portable air conditioner must be
properly installed as described in this
manual before it is used.
[]
unplug it be%re cleaning.
GE does not support any servicing of the
air conditioner. _\_ strongly reconmlend
that volt do not attempt to service the air
con({ifioner yourself.
Never unplug your portable air
conditioner by pulling on die power cord.
Always grip plug firmly attd pull straight
out f_om the receptacle.
[] For wmr safety, do not store or use
combustible materials, gasoline or other
flammable vapors or liquids in the vicinity'
of this or arty other appliance.
Replace immediately all elecf_dc service
cords that hm_e become flayed or oflterwise
damaged. A damaged pov_r supply cord
must be replaced with a new power supply
cord obtained from the manufi_cntrer and
not repaired. Do not use a cord that shows
cracks or abrasion damage along its length
or at eiflter rite plug or connector end.
[] All air conditioners contain refrigerants,
which trader fbderal law must be removed
prior to product disposal. If you are g>tfing
rid of an old product wifll refrigerants,
check with the company handling disposal
about what to do.
HOWTOCONNECTELECTRICITY
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
For personal safety, this appliance must be
properly grounded.
Use a ] 5 amp time delay fltse or circuit breaker.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall
outlet to minimize tile possibility of electric
shock hazard flom this appliance.
Power cord includes a cunent intetTupter
device. A test and reset button is provided on
the plug case. The device should be tested on a
periodic basis by first touching tile rESrbutton
and then the RESKl'button. If the TESTbutton
does not trip or if file RESETbutton will not
stay engaged, discontinue use of the air
conditioner and contact a qualified
service technician.
Haxe the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
_4]lere a 2-piong wall outlet is encountered,
it is your personal responsibility and obligation
to haxe it tei)laced with a properly grounded
3-prong wall outlet,
The air conditioner should always be
plugged into its own individual electrical
outlet, which has a xoltag> rating matching
the rating plate.
This provides the best per%m/ance and also
piexents oxerloading house wiring circuits,
which could cause a fire hazard from
oxerheated wires.
2

ge.com
USEOFEXTENSIONCORDS
Because of potential safety hazards under
certain conditions, we strongly recommend
against the use of an extension cord.
However, if you must use an extension
cord, it is absolumly necessa_ T that it be
a Ui,-listed, 14 gauge, 3-wire grounding
type appliance extension cord having a
grounding type plug and outlet and that
the electrical rating of tile cord be
15 amperes (minimum) and 195 volts.
USEOFADAPTERPLUGS
Because of potential safety hazards under
certain conditions, we strongly recommend
against the use of an adapter plug.
However, if yon must use an adapter,
where local codes permit, a temporary
connection may be made to aproperly
grounded 9-prong wall outlet by use of
a Ui,-lismd adapter available at most
local hardware stores.
The larg>r slot in the adapter must be
aligned with the larger slot in tile wall
outlet to provide proper polarity in tile
connection of tile power cord.
When disconnecting the power cord flom
tile adaptor, always hold the adaptor in place
with one hand while pulling the power cord
ping with the other hand. If this is not done,
the adapter ground terminal is very likely to
break with repeamd use.
If the adapter ground terminal breaks,
DO NOTUSE the air conditioner until a
proper ground has been established.
Attaching the adapter gmund terminal to a waft
outlet cover screw doesnot ground the appfiance
unless the cover screw is metal, not insulated, and
the wall outlet is grounded through the house wiring.
Youshould have the circuit checkedby a qualified
electrician to make sure the outlet is properly
grounded.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS

Aboutthe controlsontheair conditioner.
Appearance and features may vary.
Air ConditionerDisplayandControls RemoteControl
Controls
OowerPad
Turns the air conditioner on and off. (_Mter
installing batteries in the remote control,
touch Power to operate air conditioner
settings.)
OMode
Use to set the air conditioner to FAN, COOL,
DRYand AUTOm()de.
NOTE: If you have a Cool only model, heat
settings will not be active on your model even
though HEAYappeax5 in the remote control
display.
OFan Speed Pad
Llseto set the tim speed to LOW,MIDor HIGH.
OTempIncrease •/Decrease • Pads
Use to set temperatm'e when in COOL mode.
077merIncrease •/Decrease • Pads
ONi\'_q/ell the air conditioner is off, it can be
set to automatically come on in 1/2-24 hom_
(or 1/9-18 hom_ if setting with the remote
control) at its previous setting. Touch the
Timer Increase •/Decrease • pads to
set the timer in increments.
OfF--When the air conditioner is on, it can
be set to automatically mrn off in l/2-24
hom_. Touch the Timer Increase •/
Decrease•pads to set the timer
in increments.
Tocancelthetimer,touch the Timerlncrease
•/Decrease • pads until the display does
not show a time.
_i Sleep
WTouch to set the air conditioner to run fi)r
1/9 to 94 hums (or 1-7 hums if setting with
the remote control) beflwe it automatically
shuts ofl_ Touch the TimerIncrease•/
Decrease •pads to set the timer
in increments.
Adter the sleep timer is set, the set
temperature will automatically increase in
intervals to provide a comfortable sleeping
teml) eratm'e.
To cancel the sleep mode, touch the Sleep pad
a second time or touch the Timerlncrease •/
Decrease •pads until the display does not
show a tin/e.
NOTE: The sleep timer will be cancelled if the
air conditioner is turned off or the Timer ON
pad is touched on the remote control.
ODisplay
Shows the selected mode, tim speed, set
temperature or time remaining on timer.
The display will also show E4 and the refit
will signal when the water bucket is fifll.
The dehumidification ( DRY or COOL mode)
process will stop but the tim motor will
continue to operate.
OTimerOn
Use on the remote control to turn the Timeron.
Then use the Time Increase •/Decrease •
pads to set the timer in increments. Touch
Timer On again to send time setting to refit.
OTimerOff
Lrse on the remote control to turn the Timerofl.
4
OCIock
Use to set the time of day on the remote
control disl)la,v. Touch Clock pad and then
the TimeIncrease•/Decrease • pads
to set. Touch Clock again to actix Ke.

g_com
When the air conditioner is turned on, #will
automatically start in the default setting.
Remote Control
::Ji::To ensure proper operation, aim the
remote control at the signal receiver on
the air conditioner.
::Ji::The remote control signal has a range of up to
21 tibet.
::Ji::Make sm'e nothing is between the air conditioner
and the remote control that could block the
signal.
::Ji::Make sm'e batteries are fl'esh and installed
correctl}_see the Using theportableair conditioner
section.
FAN Mode
Use the FAN at HIGH,MID or LOW to provide air
drculation and filtering without cooling, Since tim
Olfly settings do not provide cooling, a temi)eramre
setting will not be displayed.
COOLMode
Use the COOLmode with HIGH,MID or LOWfim
fin" cooling. Use the TempINCREASEA/DECREASEV
pads to set the desired temperatm'e between 61°F
and 86°F in 1°F increments.
A them_ostat is used to maintain the room
temperature. The compressor will cycle on and off
to kee I) the room at the set level of comtort. Set the
them_ostat at a lower numl)er and the indoor air
will become coole_; Set the them_ostat at a higher
number and the indoor air will become wam_e_;
NOTE:ffthe air conditioneris off and isthenturnedon
whileset toa Coolsettingor if turnedfroma fansetting
toa Coolsetting,#will takeapproximately3minutesfor
thecompressortostartand coolingto begin.
CoolingDescriptions
For Normal Cooling--Select the COOL mode and
HIGH or MIDtim Mth a middle set temperature.
For Maximum Cooling--Select the COOL mode
and HIGHIan with a lower set temperature.
ForQuieter& NighttimeCooling--Select the
COOLmode and LOWflm with a middle
set temperatm'e.
NOTE:If youswitch from a COOLsettingto OFFor to
a fan setting,war at least3 minutesbeforeswitching
back to a COOLsetting.
DRY Mode
Use the DRYmode to provide dehumidification
only: The tim will run at a low fixed speed at this
setting. Kee I) windows and do(n_ closed fi)r the best
dehumidit)'ing effects. When using the ORYmode,
detach the exhaust hose fl'om the refit and remove
the window slider or seal the opening in the
window exhaust adapte_;
NOTES:
If you sMtch fl'om a DRYsetting to OFFor to a tim
setting, wait at least 3 minutes beflwe switching back
to a DRYsetting.
The compressor runs in this mode.
AUTO Mode
Set to AUTOfor the temperature and tim speed to
automatically provide optimum comfi)rt settings.
NOTE:DRYwill alsoappearin the displaywhenusing
theAUTOmode.

Usingtheportableair conditioner.
Always make sure the water bucket is locked into place on the portable air conditioner.
Using the Water Bucket
Make sure the drain com_ector is capped and in
the up position. \._]_en the bucket is removed, the
unit will shut ot1_ Erupt' and replace the bucket,
making sure that it is flfllv seared in the trait.
Water
Drain
connector
in upand
capped
position
for water
bucketuse.
\._]_en the water bucket is flfll, a signal will beep
and the display will show E4tmtil the water bucket
has been emptied.
NOTE: The tim will continue to operate even when
the water bucket is flfll. However; the Cooling or Dry
Inode will not work until the water bucket has been
emi)tied and replaced correctly.
To emi)ty the water bucket betore it is fifll, turn the
Ulfit off and wait for three nfilmtes fin" all water to
collect into the bucket.
IMPORTANTWhenusingthewater bucketto remove
collectedwater,make surethat thedrain connectoris
in the upposition andthat it iscapped,flit isnot in the
uppositionwater will drain fromthe connectorontothe
floor
Using the Drain Hose
\,V_ter can be automatically emptied into a floor
drain by tmcal)ping the drain connector; tilting it
down and connecting the drain hose. Roum the
drain hose straight to a floor drain.
IMPORTANT'.When the drain connector is tilted down
the water will drain through the connector. Make sure
the hose is connected and that #is led straight to a
floor drain. Never tilt the drain connector down with #
capped because draining water will cause the un# to
malfunction.
Tilt down
and
connect
hoseto
drain.
Cap
Whentilting the drain connectordown, always uncapit, attacbtbe drain
hoseand leadit straight to a floor drain.
How to Insert the Batteries in the Remote Control
] Remove the batte_ 3' cover by sliding it
according to the arrow direction.
] Insert new batteries, making sm'e that the (+)
and (-) of battery are installed correcflx;
] Reattach the coxer by sliding it back
into position.
NOTES:
iJi::Use 2 "_%" (1.5 volt) alkaline batteries. Do not
use recha_geable batteries.
_: Remove the batteries fl'om the remote control if
the svsteln is not going to be used fin" a long dine.

Careand cleaningofthe air conditioner, ge.com
Turnthe air conditioner off and remove the plug from the wall outlet before cleaning.
Grille and Case
To clean the case:
Use water and a mild detergent. Do not use
bleach or abrasives.
Toclean the front grille:
Use a vactnun am_chment or brush.
Air Filter
The air filter is on the back of the air conditionex;
It should be checked and cleaned at least every
30 days or more often if necessa_
NOTE:DO NOT rinse or put the filter in an automatic
dishwasher.
CAUTION:DONOToperatetheair conditionerwithout
thefilter becausedirt andlint will clog itand reduce
performance.
To remove:
Pinch the two filter cover tabs and pull the filter
cover out and ofl_ ]{elnove the filter fl'oln the coveI;
_ash it in warm soapy water; Rinse and let the filter
(h y 1)eii)i'e replacing it.
Toreplace:
Hook the filter 1)ack onto the filter (ox'e_: Place the
bottom of the filter cover onto the lower edge ot
the filter compartment and close it.
Tabs
Cleaning the Coil
_Mter removing the air filter cover, clean the coil
with a soft brush when the soil is soft and wet.
NOTE:Donot allow water to enterthe
electrical/machinecompartmentthrough
thecircular openingbehind thecoil.
Donotspraythecoilwith ahose.
Water Bucket
E\'et T few weeks, cinse the inside of the water
1)u(ket with a mild detergent to prevent growth
ot mold, mildew and bacteria.
NOTE:DO NOTrinse or put the water bucket in an
automatic dishwasher.
7

Installation instructions
TOOLS YOU WILL NEED
Phillips head screwdriver
Pencil
Scissors or knife
PARTS YOU WILL NEED
• Wood filler strip and wood screws (for
double-hung windows, to match inner
width of window and inner height of
window stool)
PARTS INCLUDED
Large Wood Screw (4) Window Locking Bracket Window Slider Bracket (2)
Flexible Exhaust Hose Window Exhaust Adapter Protective Screen
Foam Seal
Small Wood Screw (4) Washer (4)
Window Seal (2)
Rain Deflector Assembly
Bolt (4)
@
Nut (4)
Adjustable Window Slider
(2 for Normal Window Opening,
3 for Long Window Opening)
©
Split-Ring Washer (4)

Installation Instructions
Power cord includes a current interrupter
device. A test and reset button is provided
on the plug case. The device should be
tested on a periodic basis by first pressing
the TEST button and then the RESET button.
If the TEST button does not trip or if the
RESET button will not stay engaged,
discontinue use of the air conditioner and
contact a qualified service technician.
[] CHOOSE A LOCATION
•Place the air conditioner on a smooth,
level floor strong enough to support the
unit with a full bucket of water.
• Allow at least 12 inches (30 cm) of air
space on all sides of the unit for good
air circulation.
12" (30cm_) i(30 cm)
min. min.
• Place the unit in an area where the
temperature will not fall below 65°F
(18°C). The coils can become covered
with frost at temperatures below 65°F,
which may reduce performance.
NOTE: The portable air conditioner has rollers
to aid placement, but it should only be rolled
on smooth, flat surfaces. Do not attempt to
roll the portable air conditioner on carpet or
over objects.
[] ATTACH EXHAUST ADAPTER TO
WINDOW SLIDER INSIDE OPENING
•Snap the exhaust adapter into the inside
opening of the window slider.
Inside
[] ATTACH PROTECTIVE SCREEN TO
OUTSIDE OF EXHAUST ADAPTER
• Use two small wood screws on each
side to attach the protective screen onto
the outside of the exhaust adapter.
[] INSTALL RAIN DEFLECTOR
TO OUTSIDE OF ADJUSTABLE
WINDOW SLIDER
• Remove the appropriate plugs (save
for future use) from the window slider
and rain deflector to prepare for either a
double-hung window installation or a
slider window installation. Line up the
holes on the rain deflector and the
window slider. Use the four bolts, split-
ring washers and nuts to attach the rain
deflector onto the window slider.
Double-Hung Window Slider Window
Installation Installation
Leave these two bolts
in place for double-hung
window installations
Leave these two
in place for
sliding window
installations
Outside
Outside
[] INSTALL WATER BUCKET COVER
[] Remove the shipping tape from the side
[]
[]
of the unit and
remove the water
bucket.
Pull the cover
from the bucket and
install it by inserting
its posts into the
holes.
Close the cover
and insert bucket
into unit.
into holes

Installation instructions
Instructions for installing the window slider in a double-hung window. If you have a sliding window,
see instructions on pages 12 and 13.
[]
[]
INSTALL WINDOW SLIDER
IN WINDOW
To allow the window to close properly
around the adjustable window slider, for
inclined window sill, attach a piece of
wood to the sill at the back of the window
stool. NOTE: For a flat sill, no wood is
needed.
WOOD PIECE-
WIDTH: 1"
LENGTH: Long enough to fit inside the
window frame.
THICKNESS: To determine the thickness,
place a piece of wood on the sill behind
the window stool to make it the same
height as the stool.
Attach securely with nails or screws
provided by the installer.
Wood (same height as stool)
Stool __,)
I Inside
[] Cut the window sash seal (adhesive-
backed) to the window width and stick the
adhesive side to the bottom of the sash.
Cut the window stool seal (non-adhesive
backed) to the window width and place
on the window stool.
sash seal
Window stool seal Inside
[] If the window slider is shorter than the
width of the window, pull the sliding arm
out to the width of the window.
If the window slider is longer than the
width of the window, cut the slider arm
to the width of the window.
If the two-piece window slider is too short
for the width of the window, attach and
use the third piece of the slider.
Third piece of slider l__
for extra wide windows____
j _
,n o too,
Inside _ L
[] Attach the slider to the stool through
one of its holes using a large wood screw,
Large
wood
screw
Window stool
Inside
[] Pull the window down against the top
of the window slider,
Window slider brackets
[] Hook the two window slider brackets
over the bottom edge of the window
slider and attach to the window stool
using two large wood screws.
10
