AZ58H12D – GE Zoneline®Premium Series Heat Pump Unit
Specification Revised 4/06
390566
GE Appliances
Electrical Wiring
All wiring, including installation of receptacle, must be made in
accordance with local electrical codes and regulations.
Note: Aluminum wiring may pose special problems – consult
a qualified electrician.
Grille Options
Stamped Aluminum Grille – RAG60
Exterior Architectural Louvers Durable Polycarbonate:
RAG61 or RAG64 (Beige) RAG63 or RAG66 (Bittersweet)
RAG62 or RAG65 (Maple) RAG67 (Extruded Aluminum)
Retrofit Kits:
RAK901L – Wall Case Insulation for use with heat pumps.
RAK40 – Deflector Kit to adapt chassis for use with existing
exterior architectural louvered grilles.
Electrical Connection
230/208 volt units may be plugged into a receptacle. 265 volt
units are provided with a junction box and require direct
connection. (NEC Requires 265V Direct Connection) See
Architects and Engineers Design Data Manual for electrical
connection information including use of sub-base for direct
connected units. Installation must comply with local electrical
codes and regulations.
Power Connection kits required on all Zoneline chassis.
A
C
B



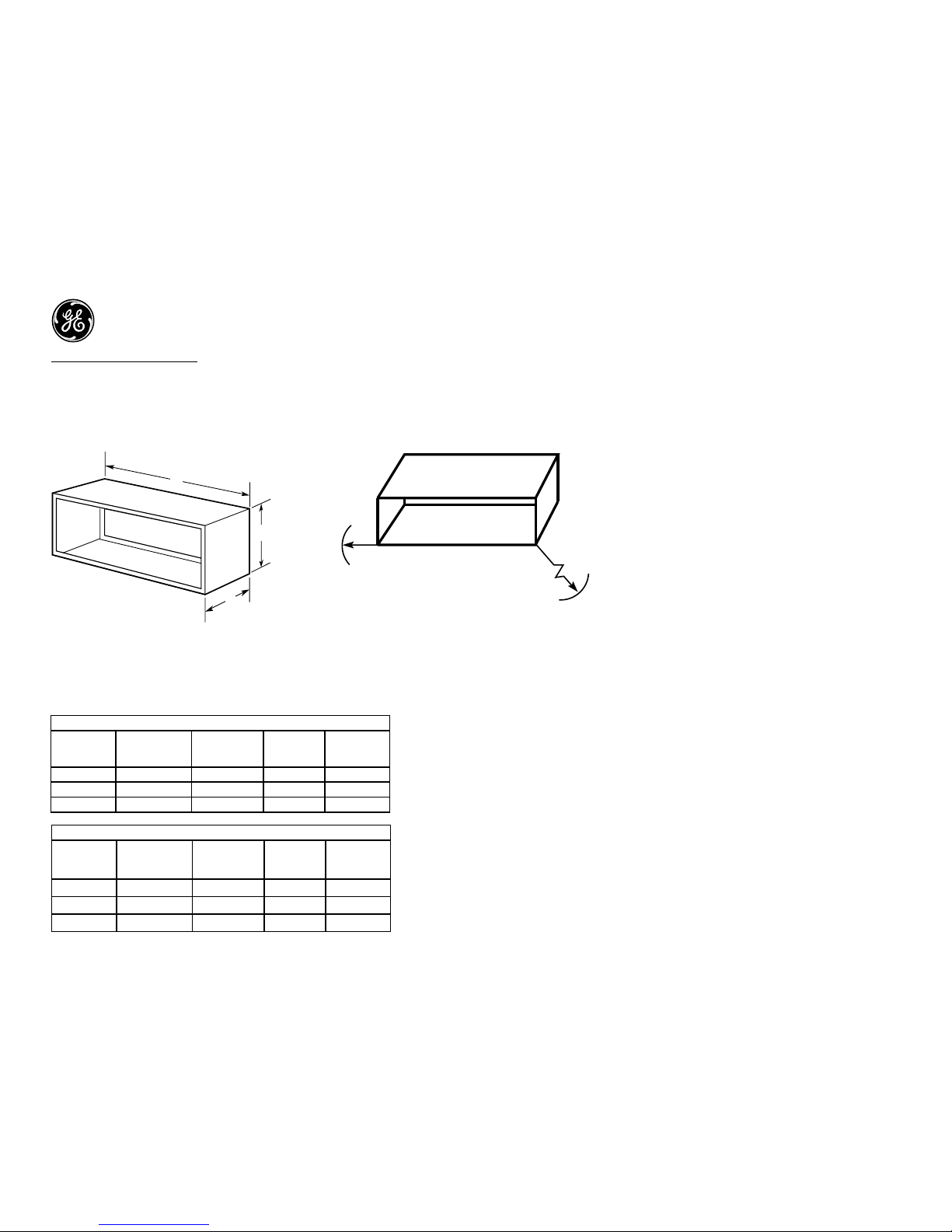

Zoneline RAC Wall Installation
Zoneline Wall Install QSart
Wall Case Dimensions
RAB71 Wall Sleeve
Heavy-gauge galvanized steel, with insulation.
A – 42", B – 13-3/4", C – 16"
RAB77 Wall Sleeve
Molded SMC fiberglass-reinforced polyester compound.
A – 42-1/8", B– 13-7/8", C – 16-1/4
Wall Opening Dimensions
Add 1/4" to A and C dimensions for all cut-out size.
RAB71 16-1/4" Min. H x 42-1/4" Min. W
RAB71 available in 16", 24", 28" and 31" depths
RAB77 16-1/2" Min. H x 42-3/8" Min. W
Maximum Cord Extension (in inches)
For answers to your Monogram,®GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
SIDE
VIEW
Inside
Room
Cabinet
Outside
58
21
Grille
7-1/8
RAB71A = 16
RAB77A = 16-1/4
RAB71A = 20-7/8
RAB77A = 21
Room Air/Installation QSart
230/208 Volt Line Cord Connected Units
Line Cord
Kit
Electric Heat
(Btuh)
Electric
Heater Watts
Electric
Heat Amps
Min. Circuit
Protection
(Amps)
RAK3153 8,600/7,100 2,550/2,090 11.6/10.6 15
RAK3203 11,700/9,600 3,450/2,820 15.5/14.1 20
RAK3303 17,000/13,900 5,000/4,090 22.3/20.3 30
230/208 Volt Sub-Base Connected Units
Sub-Base
Electric Heat
(Btuh)
Electric
Heater Watts
Electric
Heat Amps
Min. Circuit
Protection
(Amps)
RAK204D15P 8,600/7,100 2,550/2,090 11.6/10.6 15
RAK204D20P 11,700/9,600 3,450/2,820 15.5/14.1 20
RAK204D30P 17,000/13,900 5,000/4,090 22.3/20.3 30
AZ58H12D – GE Zoneline®Premium Series Heat Pump Unit
Specification Revised 4/06
390566
GE Appliances
Features and Benefits
• 11,800/11,600 BTUH (Cooling)
• 11.5/11.5 E.E.R.
• 3.6 Dehumidification (pts/hr)
• 10,900/10,700 BTUH (Reverse Cycle Heat)
• 330/310 CFM Indoor Fan (High/Low)
• 75/45 Vent CFM
• Electronic 7-Step Temperature Limiting To Prevent Overcooling or Overheating of Room
• Heat Sentinel
• Reverse Cycle Defrost By Monitoring Operating Conditions
• 30 Sound Transmission Class (STC)
• Highly Featured Microcomputer – Tactile Touch Pad Controls with LED
• Model AZ58H12DAC – Warm grey beige (Corrosion Treated)
• Model AZ58H12DAD – Warm grey beige (Internal Condensate Removal)
