GE CGP650SETSS User manual

1
31-10808-1 (08-11 GE)
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
• IMPORTANT — Save these instructions
for local inspector’s use.
• IMPORTANT — Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Product failure due to improper installation is not
covered under the Warranty.
WARNING — This appliance must be
properly grounded.
•
IMPORTANT — Leak testing of the
appliance shall be conducted according to the
manufacturer’s instructions.
• Proper installation is the responsibility of the
installer and product failure due to improper
installation is NOT covered under warranty.
IN THE COMMONWEALTH OF
MASSACHUSETTS:
• This product must be installed by a licensed
plumber or gas fitter.
• When using ball-type gas shut-off valves, they
shall be the T-handle type.
• A flexible gas connector, when used, must not
exceed 3 feet.
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com
In Canada, call 1.800.561.3344 or Visit our Website at: www.geappliances.ca
Installation 36″ Sealed Gas Cooktop
Instructions PGP976, PGP986, CGP650
FOR YOUR SAFETY:
WARNING — If the information in this
manual is not followed exactly, a fire, explosion
or gas leak may result causing property damage,
personal injury or death.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance!
WHAT TO DO IF YOU SMELL
GAS:
• Do not try to light any appliance. Do not touch
any electrical switch; do not use any phone in
your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
This cooktop has been certified by UL. You’ll find
safety precautions in your Owner’s Manual. Read
them carefully.
• Installation of this cooktop must conform with
local codes or in the absence of local codes with
the National Fuel Gas Code, ANSI Z223.1/NFPA
54–Latest edition.
• Be sure your cooktop is installed properly by a
qualified installer or service technician.
• To eliminate reaching over surface burners,
cabinet storage above burner should be avoided.
• Do not install the unit near an outside door or
where a draft may affect its use.

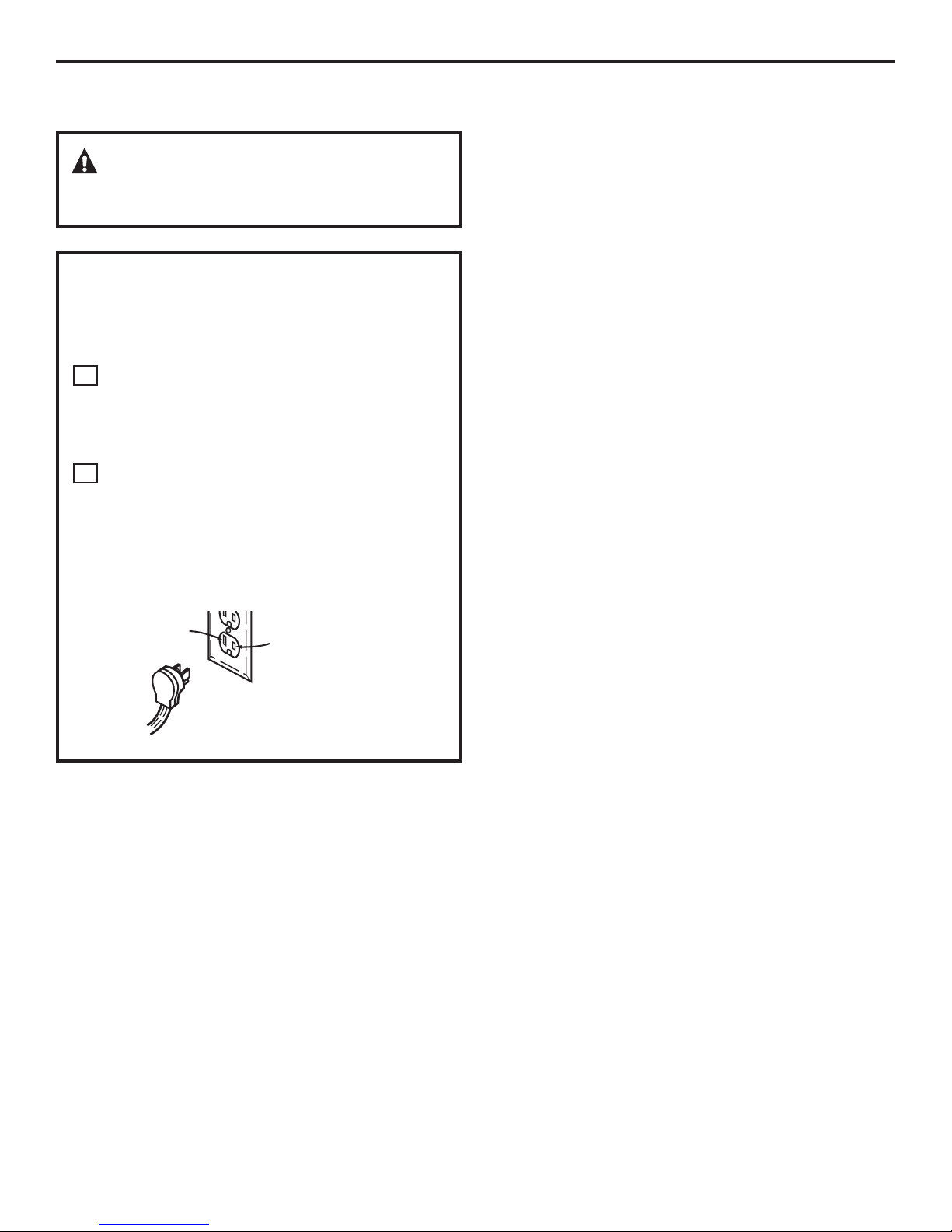

WARNING — Disconnect all electrical
power at the main circuit breaker
or fuse box before installing.

2
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
ELECTRICAL REQUIREMENTS
This appliance must be supplied with the proper
voltage and frequency and connected to an
individual, properly grounded branch circuit,
protected by a circuit breaker or fuse having
amperage as noted on the rating plate.
We recommend you have the electrical wiring and
hookup of your cooktop connected by a qualified
electrician. After installation, have the electrician
show you where your main cooktop disconnect is
located.
Check with your local utilities for electrical codes
which apply in your area. Failure to wire your
cooktop according to governing codes could result
in a hazardous condition.
If there are no codes, your cooktop must be wired
and fused to meet the requirements
of the National Electrical Code, ANSI/NFPA No. 70—
Latest edition. You can get a copy
by writing:
National Fire Protection Association
Batterymarch Park
Quincy, MA 02269
In Canada your cooktop must be wired and fused
to meet the requirements of the Canadian Electrical
Code.
Be sure the installation of this product in a mobile
home conforms with the Manufactured Home
Construction and Safety Standard, Title 24 CFR,
Part 3280. If this standard does not apply, you
must follow the standard for Manufactured Home
Installations, ANSI/NCSBS A225.1 or with local
codes where applicable.
You can get a copy of the Federal Standard by
Writing:
Office of Mobile Home Standards
HUD Building
451 7th Street, S.W.
Washington, D.C. 24010

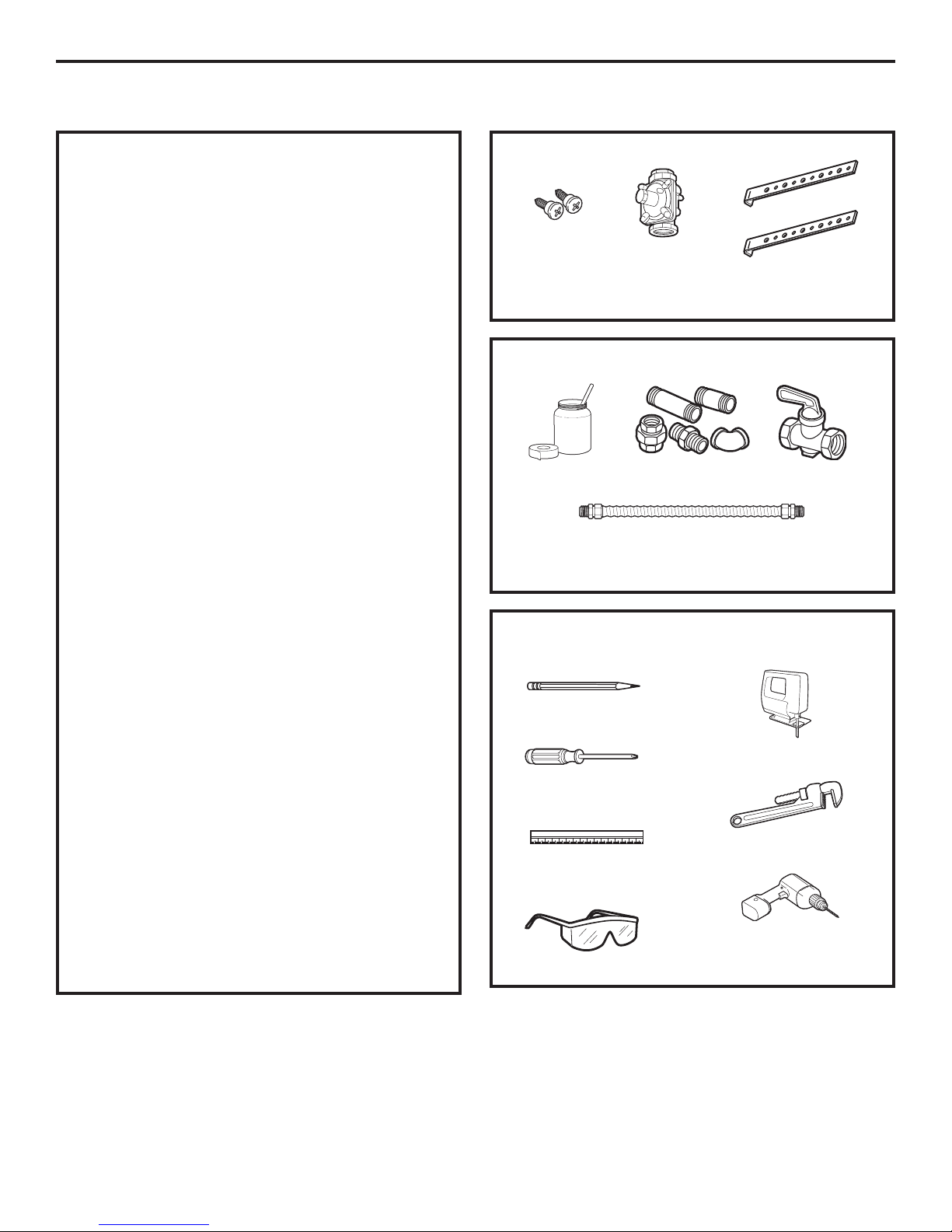

TOOLS YOU WILL NEED
FOR INSTALLATION
MATERIALS YOU MAY NEED
PARTS INCLUDED
2 Hold
Down Brackets
Shut-Off Valve
Pipe Fittings
CSA-Approved Flexible Gas Line
3/8″ Min. ID, 1/2″ NPT Connection,
3-foot Maximum Length (Massachusetts Only)
Joint Sealant
Saber Saw
Pencil
Safety Glasses
1/8″ Drill Bit & Electric or
Hand Drill
Ruler or Straightedge
Regulator
2 Screws
Phillips-Head
Screwdriver
Pipe Wrench

3
Installation Instructions
AWhen preparing cooktop opening, make
sure the inside of the cabinet and the
cooktop do not interfere with each other.
(See section on preparing the opening.)
BRemove packaging materials, grate boxes,
regulator with literature, and literature
package from the cooktop before beginning
installation.

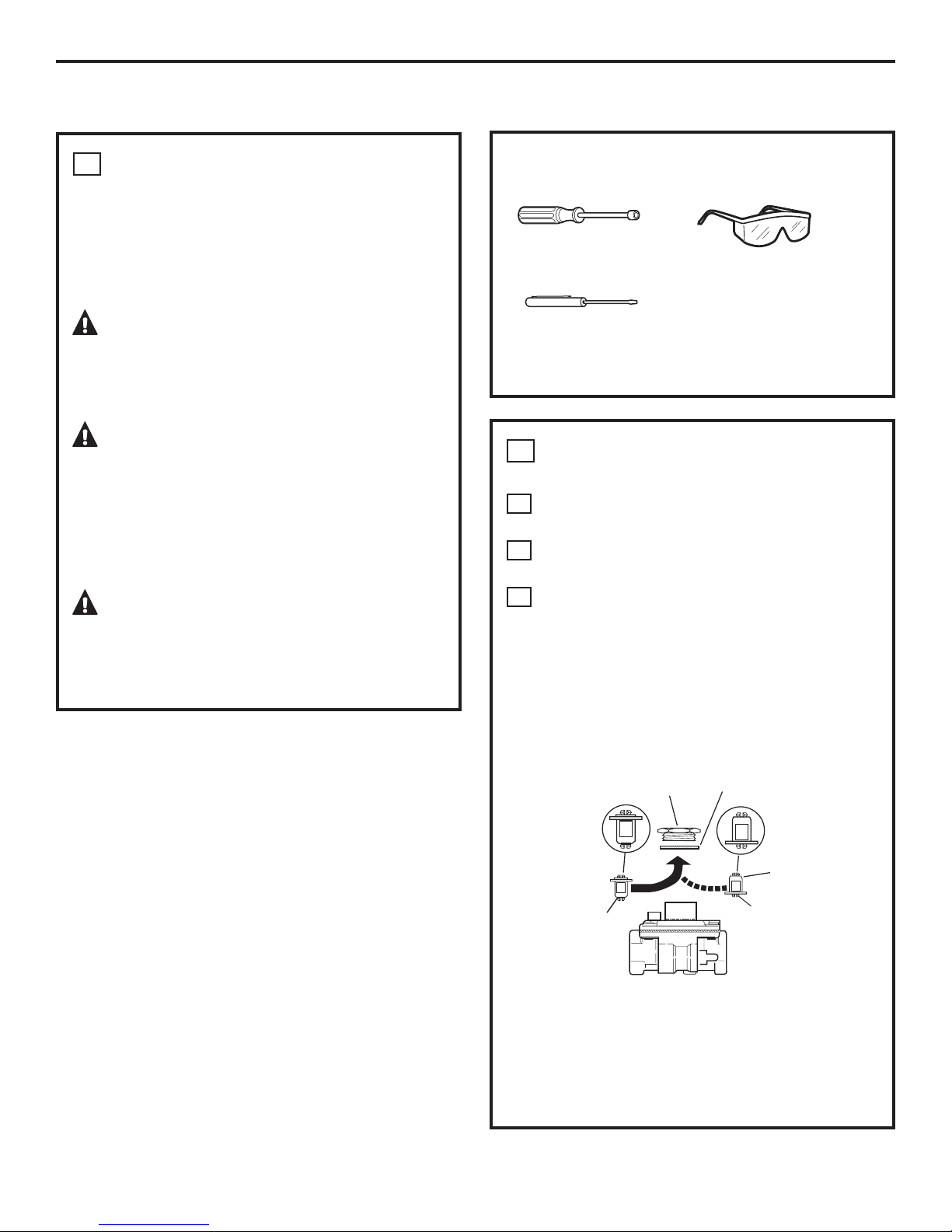

PRE-INSTALLATION CHECKLIST
CRemove Installation Instructions from
literature pack and read them carefully
before you begin.
Be sure to place all literature (Owners Manual,
Installation Instructions, etc.) in a safe place
for future reference.
DMake sure you have all the tools and
materials you need before starting the
installation of the cooktop.
EYour home must provide the adequate
electrical service needed to safely and
properly use your cooktop. (Refer to section
on electrical requirements.)
FWhen installing your cooktop in your home,
make sure all local codes and ordinances
are followed exactly as stated.
GMake sure the wall coverings, countertop
and cabinets around the cooktop can
withstand heat (up to 200°F) generated by
the cooktop.
Literature Package
Foam
Packaging
Cooktop
Grate boxes

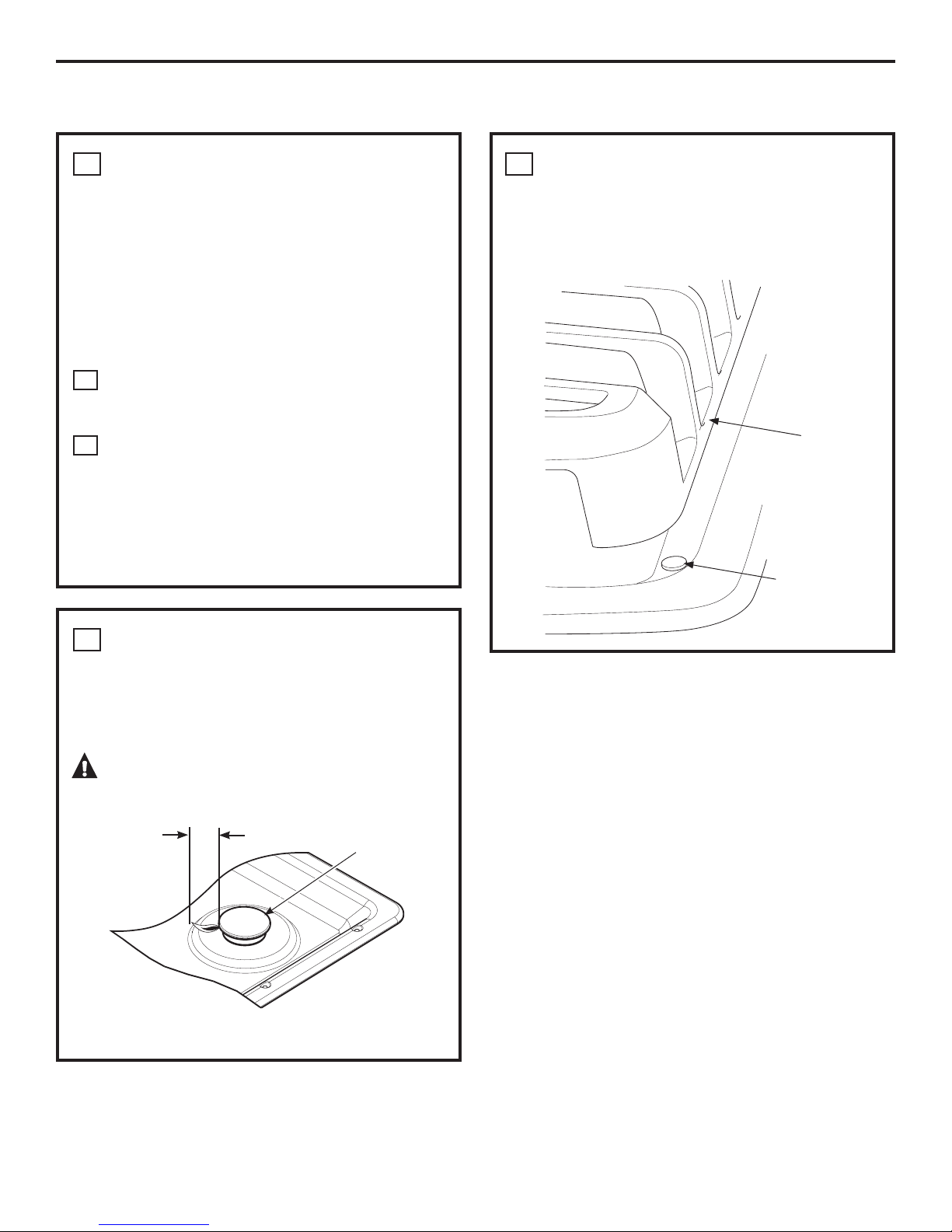

PREPARING THE OPENING
1MAINTAIN THE FOLLOWING
MINIMUM CLEARANCE DIMENSIONS
4RECOMMENDED GAS SUPPLY
LOCATION FROM BACKWALL
5MAKE SURE WALL COVERINGS,
COUNTERTOP AND CABINETS
AROUND COOKTOP CAN
WITHSTAND HEAT (UP TO 200°F)
GENERATED BY COOKTOP
2OVERALL COOKTOP DIMENSIONS
Cooktop
33-11/16″
36″21″
3-1/4″
18-7/8″
1” Min. From Backwall
7″
From Cutout
Center Line
Recommended
gas supply
location
NOTE: All gas cooktop models require 7/16″
free area below cooktop bottom to combustible
material.
ALL HORIZONTAL CLEARANCES MUST BE MAINTAINED
FOR A MINIMUM OF 18” ABOVE THE COOKING SURFACE.
Wall covering,
cabinets and
countertop must
withstand heat
up to 200°F
3
CUTOUT DIMENSIONS OF COUNTERTOP
To ensure accuracy, it is best to make a template
when cutting the opening in the counter.
16-15/16″
33-7/8”
length
of cut
4
Installation Instructions
19-1/8” width cut
L R C
PGP976 3-3/4” 6” 2-1/4”
PGP986 12” 12” 3-3/8”
CGP650 12” 12” 3-3/8”
3 3/4 MIN.
13″ MAX. Depth of unprotected
overhead cabinets
18″ MIN. height
from countertop
to nearest
cabinet on either
side of unit
30″ MIN. clearance from
countertop to unprotected
overhead surface
30” or wider
cabinet base
R - MIN. clearance
from cutout to right
side wall
L - MIN. clearance
from cooktop to left
side wall
C - MIN.
clearance from
cutout to rear
wall
2-1/2” MIN from
cutout to front of
countertop

5
Installation Instructions
INSTALLING THE COOKTOP UNIT
1LOCATE ELECTRICAL OUTLET AND
GAS SHUT-OFF VALVE BENEATH
CABINET
Install a manual shut-off valve in the gas line in an
easily accessible location outside the cooktop. Be
sure you know how and where to shut off the gas
supply to the cooktop. Install the electrical outlet
12″ below the countertop.
NEVER REUSE OLD
CONNECTORS WHEN
INSTALLING THIS
UNIT.
2PROTECT SURFACE OF COOKTOP
Place a towel or tablecloth onto the countertop.
Lay the cooktop upside down onto the protected
surface.
3LOCATE MOUNTING PARTS
Remove the hold down brackets from the literature
package.
4ATTACH BRACKETS TO COOKTOP
Remove the screw from the side of the cooktop
and screw the hold-down bracket
to the side of the cooktop unit. Repeat for opposite
side of cooktop.
5INSERT COOKTOP INTO CUTOUT
Insert the cooktop centered into the cutout opening.
Make sure the front edge of the countertop is
parallel to the cooktop. Make final check that all
required clearances are met.
Once the unit is in place, screw the
hold- down bracket into the cabinet sides
to secure the unit into place.
Shut Off
Valve Electrical
Outlet 12″
Below
Countertop
Bottom of cooktop
Cloth under Cooktop
Cooktop
Pre-drilled
hole
Bottom of
Cooktop
Cooktop
Surface

6
Installation Instructions
INSTALLATION—GAS CONNECTIONS
1PROVIDE ADEQUATE
GAS SUPPLY
This cooktop is designed to operate on natural
gas at 5″ of water column manifold pressure and
7″ of water column (W.C.) supply pressure. It is
shipped from the factory set for natural gas. The
convertible pressure regulator supplied with the
unit must be connected in series with the manifold
of the cooktop and must remain in series with the
supply line regardless of whether natural or L.P.
gas is being used. FOR PROPER OPERATION, THE
MAXIMUM INLET PRESSURE TO THE REGULATOR
MUST BE NO MORE THAN 14″ OF WATER COLUMN
PRESSURE. For checking the regulator, the inlet
pressure must be at least 1″ W.C.. (or 3.4 KPA)
greater than the regulator output setting. If
the regulator is set for 5″ W.C. of water column
pressure, the inlet pressure must be at least 6″ W.C.
If the regulator is set for 10″ W.C., the inlet pressure
must be at least 11″ W.C.. The gas supply line to
the cooktop should be 1/2″ or 3/4″ pipe.
2INSTALL REGULATOR
NEVER REUSE OLD CONNECTORS WHEN
INSTALLING THIS COOKTOP.
WARNING: Never reuse old flexible
connectors. The use of old flexible connectors
can cause gas leaks and personal injury. Always
use new flexible connectors when installing a gas
appliance.
To reduce the likelihood of gas leaks, apply teflon
tape or a thread compound approved for use with
LP or Natural gases to all threaded connections.
Screw a section of pipe onto
the inlet end of the pressure
regulator and install the
coupling.
3INSTALL REGULATOR ONTO
BURNER BOX BOTTOM
Screw the regulator
onto the burner
box bottom pipe
connection. Make
sure the top of
the regulator is
facing towards the
cabinet front, easily
accessible through
the cabinet doors.
The regulator may
also be installed
prior to inserting
the cooktop into the cutout if extreme caution is
used to ensure the regulator connection is not
compromised.
4COMPLETE CONNECTION WITH A
COUPLING
Complete the
connection between
the regulator pipe
coupling and
the shut-off valve.
Pressure
Regulator
Pressure
Regulator
Shut-Off
Valve
Coupling
Electrical
Outlet 12″
Below
Countertop
Coupling
Pressure
Regulator
Shut-Off
Valve
Coupling
Electrical
Outlet 12″
Below
Countertop

7
Installation Instructions
6
INSTALLATION OVER BUILT-IN
OVEN
See built-in oven installation for complete
installation instructions.
5″ To Center of
2″ Dia. Hole From
Countertop
2″ Dia. Hole
(20 7/8″ from front
of Countertop to
Hole Center)
Cabinet Sides
90° Elbow
5
CHECK FOR LEAKS
LEAK TESTING OF THE APPLIANCE SHALL BE
CONDUCTED ACCORDING TO THE MANUFACTURER’S
INSTRUCTIONS.
Before testing for leaks, make sure all burner knobs
are in the OFF position.
After connecting the cooktop to gas, check system
for leaks with a manometer. If a manometer is not
available, turn the gas supply on to the cooktop
and use a liquid leak detector at all joints and
connections to check for leaks.
Tighten all connections if necessary to prevent gas
leakage in the cooktop or supply line.
DO NOT USE OPEN FLAME TO CHECK FOR
LEAKS!
Disconnect the cooktop and its individual shut-off
valve from the gas supply piping system during any
pressure testing of that system at test pressures
greater than 1/2 psig (3.5 kPa).
Isolate the cooktop from the gas supply piping
system by closing its individual shut-off valve
during any pressure testing of the gas supply
system at test pressures equal to or less than 1/2
psig (3.5 kPa).
View from Front of Cooktop

8
Installation Instructions
ELECTRICAL SUPPLY AND OUTLET
An adequate electrical supply and outlet must
be used to operate the electrical parts of your
cooktop.
AThe power cord of this appliance is equipped
with a 3-prong (grounding) plug which must
be used with a properly grounded 3-hole
outlet with a standard 120 Volt, 60 cycle AC
household current.
BIf you do not have a 3-hole grounded outlet,
have a qualified electrician change your old
one. DO NOT, UNDER ANY CIRCUMSTANCES,
CUT OR REMOVE THE THIRD (GROUND) PRONG
FROM THE POWER CORD. DO NOT USE AN
ADAPTER. DO NOT USE AN EXTENSION CORD.
INSTALLATION—ELECTRICAL CONNECTIONS
NL
Insure proper
ground and
firm connection
before use
WARNING — Disconnect all electrical
power at the main circuit breaker or fuse box
before installing.

9
Installation Instructions
COOKTOP BURNERS
1ASSEMBLING THE COOKTOP BURNERS
The electrode of the igniter is exposed. Be careful not to turn on any cooktop controls
while the top of the burner is removed. Do not remove the top or touch the electrode
of any burner while another burner is turned on. Electrical shock might result.
APlace the burner head onto the burner base. Make sure to place the correct
burner head on the correct burner base and that the burner head sits level on
the burner base. The burner heads are not interchangeable. Ensure the slot in
the burner head is positioned over the electrode and that the burner head is
fully inserted inside the burner base. A small gap between the base and head is
normal.
BPlace the burner caps on the burner heads, making sure to place the correct
burner cap on the correct burner head. The burner caps are not
interchangeable. Each cap has three to four pins. Make sure that the burner
caps are properly seated on the burner heads and that none of the pins sit in the stability chamber.
Burner cap not properly seated
Burner cap properly seated
2CHECK IGNITERS
Operation of the electric igniters should be checked after the cooktop and supply line have been carefully
checked for leaks and the cooktop has been connected to the electrical power.
On models so equipped, check to be sure the cooktop is in the UNLOCKED position.
APush and turn a burner valve to the LITE position. All spark igniters will make a series of sparks (ticking
sounds), but only the burner turned to LITE will light.
• The burner should light when gas is available to the burner.
• Once the burner lights, it should be turned out of the LITE position.
BTry each valve separately until all burners have been checked.
Burner cap Inner
Burner cap
OR
Burner head Burner
head
Burner
base
Burner
base
Electrode Electrode
Stability
chamber

10
Installation Instructions
5BURNER GRATES
The three cooktop grates are designed for specific
positions. For maximum stability, these grates
should only be used in their proper position with
the edges positioned on top of the black bumpers
as shown
3BURNER IGNITION
Cooktop Spark Ignition—When you turn
the cooktop knob to LITE, the spark igniter makes a
series of electric sparks (ticking sounds) which light
the burner. During a power failure, the burners will
not light automatically. In an emergency, a cooktop
burner may be lit with a match by following the
steps below.
On models so equipped, check to be sure the
cooktop is in the UNLOCKED position.
ALight a match and hold the flame near the
burner you want to light. Wooden matches
work best.
BPush in and turn the control knob slowly. Be
sure you are turning the correct knob for the
burner you are lighting.
NOTE: If the burner does not light within five seconds,
turn the knob off and wait one minute before trying
again.
4THE BURNER FLAMES
Turn each burner on. Flames should be blue in color
with no trace of yellow. The burner flames should
not flutter or blow away from the burner. The flame
should be no less than 1/4″ on the lowest setting
and no greater than 1-1/2″ on highest setting.
CAUTION: If you attempt to measure the
flame, please use caution. Burns could result.
Burners should be checked frequently
Cooktop Burner
1/4″ to
1-1/2″
Black Grate
Bumpers
Grate
COOKTOP BURNERS (CONT.)

OPERATION CHECKLIST
AMake sure all controls are left in the OFF
position. Check to be sure the cooktop is in the
UNLOCKED position (on models so equipped).
BMake sure the flow of air to and from the
cooktop is unobstructed.
CThe serial plate for your cooktop is located on
the bottom of the burner box. In addition to the
model and serial numbers, it tells you the ratings
of the burners and the type of fuel and pressure
the cooktop was adjusted for when it left the
factory.
DWhen ordering parts, always include the serial
number, model number and a code letter to
ensure proper replacement parts.
ERecheck Steps:
Double check to make sure everything in this
guide has been completed. Rechecking steps
will ensure safe use of the cooktop.
11
Installation Instructions

12
Installation Instructions
MAKING THE LP CONVERSION
1SAFETY INFORMATION YOU
SHOULD KNOW
The pressure regulator and burner orifices are set
for natural gas. To use LP gas, the regulator and
burner orifices must be converted. The LP orifice
spuds for the cooktop burners can be located in the
literature package attached to the regulator.
CAUTION: The cooktop, as shipped from
the factory, is set for use with natural gas. If you
wish to use your cooktop with LP gas, you must
first replace the orifices and convert the pressure
regulator.
WARNING: This conversion must be
performed by a qualified installer or gas supplier in
accordance with the manufacturer’s instructions
and all codes and requirements of the authority
having jurisdiction. Failure to follow instructions
could result in serious injury or property damage.
The qualified agency performing this work assumes
responsibility for the conversion.
CAUTION: The following adjustments
must be made before turning on the burner. Failure
to do so could result in serious injury. Be sure
pressure regulator has been converted as
described in Step 2.
2ADJUST YOUR COOKTOP FOR USE
WITH LP GAS
ADisconnect all electrical power, at the main
circuit breaker or fuse box.
BShut off the gas supply to the cooktop
by closing the manual shut-off valve.
CAdjust the pressure regulator, by the following
instructions:
• Unscrew the cap.
• Place your thumb against the flat side of the
spring retainer and press down to remove
the retainer.
• Carefully look at the spring retainer to locate
the NAT or LP position.
• Turn the spring retainer over so that LP is
showing on the bottom.
• Snap the retainer back into position.
• Screw the cap back onto the regulator.
DOWN
FOR OFF
NAT
LP
LP
NAT
LP
NAT
NAT
LP
Gasket
Cap
Spring
Retainer
L.P./Propane
Position
NAT.
Position
Pressure Regulator
TOOLS YOU WILL NEED
FOR LP CONVERSION
Safety Glasses
Small Flat-Head
Screwdriver (4mm or
5/32″ tip size, 60mm
long)
7mm Nutdriver

3CHANGE COOKTOP BURNER
ORIFICES (CONT.)
CENTER BURNER
17,000 BTU/hr Extra Large Burner (PGP976 Models)
13
Installation Instructions
MAKING THE LP CONVERSION (CONT.)
3CHANGE COOKTOP BURNER
ORIFICES
ARemovethegrates,burnercaps,andburner
heads.
BUsinga7mmnutdriver,removetheburner
orifices.Thesemaybeaccessedthroughthe
burnerholesinthecooktop.
CLocatetheLP/Propaneorificesshippedinside
theliteraturepackage.Theywillhaveadigit
numberandtheletter“L”ontheside.
(Important:Savetheorificesremovedfromthe
applianceforfutureuse.)
Each orifice will show a series of engraved
marks, (I, II, III, IV or V), located on the top.
Thesemarksdenotethelocationofeachorificetothe
cooktopburner.
Retainer
Ring
Burner
Cap
Burner
Head
SetScrew
Choke
Base
Extended
Spud
See instructions
for center burner
IV
Extendedspudforcenter
extralargeburner
Orificespudlocated
throughthisopening
NOTE:Onallburners,the
orificeshaveaspring-loaded
retainingringaroundthehex
headtoholdtheorificeinthe
nutdriverduringinstallation
andremoval.Aslightamount
offorceisrequiredtopushthe
nutdriverdownoverthering.
I II III IV
x2x1
x1
x1
x1
x1
x1
I II III V V
x2 x3, Tall
ForPGP976Models
ForPGP986&CGP650Models
Burner
cap
Burner
head
Burner
base
Outer
burner
cap
Tri-RingBurner
Burner
base
Inner
burner cap
Electrode Burner
base
Orifice spud located
throughthisopening
Orificespudslocated
throughtheseopenings Electrode
OR

3CHANGE COOKTOP BURNER
ORIFICES (CONT.)
14
Installation Instructions
3CHANGE COOKTOP BURNER
ORIFICES (CONT.)
CENTER BURNER
20,000 BTU/hr Tri-Ring Burner (PGP986 and CGP650
Models)
Orificespudslocated
throughthese
openings.
V
Main Orifice
Main Orifice
Main Orifice
Simmer Orifice
V
V
V
Tall
Tall
Tall
LEFT FRONT BURNER
(PGP986 and CGP650 Models)
MainOrifice
GriddleScrew
Thegriddlescrew
ismarkedwithN
fornaturalgas
andLforliquefied
petroleum.
NOTE:Themainorificeislocatedinthecenterof
theburner,whilethegriddlescrewislocatedtothe
rightofthecenteroftheburner.
DInstalltheLPPropaneorificesandgriddle
screw(onPGP986andCGP650modelsonly)
intheirpreciselocationsasnotedinthe
earlierillustrations.
EReturnthenaturalgasorificesandgriddle
screwtothebracketandattachthebracket
andtheinstructionsheettothepressure
regulatorusingthescrewremovedpreviously.
FReplacetheburnerheads,capsandgrates.

15
Installation Instructions
MAKING THE LP CONVERSION (CONT.)
4ADJUST BURNER FLAMES
ATurn all burners full on and check the flames.
They should be blue in color with some yellow
tipping at the ends of the flame. Foreign
particles in the gas line may cause an orange
flame at first, but this will soon disappear.
BTurn the cooktop burner knob to the lowest
setting while observing the flame.
Adjust the low flame setting using the valve bypass
screw as follows:
Low-setting adjustments must be made with two
other burners in operation on a medium setting.
This prevents the low flame from being set too low,
resulting in the flame being extinguished when
other burners are turned on.
CTo adjust the flame,
remove the knobs. Use
screwdriver to remove
valve stem plugs as
shown.
Insert a screwdriver
through the access hole
in valve switch. Engage
adjustment screw in
valve. Refer to the
illustration below that
matches the adjustment
screw location for
your model. The
griddle burner (PGP986
and CGP650) has 2
adjustment screws,
one for the left rear
burner and one for the
left front burner during
griddle control. Griddle
control must be turned
to LO when making this
adjustment.
• If the flames were too
small or fluttered, open
the valve more than the original setting.
• If the flames blew away from the burner,
close the valve more than the original
setting.
DMake the adjustment by slowly turning the
screw until flame appearance is correct.
ETesting Flame Stability:
Test 1 – Temporarily replace knobs. Turn the
knob from “HI” to the lowest setting
quickly. If the flame goes out at the
lowest setting, increase the flame size
and test again.
Test 2 – With the burner on the lowest setting,
open and close the cabinet door
under the cooktop. If the flame is
extinguished by the air currents
created by the door movement,
increase the flame height and test
again.
FFlame Recheck:
After the adjustment is made, turn all burners off.
Ignite each burner individually. Observe the flame
at the “HI” position. Rotate the valve to the lowest
setting and be sure that the flame size decreases
as the valve is rotated counterclockwise.
TO CONVERT THE COOKTOP BACK TO NATURAL
GAS, REVERSE THE STEPS UNDER MAKING THE LP
CONVERSION.
Once the conversion is complete and checked ok,
replace valve stem plugs and knobs, and fill out
the LP sticker. Include your name, organization and
date conversion was made. Apply the sticker near
the cooktop gas inlet opening to alert others in
the future that this appliance has been converted
to LP gas. If converting back to natural gas from
LP, please remove the sticker so others know the
appliance is set to use natural gas.
For left front griddle
burner and tri-ring
burner simmer
adjustment screw
For all burners
except tri-ring
Left of stem
Inside stem

16
Notes.

1
31-10808 -1 (08-11 GE)
AVANT DE COMMENCER
Avant de commencer, lisez attentivement la totalité
de ces instructions.
• IMPORTANT — Conservez ces
instructions pour votre inspecteur local.
• IMPORTANT — Respectez toutes les
ordonnances et les codes locaux.
• Note à l’installateur – Assurez-vous de laissez ces
instructions au consommateur.
• Note au consommateur – Conservez ces
instructions pour référence future.
• La garantie ne couvre aucune panne due
à une mauvaise installation.
AVERTISSEMENT —
Cet appareil doit être bien mis à la terre.
•
IMPORTANT — Vous devez
vérifier que cet appareil n’ait pas de fuite
conformément aux instructions du fabricant.
• L’installateur est responsable d’une bonne
installation et la garantie ne couvre aucune
panne due à une mauvaise installation.
Questions? Appelez le Centre de réponse 1.800.561.3344 ou visitez notre site
Web à l’adresse : www.electromenagersge.ca
Instructions Table de cuisson scellée
d’installation au gaz de 91.4 cm (36”)
PGP976, PGP986, CGP650
POUR VOTRE SÉCURITÉ
AVERTISSEMENT —
Si vous ne suivez pas exactement les instructions
de ce manuel, vous risquez d’occasionner un
incendie, une explosion ou une fuite de gaz, qui
peuvent provoquer des dommages matériels, des
blessures corporelles ou la mort.
Ne conservez pas ou n’utilisez jamais d’essence
ou d’autres liquides ou vapeurs inflammables à
proximité de cet appareil ou de tout autre appareil
ménager!
CI QUE VOUS DEVEZ FAIRE SI
VOUS SENTEZ LE GAZ :
• N’essayez jamais d’allumer un appareil
électroménager. Ne touchez à aucun
commutateur d’électricité, n’utilisez jamais un
téléphone dans votre bâtiment.
• Appelez immédiatement votre fournisseur de
gaz à l’aide du téléphone d’un voisin. Suivez les
instructions de votre fournisseur de gaz.
• Si vous ne pouvez pas entrer en contact avec
votre fournisseur de gaz, appelez les pompiers.
L’installation et le service de votre table de cuisson
doivent être faits par un installateur qualifié, un
technicien de service ou votre fournisseur de gaz.
AVERTISSEMENT — Débranchez tout
courant électrique au niveau du disjoncteur de la
maison ou de la boîte à fusibles avant d’installer.

2
Instructions d’installation
INSTRUCTIONS IMPORTANTES DE SÉCURITÉ
Cette table de cuisson a été homologuée UL. Vous
trouverez des précautions à prendre en matière de
sécurité dans votre Guide d’utilisation et de soins.
Lisez-les attentivement.
• L’installation de votre table de cuisson
doit se conformer aux codes locaux ou, en
l’absence de codes locaux, au National Fuel Gas
Code, ANSI Z223.1/NFPA 54 Dernière édition.
• Assurez-vous que votre table de cuisson soit
bien installée par un installateur qualifié ou un
technicien de service.
• Pour éliminer tout mouvement corporel
au dessus des brûleurs de votre table de cuisson,
évitez de placer des armoires de cuisine au
dessus des brûleurs.
• N’installez jamais votre appareil près d’une porte
d’entrée ou dans un emplacement où un courant
d’air peut gêner son usage.
BESOINS D’ÉLECTRICITÉ
Cet appareil ménager doit être livré avec le bon
voltage et la bonne fréquence et branché à son
propre circuit de dérivation bien mis à la terre,
protégé par un disjoncteur ou un fusible qui ont
l’ampérage noté sur la plaque minéralogique de
votre appareil.
Nous vous recommandons de faire brancher le
câblage électrique et la fiche de votre cuisinière
par un électricien qualifié. Après l’installation,
demandez à l’électricien de vous montrer
l’emplacement de votre coupe-circuit principal.
Demandez à votre entreprise de services publics les
codes électriques en vigueur dans votre région. En
ne câblant pas votre cuisinière conformément aux
codes en vigueur, vous provoquez une situation
dangereuse. En l’absence de codes, vous devez
câbler et isoler votre cuisinière conformément aux
exigences du Canadian Electrical Code.
OUTILS DONT VOUS AUREZ BESOINS
MATÉRIAUX DONT VOUS POUVEZ
AVOIR BESOIN
Robinet d’alimentation
de gaz
Raccords de tuyaux
Raccord flexible de gaz approuvé par l’ACNOR
DI min 3/8’’, Jonction NPT 1/2
Agent de scellement
de tuyau
Scie sauteuse
Crayon
Lunettes de sécurité
Perceuse à main ou électrique
et foret de 1/8po
Règle ordinaire ou de
vérification
Tournevis Phillips
Clé à tuyau
PIÈCES COMPRISES
2 Supports de fixation
2 vis Régulateur

3
Instructions d’installation
LISTE DE VÉRIFICATION AVANT INSTALLATION
CEnlevez les instructions d’installation de la
trousse de documentation et lisez-les
soigneusement avant de commencer.
Assurez-vous de bien ranger toute la
documentation,(Manuel du propriétaire,
Instructions d’installation, etc.) dans un
endroit sûr pour référence future.
DAssurez-vous d’avoir tous les outils et tous
les matéraux nécessaires avant de
commencer à installer votre table de
cuisson.
EVotre maison doit être alimentée en courant
électrique adéquat pour vous permettre de
bien utiliser en toute sécurité votre table de
cuisson. (Consultez la section sur les besoins
d’électricité.)
FPour installer votre table de cuisson dans
votre maison, assurez-vous de vous
conformer scrupuleusement à tous les
codes et à toutes les ordonnances locales.
GAssurez-vous que les revêtements de mur, le
comptoir et les armoires autour de la table
de cuisson puissent supporter la chaleur
[pouvant atteindre 93°C (200°F)] produite
par la table de cuisson.
APour préparer l’ouverture de la surface de
cuisson, vous devez vous assurer que
l’intérieur de l’armoire ne touche pas la table
de cuisson (consultez la section sur la
préparation de l’ouverture).
BEnlevez les matériaux d’emballage, les
boîtes de grille, le régulateur avec sa
documentation et la documentation de
votre table de cuisson avant de commencer
à l’installer.
Documentation
Emballage
en mousse
Table de
cuisson
Boîtes de
grille

4
Instructions d’installation
PRÉPARATION DE L’OUVERTURE
1VOUS DEVEZ RESPECTER LES
DÉGAGEMENTS MINIMAUX
SUIVANT
3 3/4 MIN.
4EMPLACEMENT RECOMMANDÉ DE
L’ALIMENTATION DE GAZ À
PARTIR DU MUR ARRIÈRE
5ASSUREZ-VOUS QUE
LES REVÊTEMENTS MUR, LE
COMPTOIR ET LES ARMOIRES
AUTOUR DE LA TABLE DE
CUISSON PUISSENT SUPPORTER
LA CHALEUR (POUVANT
ATTEINDRE 93°C [200°F])
Profondeur max de 33 cm (13″)
des armoires en surplomb
Hauteur min
de 45 cm (18″)
du comptoir
à l’armoire la
plus proche
de chaque
côté de
l’appareil
2.5 cm (1″) min. du mur arrière
Emplacement
recommandé de
l’alimentation
de gaz 17.78 cm
(7″) Du
découpage
á la ligne du
centre
2DIMENSIONS DU DÉCOUPAGE DE
LA TABLE DE CUISSON
3DIMENSIONS TOTALES DE
LA TABLE DE CUISSON
Pour assurer la justesse du découpage,
il vaut mieux faire un gabarit pour couper
l’ouverture dans le comptoir.
Table de cuisson
Largeur du découpage
49,8 cm (19-5/8″)
36,2 cm
(14-1/4″)
72 cm (28-1/4″)
76 cm (30″)
8-1/4 cm
(3-1/4″)
49 cm (19-3/8″)
53 cm (21″)
Dégagement min. de 76 cm
(30″) du comptoir à la surface
en non surplomb non protégées
Les revêtements de
mur, les armoires et
le comptoir doivent
pouvoir supporter
une chaleru pouvant
atteindre 93°C (200°F)
REMARQUE : tous les modèles de surface
à cuisson au gaz requièrent un dégagement
de 1,1 cm (7/16 po) sous la hauteur de la surface
pour la matière combustible.
72,4 cm (28-1/2″)
longueur du
découpage
TOUS LES DÉGAGEMENTS HORIZONTAUX DOIVENT
S’APPLIQUER SUR UNE DISTANCE MINIMALE DE 45,7 CM
(18”) AU-DESSUS DE LA SURFACE DE CUISSON.
Base d’armoire
de 76,2 cm (30”)
ou supérieur
L R C
PGP976
9,5 cm (3-3/4”) 15,2 cm (6”) 5,7 cm (2-1/4”)
PGP986 30,5 cm (12”) 30,5 cm (12”) 8,6 cm (3-3/8”)
CGP650 30,5 cm (12”) 30,5 cm (12”) 8,6 cm (3-3/8”)
R - MIN.
Dégagement
entre l’ouverture
et le mur latéral
droit
L - MIN. Dégagement
entre la table de cuisson
et le mur latéral gauche
C - MIN.
Dégagement
entre l’ouverture
et le mur arrière
2-1/2” MIN. Entre
l’ouverture et le
devant du comptoir
