GE JGP990 User manual

ge.com
Safety Instruaions ..... 2-5
Operating Instructions
Accessories .............. 7
Controls .............. 8, 9
Cookware .............. 9
Electric Ignition ......... 8
Features ................ 6
Griddle ................ 14
Grill Module ......... 10-13
SurlXace Burner
Modules ........... 6, 8-10
Ventilation System ..... 6, 9
Care and Cleaning
Control l{a_obs and
Conuol Panel Seal ...... 15
Grease Jar ............. 15
Griddle Accesso,w ....... 17
Grill Burner. ........... 16
Grill Grate ............. 16
Ig_fiters ................ 17
Porcelain Burner Basin . . 17
Porcelain Cooktop ...... 15
Sealed Burner Module ... 17
Stainless Smel Surfi_ces ...15
Vent Grille and Filter .... 16
Installation
Ins_uc'_ions ......... 18-29
LP Conversion ...... 30-33
Troubleshooting
Tips ............... 34, 35
Consumer Support
Consumer Support ...... 40
.., /,38Product Registration 3_"
VV:mantv ............... 39
Writethemodelandserial
numbershere:
Model #
Serial #
Find these numbers on a label
under the cooktop. 4226-0016-01
J(;P990
49-80402 12-05JR

iMPORTANTSAFETYiNFORMAtiON.
READALLiNSTRUCtiONSBEFOREUSING
WARNING!
For your safe_, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
WARNING:If the information in this manual
is not followed exactly, a fire or explosion may
result causing property damage, personal injury
or death.
-- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
-WHATTODOIF YOUSMELLGAS
_:_'iDo not try to light any appliance.
i_i:iDo not touch any electrical switch; do not use
any phone in your building.
i_i:iImmediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the
fire department.
-- Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
2

ge.com

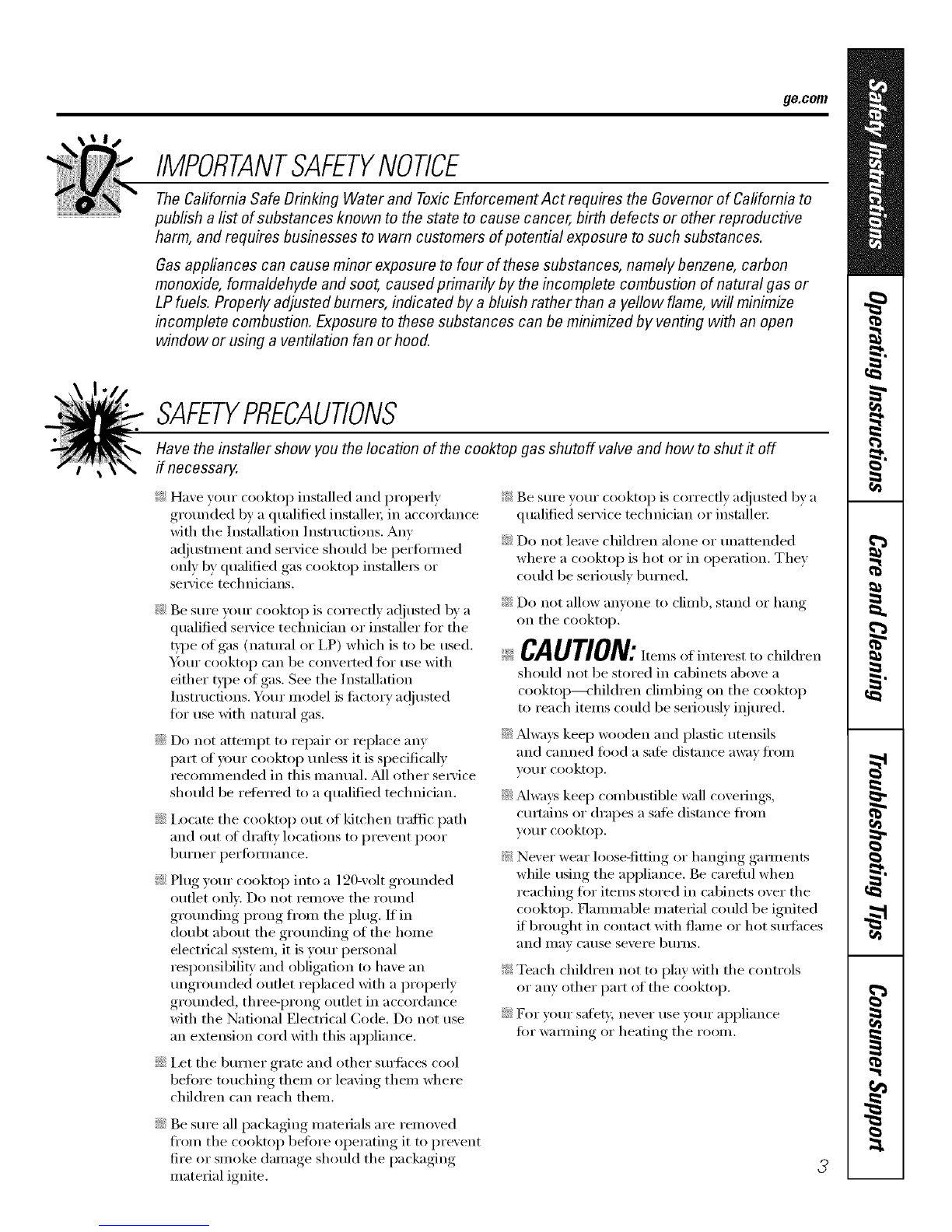

IMPORTANTSAFETYNOtiCE
The California Safe Drinking Water and ToxicEnforcement Act requires the Governor of California to
publish a list of substances known to the state to cause cancer, birth defects or other reproductive
harm, and requires businesses to warn customers of potential exposure to such substances.
Gasappliances can cause minor exposure to four of these substances, namely benzene, carbon
monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or
LP fuels. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize
incomplete combustion. Exposure to these substances can be minimized by venting with an open
window or using a ventilation fan or hood.
SAFETYPRECAUtiONS
Have the installer show you the location of the cooktop gas shutoff valve and how to shut #off
ff necessary.
?_:Have your cooktop installed and properly ?_:
grounded by a qualified installex; in accordance
with the Installation ]nstrt/cfions. Any iJi::
a(!jusm_ent and service should be perfimned
only by qualified gas cooktop installers or
se_'ice technicians.
i_: Be sm'e yore" cooktop is correctly a(!justed by a
qualified se_'ice technician or installer for the
tspe of gas (natural or I,P) which is to be used.
Yore" cooktop can be converted for rise with
either type of gas. See the Installation
Instructions. Your model is factory a(!iusted
for rise with natural gas.
::Ji::Do not attempt to repair or replace anv
part of your cooktop tmless it is specifically
recommended in this manual. M1 other se_Mce
should be referred to a qualified technician.
::Ji::ix)cate tile cooktop out of kitchen traffic path
and out of drafty locations to prevent poor
burner perfimnance.
_: Plug yore" cooktop into a 120-volt grounded
outlet only. Do not remove tile rotmd
grotmding prong from the plug. If in
doubt about tile gro/mding of tile home
electrical system, it is yore" personal
responsibili b' and obligation to have an
tmgro/mded outlet replaced with a properly
grounded, three-prong outlet in accordance
with the National Electrical Code. Do not use
an extension cord with this appliance.
::Ji::I,et tile burner grate and other surfl_ces cool
before touching them or leaving them where
children can reach them.
Be sm'e yore" cooktop is correctly a(!iusted by a
qualified se_wi(e technician or installe_:
Do not leave children ahme or mmttended
where a cooktop is hot or in operation. They
could be seriously burned.
::Ji::Do not allow anvone to climb, stand or hang
on tile cooktop.
CAUTION:Items()finterestt()children
should not be stored in cabinets above a
cooktop----{'hildren climbing on tile cooktop
to reach items could be seriously iqim'ed.
Mwavs kee I) wooden and plastic utensils
and canned food a sale distance away fl'om
yo/ir cooktop.
Mwavs kee I) combustible wall coverings,
cmtains or drapes a sate distance fl'om
yotlr cooktop.
Never wear loose-fitting or hanging gam_ents
while using the appliance. Be careflfl when
reaching t()r items st(wed in cabinets over the
cooktop. Hammable material could be ignited
if brought in contact with flame or hot sm_hces
and Ill,IV ca/Ise severe blli'ns,
Teach children not to play with tile controls
or any other part of tile cooktop.
For your safety, never use your appliance
for wamfing or heating tile room.
::Ji::Be sure all packaging materials are removed
fl'om tile cooktop before operating it m prevent
fire or smoke damage should tile packaging
material ignite. 3

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.

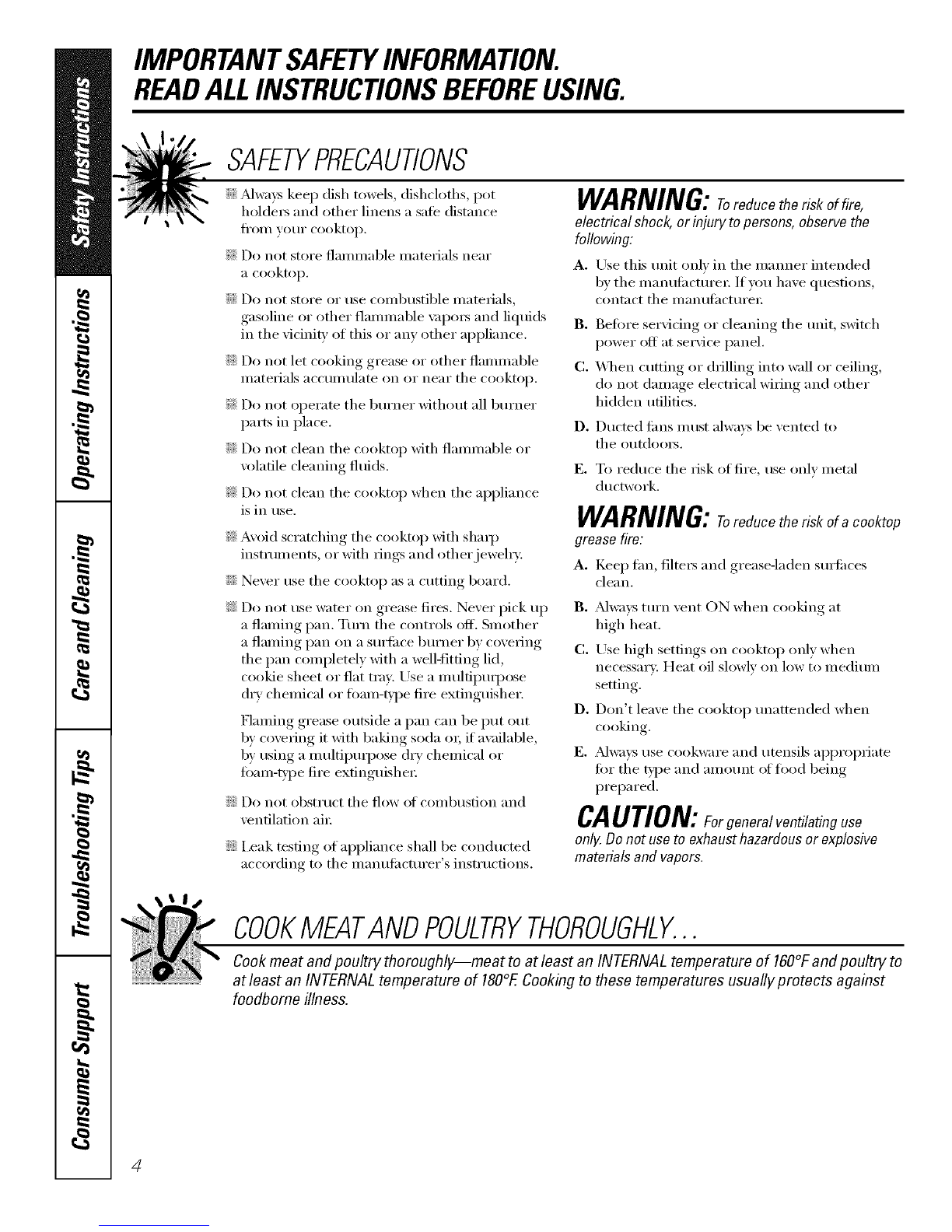

SAFETYPRECAUTIONS
Mwavs keep dish towels, dishcloths, pot
holders and other linens a safe distance
from your cooktop.
Do not store flammable materials near
a cooktop.
Do not store or use combustible materials,
gasoline or other flan/inable \;qxn_ aim liquids
in tile vicinity of this or any other appliai_ce.
Do not let cooking grease or other flamlnable
IllateIJals _lCC/lI//tllate on oi" near tile cooktop.
Do not operate tile burner without all burner
parts in place.
Do not clean the cooktop with flammable or
w_latile cleaning fluids.
Do not clean the cooktop when the appliance
is ill rise.
Avoid scratching tile cooktop with shaq)
instruments, or with rings and otherjewehT:
Never use tile cooktop as a cutting board.
WARNING:roredu etberiskoffire,
electrical shock, or injury to persons, observe the
following:
A. Use this unit only in tile manner intended
by tile manufilcturei: If you have questions,
contact tile l//_lll/l[_lCttll'el:
B. Befi)re seiMcing or cleaning tile unit, switch
power off at service panel.
C. \4]/en cutting or drilling into wall or ceiling,
do not damage electrical wiring and other
hidden utilities.
D. Ducted tiros must alwms be vented to
tile o/itdooi_.
E. To reduce tile risk of fire use only metal
ductwork.
WARNING:Toreducetberiskofaoooktop
grease fire:
A. Keep tim, filteI_ and grease-laden surtilces
clean.
Do not use water on grease fires. Never pick up B.
a flaming pan. Turn tile controls off. Smother
a flaming pan on a s/u'fhce burner by covering C.
the pan completely with a well-fitting lkl,
cookie sheet or flat tray. Use a mulfipuq)ose
dry chemical or foam-type fire extinguisher.
D°
Flaming grease outside a pan can be put out
by covering it with baking soda m; if awfilable,
by using a m ultipuq)ose dry chemical or E.
foam-t},pe fire extinguishei:
Do not obstrtlct tile flow of COl//b/1stion and
xentilation aii:
i,eak tesfin,*,_of appliance shall be conducted
according to tile manufacturer's instructions.
Mways turn vent ON when cooking at
high heat.
Use high settings on cooktop only when
necessary. Heat oil slowly on low to medium
setting.
Don't leave the cooktop unattended when
cooking.
Mwax:s use cookware and utensils appropriate
for tile _'pe and amount of food being
prepared.
CAUTION:Forgeneralventilatinguse
only. Do not use to exhaust hazardous or explosive
materials and vapors.
COOKMEATANDPOULTRYTHOROUGHLY...
Cook meat and poultry thoroughly--meat to at least an INTERNAL temperature of 160°Fand poultry to
at least an INTERNAL temperature of 18O°ECooking to these temperatures usually protects against
foodbome illness.
4

ge.com
• ,WARNING!
SURFACEBURNERS
Use proper pan size--avoid pans that are unstable or easily tipped. Select cookware having flat
bottoms large enough to cover burner grate. Toavoid spillovers, make sure cookware is large enough
to contain the food properly. This will both save cleaning time and prevent hazardous accumulations
of food, since heavy spattering or spillovers left on cooktop can ignite. Use pans with handles that can
be easily grasped and remain cool
_: Mwavs use tile £/TE position when igniting tile
top burne_ and nlake sure tile burnei_ have
ignited.
::Ji::Never leave tile stli'l'ilce burne_ unattended at
high flame settings. Boilove_s cause slnoking
and greasy spillove_ that may catch on fire.
?_:Use only (h y pot holders--moist or damp pot
holders on hot stmfi_ces may result in btm_s fl'om
steam. Do not let pot holders come near open
flames when lit_ng cookware. Do not use a towel
or other bulky cloth in I/lace ot a pot holder;
Such cloths can catch fire on a hot bume_:
_: \,_]/en using glass cookware, make sure it is
designed tot cooktop cooking.
_: To minimize tile possibili_' ot bm'ns, ignition
of flammable materials and spillage, mrn
cookware handles toward the side or cenmr
ot the cooktop without extending over
adjacent burne_.
::Ji::Always turn tile suYlilce burner controls off
befiwe removing cookware.
_: Careflflly watch roods being fl{ed at a high
flame setting.
_: Mwavs heat tilt slowly and watch as it heats.
::Ji::Do not leave any items on tile cooktop. Tile hot
air fl'om tile vent may ignite flammable items
and will increase pressm'e in closed containe_,
which may cause them to built.
_: If a combination of oils or tilts will be used in
fl'ying, stir together befiwe heating or as lilts
melt slowly.
::J_::Do not rise a wok on tile cooking s/IYI;l('e
if the wok has a rotmd metal ring that is placed
over tile burner grate to support tile wok. This
ring acts as a heat trap, which may damage the
burner grate and burner head. Mso, it may
cause tile burner to work imi)roperl > This may
cause a carbon monoxide level above that
allowed by current standards, resulting in a
health hazard.
::Ji::Foods fi,r flTing shouM be as d_y as possible.
Frost on frozen toods or moisture on fl'esh
toods can cause hot tilt to bubble up and over
the sides ot the pan.
_: Use tile least possible amount of tilt tot effective
shallow or deep-tilt fl'ying. Filling the pan too
fllll of flit can cause spillove_ when fi)od is
added.
::Ji::Use a deep tilt them/ometer whenever
possible to prevent overheating tilt beyond
tile smoking point.
_: Never t_w to move a pan of hot tilt, especially a
deep tilt flwet: Wait tmtil the lilt is cool.
::Ji::Do not flame toods on tile cooktop. If you do
flame toods under tile hood, turn tile tan on.
_: Do not leave plastic items on the cooktoI>--
tile}' may melt if leti too close to tile vent.
N Kee I) all plastics away fl'oln tile SUll'ilce burnei_.
_: If you smell gas, mrn off the gas to the cooktop
and call a qualified service technician. Never
use an open flame to locate a leak.
::_i::To avoid tile possibili_' of a bm'n, alwa):s be
certain that tile controls fi)r all burne_ are at
tile off position and all grates are cool beflwe
attempting to remove them.
_: Never clean the cooktop sm'filce when it is hot.
SoIlle cleanelN l)roduce noxiotls ][ilIl/es and wet
cloths could cause steam burns if used on a hot
S tlI'J[iIce.
::_i::Never leavejms or cans of flit drippings on or
ne}lI" yl)/li" cooktop.
_: Do not use ahuninuln t0il under burner grate.
Misuse could result in a fire hazard or damage
to the cooktop.
::_i::Do not cover or block the area around the
cooktop knobs. This area must be kept clear tbr
proper ventilation and bm'ner i)e_fimnance.
_: Clean only parts listed in this Owner's Manual.
READANDFOLLOWTHISSAFETYINFORMAtiONCAREFULLY
SAVETHESEINSTRUCTIONS 5

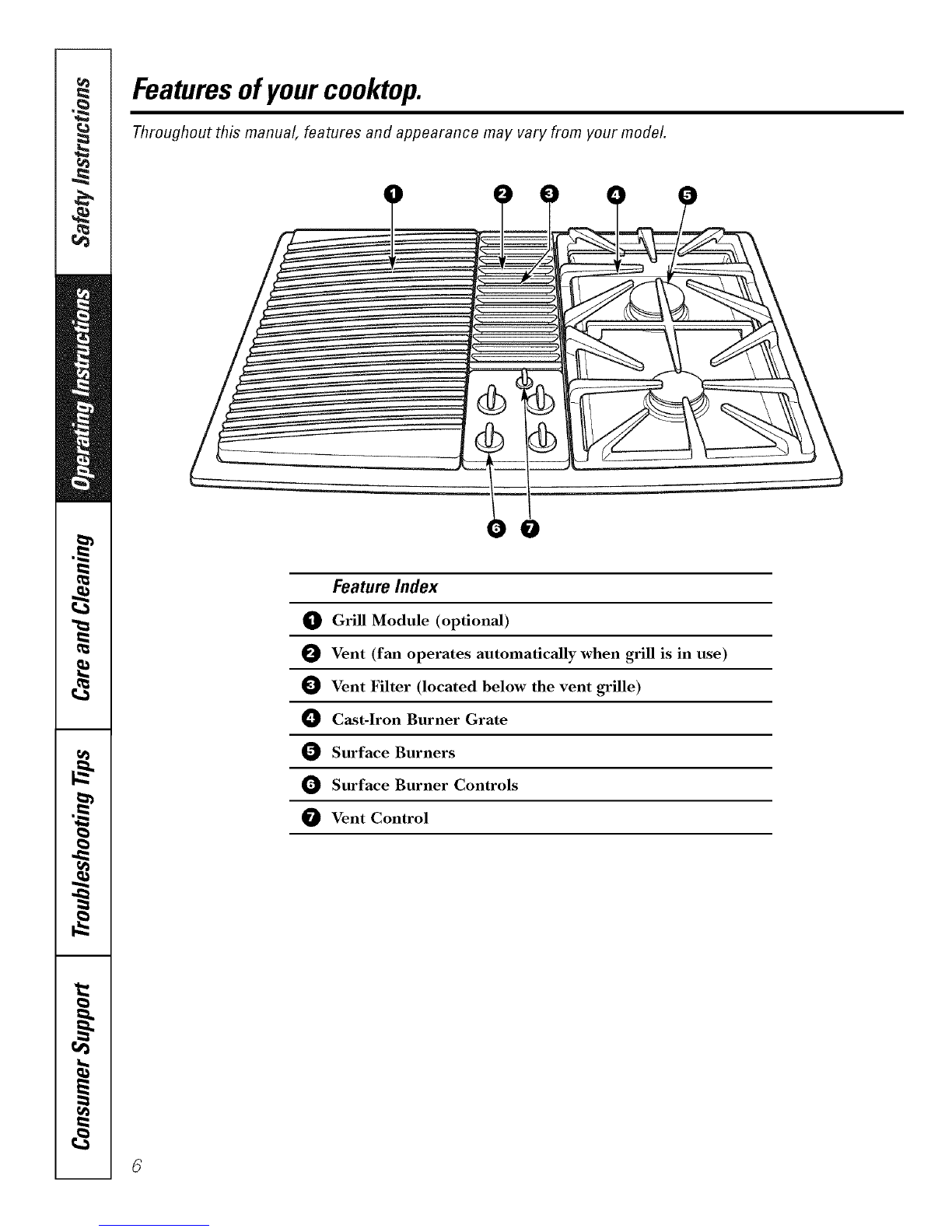

Featuresofyourcooktop.
Throughout this manual, features and appearance may vary from your model.
Feature Index
_) Grill Module (optionM)
O Vent (fan operates automatically when grill is in use)
Vent Filter (located below the vent grille)
Cast-Iron Burner Grate
Surface Burners
{_ Surface Burner Controls
Vent Control

Cooktopaccessories, gecom
Throughout this manual, features and appearance may vary from your model.
Grill Model JXGGgOL
Consists of a black grill grate and
a grill burner.
Sealed Burner Module
Models JXGBgOB(black), JXGBgOS(stainlesssteel) and JXGBgOW(white)
Tile grill assembly can be removed
and a sealed burner module
installed.
NOTE: Optional surface burner
module (JXGB90) can replace the
grill assembly. Burners supplied
with cooktop and optional module
air shutters have been adjusted
for compatibility on both sides.
Griddle Model JXGLgOL
Can be used only with the grill
burner. Self-draining griddle
makes many favorite foods easier
to fix. Family-sized surface lets you
cook several pancakes, hamburg>rs
or grilled sandwiches at the
same time.

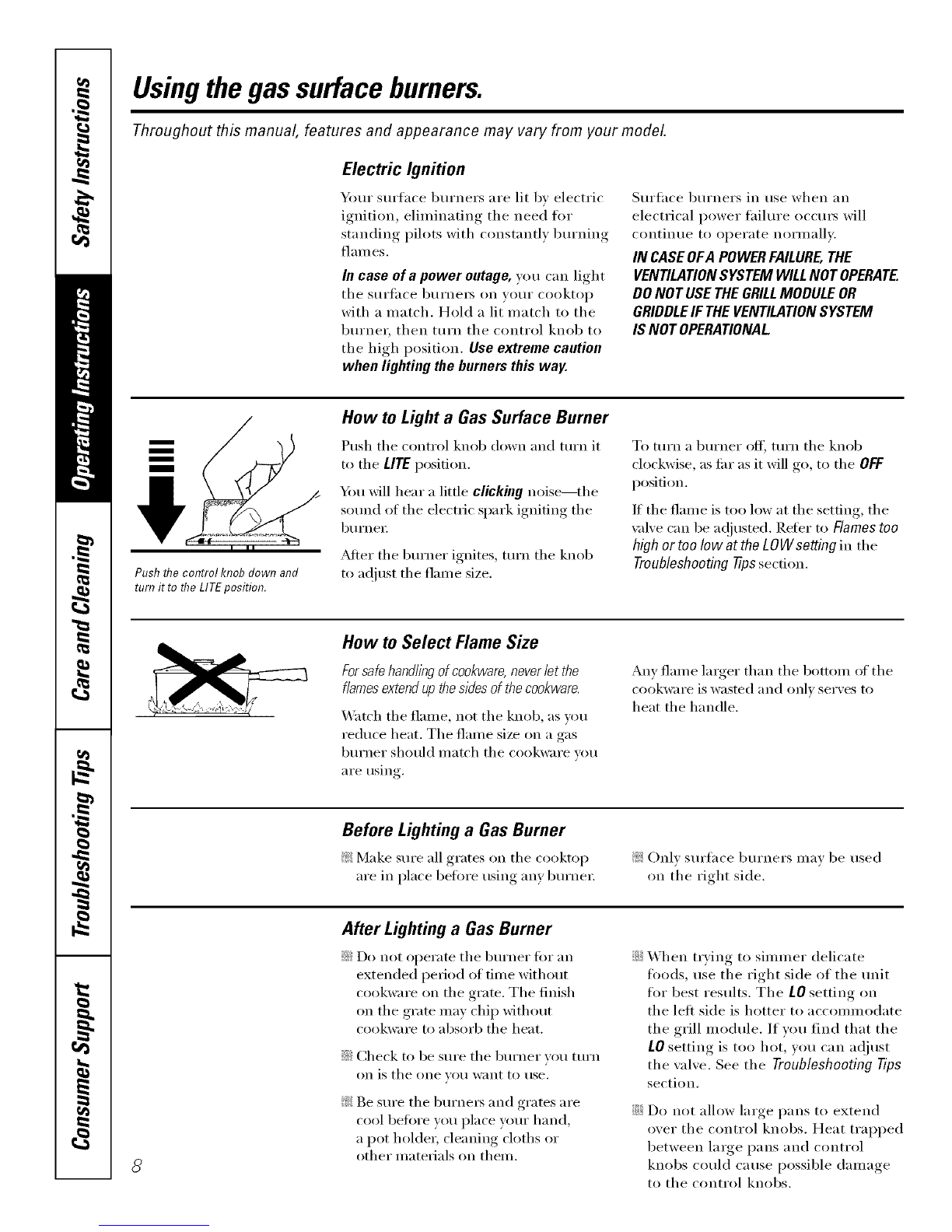

Usingthegas surfaceburners.
Throughout this manual, features and appearance may vary from your model
Electric Ignition
Your surtace burners are lit by electric
ignition, eliminating tile need fl)r
standing pilots with constantly burning
[]_lI//es.
In case era power outage, you can light
tile s[lri_l('e b/li'nei's on VO/lI" cooktop
with a match. Hold a lit match to tile
bm'ne_; then mrn tile control knob to
tile high position. Use extreme caution
when lighting the burners this way.
Surthce burners in use when an
electrical power fifilure occm5 will
contintle to operate norlllallv.
IN CASEOFAPOWERFAILURE,THE
VENTILATIONSYSTEMWILLNOTOPERATE.
DONOTUSETHEGRILLMODULEOR
GRIDDLEIF THEVENTILATIONSYSTEM
ISNOTOPERATIONAL
Push the control knob down and
turn it to the LITEposition.
How to Light a GasSurface Burner
Push tile c(mtrol knob down and mrn it
to tile LITEposifi(m.
Y)m will hear a little clicking noise--the
sound of the electric spark igniting the
b/lI'neI:
_Mier tile burner ignites, mrn tile knob
to adjust tile flame size.
To mrn a burner off', mrn tile knob
clockwise, as tin" as it will go, to the OFF
posifi(m.
If tile flame is too low at tile setting, the
\:dve can be a(!iusted, l_.eti_r to Flamestoo
high or toolow at theLOWsetting in tile
Troubleshootingtips section.
How to Select Flame Size
Forsafehandling of cookware, neverlet the
flamesextendup thesides of the cookware.
_'atch tile flame, not tile knob, as y(m
reduce heat. Tile flame size on a gas
burner should match tile cookware um
are using.
Any flame laxger than tile bottom of tile
cookware is wasted and only serves to
heat the handle.
Before Lighting a Gas Burner
_: Make sure all grates on tile c()()ktop
are in place before using any bm'ne_;
_: Only surface burners may be used
on tile right side.
8
After Lighting a Gas Burner
::Ji::Do not operate tile burner fin" an
extended period of time without
cookware on tile grate. Tile finish
on tile gram may chip without
c(_okware to absorb tile heat.
::Ji::Check to be sure tile burner vou turn
on is the one yell want to rise.
Be sure tile burnex_ and grates are
cool before you place yore" hand,
a pot holder, cleaning cloths or
other materials on them.
::Ji::When t_Ting to simmer delicate
toods, use the right side of the unit
fi)r best results, The LO setting on
the left side is hotter to accommodate
the grill module, If wm find that the
LOsetting is too hot, you can a_!just
the wdve. See tile Troubleshooting Tips
section.
::Ji::Do not allow large pans to extend
over tile control knobs. Heat trapped
between large pans and control
knobs c(mld cause possible damage
to tile control knobs.

Usingyourcooktop, ge.com
Use a flat-bottomed wok.
Wok This Way
Werecommendthat youusea flat-bottomed
wok,availableat yourlocal retail store.
(-)nlv a fiat-bottomed wok should be used.
Do not use a fiat-bottomed wok with a
wok holder:
Do not rise a I'lat-bottollled wok on a
support ring. Placing tile ring over tile
btlrner or grote I/lag Catlse tile btlrner to
work improped 5 resulting in carbon
monoxide levels above allowable cmTent
standards. This could be dangerous to
your health.
Cookware
Uselargediametercookwareonrear
burners.
Aluminum: Medium-weight cookware is
recommended because it heats quickly
and evenh'. Most fi)ods brown evenly
in an ahnninunl skillet. Use saucepans
with tight fitting lids when cooking
with IIlinilIltllIl alilOtlnts of wateI:
Enamelware:Under some conditions,
tile enai//el of SOille cookware ill}iV
melt. Follow cookware mamdactm'er's
recommendations fi)r cooking methods.
Glass: There are two t},pes (ff glass
cookware: those for oven IlSe only
and those fi)r cooktop cooking
(saucepans, coffee and teapots).
Glass conducts heat ;'err slowly:
Cast Iron: If heated slowly, n/ost
skillets will give satisfi_ctox_' results.
HeatproofGlass-Ceramic: Can be used
tor either stlrfllce or oven cooking.
It (ondtl(ts heat very sh)wly and cools
ve_' slowly. Check cookware
nlanufilcturer's directions m be sure
it can be used on a gas cooktop.
Stainless Steel'.This metal alone has
poor heating properties and is usually
combined with coppe_; ahmfinum
or other metals fi)r improved heat
distribution. Combination metal skillets
usually work safisfi_ctorilv if thev are used
with medimn heat as tile manttfilcttlrer
recoi/lillends.
Usingthe downdraftventsystem.
OFF LO
_H MEB
I
How to Operate the Downdraft VentSystem
The built-in vent system helps remove
cooking vapors, odors and smoke from
foods prepared on the cooktop.
To turn on tile vent tim, use tile vent
control switch on tile control panel.
*Turn tile vent tim speed control
knob to HI, MED or tO as needed.
NOTE: Even if the switch is in the
off position, the fan will operate
automatically when the grill burner
is in use.
Continuous use of tile vent system
while cooking helps keel:) tile kitchen
comfl)rtable and less humid, reducing
cooking odors and soiling moistme
that normally creates a fl'equent need
flw cleaning.
The appearance of tile burner flames
may be affected when tile vent tim is
operating. At high fhn speed setting,
tile flame may be drawn toward the vent
opening, affecting cooking pe_fimnance.
IN CASE OFA POWERFAILURE,THE
VENTILATIONSYSTEM WILL NOT OPERATE.
DO NOT USETHE GRILLMODULE OR
GRIDDLEIF THEVENTILATION SYSTEM
/S NOT OPERATIONAL. 9

Surfaceburnerandgrill modules.
Throughout this manual, features and appearance may vary from your model.
Sealed Burner Module
ToInstall the Sealed Burner Module:
1. Make sure that all control knobs are
set to OFF.
2. Clean tile cooktop basin to remove
any grease accunnllafion. See tile Care
and Cleaning the Cooktop secdon.
24.With tile back of tile btlFneI" illodtlle
tilted up and tile two ro/md openings
and th tee pins ti_cing t()wa rd the front,
inse_t tile module in tile cooktop basin.
4. Slide tile bm'ner module forward tmfil
the pins start to engage the white
slotted receptacle,
5. I,ower tile back of tile module into
place and carefiflly slide it fin'ward
tmtil tile pins are flflly engaged.
6. Place tile burner caps on tile burne_.
Careflflly place tile grate onto tile
module with tile two tabs on tile
trade,side toward tile center of
tile cooktop.
ToRemove the Sealed Burner Module:
1.
2.
Make sm'e that all control knobs are
set to OFFand that tile cooktop is cool.
i,ifl up tile edge of tile bm'ner module
tmtil tile bottom of tile module clem_
tile edge of tile basin.
IMPORTANT. Do not lift the module too
high while it is still connected--you could
damage the ignitor rods and mixer tubes.
3. Hold tile module by tile sides and pull
it away fl'om tile slotted receptacle and
brass orifices. Lift it ()tit of tile basin
when it is completely m_plugged.
4. Do not store or stack modules where
they could edl or be dalnaged.
NOTE: Tile optional sealed b/m_er
moduleJXGB90 can replace tile grill
burner assembly:
10
Grill Module
Thegrill consists of a black grill grate and the grill burner. Only install the grill on the left side
of your cooktop.
ToInstall the Grill Module:
1.
2.
3.
Make sm'e that all control knobs are
set to OFF.
Position tile grill burner Mth tile
two rotmd robes and three pins ti_cing
tile fl'ont.
Slide tile grill bm'ner fin'ward tmfil tile
pins and ignito_s are engaged in tile
white slotted receptacle; then lower
tile burner tmtil it rests on tile
m otmting pins.
4. Careflllly place tile grill grate on tile
cooktop. Tile grate is designed to fit
one way only. See tile illustration.
NOTE:Beforeusingthegrill for thefirst time,
heatthegrill burnerto removetheprotective
shippingcoating.Heatthegrill burner on HI
for 10minutesandusethe ventsystemto
removeanyadditionalsmokeduringcooling.
ToRemovetheGrillModule'.
2.
3.
Make sm'e that all control knobs are
set to OFFand all grill components
are cool
Remo\e tile grill grate.
I,ifl tile grill burner up slightly and
pull it away flora tile white slotted
receptacle and brass orifices. Lift it out
of the basin when it is completely
unplugged.
4. Do not store or stack modules where
tile)' could iidl or be damaged.
NOTE:Tile optional sealed burner
moduleJXGg90 can replace tile grill
burner assembly.

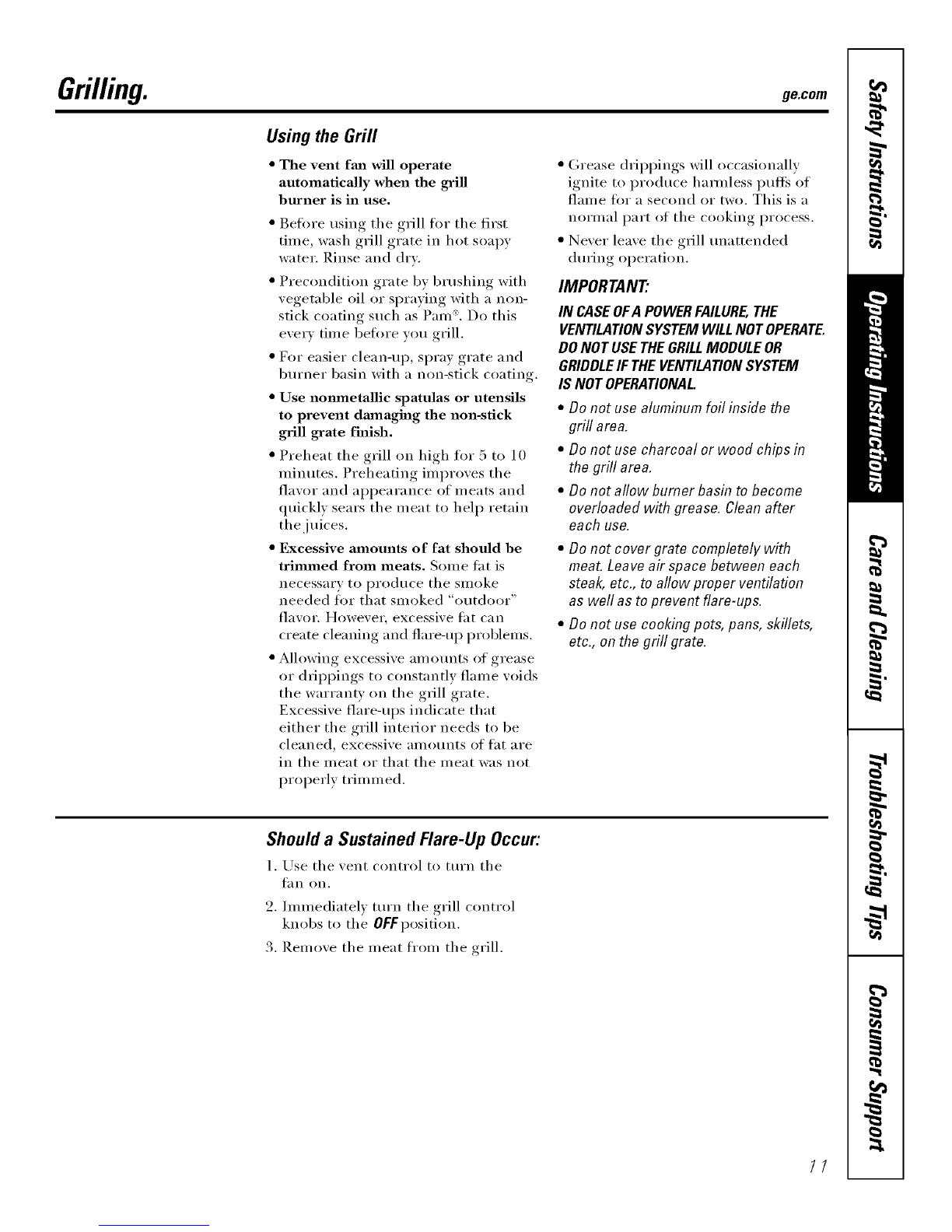

Grilling. ge.com
Using the Grill
• The vent fm_ will operate
automatically when the grill
burner is in use.
• gefi)re using the grill fl_r the first
time, wash grill grate in hot soapy
water. Rinse and dry.
• Precondition grate by brushing with
vegetable oil or spraying with a non-
stick coating such as Pare ®.Do this
every time befl_re wm grill.
•D)r easier clean-up, spray grate and
bm'ner basin with a non-stick coating.
• Use nmmletallic spatulas or utensils
to prevent damaging the non-stick
grill grate finish.
• Preheat the grill on high tin" 5 to 10
minutes. Preheating improves tile
flavor and appearance of meats and
quickly sears the meat to help retain
the juices.
• F_xcessive amounts of fat should be
trimmed from meats. Some tat is
necessary to produce the smoke
needed tot that smoked "outdoor"
flavor. However; excessive tat can
create cleaning and flare-up problems.
• Allowing excessive amotmts of grease
or drippings to constantly flanle wilds
tile warranty on tile grill grate.
Excessive flare-ups indicate that
either the grill interior needs to be
cleaned, excessive }lIno/lnts of t;It aye
in tile meat or that tile meat was not
properly trimmed.
• Grease drippings will occasionally
ignite to produce hamfless i)ufls of
flame tiw a second or two. This is a
normal part of tile cooking process.
• Never leave the grill unattended
dm'ing operation.
IMPORTANT"
IN CASEOFA POWERFAILURE,THE
VENTILATIONSYSTEM WILL NOT OPERATE.
DO NOT USETHE GRILLMODULE OR
GRIDDLEIF THE VENTILATION SYSTEM
IS NOT OPERATIONAL
•Do not use aluminum foil inside the
grill area.
•Do not use charcoal or wood chips in
the grill area.
•Do not aflow burner basin to become
overloaded with grease. Clean after
each use.
•Do not cover grate completely with
meat. Leave air space between each
steak, etc., to allow proper ventilation
as well as to prevent flare-ups.
•Do not use cooking pots, pans, skillets,
etc., on the grill grate.
Should a Sustained Rare-Up Occur:
l. Use tile vent control to turn tile
t_lll on.
2. ]mmediatelv ttlrn tile grill control
knobs to tile OFFposition.
3. Remove tile meat fl'om tile grill.
1/

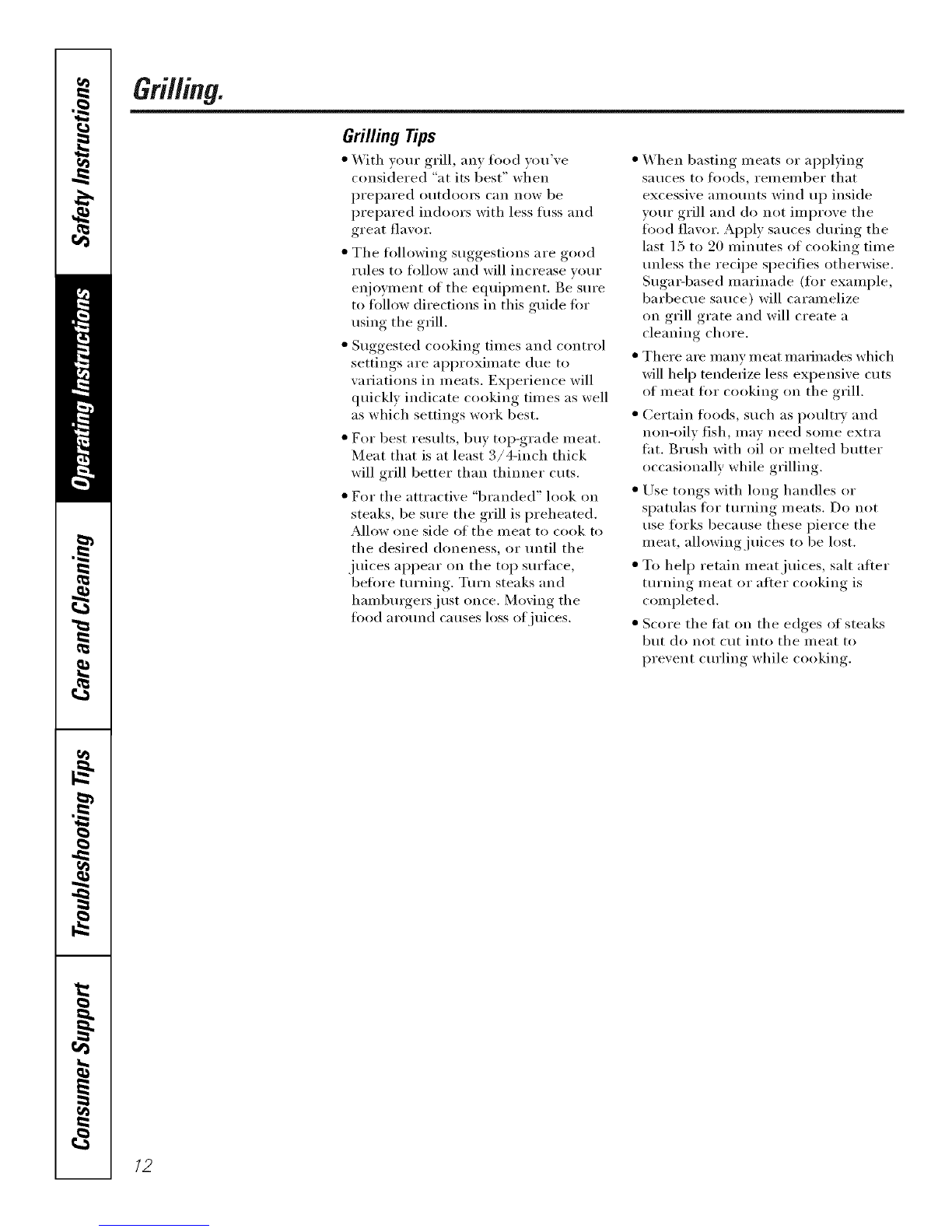

Gril/ing.
Grilling Tips
" _'_]th your grill, any food wmk'e
considered "at its best" when
prepared outdoo_ can now be
prepared indoors with less fllss and
great flaw_r.
• The tollowing suggestions are good
_ules to follow and will increase vom"
enjoyment of the equil)ment. Be sure
to tollow directions in this guide tot
using the grill.
• Suggested cooking times and control
settings are approximate due to
w_riations in meats. Experience will
quickly indicate cooking times as well
as which settings work best.
• For best results, buy top-grade meat.
Meat that is at least 3/h-inch thick
will grill better than thinner cuts.
• For the attractive "branded" look on
steaks, be sm'e the grill is preheated.
Allow one side of the meat to cook to
the desired aloneness, or tmtil the
juices appear on the top sm'tace,
before tm'ning. Tm'n steaks and
hambmge_ just once. Moving the
food ai'o/ind Catlses loss of juices.
* When basting meats or applying
sauces to foods, remember that
excessive alnounts wind up inside
your grill and do not improve the
food flaw_r. Apply sauces dttring the
last 15 to 90 minutes of cooking time
mfless the recipe specifies otherwise.
Sugar-based marinade (Jm" example,
barbecue sauce) will caramelize
on grill grate and will create a
cleaning chore.
* There am many meat marinades which
will hel I) tenderize less expensive cuts
of meat fi_r cooking on the grill.
" Certain fl_ods, such as poult_ T and
non-oily fish, may need solne extra
tat. Brush with oil or melted butter
occasionally while grilling.
" Use tongs with long handles or
spatulas tot turning meats. Do not
use fin'ks because these pierce the
meat, alh)wingjuices to be lost.
e To hel I) retain meat juices, salt after
turning meat or after cooking is
completed.
" Score the fiat on the edges of steaks
but do not cut into the meat to
prevent cmqing while cooking.
/2

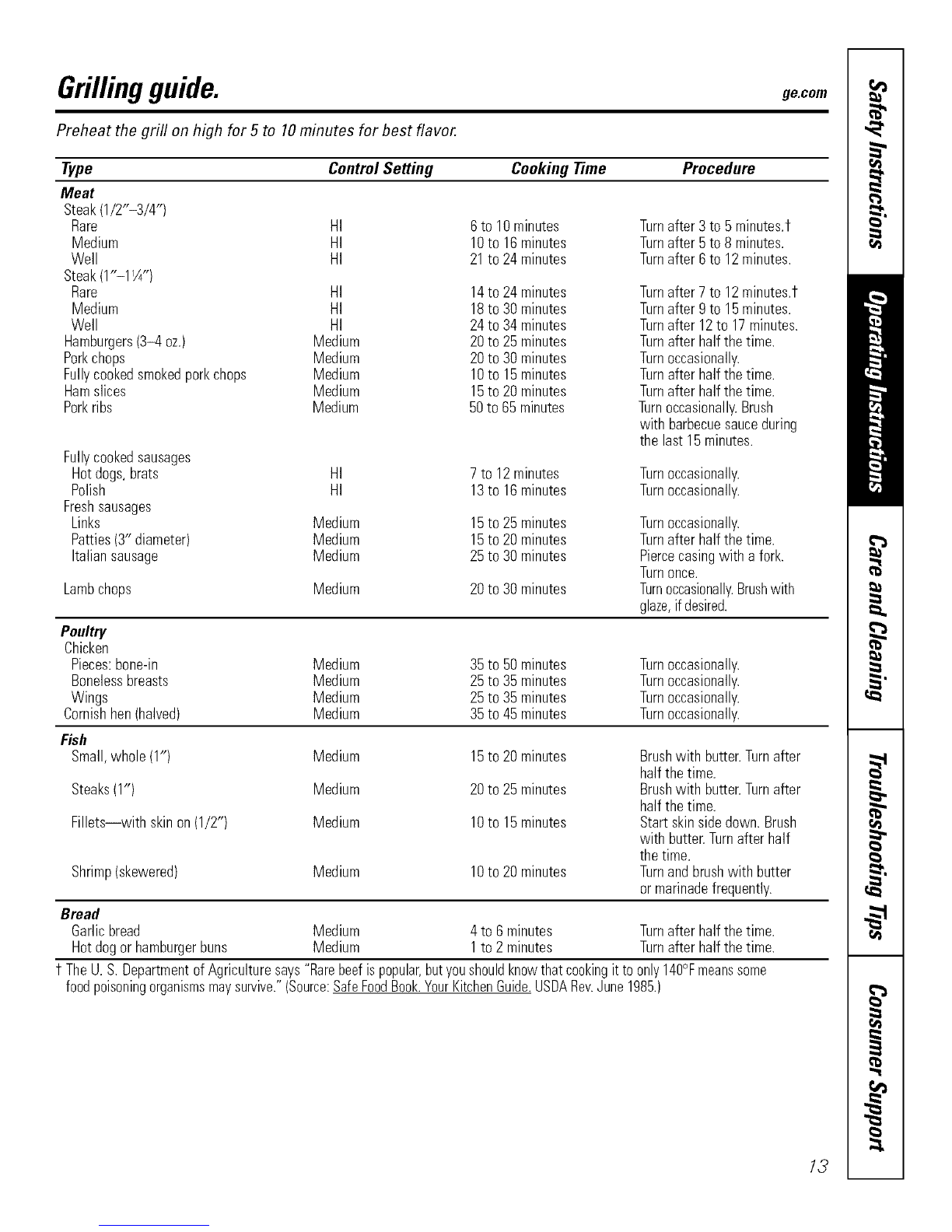

Grillingguide, ge.com
Preheat the grill on high for 5 to 10minutes for best flavor.
Control Setting Cooking Time ProcedureType
Meat
Steak(1/2"-3/4")
Rare HI
Medium HI
Well HI
Steak(1"-1W')
Rare HI
Medium HI
Well HI
Hamburgers(3-4 oz.) Medium
Porkchops Medium
Fullycookedsmokedporkchops Medium
Hamslices Medium
Porkribs Medium
6to 10minutes Turnafter 3 to 5 minutes.f
10to 16minutes Turnafter 5to 8 minutes.
21to 24minutes Turnafter 6to 12minutes.
14to 24minutes
18to 30minutes
24to 34minutes
20to 25minutes
20to 30minutes
lOto 15minutes
15to 20minutes
50to 65 minutes
Fullycookedsausages
Hotdogs,brats HI 7to 12minutes
Polish HI 13to 16minutes
Freshsausages
Links Medium 15to 25minutes
Patties(3"diameter) Medium 15to 20minutes
Italiansausage Medium 25to 30minutes
Lambchops Medium 20to 30minutes
Turnafter 7 to 12minutes.f
Turnafter 9 to 15minutes.
Turnafter 12to 17minutes.
Turnafter halfthetime.
Turnoccasionally.
Turnafter halfthetime.
Turnafter halfthetime.
Turnoccasionally.Brush
with barbecuesauceduring
the last15minutes.
Turnoccasionally.
Turnoccasionally.
Turnoccasionally.
Turnafter halfthetime.
Piercecasingwith a fork.
Turnonce.
Turnoccasionally.Brushwith
glaze,ifdesired.
Poultry
Chicken
Pieces:bone-in Medium 35to 50minutes Turnoccasionally.
Bonelessbreasts Medium 25to 35minutes Turnoccasionally.
Wings Medium 25to 35minutes Turnoccasionally.
Cornishhen(halved) Medium 35to 45minutes Turnoccasionally.
Fish
Small,whole(1")
Steaks(1")
Fillets--with skinon(1/2")
Medium Brushwith butter.Turnafter
halfthetime.
Medium Brushwith butter.Turnafter
halfthetime.
Medium Startskinsidedown.Brush
with butter.Turnafter half
thetime.
Shrimp(skewered) Medium 10to 20minutes Turnand brushwith butter
or marinadefrequently.
Bread
Garlicbread Medium 4to 6minutes Turnafter halfthetime.
Hotdogor hamburgerbuns Medium 1to 2 minutes Turnafter halfthetime.
t TheU.S.DepartmentofAgriculturesays"Rarebeefispopular,butyoushouldknowthatcookingit toonly140°Fmeanssome
foodpoisoningorganismsmaysurvive."(Source:SafeFoodBook.YourKitchenGuide.USDARev.June1985.)
15to 20minutes
20to 25minutes
10to 15minutes
13

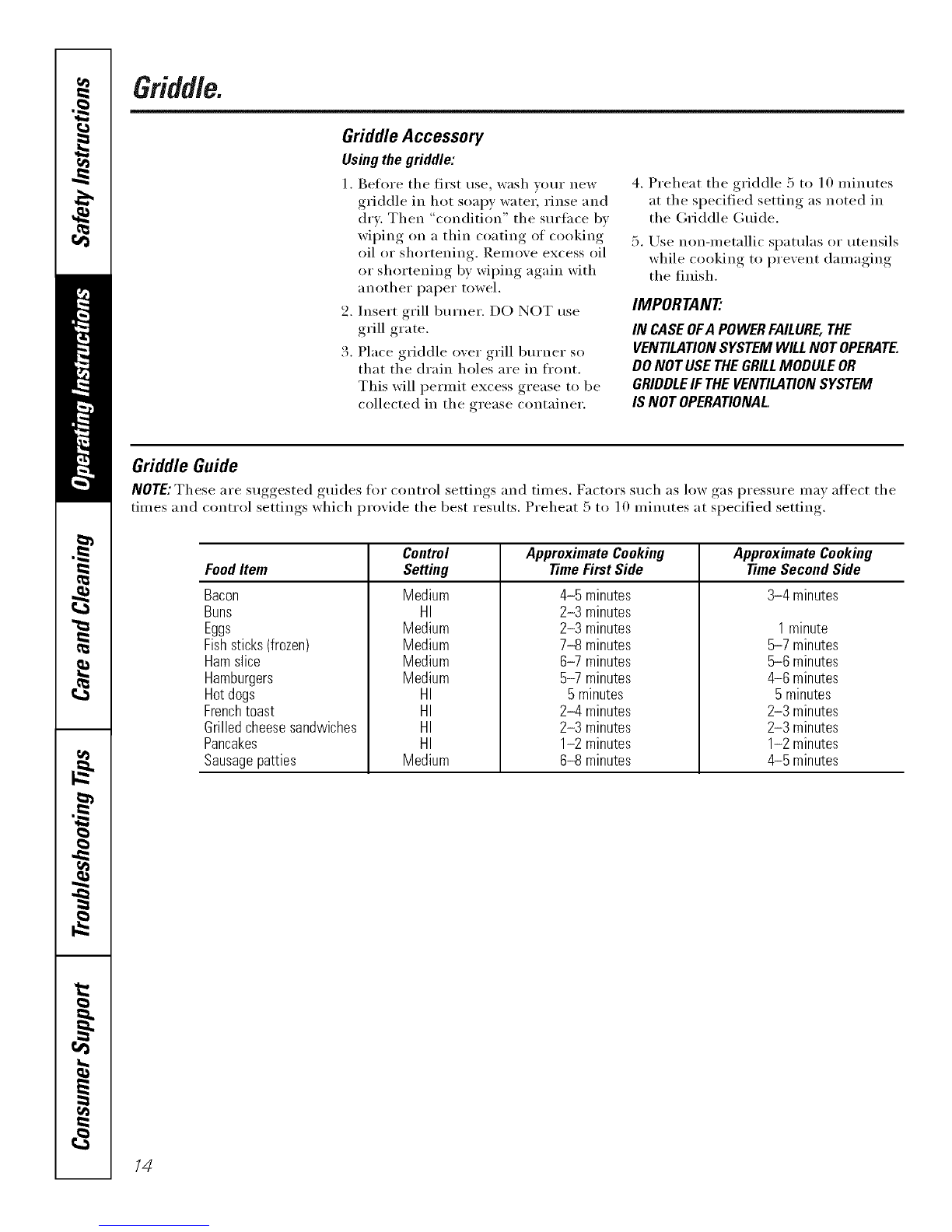

Griddle.
Griddle Accessory
Using the griddle:
1. Before the first use, wash )'our new
griddle in hot soapy water; rinse and
dry. Then "condition" the surfilce bv
wiping on a thin coating of cooking
oil or shortening. Renlove excess oil
or shortening by wiping again with
another paper towel.
2. Insert grill burner. DO NOT use
grill grate.
3. Place griddle over grill bm'ner so
that the drain holes are in fl'ont.
This will permit excess grease to be
collected in the grease container.
4. Preheat the griddle 5 to 10 minutes
at the specified setting as noted in
the Griddle Guide.
5. Use non-metallic spatulas or utensils
while cooking to prevent damaging
the finish.
IMPORTANT
IN CASEOFA POWERFAILURE,THE
VENtiLAtiONSYSTEMWILLNOTOPERATE.
DONOTUSETHEGRILLMODULEOR
GRIDDLEIFTHEVENTILATIONSYSTEM
ISNOTOPERATIONAL
Griddle Guide
NOTE: These are suggested guides ti)r control settings and times. Factors such as h>w gas pressm'e may attect the
times and control settings which provide the best results. Preheat 5 to 10 minutes at specified setting.
ApproximateCooking Approximate Cooking
FoodItem TimeFirstSide TimeSecondSide
3-4 minutesBacon
Buns
Eggs
Fishsticks(frozen)
Hamslice
Hamburgers
Hotdogs
Frenchtoast
Grilledcheesesandwiches
Pancakes
Sausagepatties
Control
Setting
Medium
HI
Medium
Medium
Medium
Medium
HI
HI
HI
HI
Medium
4-5minutes
2-3 minutes
2-3 minutes
7-8 minutes
6-7 minutes
5-7 minutes
5 minutes
2-4minutes
2-3 minutes
1-2 minutes
6-8 minutes
1 minute
5-7 minutes
5-6 minutes
4-6 minutes
5 minutes
2-3 minutes
2-3 minutes
1-2 minutes
4-5 minutes
14

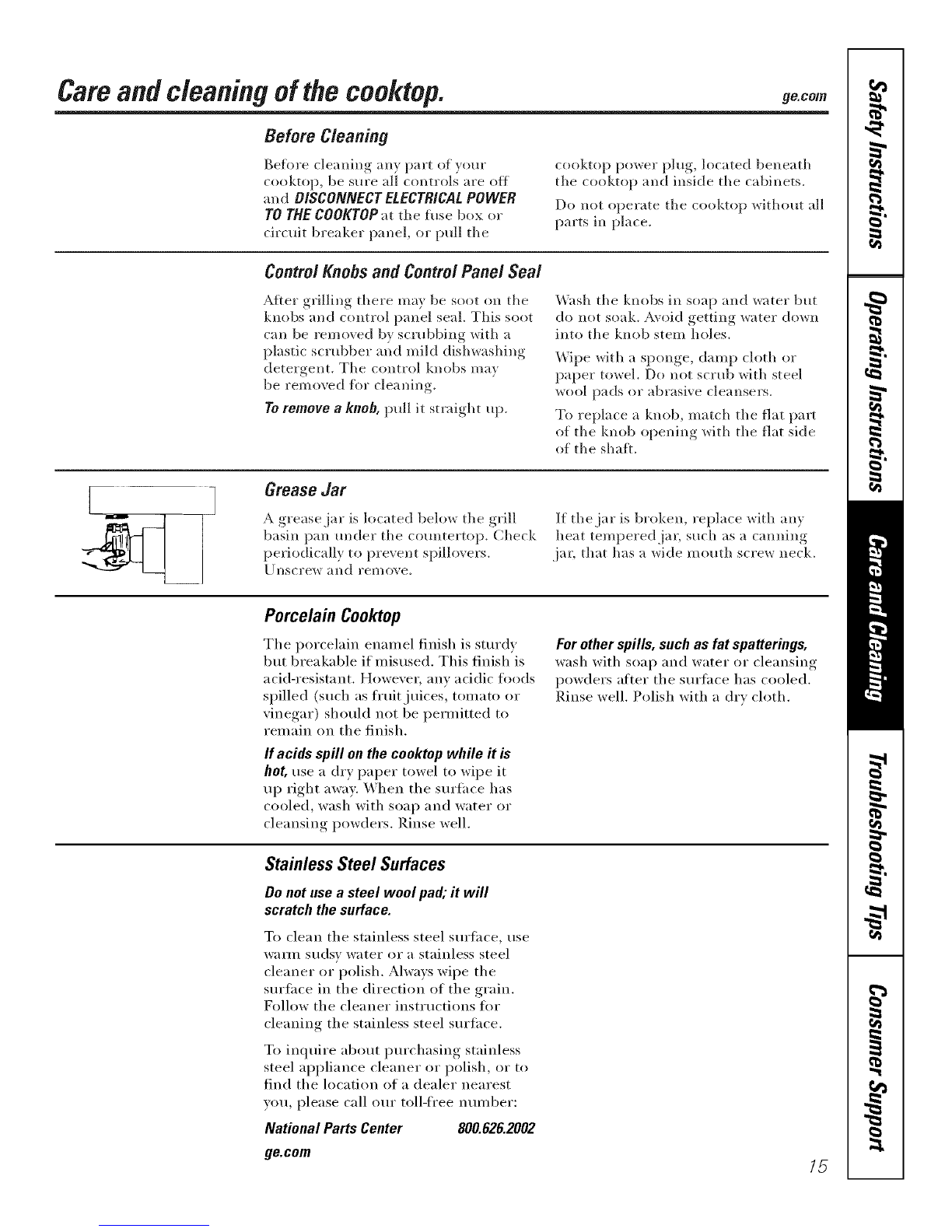

Camandcleaningofthecooktop, ge.cem
Before Cleaning
Betm'e cleaning any part of your
cooktop, be sure all controls are off
and OISCONNECT ELECTRICAL POWER
TO THE COOKTOPat the fuse box or
circuit breaker panel, or pull the
cooktop power i)]ug, located beneath
the cooktop and inside the cabinets.
Do not operate the cooktop without all
parts in place.
Control Knobs and Control Panel Seal
After grilling there may be soot on the
knobs and control panel seal. This soot
can be removed by scrubbing with a
plastic scrubber and mild dishwashing
detergent. The control knobs may
be removed fiw cleaning.
Toremove a knob, pull it straight up.
_]lsh the knobs in soap and water but
do not soak. Avoid getting water down
into the knob stem holes.
Wipe with a sponge, damp cloth or
paper towel. Do not scrub with steel
wool pads or abrasive cleansers.
To replace a knob, match tile flat pa*_
of the knob opening with the fiat side
of tile shaft.
{Grease Jar
A grease jar is located below tile grill
basin pan trader tile cotmtertop. Check
periodically to prevent spillovers.
U IlSCrew and I'el//ove.
If the jar is broken, replace with any
heat tempered jar, such as a camfing
jar, that has a wide mouth screw neck.
Porcelain Cooktop
The porcelain enalnel finish is sturdy
but breakable if inisused. This finish is
acid-resistant. However, anv addic toods
spilled (such as fl'uitjuices, tomato or
vinegar) should not be perlnitted to
renmin on the finish.
If acids spill on the cooktop while it is
hot, use a dry paper towel to wipe it
up right away. When the surtace has
cooled, wash with soap and water or
cleansing powders. Rinse well.
For other spills, such as fat spatterings,
wash with soap and water or cleansing
powders after the surfi_ce has cooled.
Rinse well. Polish with a dry cloth.
Stainless Steel Surfaces
Do not use a steel wool pad; it will
scratch the surface.
To clean the stainless steel surface, use
walm sudsy water or a stainless steel
cleaner or polish. Always wipe the
surface in the direction of the grain.
Follow the cleaner ii_structions tor
cleaning the stainless steel surtace.
To inquire about purchasing stainless
steel appliance cleaner or polish, or to
find the location of a dealer nearest
you, please call our toll-fl'ee immber:
National Parts Center 800.626.2002
ge.com 15

Careand cleaningofthe cooktop.

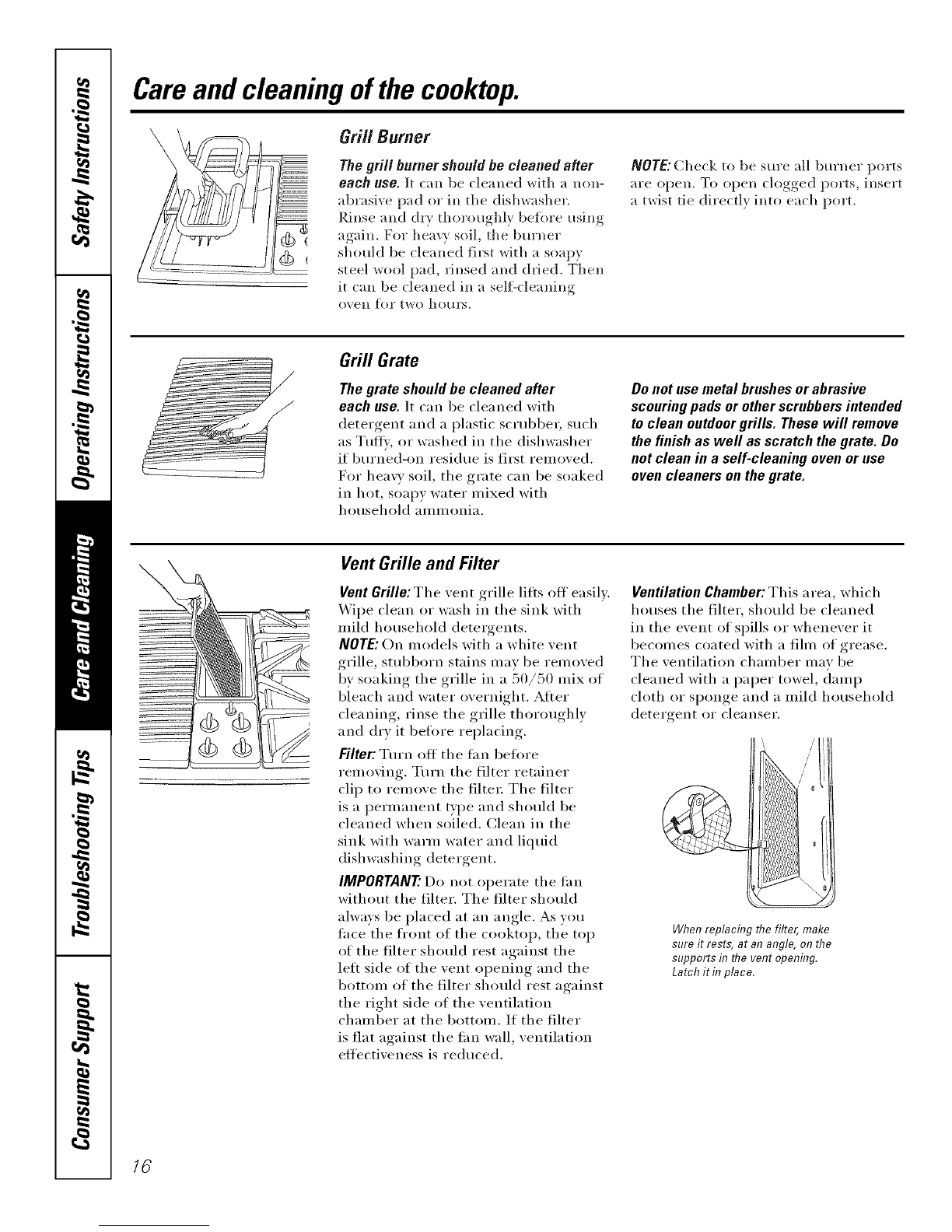

Grill Burner
The grill burner should be cleaned after
each use. It can be cleaned with a non-
abrasive pad or ill the dishwasher.
Rinse and (liT thoroughly befl)re using
again. For hea_ T soil, the bm'ner
should be cleaned first with a soapy
steel wool pad, rinsed and dried. Then
it can be cleaned in a self-cleaning
()veil f()r two llo{ll'S,
NOTE: Check to be stlre all btlrner ports
are open. To open clogged ports, insert
a twist tie directly into each port.
Grill Grate
The grate should be cleaned after
each use. It can be cleaned with
detergent and a plastic scrubbei; such
as Tuff}i, or washed ill the dishwasher
if burned-on residue is first relnoved.
For heavy soil, the grate can be soaked
in hot, soapy water mixed with
household anunonia.
Do not use metal brushes or abrasive
scouring pads or other scrubbers intended
to clean outdoor grills. These will remove
the finish as well as scratch the grate. Do
not clean in a self-cleaning oven or use
oven cleaners on the grate.
Vent Grille and Filter
Vent Grille: The vent grille lifts off easily.
Wipe clean or wash in the sink with
Inild household detergents.
NOTE: Oil inodels with a white vent
grille, stubborn stains inay be removed
by soaking the grille in a 50/50 mix of
bleach and water overnight. After
cleaning, rinse tile grille thoroughly
and dry it befl)re replacing.
Filter: Turn off the tim heft)re
relnoving. Turn the filter retainer
clip to remove the filtei; The filter
is a perlnanent type and should be
cleaned when soiled. Clean ill the
sink with warln water and liquid
dishwashing detergent,
IMPORTANT" Do not operate the Lm
without the filter. The filter should
always be placed at an angle. As you
tace the front of the cooktop, the top
of the filter should rest against the
left side of the vent opening and the
bottom of the filter should rest against
the right side of the ventilation
chanlber at the bottom. If the filter
is flat against the tim wall, ventilation
effectiveness is reduced.
Ventilation Chamber: This area, which
houses the filteI; should be cleaned
in the event of spills or whenever it
becomes coated with a fihn of grease.
The ventilation chalnber inay be
cleaned with a paper towel, dalnp
cloth or sponge and a Inild household
detergent or cleanser.
When replachTg the filter, make
sure it rests, at an angle, on the
supports in the vent opening.
Latch it h7place.
16

Igniters
It is important to kee I) igniter port
openings on burne_ clear and fl'ee of
obst_ uctions to avoid ignition fifilure
and possible gas buildup. If tile port
openings are blocked, use a twist tie to
remove tood particles.
ge.com
Griddle Accessory
DO NOT immerse a hot griddle in
cold water.
Once tile griddle has cooled, wash
with soap or detergent in hot water
in tile sink. Be sure to remove all
tood residue befi)re cooking on
tile griddle again.
Remove stubborn spots with a plastic
scouring pad. For best results, use only
those cleaning products which are
recommended tot use when cleaning
non-stick surtaces. Do not use steel
wool oi" el)aide SCO/llJng pads.
DO NOT wash in a dishwasher.
Sealed BurnerModule
Cooktop Surface:
To prevent tile cookto l) from
discoloring or staining:
• Clean tile cooktop atter each use.
• Wipe up acidic or suga_ T spills
}Is soon }Is tile cooktop has cooled,
because these spills may discolor
the porcelain.
Sealed Burners:
Tile sealed burners oI wmr (ooktop are
secured to tile cooktop module and are
not designed to be removed. Since tile
burners are sealed into tile module,
boilovers or spills will not seep
underneath the cooktop. However, the
bm'ner heads should be cleaned after
each rise,
Burner Grate:
Tile grate must be properly positioned
befi)re cooking. Improper installation
of the grate may result in chil)ping of
the cooktop.
Do not operate burners without a pan on
the grate. The grate's porcelain finish may
chip without a pan to absorb the heat
from the burner flame.
Although tile bm'ner grate is din'able,
it will gradually lose its shine and/or
discohm due to tile high temperatures
of tile gas flame.
Burner Caps:
I,ift off' when cool. _'ash bm'ner caps
in hot, soapy water and rinse with clean
water. You may scour with a plastic
SCO/lFing pad to i'elllOVe b/li'ned-on
tood particles.
Porcelain Burner Basin
This area is located under tile grill and
surta(e burners and should be cleaned
atter each use ot tile grill.
To remove light soil, clean with soapy
water or with a cleaner such as 409 <:.
D)r easier cleanup, soak paper towels
in a household cleanser, lay in the
bm'ner basin and soak fin" at least a
half horn" or hmger.
To renlove nloderate soil, scrub
with Comet':, gon Ami ':, a sott
scrub cleanser or plastic scrubber.
To remove stubborn soil, sl)ray with an
oven cleaner. I,et soak overnight. Wipe
clean. Rinse and dry.
/7

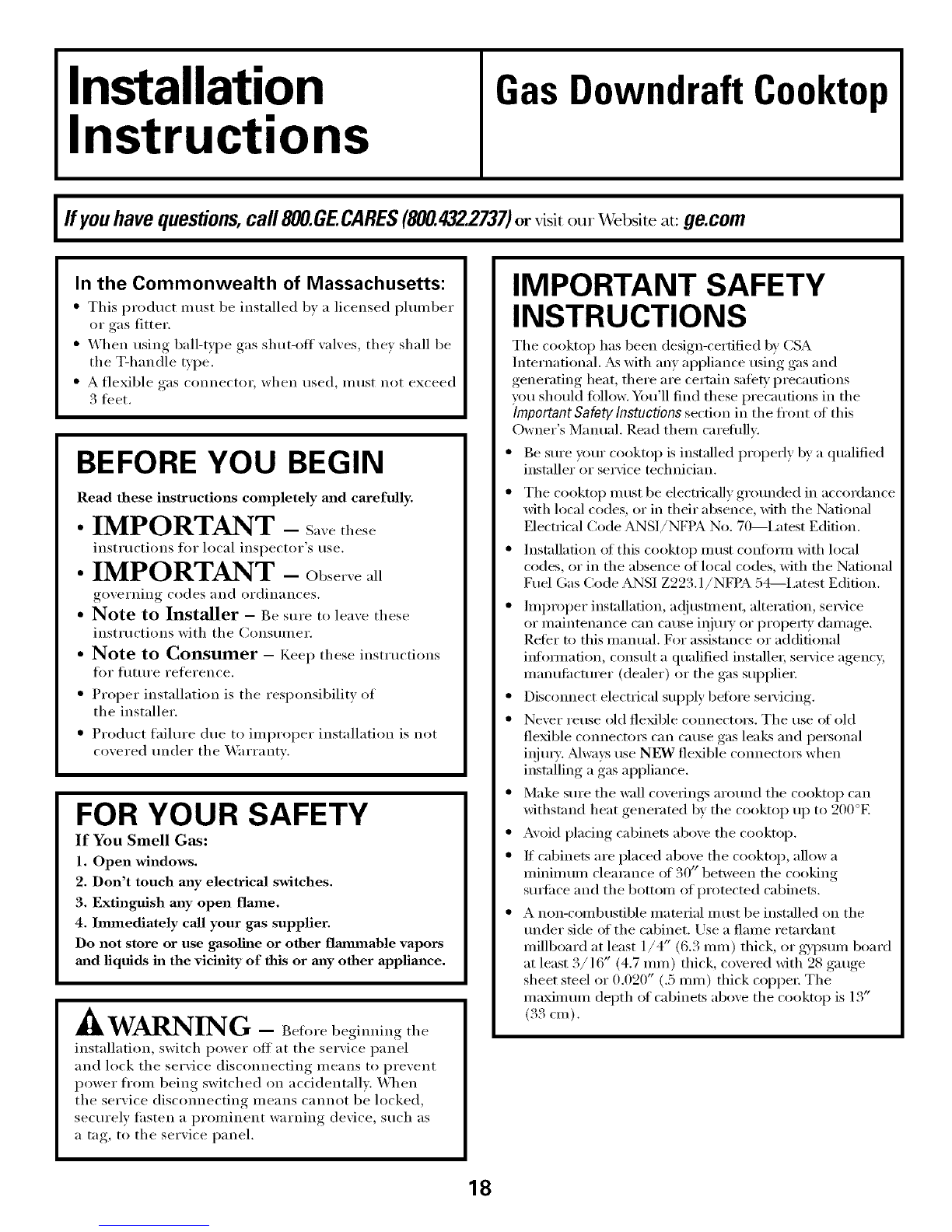

Installation
Instructions Gas Downdraft Cooktop
Iffyou havequestions,call800.GECARES(8_.432.2737)or visit our Website at: ge.com
In the Commonwealth of Massachusetts:
• This product must be installed bv a licensed plmnber
or gas fitter.
• _'hen using ball-type gas shut-off valves, they shall be
tile T-handle type.
• A flexible gas connectm; when used, must not exceed
3 teet.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT - S ,,ethese
instructions tot local inspector's use.
•IMPORTANT -Obse,,e,ll
governing codes and ordinances.
• Note to Installer -Be sure to leave these
instructions with tile Consumer.
• Note to Consumer - Keep these insnuctions
tot fllture reference.
• Proper installation is tile responsibility of
the installer.
• Product tailure due to improper installation is not
covered trader tile _,Varrantv.
FOR YOUR SAFETY
If You Smell Gas:
1. Open windows.
2. Don't touch any electrical switches.
3. Extinguish any open flame.
4. hnmediately call your gas supplier.
Do not store or use gasoline or other flammable vapors
mad liquids in the vicinity of this or rely other appliance.
WARNING -Beforebeoinning tile
installation, switch power off at tile se_wice panel
and lock the service disconnecting means to prevent
power fl'om being switched on accidentall> When
tile service disconnecting means cannot be locked,
securely tasten a prominent warning device, such as
a tag, to tile service panel.
IMPORTANT SAFETY
INSTRUCTIONS
Tile cooktop has been design-certilied by CSA
International. _s with any appliance using gas and
generating heat, there are certain sale_' precautions
wm should fi)llow. You'll lind these precautions in tile
"Important Safety Instuctions section in tile fl'ont of this
Owner's Manual. Read them careflfllv.
• Be sm'e yore" cooktop is installed properl) b) a qualified
installer or service technician.
• The cooktop must be electricall) gromMed in accordance
with local codes, or in their absence, with tile National
Electrical Code ANSI/NFPA No. 70--I_test Edition.
• Installation of this cooktop must confimn with local
codes, or in the absence of local codes, with the National
Fuel (;as Code ANSI Z293.1/NFPA 5_-I,atest Edition.
• hnproper installation, ac!jusnnent, alteration, service
or maintenance can cause iqjmy or property damage.
Refer to this manual. For assistance or additional
inflmnation, consult a qualified installe_; service agency,
mantfli_cmrer (dealer) or tile gas supplie_:
• Disconnect electrical supply befln'e se_Mcing.
• Never reuse old flexible connectors. Tile use ot old
flexible connectms can cause gas leaks and personal
iqjmy. Mwa):s use NE'W flexible connectoi3 when
inst;flling a gas appliance.
• Make sure the wall coverings arotmd the cooktop can
withstand heat generated by tile cooktop up to 200°E
• Avoid placing cabinets above tile cooktop.
• If cabinets are placed above the cooktop, allow a
minimum clearance of 30'z between tile cooking
stmti_ce and tile bottom of protected cabinets.
• A non-combustible material must 1)e installed on the
trader side of the cabinet. Use a flame retardant
millboard at least 1/4" (6.3 ram) thick, or g_'psum board
at least 3/16" (4.7 ram) thick, covered with 28 gauge
sheet steel or 0.090" (.5 ram) thick coppe_: Tile
I/laxiIl/tlIll depth of cabinets above tile cooktop is 13"
(33 cm).
18

Installation Instructions
UNPACK YOUR COOKTOP
PARTS INCLUDED
•Cooktop with side hold-
down bolts (2)
• Blower assembly
• Blower plenum
• Vent guard and mounting
nuts (4)
• Sheet metal screws (7)
•Vent grille
• Vent filter
•Sealed burner module
•Sealed burner grate
• Grease jar
•Sealed burner caps (2)
•Gas pressure regulator
• Attached 120-volt grounded
plug cord
• LP Conversion (attached to
the electrical box)
Burner Grate
Grease
Jar
Sheet Metal
Screws (7)
Vent Grille
\
Shipping Tape
Cooktop with Side Hold-Down Bolts (2)
Pressure Filter
Regulator Blower Assembly
Sealed Burner
Module
Sealed Burner
Caps (2)
Vent Guard and
Mounting Nuts (4)
Blower
Plenum
19

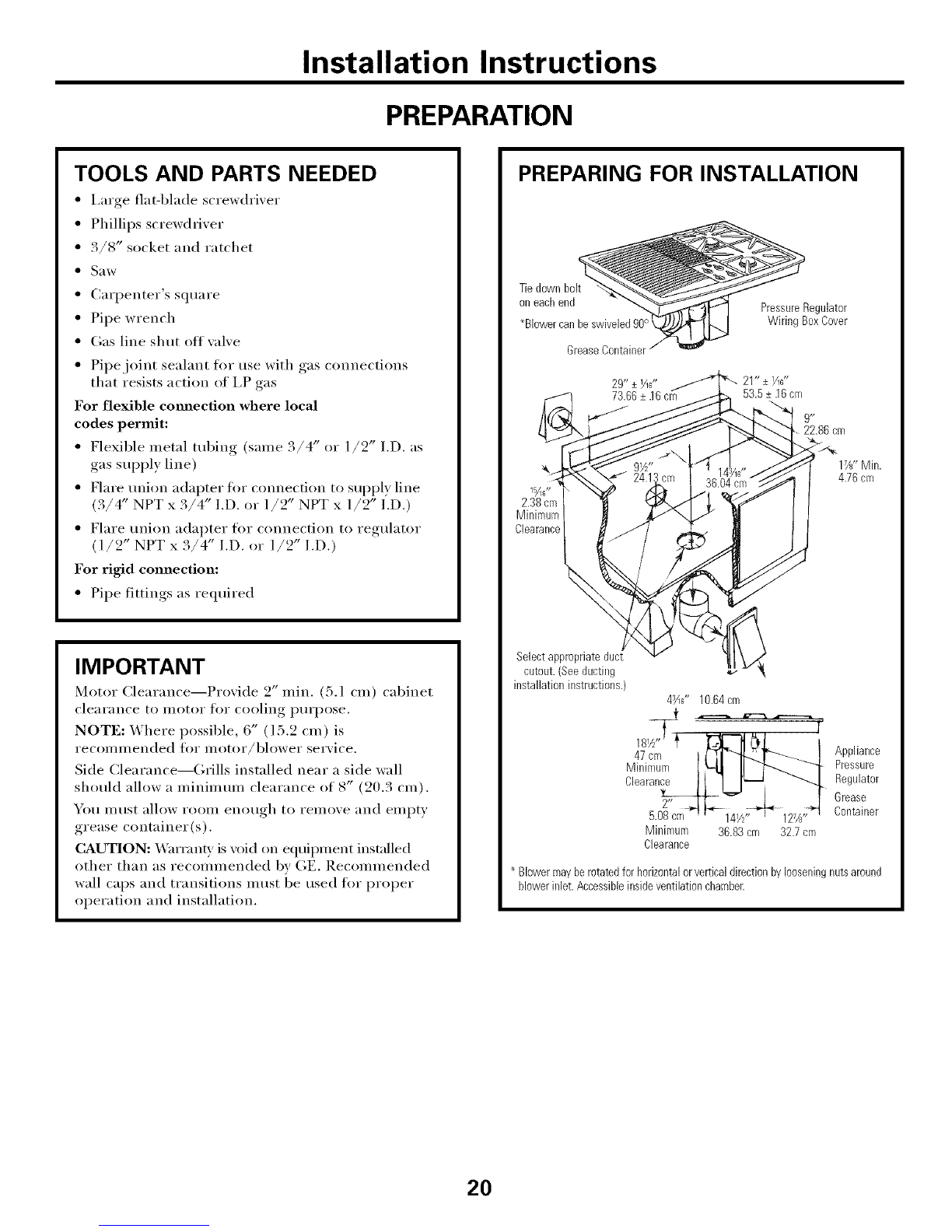

Installation Instructions
PREPARATION
TOOLS AND PARTS NEEDED
• i,arge flat-blade screwdriver
• Phillips screwdriver
• 3/8" socket and ratchet
• Saw
• Carpenter's square
• Pipe wrench
• Gas line shut off wdve
• Pipe joint sealant tot use with gas connections
that resists action of I,P gas
For flexible cmmection where local
codes permit:
• Flexible metal tubing (same 3/4" or 1/2" I.D. as
gas supply line)
• Hare tmion adapter fin" connection to supply line
(3/4" NPT x 3/4" I.D, or 1/2" NPT x 1/2" I.D,)
• Flare union adapter for connection to regulator
(1/2" NPT x 3/4" I.D. or 1/2" I.D.)
For rigid connection:
• Pipe fittings as required
IMPORTANT
Motor Clearance--Provide 2" rain. (5.1 cm) cabinet
clearance to motor fin" cooling pro'pose.
NOTE: Where possible, 6" (l 5.2 cm) is
recomm ended tin" motor/blower service.
Side Clearance--Grills installed near a side wall
should allow a minimum clearance of 8" (20.3 cm).
YO/l illtlSt allow room enough to renlove and empty
grease container(s).
CAUTION: Warranty is w)id on equipment installed
other than as recommended by GE, Recommended
wall caps and transitions must be used fin" proper
operation and installation.
PREPARING FOR INSTALLATION
oneaci_end PressureRegulator
*Blowercanbeswiveled90' Wiring BoxCover
GreaseContainer
Appliance
Pressure
Regulator
Grease
Container
* Blowermavberotatedfor horizontalorverticaldirectionby looseningnutsaround
blowerMet. AccessibleinsideventilationcMmber.
2O
