Installation Instructions
BEFORE YOU BEGINRead these instructions completely and
carefully.
•IMPORTANT- Save these instructions for
local inspector's use.
•IMPORTANT- Observe all governing codes
and ordinances.
•Note to Installer -Be sure to leave these
instructions with the Consumer.
•Note to Consumer- Keep these instructions for
future reference.
•Skill Level - Installation of this cooktop requires
basic mechanical and electrical skills.
•Completion time - 1to 3 hours.
•Proper installation isthe responsibility of the installer.
•Product failure due to improper installation is not
covered under the Warranty.
WARNING:
This,appliance must be properly grounded.
See Electric Supply , page 6.
AVERTISSEMENT :
Cet appareil dolt _tre mis _ la terre
ad_quatement. Voir la section _ Alimentation
_lectrique _)_ la page 6.
For Monogram local service in your area,
1.800.444.1845.
For Monogram Service in Canada, call
1.888.880.3030.
For Monogram Parts and Accessories, call
1.800.626.2002.
If you received a damaged cooktop, you should contact
your dealer.
In the Commonwealth of Massachusetts:
• This product must be installed by a licensed plumber
or gas fitter.
• When using ball type gas shut off valves, they shall
be T-handle type.
• A flexible gas connector, when used, must not
exceed 3 feet.
CAUTION:
THESE C00KTOPS SHOULD BE INSTALLED
IN CONJUNCTION WITH A SUITABLE
OVERHEADVENT HOOD.Due to the high heat capacity
of this unit, particular attention should be paid to the
hood and duct work installation to assure it meets
local building codes.
MISE EN GARDE :
CES CUISINIERES D01VENT ttTRE
•,MONTt_ES C0NJ01NTEMENT AVEC UNE
HOTTEA EVACUATION DE PLAFOND APPROPRIt_E.
Etant donn_ la grande capacit_ thermique de cet
appareil, une attention particuli_re dolt _tre port_e
au montage de la hotte et du systeme de gaines pour
s'assurer qu'il est conforme aux codes du b_timent
Jocaax.
Standard countertop and island installations:
A 1200 CFM hood is recommended for 48" ceokteps.
A 600 CFM hood is recommended for 36" cookteps.
Hoods should be 24"rain. deep and the same width
as the cooktop.
Island installations:
Check local building codes for the proper method of
gas cooktop installation. Local codes vary. Installation,
electrical connections and grounding must comply
with applicable codes. In the absence of local codes,
the cooktop should be installed in accordance with the
National Fuel Gas Code ANSI 223.1-1990 and National
Electrical Code ANSI/NFPA 70-1990.
CAUTION:These cooktops are extremely heavy. Due
to the weight and size of the cooktop and
to reduce the risk of personal injury or damage to the
product, TWO PEOPLEARE REQUIREDFOR PROPER
INSTALLATION.
MISE EN GARDE :
Ces cuisini_res sent extr_mement Iourds.
Tout dOmontage rOduira consid6rablement
leur poids. En raison du poids et de la taille de la
cuisiniOre, dent la manipulation risque d'entraTner
des IOsions corporelles ou des dommages au produit,
DEUX PERSONNES SONT NECESSAIRES POUR
PROCEDER_, UN MONTAGE ADt_QUA'E

Design Information
CONTENTS
Design Information
Models Available ..............................................................3
Accessory Requirements ................................................3
Product Dimensions and Clearances ............................4
Installation Options ..........................................................5
Advance Planning ..........................................................5
Installation Preparation
Tools and Materials Required ........................................6
Power Supply Locations ..................................................6
Installation Instructions
Step 1,Remove Packaging ..............................................7
Step 2, Cut the Countertop Opening ..............................7
Step 3, Install the Cooktop ..............................................8
Step 4, Connect Cooktop to Gas......................................8
Step 5, Connect Electrical ................................................9
Step 6, Assemble Burners, Check Ignition ....................9
Finalize Installation ..........................................................10
Installation Checklist ......................................................10
Install the Cooktop Backsplash Accessory ................11
MODELS AVAILABLE
These cooktops are factory set for either natural
gas or liquid propane gas. Order the model for your
installation situation.
48" Natural Gas Models:
ZGU48N4G -4 gas burners, grill and griddle
ZGU48N6R -6 gas burners and grill
ZGU48N6B - 6 gas burners and griddle
48" Liquid Propane Gas Models:
ZGU48L4G -4 gas burners, grill and griddle
ZGU48L6R- 6 gas burners and grill
ZGU48L6B -6 gas burners and griddle
36" Natural Gas Models:
ZGU36N4D -4 gas burners and griddle
ZGU36N4R- 4 gas burners and grill
ZGU36N6- 6 gas burners
36" Liquid Propane Gas Models:
ZGU36L4D- 4 gas burners and griddle
ZGU36L4R-4 gas burners and grill
ZGU36L6 - 6 gas burners
BACKSPLASH ACCESSORIES
All models require 12"rain. clearance to a vertical
combustible surface at the rear. A backsplash
accessory is available for installations with less than
12"clearance to the back wall. Order a 12"high
backsplash or 22" high backsplash with warming shelf.
Backsplash for 48" Models:
ZX12B48HSS - 12"high backsplash
ZX22B48HSS - 22"high backsplash with warming shelf
(2 piece)
Backsplash for 36" Models:
ZX12B36HSS - 12"high backsplash
ZX22B36HSS - 22"high backsplash with warming shelf
(2 piece)
" HighBacksplashWith
INSTALLATION NOTE:
A custom backspash may be constructed of non-combustible back wall materials such as ceramic tile, brick, marble
or other stone.

Design Information

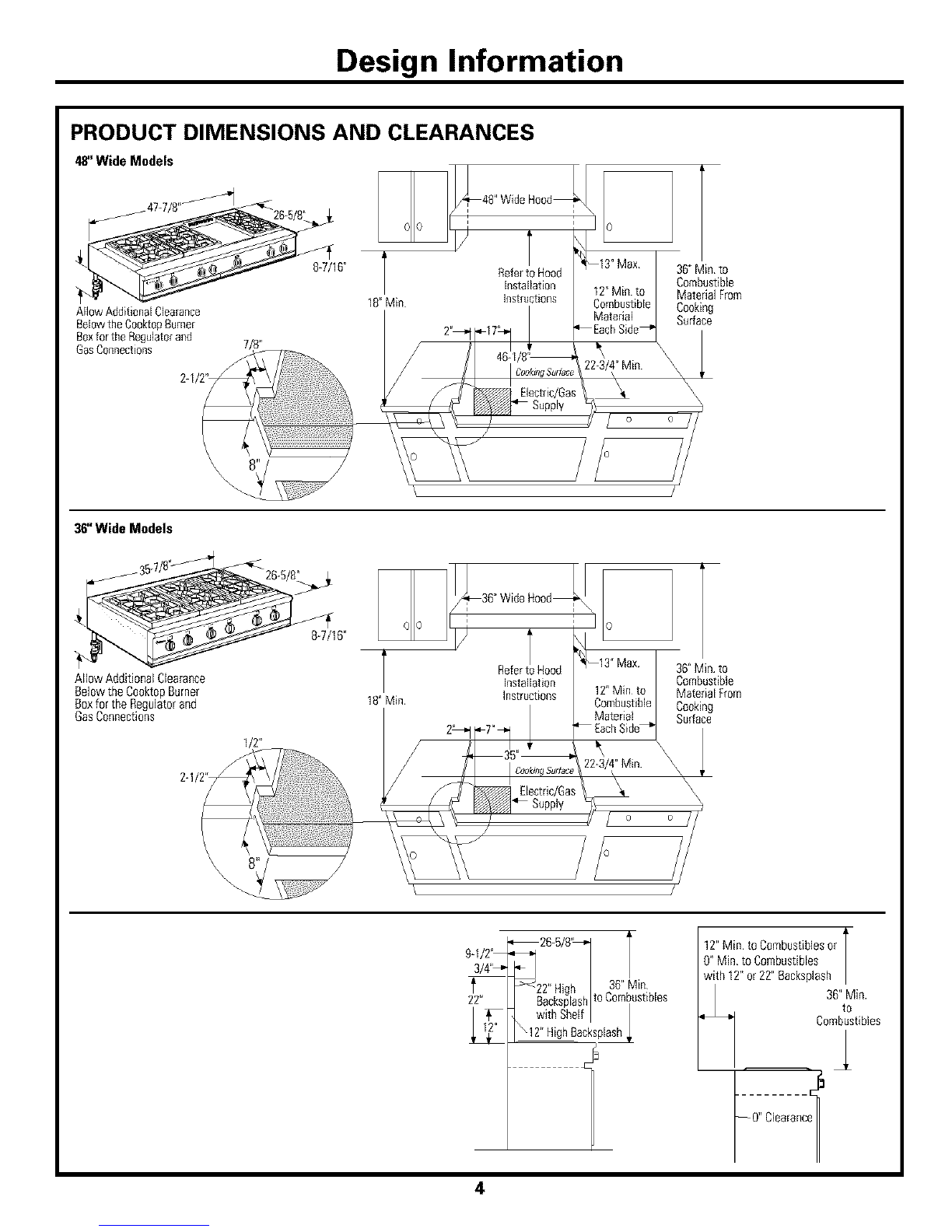

PRODUCT DIMENSIONS AND CLEARANCES
48"Wide Models
Allow AdditionalClearance
BelowtheCooktopBurner
Boxfor the Regulatorand
GasConnections
T Refer Hood 36* Min to
to
installation Combustible
18"Min instructions Material From
Cooking
Surface
22-3/4"Min
36" Wide Models
8-7/16"
Allow Additional Clearance
Below the CooktopBurner
Boxfor the Regulatorand
GasConnections
1/2"
Installation
Instructions 12"Minto
Combustible
Material
LEach Side_
36" Min to
Combustible
Material From
Cooking
Surface
22-3/4"Min
\\\
oJ
\/
9-1/2" 2B-5/8'_] T
3/4"_ _ i_h
\12" HighBacksplashv
12" Min to Combustiblesor
O"Min to Combustibles
with 12" or 22" Backsplash
36" Min.
to
Combustibles
--O" Clearancel
4

Installation Preparation
INSTALLATION OPTIONS
These cooktops can be installed in standard 24" or
deeper 25" cabinets.
•In 24" deep cabinets, the front of the cooktop will
project approximately 1-7/8" beyond the front of the
countertop.
• In 25" deep cabinets, the cooktop will be flush with
the front of the countertop.
• The stainless surface of the cooktop will be 1/2"
higher than adjacent countertop.
• Cooktop fits flush to rear of cutout; no additional
support is required.
_,_26-5/8"
22 _'
High
Back
_2 _
Counte_op
Level
1/2"_
gh
Backsplash
with Shelf
High
Belowthe BurnerBoxfor
GasConnections
4" to Cente
of Gasinlet
on the Left I12"
CabinetFace-ProiectingControl
CabinetFace-FlushControl
Cooktop 2" AboveAd]acent
FrontProectsOutwardasShown
FromStandardDepthCabnets
Cuoktup jacent
ont
FrontFlushWith Cabinets-a Minimum
of 25-3/4"CabinetDepthRequired
ADVANCE PLANNING
Refer to "Dimensions and Clearances" for appropriate
placement and necessary clearances when planning
the installation.
• Cabinetry cannot be installed directly above the
cooktop.
• We recommend the installation of a vent hood above
the cooktop surface.
- The vent hood must be at least 24"deep.
- The vent hood must be at least the same width as
the cooktop.
- For 48" models, we recommend the vent hood
blower be 1200 CFM.
- For 36" models, we recommend the vent hood
blower be 600 CFM
• Refer to hood installation instructions for height
dimensions.
• Working areas adjacent to the cooktop should have
18"minimum clearance between countertop and
cabinet bottom.
• Clearance between cooktop and side wall or
combustible material must be at least 12" on
each side.
• These cooktops require 8"free space below the
countertop to house the burner box. Additional
clearance is required below the burner box for the
gas regulator and connections. Connections should
be routed to limit interference with drawers or other
cabinetry features.
• Allow 12"rain. clearance at the back to combustible
materials.
• Allow 36"rain. above the cooking surface to
combustible materials.
• Installation must conform with local codes. In the
absence of local codes, the gas cooktop must comply
with the National Fuel Gas Code, ANSI Z223.1/NFPA.54,
latest edition. In Canada, installation must conform
with the current Natural Gas Installation Code,
CAN/CGA-B149.1 or the current Propane Installation
Code, CAN/CGA-B149.2, and with local codes where
applicable. This cooktop has been design-certified by
CSA International according to ANSI Z21.1, latest
edition and Canadian Gas Association according to
CAN/CGA-I.I latest edition.

Installation Preparation
TOOLS REQUIRED
• Saw
• Measuring tape
• Carpenter'ssquare
• Large flat-blade screwdriver
• Pipe wrench
MATERIALS REQUIRED (not supplied)
•Pipeandfittings as required
• Manual gas line shut-offvalve
•Gaspressure regulator (supplied)
•Gas-resistantpipe jointsealant
• 5 foot, 5/8"AGA-certified flexible metal gas supplyline
(length must comply with local codes)
- If required bylocal codes, usesolid pipefittings.
NOTE:Purchase new flexible line. DONOTUSEOLD,
PREVIOUSLYUSEDFLEXIBLELINE.
POWER SUPPLY LOCATIONS
Gas Supply:
• The pressure regulator must be connected in series with the
manifold ofthe cooktop and mustremain in series with the
supplyline regardless of the type of gas being used.
• Thenatural gas models are designed to operate at 5"water
column pressure.A regulator is required atthe natural gas
sourceto provide amaximumof7"water pressureto the
cooktop regulator.
• Theliquid propane models are designedto operate at 10"
water column pressure.A regulator is required at the LP
source to provide a maximumof 14"water pressure to the
cooktop regulator.
• These gas cooktops are suppliedwith 1/2"NPTfemale gas
connection located atthe left rear corner.
• A minimum5/8"dia. metal flexible line is required.
- Use5-foot long 5/8"flexible metal tubing. (Length must
complywith local codes.)
• Forrigid connection, locate the pipestubwithin areashown.
• Install a manualshut-off valve in the gasline, in an easily
accessible location.
ElectricSupply:
These cooktops must be suppliedwith 120volt, 60Hz.,and
connected to an individual, properly grounded branch circuit
protected by a 15amp circuit breaker ortime delay fuse.
The power cord ofthis appliance is equippedwith a
three-prong (grounding) plug which mateswith a standard
three-prong grounding wall receptacle to minimizethe
possibility of shock hazardfrom this appliance.
If the electrical service provided does not meetthe above
specifications,it is recommendedthat a licensed electrician
install an approved outlet.
DONOT,UNDERANY CIRCUMSTANCES,CUTORREMOVE
THETHIRD(GROUND)PRONGFROMTHEPOWERCORD.
DONOTUSEAN EXTENSIONCORDWITH THISAPPLIANCE.
• Locatethe electric supplywithin the area shownor within
reach of the cooktop's six foot power cord.
•Toavoid tangling cordwith itemsstoredin the cabinet, locate
the receptacle on rear wall, insidethe cabinet.
7" for 36" Models
, --. 17" for 48" Models Receptacle Box Cove ___
Locate GasSupply 2" Maximum/j "_ Three Prong Receptacle _
Protrusion FromWall or on Floor 2" From Watt
6

Installation
STEP 1 REMOVE PACKAGING
Use a hand-truck to move this cooktop.
Before moving the cooktop indoors:
•Remove outer carton and packing.
• Remove the straps holding the cooktop to the skid.
• Remove the grates and drawer, below the knobs
(on grill and griddle models).
• Remove grill and/or griddle covers. DO NOT ATTEMPT
TO REMOVE A GRILL ORGRIDDLEASSEMBLY.
• Flatten the carton and use a piece as a pad on the
bottom and back of the hand-truck. Uft the cooktop onto
the hand-truck standing on its end, with the bottom of
the cooktop resting against the back of the hand-truck.
Move the cooktop indoors:
If door and passageways into the installation location are
less than 30" wide, remove the cooktop knobs.
STEP 2 CUT THE COUNTERTOP OPENING
AHow CJearance
Below the Burne¢Box
for theRegulator and
GasConnections
AHowCJearance
Bebw the Burne¢Box
for the Regulatorand
GasConnections i 1/2"
48"widemodelsaredesignedto fit in48" orwider basecabinets
Measure carefully when cutting the countertop.
Make sure sides of the opening are parallel.
• These cooktops require 8"free space below the
countertop to house the cooktop burner box.
• Allow additional clearances below the burner box
to install the regulator and make house supply
connections. Use a 90° elbow to route the gas
connections and limit interference with drawers
or other cabinetry features.
• These cooktops are designed to hang from the
countertop from its rear and side flanges.
• Smooth any rough edges on the countertop before
installing the cooktop.
- Formica countertop edges must be finished.
The countertop must be strong enough to
support the weight of the cooktop.
36"wide modelsaredesignedto fit in36"or wider basecabinets
AdiacentCabinet
CounterSunk
Screws
• Support cleats can be secured to cabinet sides.
OR
• Build a support deck or box inside the cabinet which
will support the weight of the cooktop.
- Build the support box using a solid material, cut a
5"x 5"square in the left rear corner for the gas inlet
and power cord clearances.

Installation

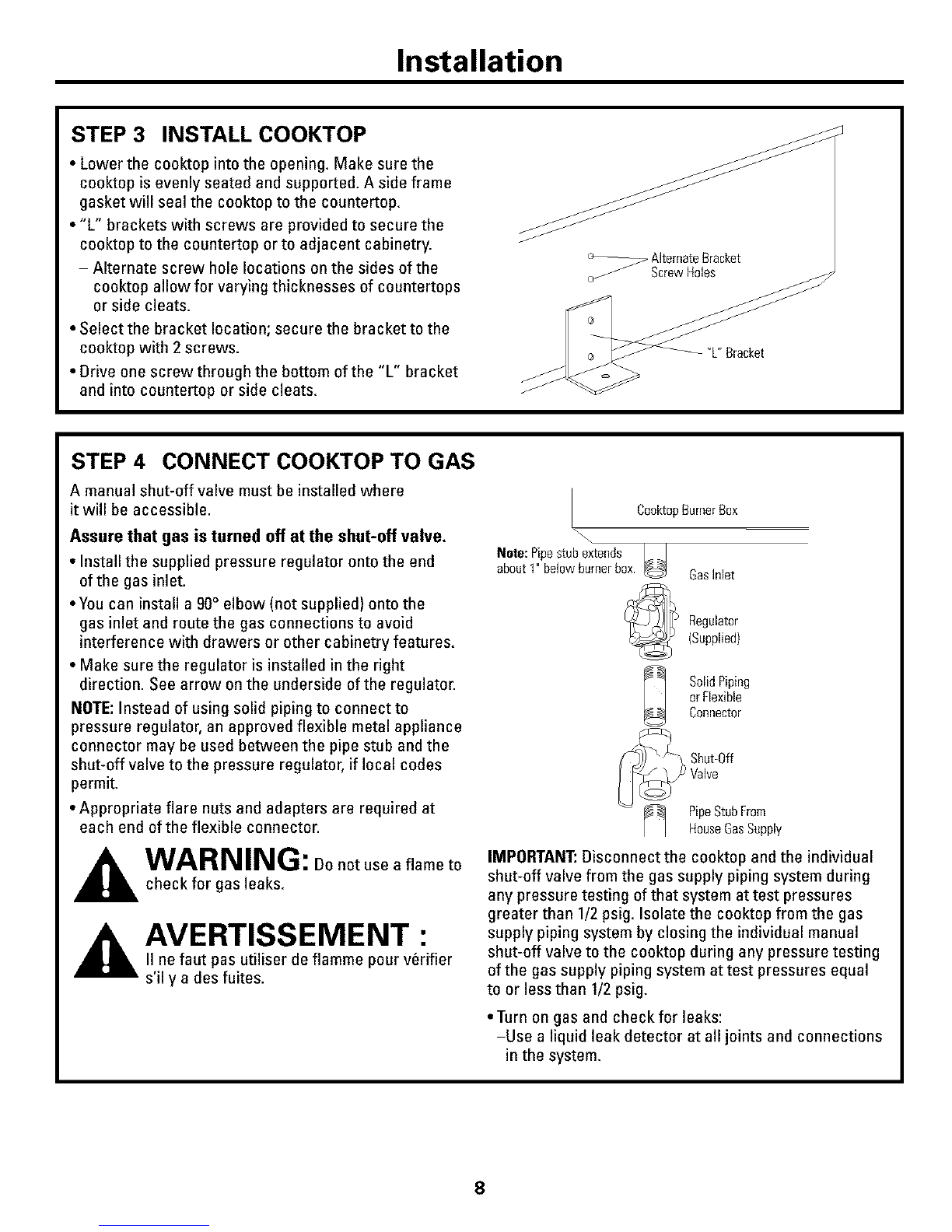

STEP 3 INSTALL COOKTOP
• Lower the cooktop into the opening. Make sure the
cooktop is evenly seated and supported. A side frame
gasket will seal the cooktop to the countertop.
•"L" brackets with screws are provided to secure the
cooktop to the countertop or to adjacent cabinetry.
- Alternate screw hole locations on the sides of the
cooktop allow for varying thicknesses of countertops
or side cleats.
• Select the bracket location; secure the bracket to the
cooktop with 2 screws.
• Drive one screw through the bottom of the "L" bracket
and into countertop or side cleats. J
°_AIternate Bracket
Screw Holes
"k" Bracket
STEP 4 CONNECT COOKTOP TO GAS
A manual shut-off valve must be installed where
it will be accessible.
Assure that gas is turned off at the shut-off valve.
• Install the supplied pressure regulator onto the end
of the gas inlet.
• You can install a 90° elbow (net supplied) onto the
gas inlet and route the gas connections to avoid
interference with drawers or other cabinetry features.
• Make sure the regulator is installed in the right
direction. See arrow on the underside of the regulator.
NOTE: Instead of using solid piping to connect to
pressure regulator, an approved flexible metal appliance
connector may be used between the pipe stub and the
shut-off valve to the pressure regulator, if local codes
permit.
• Appropriate flare nuts and adapters are required at
each end of the flexible connector.
WARNING: Do net use a flame tO
check for gas leaks.
AVERTISSEMENT :
II ne faut pas atiliser de flamme pour v_rifier
s'il y a des fuites.
L Cooktop Burner Box
\\\
Note: Pipe stub extends
about I" below burner box. _ Gas inlet
Regulator
(Supplied)
SolidPiping
urFlexible
Connector
IMPORTANT: Disconnect the cooktop and the individual
shut-off valve from the gas supply piping system during
any pressure testing of that system at test pressures
greater than 1/2 psig. Isolate the ceoktep from the gas
supply piping system by closing the individual manual
shut-off valve to the cooktop during any pressure testing
of the gas supply piping system at test pressures equal
to or less than 1/2 psig.
•Turn on gas and check for leaks:
-Use a liquid leak detector at all joints and connections
in the system.
8

Installation
I STEP 5 CONNECT ELECTRICAL
Plug power cord into properly grounded receptacle. I

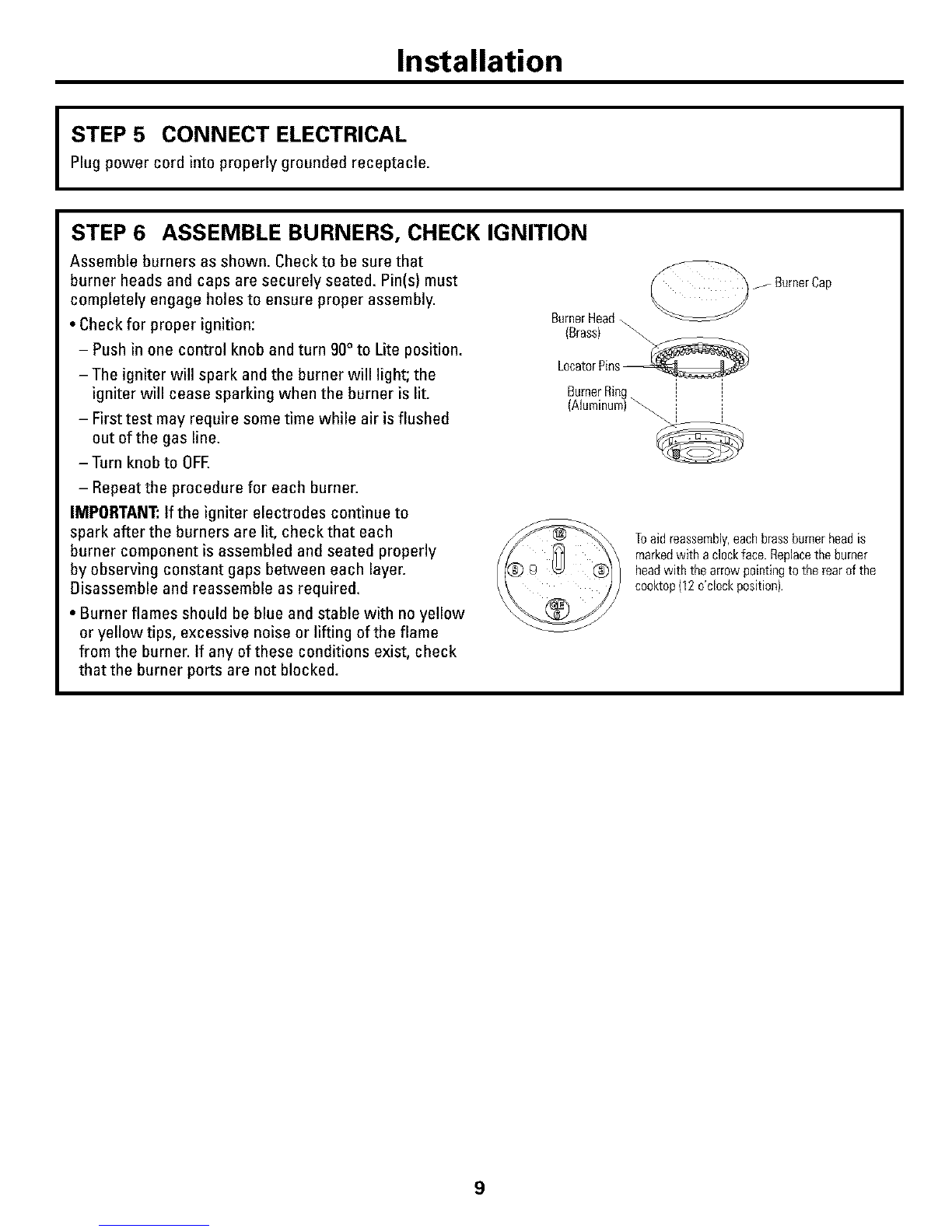

STEP 6 ASSEMBLE BURNERS, CHECK IGNITION
Assemble burners as shown. Check to be sure that
burner heads and caps are securely seated. Pin(s) must
completely engage holes to ensure proper assembly.
•Check for proper ignition:
- Push in one control knob and turn 90° to Lite position.
- The igniter will spark and the burner will light; the
igniter will cease sparking when the burner is lit.
- First test may require some time while air is flushed
oat of the gas line.
- Turn knob to OFE
BurnerHead -.
(Brass}
LocatorPins_
BurnerRinQ
(Aluminum_ _
f Burner Cap
- Repeat the procedure for each burner.
IMPORTANT: If the igniter electrodes continue to
spark after the burners are lit, check that each
burner component is assembled and seated properly
by observing constant gaps between each layer.
Disassemble and reassemble as required.
• Burner flames should be blue and stable with no yellow
or yellow tips, excessive noise or lifting of the flame
from the burner. If any of these conditions exist, check
that the burner ports are not blocked.
Toaid reassembly, each brass burner head is
marked with a cluck face. Replace the burner
head with the arrow painting to the rear of the
cooktop (12 o'clock position)

Installation

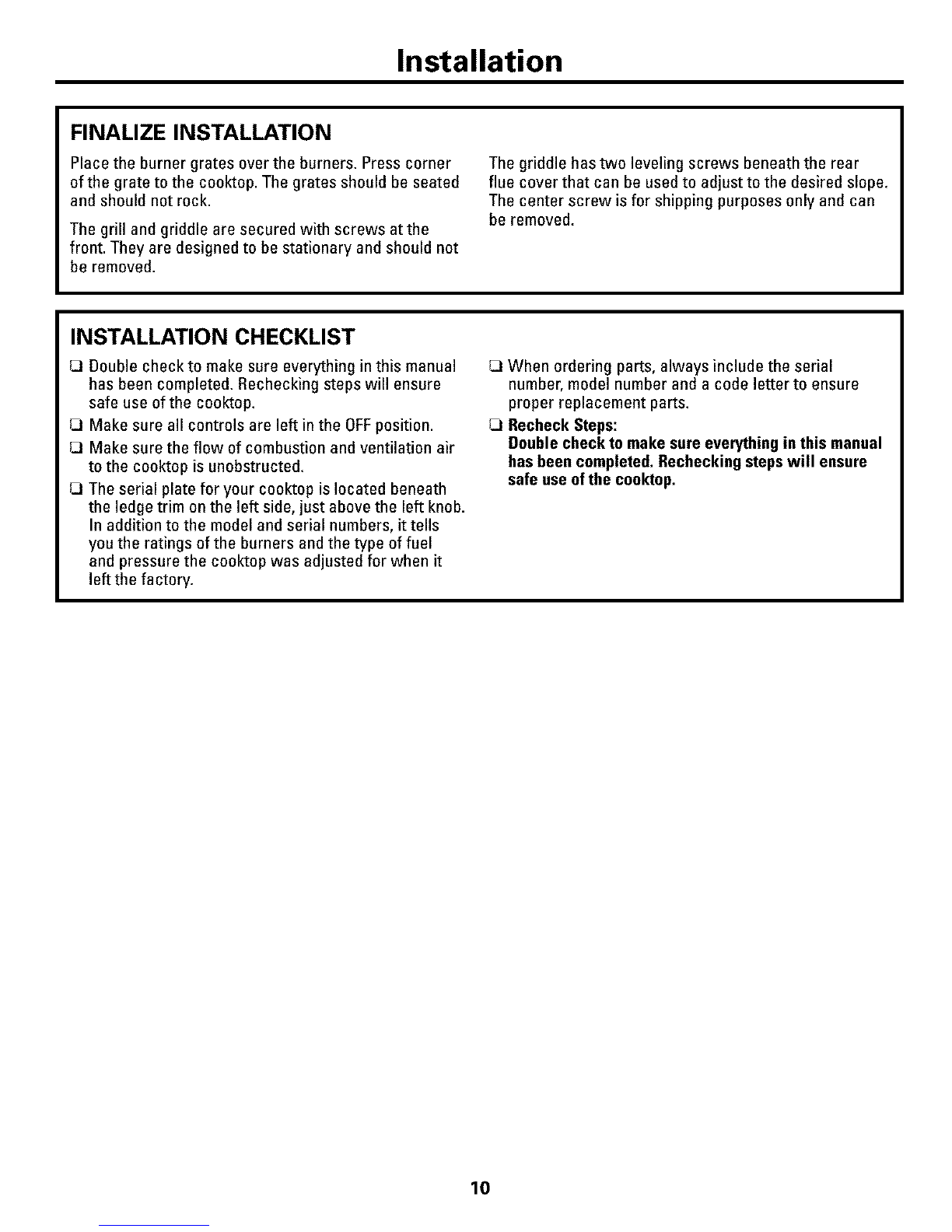

FINALIZE INSTALLATION
Place the burner grates over the burners. Press corner
of the grate to the cooktop. The grates should be seated
and should not rock.
The grill and griddle are secured with screws atthe
front. They are designed to be stationary and should not
be removed.
The griddle has two leveling screws beneath the rear
flue cover that can be used to adjust to the desired slope.
The center screw is for shipping purposes only and can
be removed.
INSTALLATION CHECKLIST
Double check to make sure everything in this manual
has been completed. Rechecking steps will ensure
safe use of the cooktop.
Make sure all controls are left in the OFFposition.
Make sure the flow of combustion and ventilation air
to the cooktop is unobstructed.
The serial plate for your cooktop is located beneath
the ledge trim on the left side, just above the left knob.
In addition to the model and serial numbers, it tells
you the ratings of the burners and the type of fuel
and pressure the ceoktep was adjusted for when it
left the factory.
When ordering parts, always include the serial
number, model number and a code letter to ensure
proper replacement parts.
Recheck Steps:
Double check to make sure everything in this manual
has been completed, Rechecking steps will ensure
safe use of the cooktop.
10

Installation

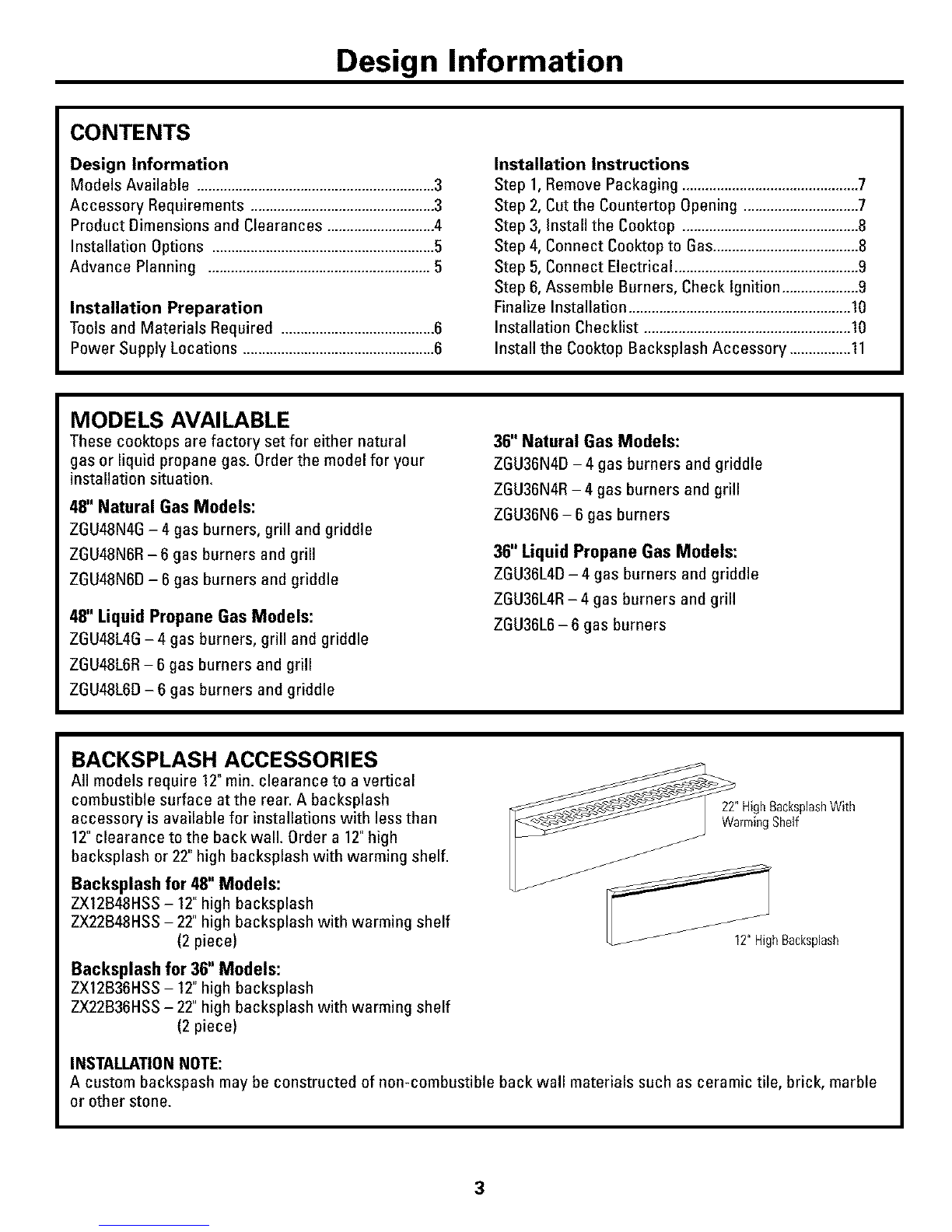

INSTALL 9" or 12" HIGH BACKSPLASH
•Install and level the range or cooktop according to the
installation instructions.
• Remove the backsplash packaging. Select the back, wall
mount panel with mounting screw slots.
• Mark a horizontal line on the wall, 1/8" above the
range/cooktop backguard.
• Use wood screws or fasteners (not supplied) to secure
the back section to the wall. Slide the panel up or down
to provide the 1/8" gap between the top of the
range/cooktop and the bottom of the backsplash.
This 1/8" gap allows the appearance or front section
to overlap the mounted rear panel.
• Secure the appearance panel to the mounted back
section with the #8 self-tapping screws provided.
Install 3 screws on each side and 5 across the top.
Supplied
\
Slotsfar Verticat_
Adjustment
Sacksection
1/8'L
Sack,
Front section
INSTALL 22" HIGH BACKSPLASH
• Install and level the range or cooktop according to the
installation instructions.
• Remove the backsplash packaging. Select the back, wall
mount panel with mounting screw slots.
• Mark a horizontal line on the wall, 1/8" above the
range/cooktop backguard.
• Use wood screws or fasteners (not supplied) to secure
the back section to the wall. Slide the panel up or down
to provide the I/8" gap between the top of the
range/cooktop and the bottom of the backsplash.
This 1/8" gap allows the appearance or front section
to overlap the mounted rear panel.
• Attach the shelf to the front section of the backsplash
using screws and nuts supplied.
• Secure the appearance panel to the mounted back
section with the #8 self-tapping screws provided.
Install 3 screws on each side and 5 across the top.
Front section _,
S_pplied -- Sack \
#8 Screws section"
S*ipplied_
#8Screws_,
Back
section
lip
BackguardJ
Slotsfor
O@ Vertical
Adjustment
.q-
WARNING:
The back section must be securely fastened to
the wall. Failure to do so could cause damage or
personal injury. Maximum shelf weight capability
is 10 Ibs.
AVERTISSEMENT ."
La section arri0re doit 0tre fix0e solidement
sur le mur. Le d0faut de proc0der ainsi peut
causer des dommages mat0riels ou des 10sions
corporelles. La capacitO de charge maximale
de I'0tagOre est de 4,5 kg (10 Ibs ).
11

Pub.No.4£-80225-2
PartNo. 64D4290P377
17713Rev.2
1o-o4JR
NOTE:While performing installations described in this book,
safety glasses or goggles should beworn,
_brMonogmm locals_icein youra_a, call
1.800.444.1845.
)
NOTE: l roduct improve'men t is a continuing _ndeavor at
g_'nera[ Electric. Therefore, materials, app_ arancc alld
specifications are sul)iect to change without notice.
Monogram
GEConsumer& Indus_al
£ouita#l_, l_ g_2_3
_O04 0E Companv
