Installation
Instructions
30” Sealed Gas Cooktop
PGP953, PGP959, CGP350
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com
In Canada, call 1.800.561.3344 or Visit our Website at: www.geappliances.ca
IN THE COMMONWEALTH OF
MASSACHUSETTS:
e This product must be installed by a licensed
plumber or gas fitter.
e When using ball-type gas shut-off valves, they
shall be the T-handle type.
¢ A flexible gas connector, when used, must not
exceed 3 feet.
FOR YOUR SAFETY:
AWAR N | NG — If the information
in this manual is not followed exactly, a fire,
explosion or gas leak may result causing
property damage, personal injury or death.
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
-IM PO RTANT — save these instructions
for local inspector's use.
¢ IMPORTANT -— observe all governing
codes and ordinances.
e¢ Note to Installer - Be sure to leave these
instructions with the Consumer.
e Note to Consumer - Keep these instructions for
future reference.
e Product failure due to improper installation is not
covered under the Warranty.
AWARNING — This appliance must be
properly grounded.
¢ IMPORTANT -— Leck testing of the
appliance shall be conducted according to the
manufacturer's instructions.
e Proper installation is the responsibility of the
installer and product failure due to improper
installation is NOT covered under warranty.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance!
WHAT TO DO IF YOU SMELL
e Do not try to light any appliance. Do not touch
any electrical switch; do not use any phone in
your building.
¢ Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
e If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
AWARNING — Disconnect all electrical
power at the main circuit breaker or fuse box
before installing.
This cooktop has been certified by UL. You'll find
safety precautions in your Owner's Manual.
Read them carefully.
e Installation of this cooktop must conform with
iocal codes or in the absence of local codes with
the National Fuel Gas Code, ANSI Z223.1/NFPA
54-Latest edition.
e Be sure your cooktop is installed properly by a
qualified installer or service technician.
¢ To eliminate reaching over surface burners,
cabinet storage above burner should be avoided.
¢ Do not install the unit near an outside door or
where a draft may affect its use.
31-10807-2 (09-11 GE)

Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS

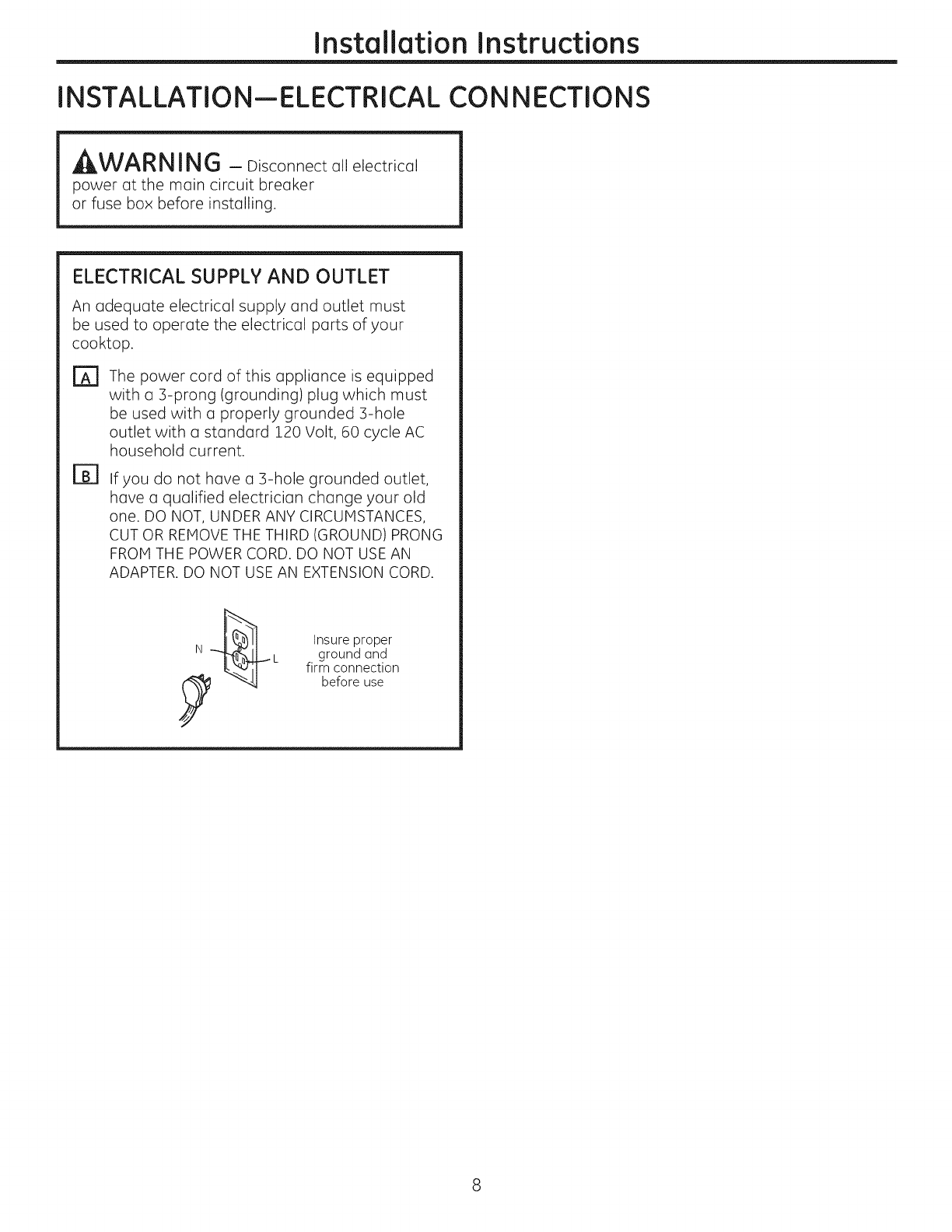

ELECTRICAL REQUIREMENTS
This appliance must be supplied with the proper
voltage and frequency and connected to an
individual, properly grounded branch circuit,
protected by a circuit breaker or fuse having
amperage as noted on the rating plate.
We recommend you have the electrical wiring and
hookup of your cooktop connected by a qualified
electrician. After installation, have the electrician
show you where your main cooktop disconnect is
located.
Check with your local utilities for electrical codes
which apply in your area. Failure to wire your
cooktop according to governing codes could result
in a hazardous condition.
if there are no codes, your cooktop must be wired
and fused to meet the requirements of the National
Electrical Code, ANSI/NFPA No. 70—Latest edition.
You can get a copy by writing:
National Fire Protection Association
Batterymarch Park
Quincy, MA 02269
in Canada your cooktop must be wired and fused
to meet the requirements of the Canadian Electrical
Code.
Be sure the installation of this product in a mobile
home conforms with the Manufactured Home
Construction and Safety Standard, Title 24 CFR,
Part 3280. If this standard does not apply, you
must follow the standard for Manufactured Home
Installations, ANSI/VCSBS A225.1, or with local
codes where applicable.
You can get a copy of the Federal Standard by
Writing:
Office of Mobile Home Standards
HUD Building
451 7th Street, S.W.
Washington, D.C. 24010
PARTS INCLUDED
3 off
<6 28
@
@%
\
2 Hold
Down Brackets
MATERIALS YOU MAY NEED
o8o
Pipe Fittings
CSA-Approved Flexible Gas Line
3/8" Min. 1D, 1/2” NPT Connection,
3-foot Maximum Length (Massachusetts Only)
TOOLS YOU WILL NEED
FOR INSTALLATION
—
CU
Pencil
Genny ly
Phillips-Head
Screwdriver
Eaooaoaeoaeoond
Ruler or Straightedge
Hane Drill
Safety Glasses

Installation Instructions
PRE-INSTALLATION CHECKLIST
Foam
Packaging
When preparing cooktop opening, make
sure the inside of the cabinet and the
cooktop do not interfere with each other.
(See section on preparing the opening.)
Remove packaging materials, grate boxes,
regulator with literature, and literature
package from the cooktop before beginning
installation.
ff Literature Package
Grate boxes
Cooktop
Remove Installation Instructions from
literature pack and read them carefully
before you begin.
Be sure to place all literature (Owner's Manual,
Installation Instructions, etc.) in a safe place
for future reference.
Make sure you have all the tools and
materials you need before starting the
installation of the cooktop.
Your home must provide the adequate
electrical service needed to safely and
properly use your cooktop. (Refer to section
on electrical requirements.]
When installing your cooktop in your home,
make sure all local codes and ordinances
are followed exactly as stated.
Make sure the wall coverings, countertop
and cabinets around the cooktop can
withstand heat (up to 200°F) generated by
the cooktop.

Installation Instructions

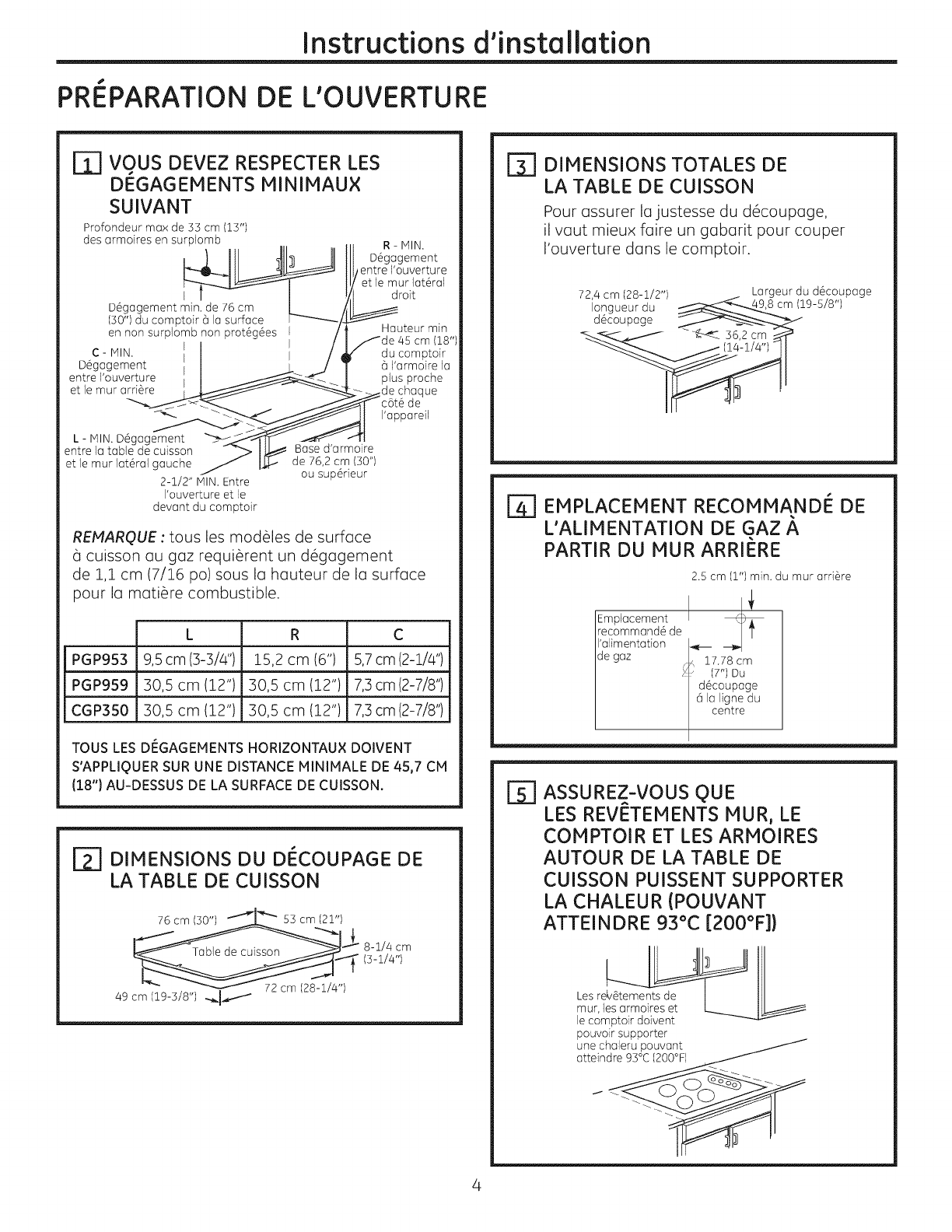

PREPARING THE OPENING
[1] MAINTAIN THE FOLLOWING
MINIMUM CLEARANCE DIMENSIONS
13” MAX. Depth of unprotected
overhead cabinets. R- MIN. clearance
from cutout to right
|_db side wall
(
: |
30” MIN. clearance from
countertop to unprotected
overhead
surface
18"
MIN.
height
from
countertop
to nearest
cabinet on either
side of unit
C-MIN.
clearance from
cutout to rear
wall
L- MIN. clearance
from cooktop to left -
side wall
30” or wider
cabinet base
2-1/2” MIN from
cutout to front of
countertop
NOTE: All gas cooktop models require 7/16” free
area below cooktop bottom to combustible material.
L R Cc
PGP953 | 3-3/4" 6" 2-1/4"
PGP959 12” 12” 2-7/8"
CGP350 12” 12” 2-7/8"
ALL HORIZONTAL CLEARANCES MUST BE MAINTAINED
FOR A MINIMUM OF 18” ABOVE THE COOKING SURFACE.
[3] CUTOUT DIMENSIONS OF
COUNTERTOP
To ensure accuracy, it is best to make
a template when cutting the opening
in the counter.
[4 | RECOMMENDED GAS SUPPLY
LOCATION FROM BACKWALL
1” Min. From Backwall
Recommended vA
gas supply <7'>
location
From Cutout
4 — Center Line
[2] OVERALL COOKTOP DIMENSIONS
30"
—_— Tt
SS TT “
, 28-1/4"
19-3/8" [i
[5] MAKE SURE WALL COVERINGS,
COUNTERTOP AND CABINETS
AROUND COOKTOP CAN
WITHSTAND HEAT (UP TO 200°F)
GENERATED BY COOKTOP
Wall covering,
cabinets and
countertop must]
withstand heat |
up to 200°F

Installation Instructions
INSTALLING THE COOKTOP UNIT
[4] LOCATE ELECTRICAL OUTLET AND
GAS SHUT-OFF VALVE BENEATH
CABINET
NEVER REUSE OLD i
CONNECTORS WHEN r\
INSTALLING THIS Shut or__f | hectic
UNIT. ae | Outlet 12”
Lions,
Countertop
Install a manual shut-off valve in the gas line in an
easily accessible location outside the cooktop. Be
sure you know how and where to shut off the gas
supply to the cooktop. Install the electrical outlet
12" below the countertop.
[4] ATTACH BRACKETS TO COOKTOP
Remove the screw from the side of the cooktop
and screw the hold-down bracket
to the side of the cooktop unit. Repeat for opposite
side of cooktop.
Pre-drilled
Bottom of hole
Cooktop
Cooktop
Surface
[2] PROTECT SURFACE OF COOKTOP
Place a towel or tablecloth onto the countertop.
Lay the cooktop upside down onto the protected
surface.
Cloth under Cooktop
[3] LOCATE MOUNTING PARTS
Remove the hold down brackets from the
literature package.
of
a
i
<i}
[5] INSERT COOKTOP INTO CUTOUT
Insert the cooktop centered into the cutout opening.
Make sure the front edge of the countertop is
parallel to the cooktop. Make final check that all
required clearances are met.
ee
Once the unit is in place, screw the
hold- down bracket into the cabinet sides
to secure the unit into place.

Installation Instructions
INSTALLATION—GAS CONNECTIONS
[4] PROVIDE ADEQUATE
GAS SUPPLY
This cooktop is designed to operate on natural
gas at 5” of water column manifold pressure and
7" of water column (W.C.) supply pressure. It is
shipped from the factory set for natural gas. The
convertible pressure regulator supplied with the
unit must be connected in series with the manifold
of the cooktop and must remain in series with the
supply line regardless of whether natural or L.P.
gas is being used. FOR PROPER OPERATION, THE
MAXIMUM INLET PRESSURE TO THE REGULATOR
MUST BE NO MORE THAN 14” OF WATER COLUMN
PRESSURE. For checking the regulator, the inlet
pressure must be at least 1” W.C.. {or 3.4 KPA)
greater than the regulator output setting. If
the regulator is set for 5" W.C. of water column
if the regulator is set for 10” W.C., the inlet pressure
must be at least 11” W.C.. The gas supply line to
the cooktop should be 1/2” or 3/4” pipe.
pressure, the inlet pressure must be at least 6” W.C.
[3] INSTALL REGULATOR ONTO
BURNER BOX BOTTOM
Screw the regulator ]
onto the burner A
box bottom pipe
connection. Make
sure the top of p
: ressure
the regulator is Reguiato™
facing towards the
cabinet front, easily
accessible through
the cabinet doors.
The regulator may
also be installed
prior to inserting
the cooktop into the cutout if extreme caution is
used to ensure the regulator connection is not
compromised.
Electrical
Outlet 12”
Below
Countertop
[4] COMPLETE CONNECTION WITH A
[2] INSTALL REGULATOR
NEVER REUSE OLD CONNECTORS WHEN
INSTALLING THIS COOKTOP.
AWARN ING: Never reuse old flexible
connectors. The use of old flexible connectors
can cause gas leaks and personal injury. Always
use new flexible connectors when installing a gas
appliance.
. ; Pressure “|
Screw a section of pipe onto Regulator 4
the inlet end of the pressure
regulator and install the
coupling.
Coupling —— p> (2)
To reduce the likelihood of gas leaks, apply teflon
tape or a thread compound approved for use with
LP or Natural gases to all threaded connections.
COUPLING
Complete the
connection between
the regulator pipe
coupling and
the shut-off valve.
Pressure ———={f |]
Regulator
N Shut-off —_-ff
qi?
\
Electrical
Outlet 12”
Below
Countertop

Installation Instructions
[5] CHECK FOR LEAKS
LEAK TESTING OF THE APPLIANCE SHALL BE
CONDUCTED ACCORDING TO THE MANUFACTURER'S
INSTRUCTIONS.
Before testing for leaks, make sure all burner knobs
are in the OFF position.
After connecting the cooktop to gas, check system
for leaks with a manometer. If a manometer is not
available, turn the gas supply on to the cooktop
and use a liquid leak detector at all joints and
connections to check for leaks.
Tighten all connections if necessary to prevent gas
leakage in the cooktop or supply line.
DO NOT USE OPEN FLAME TO CHECK FOR
LEAKS!
Disconnect the cooktop and its individual shut-off
valve from the gas supply piping system during any
pressure testing of that system at test pressures
greater than 1/2 psig (3.5 kPa).
isolate the cooktop from the gas supply piping
system by closing its individual shut-off valve
during any pressure testing of the gas supply
system at test pressures equal to or less than 1/2
psig (3.5 kPa).
[6] INSTALLATION OVER BUILT-IN
OVEN
See built-in oven installation for complete
installation instructions.
|
5" To Center of
2" Dia. Hole From
Countertop
Lt |
90° Elbow — —-y
rT 2" Dia. Hole
L- (20 7/8" from front
of Countertop to
Hole Center]
Cabinet Sides ~ A SN
View from Front of Cooktop

Installation Instructions
INSTALLATION—ELECTRICAL CONNECTIONS
AWARNING — Disconnect all electrical
power at the main circuit breaker
or fuse box before installing.
ELECTRICAL SUPPLY AND OUTLET
An adequate electrical supply and outlet must
be used to operate the electrical parts of your
cooktop.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which must
be used with a properly grounded 3-hole
outlet with a standard 120 Volt, 60 cycle AC
household current.
if you do not have a 3-hole grounded outlet,
have a qualified electrician change your old
one. DO NOT, UNDER ANY CIRCUMSTANCES,
CUT OR REMOVE THE THIRD (GROUND) PRONG
FROM THE POWER CORD. DO NOT USE AN
ADAPTER. DO NOT USE AN EXTENSION CORD.
insure proper
ground and
firm connection
before use

Installation Instructions
COOKTOP BURNERS
[4] ASSEMBLING THE COOKTOP BURNERS
The electrode of the igniter is exposed. Be careful not to turn on any cooktop controls
while the top of the burner is removed. Do not remove the top or touch the electrode
of any burner while another burner is turned on. Electrical shock might result.
Place the burner head onto the burner base. Make sure to place the correct jeererent
burner head on the correct burner base and that the burner head sits level on
the burner base. The burner heads are not interchangeable. Ensure the slot in Burner cap properly seated
the burner head is positioned over the electrode and that the burner head is
fully inserted inside the burner base. A small gap between the base and head is
normal.
Place the burner caps on the burner heads, making sure to place the correct
burner cap on the correct burner head. The burner caps are not
interchangeable. Each cap has three to four pins. Make sure that the burner
caps are properly seated on the burner heads and that none of the pins sit in the stability chamber.
Burner cap not properly seated
Burner cap Inner
a Burner cap ©)
b i Pom i Sy ~ | é
aa
\
f << Sfeh Ot 5
Burner head
pe,
/
Se
oy
OR
Stability *
chamber
Burner
base
[2]
CHECK IGNITERS
Operation of the electric igniters should be checked after the cooktop and supply line have been carefully
checked for leaks and the cooktop has been connected to the electrical power.
On models so equipped, check to be sure the cooktop is in the UNLOCKED position.
Push and turn a burner valve to the LITE position. All spark igniters will make a series of sparks (ticking
sounds), but only the burner turned to LITE will light.
e The burner should light when gas is available to the burner.
e Once the burner lights, it should be turned out of the LITE position.
Try each valve separately until all burners have been checked.

Installation Instructions

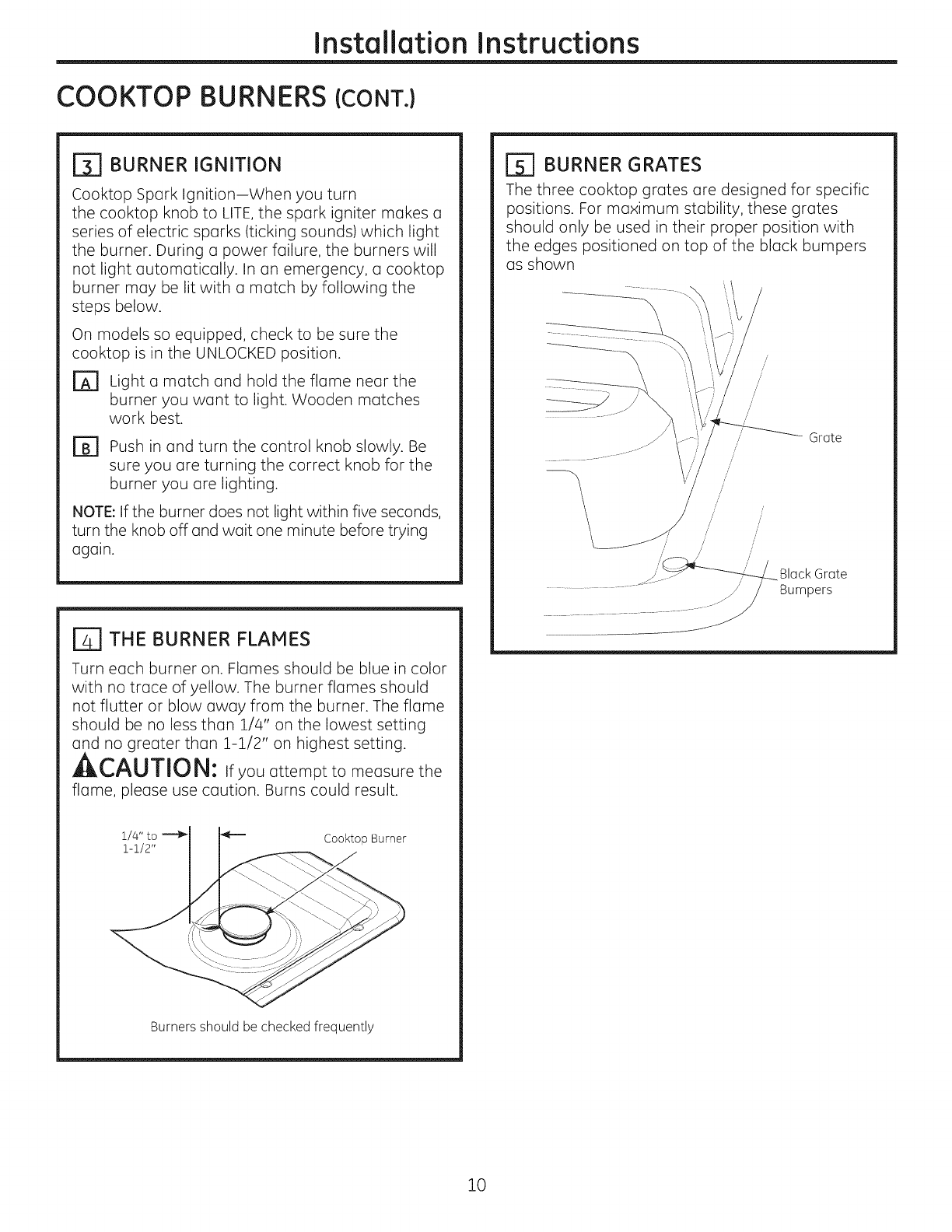

COOKTOP BURNERS (CONT.)
[3] BURNER IGNITION [5 | BURNER GRATES
Cooktop Spark Ignition—When you turn The three cooktop grates are designed for specific
the cooktop knob to LITE, the spark igniter makes a positions. For maximum stability, these grates
series of electric sparks (ticking sounds) which light should only be used in their proper position with
the burner. During a power failure, the burners will the edges positioned on top of the black bumpers
not light automatically. In an emergency, a cooktop as shown
burner may be lit with a match by following the
steps below.
On models so equipped, check to be sure the
cooktop is in the UNLOCKED position.
Light a match and hold the flame near the
burner you want to light. Wooden matches
work best.
Push in and turn the control knob slowly. Be
sure you are turning the correct knob for the
burner you are lighting.
Grate
NOTE: If the burner does not light within five seconds,
turn the knob off and wait one minute before trying
again.
Black Grate
Bumpers
[4] THE BURNER FLAMES
Turn each burner on. Flames should be blue in color
with no trace of yellow. The burner flames should
not flutter or blow away from the burner. The flame
should be no less than 1/4” on the lowest setting
and no greater than 1-1/2” on highest setting.
ACAUTION: If you attempt to measure the
flame, please use caution. Burns could result.
Cooktop Burner
Burners should be checked frequently
10

Installation Instructions
OPERATION CHECKLIST
Make sure all controls are left in the OFF
position. Check to be sure the cooktop is in the
UNLOCKED position (on models so equipped).
Make sure the flow of air to and from the
cooktop is unobstructed.
The serial plate for your cooktop is located on
the bottom of the burner box. In addition to the
model and serial numbers, it tells you the ratings
of the burners and the type of fuel and pressure
the cooktop was adjusted for when it left the
factory.
[0]
le]
When ordering parts, always include the serial
number, model number and a code letter to
ensure proper replacement parts.
Recheck Steps:
Double check to make sure everything in this
guide has been completed. Rechecking steps
will ensure safe use of the cooktop.
11

Installation Instructions
MAKING THE LP CONVERSION
[4] SAFETY INFORMATION YOU
SHOULD KNOW
The pressure regulator and burner orifices are set
for natural gas. To use LP gas, the regulator and
burner orifices must be converted. The LP orifice
spuds for the cooktop burners can be located in the
literature package attached to the regulator.
ACAUTION: The cooktop, as shipped from
the factory, is set for use with natural gas. If you
wish to use your cooktop with LP gas, you must
first replace the orifices and convert the pressure
regulator.
AWARN ING: this conversion must be
performed by a qualified installer or gas supplier in
accordance with the manufacturer's instructions
and all codes and requirements of the authority
having jurisdiction. Failure to follow instructions
could result in serious injury or property damage.
The qualified agency performing this work assumes
responsibility for the conversion.
ACAUTION: The following adjustments
must be made before turning on the burner. Failure
to do so could result in serious injury. Be sure
pressure regulator has been converted as
described in Step 2.
12
TOOLS YOU WILL NEED
FOR LP CONVERSION
Roy
ECG ==0
Safety Glasses
7mm Nutcriver
a
Small Flat-Head
Screwdriver (4mm or
5/32" tip size, 60mm
long)
[2] ADJUST YOUR COOKTOP FOR USE
WITH LP GAS
Disconnect all electrical power, at the main
circuit breaker or fuse box.
Shut off the gas supply to the cooktop
by closing the manual shut-off valve.
Adjust the pressure regulator, by the following
instructions:
e Unscrew the cap.
e Place your thumb against the flat side of the
spring retainer and press down to remove
the retainer.
¢ Carefully look at the spring retainer to locate
the NAT or LP position.
Gasket
Spring
ah Retainer
L.P./Propane
NAT. Position
Position
Pressure Regulator
e Turn the spring retainer over so that LP is
showing on the bottom.
e Snap the retainer back into position.
e Screw the cap back onto the regulator.

Installation Instructions
MAKING THE LP CONVERSION (cONT.)
[3] CHANGE COOKTOP BURNER
ORIFICES
Remove the grates, burner caps, and burner
heads.
Using a 7mm nut driver, remove the burner
orifices. These may be accessed through the
burner holes in the cooktop.
Inner oO
burner cap err
cap
Burner
Outer OR
base burner
gitye, Burner
zag head
se cap
Electrode B Burner
urner base
fod ccc ee}
Orifice spuds located Orifice spud located Electrode
through these Openings through this opening
Tri-Ring Burner
NOTE: On all burners, the
Retainer orifices have a spring-loaded
Ring retaining ring around the hex
head to hold the orifice in the
nut driver during installation
and removal. A slight amount
of force is required to push the
nut driver down over the ring.
Locate the LP/Propane orifices shipped inside
the literature package. They will have a digit
number and the letter “L” on the side.
(IMPORTANT: Save the orifices removed from
the appliance for future use.)
Each orifice will show a series of engraved
marks, (1, Il, IV or V), located on the top.
These marks denote the location of each orifice to the
cooktop burner.
©). C2. CG.
For PGP953 Models
©O.0.0.0
Nose X2 alld x2 x1 Need x3, Tall
For PGP959 & CGP350 Models
See instructions
for center burner
13
[3] CHANGE COOKTOP BURNER
ORIFICES (CONT.)
CENTER BURNER
15,000 BTU/hr Extra Large Burner (PGP953 Models)
Burner
Cap
Set Screw
|
¢> Choke
|
Bummer
Head
Extended spud for center
extra large burner
Extended
Spud
Base
6
Orifice spud located
through this opening

Installation Instructions

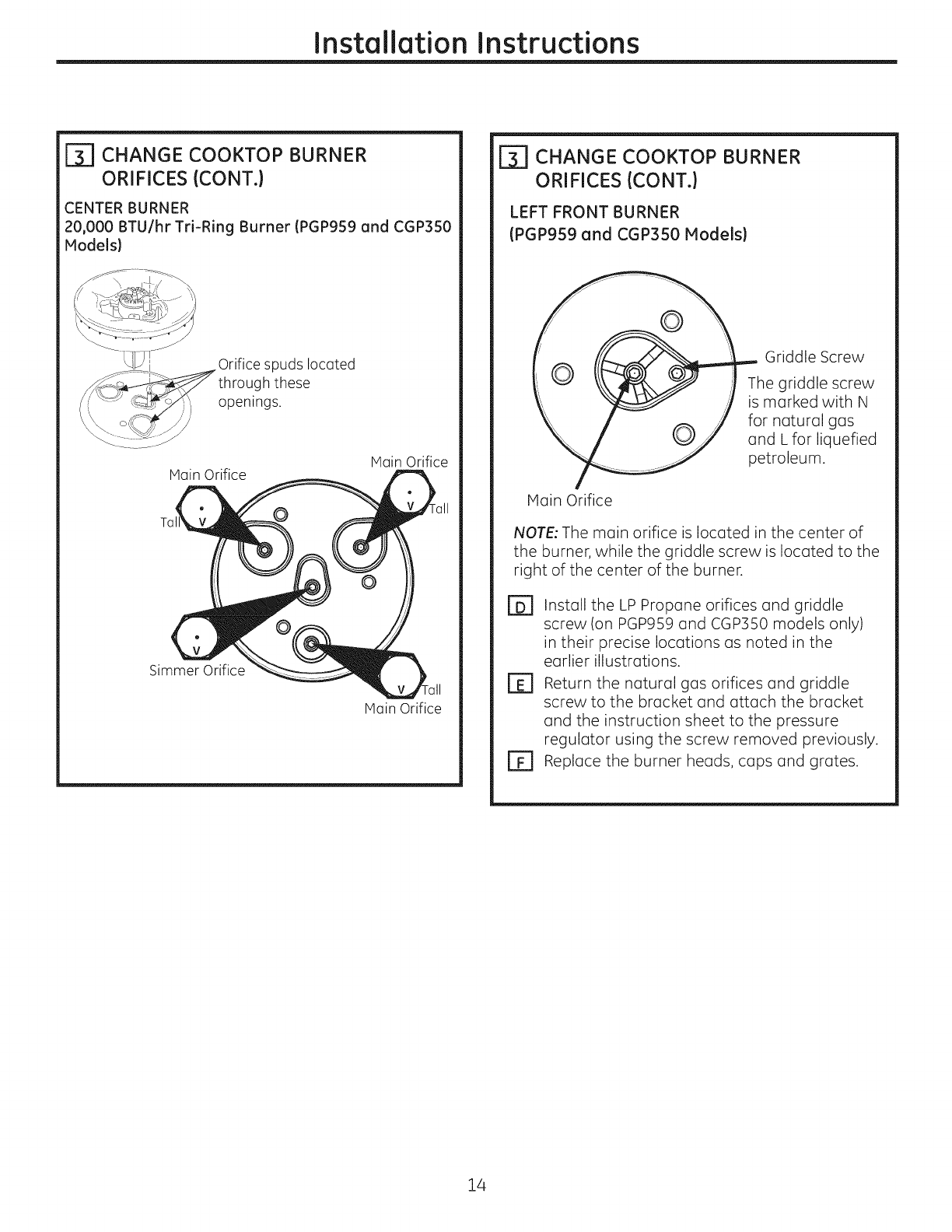

[3 | CHANGE COOKTOP BURNER
ORIFICES (CONT.)
CENTER BURNER
20,000 BTU/hr Tri-Ring Burner (PGP959 and CGP350
Models)
VA Tall
Main Orifice
14
[3] CHANGE COOKTOP BURNER
ORIFICES (CONT.)
LEFT FRONT BURNER
(PGP959 and CGP350 Models)
Griddle Screw
] The griddle screw
is marked with N
for natural gas
and L for liquefied
petroleum.
Main Orifice
NOTE: The main orifice is located in the center of
the burner, while the griddle screw is located to the
right of the center of the burner.
[D] Install the LP Propane orifices and griddle
screw (on PGP959 and CGP350 models only)
in their precise locations as noted in the
earlier illustrations.
Return the natural gas orifices and griddle
screw to the bracket and attach the bracket
and the instruction sheet to the pressure
regulator using the screw removed previously.
Replace the burner heads, caps and grates.
fe]

Installation Instructions
MAKING THE LP CONVERSION (CONT.)
[4] ADJUST BURNER FLAMES
Turn all burners full on and check the flames.
They should be blue in color with some yellow
tipping at the ends of the flame. Foreign
particles in the gas line may cause an orange
flame at first, but this will soon disappear.
Turn the cooktop burner knob to the lowest
setting while observing the flame.
Adjust the low flame setting using the valve bypass
screw as follows:
Low-setting adjustments must be made with two
other burners in operation on a medium setting.
This prevents the low flame from being set too low,
resulting in the flame being extinguished when
other burners are turned on.
To adjust the flame,
remove the knobs. Use
screwdriver to remove
valve stem plugs as
shown.
Insert a screwdriver
through the access hole
in valve switch. Engage
adjustment screw in
valve. Refer to the
illustration below that
matches the adjustment
screw location for
your model. The
griddle burner (PGP959
and CGP350) has 2
adjustment screws,
one for the left rear
burner and one for the
left front burner during
griddle control. Griddle
control must be turned
to LO when making this
adjustment.
Left of stem
For left front griddle
burner and tri-ring
burner simmer
adjustment screw
_nside stem
gs
Ga
For all burners
e |f the flames were too _
except tri-ring
small or fluttered, open
the valve more than the original setting.
e If the flames blew away from the burner,
close the valve more than the original
setting.
Make the adjustment by slowly turning the
screw until flame appearance is correct.
15
[e] Testing Flame Stability:
Test 1 - Temporarily replace knobs. Turn the
knob from “HI” to the lowest setting
quickly. If the flame goes out at the
lowest setting, increase the flame size
and test again.
Test 2 - With the burner on the lowest setting,
open and close the cabinet door
under the cooktop. If the flame is
extinguished by the air currents
created by the door movement,
increase the flame height and test
again.
Flame Recheck:
After the adjustment is made, turn all burners off.
Ignite each burner individually. Observe the flame
at the “HI” position. Rotate the valve to the lowest
setting and be sure that the flame size decreases
as the valve is rotated counterclockwise.
TO CONVERT THE COOKTOP BACK TO NATURAL
GAS, REVERSE THE STEPS UNDER MAKING THE LP
CONVERSION.
Once the conversion is complete and checked ok,
replace valve stem plugs and knobs, and fill out
the LP sticker. Include your name, organization and
date conversion was made. Apply the sticker near
the cooktop gas inlet opening to alert others in
the future that this appliance has been converted
to LP gas. If converting back to natural gas from
LP, please remove the sticker so others know the
appliance is set to use natural gas.

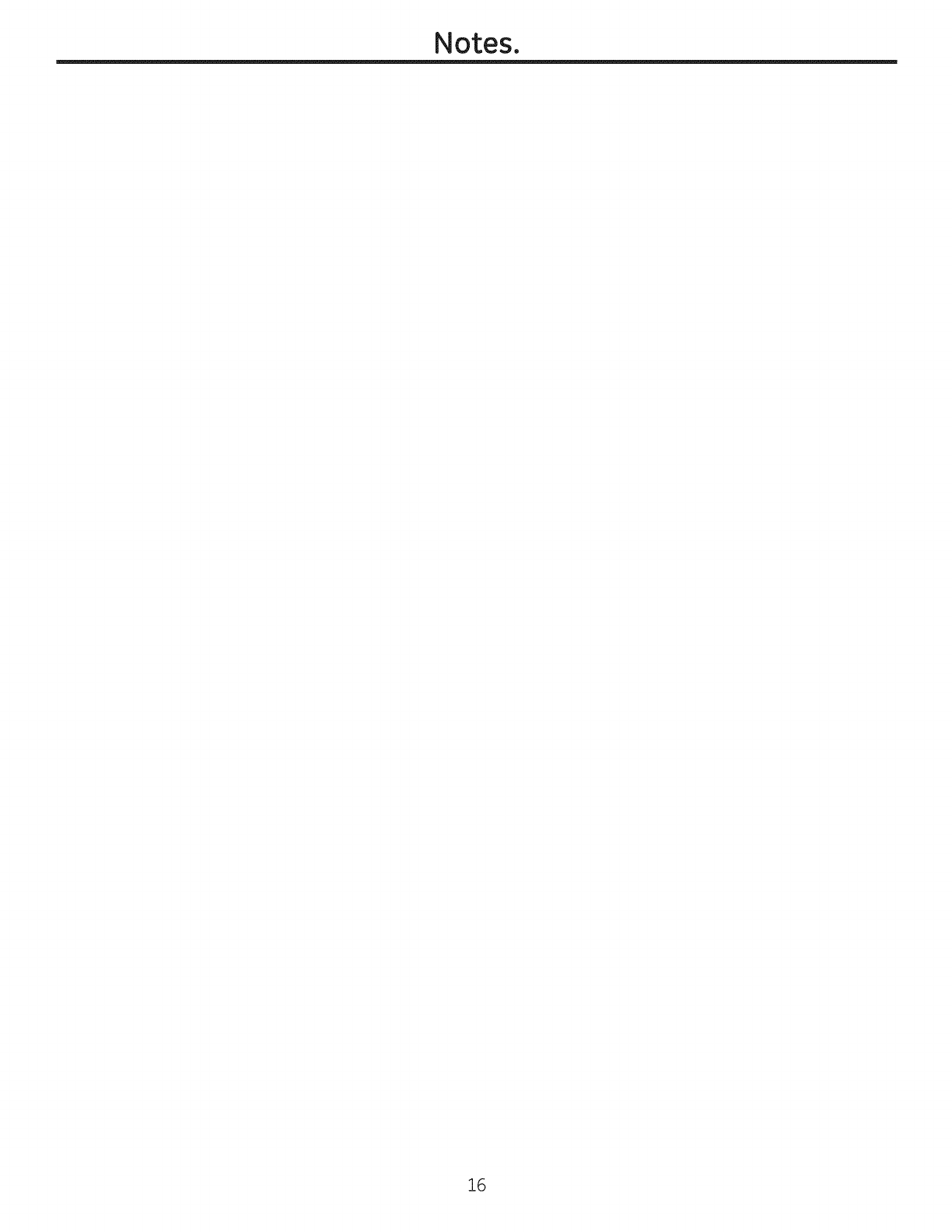

Notes.
16

Instructions
d’installation
Table de cuisson scellée
au gaz de 76 cm (30”)
PGP953, PGP959, CGP350
Questions?
Appelez le Centre de reponse 1.800.561.3344 ou visitez notre site
Web a I’adresse : www.electromenagersge.ca
AVANT DE COMMENCER
Avant de commencer, lisez attentivement la totalité
de ces instructions.
° IM PO RTANT — Conservez ces
instructions pour votre inspecteur local.
IMPORTANT — Respectez toutes les
ordonnances et les codes locaux.
Note a l'installateur - Assurez-vous de laissez ces
instructions au consommateur.
Note au consommateur - Conservez ces
instructions pour référence future.
La garantie ne couvre aucune panne due
a une mauvaise installation.
A AVERTISSEMENT -
Cet appareil doit étre bien mis a la terre.
~ IM PORTANT — Vous devez
verifier que cet appareil n’ait pas de fuite
conformément aux instructions du fabricant.
e L’installateur est responsable d’une bonne
installation et la garantie ne couvre aucune
panne due a une mauvaise installation.
POUR VOTRE SECURITE
A AVERTISSEMENT —
Si vous ne suivez pas exactement les instructions
de ce manuel, vous risquez d’occasionner un
incendie, une explosion ou une fuite de gaz, qui
peuvent provoquer des dommages matériels, des
blessures corporelles ou la mort.
Ne conservez pas ou n'utilisez jamais d’essence
ou d'autres liquides ou vapeurs inflammables a
proximité de cet appareil ou de tout autre appareil
ménager!
Cl QUE VOUS DEVEZ FAIRE SI
VOUS SENTEZ LE GAZ :
e N’essayez jamais d’allumer un appareil
électroménager. Ne touchez a aucun
commutateur d’électricité, n’utilisez jamais un
téléphone dans votre batiment.
e Appelez immédiatement votre fournisseur de
gaz a l'aide du telephone d’un voisin. Suivez les
instructions de votre fournisseur de gaz.
® Si vous ne pouvez pas entrer en contact avec
votre fournisseur de gaz, appelez les pompiers.
L'installation et le service de votre table de cuisson
doivent étre faits par un installateur qualifié, un
technicien de service ou votre fournisseur de gaz.
A AVERTISSEM ENT — bébranchez tout
courant électrique au niveau du disjoncteur de la
maison ou de la boite 4 fusibles avant d’installer.
31-10807-2 (09-11 GE)

Instructions d’installation
INSTRUCTIONS IMPORTANTES DE SECURITE
Cette table de cuisson a été homologuée UL. Vous
trouverez des précautions a prendre en matiere de
sécurité dans votre Guide d'utilisation et de soins.
Lisez-les attentivement.
« L'installation de votre table de cuisson
doit se conformer aux codes locaux ou, en
absence de codes locaux, au National Fuel Gas
Code, ANS! 7223.1/NFPA 54 Derniére édition.
e Assurez-vous que votre table de cuisson soit
bien installée par un installateur qualifié ou un
technicien de service.
e Pour éliminer tout mouvement corporel
au dessus des brtleurs de votre table de cuisson,
évitez de placer des armoires de cuisine au
dessus des brdleurs.
e N’'installez jamais votre appareil pres d’une porte
d’entrée ou dans un emplacement ou un courant
d’air peut géner son usage.
PIECES COMPRISES
Régulateur
2 Supports de fixation
MATERIAUX DONT VOUS POUVEZ
AVOIR BESOIN
Agent de scellerment Raccords de tuyaux — Robinet d’alimentation
de tuyau de gaz
Raccord flexible de gaz approuvé par l'ACNOR
DI min 3/8”, Jonction NPT 1/2
BESOINS D’ELECTRICITE
Cet appareil ménager doit étre livré avec le bon
voltage et la bonne fréquence et branché a son
propre circuit de dérivation bien mis 4 la terre,
protégé par un disjoncteur ou un fusible qui ont
’ampérage noté sur la plaque minéralogique de
votre appareil.
Nous vous recommandons de faire brancher le
cablage électrique et la fiche de votre cuisiniere
par un électricien qualifié. Apres |'installation,
demandez 4 |'électricien de vous montrer
"emplacement de votre coupe-circuit principal.
Demandez a votre entreprise de services publics les
codes électriques en vigueur dans votre région. En
ne cdblant pas votre cuisiniere conformément aux
codes en vigueur, vous provoquez une situation
dangereuse. En l’absence de codes, vous devez
cdbler et isoler votre cuisiniére conformément aux
exigences du Canadian Electrical Code.
OUTILS DONT VOUS AUREZ BESOINS
Ce C3
Crayon
—_—_——
Tournevis Phillips
Ferman
Regle ordinaire ou de
vérification
Perceuse 4 main ou électrique
Lunettes ce sécurité et foret de 1/8po

Instructions d’installation
LISTE DE VERIFICATION AVANT INSTALLATION
Pour preparer l’ouverture de la surface de
cuisson, vous devez vous assurer que
Vintérieur de l’armoire ne touche pas Ia table
de cuisson (consultez la section sur la
préparation de l’ouverture).
Enlevez les matériaux d’emballage, les
boites de grille, le regulateur avec sa
documentation et la documentation de
votre table de cuisson avant de commencer
a l'installer.
Ga Documentation
Boites de
grille
Emballage
en mousse
Table de
cuisson
Enlevez les instructions d’installation de la
trousse de documentation et lisez-les
soigneusement avant de commencer.
Assurez-vous de bien ranger toute la
documentation,(Manuel du propriétaire,
Instructions d'installation, etc.) dans un
endroit sGr pour référence future.
EASY INSTAL
x
[Dp] Assurez-vous d’avoir tous les outils et tous
ies matéraux nécessaires avant de
commencer a installer votre table de
cuisson.
[E] Votre maison doit étre alimentée en courant
électrique adéquat pour vous permettre de
bien utiliser en toute sécurité votre table de
cuisson. (Consultez la section sur les besoins
d’électricité.)
Pour installer votre table de cuisson dans
votre maison, assurez-vous de vous
conformer scrupuleusement a tous les
codes et 4 toutes les ordonnances locales.
Assurez-vous que les revétements de mur, le
comptoir et les armoires autour de la table
de cuisson puissent supporter la chaleur
[pouvant atteindre 93°C (200°F}] produite
par la table de cuisson.

Instructions d’installation
PREPARATION DE L’OUVERTURE
[4] VOUS DEVEZ RESPECTER LES
DEGAGEMENTS MINIMAUX
SUIVANT
Profondeur max de 33 cm (13”)
des armoires en surplomb R - MIN.
Dégagement
entre l|’ouverture
et le mur jatéral
droit
le
Hauteur min
de 45 cm (18”}
du comptoir
& ‘armoire la
plus proche
if
Dégagement min. de 76cm
(30"} du comptoir 4 la surface
en non surplomb non protégées !
C- MIN.
Dégagement
entre l’ouverture
et le mur arriére
|
| |
l'appareil
L-MIN.Dégagement “>—=>
entre la table de cuisson
et le mur latéral gauche
2-1/2” MIN. Entre
ouverture et le
devant du comptoir
Base d’armoire
de 76,2 cm (30”)}
ou supérieur
REMARQUE : tous les modéles de surface
a cuisson au gaz requiérent un dégagement
de 1,1 cm (7/16 po) sous la hauteur de la surface
pour la matiére combustible.
L R C
PGP953 | 9,5cm (3-3/4) 1 15,2 cm (6") | 5,7 cm (2-1/4)
PGP959 | 30,5 cm (12”} | 30,5 cm (12”} | 7,3 cm(2-7/8"|
CGP350 | 30,5 cm (12”) | 30,5 cm (12”) | 7,3 cm (2-7/8)
TOUS LES DEGAGEMENTS HORIZONTAUX DOIVENT
S'APPLIQUER SUR UNE DISTANCE MINIMALE DE 45,7 CM
(18”") AU-DESSUS DE LA SURFACE DE CUISSON.
[3] DIMENSIONS TOTALES DE
LA TABLE DE CUISSON
Pour assurer la justesse du découpage,
il vaut mieux faire un gabarit pour couper
ouverture dans le comptoir.
Largeur du découpage
72,4 cm (28-1/2"}
49,8 cm (19-5/8")
longueur du
découpage
36,2 cm
(14-1/4")
[4] EMPLACEMENT RECOMMANDE DE
L'ALIMENTATION DE GAZA
PARTIR DU MUR ARRIERE
2.5 cm (1) min. du mur arriére
| '
Emplacement | 27
recommandé de A
'alimentation eg — pe
de gaz Ae 17.78em
(7"} Du
découpage
Gla ligne du
centre
[2] DIMENSIONS DU DECOUPAGE DE
LA TABLE DE CUISSON
m= 53 em (21
“oe
A 8-1/4 cm
7 (3-1/4")
76 cm (30")
Table de cuisson
49
cm
(19-3/8")
[a
72cm
(28-1/4")
[5] ASSUREZ-VOUS QUE
LES REVETEMENTS MUR, LE
COMPTOIR ET LES ARMOIRES
AUTOUR DE LA TABLE DE
CUISSON PUISSENT SUPPORTER
LA CHALEUR (POUVANT
ATTEINDRE 93°C [200°F])
| dhe
Les revétements de
mur, les armoires et
le comptoir doivent
pouvoir supporter
une chaleru pouvant
atteindre 93°C (200°F)
<< Oss
