GE Profile PHP960SMSS Manual

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
220578
†Note: Check local codes for required breaker size
Important: Requires a 12" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a
15" minimum from cooktop to adjacent
overhead cabinets. Units are furnished with
a 36" flexible armored cable.
Note: 36" Ribbon cooktops are approved for use over GE 30" Single Wall
Ovens and Warming Drawers only. Refer to cooktop and wall oven/
warming drawer installation instructions packed with product for current
dimensional data. If installed with a GE Profile™ Telescopic Downdraft System,
consult both the cooktop and downdraft installation instructions packed with
product before installing. Cooktop gas/electric supply may need to be
re-routed to install downdraft. The countertop must be at least 26" deep
with a flat surface area of 23-1/2" or more, front to back. In addition,
other clearances to the front edge of the countertop must be considered,
especially on raised bullnose countertops. Consult cabinet and countertop
manufacturer’s specs for flush mount installation prior to install.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
KW Rating
240V 11.6
208V 8.7
Breaker Size
240V 50 Amps†
208V 50 Amps†
Listed by
Underwriters
Laboratories
3-1/4*
Cooktop
2-1/2**
Required
33-7/8
19-1/8
36-1/8
36_ss_cktp_install.eps
21
Electrical junction box 16" MIN.
below countertop
30" MIN. to
unprotected
cabinet
Cut should
not interfere
with cabinet
structure
at front
2 " MIN.
clearance to
side wall
from cut-out
2 " MIN.
clearance to
side wall
from cut-out
1-3/4
"
to
rear wall
13" MAX.
depth
*Depth of unit at conduit connection location (rear) is
6-1/2" on models PP980/975/950/945 and 4-5/8"
on models PHP960/PP972/962/942/932/912,
JP655/356/346.
**Raised bull nose countertops may require up to
3/8" additional clearance to prevent interference
with curved front.
15" MIN.
to cabinet
PHP960SM

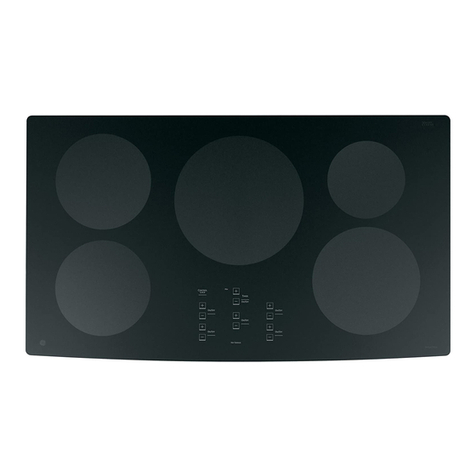

GE Profile™ 36" Electric Induction Cooktop
Dimensions and Installation Information (in inches)
Specification Revised 1/08

Features and Benefits
• 11" Element - Offers a large 11" surface, wide enough to handle
bigger pots and pans and accommodate family meals of any size
• 11" Element - At it's highest setting, the 11" element has 3700 watts
of power, providing an incredibly fast time to boil water
• Electronic Touch Controls - Offer easy, point-and-cook convenience
• 19 Control Settings - Choose from 19 different power levels to select
the temperature that is perfect for your meal
• Pan Presence Sensor - Detects when a burner element is left "on"
and automatically shuts it off when not in use
• Control Lock Capability - Provides the ability to lock the cooktop's
controls, helping protect from unintended activation
• Electronic Kitchen Timer - Provides convenient notification to help
coordinate meal preparation and cooking times
• Stainless Steel Frame - Brings an added touch of style to any decor
and perfectly complements all other stainless steel appliances in
the kitchen
• Hot Surface Indicator Lights - Illuminate when the cooking surface is
active and hot, adding convenience and safe caution
• Heating Element "On" Light - Illuminates when the cooking surface
is activated
• Upfront Controls - Controls are placed within easy reach at the front
center of the cooktop
• Model PHP960SMSS - Stainless steel
PHP960SM
PHP960SM
GE Profile™ 36" Electric Induction Cooktop
220578
Specification Revised 1/08
