GE GDF510PSDSS Manual

350290
Listed by
Underwriters
Laboratories
GDF510PGD/PSD/PMD

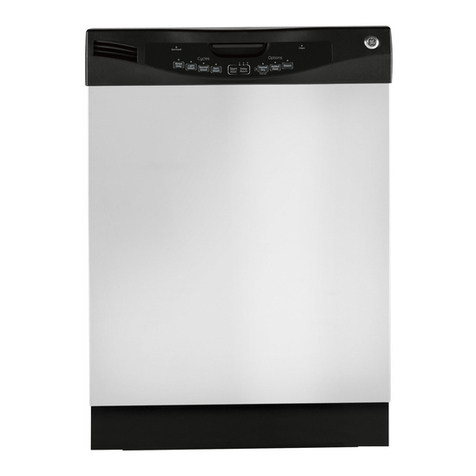

GE®Dishwasher with Front Controls
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Specification Created 6/12
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34" to 34-3/4"
Underside
of countertop
to floor
55
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz.................................................................... 60
Total connected load amperage............ 9.9
Calrod®heater watts......................... 615/800
For use on adequately wired 120-volt, 15-amp circuit
having 2-wire service with a separate ground wire.
This appliance must be grounded for safe operation.
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.

350290
Specification Created 6/12
GDF510PGD/PSD/PMD
GE®Dishwasher with Front Controls
Features and Benefits
• GE’s most advanced wash system - Consistently clean, dry and sanitized dishes are
ensured with GE’s most advanced wash system, combining 65% more wash power*
with advanced performance features *Wash power delivered to each rack. Compared
to previous GE models
• Piranha™Hard Food Disposer with Removable Filter - To ensure consistently clean
items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles. The
disposer helps to prevent large particles from clogging the wash arms
• 3 Pressurized, Full-Coverage Wash Arms - Expect exceptionally clean and table-ready
dishes with powerful wash arms that deliver 65% more wash power to the top and
bottom racks compared to previous GE models* (*Wash power delivered to each rack)
• Dedicated Silverware Jets - Get table-ready silverware thanks to powerful jets that
focus on silverware baskets in multiple locations
• SpaceMaker®Silverware Basket - Enjoy table-ready silverware and loading flexibility
with this unique basket that can be placed on the rack or onto the door
• Sharkskin gray racks with ball tip tines - Offers durability and secures dishes
• American Gray PermaTuf®interior - Heavy-duty material is designed for years of
dependability and has an attractive finish
• 4-Pass Wash and Dry Element - Items come out consistently clean and dry with the
help of this element, which quickly heats water for washing and air for drying
•ModelGDF510PSDSS–Stainlesssteel
•ModelGDF510PGDWW–Whiteonwhite
•ModelGDF510PGDBB–Blackonblack
•ModelGDF510PMDSA-Silver
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
