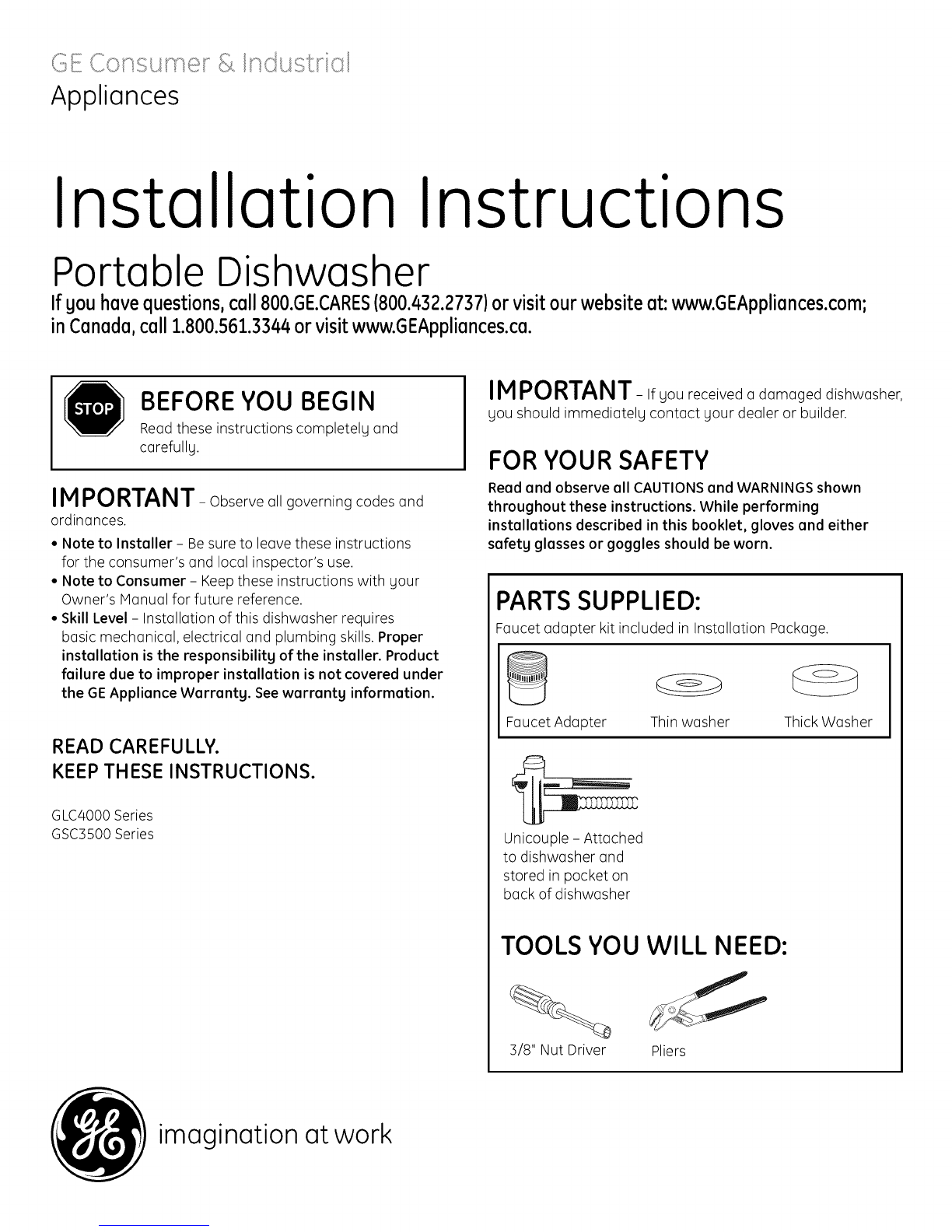

Installation Instructions
STEP 1 REMOVE WOOD BASE
IMPORTANT- Do not kick off wood base! Damage
will occur.
• Move the dishwasher close to the installation location and log
it on its back.
• Remove the four skid bolts on the underside of the wood
bose with 3/8" nut driver.
• Discord bose and bolts.
• Upright the dishwasher.
STEP 2 INSTALL FAUCET ADAPTER
The special faucet adopter supplied with gour dishwasher
must beattached to the sink faucet before you con use your
dishwasher.
Thefaucet adopter isdesigned to fit standard spouts having
internal or external threads. You will find the adopter and two
washers in the faucet adopter pocket in gout dishwasher.
Attach the Faucet Adapter
• To install faucet adapter, first remove the old aerator or trim
ring on your faucet spout.
External Threads
• If faucet has external threads: Insert the
thinner of the two washers into the faucet
adapter and attach it to the faucet spout.
• Tighten with pliers.
Internal Threads
• If faucet has internal threads: Insert both
of the washers into the faucet adapter
and attach it to the faucet spout.
• Tighten with pliers.
Non-Standard Threads
• If the faucet adapter threads do not
match gour faucet spout, gour local
hardware or plumbing supplg store
normallg has additional fittings to adapt
your faucet spout to the special faucet
adapter.
&
- CAUTION: A sink spray attachment hose can
burst if it is installed on the same faucet as your dishwasher.
We suggest that you disconnect the sink spray attachment,
if your sink has one, and place a cap over the opening.
STEP 3 CONNECT THE UNICOUPLE
TO THE FAUCET
• Run garbage disposer, Collar
if gOUhave one, to
clean out the disposer
and thus allow water
to drain from the sink
through the disposer
and down the drain.
• Run hot water faucet
to purge cold water from
the hot water line.The hot water must be between 120°F and
150°Ffor best wash performance.
• Rollthe dishwasher to a position just in front of the sink.
• Pull the unicouple and its hoses completely out from storage
compartment at rear of the dishwasher.
• Attach the unicouple to the faucet adapter following the three
steps below:
- Depressthe locking collar at the top of the unicouple.
- Placethe unicouple completely over the faucet adapter.
- Releasethe locking collar. The unicouple should now be
locked onto the faucet adapter.
• Turn on the hot water faucet and check for leaks. If a leak is
detected, disconnect the unicouple, and refer to Step 4.
Note:The unicouple's small hose carries water from the
faucet to the dishwasher. The large hose carries water from
the dishwasher to the sink. Orient the faucet with the unicouple
attached so water from the unicouple will run into the sink drain.
STEP 4 FAUCET ADAPTER LEAK
Skipthis step if no unicouple leak was observed.
If o unicouple leak was observed in Step 3,take whatever
actions are necessary to repair the leak. This may be as simple
as tightening the faucet adapter. Or,it may require the services
of a plumber if water isleaking from the interface between the
moveable faucet arm and the fixed part of the faucet fastened
to the sink.
STEP 5 PRETEST CHECK LIST
Reviewthis list after connecting your dishwasher to ovoid
charges for a service call that is not covered by your warranty.
[] Open the door and remove oil foam and paper packaging.
[] Locate the Owner's Manual.
[] Readthe Owner's Manual to familiarize yourself with the
operation of the dishwasher.
[] Remove the protective film, if present, from the control
panel.
[] Add 2 quarts of water to the bottom of the dishwasher
to lubricate the pump seal.
