Appliances

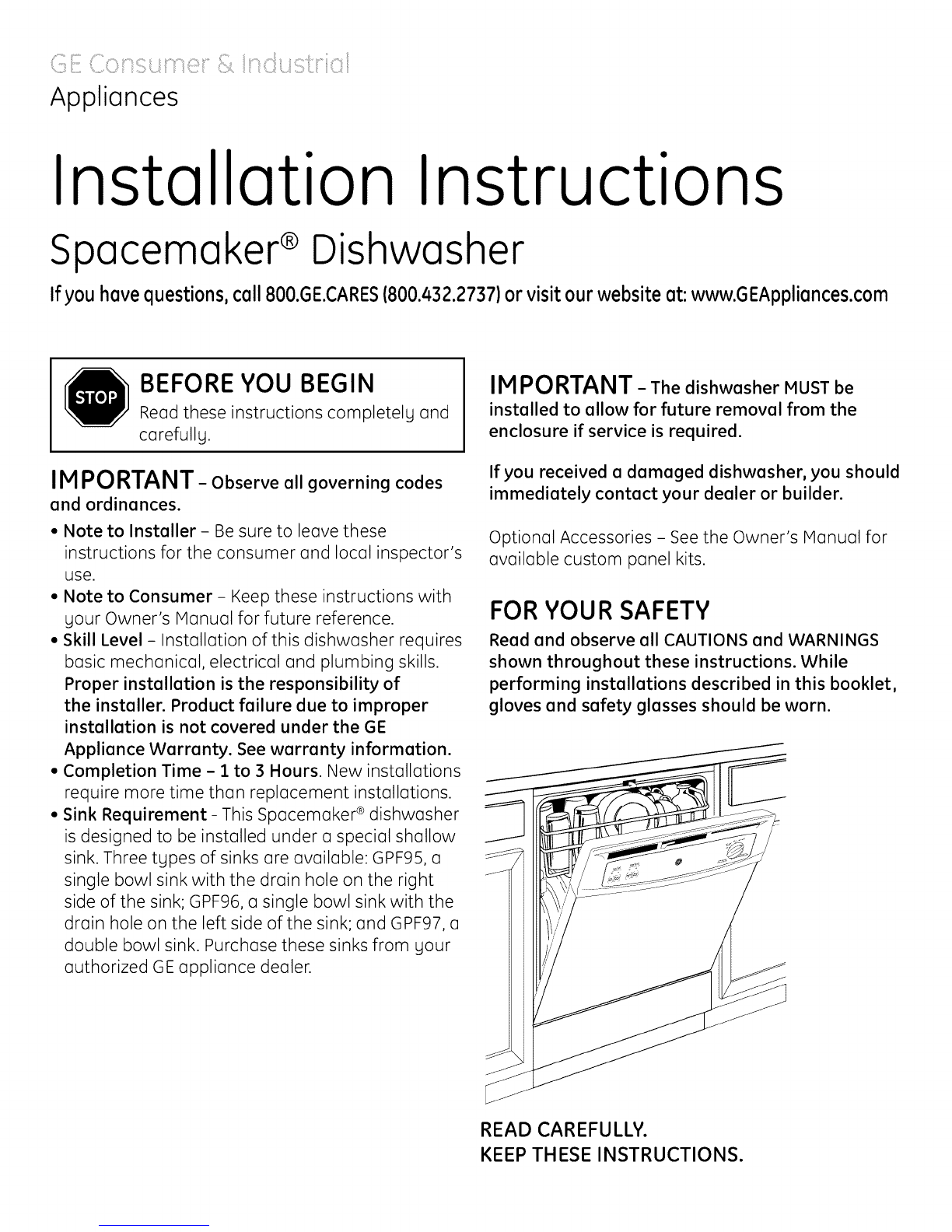

Installation Instructions
Spacemaker®Dishwasher
If you havequestions,call 800.GE.CARES(800.432.2737) or visit our website at: www.GEAppliances.com
BEFORE YOU BEGIN
Read these instructions completelg and
carefutlg.
IMPORTANT- Observe all governing codes
and ordinances.
• Note to Installer- Be sure to leave these
instructions for the consumer and local inspector's
use.
• Note to Consumer - Keepthese instructions with
your Owner's Manual for future reference.
• Skill Level- Installation of this dishwasher requires
basic mechanical, electrical and plumbing skills.
Proper installation is the responsibility of
the installer. Product failure due to improper
installation is not covered under the GE
Appliance Warranty. See warranty information.
• Completion Time - I to 3 Hours. New installations
require more time than replacement installations.
• Sink Requirement - This Spacemaker ® dishwasher
is designed to be installed under a special shallow
sink. Three types of sinks are available: GPF95, a
single bowl sink with the drain hole on the right
side of the sink; GPF96, a single bowl sink with the
drain hole on the left side of the sink; and GPF97, a
double bowl sink. Purchase these sinks from gour
authorized GE appliance dealer.
IMPORTANT- The dishwasher MUST be
installed to allow for future removal from the
enclosure if service is required.
If you received a damaged dishwasher, you should
immediately contact your dealer or builder.
Optional Accessories - See the Owner's Manual for
available custom panel kits.
FOR YOUR SAFETY
Read and observe all CAUTIONS and WARNINGS
shown throughout these instructions. While
performing installations described in this booklet,
gloves and safety glasses should be worn.
J
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

PARTS SUPPLIED IN INSTALLATION
PACKAGE:
[] Two 8-18 × 5/8" Phillips heed wood screws
[] Junction box cover ond #10 hex heod
screw
[] Droin hose (78" long)ond hose clomp
[] Literoture, product somples, ond/or
coupons
Screw Kit
#8
Phillips Head
Wood Screws
5/8" long
#10
Hex Head
Junction Box Screw
1/2" long
78" Drain Hose Hose Clamp
Junction Box Cover
MATERIALS YOU WILL NEED:
[] WX09X70910 power cord if opplicoble to
gour instolletion
[] UL Listed wire nuts (3)
[] Threod seol tope
[] 90 ° elbow, ferrule ond compression nut-
(3/8" NPT externol threod on one end end
opposite end sized to fit woter supplg)
[] GPF65 Side-mount brocket kit for use with
gronite countertops
FOR NEW INSTALLATIONS:
[] Electricot coble
[] Wuter line-3/8" minimum copper tubing
[] Struin relief for electricol connection
[] Hond shut-off volve (recommended)
[] Air gop for droin hose, if required
[] Woste tee for house plumbing, if
opplicoble
[] Screwtgpe hose clomps
[] GPF95, GPF96 or GPF97 stoinless steel
sink
Electrical Cable or
WR09×70910 Power Cord
90° Elbow, Ferrule and
Compression Nut
Strain Relief Shut-Off Valve
/
/'....... :\
,/ h
GPF95
StainlessSteelSink
3Wire Nuts
GPF65 Side-Mount
Bracket Kit
1
Air Gap
GPF96
Stainless Steel Sink
Thread
Seal Tape
Hot Water Line-3/8"
Minimum Copper
Tubing
Waste Tee Screw Type
Hose Clamps
GPF97
Stainless Steel Sink
TOOLS YOU WILL NEED:
[] Sofetg glosses
[] 1/4" ond 5/16" nutdrivers
[] Floshlight
[] Gloves
[] Adjustoble wrench (6")
[] Phillips heod screwdriver
[] 15/26" socket wrench
[] Meosuring tope
[] Level
[] Corpenters squore
[] Bucket to cotch woter when flushing
woter line
[] Tubing cutter
FOR NEW INSTALLATIONS:
[] Hole sow set
[] Drill ond oppropriote bits
Safety Glasses 114"and 5116"Nutdrivers
Gloves Adjustable
Wrench
Measuring Tape Level
Bucket Tubing Cutter
Phillips Head
Screwdriver
Hole Saw Set
Flashlight
15116"
Socket Wrench
Carpenters
Squall
Drill
and Bits

Installation Preparation-Enclosure
PREPARE DISHWASHER ENCLOSURE AND
SINK LOCATION
• Water line to sink faucet and drain from sink can
be run through Area "A."
• Hot water line to dishwasher is installed in Area "B."
• Garbage disposer, water lines to faucet, waste
• Sink opening for garbage disposer must be
dimensioned as shown (7-1/2")in Area "C."This will
provide clearance for disposer and plumbing in
Area "C" when using either single or double bowl
sink. Refer to Figure A below and Figure F1 on
page 6.
/Wall
trap, air gap and water shut-off valve are installed
in o 22" wide cabinet, Area "C".
Countertop: 1-1/2" Hin, Thick
ii
II
Toekick
Area
/
24" ,I--A L--IX
Floor Figure A
PREPARE CABINET CUTOUT FOR SINK:
r!'wkv,v/.,1;,__,II_,[€1 To reduce the risk of shock, fire, or injury to
persons, the installer must ensure that the
dishwasher is completely enclosed at the
time of installation.
Para reducir el riesgo de choque, incendio
o lesi6n a personas, el instalador se
debe cerciorar de que la lavadora est_
completamente cerrada en el momento
de la instalaci6n.
./2" Max_- 1" Max. To
3/4" Min.--,-I _ - Sink Flange
t
6" lax. 10-1/4" MAX.
PLUHBING
DEPTH
Hin. I.R.
34-1/4
!1/4" 1-1/2" Plumbing
Close Elbow
Dishwasher
Side View
...... Hax_ B I
__ 24" Min. __
Cabinet
• The cabinet opening must have o minimum width
and depth of 24" and height of 34-1/4" + 1/4".
• This dishwasher fits under o special sink with o
depth of 6" or less in o 1-1/2" countertop.
The dishwasher must be futlg enclosed on the top,
sides and buck.
The dishwasher must not support ong part of the
enclosure. Wall
_20-i/2" Max._ /
Sink Bo_ Jl
Front
Flange
Dishwasher
Gap
Sink
Installation
8" X 20"
II ,,,,"I Adjacent Cabinet
if_, _ Zear Cutout
II /CabinetSide/
_/Adjacent to D/W
_- 24" min
Figure B
24" Min.
Cabinet Y
Note: A gap between the dishwasher tub front flange and
the front of the base cabinet mag result due to either
the cabinet being less than 24" deep or the sink bowl
not being installed to specifications.
If the gap is more than 3/4", the sink bowl must be
relocated to meet specified dimensions.

Installation Preparation-Drain
PREPARE DRAIN PLUMBING
Drain Requirements
• Follow local codes and ordinances.
• Drain hose must not exceed 10 feet in length.
• A high drain loop or air gap is required. See below.
Drain Method
The type of drain installation depends on the
following:
• Do local codes or ordinances require an air gap?
• Is waste tee less than 18" above the floor?
If the answer to either question is YES,an air gap
(Method 1) must be used. If both answers are NO,
either an air gap or a high drain loop (Method 2)
mag be used.
CAUTION
An air gap MUST BE USED if the drain hose is connected to
waste tee or disposer lower then 18" above the floor level.
Failure to provide the proper drain connection height with
an air gap or 32" minimum, high drain loop will result in
improper draining of the dishwasher, which may cause
damage.
METHOD 1-Air Gap with Waste Tee or Disposer
Waste Tee Installation
Figure C
Disposer Installation
METHOD 2-High Drain Loop with Waste Tee
or Disposer
Provide a method to attach the drain hose to the
underside of countertop. Attachment will be made in
a later step.
Figure D
Waste Tee Installation Disposer Installation
Install waste tee or disposer and the air gap
according to the manufacturer's instructions.
Cabinet Preparation
Drill a 1-1/2" diameter hole in the cabinet wall within
the shaded area shown in Figure Efor the drain
hose. IVlakesure there are no sharp edges. The drain
hose will be passed through this hole and connected
to the drain in a later step.
IMPORTANT- When
connecting the drain line to a
disposer, check to be sure that
drain plug has been removed.
Dishwasher will not drain if
plug is left in place.
41 Remove
Drain
Plug

Installation Preparation-Electrical Supply
PREPARE ELECTRICAL WIRING
r!_LVAVl.'Ifl_11_[Cl FORPERSONALSAFETY:Remove house
fuse or open circuit breaker before
beginning installation. Do not use an
extension cord or adapter plug with this
appliance.
PARASEGURIDAD PERSONAL: Retire el fusible
de la casa o abra el interruptor de circuitos
antes de empezar la instalaci6n. No use un
cable de extensi6n o enchufe adaptador con
este aparato.
Electrical Requirements
•This appliance.must be s.upplied with 120V 60 Hz.,
and connected to an indiwduot properly grounded
branch circuit, protected by o 15 or 20 ampere
circuit breaker or time delay fuse.
• Wiring must be 2 wire with ground.
• If the electrical supply does not meet the above
requirements, coil o licensed electrician before
proceeolng.
TGhroundingInstructions-Permanent Connection
is qpplionce must be connected to o grounded
metal, permanent wiring sg.stem or on e.quipment
grou.nding cond.u,ctor must be. run.with the circuit
conduc.tors and be connected to the e.q.uipment
grounding terminal or lead on the appliance.
Grounding Instructions-Power Cord.Models _
This QppliQnce must be grounded. In the event ot Q
molfuoctioq or breqkdqwn, ground.ing will re.duce
.the risk at electric shock by providinq o path at
least resistgnce for electric current. This appliance
is equipped with o cord h_aving on equipment. .
grounding conductor and o grounding pl.ug..The plug
must be pluqged into on appropriate outlet that _s
installed onclqrounded in accordance with oll local
codes and orcTinonces.
The improper connection of the equipment
grounding conductor can result in electric
shock. Check with a qualified electrician or
service representative if you are in doubt
that the appliance is properly grounded.
Do not modify the plug provided with the
appliance; if it will not fit the outlet, have
a proper outlet installed by a qualified
technician.
La conexi6n incorrecta del conductor de
conexi6n a tierra del equipo puede resultar en
choque el_ctrico. Consulte con un electricista
celificado o representente de servicio si tiene
dudes de la conexi6n e tierra del aperato. No
modifique el enchufe que se suministra con
el aperato; si no celze en el tomacorrientes,
hege queun t_cnico celificedo le instele un
tomacorrientes adecuedo.
\.
/\
/
..... l-i/2"_ia.
24"
Receptacle from Wall
Location
Area
Alternate
3,_ Receptacle
Location
from
'Cabinet
Ground J
Figure E Black White
Cabinet Preparation & Wire Routing
• The wiring mug enter the opening from either side,
rear, or floor within the shaded area illustrated
above in Figure E.
• Cut c] :£-:£/2" maximum diameter hole to insert the
electrical cable. Permanent wiring connections
mug puss through the same hole us the drain
hose and hot water line, if convenient. Hole edges
must be smooth and rounded. If the cabinet wall is
metal, the hole edge must be covered with c]cord
protector.
NOTE: Power cords with plug must puss through c]
separate hole.
Cord Hole Diameter
Protector 1-1/2" Maximum
Electrical Connection to Dishwasher
Electrical connection is on the right front of
dishwasher.
• For permanent connections, the cable must be
routed us shown in Figure E.The cable must extend
c] minimum of 2/4"from the rear wall.
• For power cord connections, install c_3-prong
grounding type receptacle in the adjacent cabinet
rear wall, between 6" and 18" from the opening, 6"
to 18" above the floor us shown in Figure E.

Installation Preparation-Hot Water Supply
PREPARE HOT WATER SUPPLY
Hot Water Line
• The line may enter from either side, rear, or floor
within the shaded area shown in Figure F.
• The line mag pass through the same hole as the
electrical cable and drain hose, or cut an additional
1-1/2" diameter hole to accommodate the water
line. tf a power cord with plug is used, the water line
must not pass through the power cord hole.
/
Shut-off
ii
_Valvc
Hot_:::::
II
',',2"--
From
Cabinet
Cabinet Face-'-
Figure F
19" From Wall
2" From Floor
Water Line Connection
• Turn off the water supplg.
• Install a hand shut-off vatve in on accessible
location. (Optional, but strongtg recommended and
mag be required bg local codes.)
• The water connection is on the left side of the
dishwasher. Install the hot water inlet line, using
3/8" or larger copper tubing. Route the line as
shown in Figure Fand extend forward at least 19"
from rear wall.
• Adjust the water heater to deliver water between
120°F and 150°F.
• Flush water line to clean out debris. Use a bucket
to catch water and debris.
• The hot water supplg line pressure must be
between 20 and 120 PSt.
CAUTION
The hot water supply line pressure must be at least 20 PSI.
Lower pressures could cause the water valve to leak and
cause water damage.
Sink Utility Connections
Sink faucet hot and cold water lines and the sink
drain line must run above and adjacent to the
dishwasher, not behind it. Refer to Areas A and C
in Figure A on page 3 and Figure F1 below. This is
necessarg to provide clearance for the dishwasher
when it is installed in the cabinet. Utilitg lines routed
directlg behind the dishwasher will interfere with
placement of the dishwasher in the cabinet and
cause it to extend begond the adjacent cabinets.
Figure F1 illustrates an installation using a double
bowl sink, a disposer and a high drain loop.
Note: All utilitg lines are above, below or adjacent to
the dishwasher. None are routed behind it.
6" Double-bowl
s___ I Countertop
/25" deep
_,1-1/2" thick
i
-1-1/2" Close
_ _ elbow
acemaker ceS;II
_..'__.,_ir,,_'-- _ i
Coldwa "_ _;''
Hotwate__
Valve to shut off Dishwasher
water to dishwasher water inlet
Hot water supplg valve
to dishwasher Dishwasher
drain hose
Figure FI

Dishwasher Installation
CAUTION
Do not remove the wood bose until you ere reedy
to instell the dishwesher. The dishwasher will tip over
when the door is opened if the bose is removed.
STEP 1: PREPARATION
Locatethe itemsinthe installationpackage and set
them asideforuse inthe listedsteps
• Screw kit-Steps5 or 16 and 13
• Junctionbox cover-Steps5 or 16
•Drain hose and drain hose clamp-Step 7
• Owners' Manual-Steps 18 and 21
• Product Samples and/or coupons-Step 21
STEP 2: CHECK DOOR BALANCE
• With the dishwasher on the wood base, check the
door balance by opening and closing the door.
• The door is properly balanced if it gently drops
from a 1/2 open position and does not rise from
the full open position.
• If necessary, increase or decrease tension as
shown. Latch the door and adjust springs to
correct balance.
Link fullg seated
in hinge arm
Insert Hook Throuc
Hole from Inside of Frame
Figure G
Tip: Avoid service calls for door balance problems
Hake sure the spring end is fully engaged in a
frame hole and the spring link is fully seated in the
hinge arm.
STEP 3: REMOVE WOOD BASE
IMPORTANT - Donot kick off wood base!
Damage will occur.
iHove the dishwasher close to the installation
Iocationandlayitonitsback_i _D
Remove the four leveling
legs from the underside of
the wood base
with a 15/16" _--
socket wrench.
Remove and
discord wood
base.
Figure H
• Screw leveling legs back into the dishwasher
frame, approximately 3/4" from the frame, as
shown.
STEP 4: REMOVE ACCESS PANEL
AND TOEKICK
The top mounting holes in the access panel are
slotted.
• Remove the lower two 10-16x3/8" sheet metal
screws. Do not remove the two top 8-32xl/4"
machine thread screws.
• Slide the access panel to the left as far as it will go.
• Gently pull the access panel forward to remove
it from the top screws.
Set access panel, toekick, and screws aside for use
in Step 20.
Tip: Prevent
tub damage
Remove onlg
the 3/8" sheet
metal screws
in this step.
This will help
prevent a mix
up with the
1/4" machine
thread screws
in Step 20.
Do not remove 1/4"
machine thread screws
in this step
,.J
Remove two
3/8" Sheet Metal
Thread Screws
Figure I

Dishwasher Installation
STEP 5: INSTALL POWER CORD
Skip this step if the dishwasher will be
permanently connected to the house electrical
system or has a factory installed power cord.
In this step you will need the junction box cover and
the #:1_0x :1_/2"hex head screw from the screw kit set
aside in Step 1.
The power cord and connections must complg
with the National Electrical Code, Section/422 and/
or local codes and ordinances. Maximum power
cord length is 6 feet. Power Cord Kit WX09X70910,
available for purchase from an authorized GE
Appliance Dealer, meets these requirements.
STEP 6: INSTALL 90° ELBOW
• Wrap a 90° elbow with thread seal tape.
• Thead the 90° elbow into the water valve.
• Do not over tighten the elbow; water valve bracket
could bend or the valve fitting could break.
• Position the end of the elbow to face the rear of
the dishwasher.
90°
Figure K
Bracket
RedElectrical
Thread Seal Connection
Tape Hose
Figure J
Junction
Box Bracket Ilack
•Install strain relief in thejunction box bracket.
• Insert the power cord through the strain relief and
tighten.
• Make sure black, white, and green dishwasher
wires are threaded through the small hole in the
junction box bracket.
• Connect power cord white (or ribbed)to
dishwasher white, black (or smooth) to dishwasher
black and ground to dishwasher green wire. Use
UL listed wire nuts of appropriate size.
• Install junction box cover using the #10 hex head
screw. Be sure wires are not pinched under the
cover
8
STEP 7: INSTALL DRAIN HOSE TO
DISHWASHER DRAIN PORT
Skip this step if drain hose has been pre-installed.
In this step you will need the drain hose and clamp
set aside in Step 1.
IMPORTANT- Prevent drain hose damage
and possible leaks. Be careful not to nick or cut
the drain hose.
• Route the small end of the drain hose from the left
side of the dishwasher through the strain relief
attached to the dishwasher frame and toward
the center of the dishwasher as shown in Figures
Land M.
• Place the hose clamp over the small end of the
drain hose.
• Push the small end of the drain hose over the drain
port on the collection chamber making sure it is
futlg seated against the hose stop.
• Tighten the hose clamp to at least 15 inch-pounds
of torque.
Figure L
\\. / ,Strain

Dishwasher Installation

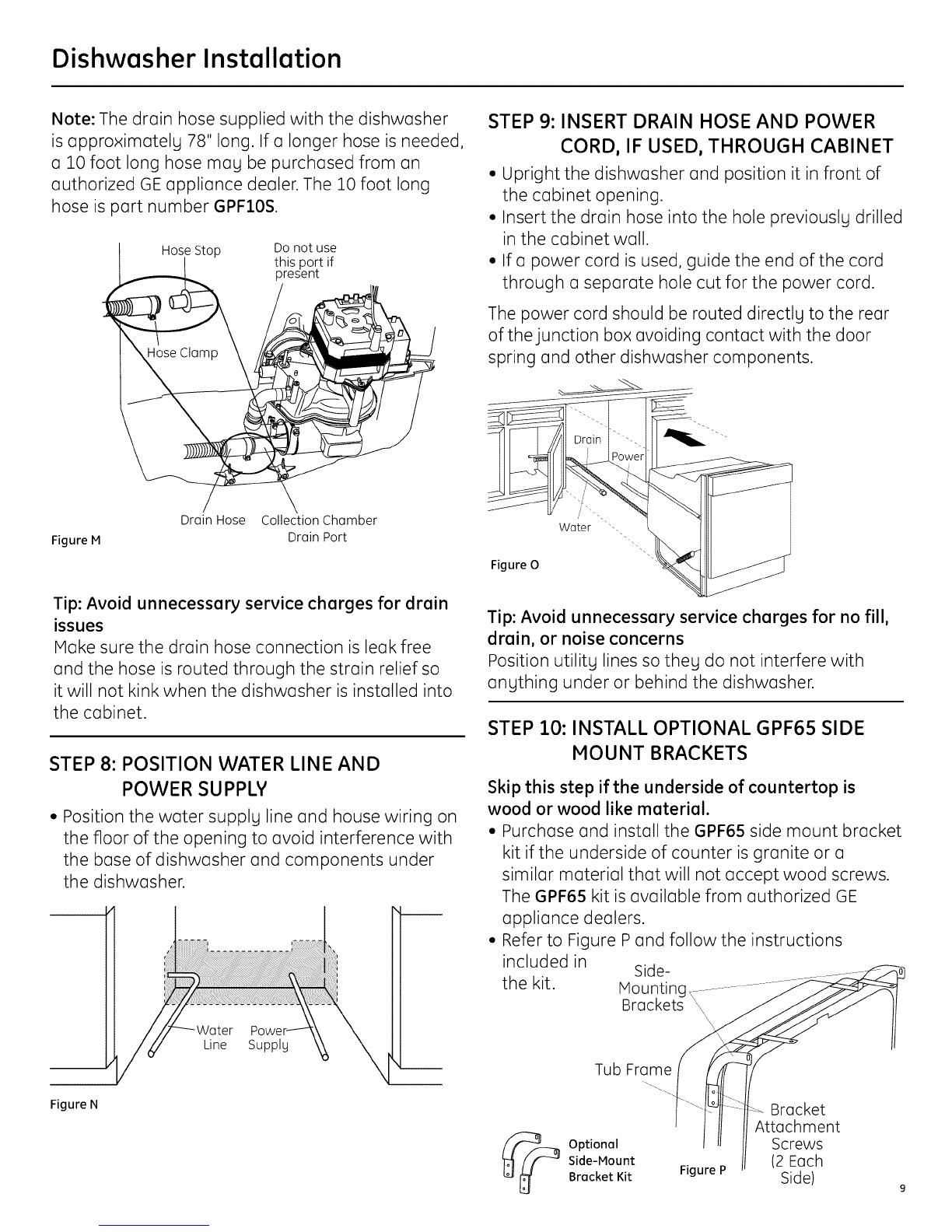

Note: The droin hose supplied with the dishwosher
is opproximotelg 78" long. tf o longer hose is needed,
o ZOfoot long hose mog be purchosed from on
outhorized GE opplionce deolen The 10 foot long
hose is port number GPFIOS.
Hose Stop Do not use
this port if
present
STEP 9: INSERT DRAIN HOSE AND POWER
CORD, IF USED, THROUGH CABINET
• Upright the dishwosher and position it in front of
the cobinet opening.
• Insert the droin hose into the hole previously drilled
in the cobinet woll.
• If o power cord is used, guide the end of the cord
through o seporote hole cut for the power cord.
The power cord should be routed directly to the reor
of the junction box ovoiding contoct with the door
spring ond other dishwosher components.
Figure M
DrQin Hose Collection Chomber
DrQin Port
Tip: Avoid unnecessary service charges for drain
issues
Moke sure the droin hose connection is leok free
ond the hose is routed through the stroin relief so
it will not kink when the dishwosher is instolled into
the cobinet.
STEP 8: POSITION WATER LINE AND
POWER SUPPLY
• Position the woter supply line ond house wiring on
the floor of the opening to ovoid interference with
the bose of dishwosher ond components under
the dishwosher.
Line Supplg
Figure N
Figure O
Tip: Avoid unnecessary service charges for no fill,
drain, or noise concerns
Position utilitg lines so theg do not interfere with
ongthing under or behind the dishwosher.
STEP 10: INSTALL OPTIONAL GPF65 SIDE
MOUNT BRACKETS
Skip this step if the underside of countertop is
wood or wood like material.
• Purchose ond instoll the GPF65 side mount brocket
kit if the underside of counter is gronite or o
similor moteriol thot will not occept wood screws.
The GPF65 kit is ovoiloble from outhorized GE
opplionce deolers.
• Refer to Figure Pond follow the instructions
included in Side-
the kit.
Tub Frome
Brocket
Attochment
__ Optional Screws
Side-Mount (2 Eoch
Bracket Kit Figure P Side)

Dishwasher Installation

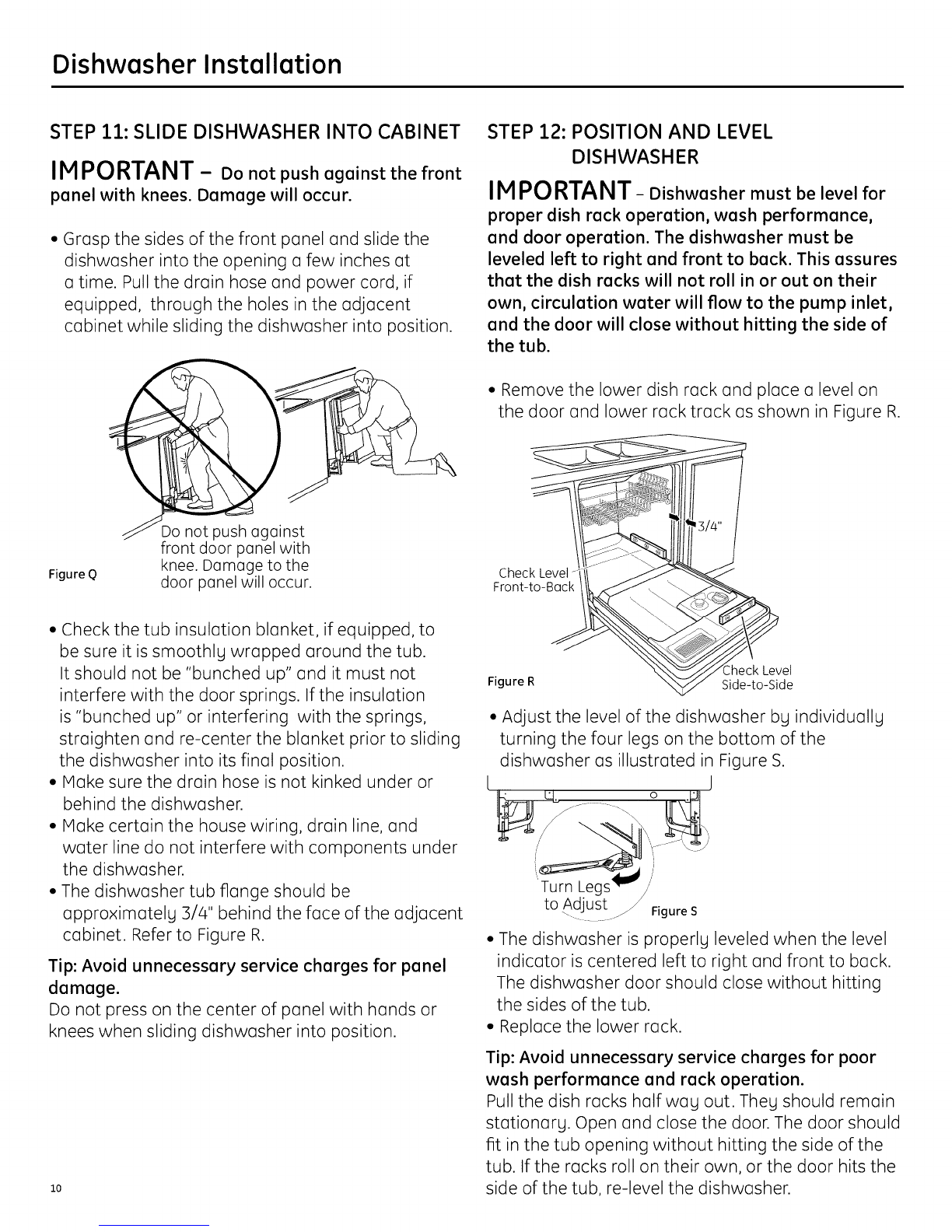

STEP 11: SLIDE DISHWASHER INTO CABINET
IMPORTANT - Do not push against the front
panel with knees. Damage will occur.
• Grasp the sides of the front panel and slide the
dishwasher into the opening a few inches at
a time. Pull the drain hose and power cord, if
equipped, through the holes in the adjacent
cabinet while sliding the dishwasher into position.
Figure _)
Do not ush a ainst
front door panel with
knee. Damage to the
door panel will occur.
• Check the tub insulation blanket, if equipped, to
be sure it is smoothly wrapped around the tub.
It should not be "bunched up" and it must not
interfere with the door springs. If the insulation
is "bunched up" or interfering with the springs,
straighten and re-center the blanket prior to sliding
the dishwasher into its final position.
• IVlake sure the drain hose is not kinked under or
behind the dishwasher.
• IVlake certain the house wiring, drain line, and
water line do not interfere with components under
the dishwasher.
• The dishwasher tub flange should be
approximately 3/4" behind the face of the adjacent
cabinet. Refer to Figure R.
Tip: Avoid unnecessary service charges for panel
damage.
Do not press on the center of panel with hands or
knees when sliding dishwasher into position.
lo
STEP 12: POSITION AND LEVEL
DISHWASHER
IMPORTANT- Dishwasher must be level for
proper dish rack operation, wash performance,
and door operation. The dishwasher must be
leveled left to right and front to back. This assures
that the dish racks will not roll in or out on their
own, circulation water will flow to the pump inlet,
and the door will close without hitting the side of
the tub.
• Remove the lower dish rack and place a level on
the door and lower rack track as shown in Figure R.
/
Check Level
Front-to-Back
Figure R qeck Level
Side-to-Side
• Adjust the level of the dishwasher by individually
turning the four legs on the bottom of the
dishwasher as illustrated in Figure S.
I J
\,, i
!-.S
Turn Lec J
to AdJust J FigureS
• The dishwasher is properly leveled when the level
indicator is centered left to right and front to back.
The dishwasher door should close without hitting
the sides of the tub.
• Replace the lower rack.
Tip: Avoid unnecessary service charges for poor
wash performance and rack operation.
Pull the dish racks halfway out. They should remain
stationary. Open and close the door. The door should
fit in the tub opening without hitting the side of the
tub. If the racks roll on their own, or the door hits the
side of the tub, re-level the dishwasher.

Dishwasher Installation
STEP 13: FASTEN DISHWASHER TO
UNDERSIDE OF COUNTERTOP OR SIDES
OF CABINET
In this step you will need the two 5/8" Phillips head
wood screws set aside in Step 2.
IMPORTANT - Dishwasher must be centered
in cabinet opening. Interference with cabinets or
countertop will cause leaks and damage to the
door panel and/or control panel.
•If countertop is wood or woodlike material, fasten
the dishwasher to the countertop bg driving the
Phillips head screws through the countertop
brackets and into the countertop.
• If the countertop is granite or similar material,
drive Phillips screws through side mount brackets
and into the adjacent cabinets.
• Make sure screws are driven straight and flush
to prevent interference with door operation and
damage to the control panel. See Figure T.
Countertop
Bracket
Side Mount
Brackets (optional)
Figure T
Tip: Avoid unnecessary service charges for leaks
or control panel damage.
Make sure the dishwasher is centered in the cabinet
and the door opens and closes freelg without hitting
the adjacent cabinets. Drive mounting screws
straight and flush.
STEP 14: CONNECT WATER SUPPLY
Connect the water supplg line to the 90° elbow
installed in Step 6.
• Slide the compression nut and then the ferrule over
end of the water line.
• Insert the water line into the 90° elbow.
• Slide the ferrule against the elbow and secure
with the compression nut.
Figure U
IMPORTANT - Check to be sure the door
spring does not rub or contact the fill hose or
water supply line. Test by opening and closing the
door. Re-route the water supply lines or slightly
bend the water valve bracket if a rubbing noise or
interference occurs.
Tip: Avoid unnecessary service charges for noise
or leaks
Make sure the door spring does not rub against the
fill hose or water supplg line.
11

Dishwasher Installation
STEP 15: CONNECT DRAIN LINE
The molded end of the drain hose will fit 5/8"
through 1" diameter inlet ports on the air gap, waste
tee or disposer.
• Determine the size of the inlet port
• Cut the drain hose connector on the marked line, if
required, to fit the inlet port.
Figure V
Cutting Line
,/
/.
IMPORTANT: Do not cut corrugated
portion of hose
• If a longer drain hose is required, and Uou did not
purchase the GPF10S drain hose, add up to 42"
length, for a total of 120" (10 feet) to the factory
installed hose. Use 5/8" or 7/8" inside diameter
Secure the
connection
with hose
clamps.
hose and a coupler to connect
the two hose ends.
Hose Clamp Coupler Hose Clamic
Figure W
IMPORTANT - Total drain hose length must
not exceed 10 feet for proper drain operation.
• Connect drain line to air gap, waste tee, or disposer
using the previouslg determined method. Secure
the hose with a screw tgpe clamp.
Method 1 - Air gap with waste tee or disposer
_.i___ _ _/-___
Waste Tee Installation Disposer Installation
Figure ×
Method 2 - "High drain loop" with waste tee or
disposer
Fasten the drain hose to the underside of the
countertop with a hanger.
32"
Waste TeeInstallation
Figure Y
Disposer Installation
IMPORTANT - When connecting the drain
line to a disposer, check to be sure that the drain
plug has been removed. Dishwasher will not drain
if plug is left in place.
4 Remove
Drain
Plug
Tip: Avoid unnecessary service call charges
for a no drain complaint
Make sure any excess drain hose has been pulled
through the cabinet opening. This will prevent
excess hose in the dishwasher cavity from
becoming kinked or crushed by the dishwasher.
Make sure the disposer plug has been removed if
the drain hose is connected to a disposer.
12

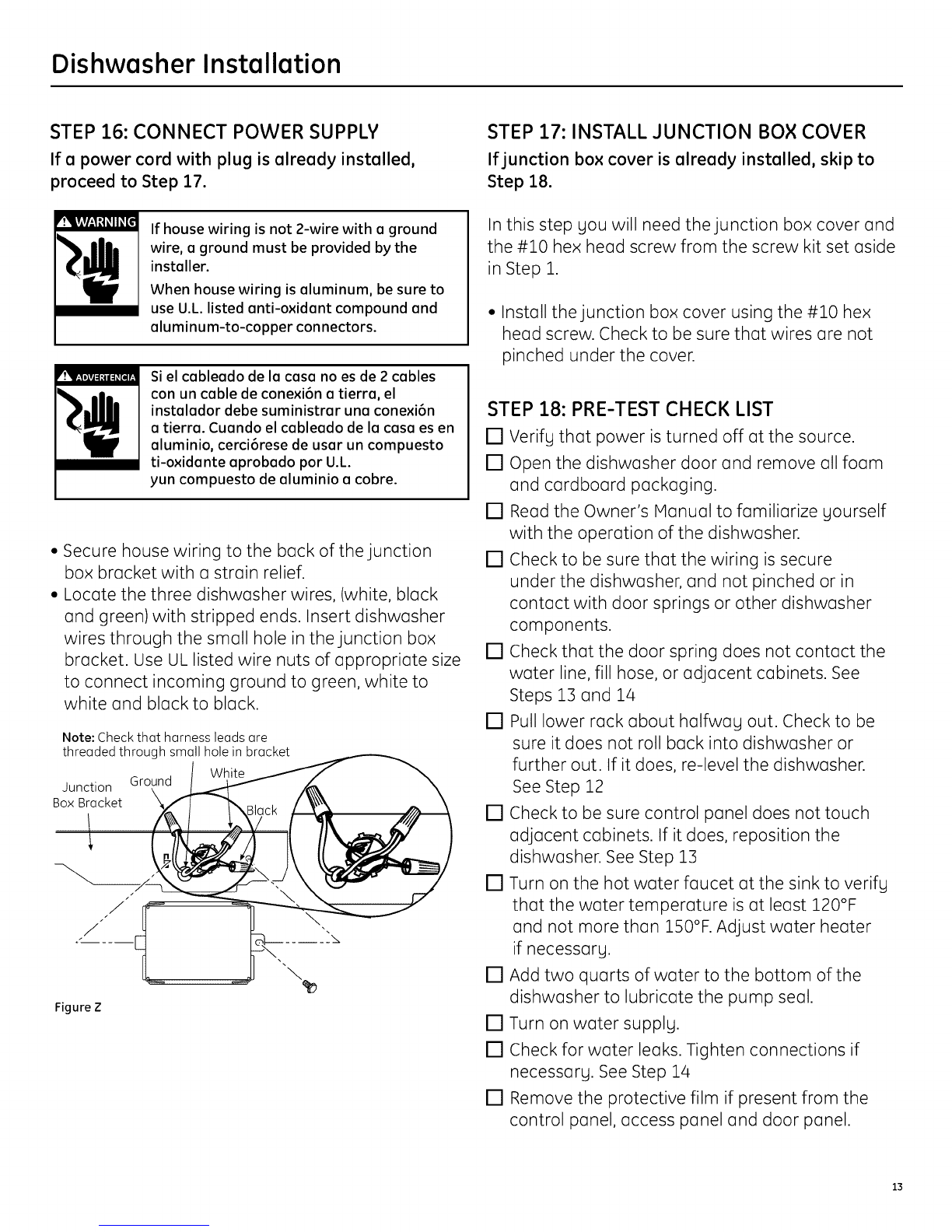

Dishwasher Installation
STEP 16: CONNECT POWER SUPPLY
If a power cord with plug is already installed,
proceed to Step 17.
If house wiring is not 2-wire with a ground
wire, a ground must be provided by the
installer.
When house wiring is aluminum, be sure to
use U.L. listed anti-oxidant compound and
aluminum-to-copper connectors.
Si el cableado de la casa no es de 2 cables
con un cable de conexi6n a tierra, el
instalador debe suministrar una conexi6n
a tierra. Cuando el cableado de la casa es en
aluminio, cerci6rese de usar un compuesto
ti-oxidante aprobado por U.L.
yun compuesto de aluminio a cobre.
• Secure house wiring to the bock of the junction
box brocket with o stroin relief.
• Locote the three dishwosher wires, (white, block
ond green) with stripped ends. Insert dishwosher
wires through the smotl hole in the junction box
brocket. Use UL listed wire nuts of oppropriote size
to connect incoming ground to green, white to
white ond block to block.
Note: Check thot horness leods ore
threoded through smoll hole in brocket
White
Junction Ground
Box Brocket
Figure Z
\
STEP 17: INSTALL JUNCTION BOX COVER
If junction box cover is already installed, skip to
Step 18.
In this step you will need the junction box cover ond
the #10 hex heod screw from the screw kit set oside
in Step 1.
• Instotl the junction box cover using the #10 hex
heod screw. Check to be sure thot wires ore not
pinched under the cover.
STEP 18: PRE-TEST CHECK LIST
[] Verify thut power is turned off ut the source.
[] Open the dishwasher door and remove all foum
und cordbourd puckuging.
[] Reod the Owner's Munuul to fumiliurize yourself
with the operution of the dishwusher.
[] Check to be sure thut the wiring is secure
under the dishwusher, und not pinched or in
contuct with door springs or other dishwusher
components.
[] Check thut the door spring does not contuct the
wuter line, fill hose, or udjucent cubinets. See
Steps 13 ond :]_4
[] Pull lower rock obout holfwoy out. Check to be
sure it does not roll bock into dishwosher or
further out. tf it does, re-level the dishwosher.
See Step :]_2
[] Check to be sure control ponel does not touch
odjocent cobinets. If it does, reposition the
dishwosher. See Step 13
[] Turn on the hot woter foucet ot the sink to verify
thot the woter temperoture is ot leost :]_20°F
ond not more thon :]_S0°F.Adjust woter heoter
if necessory.
[] Add two quorts of woter to the bottom of the
dishwosher to lubricote the pump seol.
[] Turn on woter supply.
[] Check for woter leoks. Tighten connections if
necessory. See Step :]_4
[] Remove the protective film if present from the
control ponel, occess ponel ond door ponel.
13

Dishwasher Installation
STEP 19: DISHWASHER WET TEST
CHECK LIST
[] Turn on power supply or if power cord is used,
plug it into the wall outlet.
[] Latch dishwasher door.
[] Press the "Normal" pad, and then turn control dial
just enough to start dishwasher. Be careful not to
turn the dial past the first water fill. Dial should
point to "Hot Start Option".
Options Q
Appearance varies by model.
[] Check to be sure that water enters the dish-
washer. This could take up to 4 minutes.
If water does not enter the dishwasher try the
following to correct the problem:
- Check to be sure that the water is turned on
- Lightly tap the flood float cover to
dislodge a stuck flood float.
Cover
- Check the electrical connection to the water
valve. The red electrical connector should be
plugged into the dishwasher water valve. If it is
not plugged in, turn off electrical power to the
dishwasher. Plug the red connector into the dish-
washer water valve and then restore power.
Red Connector
[] Check for leaks under the dishwasher. If a leak is
found, turn off power, tighten connections and
restore power.
[] Check for leaks around the door. A leak around
the door could be caused by the dishwasher door
rubbing or hitting adjacent cabinets. Reposition
the dishwasher if necessary. See Steps :1_:1_,12
and 13.
[] Most dishwasher models will drain about 3 min-
utes after the first fill. Check the drain line for
leaks when dishwasher drains. If leaks ore found,
turn off power, correct as necessary and then
restore power.
[] Open the dishwasher door and make sure most
of the water has drained. If the water does not
drain, check to be sure disposer plug has been
removed and/or air gap is free of debris.
[] Let the dishwasher run through another fill and
drain cycle. Check again to be sure there ore no
leaks.
[] At the end of the second drain, unlatch the door
and rotate the dial to the "OFF" position.
14

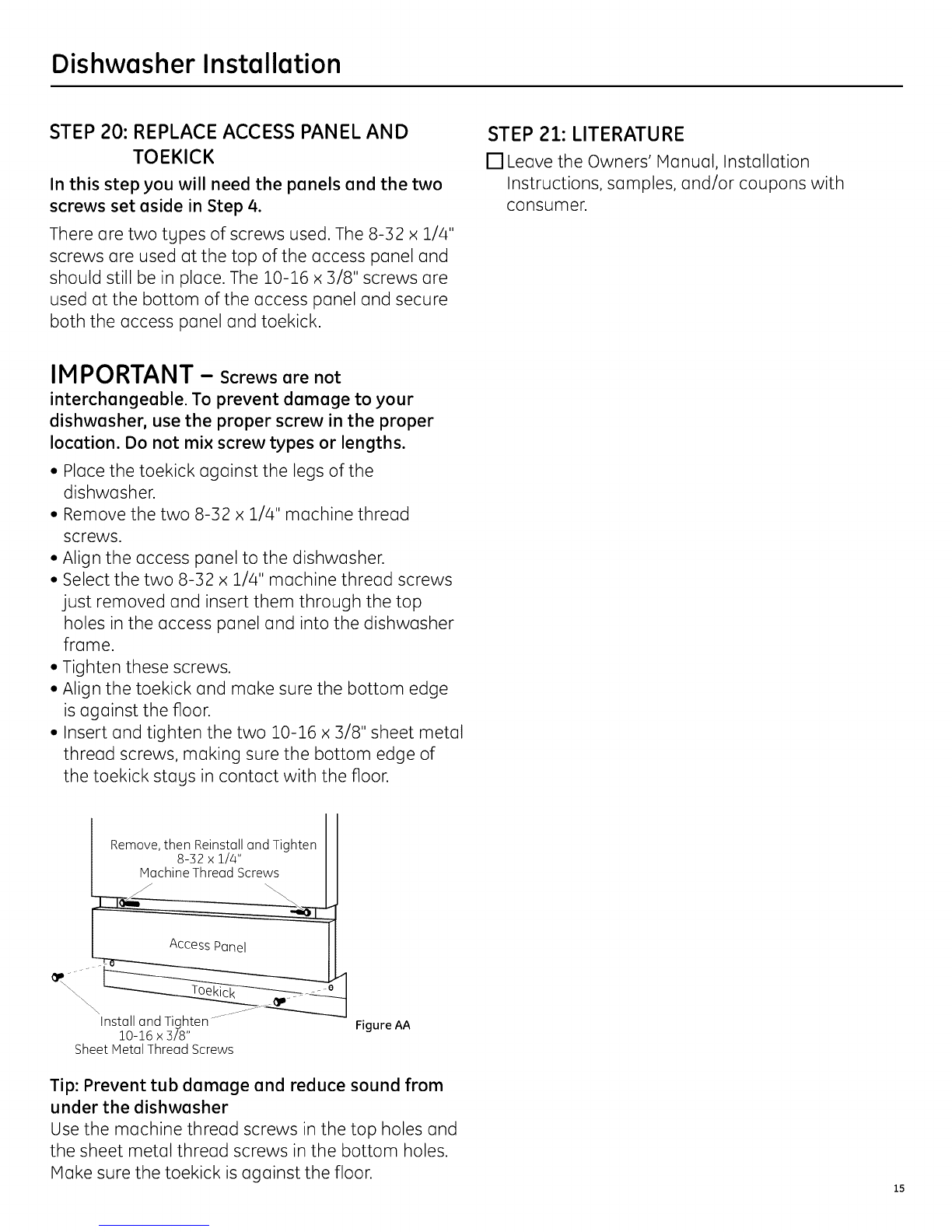

Dishwasher Installation
STEP 20: REPLACE ACCESS PANEL AND
TOEKICK
In this step you will need the panels and the two
screws set aside in Step 4.
There are two tgpes of screws used. The 8-32 x 1/4"
screws are used at the top of the access panel and
should still be in place. The 20-16 x 3/8" screws are
used at the bottom of the access panel and secure
both the access panel and toekick.
STEP 21: LITERATURE
[] Leave the Owners' Manual, Installation
Instructions, samples, and/or coupons with
consumer.
IMPORTANT - screws are not
interchangeable. To prevent damage to your
dishwasher, use the proper screw in the proper
location. Do not mix screw types or lengths.
• Place the toekick against the legs of the
dishwasher.
• Remove the two 8-32 x 1/4" machine thread
screws.
• Align the access panel to the dishwasher.
• Select the two 8-32 x 1//4" machine thread screws
just removed and insert them through the top
holes in the access panel and into the dishwasher
frame.
• Tighten these screws.
• Align the toekick and make sure the bottom edge
is against the floor.
• Insert and tighten the two 10-16 x 3/8" sheet metal
thread screws, making sure the bottom edge of
the toekick stags in contact with the floor.
Remove, then Reinstoll ond Tighten
8-52 x 1//4"
Mochine Threod Screws
Instoll ond Tighten ....
10-16 x 5/8"
Sheet Metol Threod Screws
Figure AA
Tip: Prevent tub damage and reduce sound from
under the dishwasher
Use the machine thread screws in the top holes and
the sheet metal thread screws in the bottom holes.
Make sure the toekick is against the floor. 15

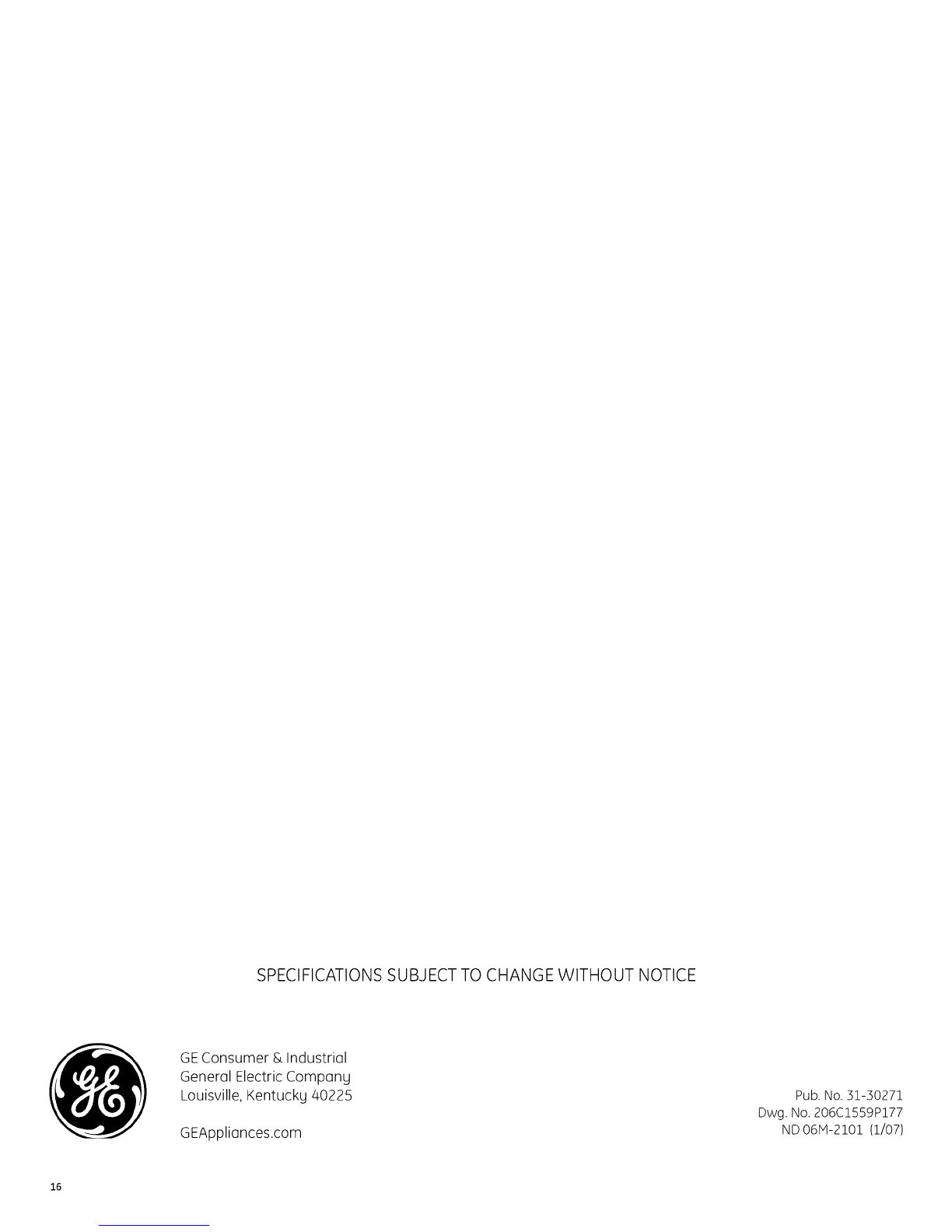

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
GEConsumer & Industrial
General Electric Compang
Louisville, Kentuckg 40225
GEAppliances.com
Pub.No. 31-30271
Dwg. No. 206C1559P177
ND 06M-2101 (1/07)
16

_iiii:iiiii¸!i!!!!ii!i!iCo i'_:!!!ii;i,.iiii-_"__!!!:?i'¸¸¸¸¸i!!!iiiiiii_iH_i-i_:i::il,.ii!!!!ii;:iii:ii:io!ii
Appliances

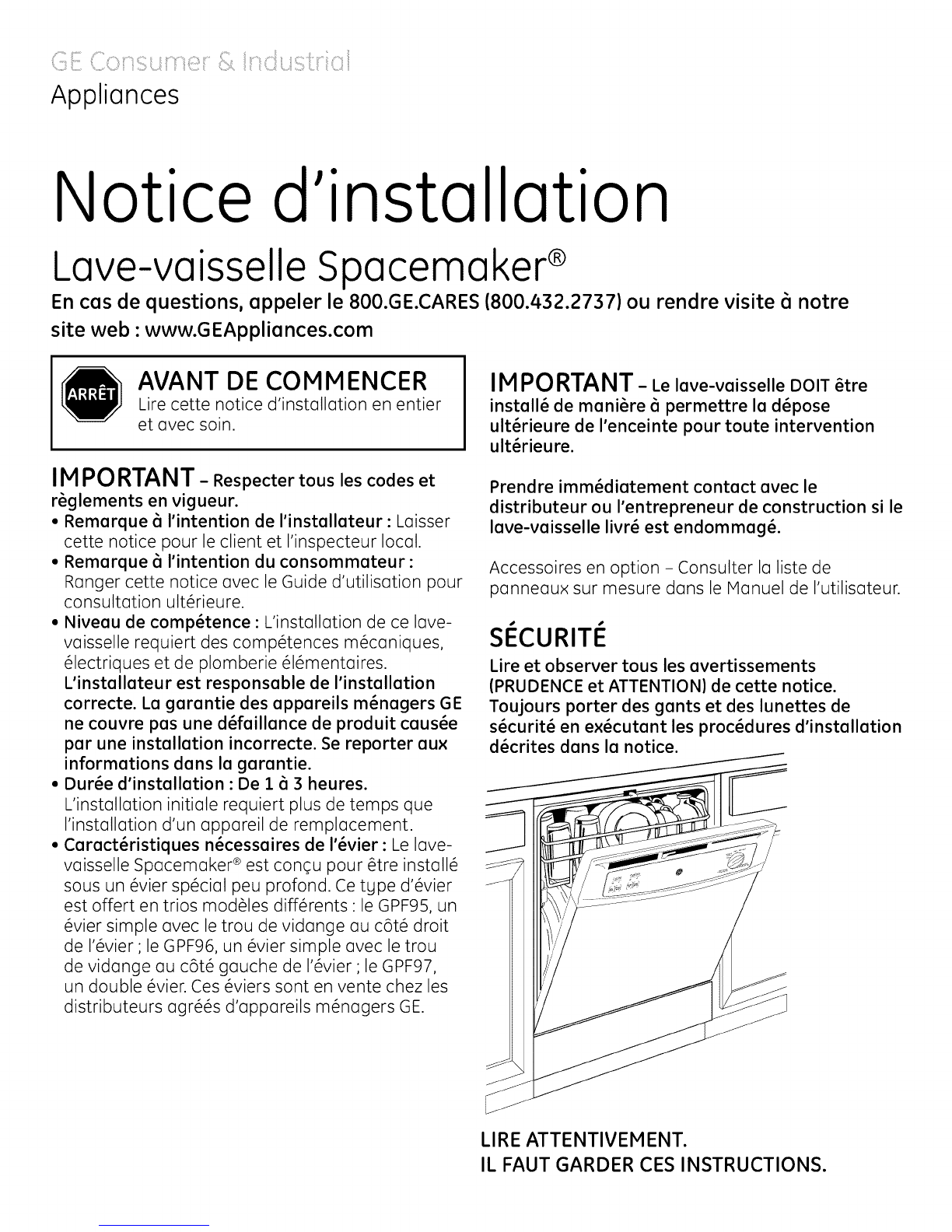

Notice d'installation
Lave-vaisselle Spacemaker ®
En cas de questions, appeler le 800.GE.CARES (800.432.2737) ou rendre visite _ notre
site web : www.GEAppliances.com
AVANT DE COMMENCER
Lire cette notice d'installation en entier
et avec soin.
IMPORTANT -Respecter tous les codes et
r_glements en vigueur.
•Remarque 0I'intention de I'installateur :Laisser
cette notice pour le client et I'inspecteur local.
• Remarque _ I'intention du consommateur :
Ranger cette notice avec le Guide d'utilisation pour
consultation utt6rieure.
• Niveau de comp6tence : L'installation de ce lave-
vaisselle requiert des comp6tences m6caniques,
61ectriques et de plomberie 616mentaires.
L'installateur est responsable de I'installation
correcte. La garantie des appareils m6nagers GE
ne couvre pas une d6faillance de produit caus6e
par une installation incorrecte. Se reporter au×
informations dans la garantie.
• Dur6e d'installation : De 1 _ :3 heures.
L'instatlation initiale requiert plus de temps que
I'installation d'un appareil de remplacement.
• Caract6ristiques n6cessaires de 1'6vier : Le lave-
vaisselle Spacemaker ® est conqu pour 6tre instatl6
sous un 6vier sp6ciat peu profond. Ce tgpe d'6vier
est offert en trios mod61es diff6rents : le GPF95, un
6vier simple avec le trou de vidange au c6t6 droit
de 1'6vier ; le GPF96, un 6vier simple avec le trou
de vidange au c6t6 gauche de 1'6vier ; le GPF97,
un double 6vier. Ces 6viers sont en vente chez les
distributeurs agr66s d'appareils m6nagers GE.
IMPORTANT - Le lave-vaisselle DOlT atre
install_ de mani_re 6 permettre la d_pose
ult_rieure de I'enceinte pour route intervention
ult_rieure.
Prendre imm_diatement contact avec le
distributeur ou I'entrepreneur de construction si le
lave-vaisselle livr_ est endommag_.
Accessoires en option -Consulter la liste de
panneaux sur mesure dans le Manuel de I'utilisateur.
SI_CURITI_
Lire et observer tousles avertissements
(PRUDENCE et ATTENTION) de cette notice.
Toujours porter des gants et des lunettes de
s_curit_ en ex_cutant les procedures d'installation
d_crites dans la notice.
LIRE ATTENTIVEMENT.
IL FAUT GARDER CES INSTRUCTIONS.

PII_CESFOURNIES DANS LE
N#CESSAIRE D'INSTALLATION
[] Deux (2)vis 5bois 5t@tecruciforme n°
8-18 de 5/8 po
[] Un couvercle de boTtedejonction et une
vis ht@te hsix puns n° 10
[] Tuguu de vidunge de 198 cm (78 po) et
collier de tuguu
[] Documentation, _chuntillons et/ou
coupons de r_duction
MATE_RIAUX REQUIS
[] Cordon _lectrique WXO9X70910 si requis
pour I'instullution
[] Trois (3)serre-fils homologu_s UL
[] Rubun d'_tanch_it_ pour joints filet_s
[] Coude hangle droit, bugue et _crou de
compression (filetuge externe de 3/8
po hune extremitY, I'uutre extr_mit_
_tunt dimensionn_e pour s'udupter h
I'utimentution en euu)
[] Kit de support hmontage lateral GPF65
pour les plans de travail en granite
POUR LES NOUVELLES INSTALLATIONS
[] Chble _lectrique
[] Conduite d'eau en cuivre de MINIMUM
3/8 po
[] R_ducteur de tension pour branchement
_lectrique
[] Robinet d'arr_t manuel (recommand_)
[] Intervatle d'air pour le tuyau de vidange,
si n_cessoire
[] T_ de vidage pour la plomberie de la
maison, si n_cessaire
[] Colliers de tuyau 8vis
[] Evier GPF95, GPF96 ou GPH97 en acier
inoxydable
OUTILS REOUIS
[] Lunettes de s_curit6
[] Tournevis hdouille de 1//4 poet 5/16 po
[] Lampe de poche
[] Gants
[] CI6 5molette de 15 cm (6 po)
[] Tournevis _]t6te cruciforme
[] Cl_ 8douille de 15/16 po
[] IVt6treruban
[] Niveau
[] Equerre de menuisier
[] Seau pour attraper I'eau vidang6e
du tugau
[] Coupe-tube
POUR LES NOUVELLES INSTALLATIONS
[] Scie cloche
[] Perceuse et m_ches appropri_es
Ensemble de vis
_Visaboisat6te =[_ VispourboTtede
cruciforme n° _ jonction 6t6te 6
8 de 518 po de _ six pans n°
long "_ 10- 112 po de long
Collier de
Tuyau de vidange tuyau
de 198 cm 178 po}
Couvercle de boTte
de jonction
C6ble _lectrique ou
cordon d'alimentation
WR09×70910
Coude 6angle droit,
bague et _crou de
compression
O
R_ducteur de
tension Robinet d'arr_t
3 serre-fils
Kit de support 6
montage lat6ral
GPF65
Intervalle T_ de
d'air vidage
d'_tanch_it_
de filet
Conduite d'eau en
cuivre de 318 po
minimum
Colliers de tuyau
6vis
I_vier GPF95 en acier
inoxydable
I_vier GPF96 en acier
inoxydable
I_vier GPF97 en acier
inoxydable
Lunettes de s6curit_
Gants
Tournevis 6douille de 114 po
et de 5/16 po
Cl_ 6molette Tournevis
cruciforme
M_tre ruban
Bucket Coupe-tube
Niveau
Scie cloche
Lampe de poche
21_6 douille de
15/16 po
I_querre de
menuisier
Perceuse
et m6ches
appropri_es

Preparation pour I'installation - Enceinte
PRI:!PARATIONDE L'ENCEINTE DU LAVE-
VAISSELLE ET DE L'EMPLACEMENT DE L'I:!VIER
• Installer les tugaux d'alimentation d'eau et de
vidange de 1'6vier dons la section A.
• Installer le tugau d'eau chaude vers le lave-
vaisselle dons la section B.
• Installer le brogeur de d6chets, les tugaux
d'alimentation d'eau du robinet, le siphon,
I'intervalle d'air et le robinet d'arr@ de I'eau dons
une armoire large de 30 cm (12 po), la section C.
Plan de travail: 6paisseur min. de 3,8 cm (1 1/2 po)_
II
Max. 26 cm
(i0 1/4 io)
Plinth
/
I.... I._ _J',,
Min. 30 cm So
61 cm (24 po 112po)
• Le diam_tre de I'ouverture du brogeur de d_chets
duns I'_vier doit @re de 19 cm (7 1/2 po), comme
indiqu6 8 lu section C.Ceci permet d'instutler le
brogeur et Io plomberie duns Io section C uvec un
_vier soit simple, soit double. Se reporter 8 Io figure
A ci-dessous et 5 Io figure F1 5 Io page 6.
Figure A
Max. 52 cm
(20 1/2 po)
--cuve de
Min. 1,9 cm (3/4 po)--[ I_ _in. 28 cm
[Max. 15 cm
(6 po)
3cm (1
de 3,8 cm 2'
(i1/2 po)
du coude
D6g. max.
cm (11 3/4 po)
plomberie
rue lat6rale
du lave-vaisselle
Max.i0cm
(4 po)
Min. 61 cm
(24 po) armoire
_/jvlur
Max. 2,5 cm (ipo)
de 1'6vier
t
PROFONDEUR MAX
DE 26 cm (lO 1/4 po)
POUR PLOMBERIE
PRI:!PARATION DE L'ARMOIRE POUR
L'INSTALLATION DE L'I_VIER
r!_.,'lli=_ll[e]_l Pour r_duire le risque de choc _lectrique,
d'incendie ou de blessures, I'installateur
doit s'assurer que le lave-vaisselle est
enti_rement enclos au moment de
I'installation.
•L'ouverture de I'armoire doit ovoir one largeur et
une profondeur d'au mains 61 cm (24 po) et une
hauteur de 87 cm + 0.6 cm (34 1/4 po + 1/4 po).
• Ce lave-vaisselle s'encastre sous un @viersp@ciat
d'une profondeur de maximum 15 cm (6 po) dans
un plan de travail de 3,8 cm ( 1 1/2 po).
_D6coupepour 1'6vier
20 cm x 51 cm
(8 x 20 po) d6coupe
arri@e de I'armoire
adjacente
•Le lave-vaisselle doit @re enti_rement enclos sur le
hout, les c6t_s et I'orri_re.
• Le Iove-voisselle ne peut toucher oucune portie de
I'enceinte. Mur
/
--Max. s2cm ----
20 1/2 po cuve_d'#vier
avant _,
du bac
Lave-vaisselle
Espace
\
_------Min.61 cm--
(24 po)armoire
Remarque. - II peut y avoir un espace entre le rebord avant du
bac du lave-vaisselle et I'avant de I'armoire sila
profondeur de I'armoire est mains de 61 cm (24
po) ou sila cure d'6vier n'a pas 6t6 install6e selon
les directives.
adjacent au lave-vaisselle
cm (24 po)
Figure B
Si I'espacement est de plus de 2 cm (314po),
il faut d6placer la cuve d'6vier pour qu'elle
s'accorde aux dimensions indiqu6es.

Preparation pour I'installation - Vidange
PRI_PARATION DE LA PLOMBERIE
DE VIDANGE
Exigences de vidange
•Respecter les codes et r_gtements Iocaux.
• Le tuyau de vidange ne peut pas @re plus de 3 m
(10 pi)de long.
• Une boucle de vidange #lev#e ou un intervalle d'air
est requis. Voir ci-dessous.
M_thode de vidange
Letype d'installation de vidange est li@aux
conditions suivantes :
• Est-ce que les codes ou r@gtements Iocaux exigent
un intervalle d'air ?
• Est-ce que le t6 de vidoge se trouve 5 mains de 46
cm (18 po)du sol ?
Si la r@ponse _ une de ces questions est OUI, il
faut utiliser un intervalle d'air (m@thode n° 1). Si Io
r6ponse est NON oux deux questions, il fout utiliser
soit un intervolle d'oir, salt une boucle de vidonge
61ev6e (m_thode 2).
PRUDENCE
II FAUTutiliser un intervalle d'air si le raccord du tuyau
de vidange au t_ de vidage ou au broyeur de d_chets
est 6mains de 46 cm (18 po) du niveau du sol. Le lave-
vaisselle risque de ne passe vidanger correctement et
de s'endommager si le raccord de vidange n'est pas 6la
bonne hauteur avec un intervalle d'air ou une boucle de
vidange _lev_e de minimum 81 cm (32 po).
MISTHODE 1 - Intervalle d'air avec t@de vidage ou
broyeur de d@chets
Figure C
Installation avec t6
devidage Installation avec brogeur de d@chets
MI_THODE 2 - Boucle de vidange @lev@eavec t@de
vidage ou broyeur de d@chets
Trouver un moyen d'attacher le tuyau de vidange
au-dessous du plan de travail. Ceci sera accompli 5
une @ape utt@rieure.
v46 m,To,
Installation avec t6
de vidage
Figure D
Installation avec brogeur
de d@chets
Installer le t@de vidage ou le broyeur et I'intervalle
d'air selon les directives du fabricant.
Pr@paration de I'armoire
Percer un trou de 38 mm (Z Z/2 po) dans la paroi de
I'armoire dons la zone hachur@e indiqu@e 5 la figure
E pour le passage du tuyou de vidonge. V@rifier
que les bards du trou sont lisses. Dons une @ape
ult@rieure, il lout gtisser le tuyau de vidange ou
travers du trou pour le raccorder au drain.
IMPORTANT- Pendant le
raccord du tuyau de vidange
au broyeur de d_chets, v_rifier
que le bouchon de vidange a
_t_ enlev_. Le lave-vaisselle
ne peut pas se vider avec le
bouchon en place.
, nlever le
bouchon
de vidange
