GE AF-650 GP PROFINET User manual

GE
AF-650 GP & AF-600 FPTM
PROFINET
Operating Instructions
The instructions do not purport to cover all details or variations in equipment nor to provide for every possible
contingency to be met in connection with installation, operation or maintenance. Should further information be
desired or should particular problems arise which are not covered suȻciently for the purchaser·s purposes, the
matter should be referred to the GE company.
AF-650 GP and AF-600 FP are trademarks of the General Electric Company.
GE
41 Woodford Avenue
Plainville, CT 06062
www.geelectrical.com/drives
130R0257 *MG91B102* DET-744
AF-650 GP & AF-600 FPTM PROFINET Operating Instructions DET-744

Contents
1 Safety
3
1.1.2 Safety Note 3
1.1.3 Safety Regulations 3
1.1.4 Warning against Unintended Start 4
2 Introduction
5
2.1.1 About this Manual 5
2.1.2 Technical Overview 5
2.1.3 Assumptions 5
2.1.4 Hardware 5
2.1.5 Background Knowledge 5
2.1.6 Abbreviations 5
3 How to Install
6
3.1.1 How to Install Option in Frequency Converter 6
3.1.2 Network 6
3.1.3 PROFINET Cables 7
3.1.4 LED Behaviour 8

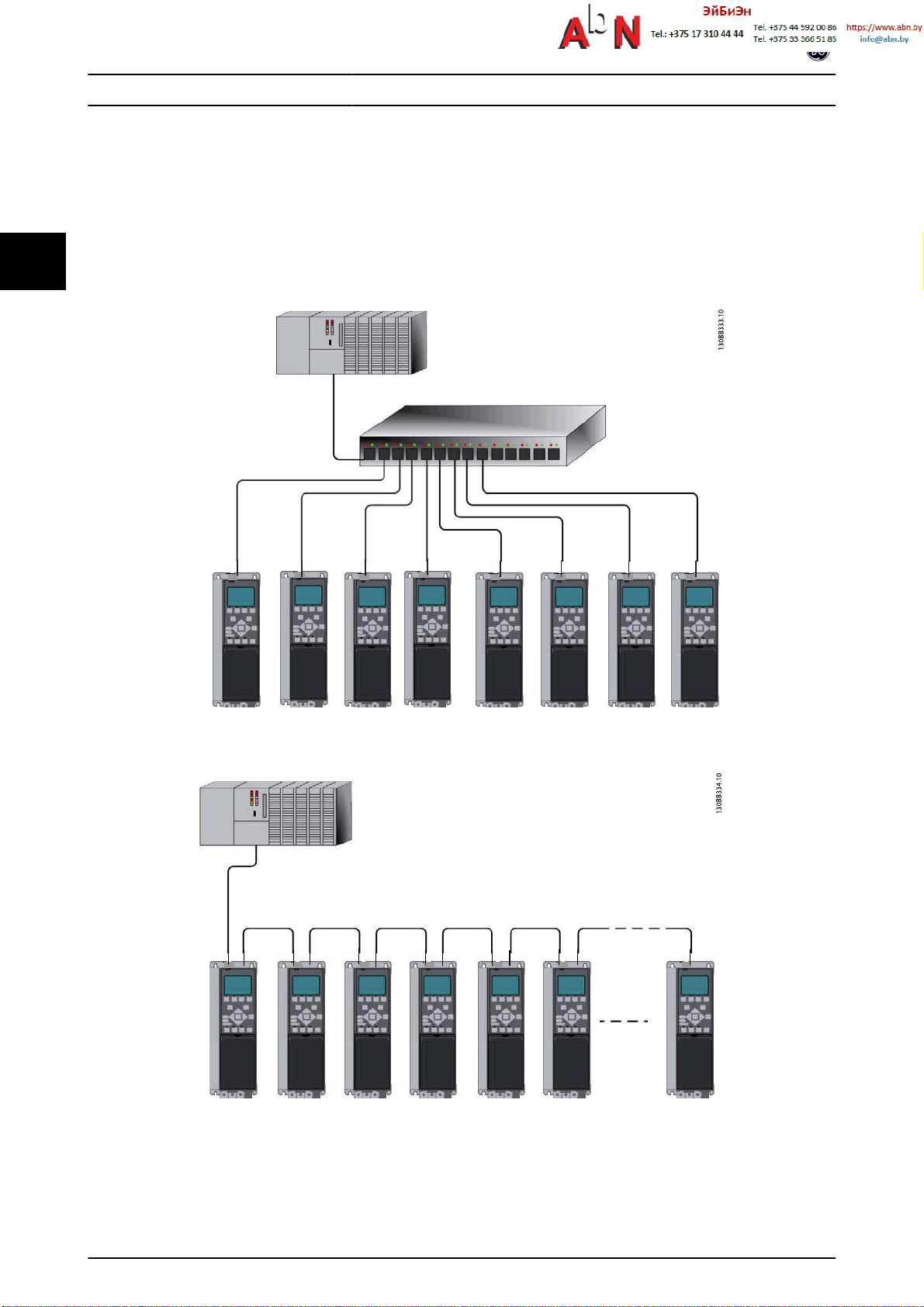

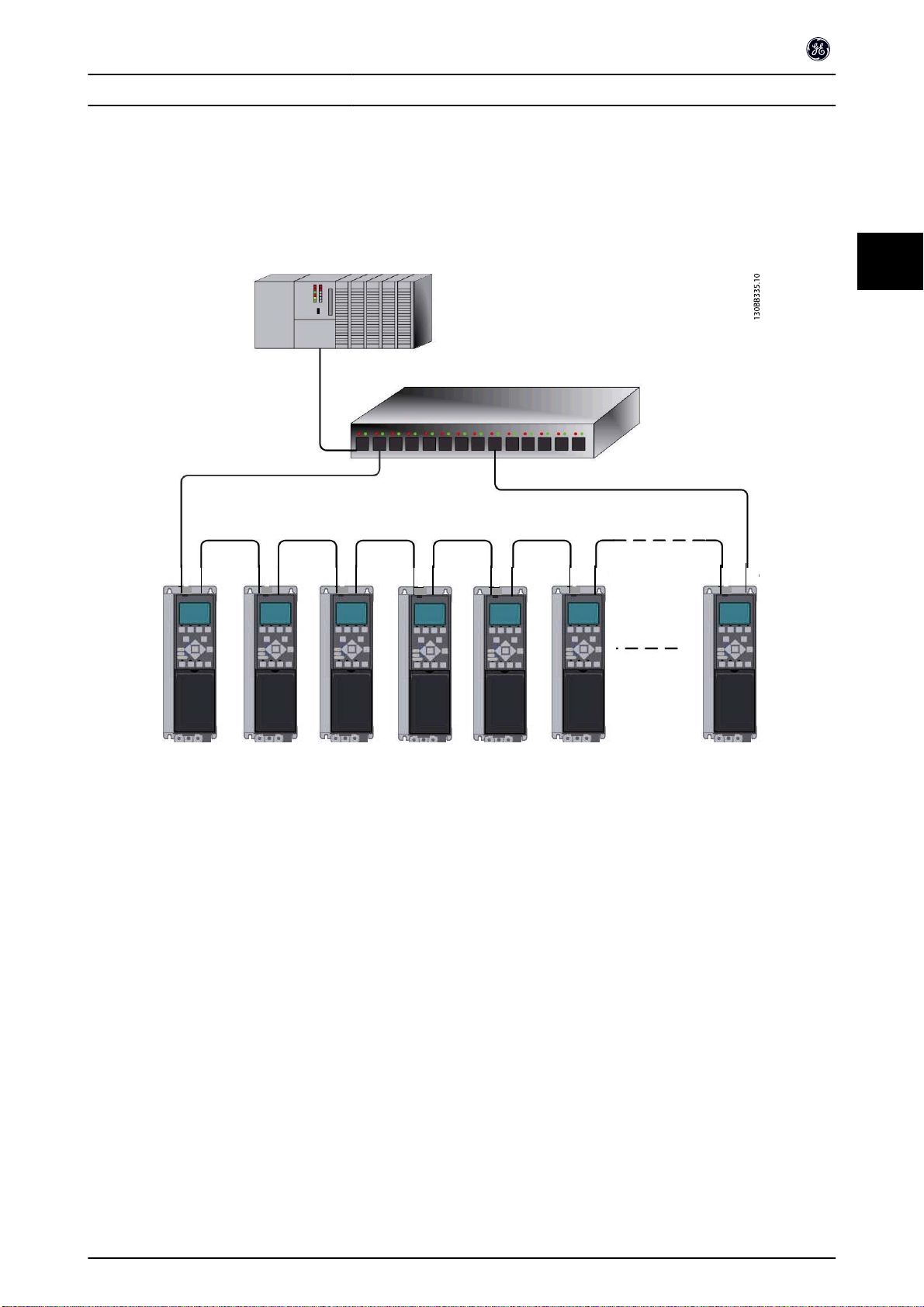

3.1.5 Topology 10
3.1.6 Recommended Design Rules 12
3.1.7 EMC Precautions 13
4 How to Configure
14
4.1.1 IP Settings 14
4.1.2 Ethernet Link Parameters 15
5 How to Configure the System
16
5.1 Configure the PROFINET Network 16
5.2 Configure the Controller 16

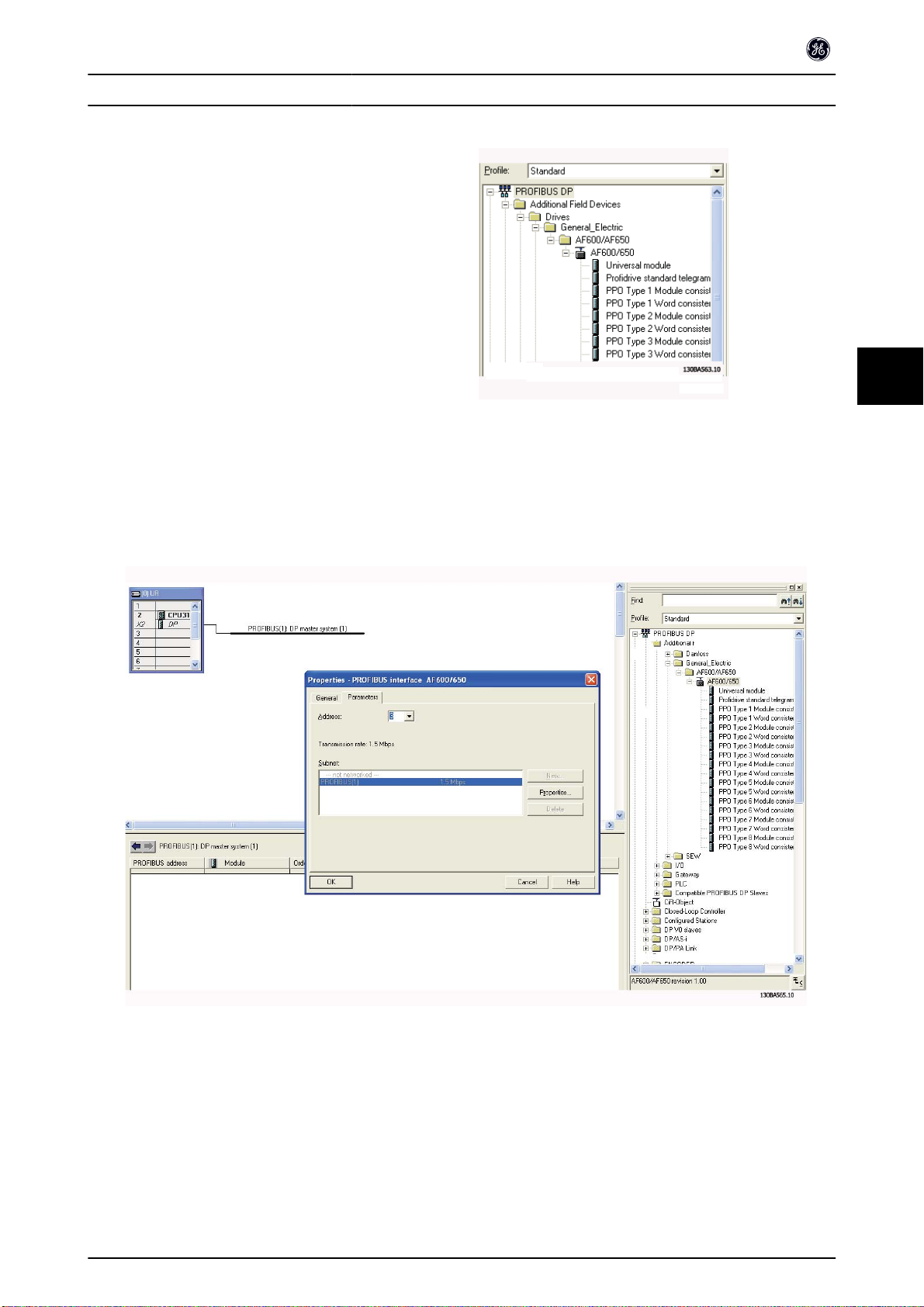

5.2.1 GSD File 16
5.3 Configure the Frequency Converter 19
5.3.1 Drive Parameters 19
6 How to Control the Frequency Converter
20
6.1 PPO Types 20
6.2 Process Data 21
6.2.3 Reference Handling 21
6.2.4 Process Control Operation 22
6.3 Control Profile 23
6.4 PROFIdrive Control Profile 23
6.5 GE Drive Control Profile 27
Contents PROFINET Operating Instruction
1

7 PROFINET Acyclic Communication
30
7.1.1 Features of an IO Controller System 30
7.1.2 Features of an IO-Supervisor System 30
7.1.3 Addressing Scheme 31
7.1.4 Acyclic Read/Write Request Sequence 32
7.1.5 Data Structure in the Acyclic Telegrams 33
7.1.6 Header 33
7.1.7 Parameter Block 33
7.1.8 Data Block 33
7.1.9 Header 34
7.1.10 Data Block 34
8 Parameters
35
8.1 Parameter Group O-## Communication and Option 35
8.2 Parameter Group PB-## PROFIdrive 37
8.3 Parameter Group EN-## Ethernet 39
8.4 PROFINET-specific Parameter List 42
8.5 Object and Data Types Supported 44
9 Application Examples
46
9.1 E.g.: Process Data with PPO Type 6 46
9.2 E.g.: Control Word Network using Standard Telegram 1 / PPO3 48
9.3 E.g.: Status Word Network using Standard Telegram 1 / PPO3 49
9.4 E.g.: PLC Programming 50
10 Troubleshooting
51
10.1 Troubleshooting 51
10.1.1 LED Status 51
10.1.2 No Communication with the Drive 52
10.1.3 Warning 34 Appears even though Communication is Established 53
10.1.4 Will Not Respond to Control Signals 53
10.1.5 Alarm and Warning Words 55
11 Warnings and Alarms
59
11.1 Status Messages 59
11.1.1 Warnings/Alarm Messages 59
11.1.2 Alarm List 59
Index
62
Contents PROFINET Operating Instruction
2

1Safety
1.1.1 Copyright, Limitation of Liability and
Revision Rights
This publication contains information proprietary to GE. By
accepting and using this manual the user agrees that the
information contained herein will be used solely for
operating equipment from GE or equipment from other
vendors provided that such equipment is intended for
communication with GE equipment over an serial communi-
cation link. This publication is protected under the Copyright
laws of Denmark and most other countries.
GE does not guarantee that a software program produced
according to the guidelines provided in this manual will
function properly in every physical, hardware or software
environment.
Although GE has tested and reviewed the documentation
within this manual, GE gives no warranty or representation,
either express or implied, with respect to this documen-
tation, including its quality, performance, or fitness for a
particular purpose.
In no event shall GE be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use,
or the inability to use information contained in this manual,
even if advised of the possibility of such damages. In
particular, GE is not responsible for any costs including but
not limited to those incurred as a result of lost profits or
revenue, loss or damage of equipment, loss of computer
programs, loss of data, the costs to substitute these, or any
claims by third parties.
GE reserves the right to revise this publication at any time
and to make changes in its contents without prior notice or
any obligation to notify previous users of such revisions or
changes.
It has been assumed that all devices will be sitting behind a
firewall that does packet filtering and the environment has
wellimplemented restrictions on the software that can run
inside the firewall. All nodes are assumed to be "trusted"
nodes.
1.1.2 Safety Note
WARNING
HIGH VOLTAGE
The voltage of the frequency converter is dangerous
whenever connected to mains. Incorrect installation of the
motor, frequency converter or network may cause damage
to the equipment, serious personal injury or death.
Consequently, the instructions in this manual, as well as
national and local rules and safety regulations, must be
complied with.
1.1.3 Safety Regulations
1. The drive must be disconnected from mains if
repair work is to be carried out. Check that the
mains supply has been disconnected and that the
necessary time has passed before removing motor
and mains plugs.
2. The off-command on the serial bus does not
disconnect the equipment from mains and is thus
not to be used as a safety switch.
3. Correct protective earthing or grounding of the
equipment must be established, the user must be
protected against supply voltage, and the motor
must be protected against overload in accordance
with applicable national and local regulations.
4. The earth leakage currents are higher than 3.5mA.
5. Do not remove the plugs for the motor and mains
supply while the drive is connected to mains.
Check that the mains supply has been discon-
nected and that the necessary time has passed
before removing motor and mains plugs.
Safety PROFINET Operating Instruction
3
11

1.1.4 Warning against Unintended Start
1. The motor can be brought to a stop by means of
bus commands while the drive is connected to
mains. If personal safety considerations make it
necessary to ensure that no unintended start
occurs, these stop functions are not sufficient.
2. While parameters are being changed, the motor
may start.
3. A motor that has been stopped may start if faults
occur in the electronics of the frequency converter,
or if a temporary overload or a fault in the supply
mains or the motor connection ceases.
WARNING
ELECTRICAL HAZARD
Touching the electrical parts may be fatal - even after the
equipment has been disconnected from mains.
Safety PROFINET Operating Instruction
4
1
1

2 Introduction
2.1.1 About this Manual
First time users can obtain the most essential information for
quick installation and set-up in these chapters:
Introduction
How to Install
How to Configure the System
For more detailed information including the full range of set-
up options and diagnosis tools please refer to the chapters:
How to Configure the System
How to Control the AF-600 FP/AF-650 GP
How to Access AF-600 FP/AF-650 GP Parameters
Parameters
Troubleshooting
Terminology:
In this manual several terms for Ethernet are used.
-PROFINET, is the term used to describe the
PROFINET protocol.
-Ethernet, is a common term used to describe the
physical layer of the network and does not relate to
the application protocol.
2.1.2 Technical Overview
Since its introduction in 2001, PROFINET has been updated
to handle low and medium performance requirement
supported by PROFINET RT (Real Time) up to High end servo
performance in PROFINET IRT (Isochronous Real Time). With
this, PROFINET is the Ethernet Based Fieldbus offering the
most scalable and versatile technology today.
PROFINET provides users with the network tools to deploy
standard Ethernet technology for manufacturing
applications while enabling Internet and enterprise connec-
tivity.
2.1.3 Assumptions
These operating instructions are under the conditions that
the GE PROFINET option is used in conjunction with a GE
AF-600 FP or AF-650 GP frequency converter. It is also
assumed that the installed controller supports the interfaces
described in this document and that all the requirements
stipulated in the controller, as well as the frequency
converter, are strictly observed along with all limitations
herein.
2.1.4 Hardware
This manual relates to the PROFINET option OPCPRT.
2.1.5 Background Knowledge
The GE PROFINET Option Card is designed to communicate
with any system complying with the PROFINET schema
version 2.2 standard. For earlier versions of PROFINET, which
support schema version 2.1 and earlier, GE recommends an
upgrade of the master and other devices connected to the
PROFINET network to schema version 2.2. Familiarity with
this technology is assumed. Issues regarding hardware or
software produced by other manufacturers, including
commissioning tools, are beyond the scope of this manual,
and are not the responsibility of GE.
For information regarding commissioning tools, or
communication to a non-GE node, please consult the
appropriate manuals.
2.1.6 Abbreviations
Abbreviation Definition
API Actual Packet Interval
CC Control Card
CTW Control Word
DCP Discovery and Configuration Protocol
DHCP Dynamic Host Configuration Protocol
EMC Electromagnetic Compatibility
I/O Input/Output
IP Internet Protocol
GSD Generic station description
LED Light Emitting Diode
LSB Least Significant Bit
MAV Main Actual Value (actual output)
MSB Most Significant Bit
MRV Main Reference Value
N/A Not applicable
PC Personal Computer
PCD Process Control Data
PLC Programmable Logic Controller
PNU Parameter Number
REF Reference (= MRV)
RT Real Time
RTC Real Time Clock
STP Spanning tree Protocol
STW Status Word
Introduction PROFINET Operating Instruction
5
2
2

3HowtoInstall
3.1.1 How to Install Option in Frequency
Converter
Items required for installing a network option in the
frequency converter:
-The network option
-Network option adaptor frame for the AF-600 FP/
AF-650 GP. This frame is deeper than the standard
frame, to allow space for the network option
beneath
-Strain relief (only for unit sizes 11 and 12)
Instructions:
-Remove keypad panel from the AF-600 FP/AF-650
GP.
-Remove the frame located beneath and discard it.
-Push the option into place. The Ethernet
connectors must be facing upwards.
-Remove both knock-outs on the network option
adaptor frame.
-Push the network option adaptor frame for the
AF-600 FP/AF-650 GP into place.
-Replace the keypad and attach cable
NOTE
Do not strip the Ethernet cable and ground it via the strain
relief-plate! The grounding of screened Ethernet cable is
done through the RJ-45 connector on the option.
NOTE
After installing the OPCPRT option, be aware of the following
parameter settings:
O-01 Control Site: [2] Controlword only or [0] Digital and ctrl.
word
O-02 Control Word Source: [3] Option A
3.1.2 Network
It is of high importance that the media chosen for Ethernet
data transmission are suitable. Usually CAT 5e and 6 cables
are recommended for industrial applications. Both types are
available as Unshielded Twisted Pair and Shielded Twisted
Pair. Generally shielded cables are recommended for use in
industrial environments and with frequency converters.
A maximum cable-length of 100m is allowed between
switches.
Optical fibres can be used for gapping longer distances and
providing galvanic isolation.
For connecting PROFINET devices both hubs and switches
can be used. It is, however, recommended always to use
suitable industrial graded Ethernet switches. GE
recommends always to use PROFINET compliant switches
How to Install PROFINET Operating Instruction
6
3
3

3.1.3 PROFINET Cables
PROFINET cables used are based electrically on category 5 balanced LAN cables according to ISO/IEC 11801 Edition 2.0, Class
D.
Type C cables can be used in special applications (e.g. the use of trailing cables and frequently moved machine parts) even
though their design and mechanical parameters can deviate from the specifications of type A and type B cables. Still most of the
electrical parameters (impedance levels etc.) are retained. Highly flexible copper cables generally have the finest stranded
conductors and, for example, a highly resistant polyurethane outer sheath.
Various outer sheath materials are permitted in order to meet the various demands with regard to resistance of industrial
environments and exterior/underground laying (natural and synthetic oil, grease, coolants/lubricants, chemicals, high and low
temperatures, UV radiation).
All balanced cables used shall comply with the following parameters:
Cable Type Application Type A Application Type B Application Type C
Design Data Cable Data Cable Data Cable
Cable Installation Type Stationary, no movement
after installation
Flexible, occasional movement
or vibration
Special Applications (e.g. highly flexible,
permanent movement, vibration or torsion)
Cable Marking PROFINET Type A PROFINET Type B PROFINET Type C
Core Cross Section AWG 22/1 AWG 22/7 AWG 22/..
Outer Diameter 5,5 - 8,0 mm Application
Core Diameter 1,5 +/- 0,1 mm Application
Colour (Outer Sheath) Green RAL6018 Application
Core Identification (colours) star
quad 2 pair
white, yellow, blue, orange Pair 1: white (RXD+), blue (RXD-) Pair 2: yellow(TXD+), orange(TXT-)
Number of Cores 4
Cable Design 2 pairs or 1 star quad
Shielding Design Type Aluminum Foil + Cu braiding Application
Which Plug for which Cable Type RJ45 (IP 20 or IP 65/67) / M12
Transmission Performance Requirements:
Relevant Standard ISO/IEC 11801 Edition 2.0, IEC 61156
(minimum Category 5)
Delay Skew <=20ns/100m
Transfer Impedance <=50mOhm/m at 10MHz
How to Install PROFINET Operating Instruction
7
3
3

3.1.4 LED Behaviour
The option has 3 bi-coloured LEDs that allow a fast and
detailed diagnosis. The three LEDs are each linked to its
unique part of the PROFINET option:
LED Label Description
MS Module Status, reflects the activity on the
PROFINET stack
NS1 Network Status 1, reflects the activity on port 1
NS2 Network Status 2, reflects the activity on port 2
Illustration 3.1 Overview of the Option
How to Install PROFINET Operating Instruction
8
3
3

Module Status
Status Tri-colour LED
No IP Address assigned Off
No Communication to PROFINET module. Module is waiting for configuration
telegram from Controller.
Green:
▂█▂▂▂█▂▂▂█
IO AR established Green:
Supervisor AR established, No IO AR. Green:
▂
▂███▂███▂█
Internal Error Red:
▂
▂█▂█▂█▂█▂█
Wink Yellow:
▂
▂█▂█▂█▂█▂█
Table 3.1 MS: Module Status
Network Status
Phases Status Tri-colour LED
Power Off No Power or No Link on the corresponding port Off
Power On
IP Address Conflict Red:
Waiting for configuration Green:
▂
▂█▂█▂█▂█▂█
Running
In Data Exchange Mode Green:
Wrong Configuration Red:
▂
▂███▂███▂█
Data exchange No increment in "In Octets" counter of corresponding
port in last 60 secs. Yellow:
▂
▂█▂█▂█▂█▂█
Table 3.2 Indication on Network Status LED
During normal operation the MS and at least one NS LED will show a constant green light.
Wink command
The option will responds to a Wink command from the network by yellow flashing of all three LEDs simultaneously.
How to Install PROFINET Operating Instruction
9
3
3

3.1.5 Topology
The PROFINET module features a built-in Ethernet-switch, thus having two Ethernet RJ-45 connectors. This enables the
possibility for connecting several PROFINET options in a line topology as an alternative to the typical star-topology.
The two ports are equal, in the sense that they are transparent for the option. If only one connector is used, both ports can be
used.
Illustration 3.2 Star Topology
Illustration 3.3 Line Topology
How to Install PROFINET Operating Instruction
10
3
3

NOTE
In a line topology all drives must be powered, either by mains or by their 24V DC option cards, for the built-in switch to work.
Please observe that mounting drive of different power-sizes in a line topology may result in unwanted power-off behavior, while
using controlword timeout (O-02 Control Word Source to O-06 Reset Control Word Timeout. It is recommended to mount the
drives with the longest discharge time first in the line topology.
Illustration 3.4 Ring/Redundant Line Topology
CAUTION
For this type of topology it is crucial that the network switch supports detection of loss of line topology. In some cases the
detection. The switch inside the PROFINET option does not support this, but it must be supported in the switch that connects
the ring to the controller/network Please consult the manual of the switch for more information.
How to Install PROFINET Operating Instruction
11
3
3

3.1.6 Recommended Design Rules
While designing Ethernet networks special attention and caution must be taken regarding active network components.
While designing a network for line topology it is important to notice that a small delay is added with each switch in the line.
It is not recommended to connect more than 32 drive in a line. Exceeding the recommended design rules, may result in unstable
or faulted communication.
How to Install PROFINET Operating Instruction
12
3
3

3.1.7 EMC Precautions
The following EMC precautions are recommended in order to achieve interference-free operation of the Ethernet network.
Additional EMC information is available in the AF-600 FP/AF-650 GP series Design Guide.
NOTE
Relevant national and local regulations, for example regarding protective earth connection, must be observed.
The Ethernet communication cable must be kept away from motor and brake resistor cables to avoid coupling of high frequency
noise from one cable to the other. Normally a distance of 200mm (8 inches) is sufficient, but maintaining the greatest possible
distance between the cables is recommended, especially where cables run in parallel over long distances. When crossing is
unavoidable, the Ethernet cable must cross motor and brake resistor cables at an angle of 90°.
How to Install PROFINET Operating Instruction
13
3
3

4HowtoConfigure
4.1.1 IP Settings
All IP-related parameters are located in parameter group
EN-##: The parameters are all set to PROFINET standard
values, so that only a minimum change is necessary.
EN-00 IP Address Assignment
EN-01 IP Address
EN-02 Subnet Mask
EN-03 Default Gateway
EN-04 DHCP Server
EN-05 Lease Expires
EN-06 Name Servers
EN-07 Domain Name
EN-08 Host Name
EN-09 Physical Address
The PROFINET option offers several ways of IP address
assignment.
Setting up drive with manual assigned IP address:
Parameter Value
EN-00 IP Address
Assignment
[0] MANUAL
EN-01 IP Address 192.168.0.003*
EN-02 Subnet Mask 255.255.255.0*
EN-03 Default
Gateway
optional
*= Class C IP address example. Any valid IP address can be
entered.
Setting up drive with automatic (BOOTP/DHCP) assigned IP
address:
Parameter Value
EN-00 IP Address
Assignment
[0] MANUAL/[1] DHCP/[2] BOOTP/[10] DCP
EN-01 IP Address Read only
EN-02 Subnet Mask Read only
EN-03 Default
Gateway
Read only
By IP address assigned by DHCP/BOOTP/DCP server, the
assigned IP Address and Subnet Mask can be read out in
EN-01 IP Address and EN-02 Subnet Mask. In EN-04 DHCP Server
the IP address of the found DHCP or BOOTP server is
displayed. For DHCP only: The remaining lease-time can be
read-out in EN-05 Lease Expires. If lease time is set to 0 (zero)
the timer will never expire.
EN-09 Physical Address reads out the MAC address of option,
which is also printed on the label of the option. If using fixed
leases together with DHCP or BOOTP, the physical MAC
address is linked with a fixed IP address.
NOTE
If no DHCP or BOOTP reply has been received after 4
attempts (e.g. if the DHCP/BOOTP server has been powered
off), the option will fallback to the last functioning IP address.
EN-03 Default Gateway is optional and only used in routed
networks.
EN-06 Name Servers
EN-07 Domain Name
EN-08 Host Name
are used with Domain Name Server systems and are all
optional. If DHCP or BOOTP is selected as IP address
assignment, these parameters are read only.
NOTE
It is only possible to assign valid class A, B and C IP address to
the option. The valid ranges are shown in Table 4.1:
Class A 1.0.0.1 - 126.255.255.254
Class B 128.1.0.1 - 191.255.255.254
Class C 192.0.1.1 - 223.255.254.254
How to Configure PROFINET Operating Instruction
14
4
4

4.1.2 Ethernet Link Parameters
Parameter group EN-1# holds information Ethernet Link
information:
EN-10 Link Status
EN-11 Link Duration
EN-12 Auto Negotiation
EN-13 Link Speed
EN-14 Link Duplex
Please note the Ethernet Link Parameters are unique per
port.
EN-10 Link Status and EN-11 Link Duration displays
information on the link status, per port.
EN-10 Link Status will display Link or No Link according to the
status of the present port.
EN-11 Link Duration will display the duration of the link on
the present port. If the link is broken the counter will be
reset.
EN-12 Auto Negotiation - is a feature that enables two
connected Ethernet devices to choose common transmission
parameters, such as speed and duplex mode. In this process,
the connected devices first share their capabilities as for
these parameters and then choose the fastest transmission
mode they both support.
Incapability between the connected devices, may lead to
decreased communication performance.
To prevent this, Auto Negotiation can be disabled.
If EN-12 Auto Negotiation is set to OFF, link speed and duplex
mode can be configured manually in EN-13 Link Speed and
EN-12 Auto Negotiation.
EN-13 Link Speed - displays/sets the link speed per port.
“None” is displayed if no link is present.
EN-14 Link Duplex - displays/sets the duplex mode per port.
Half-duplex provides communication in both directions, but
only in one direction at a time (not simultaneously).
Full-duplex allows communication in both directions, and
unlike half-duplex, allows for this to happen simultaneously.
How to Configure PROFINET Operating Instruction
15
4
4

5 How to Configure the System
5.1 Configure the PROFINET Network
All PROFINET devices that are connected to the same
network must have a unique device name.
The PROFINET device name of the frequency converter can
be set via:
EN-08 Host Name
5.2 Configure the Controller
5.2.1 GSD File
In order to configure a PROFINET Controller, the configu-
ration tool needs a GSD file for each type of slave on the
network. The GSD file is a PROFINET standard text file
containing the necessary communication setup data for a
slave. Download the GSD file for the AF-6 Series drives at
www.geelectrical.com/drives. The name of the GSD file may
vary compared to this manual. Please download the latest
version from the above website.
The first step in configuration of the PROFINET Controller is
to import the GSD file in the configuration tool. The steps
outlined below show how to add a new GSD file to the
Simatic Manager software tool. For each drive series, a GSD
file is typically imported once only, following the initial
installation of the software tool.
How to Configure the System PROFINET Operating Instruction
16
5
5

The GSD file is now imported and will be accessible via the
following path in the Hardware catalogue:
Open a Project, set up the Hardware and add a PROFINET Master system. Select GE FC PN then drag and drop it onto the
PROFINET IO system.
A window for the Device name of the now appears. Type the name into the field. Note that the name must match the name in
EN-08 Host Name. If the checkmark Assign IP address via the IO controller is set, the controller will download the IP address to the
IO device that has the corresponding device name. The IP address is stored in the non volatile memory of the .
The next step is to set up the peripheral input and output data. Data set up in the peripheral area is transmitted cyclically via
telegrams/PPO types. In the example below, a PPO type 6 is dragged and dropped to slot 1.
See the PPO types section in How to Control the Frequency Converter for more information.
How to Configure the System PROFINET Operating Instruction
17
5
5

The configuration tool automatically assigns addresses in the peripheral address area. In this example the input and output area
have the following configuration:
PPO type 6:
PCD word number 0 1 2 3
Input address 256-257 258-259 260-261 262-263
Set-up STW MAV PB-16 PCD Read Configuration.2 PB-16 PCD Read Configuration.3
Table 5.1 PCD Read (Drive to PLC)
PCD word number 0 1 2 3
Output address 256-257 258-259 260-261 262-263
Set-up CTW MRV PB-15 PCD Write Configuration.2 PB-15 PCD Write Configuration.3
Table 5.2 PCD Write (PLC to Drive)
The PCDs have to be assigned via PB-16 PCD Read Configuration for inputs and PB-15 PCD Write Configuration for outputs.
Download the configuration file to the PLC. The PROFINET system should be able to go online and it will start to exchange data
when the PLC is set to Run mode.
How to Configure the System PROFINET Operating Instruction
18
5
5

5.3 Configure the Frequency Converter
5.3.1 Drive Parameters
Pay particular attention to the following parameters when
configuring the frequency converter with a PROFINET
interface.
•
K-40 [Hand] Button on Keypad. If the Hand button
on the frequency converter is activated, control of
the drive via the PROFINET interface is disabled
•
After an initial power up the frequency converter
will automatically detect whether a network option
is installed in slot A, and set O-02 Control Word
Source to [Option A]. If an option is added, changed
or removed from an already commissioned drive, it
will not change O-02 Control Word Source but enter
Trip Mode, and the drive will display an error
•
O-10 Control Word Profile. Choose between the GE
Drive Profile and the PROFIdrive profile
•
O-50 Coasting Select to O-56 Preset Reference Select.
Selection of how to gate PROFINET control
commands with digital input command of the
control module.
NOTE
When O-01 Control Site is set to [2] Control word only, then
the settings in O-50 Coasting Select to O-56 Preset Reference
Select will be overruled, and all act on Bus-control.
•
O-03 Control Word Timeout Time to O-05 End-of-
Timeout Function. The reaction in the event of a
network time out is set via these parameters
•
EN-00 IP Address Assignment
•
EN-08 Host Name
How to Configure the System PROFINET Operating Instruction
19
5
5
