GE PK7500SFSS Manual

Listed by
Underwriters
Laboratories
For answers to your Monogram®or GE appliance
questions, visit our website at geappliances.com
or call GE Answer Center®service, 800.626.2000.
KW Rating
240V 7. 2
208V 5.4
Breaker Size
240V 30 Amps
208V 30 Amps

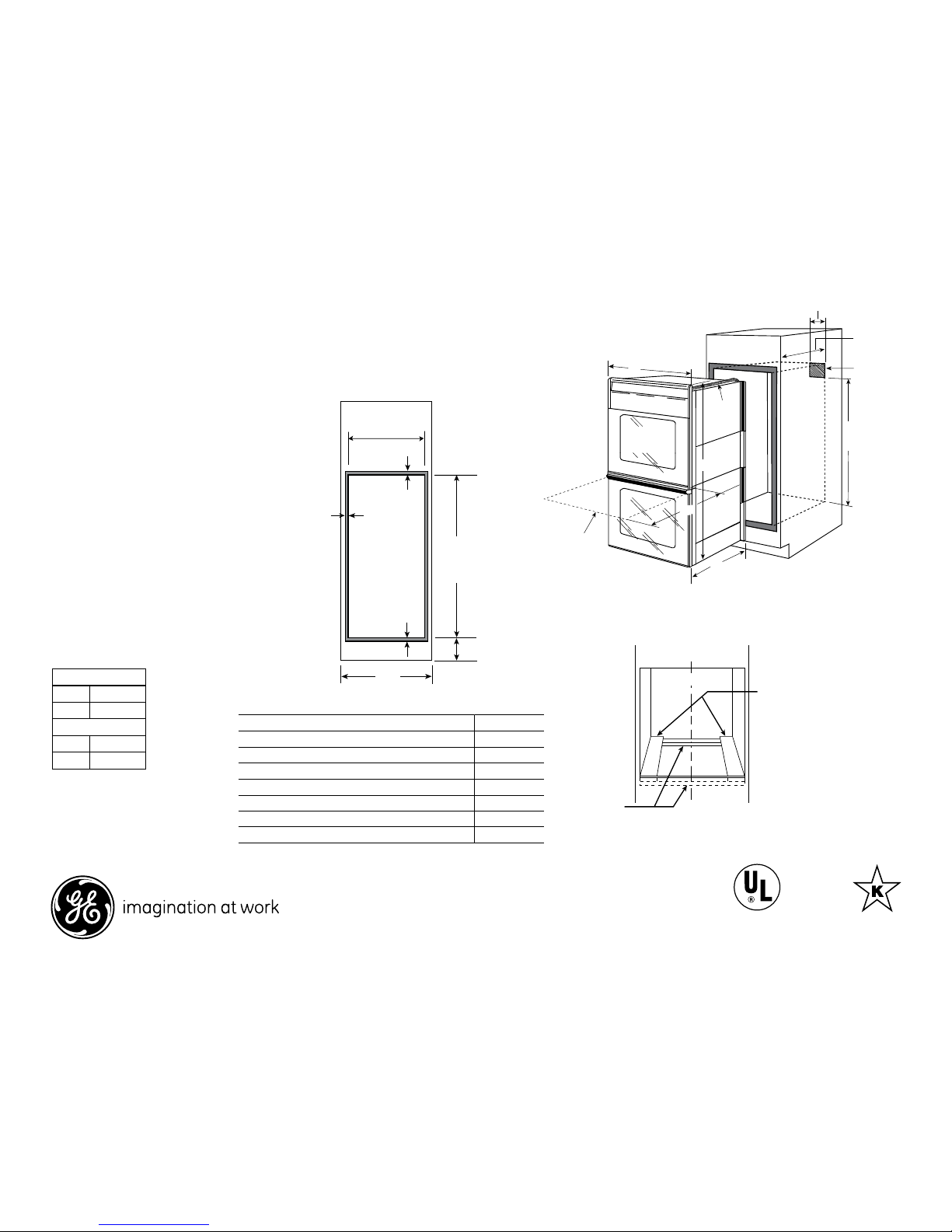

Dimensions and Installation Information (in inches)
Most 30” Wall Cabinets can be used with this unit.
Note: These ovens are not approved for
stackable installations. Cabinets installed
adjacent to wall ovens must have an adhesion
spec of at least a 194°F temperature rating.
Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should
be placed to avoid interference with the handle.
Electric wall ovens are not approved for
installation with a plug and receptacle. They
must be hard wired in accordance with
installation instructions.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
Side-by-side installations rerquire at least 2"
between cutouts.
Specification Created 2/13
220369
PK7500SF
Profile™Series 27" Built-In Double Convection Wall Oven
23" minimum
door opening
allowance
Cutout depth
23-1/2" MIN
8-3/4" MAX.
44" to
bottom of
junction box
22"
D
F
E
Conduit
40"
Junction box
location
C
L
Suitable
bracing
to support
runners
(must support 375 lbs.)
Cabinet 27"
A – Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 1"
C – Overlap of oven at bottom of cutout 1"
Oven
D – Overall depth with handle 26-23/32"
E – Overall height with trim 52-1/8"
F – Overall width 26-23/32"
PK7500
JK5500
JK3500
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
B
27''
A
C
Cutout width
25" MIN.
25-1/4" MAX.
Recommended
minimum
cutout location
from the floor
13-1/4"
Cutout height
49-11/16" MIN.
50-1/8" MAX.
23" minimum
door opening
allowance
Cutout depth
23-1/2" MIN
8-3/4"
MAX.
44" to
bottom of
junction box
22"
D
F
E
Conduit
40"
Junction box
location
C
L
Suitable
bracing
to support
runners
(must support 375 lbs.)
Cabinet 27"
A – Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 1"
C – Overlap of oven at bottom of cutout 1"
Oven
D – Overall depth with handle 26-23/32"
E – Overall height with trim 52-1/8"
F – Overall width 26-23/32"
PK7500
JK5500
JK3500
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
B
27''
A
C
Cutout width
25" MIN.
25-1/4" MAX.
Recommended
minimum
cutout location
from the floor
13-1/4"
Cutout height
49-11/16" MIN.
50-1/8" MAX.
23" minimum
door opening
allowance
Cutout depth
23-1/2" MIN
8-3/4" MAX.
44" to
bottom of
junction box
22"
D
F
E
Conduit
40"
Junction box
location
C
L
Suitable
bracing
to support
runners
(must support 375 lbs.)
Cabinet 27"
A – Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 1"
C – Overlap of oven at bottom of cutout 1"
Oven
D – Overall depth with handle 26-23/32"
E – Overall height with trim 52-1/8"
F – Overall width 26-23/32"
PK7500
JK5500
JK3500
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
B
27''
A
C
Cutout width
25" MIN.
25-1/4" MAX.
Recommended
minimum
cutout location
from the floor
13-1/4"
Cutout height
49-11/16" MIN.
50-1/8" MAX.
23" minimum
door opening
allowance
Cutout depth
23-1/2" MIN
8-3/4"
MAX.
44" to
bottom of
junction box
22"
D
F
E
Conduit
40"
Junction box
location
C
L
Suitable
bracing
to support
runners
(must support 375 lbs.)
Cabinet 27"
A – Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 1"
C – Overlap of oven at bottom of cutout 1"
Oven
D – Overall depth with handle 26-23/32"
E – Overall height with trim 52-1/8"
F – Overall width 26-23/32"
PK7500
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
B
27''
A
C
Cutout width
25" MIN.
25-1/4" MAX.
Recommended
minimum
cutout location
from the floor
13-1/4"
Cutout height
49-11/16" MIN.
50-1/8" MAX.

Features and Benefits
• True European Convection (Upper Oven Only) - Achieve delicious results from
a third heating element and fan combination
• Connected - Wirelessly control oven functions from your smartphone
• Ten-Pass Bake Element - Even baking is assured with heat that covers more
surface area
• Eight-Pass Broil Element - Get full broil coverage and even browning from
edge to edge
• Self-Clean Heavy-Duty Roller Rack - Easily access items with racks that
glide smoothly
• Halogen Interior Oven Lighting - Easily see how your food is baking
• Self-clean with Steam Clean Option (Both Ovens) - Clean your oven the way
you want
• Glass Touch Controls - Set temperatures quickly and clean with little effort
• Double Oven 8.6 cu. ft. Total Oven Capacity (4.3 cu. ft. Both Ovens) - Large
meals are easy with capacity that fits more at one time
• Black Gloss Oven Interior - Enjoy a clean and sleek appearance
• Model PK7500SFSS - Stainless steel
PK7500SFSS
Specification Created 2/13
220369
PK7500SF
Profile™Series 27" Built-In Double Convection Wall Oven
