GE JGB690SEFSS Manual

For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
All GE ranges are equipped
with an Anti-Tip device.
The installation of this
device is an important,
required step in the
installation of the range.

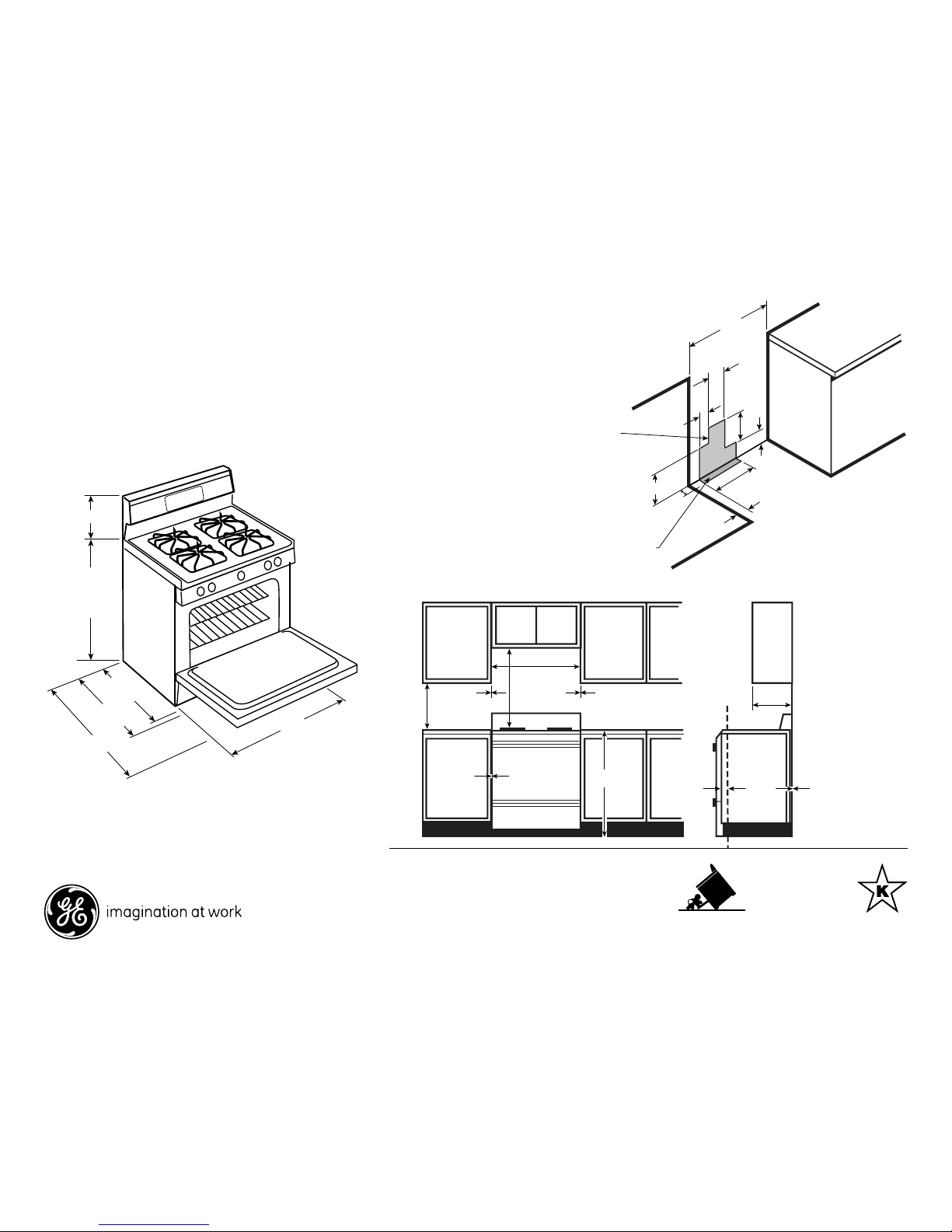

Dimensions and Installation Information (in inches)
Specification Created 6/13 330430
JGB690SEF
GE® 30" Free-Standing Gas Convection Range
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
All GE ranges are equipped
with an Anti-Tip device.
The installation of this
device is an important,
required step in the
installation of the range.
Minimum to
cabinets on
either side
of the range.
Minimum
clearance
to left wall
Minimum Minimum
clearance to
right wall
Maximum
depth for
cabinets above
countertops
To cabinets below cooktop
and at the range back
To cabinets
below
cooktop and
at the range
back
18"
3"
30"
30"
13"
6"
36"
0"
Front edge of
the range side
panel forward
from cabinet
0"
1/4"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
46 3/4"
29 1/4"
w/ handle
26 3/4"
w/o handle
30"
11 1/4"
36"
to
36 1/2"
Minimum to
cabinets on
either side
of the range.
Minimum
clearance
to left wall
Minimum Minimum
clearance to
right wall
Maximum
depth for
cabinets above
countertops
To cabinets below cooktop
and at the range back
To cabinets
below
cooktop and
at the range
back
18"
3"
30"
30"
13"
6"
36"
0"
Front edge of
the range side
panel forward
from cabinet
0"
1/4"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
46 3/4"
29 1/4"
w/ handle
26 3/4"
w/o handle
30"
11 1/4"
36"
to
36 1/2"
Minimum to
cabinets on
either side
of the range.
Minimum
clearance
to left wall
Minimum Minimum
clearance to
right wall
Maximum
depth for
cabinets above
countertops
To cabinets below cooktop
and at the range back
To cabinets
below
cooktop and
at the range
back
18"
3"
30"
30"
13"
6"
36"
0"
Front edge of
the range side
panel forward
from cabinet
0"
1/4"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
46 3/4"
29 1/4"
w/ handle
26 3/4"
w/o handle
30"
11 1/4"
36"
to
36 1/2"
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.

Features and Benefits
• 17,000 BTU Power Boil Burner - Delivers intense heat for fast boiling
• Center Oval Burner - Large oval fifth burner is ideal for griddle or
odd-size cookware
• Precise Simmer Burner - Delicate foods don’t burn with low,
even heat
• Self-Clean with Steam Clean Option - Clean your oven the way
you want
• Gas Convection Oven - Circulates heat for high-quality results
• Heavy-Cast, Continuous Grates - Allow for easy movement of pans
between burners
• 5.0 cu. ft. Oven Capacity - Cook more dishes at once
• Black Gloss Oven Interior - Enjoy a clean and sleek appearance
• Model JGB690SEFSS - Stainless steel
JGB690SEF
Specification Created 6/13 330430
JGB690SEF
GE® 30" Free-Standing Gas Convection Range
