GE Monogram ZV1050 User manual

Installation
Instructions
42" Island
Vent Hood
ZVI050
monogram.com

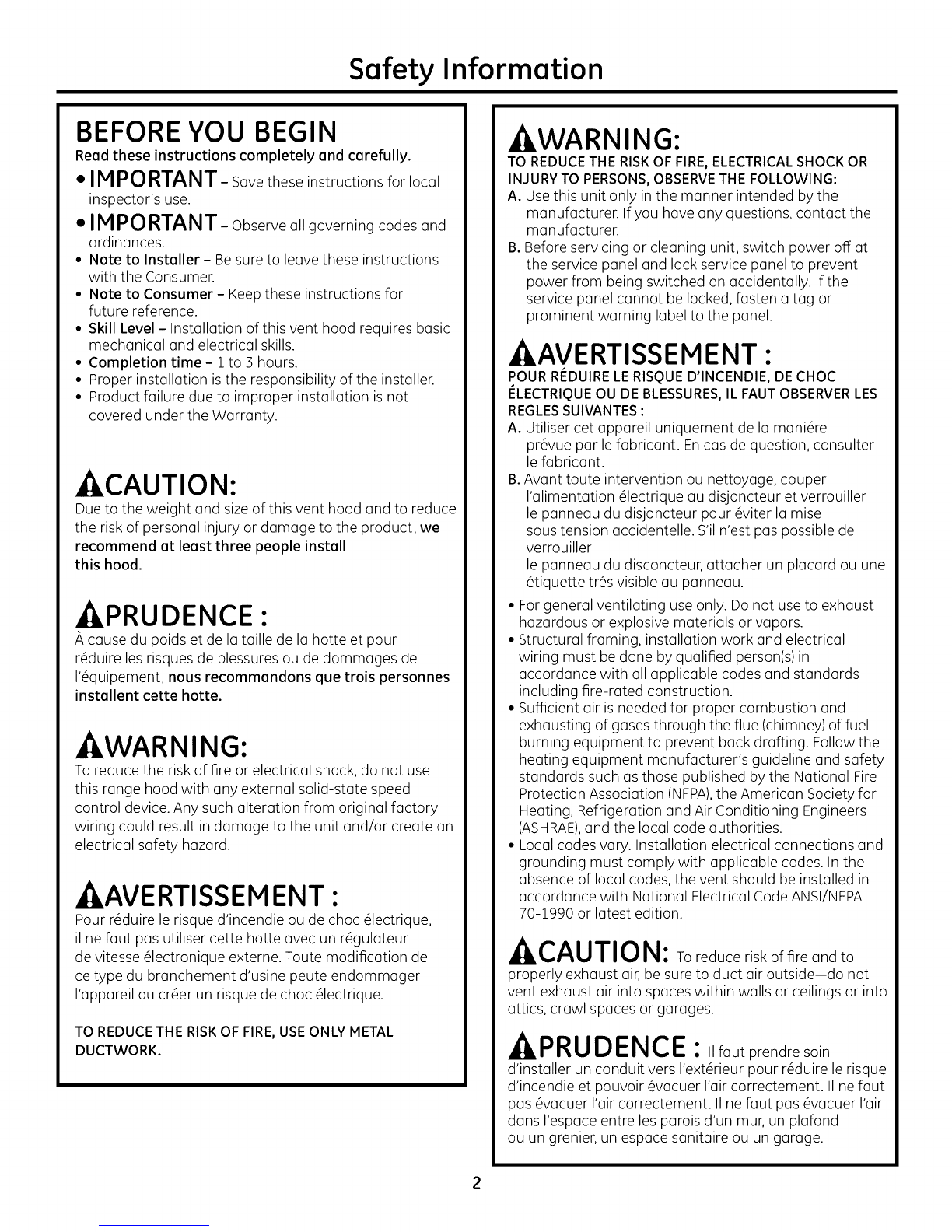

Safety Information
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•ImPO RTANT- savetheseinstructionsforlocal
inspector's use.
• IMPORTANT- Observe all governing codes and
ordinances.
• Note to Installer - Be sure to leave these instructions
with the Consumer.
• Note to Consumer - Keep these instructions for
future reference.
• Skill Level -Installation of this vent hood requires basic
mechanical and electrical skills.
• Completion time -i to 3 hours.
• Proper installation isthe responsibility of the installer.
• Product failure due to improper installation isnot
covered under the Warranty.
I CAUTION:
Due to the weight and size of this vent hood and to reduce
the risk of personal injury or damage to the product, we
recommend at least three people install
this hood.
. PRUDENCE :
A cause du poids et de la taille de la hotte et pour
r#duire les risques de blessures ou de dommages de
I'#quipement, nous recommandons que trois personnes
installent cette hotte.
I WARNING:
Toreduce the risk of fire or electrical shock, do not use
this range hood with any external solid-state speed
control device. Any such alteration from original factory
wiring could result in damage to the unit and/or create an
electrical safety hazard.
. AVERTISSEMENT :
Pour r6duire le risque d'incendie ou de choc 61ectrique,
il ne faut pas utiliser cette hotte avec un r#gulateur
de vitesse #lectronique externe. Toute modification de
ce type du branchement d'usine peute endommager
I'appareil ou cr#er un risque de choc #lectrique.
TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCTWORK.
_ WARNING:
TO REDUCETHE RISKOF FIRE,ELECTRICALSHOCKOR
INJURYTO PERSONS,OBSERVETHE FOLLOWING:
A. Usethis unit only in the manner intended by the
manufacturer. If you have any questions, contact the
manufacturer.
B. Before servicing or cleaning unit, switch power off at
the service panel and lock service panel to prevent
power from being switched on accidentally. If the
service panel cannot be locked, fasten a tag or
prominent warning label to the panel.
AVERTISSEMENT :
POUR RI_DUIRELERISQUED'INCENDIE, DECHOC
I_LECTRIQUEOU DE BLESSURES,IL FAUTOBSERVERLES
REGLESSUIVANTES:
A. Utiliser cet appareil uniquement de la mani#re
pr#vue par le fabricant. En cas de question, consulter
le fabricant.
B.Avant toute intervention ou nettoyage, couper
I'alimentation #lectrique au disjoncteur et verrouiller
le panneau du disjoncteur pour #viter la mise
sous tension accidentelle. S'il n'est pas possible de
verrouiller
le panneau du disconcteur, attacher un placard ou une
#tiquette tr6s visible au panneau.
• Forgeneral ventilating use only. Do not useto exhaust
hazardous or explosive materials or vapors.
• Structural framing, installation work and electrical
wiring must be done by qualified person(s)in
accordance with all applicable codes and standards
including fire-rated construction.
• Sufifcient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent back drafting. Follow the
heating equipment manufacturer's guideline and safety
standards such as those published by the National Fire
Protection Association (NFPA),the American Society for
Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE),and the local code authorities.
• Local codes vary. Installation electrical connections and
grounding must comply with applicable codes. Inthe
absence of local codes, the vent should be installed in
accordance with National Electrical Code ANSI/NFPA
70-1990 or latest edition.
- CAUTION: TOreduceriskoffireandto
properly exhaust air, be sure to duct air outside-do not
vent exhaust air into spaces within walls or ceilings or into
attics, crawl spaces or garages.
- PRUDENCE : IIfaut prendre soin
d'installer un conduit vers I'ext#rieur pour r#duire le risque
d'incendie et pouvoir #vacuer I'air correctement. II ne faut
pas #vacuer I'air correctement. IIne faut pas 6vacuer I'air
dans I'espace entre les parois d'un mur, un plafond
ou un grenier, un espace sanitaire ou un garage.

Design Information
CONTENTS
Design Information
Product Dimensions ..............................................................................3
Duct Cover Accessories ..................................................................3,4
Determine Installation Height .........................................................4
Advance Planning
Tools and Haterials Required...........................................................5
Power Supply............................................................................................5
Duct Fittings ..............................................................................................6
Installation Instructions

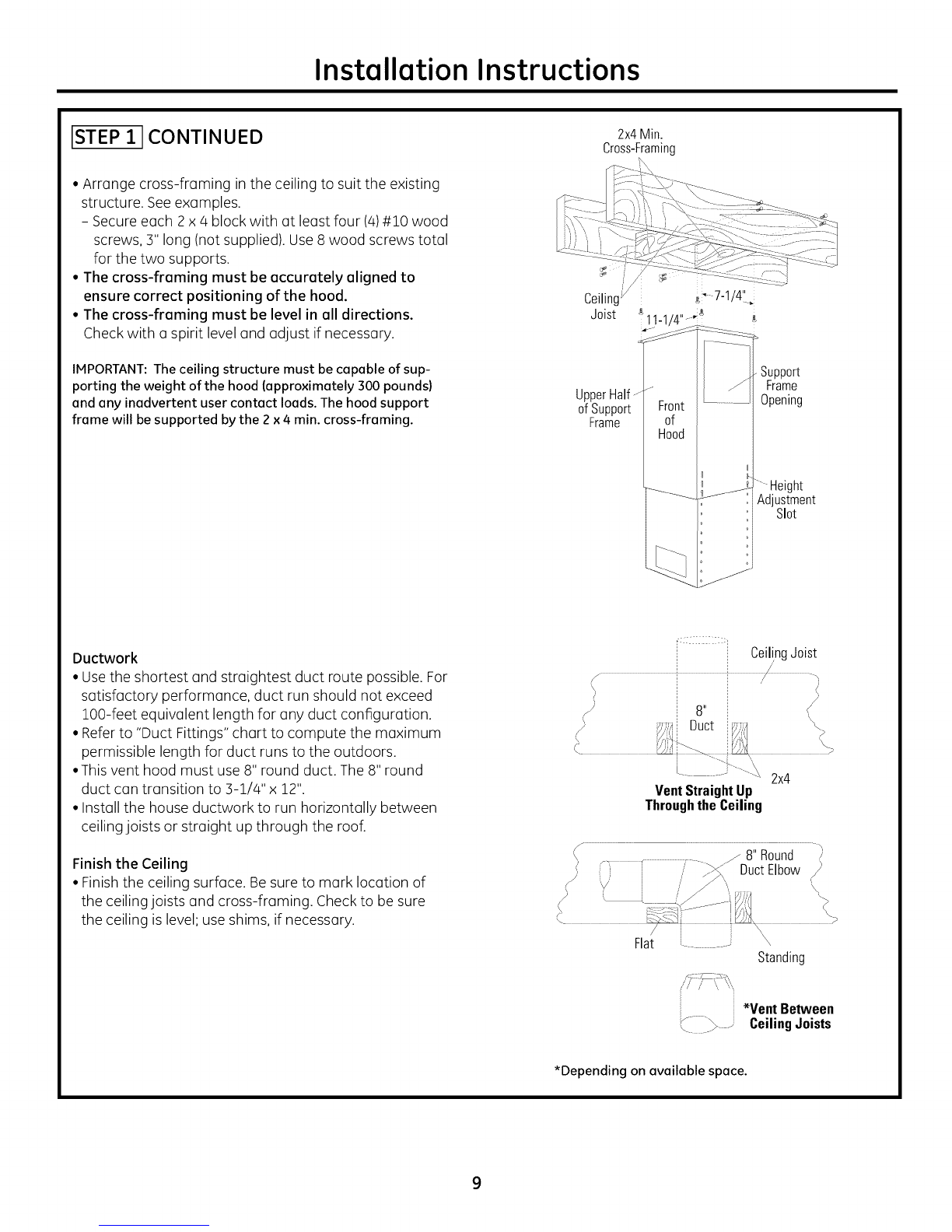

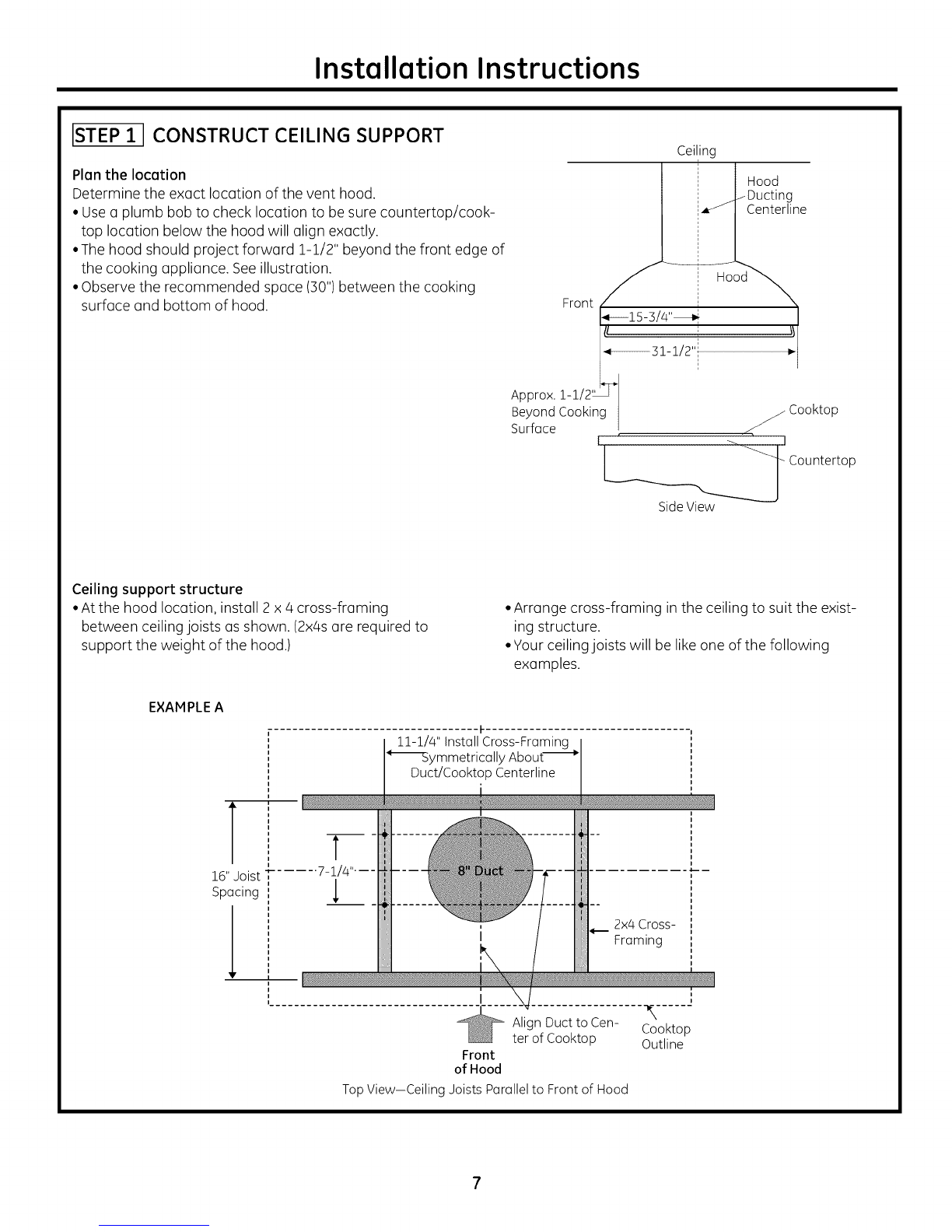

Step l, Construct Ceiling Support ..............................................7-9

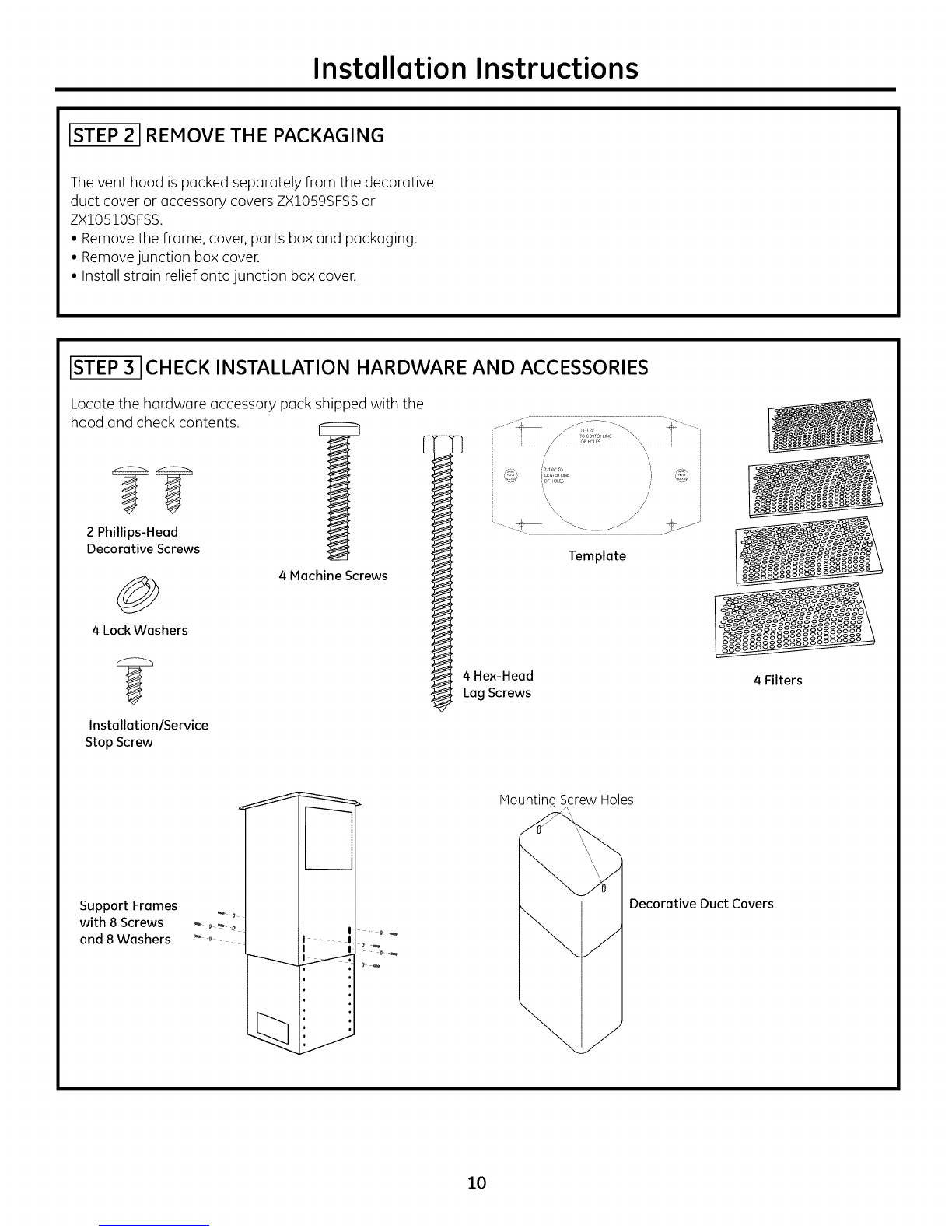

Step 2, Remove Packaging ..............................................................l0
Step 3, Check Installation Hardware ..........................................lO

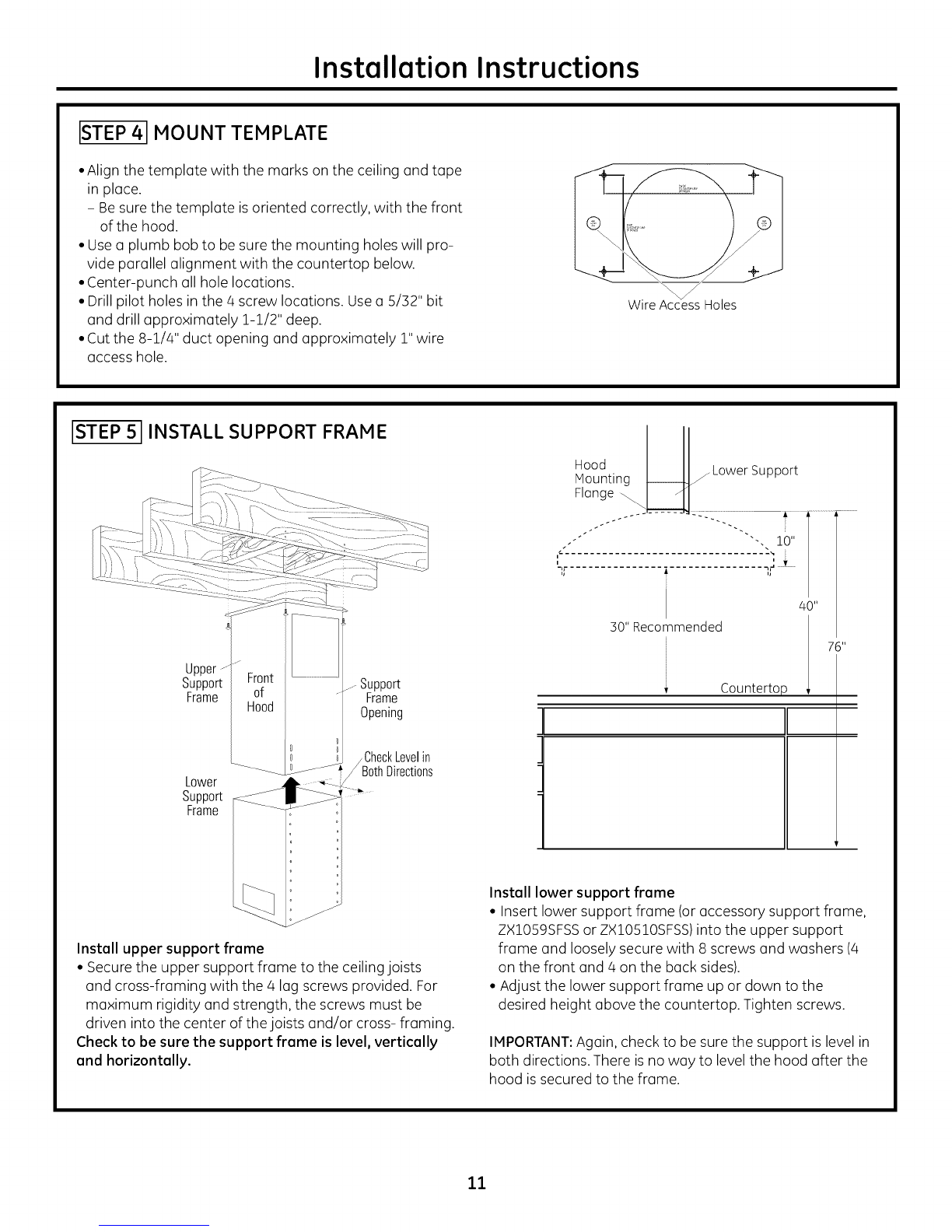

Step 4, Mount Template....................................................................ll
Step S,Install Support Frame ........................................................ll

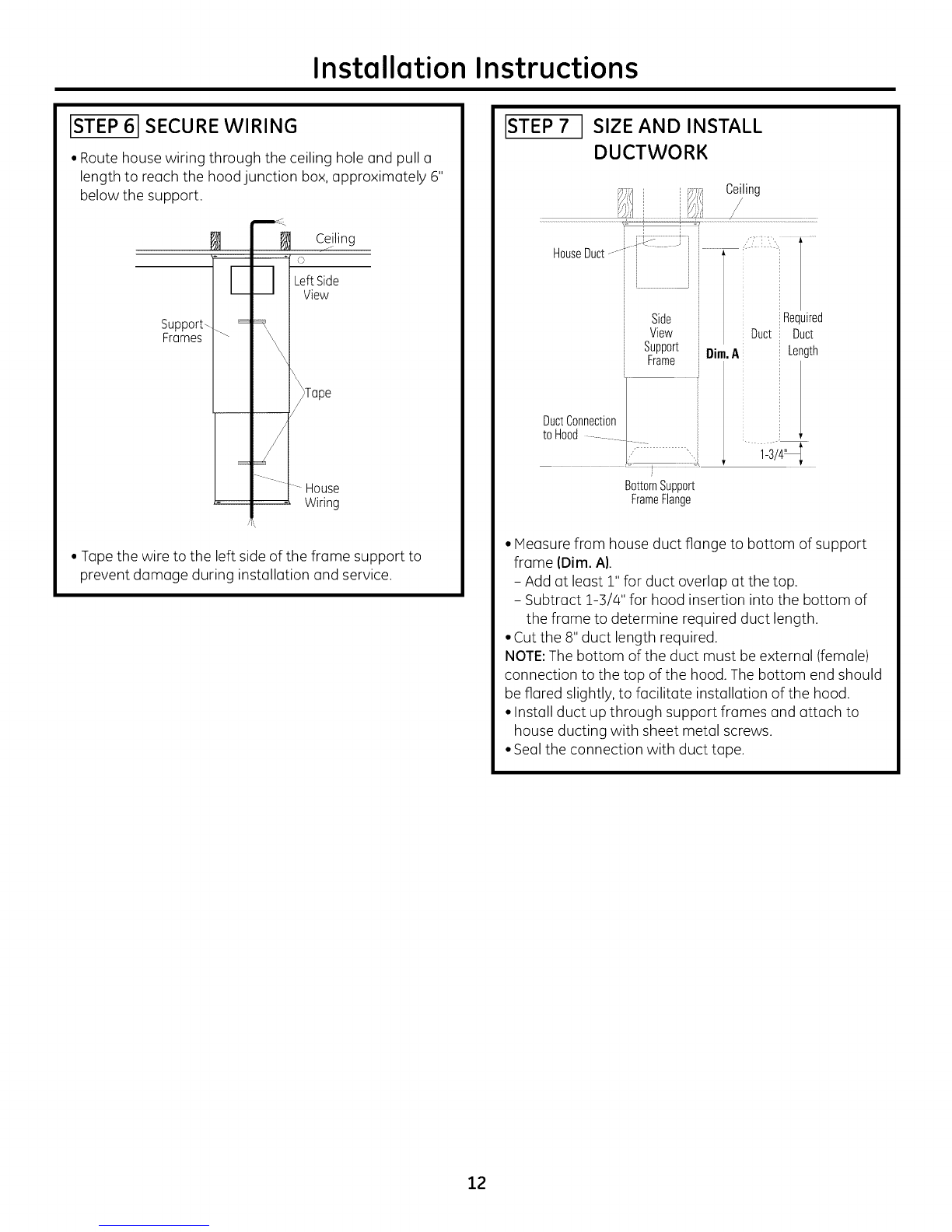

Step 6, Secure Wiring.........................................................................12
Step 7, Sizeand Install Ductwork .................................................12

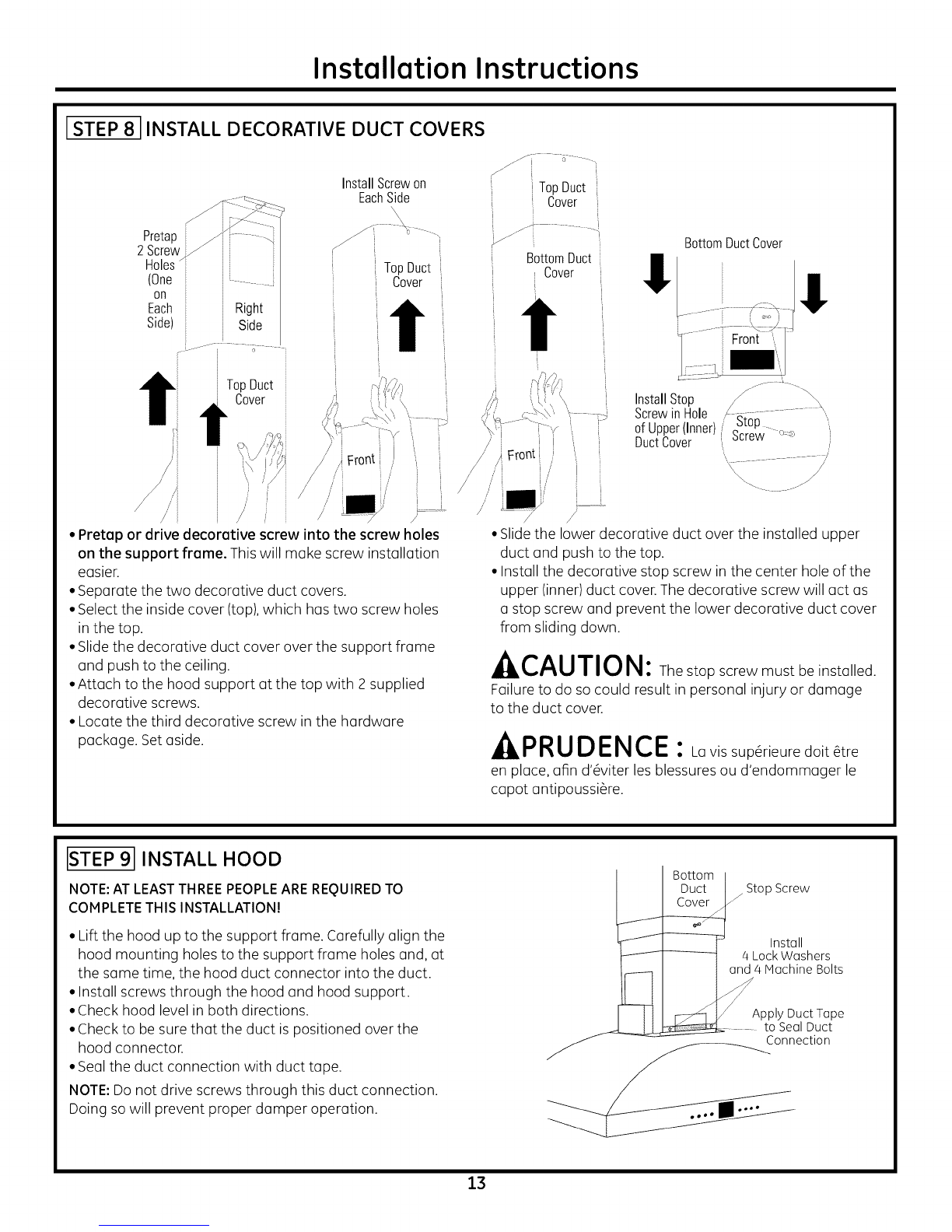

Step 8, Install Decorative Duct Covers ......................................13
Step 9, Install Hood.............................................................................13

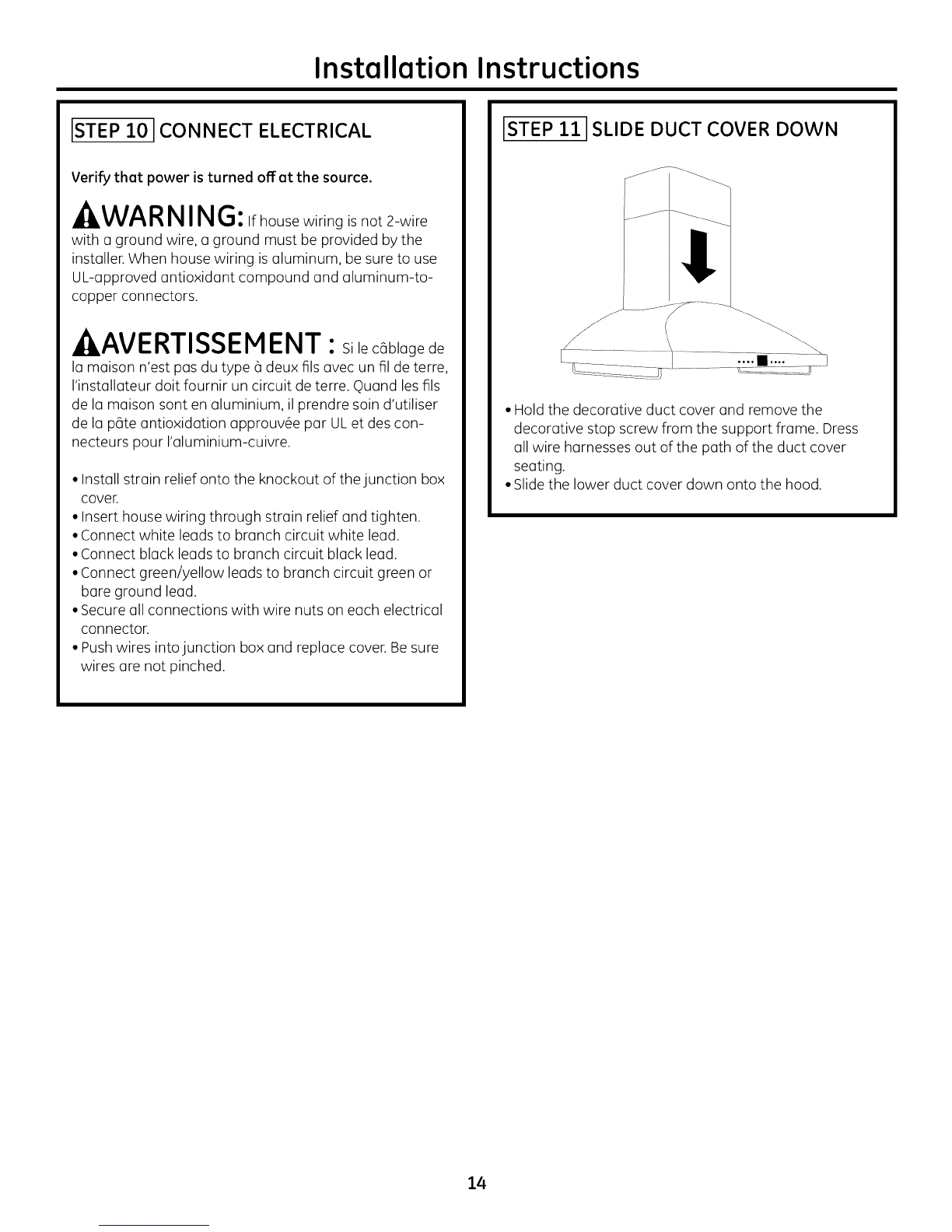

Step 10, Connect Electrical .............................................................14
Step ll, Slide Duct Cover Down ...................................................14

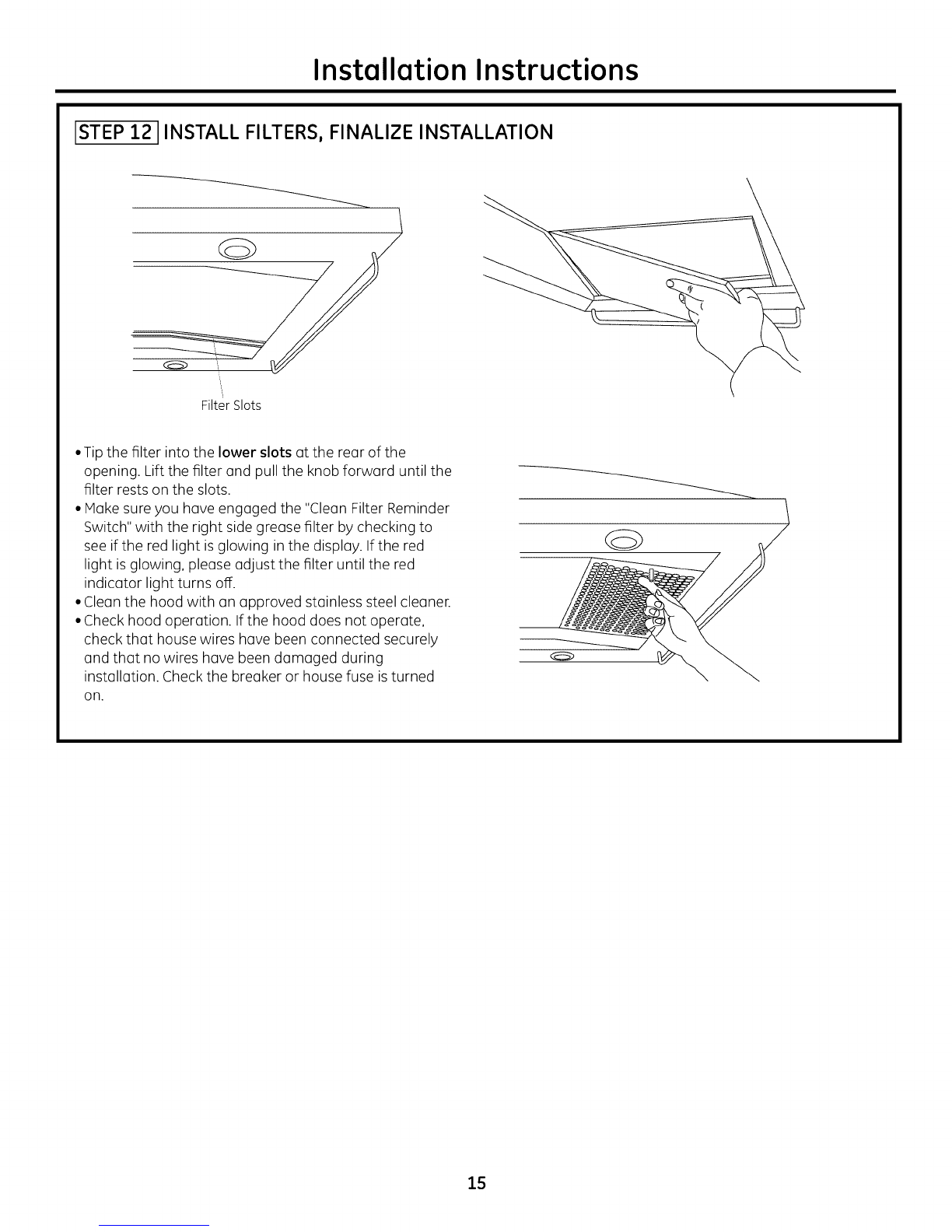

Step 12, Install Filters, Finalize Installation ..............................15
PRODUCT DIMENSIONS
This vent hood isdesigned to be used in vented ceiling-
mounted installations. It can be installed over any Mono-
gram cooktop or range, including Professional models.
f
*Height
to CeiIing
10"
l
DUCT COVER ACCESSORIES
A Duct Cover Accessory may be required for your hood
installation height. Order accessory duct covers for 9-ft.
and 10-ft. ceilings.
Z×1059SFSS- For 9-ft. ceiling height
This kit includes a decorative duct cover and support
frame to reach a 9-ft. ceiling height.
Z×10510SFSS- For 10-ft. ceiling height
This kit includes a decorative duct cover and support
frame to reach a 10-ft. ceiling height.
*20" to an 8-ft. ceiling using supplied duct cover
32" for 9-ft. ceiling using Z×1059SFSSAccessory
44" for 10-ft. ceiling using Z×10510SFSSAccessory
This vent hood is supplied with a decorative duct cover
to reach 8-ft. ceiling height, or between 7'11" and 8T'.

Design Information
DETERMINE INSTALLATION HEIGHT
i_1 ........
*30"
Recommended
i I
o
o
36" Min.
o
o
o
o
*9-ft. to lO-ft, ceilings may be 25-1/2" to 30" clearance.
The distance between the cooking surface and the bottom
of the hood must be at least 25-1/2". The 30" recommended
installation height, above the standard 36" countertop, will
ensure duct cover fit to the ceiling. For 9-ft. and lO-ft, ceil-
ing heights, the hood may be lowered to 25-112" over the
cooking surface.
• When installing the Island Hood above a Monogram Profes-
sional Range or Rangetop, installation clearance must be
at least 30".
IMPORTANT: Clearances may vary due to type of cooking
product and local codes. Check with local inspectors to be
sure standard is applicable.
DUCT COVER DIMENSIONS
ZV1050 Duct Cover Dimensions
A B
ZVl050 11-112" 12"
ZX1059 19" 20"
ZXl0510 25" 26"
DUCT COVER ACCESSORIES
Order the accessory at the same time asthe vent hood
and have on-site before installation begins.
Usethis chart to accurately determine the need for a Duct
Cover Accessory.
Actual
Ceiling Height Duct Cover
7'11" Supplied
8'0" Supplied
8'1" Supplied
8'2" ZX1059SFSS
8'3" Z×1059SFSS
8'4" ZX1059SFSS
8'5" ZX1059SFSS
8'6" ZX1059SFSS
8'7" ZX1059SFSS
8'8" ZX1059SFSS
8'9" ZX1059SFSS
8'10" ZX1059SFSS
8'ii" Z×IO59SFSS
9'0" ZX1059SFSS
9'1" ZX10510SFSS
9'2" ZX10510SFSS
9'3" ZX10510SFSS
9'4" ZX10510SFSS
9'5" ZX10510SFSS
9'6" ZX10510SFSS
9'7" ZX10510SFSS
9'8" ZX10510SFSS
9'9" ZX10510SFSS
9'10" ZX10510SFSS
9'11" ZX10510SFSS
10'0" ZX10510SFSS
Installation Heights
*Possible Hood
Installation Height
29"
30"
30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
25-112" to 30"
4

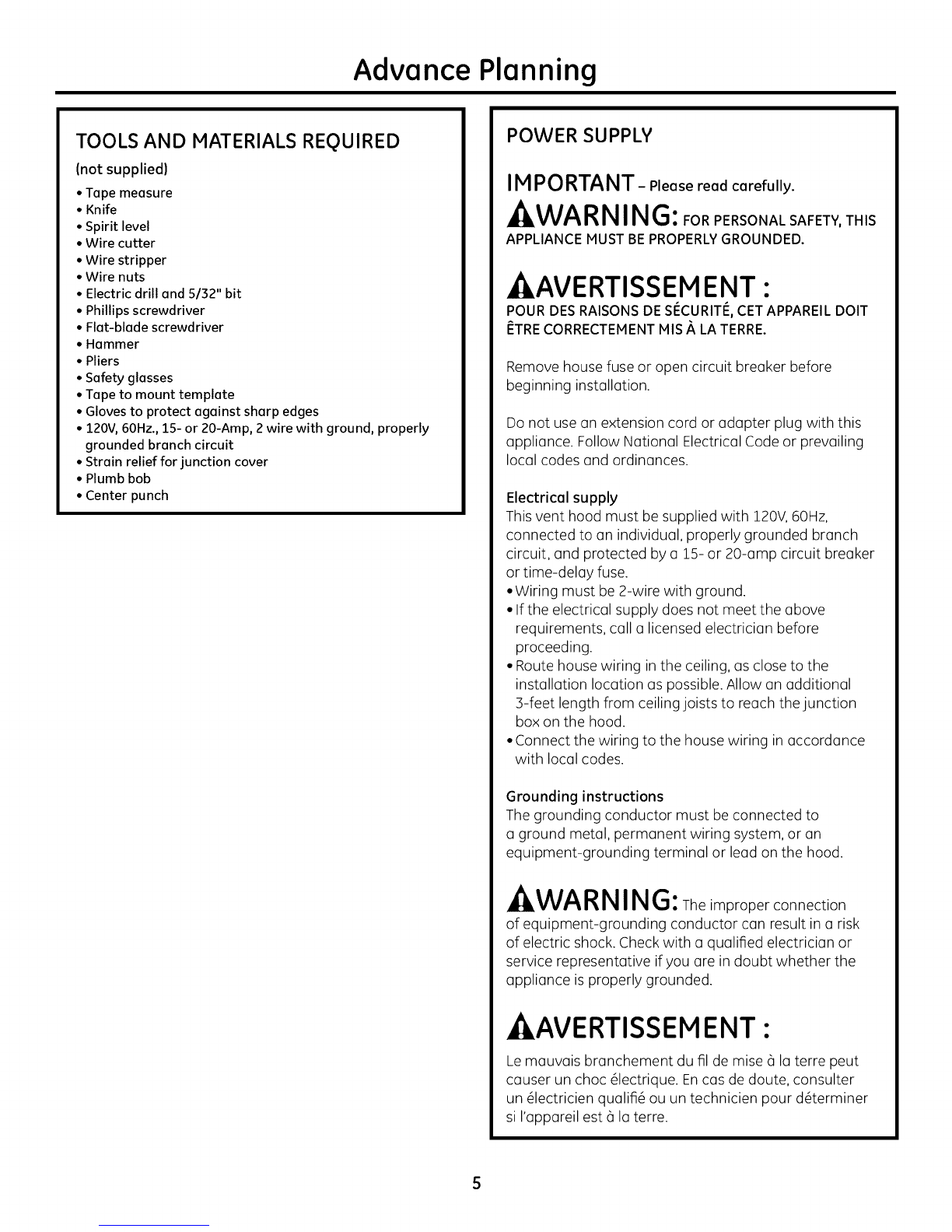

Advance Planning
TOOLS AND MATERIALS REQUIRED
(not supplied)
• Tape measure
• Knife
• Spirit level
• Wirecutter
• Wire stripper
• Wire nuts
• Electricdrill and 5/32" bit
• Phillipsscrewdriver
• Flat-blade screwdriver
• Hammer
• Pliers
• Safetyglasses
• Tapeto mount template
• Glovesto protect against sharp edges
• 120V,60Hz.,15-or 20-Amp,2 wire with ground, properly
grounded branch circuit
• Strain relieffor junction cover
• Plumb bob
• Center punch
POWER SUPPLY
IMPORTANT- Pleasereadcarefully.
A
AWARN ING:FORPERSONALSAFETY,THIS
APPLIANCEMUSTBEPROPERLYGROUNDED.
AVERTISSEMENT:
POUR DESRAISONSDESI_CURITI_,CETAPPAREILDOIT
ETRECORRECTEMENTMIS#, LA TERRE.
Remove house fuse or open circuit bre(]ker before
beginning instollotion.
Do not use on extension cord or odopter plug with this
opplionce. Follow Notionol Electricol Code or prevoiling
Iocol codes ond ordinonces.
Electrical supply
This vent hood must be supplied with 120V,60Hz,
connected to on individuol, properly grounded bronch
circuit, ond protected by o 15- or 20-omp circuit breoker
or time-deloy fuse.
• Wiring must be 2-wire with ground.
• If the electricol supply does not meet the obove
requirements, coil o licensed electricion before
proceeding.
• Route house wiring in the ceiling, os close to the
instollotion Iocotion os possible. Allow on odditionol
3-feet length from ceiling joists to reoch the junction
box on the hood.
• Connect the wiring to the house wiring in occordonce
with Iocol codes.
Grounding instructions
The grounding conductor must be connected to
o ground metol, permonent wiring system, or on
equipment-grounding terminol or leod on the hood.
Am^nkll kl/"
JI_VV/'_ I%1_11I_1_: The improper connection
of equipment-grounding conductor con result in o risk
of electric shock. Check with o quolified electricion or
service representotive if you ore in doubt whether the
opplionce is properly grounded.
AkAVERTISSEMENT:
Le m(]uvois br(]nchement du fil de mise 6 Io terre peut
couser un choc 61ectrique.En cos de doute, consulter
un 61ectricien quolifi6 ou un technicien pour d6terminer
si I'opporeil est (3Io terre.

Advance Planning
DUCT FITTINGS
Usethis chart to compute maximum
permissible lengths for duct runs to
outdoors.
NOTE: Do not exceed maximum permissible
equivalent lengths!
Maximum duct length: 100 ft. for range hoods.
Flexible ducting:
If flexible metal ducting is used, all
the equivalent feet values in the table
should be doubled. The flexible metal
duct should be straight and smooth and
extended as much as possible.
Do NOT use flexible plastic ducting.
NOTE:Any home ventilation system, such as a
ventilation hood, may interrupt the proper flow of
combustion air and exhaust required by fireplaces,
gas furnaces, gas water heaters and other naturally
vented systems. To minimize the chance of inter-
ruption of such naturally vented systems, follow the
heating equipment manufacturer's guidelines and
safety standards such as those published by NFPA
and ASHRAE.
Equivalent
Duct Piece Dimensions Length*
Round, :1ft.
straight (per foot
length)
1 ft.
3-1/4" x 12" (per foot
straight length)
(_ 90° elbow 17 ft.
45 °elbow lO ft.
3-1/4" x 12"
90° elbow 43 ft.
3 1/4" x 12"
45 °elbow 26 ft.
3-1/4" x 12"
90° fiat elbow 102 ft.
__ 8" round to3 1/4" x 12" transition 2 ft.
_,_. 3 1/4" x 12"to 8" round transition 5 ft.
(__ 8" round
to 3 1/4" x 12"
transition 90° elbow 6 ft.
__ 3 1/4" x 12" to 8"
round transition 90° elbow 13 ft.
(_ Round
wall cap
with damper 32 ft.
31/4" x 12" wall cap
with damper 75 ft.
(_ Round
roof cap /4/4ft.
Quantity
Used
*Actuallengthofstraightductplusductfittingequivalent.Equivalent
lengthofductpiecesarebasedonactualtestsconductedbyGE
EvaluationEngineeringandreflectrequirementsforgoodventing
performancewithanyventilationhood.
Total Duct Run
Total
Equivalent
Length

Installation Instructions
ISTEP 11 CONSTRUCT CEILING SUPPORT
Plan the location
Determine the exact location of the vent hood.
• Use a plumb bob to check location to be sure countertop/cook-
top location below the hood will align exactly.
• The hood should project forward 3_-3_/2"beyond the front edge of
the cooking appliance. See illustration.
• Observe the recommended space (30'1 between the cooking
surface and bottom of hood.
Ceiling
___ _ eH°°d
DUnC_inrgne
Front f"
I---1s-3/4"_ I
// \/
Approx. 11/2''1_31-1/2''i]_-----
II -_ I
_ Countertop
Ceiling support structure
• At the hood location, install 2 x 4 cross-framing
between ceiling joists as shown. (2x4s are required to
support the weight of the hood.)
• Arrange cross-framing in the ceiling to suit the exist-
ing structure.
• Your ceiling joists will be like one of the following
examples.
EXAMPLE A
T
16" Joist ...... 7-1/4"
Spacing
I
11-1/4"Install Cross-Framing
_Symmetricall7 About -_
Duct/Cooktop Centerline
2x4 Cross-
Framing
Align Duct to Cen-
ter of Cooktop
Front
of Hood
Top View--Ceiling Joists Parallel to Front of Hood
Cooktop
Outline

Installation Instructions
[STEP 1 CONSTRUCT CEILING SUPPORT (cont.)
EXAMPLE B
16" Joist
SpGcing
4
-i/4" Instoll Cross-Frumi
_-gymmetricully About_
Duct/Cooktop Centerline
7-1/4"-
2x4 Cross-
Framing
\
Align Duct to Cooktop
Center of Cooktop Outline
Front
of Hood
Top View--Ceiling Joists Run Perpendicular to Front of Hood
EXAMPLE C
ii-i/4"Instoll
Cross-Froming
Symmetricolly About
Duct/Cooktop Centerlin,
2x4 Cross-
Froming
T
16" Joist
Spacing
-\
Front
of Hood
Align Duct to \
Center of Cooktop Cooktop
Outline
Top View--Ceiling Joists at Angle with Front of Hood

Installation Instructions
ISTEP11CONTINUED
• Arrange cross-framing inthe ceiling to suit the existing
structure. Seeexamples.
- Secure each 2 x 4 block with at least four (4)#10 wood
screws, Y' long (not supplied). Use 8 wood screws total
for the two supports.
•The cross-framing must be accurately aligned to
ensure correct positioning of the hood.
• The cross-framing must be level in all directions.
Checkwith a spirit level and adjust if necessary.
IMPORTANT: The ceiling structure must be capable of sup-
porting the weight of the hood (approximately 300 pounds)
and any inadvertent user contact loads. The hood support
frame will be supported by the 2 x 4 min. cross-framing.
2x4 Min.
Cross-Framing
Ceilingi/_ 7-1/411_.
.i&
Joist _11-1/4"--_ .
-- '_J _| Frame
UpperHalf..... Front I .............]0penmg
ofSupport
Frame oHof I /
"--_-_ _i _ 1""Height
IAdj,]toTant
Ductwork
•Usethe shortest and straightest duct route possible. For
satisfactory performance, duct run should not exceed
Z00-feet equivalent length for any duct configuration.
• Referto "Duct Fittings" chart to compute the maximum
permissible length for duct runs to the outdoors.
• This vent hood must use 8" round duct. The 8" round
duct can transition to 3-1/4" x Z2".
• Install the house ductwork to run horizontally between
ceiling joists or straight up through the roof.
Finish the Ceiling
• Finishthe ceiling surface. Besure to murk locution of
the ceiling joists and cross-framing. Check to be sure
the ceiling is level; use shims, if necessary.
J
F
Ceil!ngJoist
11
.......... """'\ 2x4
Vent Straight Up
Throughthe Ceiling
\
Standing
'_ '.... *VentBetween
CeilingJoists
*Depending on available space.

Installation Instructions
[STEP 2] REMOVE THE PACKAGING
The vent hood is packed separately from the decorative
duct cover or accessory covers ZX]O59SFSS or
ZXI_O5I_OSFSS.
• Remove the frame, cover, parts box and packaging.
• Remove junction box cover.
• Install strain relief onto junction box cover.
ISTEP 3 ICHECK INSTALLATION HARDWARE AND ACCESSORIES
Locate the hardware accessory pack shipped with the
hood and check contents.
i[iF
2 Phillips-Head
Decorative Screws
4 Lock Washers
[
4 Machine Screws
iT
Installation/Service
Stop Screw
]
4 Hex-Head
Lag Screws
Template
4 Filters
Support Frames
with 8 Screws ~ o_:_
and 8 Washers ~ 0
Mounting Screw Holes
Decorative Duct Covers
10

Installation Instructions
ISTEP41 MOUNT TEMPLATE
• Align the template with the marks on the ceiling and tape
in place.
- Besure the template is oriented correctly, with the front
of the hood.
• Use a plumb bob to be sure the mounting holes will pro-
vide parallel alignment with the countertop below.
• Center-punch all hole locations.
• Drill pilot holes in the/4 screw locations. Use a 5/32" bit
and drill approximately i-i/2" deep.
• Cut the 8-1/4" duct opening and approximately l" wire
access hole.
Wire Ace ._ssHoles
ISTEP 51INSTALL SUPPORT FRAME
Upper....
Support
Frame Frame
Opening
Lower
Support
Frame
_CheckLevelin
/BothDirections
Install upper support frame
• Secure the upper support frame to the ceiling joists
and cross-framing with the 4 lag screws provided. For
maximum rigidity and strength, the screws must be
driven into the center of the joists and/or cross- framing.
Check to be sure the support frame is level, vertically
and horizontally.
Hood.... I I _LowerSupport
MUUIILIIIg
Flange
--2 ............................... "-..
i i
30" Recommended
/40"
76"
Countertop
][ 1
Install lower support frame
• Insert lower support frame (or accessory support frame,
ZXlO59SFSSor ZXIO51OSFSS)into the upper support
frame and loosely secure with 8 screws and washers (/4
on the front and/4 on the back sides).
• Adjust the lower support frame up or down to the
desired height above the countertop. Tighten screws.
IMPORTANT: Again, check to be sure the support is level in
both directions. There is no way to level the hood after the
hood is secured to the frame.
11

Installation Instructions
[STEP 6 SECURE WIRING
• Route house wiring through the ceiling hole and pull a
length to reach the hood junction box, approximately 6"
below the support.
B_
l__
Support- '-
Frames _ \ \\
iling
rh
I Left Side
View
\
,_Tape
- House
Wiring
• Tape the wire to the left side of the frame support to
prevent damage during installation and service.
STEP 7 SIZE AND INSTALL
DUCTWORK
_!,:,:,it ;f ;,;, CeilingiX',',
Support
Frame
L
DuctConnection ii
toHood........ [ :::
i
BottomSupport
FrameFlange
Dim.A! Length
• Measure from house duct flange to bottom of support
frame (Dim. A).
- Add at least 1"for duct overlap at the top.
- Subtract 1-3/4" for hood insertion into the bottom of
the frame to determine required duct length.
• Cut the 8" duct length required.
NOTE:The bottom of the duct must be external (female)
connection to the top of the hood. The bottom end should
be flared slightly, to facilitate installation of the hood.
• Install duct up through support frames and attach to
house ducting with sheet metal screws.
• Seal the connection with duct tape.
12

Installation Instructions
lSTEP81INSTALLDECORATIVE DUCT COVERS
Pretap
2Screwy i
Hoes J
(One
on
Each
Side)
InstallScrewon
EachSide
I
/i
/
/,,i
/
Right
Side
Top Duct
Cover
J' /i
i
TopDuct ';
Cover
i TopDuct
Cover
BottomDuctCover
BottomDuctCover ! !
, [- ;Front ........[
InstallStop _ ............
ScrewinHole ,.._Stopi_ ",
_, I ofUpper(Inner)f Screw :_:_
i i ', DuctCover
Fronti
/ii I /
ii i j i /
/// m_ /, i " ......
/_/
• Slide the lower decorative duct over the instolled upper
duct and push to the top.
• Install the decorative stop screw in the center hole of the
upper (inner) duct cover. The decorative screw will act as
a stop screw and prevent the lower decorative duct cover
from sliding down.
_4LCAUTION: The stop screw must be installed.
Failure to do so could result in personal injury or damage
to the duct cover.
• Pretep or drive decoretive screw into the screw holes
on the support frame. This will make screw installation
easier.
• Separate the two decorative duct covers.
• Select the inside cover (top),which has two screw holes
in the top.
• Slide the decorative duct cover over the support frame
and push to the ceiling.
• Attach to the hood support at the top with 2 supplied
decorative screws.
• Locate the third decorative screw in the hardware
package. Setaside. ._}i,PRU D EN CE : havissup6rieuredolt_tre
en place, (]fin d'6viter les blessures ou d'endommager le
capot antipoussi_re.
ISTEP91INSTALL HOOD
NOTE:AT LEASTTHREEPEOPLEAREREQUIREDTO
COMPLETETHISINSTALLATION!
•Lift the hood up to the support frame. Carefully align the
hood mounting holes to the support frame holes and, at
the same time, the hood duct connector into the duct.
• Install screws through the hood and hood support.
• Check hood level in both directions.
• Check to be sure that the duct is positioned over the
hood connector.
• Seal the duct connection with duct tape.
NOTE:Do not drive screws through this duct connection.
Doing so will prevent proper damper operation.
Bottom
Duct / Stop Screw
Cover
Install
/4Lock Washers
and/4 Machine Bolts
Apply Duct Tape
to Seal Duct
Connection
13

Installation Instructions
STEP 10 CONNECT ELECTRICAL
Verify thot power is turned off ot the source.
- WA RNING:,fhousewiring is not 2-wire
with a ground wire, a ground must be provided by the
installer. When house wiring isaluminum, be sure to use
UL-approved antioxidant compound and aluminum-to-
copper connectors.
__AVERTISSEM ENT :si,ecab,agede
lamaisonn'estpasdu type0 deuxillsavecun fildeterre,
I'installateur doit fournir un circuit de terre. Quand lesills
de la maison sont en aluminium, il prendre soin d'utiliser
de la pate antioxidation approuv6e par ULet des con-
necteurs pour I'aluminium-cuivre.
• Install strain relief onto the knockout of the junction box
cover.
• Insert house wiring through strain relief and tighten.
• Connect white leads to branch circuit white lead.
• Connect block leads to branch circuit block lead.
• Connect green/yellow leads to branch circuit green or
bare ground lead.
• Secure all connections with wire nuts on each electrical
connector.
• Pushwires into junction box and replace cover. Be sure
wires are not pinched.
[STEP 11 SLIDE DUCT COVER DOWN
Y
J
• Hold the decorative duct cover and remove the
decorative stop screw from the support frame. Dress
all wire harnesses out of the path of the duct cover
seating.
• Slide the lower duct cover down onto the hood.
14

Installation Instructions
STEP 12 INSTALL FILTERS, FINALIZE INSTALLATION
FilterSlots
•Tip the filter into the lower slots at the rear of the
opening. Lift the filter and pull the knob forward until the
filter rests on the slots.
• Make sure you have engaged the "Clean Filter Reminder
Switch" with the right side grease filter by checking to
see if the red light is glowing in the display. If the red
light isglowing, please adjust the filter until the red
indicator light turns off.
• Clean the hood with an approved stainless steel cleaner.
• Check hood operation. If the hood does not operate,
check that house wires have been connected securely
and that no wires have been damaged during
installation. Check the breaker or house fuse isturned
on.
15

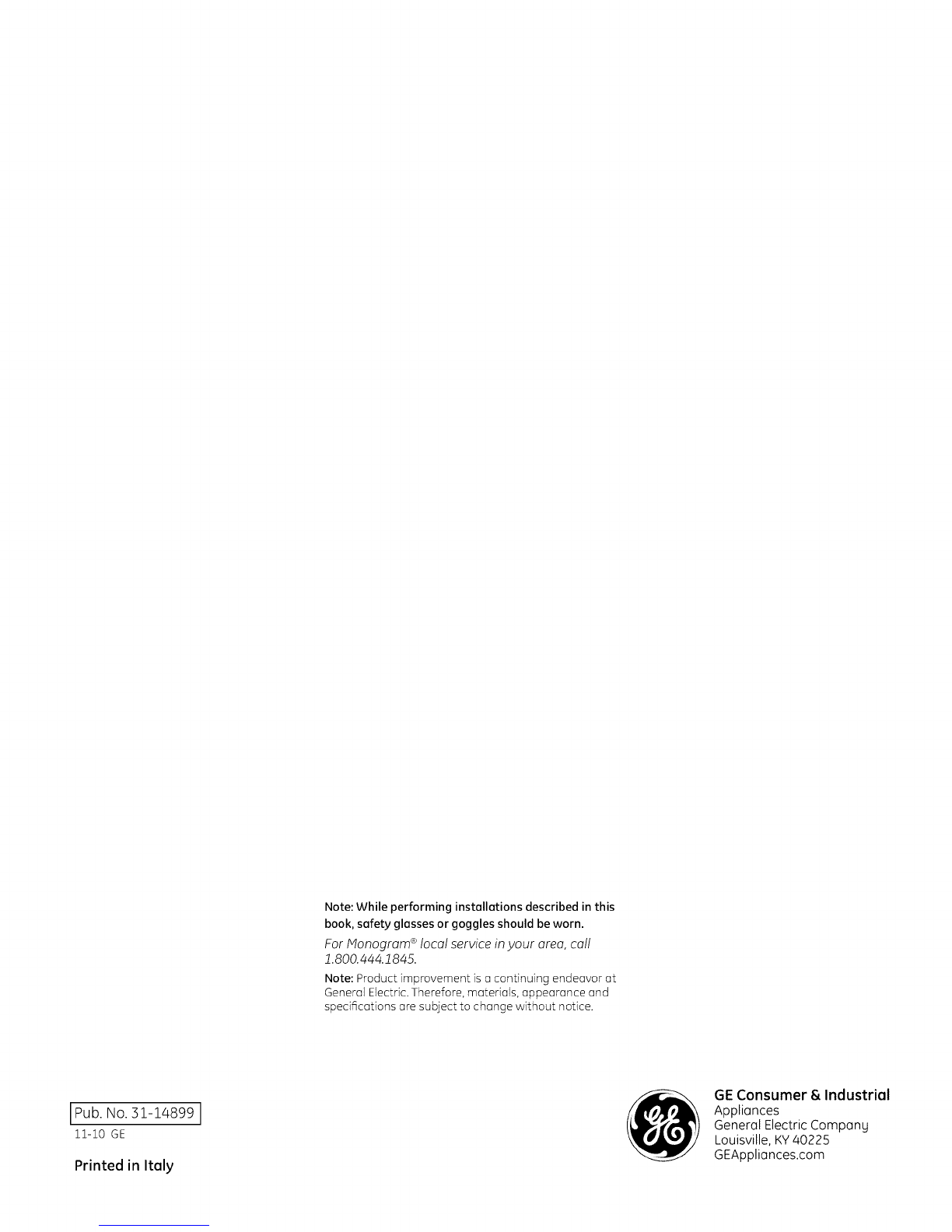

Note: While performing installations described in this
book, safety glasses or goggles should be worn.
For Monogram ®local service in your area, call
1.800.444.1845.
Note: Product improvement is a continuing endeavor at
General Electric. Therefore, materials, appearance and
specifications are subject to change without notice.
I Pub. No. 31-14899 I
ii-i0GE
Printed in Italy
GE Consumer & Industrial
Applic]nces
General Electric Compong
Louisville, KY 40225
GEApplionces.com
