GE JVX3240 Original instructions

Write the model and serial
numbers here:
Model #_________________
Serial # _________________
You can find them on a label
on the inside of the hood.
ESPAÑOL
Para consultar una version en
español de este manual de
instrucciones, visite nuestro sitio de
internet GEAppliances.com.
RANGE HOODS
49-80839-1 10-18 GEA
SAFETY INFORMATION ...........3
USING THE HOOD
Controls ................................4
CARE AND CLEANING
Filters ..................................5
Surfaces ................................6
Lights ..................................6
INSTALLATION INSTRUCTIONS ..7
TROUBLESHOOTING TIPS........ 17
LIMITED WARRANTY ............. 18
ACCESSORIES ..................... 19
CONSUMER SUPPORT ............20
JVX3240
JVX3300
OWNER’S MANUAL &
INSTALLATION
INSTRUCTIONS
GE is a trademark of the General Electric Company. Manufactured under trademark license.

249-80839-1
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances
product, and we think you will too. Among other things, registration of your appliance ensures that we
can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the
Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration
card included in the packing material.

49-80839-1 3
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
READ AND SAVE THESE INSTRUCTIONS
WARNING TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
B. Before servicing or cleaning unit, switch power off
at service panel and lock the service disconnecting
means to prevent power from being switched
on accidentally. When the service disconnecting
means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the
service panel.
C. Do not use this unit with any solid-state speed
control device.
D. This unit must be grounded.
WARNING TO REDUCE THE RISK OF A
RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
medium settings.
B. Always turn hood ON when cooking at high heat or
when flambéing food (i.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not
be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware
appropriate for the size of the surface element.
WARNING TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING*:
A. SMOTHER FLAMES with a close-fitting lid, cookie
sheet or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do
not go out immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN—You may be
burned.
C. DO NOT USE WATER, including wet dishcloths or
towels—a violent steam explosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher,
and you already know how to operate it.
2. The fire is small and contained in the area where
it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety” published by NFPA.
CAUTION FOR GENERAL VENTILATING USE
ONLY. DO NOT USE TO EXHAUST HAZARDOUS
OR EXPLOSIVE MATERIALS AND VAPORS.
How to Remove Protective Shipping Film and Packaging Tape
Carefully grasp a corner of the protective shipping film
with your fingers and slowly peel it from the appliance
surface. Do not use any sharp items to remove the film.
Remove all of the film before using the appliance for the
first time.
To assure no damage is done to the finish of the
product, the safest way to remove the adhesive from
packaging tape on new appliances is an application of
a household liquid dishwashing detergent. Apply with a
soft cloth and allow to soak.
NOTE: The adhesive must be removed from all parts.

449-80839-1

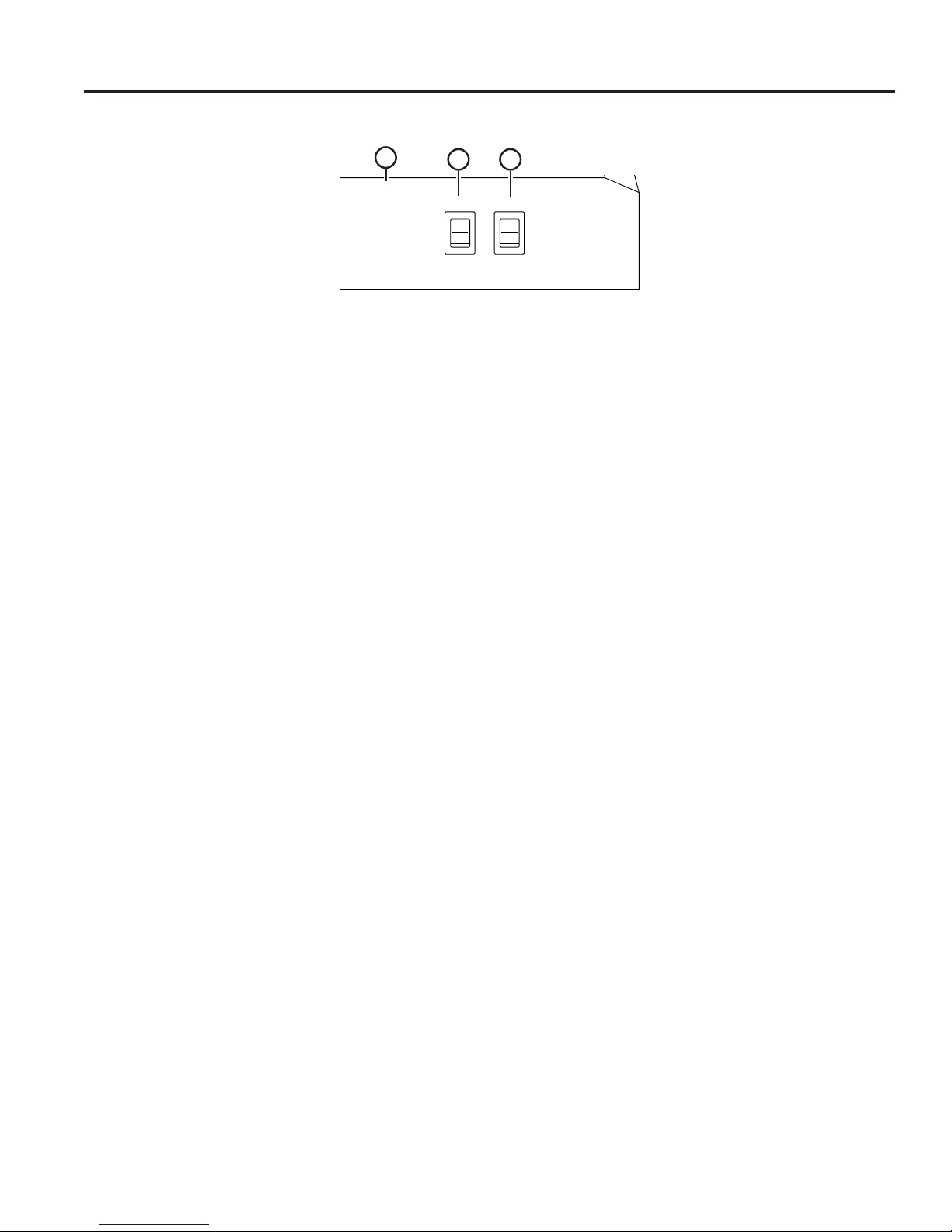

On Some Models
1. Rangehood Control Panel: The control panel
is located on the front of the canopy.
2. Light Switch: Light switch toggles between
On and Off.
3. Fan Power Switch: The power switch toggles
between fan settings Hi, Lo, and Off.
Controls
USING THE HOOD: Controls
Light Fan
On
Off
Hi
Lo
Off
123

49-80839-1 5
Be sure the circuit breaker is off and all surfaces are cool before cleaning or servicing any part of the vent hood.

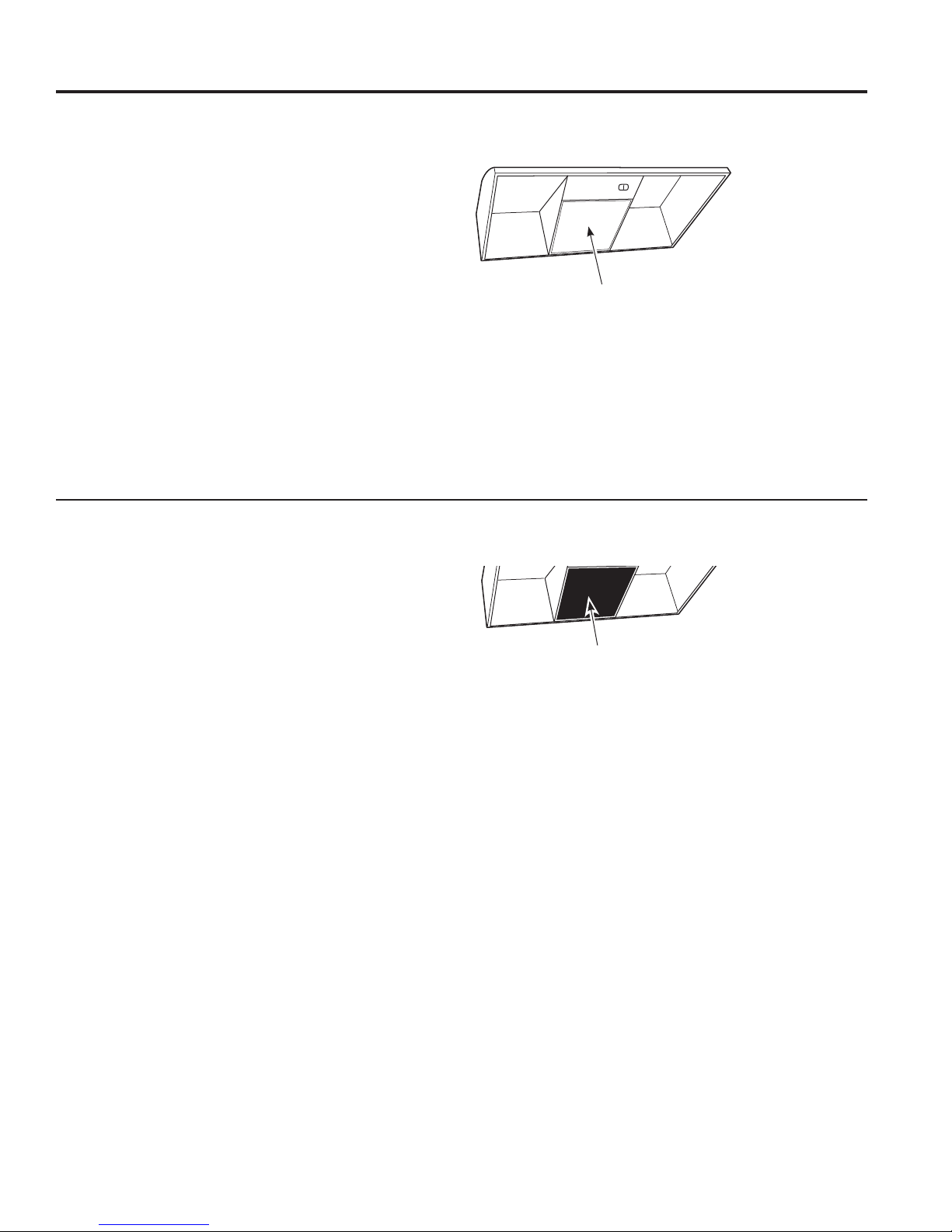

Metal Grease Filter
The metal filters trap grease during cooking.
The filter must ALWAYS be in place when the hood is in
use. The grease filter is dishwasher-safe and should be
cleaned every 6 months, or as needed.
To remove:
Pull downward on the filter lock to release the filter.
To replace:
Fit the tabs at the bottom of the filter into the slots in the
back of the filter opening. Lift up the front side of the filter
and push gently until the filter locks into place. Make sure
the filter lock is in the closed position to secure the filter.
To clean, swish the filter in hot soapy water and rinse
in clean water or wash it in the dishwasher. Do not use
abrasive cleansers.
NOTE: Some discoloration may occur in the dishwasher.
Charcoal Filter (for recirculation installation only)
If the model is not vented to the outside, the air needs to
be recirculated through a disposable charcoal filter that
helps remove smoke and odors.
NOTE: DO NOT rinse, or put charcoal filter in an
automatic dishwasher.
The charcoal filter cannot be cleaned. It must be
replaced. It is recommended that the charcoal filter
be replaced every 6-12 months or if it is noticeably
dirty or discolored.
To inquire about purchasing replacement charcoal filters
or to find the location of a dealer nearest you, please
visit GEApplianceParts.com.
To remove:
Pull down on the center of the front edge of the filter. The
filter will then slip out of the retaining tabs on the back.
To replace:
Slip the back edge of the filter into the retaining tabs and
push the front edge up until it snaps into place.
NOTE: DO NOT rinse, or put charcoal filters in an
automatic dishwasher.
Filters
CARE AND CLEANING: Filters
NOTE: For this
configuration one
grease filter is
only used in the
vented mode.
NOTE: For this
configuration
charcoal filter is
installed in place
of grease filter.
Grease filter
Replaceable charcoal filter

649-80839-1
Lights
Stainless Steel Surfaces (on some models)
Do not use a steel wool pad; it will scratch the
surface.
To clean the stainless steel surface, use warm sudsy
water or a stainless steel cleaner or polish. Always wipe
the surface in the direction of the brush line. Follow
the cleaner instructions for cleaning the stainless steel
surface. Cleaners with oxalic acid such as Bar Keepers
Friend Soft Cleanser™ will
remove surface rust, tarnish, and
small blemishes. To receive a
$2.00 coupon for a trial sample
of Bar Keepers Friend Soft
Cleanser™ follow the link below
or scan the QR Code.
barkeepersfriend.com/ge
Use only a liquid cleanser free of grit and rub in the
direction of the brush lines with a damp soft sponge.
To inquire about purchasing stainless steel appliance
cleaner or polish, or to find the location of a dealer
nearest you, please visit GEApplianceParts.com
Painted Surfaces (on some models)
Do not use a steel wool pads or other abrasive
cleaners; they will scratch the surface.
Clean grease-laden surfaces of the hood frequently. To
clean the hood surface, use a hot, damp cloth with a
mild detergent suitable for painted surfaces. About one
tablespoon of ammonia may be added to the water. Use
a clean, hot, damp cloth to remove soap. Dry with a dry,
clean cloth.
NOTE: When cleaning, take care not to come in contact
with filters and other surfaces.
CAUTION When cleaning the hood surfaces,
be certain that you do not touch the light with moist
hands or cloth. A warm or hot light may break if
touched with a moist surface. Always let the light
cool completely before cleaning around it.
Surfaces
CARE AND CLEANING: Surfaces / Lights

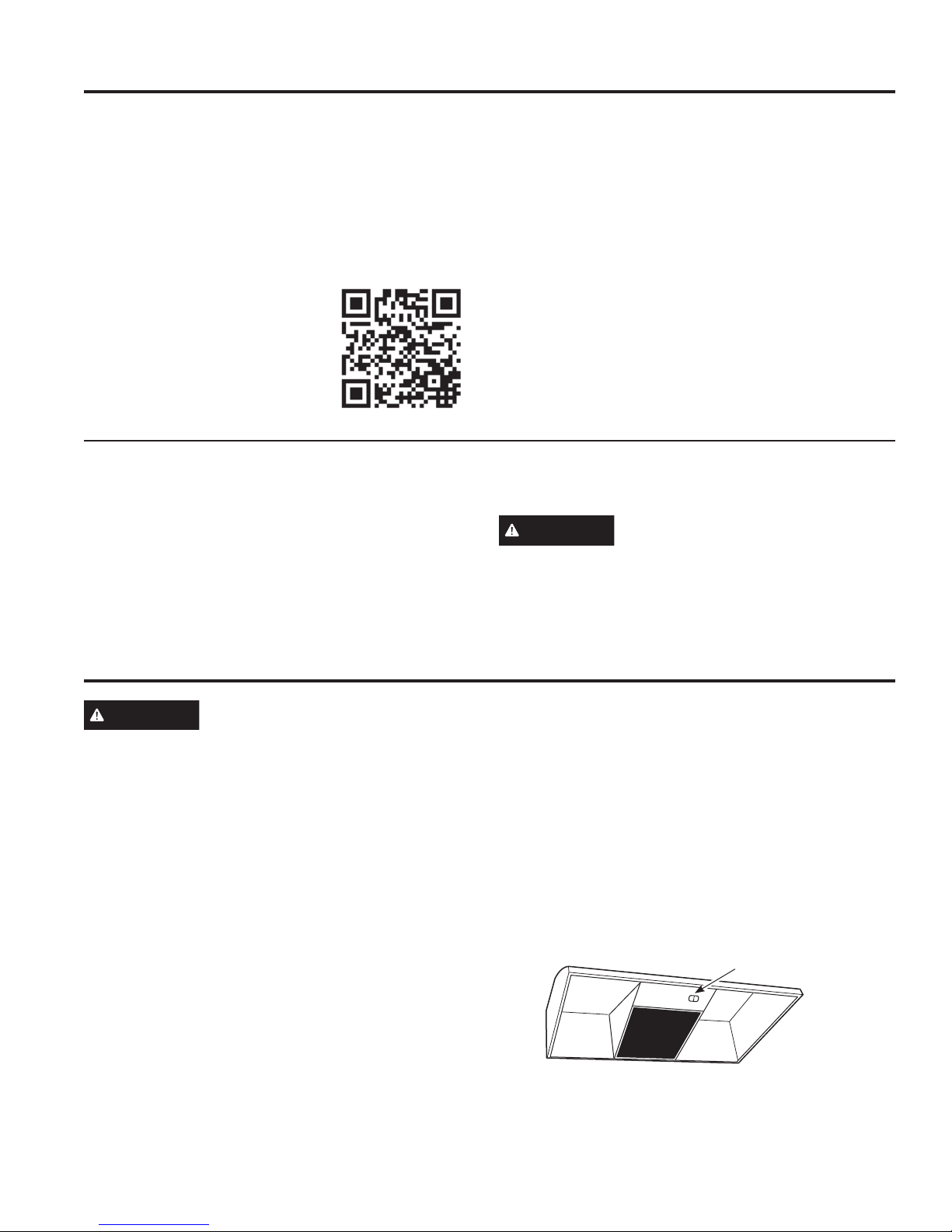

CAUTION Let the light bulb cool completely before
removing. A warm or hot bulb may break if touched with
a moist cloth or hand.
Remove the bulb and replace it with a type A15
incandescent light bulb with an ordinary screw base, not
more than 40 Watts.
IMPORTANT: For installation, handling and disposal
precautions, refer to the fluorescent bulb packaging
literature.
To remove the light cover:
Ŷ 3UHVVWKHVLGHVZLWKWZRILQJHUVXQWLOWKHVLGHSURQJV
are released.
Ŷ /LIWWKHOLJKWFRYHUDQGVOLGHLWWRZDUG\RXLQRQH
motion.
To replace the light:
Ŷ %HIRUHDWWHPSWLQJWRUHSODFHWKHOLJKWVPDNHVXUH
that the light switch is turned off.
Ŷ 5HPRYHOLJKWFRYHU
Ŷ 8QVFUHZOLJKWFRXQWHUFORFNZLVHWRXQORFNOLJKWDQG
pull out.
Ŷ 5HSODFHZLWKQHZOLJKWRIVDPHW\SHVWDQGDUG
incandescent), making sure socket is properly
inserted into the housing of the lamp holder.
To replace the light cover:
Ŷ ,QVHUWWKHSURQJORFDWHGDWWKHHQGRIWKHFRYHULQWR
the top opening.
Ŷ *HQWO\SXVKWKHFRYHUXSDQGSUHVVWKHVLGHVWRILW
the side prongs into the side openings.
Ŷ 5HOHDVHDQGWKHFRYHUZLOOORFNLQSRVLWLRQ
Light cover

49-80839-1 7
Installation
Instructions
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
• IMPORTANT — Save these
instructions for local inspector’s use.
• IMPORTANT — Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Skill level – Installation of this vent hood requires
basic mechanical and electrical skills.
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is not
covered under the Warranty.
FOR YOUR SAFETY
WARNING Before beginning the installation,
switch power off at service panel and lock the
service disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag,
to the service panel.
CAUTION To reduce risk of fire and to
properly exhaust air, be sure to duct air outside.
Do not vent exhaust air into spaces within walls or
ceilings or into attics, crawl spaces or garages.
WARNING Disconnect all electrical power
at the main circuit breaker or fuse box before
installing.
Under the Cabinet (UTC) Hoods
JVX3240 and JVX3300
WARNING TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be
done by qualified person(s) in accordance with
all applicable codes and standards, including
fire-rated construction.
B. Sufficient air is needed for proper combustion
and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent
back drafting. Follow the heating equipment
manufacturer’s guidelines and safety standards
such as those published by the National Fire
Protection Association (NFPA), the American
Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE) and the local
code authorities.
C. When cutting or drilling into wall or ceiling, do
not damage electrical wiring and other hidden
utilities.
D. Ducted fans must always be vented to the
outdoors.
WARNING TO REDUCE THE RISK OF FIRE,
USE ONLY METAL DUCT WORK.
“If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737)
or visit our website at: GEAppliances.com”

849-80839-1
DUCTWORK REQUIREMENTS
WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
NOTE: Read the ductwork sections only if you do not have existing ductwork. If you have existing ductwork, skip
to the “Damage” section and proceed.
The venting system must exhaust to the outside.
This hood can be vented vertically through upper cabinets or horizontally through an outside wall. Ductwork is
not included.
Exhaust connection
This hood is designed to be vented vertically using a 7" round duct or a 3 1»4” x 10” rectangular duct or
horizontally using a 3 1»4” x 10” rectangular duct.
Duct length
The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use
of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan
with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold
growth. Fans installed with existing ducts may not achieve their rated air flow.
INSTALLATION PREPARATION
Installation Preparation
INSULATION AND/OR CAULK AROUND THE DUCTS
Cabinet
Hood
Add Insulation
and/or Caulk
Add tape to joint
Add Insulation
and/or Caulk
Roof Cap
Round or Rectangular Duct
Wall Cap

49-80839-1 9
Installation Preparation

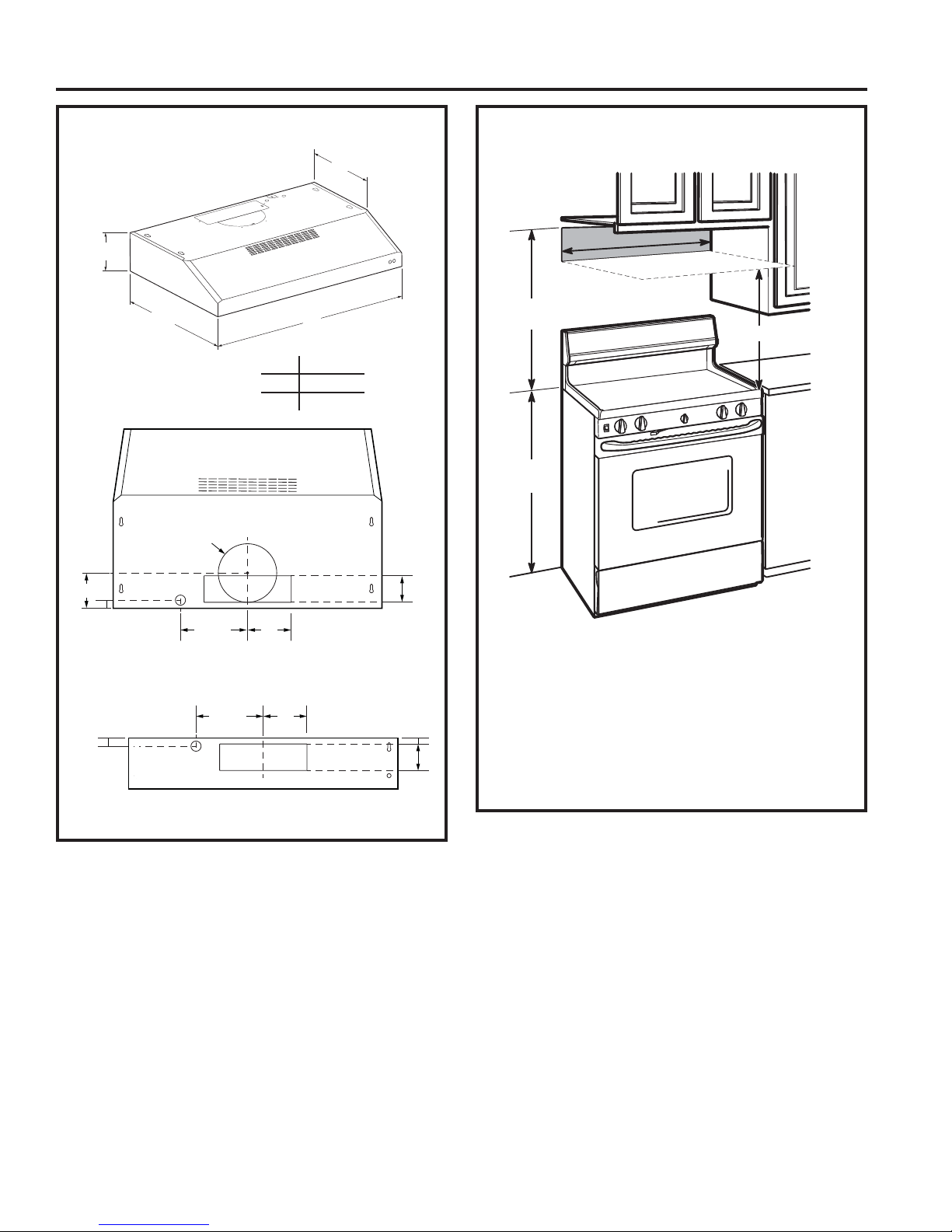

MOUNTING SPACE
PRODUCT DIMENSIONS
NOTES:
• Hood width may be greater than the width of the
range or cooktop, but it may not be smaller.
• Installation height should be measured from the
cooking surface to the lowest part of the hood.
This hood must be installed onto a cabinet. It can
be vented to the outdoors, or it can be installed for
recirculating operation.
30”
Typical 24" Min required
34"-36"
Typical
ƎRUƎWRPDWFK
cooktop width
INSTALLATION PREPARATION
Top View
Back View
X20”
5”7 1»2”
ø 7”
3 3»4”3 1»4”
3 1»4”
1 1»4”
5 1»2”
12”
Size X
24” 23 15»16”
30” 29 15»16”
5”7 1»2”
1 1»4”

10 49-80839-1
INSTALLATION PREPARATION
REMOVE THE PACKAGING
CAUTION Wear gloves to protect against
sharp edges.
• Remove the hardware bag, literature package and
other boxed parts.
• Remove and properly discard the protective plastic
wrapping and other packaging materials.
TOOLS AND MATERIALS
REQUIRED (NOT SUPPLIED)
Wire cutter/stripper
Spirit level
Aluminized
Duct tape
Torx 10, 15, 20 driver
Safety glasses
Strain relief for 1 ¼”
knock out size for
hood junction box
Electric drill, #2 Phillips,
flat head, and 9»32" drill bit
UL listed wire nuts
Pencil and tape measure
PLAN THE INSTALLATION
CAUTION To reduce risk of fire and to
properly exhaust air, be sure to duct the air outside
– Do not vent exhaust air into spaces within walls or
ceilings or into attics, crawl spaces, or garages.
PARTS SUPPLIED FOR
INSTALLATION
• 1 Hardware Package
• 1 Literature Package
PARTS NEEDED FOR INSTALLATION
• 1 Strain Relief for 1 ¼” knock out size
• Power Supply Cable
• 1 Wall or Roof Cap (for external venting only)
• All Metal Ductwork (for external venting only)
NOTE: This range hood can be installed as either
ducted or recirculation. In a ducted application,
this range hood can be vented through the wall or
ceiling. When installed for recirculation, the range
hood vents out the front of the hood.
NOTE: Before making any cuts or holes for
installation, determine which venting method will be
used and carefully calculate all measurements.
Installation Preparation

49-80839-1 11
INSTALLATION PREPARATION
Installation Preparation

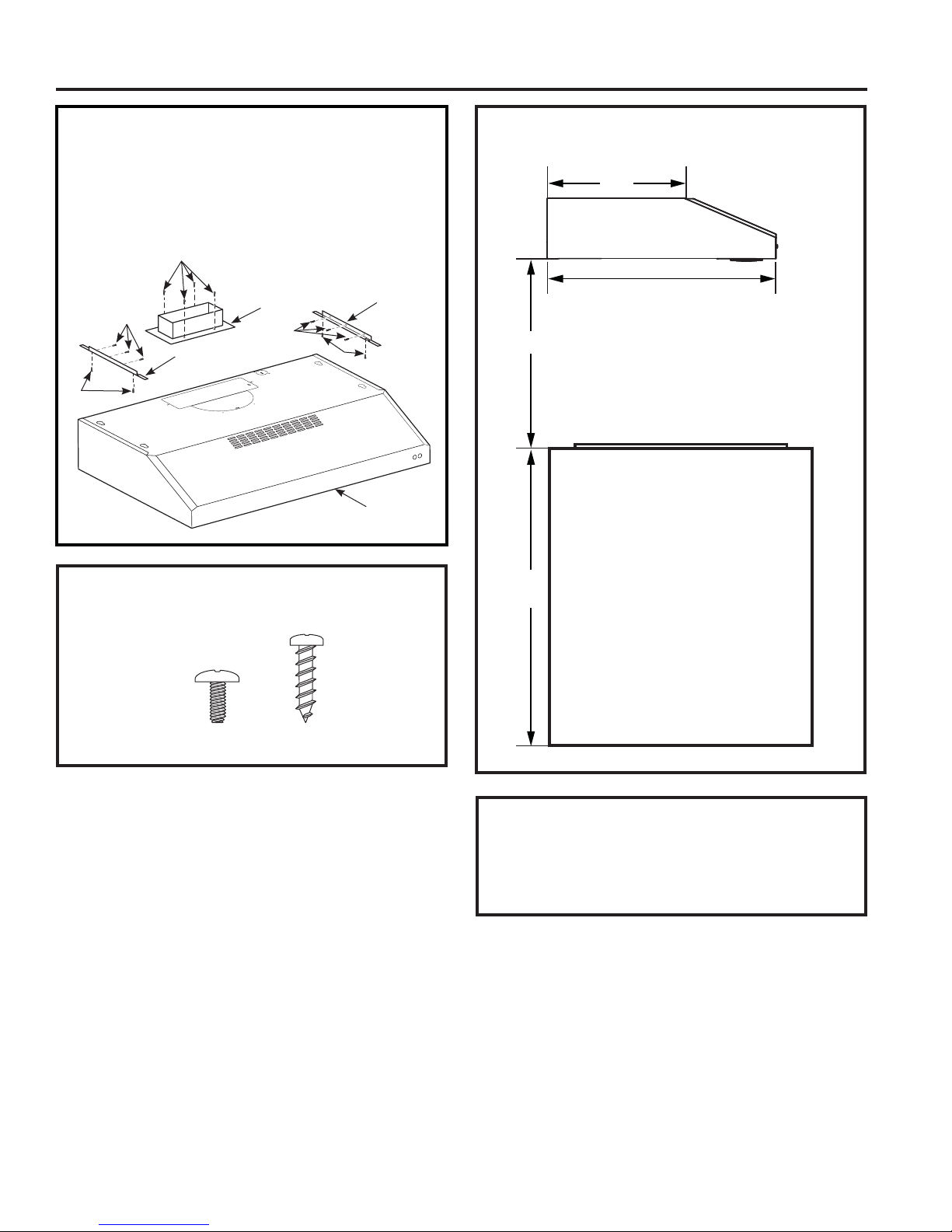

INSTALLATION DIMENSIONS
RANGE HOOD COMPONENTS
A. Hood Body
B. Damper
C. Mounting Bracket
D. Screws (4)
E. Screws (10)
HARDWARE COMPONENTS
The hood is designed to fit 12" deep cabinets. For
15" deep cabinets, filler panel kits are available from
GEApplianceParts.com:
JXS50SS for 30" wide hoods
12"
X
X = Distance from hood to cooktop
(varies depending on installation)
Required Min. = 24"
34"-36"
Typical
DE
C
C
B
A
D
E
E
E
E

12 49-80839-1
INSTALLATION PREPARATION
Installation Preparation
POWER SUPPLY
IMPORTANT – (Please read carefully)
WARNING
FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
Remove house fuse or open circuit breaker before
beginning installation.
Do not use an extension cord or adapter plug with
this appliance. Follow National Electrical Codes or
prevailing local codes and ordinances.
Electrical supply
These vent hoods must be supplied with 120V,
60Hz, and connected to an individual, properly
grounded branch circuit, and protected by a 15 or
20 amp circuit breaker or time delay fuse.
• Wiring must be 2 wire with ground.
• If the electrical supply does not meet the above
requirements, call a licensed electrician before
proceeding.
• Route house wiring as close to the installation
location as possible in the ceiling or wall.
• Connect the wiring to the house wiring in
accordance with local codes.
Grounding instructions
The grounding conductor must be connected to
a ground metal, permanent wiring system, or an
equipment-grounding terminal or lead on the hood.
WARNING The improper connection of the
equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician
or service representative if you are in doubt whether
the appliance is properly grounded.
WARNING The improper connection of
aluminum house wiring to copper leads can result
in an electrical hazard or fire. Use only connectors
designed for joining copper to aluminum and follow
the manufacturer’s recommended procedure closely.
ADVANCE PLANNING
Vented Install Planning
• This hood is designed to be vented vertically using
a 7" round duct or a 3 1»4" x 10" rectangular duct or
horizontally using a 3 1»4" x 10" rectangular duct.
• Use metal ductwork only.
• Determine the exact location of the vent hood.
• Plan the route for venting exhaust to the outdoors.
To maximize the ventilation performance of the
vent system:
1. Minimize the duct run length and number of
transitions and elbows.
2. Maintain a constant duct size.
3. Seal all joints with duct tape to prevent any leaks.
4. Do not use any type of flexible ducting.
• Install a wall cap or roof cap at the exterior
opening. Purchase the wall or roof cap and any
transition and length of duct needed in advance.
• When applicable, install any makeup (replacement)
air system in accordance with local building
code requirements. Visit GEAppliances.com for
available makeup air solutions.
Recirculation Install Planning
This hood may be installed in recirculation mode
and is shipped in this configuration. The charcoal
filter is necessary for recirculation installation.
Power Supply Planning
The location of the power supply connection is
called out in the Prepare for Electrical – Remove
Wiring Cover section.

49-80839-1 13

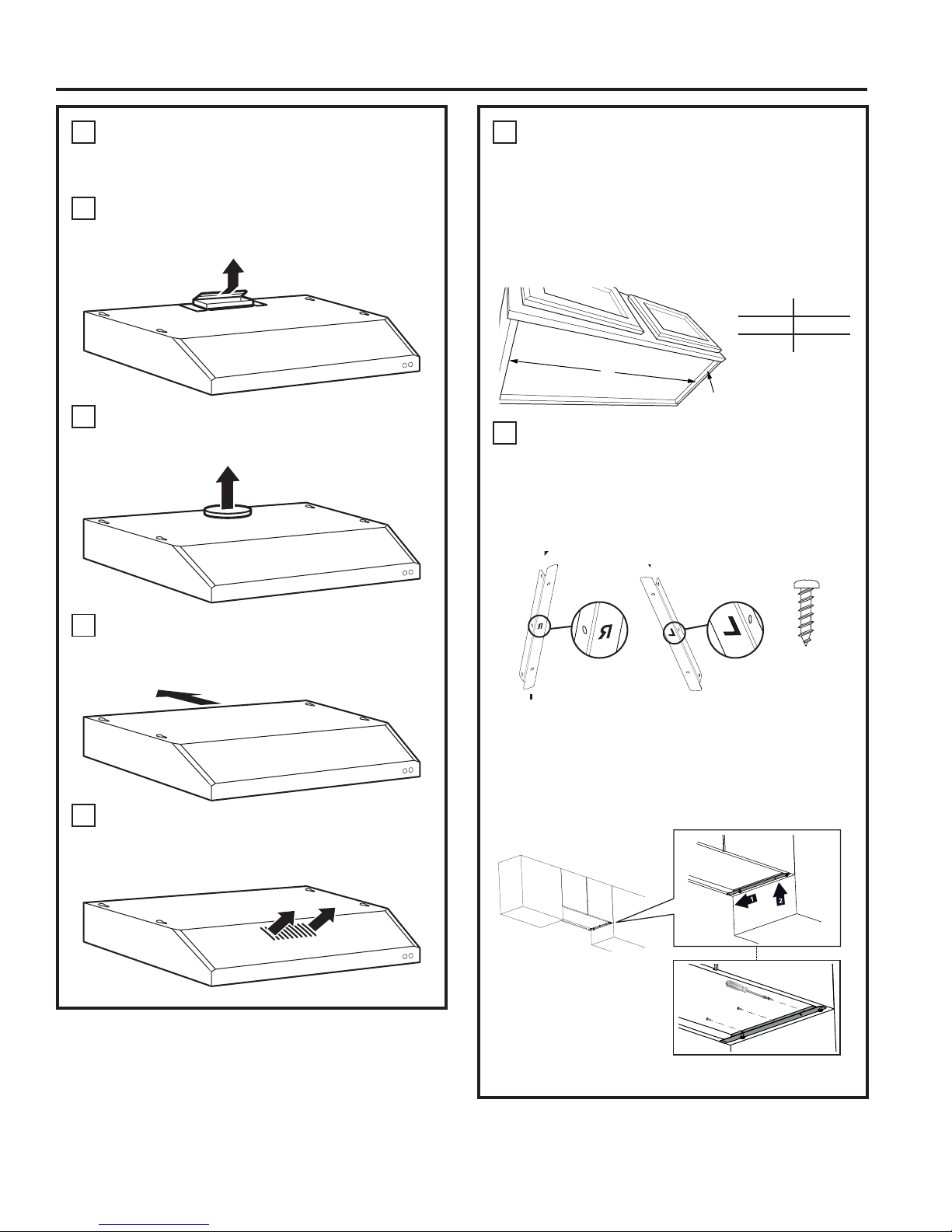

1 SELECT VENT OPTION THAT
YOUR INSTALLATION WILL
REQUIRE (A-D)
A
Outside top exhaust
(Vertical duct—3 1»4” x 10” Rectangular)
B Outside top exhaust
(Vertical duct—7” Round)
C Outside rear exhaust
(Horizontal duct—3 1»4” x 10”
Rectangular)
D Recirculating
(Unit is configured from factory in
this mode)
2 PREPARING MOUNTING
For cabinets with dimensions below, the
mounting bracket may be used for any model.
Otherwise, the hood must mount directly
to bottom of cabinet. Wood shims may be
needed for cabinets with a recessed bottom.
Skip to step B.
A To install the mounting bracket
Drive (E) screws in partway into mounting
bracket. The bracket labeled "R" will be
used on the right side of the cabinet and the
bracket labeled "L" will be used on the left
side of the cabinet.
Under the cabinet that you are placing the
range hood, attach the mounting bracket as
shown below with (E) screws. Make sure
orientation is correct. Brackets should be
located against the back wall and flush with
the bottom of the cabinet.
NOTE: Repeat on left side.
INSTALLATION PREPARATION
Installation Preparation
X
3»4" Depth
Push
against
wall
Flush
with
cabinet
Cabinet X
24” 22 1»2”
30” 28 1»2”
E

14 49-80839-1
2 PREPARING MOUNTING (Cont)
B To install to the bottom of cabinet
Use the diagram or hood as a template and
mark the locations on the cabinet for the
keyholes screws.
Drive the 4 (E) screws partway into the bottom
of the cabinet (or wood shims).
INSTALLATION PREPARATION
Installation Preparation
Wood shims
(recessed-bottom
cabinets only)
Center
line
Cabinet Bottom
Cabinet front
2 1»2”
10 1»4”
X
Hood mounting screws (4)
Cabinet X
24” 10 3»4”
30” 13 3»4”

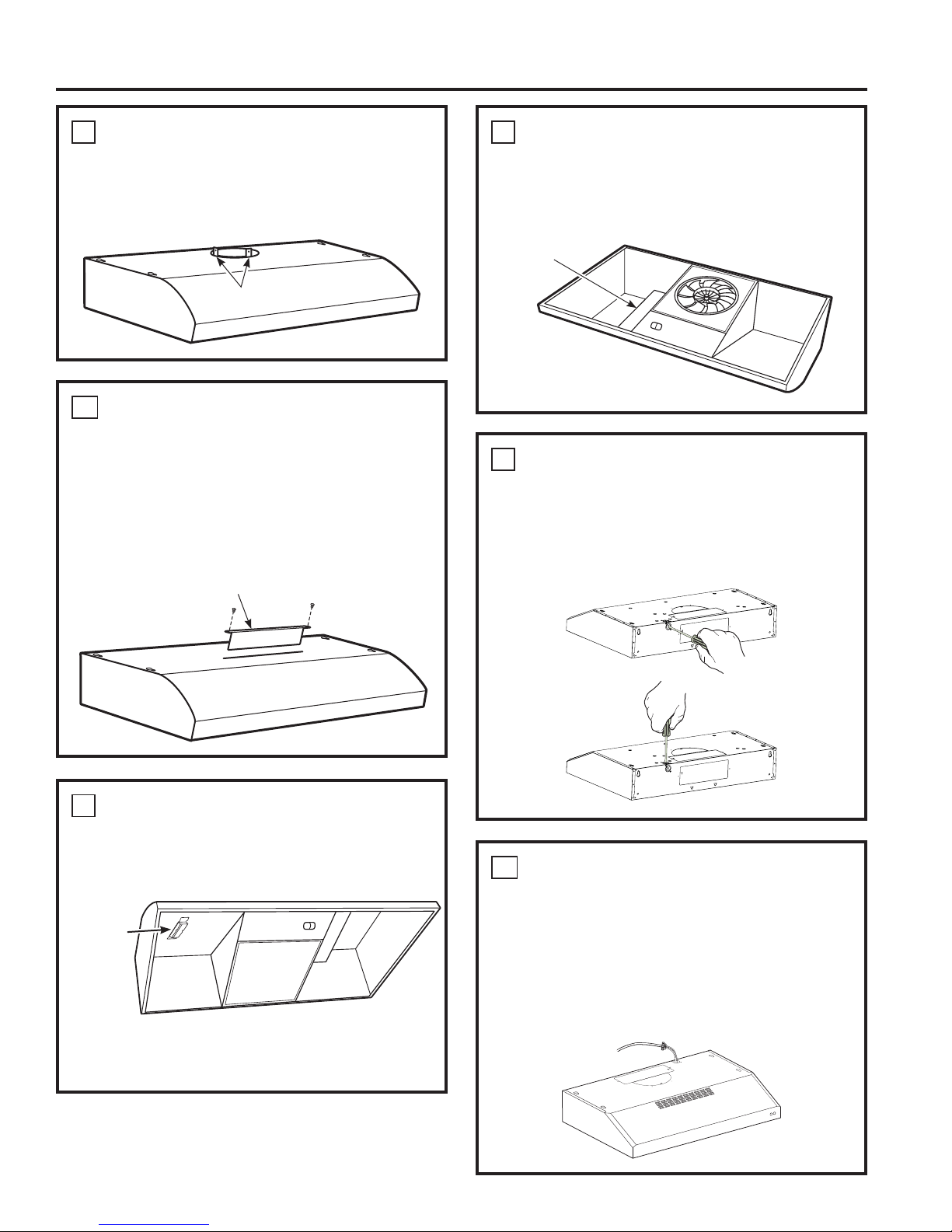

4 REMOVE DUCT KNOCKOUT
If recirculating, skip to Step 7 and proceed.
Using a flat-blade screwdriver, remove the
appropriate duct knockout from the top or
back of the hood.
31»4Ǝ x 10Ǝ
Rectangular vertical
discharge. Remove
top rectangular duct
knockout only.
7Ǝ Round vertical
discharge. Remove
circular duct knockout only.
31»4Ǝ x 10Ǝ Rectangular horizontal
discharge. Remove rear
rectangular duct knockout only.
3 PREPARE FOR VENTING (Cont)
B Outside top exhaust
(Vertical duct–7” Round)
Use the diagram as a template and mark the
locations on the cabinet for ductwork and
electrical wiring.
C Outside rear exhaust
(Horizontal duct–3 1»4” x 10” Rectangular)
Use the diagram as a template and mark the
locations on the cabinet for ductwork and
electrical wiring.
3 PREPARE FOR VENTING
Select the vent option that your installation will
require and proceed to that section:
A Outside top exhaust
(Vertical duct–3 1»4” x 10” Rectangular)
Use the diagram as a template and mark the
locations on the cabinet for ductwork and
electrical wiring.
Center line
Electrical access
hole (in cabinet
bottom)
Cabinet front
Cabinet Bottom
Vertical duct
access hole
5 1»4”5 1»4”
7 1»2”
ø1 1»4”
3 3»4”
1»2”
1 1»4”
Center line
Electrical access
hole (in cabinet
bottom)
Cabinet front
Cabinet Bottom 7 1»2”
ø1 1»4”1 1»4”
Access
hole for 7”
round duct 8” DIA.
HOLE 4 1»4”
Center line
Electrical access
hole (in wall)
Cabinet Front
Cabinet
Bottom
7 1»2”
ø1 1»4”
5 1»4”5 1»4”
1 1»4”
3 3»4”

49-80839-1 15
9 PREPARE FOR ELECTRICAL –
REMOVE ELECTRICAL
KNOCKOUTS
Use a flat blade screwdriver, remove the
appropriate electrical knockout from the back or
the top of the hood.
INSTALLATION PREPARATION
Installation Preparation
5 FOR 7" ROUND VERTICAL
DUCTED DISCHARGE
INSTALLATIONS ONLY:
Bend up the duct alignment ears in preparation
IRUODWHUDWWDFKPHQWRIWKHƎGXFW
7 REMOVE EXHAUST ADAPTOR
,IH[KDXVWLQJYHQWLQJXVLQJWKHƎ[Ǝ
rectangular duct, remove the exhaust adaptor
from the inside of the hood. Set it aside along
with its mounting screws.
NOTE: Rectangular exhaust adaptor is not
required for recirculation mode. Remove it and
keep it incase of future use.
Attachment ear tabs
31»4Ǝ[Ǝ
rectangular
exhaust
adaptor and
screws
6 REVERSE THE BAFFLE FOR
DUCTED INSTALLATIONS
ONLY
If the hood is to be recirculated, skip to the
next step. Remove the baffle from the top of
the hood. Reinstall the baffle so the short side
marked “VENTED” is visible. The long side of
the baffle should be inside the hood.
8 PREPARE FOR ELECTRICAL –
REMOVE HOOD JUNCTION BOX
Remove the hood junction box from inside
the hood. Set the cover and its mounting
screws aside.
“VENTED” is visible
Hood
Junction
Box
10 FEED IN WIRES
1. Install strain relief on appropriate knockout of
the hood by tightening down the nut until strain
relief is secure.
2. Lift the hood in position and feed house wiring
through the strain relief.
2. Tighten the strain relief screws to secure the
wires.

16 49-80839-1
INSTALLATION PREPARATION
Installation Instructions
11 MOUNT THE UTC
Place the hood onto the partially installed
screws using the keyholes and slide the hood
back into position.
12 SECURE HOOD
Tighten the mounting screws. Be sure the
screw heads are in the narrow neck of the
keyhole slot.
Keyhole (4)
Mounting
screw (4)
13 CONNECT DUCTWORK TO HOOD
(Ducted installations only)
Connect ducting to hood. Use duct tape to
make joints secure and airtight.
14 ELECTRICAL CONNECTION
1. Connect the Power Supply Cable to the range
hood. Attach the white lead of the power
supply to the white lead of the range hood
(A) with a wire nut (C). Attach the black lead
of the power supply to the black lead of the
range hood (B) with a wire nut (C). Connect
the green (D) ground wire under the green
grounding screw.
2. Replace the hood junction box.
B
D
C
A
1
2
Keyhole (4)
Mounting screw (4)
15 OPTIONAL POWER CORD KIT
JXHC1
An optional Power Cord Connection Kit, model
JXHC1, is available at extra cost from your
GE Appliances supplier for installation using a
standard 3-prong, grounded wall outlet. Follow
the Installation Instructions packed with the kit
to connect the power cord to the range hood.
NOTE: If using optional Power Cord Kit
JXHC1, feed the power cord through the hole
in the top cabinet while raising the hood. Loop
any excess length of cord and tie away with a
suitable tape or tie.
Cabinet
73»4Ǝ
3-prong
wall outlet
(if using cord
connection)
11»4Ǝ
13»4ƎGLDFOHDUDQFHKROH
for optional power
supply location
C
L

49-80839-1 17
INSTALLATION INSTRUCTIONS / TROUBLESHOOTING TIPS
Installation Instructions
15 OPTIONAL POWER CORD KIT
JXHC1 (Cont.)
Cord Kit Grounding Instructions
If not connected directly to permanent house
wiring, this appliance must be connected to a
grounded electrical outlet to prevent a risk of
electric shock. This appliance may be used with a
cord having a grounding wire with grounding plug
connected to a properly installed and grounded
outlet. Use only an approved Power Cord Kit with
this hood. The JXHC1 is the only power supply
cord kit approved for use with this hood. Use
of other unapproved power supply cord kit may
result in risk of fire or electrical shock.
WARNING FOR PERSONAL SAFETY,
THIS APPLIANCE MUST BE PROPERLY
GROUNDED.
Improper grounding can result in a risk of
electric shock. Consult a qualified electrician to
ensure the appliance is properly grounded. Do
not use an extension cord or adapter plug. If the
power supply cord is too short, have a qualified
electrician install an outlet near the appliance.
16 FINISH THE INSTALLATION
1. For recirculation: Install the charcoal filter.
2. For ducted installation: Install the grease filters.
Metal grease filter or charcoal filter
Metal grease filter
Troubleshooting tips ... Before you call for service
Save time and money! Review the charts on the following pages first and you may not need to call for service.
Problem Possible Cause What To Do
Fan/Light does not
operate when either
button is pressed
A house fuse may be blown or a circuit
breaker tripped.
Replace fuse or reset circuit breaker.
Loud or abnormal
airflow noise
Wrong duct size used in installation. Using smaller duct pipe will cause reduced venting.
Minimize the duct run length and number of transitions
and elbows. GE Appliances service technicians cannot
correct this issue if installed improperly.
Fan fails to circulate
air or moves air slower
than normal and/or
fan is making loud or
abnormal airflow noise
Obstructions in duct work. Make sure nothing is blocking the vent. Make sure your
wall or roof cap has a blade or door.
Damper blade on wall or roof cap may
not be open.
Make sure damper swings freely. Damper blades may
flip over and will not fully open when this happens.
Adjust to original position.
Metal grease filter and charcoal filter (if
present) may be dirty.
Clean the metal grease filter and replace charcoal filter
(if present). See Care and Cleaning of the Vent Hood.
Insufficient makeup (replacement) air Sufficient makeup (replacement) air is required for
exhausting appliances to operate to rating. Check with
local building codes, which may require or strongly
advise the use of makeup air. Visit GEAppliances.com
for available makeup air solutions.
Early light failure Light wattage is too high. Replace with correct wattage.

18 49-80839-1
Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.
GEAppliances.com
All warranty service is provided by our Factory Service Centers, or an authorized Customer Care® technician. To
schedule service online, visit us at GEAppliances.com/service_and_support/, or call GE Appliances at 800.GE.CARES
(800.432.2737). Please have your serial number and your model number available when calling for service.
Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE Appliances factory
service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its
products by providing GE Appliances with information on your appliance. If you do not want your appliance data to be
sent to GE Appliances, please advise your technician not to submit the data to GE Appliances at the time of service.
What GE Appliances will not cover:
Ŷ Service trips to your home to teach you how to use
the product.
Ŷ Improper installation, delivery, or maintenance.
Ŷ Failure of the product if it is abused, misused,
modified, or used for other than the intended purpose
or used commercially.
Ŷ Replacement of house fuses or resetting of circuit
breakers.
Ŷ Damage to the product caused by accident, fire,
floods, or acts of God.
Ŷ Damage to finish, such as surface rust, tarnish, or small
blemishes not reported within 48 hours of delivery.
Ŷ Incidental or consequential damage caused by
possible defects with this appliance.
Ŷ Damage caused after delivery.
Ŷ Product not accessible to provide required service.
Ŷ Service to repair or replace light bulbs, except for LED
lamps.
LIMITED WARRANTY
GE Appliances Vented Range Hood Limited Warranty
EXCLUSION OF IMPLIED WARRANTIES
Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties,
including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or
the shortest period allowed by law.
This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not
available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE
Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to
your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: GE Appliances, a Haier company
Louisville, KY 40225
Extended Warranties: Purchase a GE Appliances extended warranty and learn about special discounts that are
available while your warranty is still in effect. You can purchase it online anytime at
GEAppliances.com/extended-warranty
or call 800.626.2224 during normal business hours. GE Appliances Service will still be there after your warranty expires.
For the period of GE Appliances will replace
One year
From the date
of the original
purchase
Any part of the cooking product which fails due to a defect in materials or workmanship.
During this limited one-year warranty, GE Appliances will provide, free of charge, all labor
and related service costs to replace the defective part.

49-80839-1 19
ACCESSORIES
Looking For Something More?
GE Appliances offers a variety of accessories to
improve your cooking and maintenance experiences!
Refer to the Consumer Support page for phone numbers
and website information.
The following products and more are available:
Accessories
Parts
Charcoal Filter
Replacement Lights
15” Cabinet Filler Panel
Power Cord Kit
Damper Assembly
Cleaning Supplies
CitruShine™ Stainless Steel Wipes
CERAMA BRYTE® Stainless Steel Appliance Cleaner
Bar Keepers Friend Soft Cleanser™

20 49-80839-1
Consumer Support
CONSUMER SUPPORT
Printed in China
GE Appliances Website
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day
of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support
services designed for your convenience. In the US: GEAppliances.com
Register Your Appliance
Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced
communication and prompt service under the terms of your warranty, should the need arise. You may also mail in
the pre-printed registration card included in the packing material. In the US: GEAppliances.com/register
Schedule Service
Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at
your convenience any day of the year. In the US: GEAppliances.com/service
or call 800.432.2737 during normal business hours.
Extended Warranties
Purchase a GE Appliances extended warranty and learn about special discounts that are available while your
warranty is still in effect. You can purchase it on-line anytime. GE Appliances Services will still be there after your
warranty expires. In the US: GEAppliances.com/extended-warranty
or call 800.626.2224 during normal business hours.
Remote Connectivity
For assistance with wireless network connectivity (for models with remote enable),
visit our website at GEAppliances.com/connected-home-smart-appliances/ or call 800.220.6899 in the US.
Parts and Accessories
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.
In the US: GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since improper
servicing may cause unsafe operation.
Contact Us
If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the
details including your phone number, or write to:
In the US: General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225
GEAppliances.com/contact
