GE WPSB8060 User manual

GEApp/iances.com
Safety Instruotions ........ 2, 3
Operating Instruc_tions
Clothes Care Cycles ......... 8-9
Control Panels ............. 4, 6
Controls Features ........... 10
Cycle Options .............. 11
Loading and Using
the _¢\asher .............. 13, 14
ONE To_ (;u (:vcles .......... 4-7
Other Features ............. 11
Variable Speed Motor . ........ 8
V\asher Features ............ 12

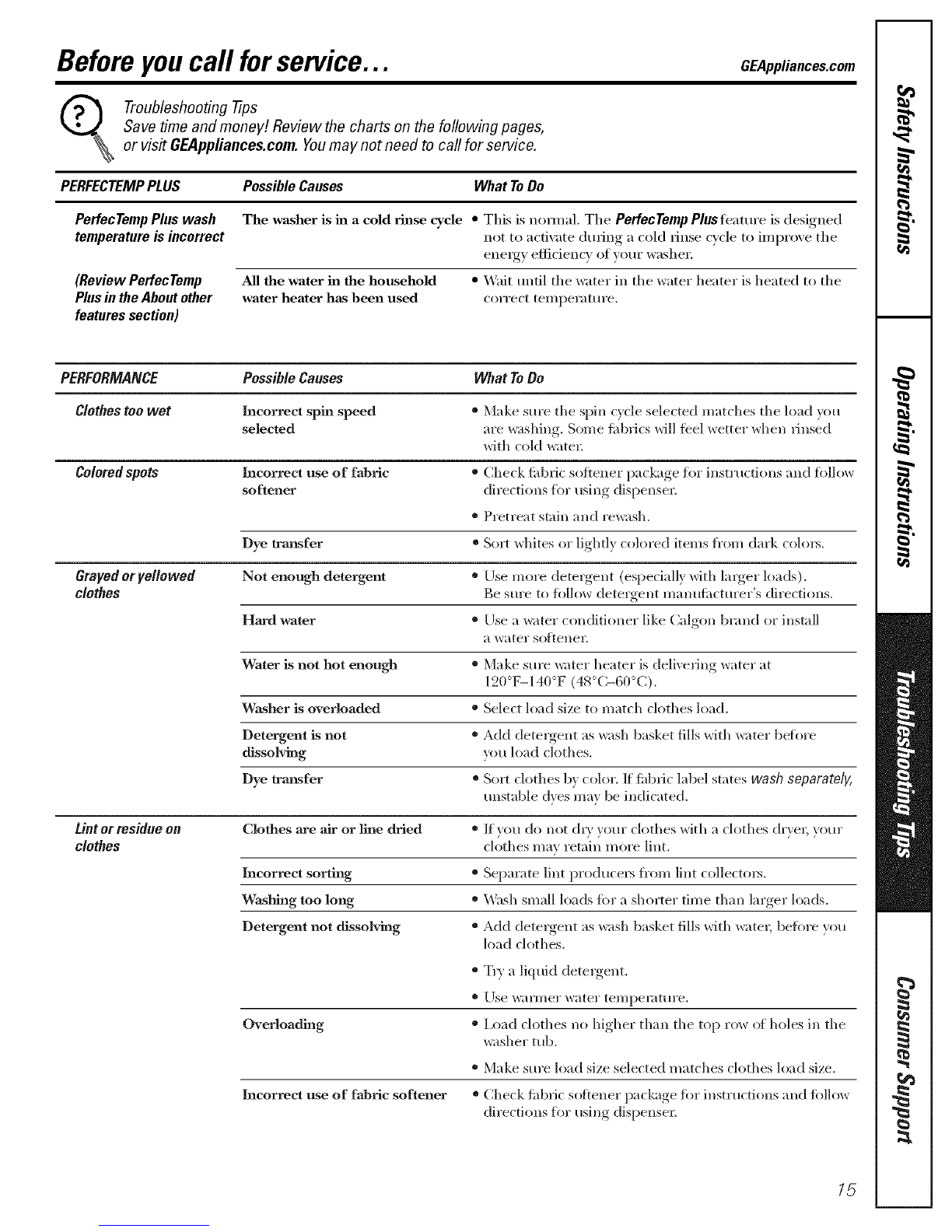

Troubleshooting Tips ..... 15-18
Consumer Support

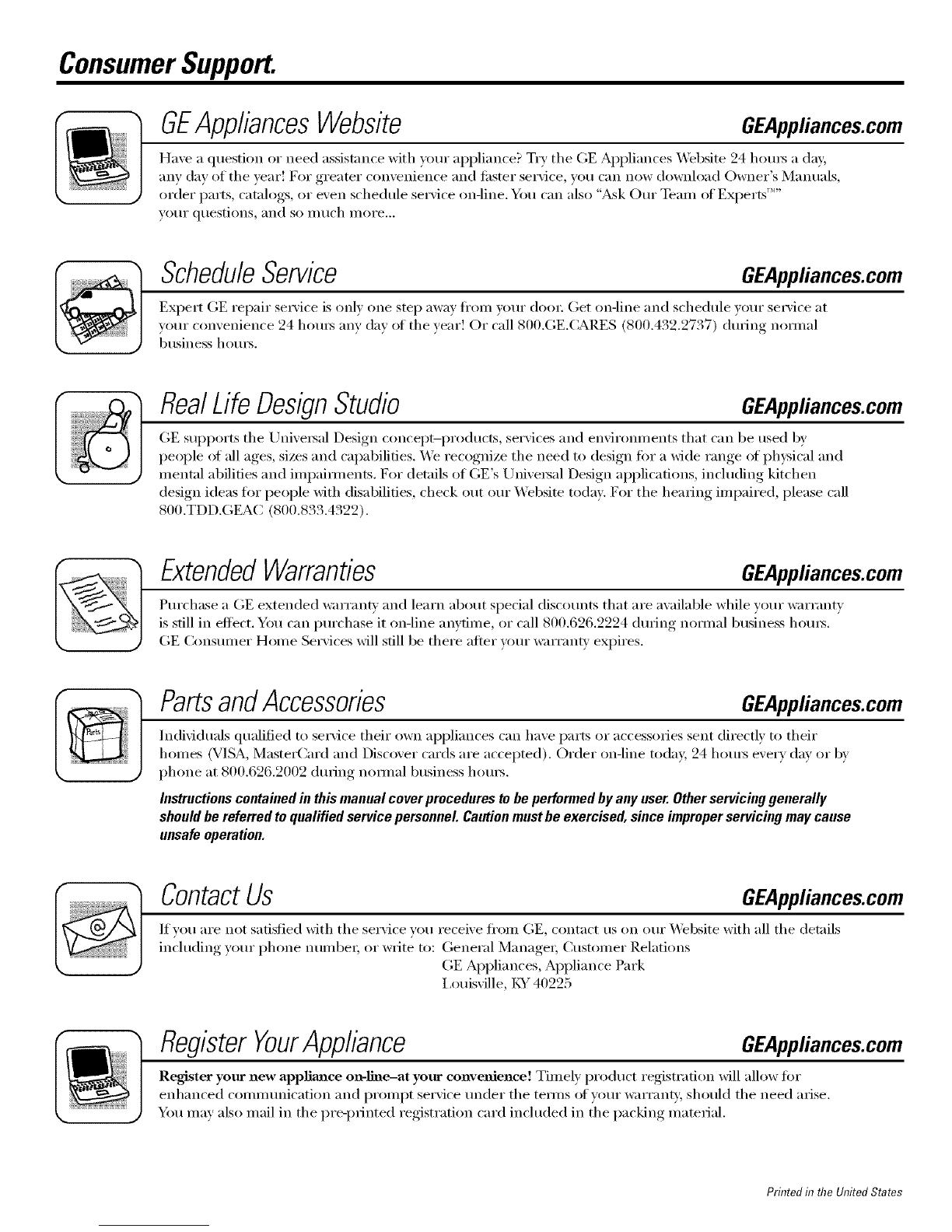

Consumer Support . . . Back Co_er
Warranty .................. 19
WPSBS060
WPSB 9080
WPSB gl 2 0
Write the model and serial
numbers here:
Model #
Serial #
You can find them in the
upper right corner on the
back of wmr washer.
175D1807P388 40-90125 !2-07 dR

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
AWARNING!
For your safety, the information in this manual must be foflowed to minimize the risk of fire or
explosion, electric shock, or to pre vent property damage, _ersonal injury, or loss of life.
WATERHEATERSAFETY
Under certain conditions hydrogen gas may be produced ma water heater that has not been used
for two weeks or more. Hydrogen gas can be explosive under these circumstances.
If the hot water has not been used for two weeks or more, prevent the possibility of damage or ii_jury
by turning on all hot water fimcets and allowing them to Hm for several minutes. Do this before
using any electrical appliance which is connected to the hot water system. This simple procedm'e will
allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open
flame or appliance during this process.
%PROPERINSTALLATION
This washer must be properly installed and located in accordance with the Installation Instructions
before it is used. If you did not receive an Installation Instructions sheet, you can receive one by
visiting GEAppliances.com, or by calling 800.GE.CARES(800.432.2737).
• Install or store where it will not be exposed • Proi)erl_, ,gr°tmd washer to conflmn with ;111
to temperatm'es below freezing or exposed goxerning codes and ordinances. Follow
to the weather, details in Installation Instructions.
• Remove the colored protective fihn from
the control panel.
YOURLAUNDRYAREA
• Kee I) the area underneath and around xour
appliances free of Colnbustible inaterials such
as lint, paper, rags, chemicals, etc.
• Close supervision is necessa_ y if this appliance
is used bv or near children. Do not allow
children to play on, with or inside this or any
other appliance.
2

GEAppliances.com
Use this
appliance
onlyfor its
intended
purpose as
described
in this
Owner's
Manual

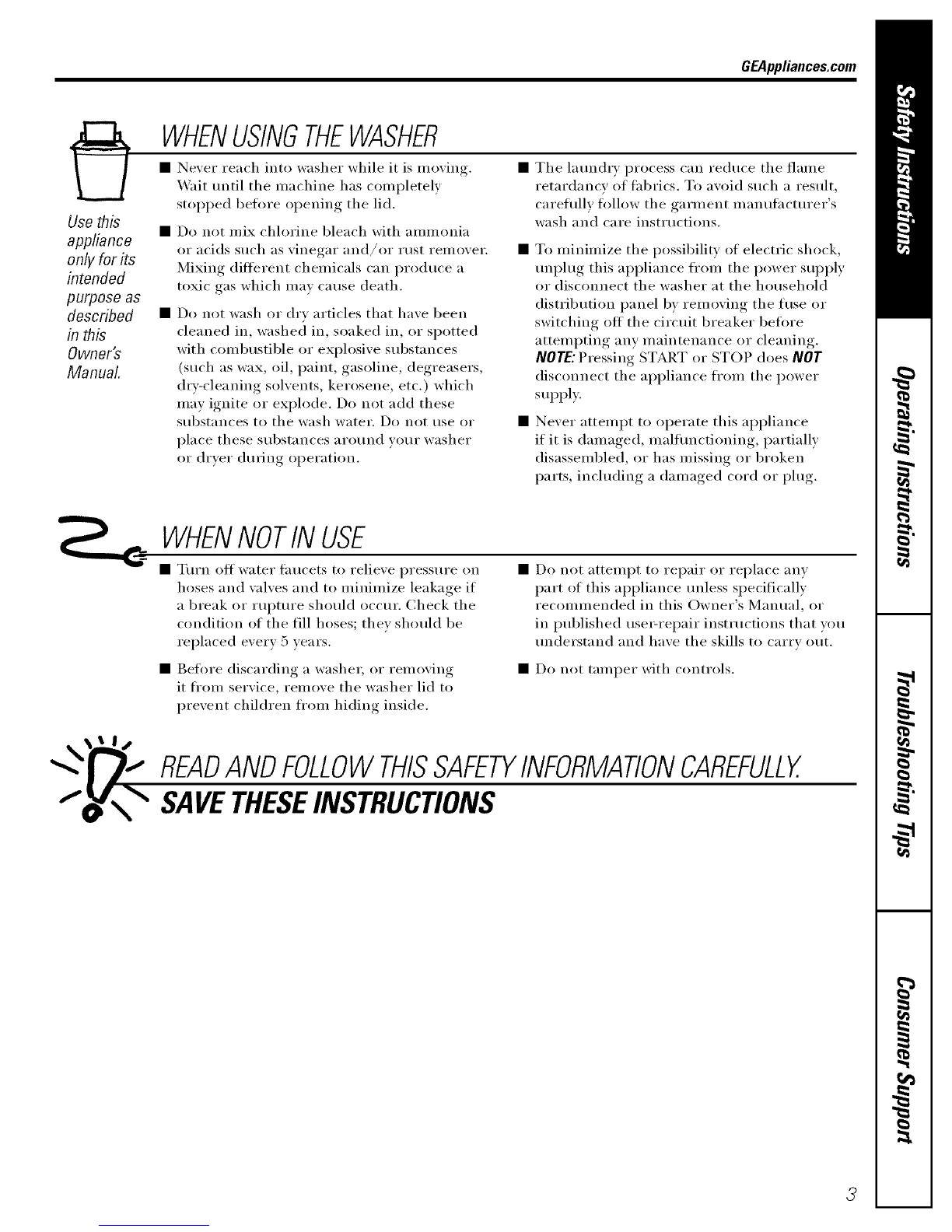

WHENUSINGTHEWASHER
•Never reach into washer while it is moving.
Wait until the machine has completely
stopped before opening tile lid.
• Do not mix chlorine bleach with ammonia
or acids such as vinegar and/or _ust remover.
Mixing difl'erent chemicals can produce a
toxic gas which mav cause death.
•Do not wash or dry articles that have been
cleaned in, washed in, soaked in, or spotted
with combustible or exI)losive substances
(such as wax, oil, paint, gasoline, degreasers,
d_T-cleaning solvents, kerosene, etc.) which
may ignite or exphxle. Do not add these
s/ibstances to tile wash water. Do not/lse or
place these substances around your washer
or dryer during operation.
Tile laun(h y process can reduce the flame
retardancy of fabrics. To avoid such a result,
careflflly follow the garment inanufilcturer's
wash and care instHlctions.
• To minimize tile possibility of electric shock,
mq)lug this appliance fl'om tile power supply
or disconnect the washer at the household
distribution panel by removing tile fllse or
switching off the circuit breaker before
attempting any maintenance or cleaning.
NOTE: Pressing START or STOP does/701"
disconnect the appliance fl'om the power
supply.
• Never attempt to operate this appliance
if it is damaged, malflmctioning, partially
disassembled, or has missing or broken
parts, including a damaged cord or plug.
WHENNOTINUSE
• Turn off water fimcets to relieve pressure on
hoses and valves and to minimize leakage if
a break or mptm'e should occur. Check tile
condition of the fill hoses; they should be
replaced every 5 years.
• Before discarding a washer, or removing
it fi'om service, remove tile washer lid to
prevent children from hiding inside.
• Do not attempt to repair or replace anv
part of this appliance tmless specifically
recommended in this Owner's Manual, or
in published use>repair instructions that w)u
tmderstand and have tile skills to carry out.
• Do not tamper with controls.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAI/ETHESEINSTRUCTIONS
3

Easy ONE TOUCHcycles.
Your new washer offers the comenience of starting )our wash loads with our easy ONETOUCHcycles. Make one simple
selection, and your LOAD SIZE, SOIL LEVEL,WASH/RINSETEMPERATURE and WASH/SPIN SPEED "are automatically set.
Then all you ha_e to do is press START.
,Adddetergent
,Adddilutedfabric
softener(onmodels
with a fabric softener
dispenser)
,Addclothes •Selectwash cycle
•Checkloadsizesetting
•Closelid
=PushSTART
Washer controlpanel forModel WPSBQ060.
Youcan locate your model number behind the top edge of the control panel.
ONE TOUCH
(_lothes CJrzre C2y_/e_
_wAs_/s_l_sr_l LOAO SOIL TFMP
HANGDRY SIZE LEVEL WASH/R|NSE OPTIONS
FAST /SLOW SUPER _]EAVY HOT SIGNAL
COLD o))_
QUICK DRAIN LARGE MEDIUM WARM EXTEND
WARM SPIN
_RINSE &SPIN MEDIUM LIGHT WARM 2NO
COLD RINSE
SMALL EXTRA COLD PRE-
LIGHT COLD SOAR
...... EST,TIMEREMAINING
PerfecTemp Plus SOAK WASH RINSE 2ND RINSE AUTO BALANCE FINAL SPIN
CYCLE STATUS
4

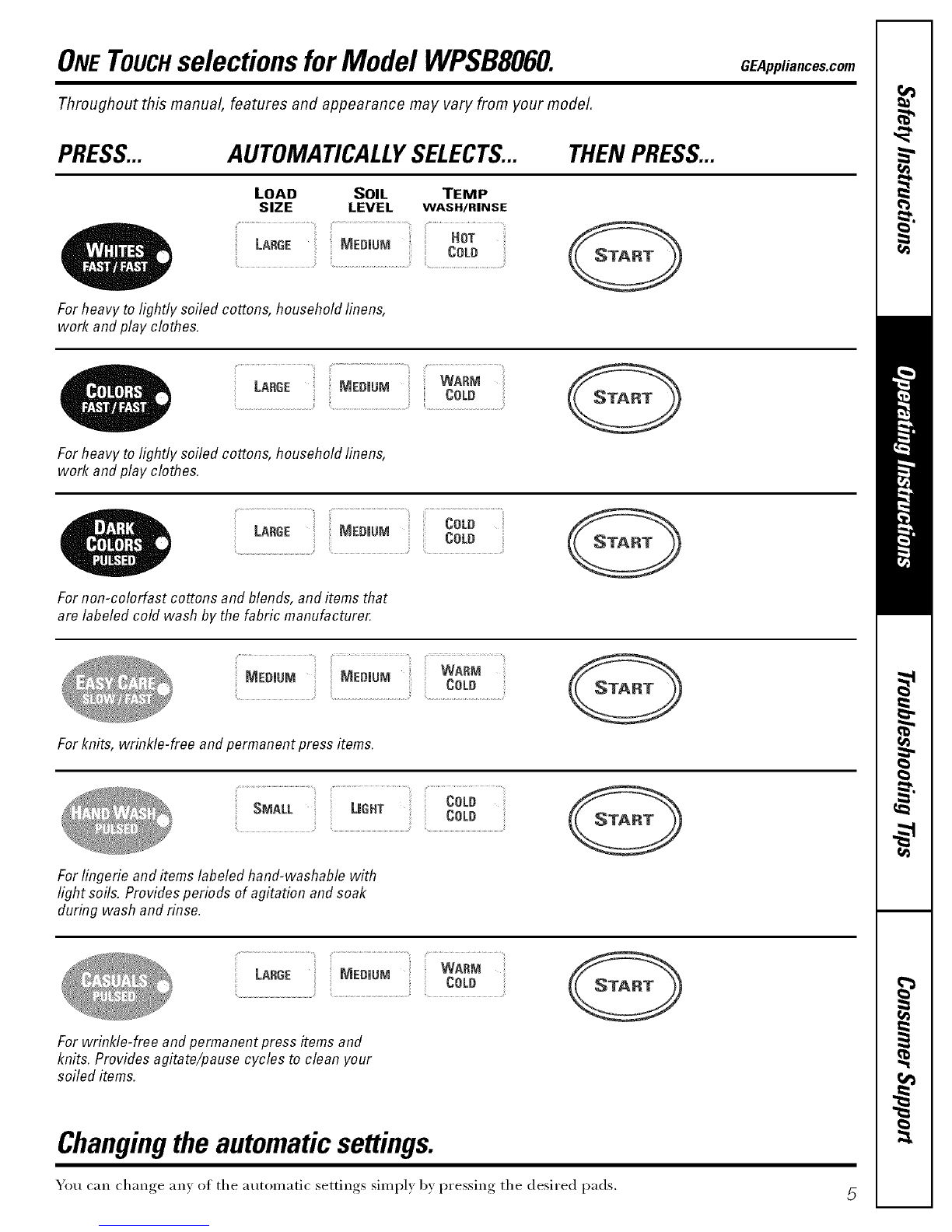

ONE TOUCHselectionsforModel WPSB8060.
Throughout this manual, features and appearance may vary from your model.
GEAppliances.com
PRESS... AUTOMATICALLYSELECTS... THENPRESS...
LOAD SOIL TEMP
SIZE LEVEL WASH/RINSE
LARGE MEOUM Hor
[;OLD
Forheavy to lightly soiled cottons, household linens,
work and play clothes.
Forheavy to lightly soiled cottons, household linens,
work and play clothes.
Fornon-colorfast cottons and blends, and items that
are labeled cold wash by the fabric manufacturer
Forknits, wrinkle-free and
.......... ii.............................i i¸¸ ...........................i
WARM
MEo,oMMEo,oMCOLO
)ermanent press items.
COLD
SNALL L_GHT COLD
Forlingerie and items labeled hand-washable with
light soils. Provides periods of agitation and soak
during wash and rinse.
For wrinkle-free and permanent press items and
knits. Provides agitate/pause cycles to clean your
soiled items.
Changingtheautomaticsettings.
You can chant,e_ am, of the automatic settings, simi,)lv bx, i)ressing, the desired pads.

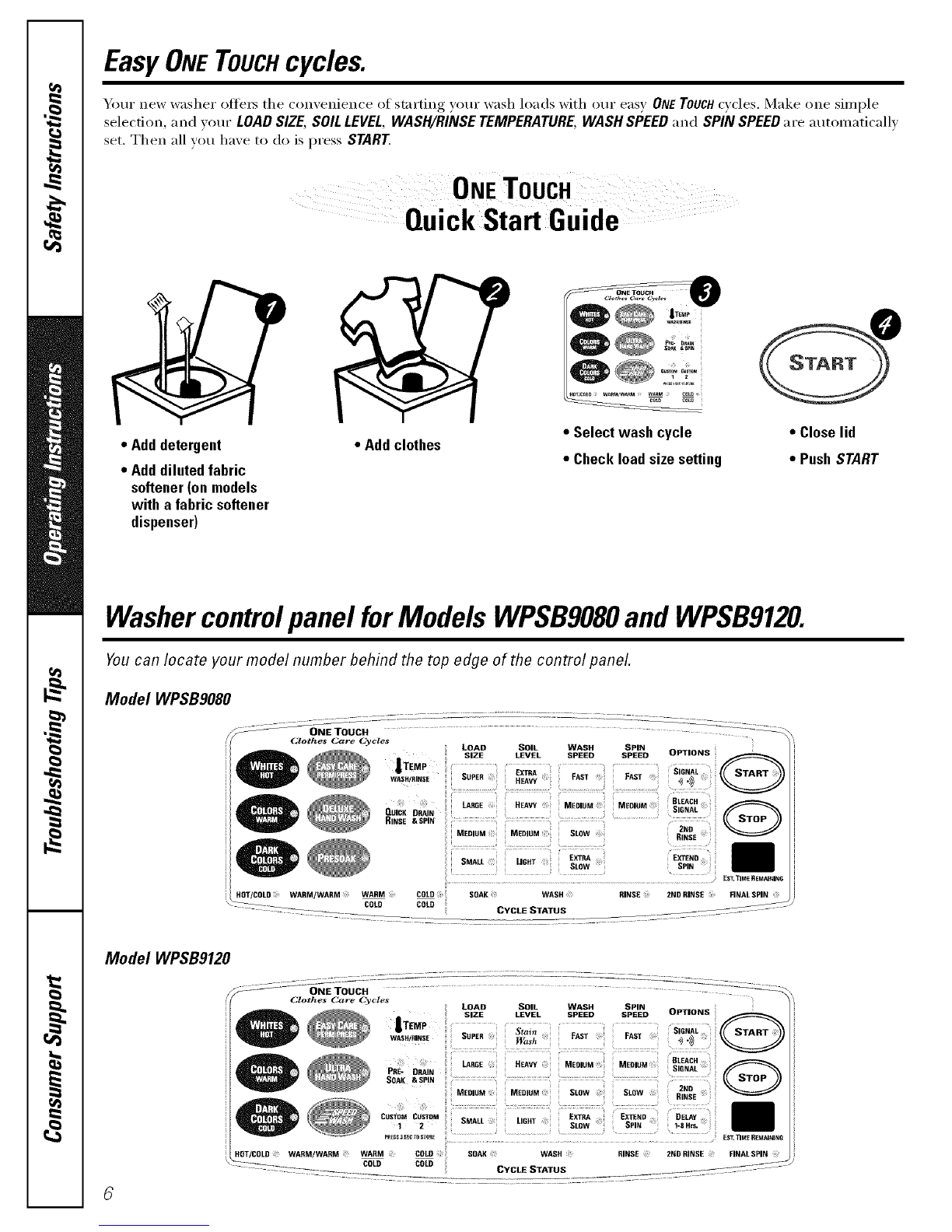

Easy ONE TOUCHcycles.
Your new washer oHe_ the conxenience of starting yotn" wash loads with DEn"easy ONETOUCHcycles. Make one simple
selection, and your LOAD SIZE, SOIL LEVEL, WASH/RINSE TEMPERATURE, WASH SPEED and SPIN SPEED are automatically
set. Then all you 1Ea_e to do is press START.
•Adddetergent
•Adddilutedfabric
softener(onmodels
with a fabric softener
dispenser)
•Addclothes •Selectwash cycle
•Checkloadsizesetting
•Closelid
=PushSTART
Washer controlpanel forModels WPSBD080and WPSB9120.
Youcan locate your model number behind the top edge of the control panel.
Model WPSBD080
coLD COLD SOAR _!i;; WASH
COLD iCYCLE STATUS
RINSE 2NR RINSE FINALSPIN
Model WPSB9120
LOAD SOIL WASH SPIN
;ii!i¸ _!!i; i¸ = ::::====: :===:::=:: =:=::==::: ::: :::::" •: --: i
CUSTOM CUSTOM SMALL LIGHT EXTRA EXTEND DELAY
"J 2..... SLOW SPIN 1-8 Hrs.
PRESS3SECfOSlO_tE ................................. EST,TIMEREMAINING
HOT[COLD WARMIWARM WARM COLD SOAR WASH RINSE 2NO RINSE FINAL SPIN
COLD COLD CYCLE STATUS

ONE TOUCHselectionsforModels WPSB9080and WPSB9120.GEAppliances.com
Throughout this manual, features and appearance may vary from your model.
PRESS... AUTOMATICALLYSELECTS... THENPRESS...
LOAD SOIL WASH SPIN
SIZE LEVEL SPEED SPEED
LARGE FAST FAST
Forheavy to lightly soiled cottons, household linens,
work and play clothes.
TEMP
WASH/RINSE
HOT/COLD
LARGE ii MEDlUM:iii!iii!iii_ii FAST 'i;iiiiil;i:iiiiii FAST '!_!!:!:!_i!i!iiWARM
.......................................... ! _..........................................._ COLD
Forheavy to lightly soiled cottons, household linens,
work and play clothes.
;: i.......................................i¸ i.......................................!
Fornon-colo_st cottons and blends, and items that
are labeled cold wash by the fabric manufacturer
COLD
COLD
Forknits, wrinkle-free and )ermanent press items.
WARM
COLD
COLD
COLD
Deluxe HandWash(on some models) uses an extra slow
speed agitation to clean your lingerie and hand-washable
items. UltraHandWash (on some models) uses an extra
slow speed agitation combined with periods of soak to
provide a true handwash for aft your deficate washables.
i........................................i i!.................. ii !................. !i i!............ i_
SMALL LIGHT FAST FAST WARM
COLD
(Onsome models)
Forlightly soiled items that are needed in ahurry.
Cycletime is approximately 15minutes, depending
on your household water pressure.
Changingtheautomaticsettings.
You can chant,e_ any, of the automatic settings, simi,)lv bv, i)ressing, the desired pads. The wash/rinse temperatm'e
can be chant,ed_ 1)_,I)ressint" _TEMP WASH/RINSE. 7

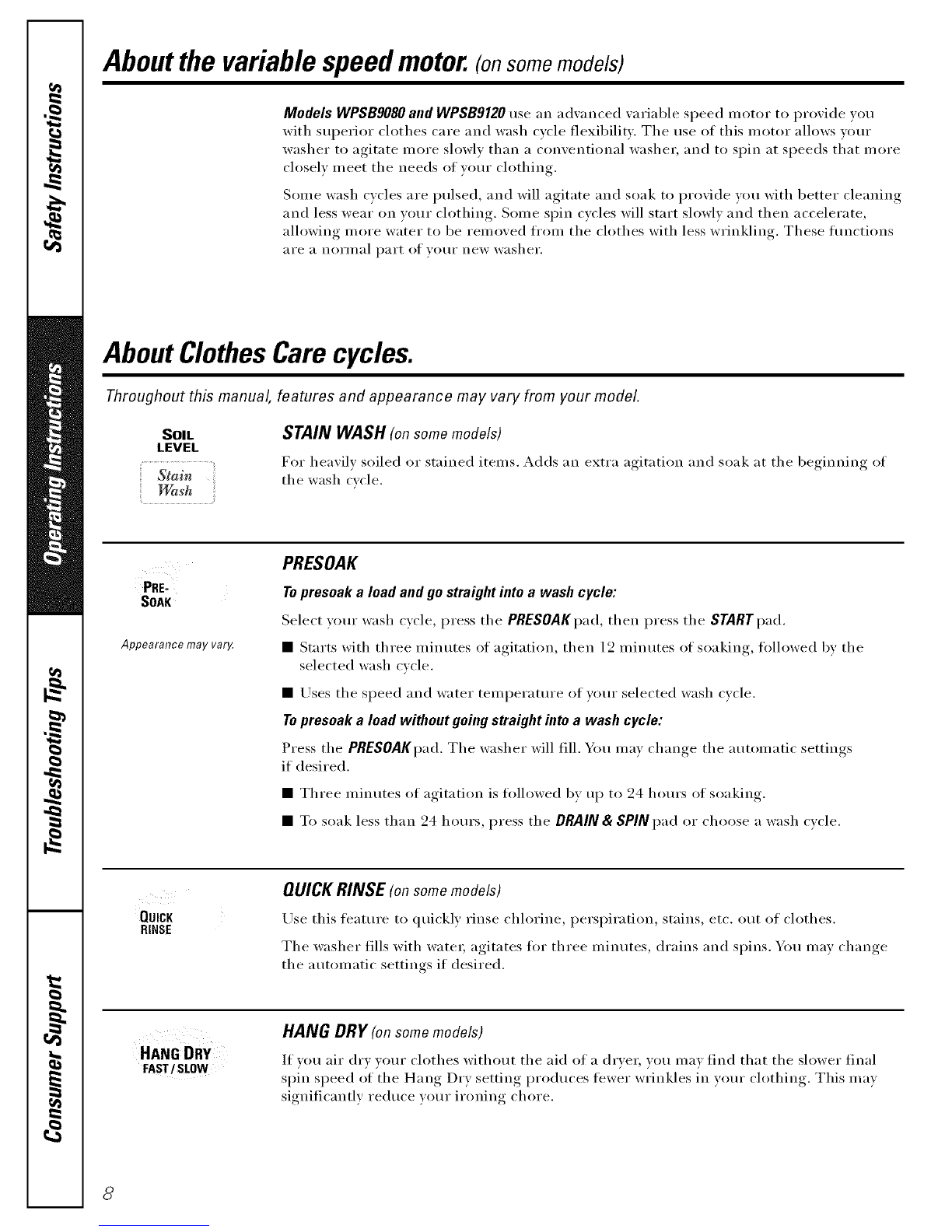

Aboutthe variablespeedmotor.(onsome models)
Models WPSB9OSO and WPSB9120 use an ad',anced _ariable speed motor to pro_i(le you
with superior clothes care and wash cycle flexibility. The use of this motor allows your•
washer to agitate more slowlx than a conxentional washer, and to spin at speeds that more
closel_ meet the needs of }our clothing.
Some wash c) cles are pulsed, and will agitate, and soak to I)r°xi(le you, with better cleaning,
and less wear on your clothing. Some si)in c) cles will start slowl_ and then accelerate
allowing more water to be remo',ed from the clothes with less wrinkling. These fl/nctions
are a nori/lal part of VO/li" new washer,
AboutClothesCarecycles.
Throughout this manual, features and appearance may vary from your model.
SOIL
LEVEL
Slain
Wash
STAIN WASH (onsomemodels)
For hea_ilv soiled or stained items. Adds an extra agitation and soak at the 1)eginning of
the wash c_cle.
PRE-
SOAK
Appearance may var_
PRESOAK
To presoak a load and go straight into a wash cycle:
Select veto" wash cycle, press the PRESOAK pad, then press the STARTpad.
• Starts with three minutes of agitation, then 12 minutes of soaking, followed by the
selected wash cycle.
• Uses the speed and water temperature of wmr selected wash cycle.
To presoak a load without going straight into a wash cycle:
Press the PRESOAKpad. The washer will till. You may change the automatic settings
if desired.
• Three minutes of agitation is tollowed by up to 24 hem's of soaking.
• To soak less than 24 hem's, press the DRAIN& SPIN pad or choose a wash cycle.
QUICK
RINSE
QUICKRINSE (on some models)
Use this ti_atm'e to quickly rinse chlorine, perspiration, stains, etc. out of clothes.
The washer fills with water; agitates tot three minutes, drains and spins. You may change
the automatic settings if desired.
HANGDRY
FAST/SLOW
HANG DRY (onsomemodels)
If you air (lr))ore" clothes without the aid of a dryer you max find that the slower final
spin speed of the Hang Dr) setting produces tewer wrinkles in yore" clothing. This ma_
significantly reduce _our ironing chore.

DRAIN
& SPIN

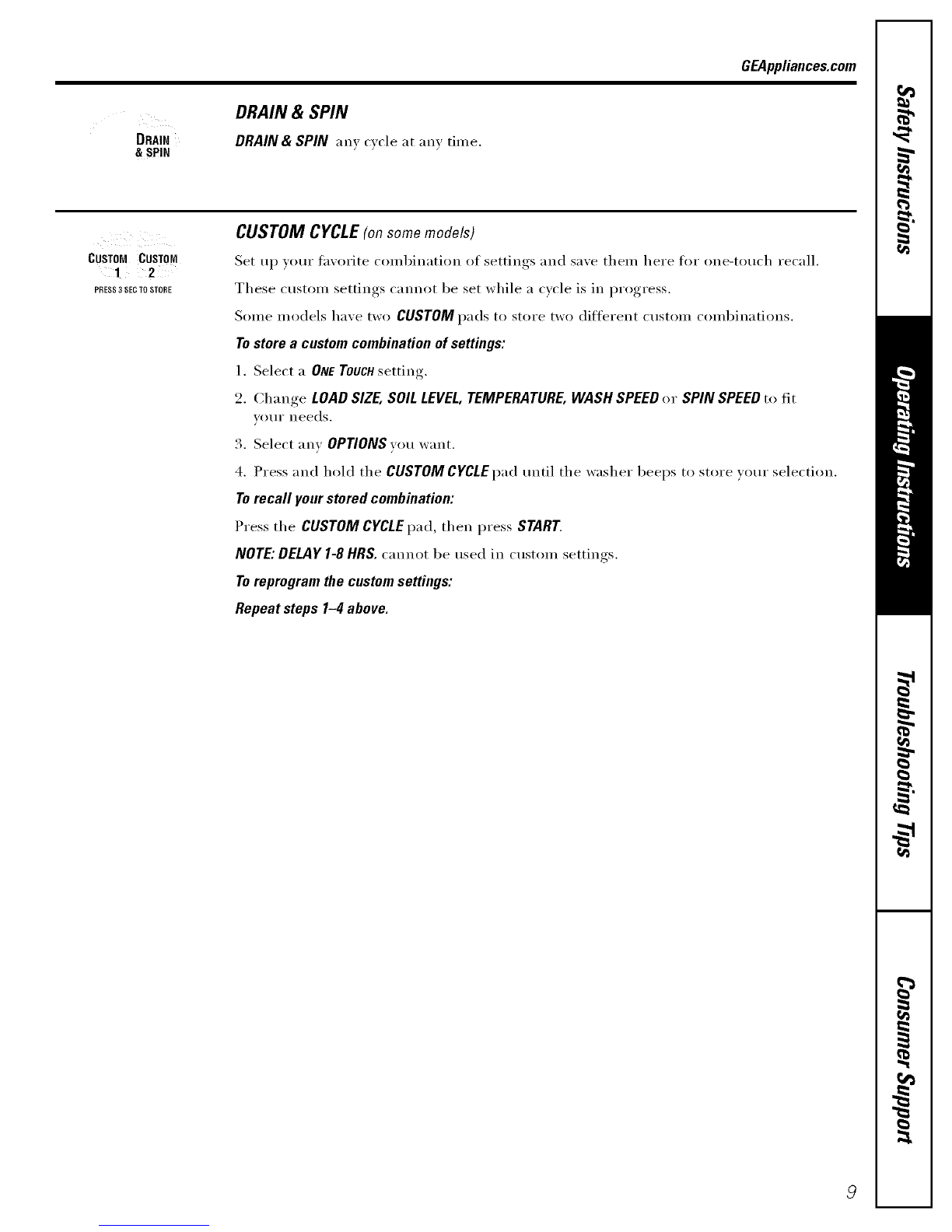

DRAIN & SPIN
DRAIN& SPIN am c_cle at any time.
GEAppliances.com
CUSTOMCUSTOM
1 2
PRESS3 SECTOSTORE
CUSTOM CYCLE(onsomemodels)
Set up your thvorite (-oml)ination ot settings and save then/ here tor one-touch recall.
These custom settings cam_ot be set while a cycle is in progress.
Some models have two CUSTOMpads to store two different custom combinations.
To store a custom combination of settings:
l. Select a ONE TOUCHsetting.
2. Change LOADSIZE,SOILLEVEL,TEMPERATURE,WASHSPEEDor SPINSPEEDt(>fit
your needs.
3. Select any OPTIONSyou want.
4. Press and hold the CUSTOMCYCLEpad tmtil the washer beeps to store your selection.
To recall your stored combination:
Press the CUSTOM CYCLE pad, then press START.
NOTE: DELAY I-8 HRS. cannot be used in custom settings.
To reprogram the custom settings:
Repeat steps I-4 above.

Aboutcontrolsfeatures.
Throughout this manual, features and appearance may vary from your model.
START
• After you have selected anew cycle, press once to start the cycle.
• Press twice to select the last cycle used and start the washer.
• If the washer is running, press once to interrupt the cycle; press again to continue
the cycle.
STOP
This pad should not be used to interrupt or pause a cwle.
Pressim,.._ this pad will cancel the cmTent settings and the settings will be h)st.
EST.T_MEREMNNING
Estimated Time Remaining
• Displa)_s the approximate time remaining tmtil the end of the cycle.
• If the estimated time remaining is more than 60 minutes, "1 H" will flash in the display,
t011owed by the additional remaining minutes. When the time remaining is less than
60 minutes, the timer will count down.
• Cycle time is afli_cted by how long it takes the washer to fill. This depends on the water
pressm'e in yore" home. The "smart" timer "learns" the amotmt of time it takes to fill
wmr washer and a@_sts the total time accordingly.
NOTE: If PRESOAKis selected and a tollow up wash cycle is not chosen, two dashes will
come up in the display.
SpotSpray
Provides a short spra) of water to alh)w you to dampen oh)thing when you pretreat stains.
_] Open the washer lid.
[_ Press the SPOT SPRAY button. (You will see ashort stream of water.)
[_] Dampen yore" soiled garment with the SPOYSPRAYoption and _ub yore" th_orite
pretreatment product into soiled area.
NOTE: The SPOT SPRAY option will not work if
•the washer hd is down
•the washer tub is hlhng
•the water has already reached the level you selected.
SIGNAL BLEACHSIGNAL (on some models)
The Bleach Signal is a reminder signal that can be tin'ned on to remind wm to add bleach
at the proper time in the wash cycle, Adding detergent and bleach at the same time
reduces the efl'ectiveness of both the enzymes in the detergent and the chlorine in the
bleach. By adding bleach later in the wash cycle, you allow the detergent's enzymes to
remove dirt and stains first, and then provide a more efli_ctive dose of liquid bleach to
whiten and sanitize wmr clothes.
10

Aboutcycle options. GEAppliances.com
Appearance may var_
SIGNAL
Alerts you when the cycle is complete.
Oil some models, press SIGNAL to turn the beeper on or off.
Oil some models, press SIGNALto select low or high volume, or to turn the beeper off.
2ND RINSE
Adds a second rinse to am c_cle.
E×TEND
SPIN EXTEND SPIN
Extends the last spin ota wash c_cle. This will extract more water from _our clothes.
Clothes will be drier when _ou use this option.
DEL ii
1-8 Hrs.
DELAY I-8 HOURS (on some models)
Use to delay the start ot your washer fin" 1 to 8 hours. First choose your wash cycle and
any options, Then press this pad tot the number of hours you want to delay the cycle,
Press the START pad to start the countdown.
The countdown time will be shown in the Est. Time Remaining display.
Aboutotherfeatures.
Cycle Status Indicator Lights
The cycle status indicator lights display what l)art of the cycle the washer is in.
SOAR WASH RINSE 2ND RINSE FINALSPIN
PerfecTemp Plus Perfec TempPlus
PeffecTemp Plus senses the incoming water temperature and a(!justs the temperature
of the fill water.
The lid must be closed for PeffecTempPlusto work.
If your water is too cold, detergent will not dissolve etfectivelv and clothes may not get
clean. If the water is too hot, tabrics could be damaged.
PerfecTempPlusa(!justs these water temperature extremes ti)r better washing pertommnce.
You may hear the water valves turning off and on while the water temperature is being
a(!justed. This is normal.
Some models have an indicator light that tells w)u when PeffecTempPlusis active.
AUTO BALANCE Auto Balance (on some models)
The Auto Balancefeature senses the wash load distril)ution fin" an even spin. Models with
Auto Balance have an indicator light that tells you when the teature is active.
II

Aboutwasher features.
Liquid Bleach Dispenser
The dispenser dilutes liquid chlorine bleach before it reaches into your wash load.
[Z] Check clothing care labels for special instructions.
r-_ Measure liquid bleach careflflly, fl)llowing instructions on the bottle.
•Neverpour undiluted liquid chlorine bleach directly onto clothes or into the wash baskeL
• Do not pour powdered bleach into bleach dispenser
pqBefore starting the washer, pour measured amount of bleach directly into
bleach dispenser. Avoid splashing or ove_filling dispenser. If you prefer to
use powdered bleach, add it into the wash basket with yore" detergent.
• Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover
Mixing can produce a toxic gas which may cause death.
The Agitator Cap or Fabric Softener Dispenser
The agitator cap fits into the top of the
agitntox; If it accidentnllv comes off, simply
put it back on.
The fabric softener dispenser automatically
releases liquid rid)rio softener at the proper
time dm_ing the cycle.
Do not stop the washer during the first spin.
This will cause the dispenser to empty
too soon.
_]Add water to dispenser until it reaches
the maximum fill line.
To use, follow these steps:
_] Make StlI'e dispenser is securely
attached to agitnto_;
r_Use only liquid rid)tic sofieneE
Pour into disl)ensex; using, amount
recommended on package.
Never pourfabricsoftenerdirectly on
clothes. It may stain them.
Donot pour anything into flTeagitator if
the agitator cap or dispenser is removed.
Separate for cleaning.
12
Cleaning the Fabric Softener Dispenser
[Z] Remoxe the dispenser from the top of the agitator.
r-2_ Separate the dispenser cup from the coxer b) oras )ing the top and pushing
down on the inside of the cui) with veto', fingers, . Dispenser cup will i7,)i7 free
li'oiil the Cox, er,
To clean the dispenser, soak both the dispenser cup and the dispenser cover
in the following solution:
• 1 USgallon (3.8 liters) warm water
• 1/4 cup (60ml) heavy duty liquid detergent
• I cup (240 ml) bleach
r_lf necessary, loosen 1)uild-up with a clean, soft cloth after soaking. Do not use
a stiff b_ush; you ma) roughen the surface of the dispenser.
N Rinse and reassemble dispenser. Place dispenser back on the agitator.

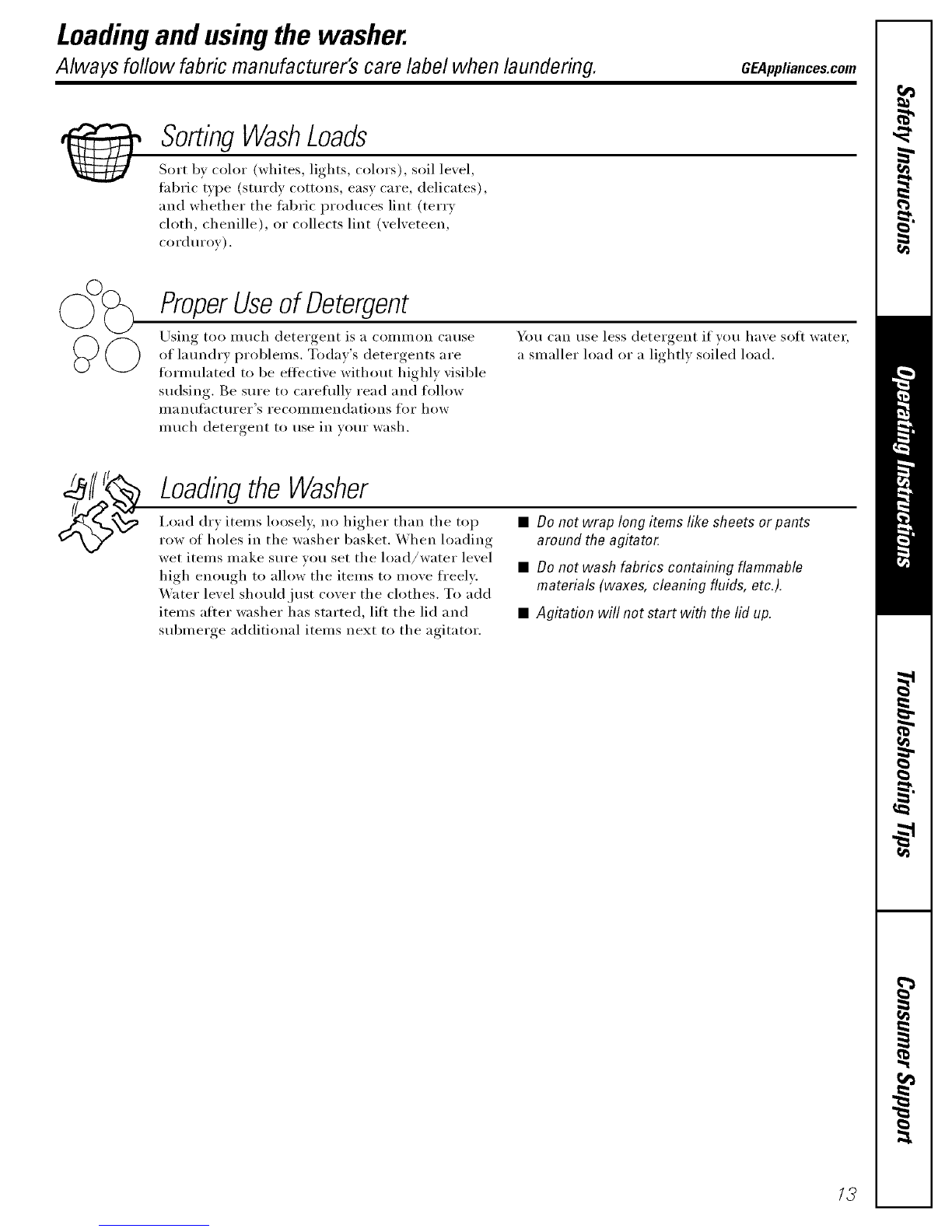

Loadingand usingthe washer.
Always follow fabric manufacturer's care label when laundering. GEAppliances.com
SortingWashLoads
Sort by color (whites, lights, colors), soil level,
fabric type (sturdy cottons, easy care, delicates),
and whether tile fabric produces lint (tell T
cloth, chenille), or collects lint (velveteen,
corduroy).
ProperUseof Detergent
Using too II//lch detergent is a COli/ii/on ('arise
of latmdry i)roblems. Todav's detergents are
fimnulated to be ettective without highly visible
sudsing. Be sure to carefifllv read and fi)llow
IIlalltll;IcttlI'eF's recolillilendations _'i)r how
much detergent to use in vain" wash.
You can use less detergent if you haxe soft water,
a smaller load or a lightl) soiled load.
LoadingtheWasher
I,oad dry items loosely, no higher than tile top
row of holes in tile washer basket. When loading
wet items make sure you set the load/water level
high enough to allow the items to move fl'eelv:
_,V_ter level should just cover the clothes. To add
items atter washer has started, litt the lid and
submerge additional items next to tile agitator.
•Do not wrap long items like sheets orpants
around the agitator
• De not wash fabrics containing flammable
materials (waxes, cleaning fluids, etc.).
• Agitation will not start with the lid up.
13

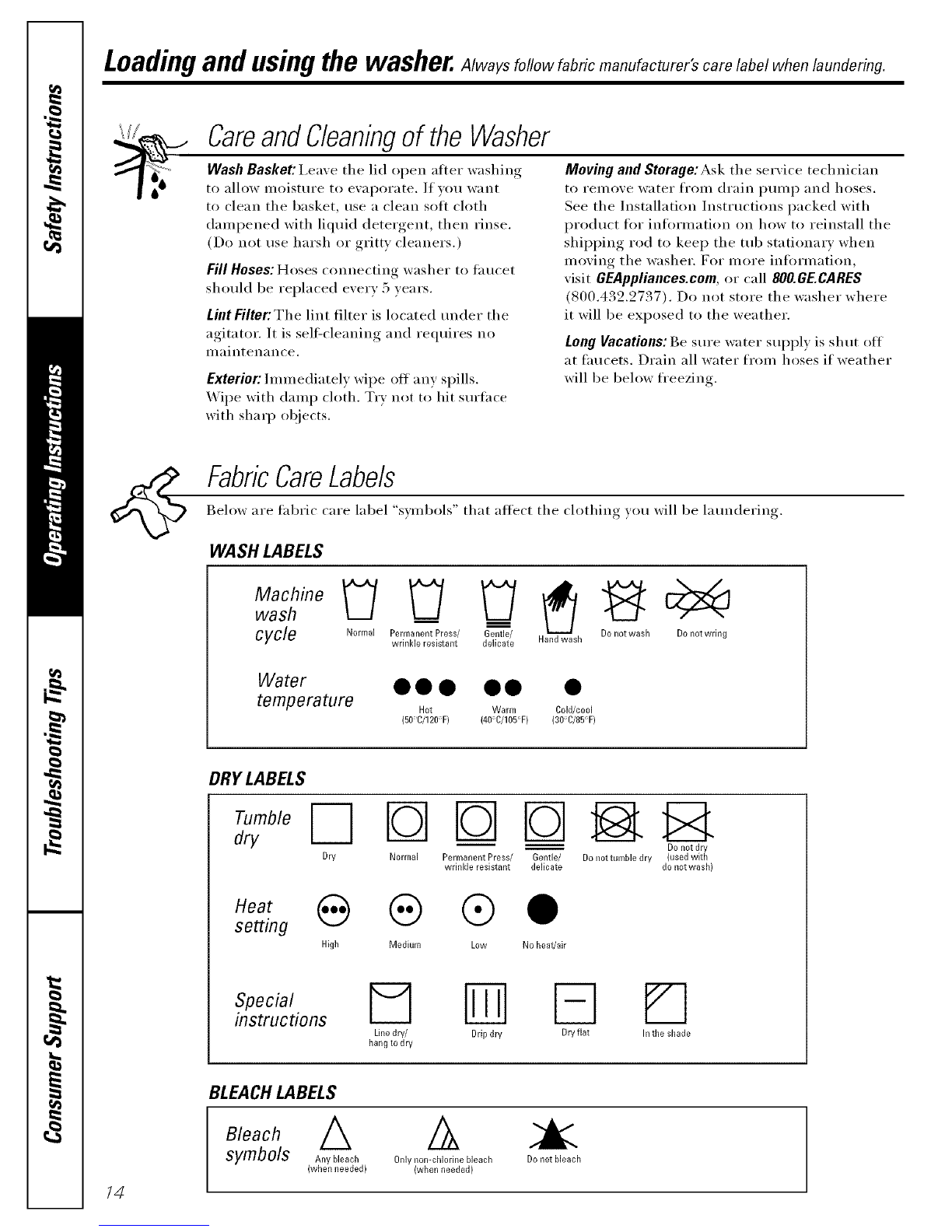

Loadingand usingthe washer. Always follow fabric manufacturer's care label when laundering.
CareandCleaningof the Washer
Wash Basket: i,eave the lid open after washing
to allow moisture to ewq)orate, If you want
to clean the basket, use aclean sott cloth
dampened with liqtfid detergent, then rinse,
(Do not use harsh or gritty cleaners.)
Fill Hoses: Hoses connecting washer to fh ucet
Moving and Storage:Ask the service technician
to remove water from drain pump and hoses.
See the Installation ]nsttuctions packed with
product for infin'mation on how to reinstall the
shipping rod to keep the tub stationary when
moving the washer, For more information,
visit GEAppliances.com, or call 800.GE.CARES
should be replaced every 5 years.
Lint Filter: The lint filter is located trader the
agitator. It is self=cleaning and requires no
iil_linten_lnce.
Exterior: lmmediatel} wipe off any spills.
_ipe with damp cloth. Tr} not to hit stu'fitce
_ith shaq) ol?jects.
(800.432.2737). Do not store the washer where
it will be exposed to the weather.
Long Vacations: Be stlre water supply is sh tit el]
at fimcets. Drain all water from hoses if weather
will be below freezing.
FabricCareLabels
Below are fabric care label "symbols" that affect the clothing you will be latmdering.
WASH LABELS
wash _
cycle _orma_p............tP_oss/_onHe'_/ Donot_oshDonot_rb,g
wrinkle resistant delicate Hand wash
Water •• • O0 •
temperature Hot W..... CoN/cool
(50 C/120'F) (40' C/105"F) (30' C/85"F)
DRY LABELS
,.mO,o
dry Dry Normal Permanent Press/ Gentle/
wrinkle resistant delicate
Heat _G@O
setting High Medium Low No heat/air
Do not dry
Do not tumble dry (used with
do not wash)
Line dry/ Drip dry Dry flat Intile shade
hang to dry
14
BLEACHLABELS
A A
symbols Any bleach Only ....... blorine bleach Do ,lot bleach
(when needed) (when needed)

Beforeyoucall forservice... GEAppliances.com
Troubleshooting -tips
Save time and money/. Review the charts on the following pages,
or visit GEAppliances.com. You may not need to call for service.
PERFECTEMPPLUS Possible Causes What ToDo
PeffecTemp Plus wash The washer is in a cold rinse cycle •This is nomml. Tile PeffecTemp Plusteamre is designed
temperature is incorrect not to activate during a cold xJnsecycle to improve tile
energy efficiency ot your washe_:
(Review PerfecYemp All the water in the household *Wait until tile _mer in tile water heater is heated to tile
Plus in the About other water heater has been used correct temperature.
features section)
PERFORMANCE Possible Causes What ToOo
Clothes toowet Incorrect spin speed *Make sure the spin cycle selected matrhes tile load x_)tl
selected are washing. Some rid)tics will reel wetter when rinsed
with cold watel:
Colored spots Incorrect use of fabric • Check fi_bfic soDener package ti)r instructions and follow
softener directions tot using dispensel:
•Pretreat stain and rewash.
Dye traactsfer • Sort whites or lightly colored items ii'om clark colo_.
Grayed oryellowed Not enough detergent * Llse more detergent (especially with larger loads).
clothes Be sure to iollow detergent manufimturer's directions.
Hard water * Use a water conditioner like (:algon brand or install
a water sottelleE
Water is not hot enough * Make sm'e water heater is delivering water at
120°F-140°F (48°C-60°C).
Washer is overloaded • Select load size to match clothes load.
Detergent is not "Add detergent as wash basket fills with water beti)re
dissolving you load clothes.
Dye traactsfer • Sort clothes bv color. If fi_bric label states wash separately,
unstable dyes may be indirated.
tint or residue on Clothes axe air or line dried • If you do not (hy your ch)thes with a clothes (hyel. your
clothes clothes may retain more lint.
Incorrect sorting • Sepm'ate lint producel_ fl'om lint collecto_.
Washing too long *Wash small loads tot a shorter time than larger loads.
Detergent not dissolving *Add detergent as wash basket tills with watel, befiwe you
load clothes.
•TIw a liquid detmgent.
•LJse Wal'l//er water tel//})er;fftu'e.
Overloading *Load ch)thes no higher than tile to}) row ot holes in tile
washer tub.
• Make sure load size selected matches clothes load size.
Incorrect use of fabric softener *Check tiibric softener package fi)r instructions and iollow
directions for using dispensel:
15

Beforeyoucall forservice...
PERFORMANCE(cont.) Possible Causes What ToDo
Pilling Result of normal wear on * _qfile this is not caused b_ tile _ashe_; }on ran slo_ the
poly-cotton blends and pilling process by washing garments inside out.
fuzzy fabrics
Snags, holes, team, rips Pins, snaps, hool¢s, sharp • Fasten snaps, hooks, buttons and zippe_.
or excessive wear buttons, belt buckles, * Remove loose items like pins, objects in pockets
zippers and sharp objects and shaq_ buttons.
left in pockets •Turn knits (which snag easily) inside out.
Undiluted chlorine bleach * Check bleach package instructions fl)_ proper amotmt.
• Ne\vr add undiluted bleach to wash or allow clothes
to come in contact with undiluted bleach.
Chemicals _e hair bleach •Rinse items that may have chemicals on them befiwe
or dye, permaJaent wave washing.
solution
Wrinkling Improper sorting * A\oid mi_ng heav} items (like _ork clothes) with
light items (like blouses).
• TUa lid)tic sottenel;
Overloading or •I,oad your washer so clothes have enough room
incorrect water level to move fl'eely.
Incorrect wash and * Match Cycle selection to tile t?])e of fitbfic you are
dry cycles washing (especially fl)* easy care loads).
Repeated washing in •\'\_lsh in wam_ or cold water.
water that is too hot
OPERATION Possible Causes What ToDo
Washer pausesin cycle The HAND WASH or CASUALS • This is nomml. Tile washer alternates between agitate
cycle was chosen and soak during the HAND WASH and CASUALS cycles
to get your clothes cleaner with less weal:
Washer won't operate Washer is unplugged • Make sure cord is I)lugged,, securely into a working outlet.
Water supply is turned off • Turla both hot and cold timcets flfllv oil
Controls axe not set properly •Check controls.
Lid is open-safety feature •Close lid and reset cycle, to the begilming if necessary.
prevents agitation mad sphnfing
when rid is up.
Circuit breaker/fuse is • Check house circuit breakels/fllses. Replace fllses or
tripped/blown reset breaker. Washer should haxe separate outlet.
1?3ectroltics need to be reset • Uiq)lug washei; wait 2 uinmtes, plug back ill and press
START.
START was not pressed • Press START.
Extremely low water pressure •Press START again.
16

GEAppliances.com
WATER Possible Causes What ToDo
Too manysuds Type of detergent * Switch to a lower sudsing detergent brlmd and iollow
instructions on package.
Very soft water * Tr_ less deteroent
Too much detergent •Measure your deteigent carefilll> Use less soap i_you
have sod watec a smaller load or a lightly soiled load.
Water leaks Fill hoses or dram hose is •Make sure hose com_ections are tight at iimcets
improperly connected and at washel:
•Make sure end of drifin hose is properly connected
to washer and correctly inserted in and secured to
drain thcilit}.
Household drain may •(beck househokl plumbing. You may need to call a
be dogged plumbel:
Constant water pressure •Tighten hoses at tile fimcets and turn tile water off after
to the fill hoses at the each use.
water source •Check Colldifioil of tile fill hoses; tile) shoukl be
replaced e\ ery 5 years.
Using too much detergent •Use less detergent. Use less soap if you have sot{ water
in washer a smaller load or a lightly soiled load.
Water temperature Control is not set properly •Check water temperature control and a(!}ust.
is incorrect
Water supply is ttwned off •Ttlrll both hot and cold t_m(ets hill) on and make Stll'e
or improperly connected hoses are comlected to correct timcets.
Water valve screens are •Turn off the water source and disconnect _tei" fill
stopped up hoses fi'om tile upper back of tile _;Mler. LJsea brush or
toothpick to dean the screens ill tile madline, Recomaect
the hoses and mm tile x_tei" back on,
House water heater is * Make sm'e house water heater is delivering water
not set properly at 120°F-140°F (48°(2-60°(;).
PerlecTemp Plus feature * Tile lid must be closed fi)r Perlecremp Plusto work.
was not activated
Water pumped out Lid lifted or cycle was put in •Reset cycle.
before cycle is pause for over 24 hours
complete
Water won't drain Drain hose is _ed or •Str:fighten drain hose and make sure washer is not sitting
improperly connected on it.
•Top of dr:fin outlet should be less than 8 ft (2.5 m)
above flooY_
Water spraying during Washer in spin cycle •Spra} rinse during a spin (}cle is nomml.
spin cycle
Washer did not fill Extremely low water pressure * Press tile START button again.
to chosen level
(PeffecTemp Plus Inlet hoses axe ldnked * Straighten hoses.
and STARTlights
are flashing) Water valve screens are •Turn off the _Atel" source :rod disconnect _ttei" fill
stopped up hoses fi'om the upper back of the _asheI: Use a brush or
toothI)ick to dean the screens in tile inadline. Reconl_ect
tile hoses and tt*r/] the _ter back on.
Water fills and drains Drain stand pipe is too low • Drain stand pipe must be ab(we 30" (76.2 cm).
at the same time 17

Beforeyoucall forservice...
NOISE Possible Causes What ToDo
Washer is noisy Washer is uneven • To level tile ti'ont of tile washe_; a(!iust tile ti'ont leveling
legs b v rotating tile individual leg in tile proper direction
tot up or down. To level back of washe_; lilt back ot
machine 4" (l 1 cm) and set down.
Washer load is • Press START to pause the washex; open the lid and
unbalanced redistribute tile load evenl> Close tile lid and press
START again.
Shipping rod is still assembled • To remo_e shipl)ing rod fl'om washe_; pull yellow tag and
in unit attached rod fl'om tile bottom right hand side ot washe_;
Washer is sitting too close • Pull washer away fl'oln tile wall; about 4" (11 cln)
to wall (causes knocking is needed.
during cycle)
PerfeoTemp Plus feature •This is normal. PerfecTemp Plus t/u'ns water xalxes off
is being used and on to a(!iust water temperature.
OTHER Possible Causes What ToDo
Labels on the exterior
of the washer will not
peel off cleanly
Occas'ionaJly the adhesive
used on the labels does
not release dem_ly
" Use a hair dtTer set at tile lowest heat setting, directing
the air at the label tot a short amount ot time. This will
release the adhesive easily, without damaging the surti_ce
ot the washe_:
/8

GEWasher Warranty.
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. Toschedule service,
on-line, 24 hours a day, vis# us at GEAppliances.com, or call
800.GE.CARES(800.432.2737).
Staple your receipt here.
Proofof the original purchase
date is needed to obtain service
under the warranty
For The Period Of: We Wifl Replace:
One Year Anypart of tile w;Isher which filils due to a defect in ul_lteI'i_lls OI" wox'kIn_lnshiI). DuxJng this
Fromthedate ofthe fullone-yearwarranty,GE will alsoprovide, freeofcharge,all labor and related servicecosts
originalpurchase to replace the defe('five part.
Second Year Anypart of the washer which fifils due to a defect in materials or workmanship. During this
Fromthedate ofthe additionalone-yearlimitedwarranty,you will be responsible ti)r any labor or related se_Mcecosts.
on;ginalpurchase
Thirdthrough Thesuspensionrodandspringassembly,andmainelectroniccontrolboard,if any of these I)a_ts
Fifth Year should fifil due to a (lefi_('tin materials or workmanship. GE will also replace the washer lid or
Fromthe date of the cover, if they should rust trader operating conditions. During this additional three-year limited
originalpurchase warranty, you will be responsible for any labor or related se_Mce costs.
Thirdthrough The transmission and outer washer tub, if any of these parts should filil dtle to a defect in u/aterials
TenthYear or worlunanship. Dtwing this additionaleight-yearlimitedwarranty,you will be responsible for any
Fromthedate ofthe labor or related set\ice costs.
originalpurchase
Lifetime ofProduct Thewasher basket, _ it shotdd fifildue to a (lefe('t in ulateIJals or worklllanshii). Dtlring this
Fromthe date of the product lifetime limited warranty, you will be responsible ti)r any labor or relamd sexa'ice costs.
originalpurchase
What Is Net Cevered:
• Service trips to your home to teach you how to use
the product.
• hnproper h_staJlation.
• Failure of the product if it is abused, misused, or used for
other thm_ the intended purpose or used commerciaJly.
• Replacement of house fuses or resetting of circuit
breakers.
•Dmnage to the product caused by accident, fire, floods
or acts of God.
•h_cidentaJ or consequential dmnage caused by possible
defects with this applimlce.
ThiswarrantyisextendedtotheonginalpurchaserandanysucceedingownerforproductspurchasedforhomeusewithintheUSA.InAlaska,the
warrantyexcludesthecostofshippingorservicecallstoyourhome.
Somestatesdonotallowtheexclusionorlimitationofincidentalorconsequent&ldamages.Thiswarrantygivesyouspecificlegal@ts, andyou
mayalsohaveotherrightswhichvaryfromstatetostate.Toknowwhatyourlegaln_?htsare,consultyourlocalorstateconsumeraffairsofficeor
yourstate#AttorneyGeneral.
Warrantor: General Electric Company.Leuisville, KY 40225
19

ConsumerSupport.
GEAppliancesWebsite GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hom_ a day,
any day of the year'. For greater convenience and tipster seiMce, you can now download Owner's Manuals,
order parts, catalogs, or even schedule service on-line. Y_)u can also "_sk Our Team of EN)erts .....
your questions, and so much more...
ScheduleService GEAppliances.com
Expert (;E repair sei_ice is onl_ one step away fi'om _our (looi: Get on-line and schedule your sei_ice at
)our comenience 24 hom_ any (lax of the year! Or call 800.(;E.CARES (800.432.2737) during natural
business hom_.
RealLifeDesignStudio GEAppliances.com
GE supports the Univei_al Design concept-products, services and enviromnents that can be used by
people of all ages, sizes and capabilities. We recognize the need to design fin" a wide range of physical and
mental abilities and impaimmnts. For details of GE's Univei_al Design applications, including kitchen
design ideas fin" i)eople with disabilities, check out our Websim today. For the hearing impaired, please call
800.TDD.GEAC (800.833.4322).
ExtendedWarranties GEAppliances.com
Pro'chase a (;E extended wari'ant_ and learn about special discounts that are axailable while yam" wari'ant_
is still in effect. You can imrchase it on-line an)time, or call 800.626.2224 during natural business houi_.
(;E Consulner Home Ser\ices will still be there alter )our warrant} expires.
PartsandAccessories GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their
homes (VISA, MasterCard and Discover cards are accepted). Order on-line todd 5 24 hom_ every day or by
phone at 800.626.2002 during natural business hom_.
Instructions contained in this manual cover procedures tobe performed by any user. Other servicing generally
should be referred to qualified service personnel Cautionmust be exercised, since improper servicing may cause
unsafe operation.
ContactUs GEAppliances.com
If you are not satisfied with the service you receive ti'om (;E, contact us on our _'ebsite with all the details
including your phone numbei; or write to: General Managei; Customer ]?,elations
GE Appliances, Appliance Park
I,ouisville, KY 40225
RegisterYourAppliance GEAppliances.com
Register your new applim_ce on-lhle-at your convenience! Timel) product registration will allow fin"
enhanced communication and prompt serxice under the temps ofxour warranty should the need arise.
You may also mail in the pre-printed registration card included in the I)ackiw"_material.
Printed in flTeUnited States
