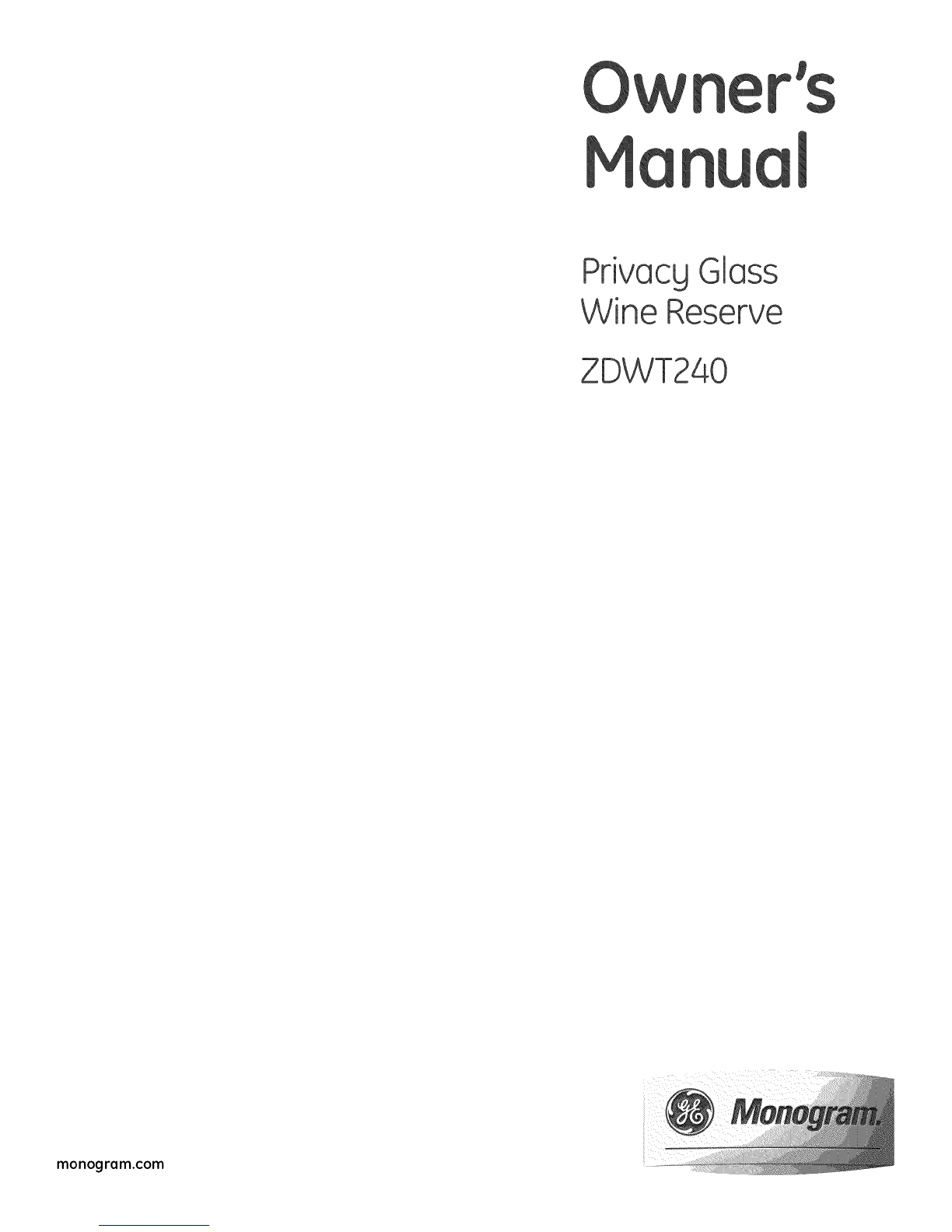

GE Monogram ZDWT240 User manual

Priv(]cgGlass
Wine Reserve
ZDWT240
monogram.com

Consumer Inform(]tion
Wine Reserve

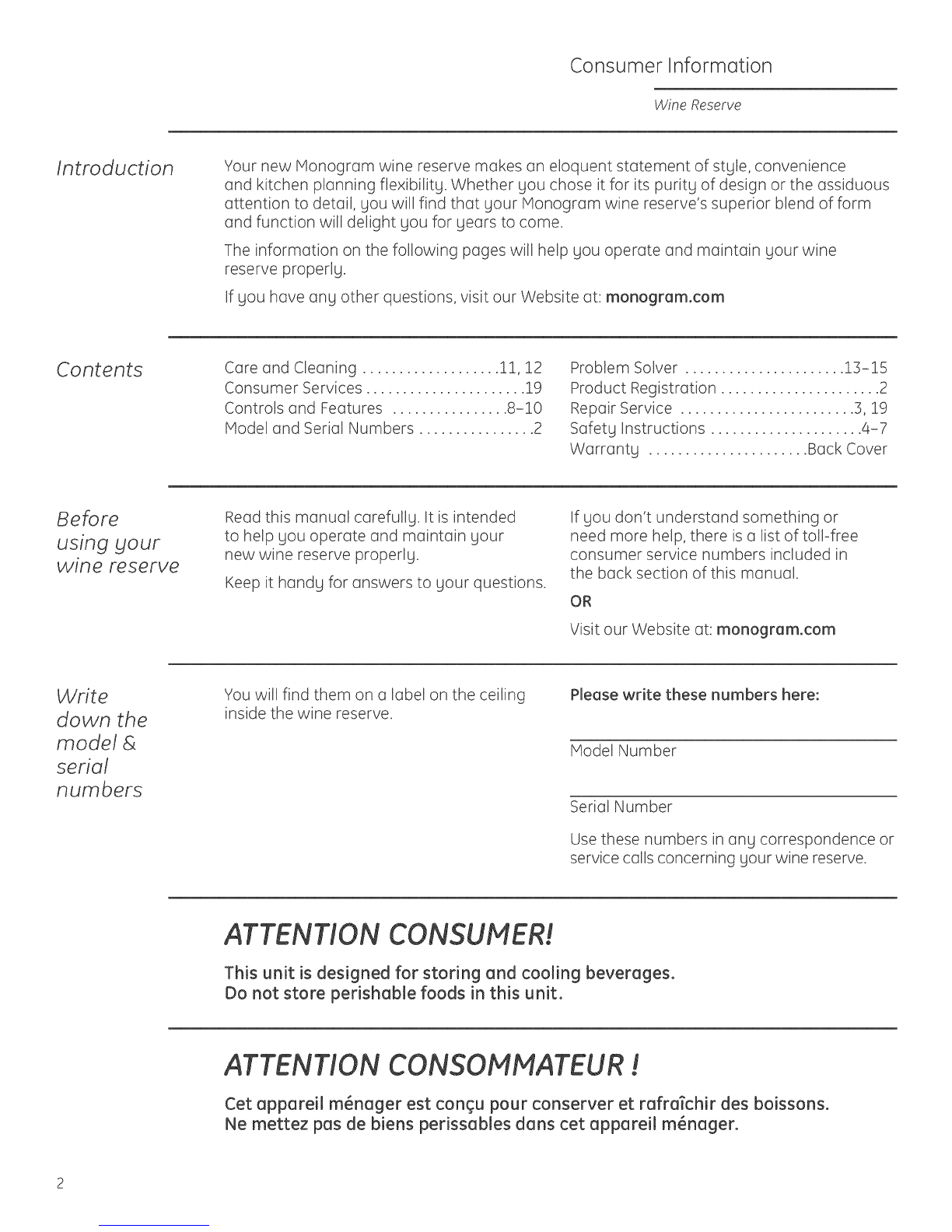

Introduction Your new Monogram wine reserve makes an eloquent statement of st@e, convenience
and kitchen planning flexibilitg. Whether gou chose it for its puritg of design or the assiduous
attention to detail, gou will find that gour Monogram wine reserve's superior blend of form
and function will delight gou for gears to come.
The information on the following pages will help gou operate and maintain gour wine
reserve properlg.
If gou have ung other questions, visit our Website at: monogram.cam
Contents Cure and Cleaning ................... 11, 12
Consumer Services ...................... 19
Controls and Features ................ 8-10
Model and Serial Numbers ................ 2
Problem Solver ...................... 13-15
Product Registration ...................... 2
Repair Service ........................ 3, 19
Safety Instructions ..................... 4-7
Warranty ...................... Buck Cover
Before
using gour
wine reserve
Read this manual corefullg. It is intended
to help gou operate and maintain gour
new wine reserve properlg.
Keep it handg for answers to gour questions.
If gou don't understand something or
need more help, there is o list of toll-free
consumer service numbers included in
the buck section of this manual.
OR
Visit our Website at: monogram.cam
Write
down the
model &
serial
numbers
You will find them on a label on the ceiling
inside the wine reserve. Please write these numbers here:
HodeI Number
Serial Number
Use these numbers in ong correspondence or
service culls concerning gour wine reserve.
ATTENTION CONSUHERI.
This unit is designed for storing and cooling beverages.
Do not store perishable foods in this unit.
ATTENTION CONSOHHATEUR I
Cet appureil m_nuger est conqu pour conserver et rufruTchir des boissons.
Ne mettez pus de biens perissubles duns cet uppureil m_nuger.

Consumer Inform(]tion
Wine Reserve
If you
received a
damaged
appliance
The worrontg does not cover damage
caused after delivery. Immediotelg contact the dealer (or builder) that sold gou the wine reserve.
Save time
&money Before gou request service, check the
Problem Solver in the buck of this manual. It lists causes of minor operating problems
that gou can correct gourself.
Remove
packaging Before using, be sure olI packing materials
and tape have been removed.
To assure no damage is done to the finish of
the product, the safest wag to remove the
adhesive left from packaging tape on new
appliances is an application of household
liquid detergent. Apply with o soft cloth and
allow to soak. Wipe dry and then apply an
appliance polish to thoroughly clean and
protect the surface.
If you need
service To obtain service, see the Consumer Services
page in the back of this manual.
We are proud of our service and want you
to be pleased. If for some reason you ore not
happy with the service you receive, here ore
steps to follow for further help.
For customers in the USA:
FIRST,contact the people who serviced gout
appliance. Explain why gou ore not pleased.
In most cases, this will solve the problem.
NEXT, if gou ore still not pleased, write
oil the details-including your phone
number-to:
Manager, Customer Relations
GE Appliances
Appliance Pork
Louisville, KY 40225
For customers in Canada:
FIRST,contact the people who serviced gour
appliance. Explain why gou ore not pleased.
In most cases, this will solve the problem.
NEXT, if gou ore still not pleased, write oil the
details-including your phone number to:
Manager, Consumer Relations
Plobe Canada Inc.
1 Foctorg Lane, Suite 3Z0
Ploncton, N.B. E1C9P13
After
installation
is completed
The location should not be subject
to direct sunlight, heat or moisture.
Promptlg inspect gout new Monogram
wine reserve. If it has been damaged,
contact the Installer or Dealer immediotelg.
This wine reserve must be properlg leveled
to ensure correct door alignment and door
closure. Contact the Installer if the unit is
not level.
The unit should be centered in the opening.
The front face of the door should be 1"
forward of adjacent cobinetrg. Contact
the installer if clearance is not correct.
®Test the door swing. Corefullg open and
close the door. The door should not rub
or catch on adjacent cobinetrg. Notifg
the installer if the door makes contact
with cabinetry.
Please Contact the Installer or Dealer if you
experience any of these problems.
Your wine reserve is shipped with o black
toekick on the front of the unit. For shipping
purposes, on optional stainless steel toekick
is secured to the back or on the inside of the
unit. That toekick should hove been removed
and installed, or given to you. Keep the
unused toekick and other unused or
removed parts for possible future use. 3

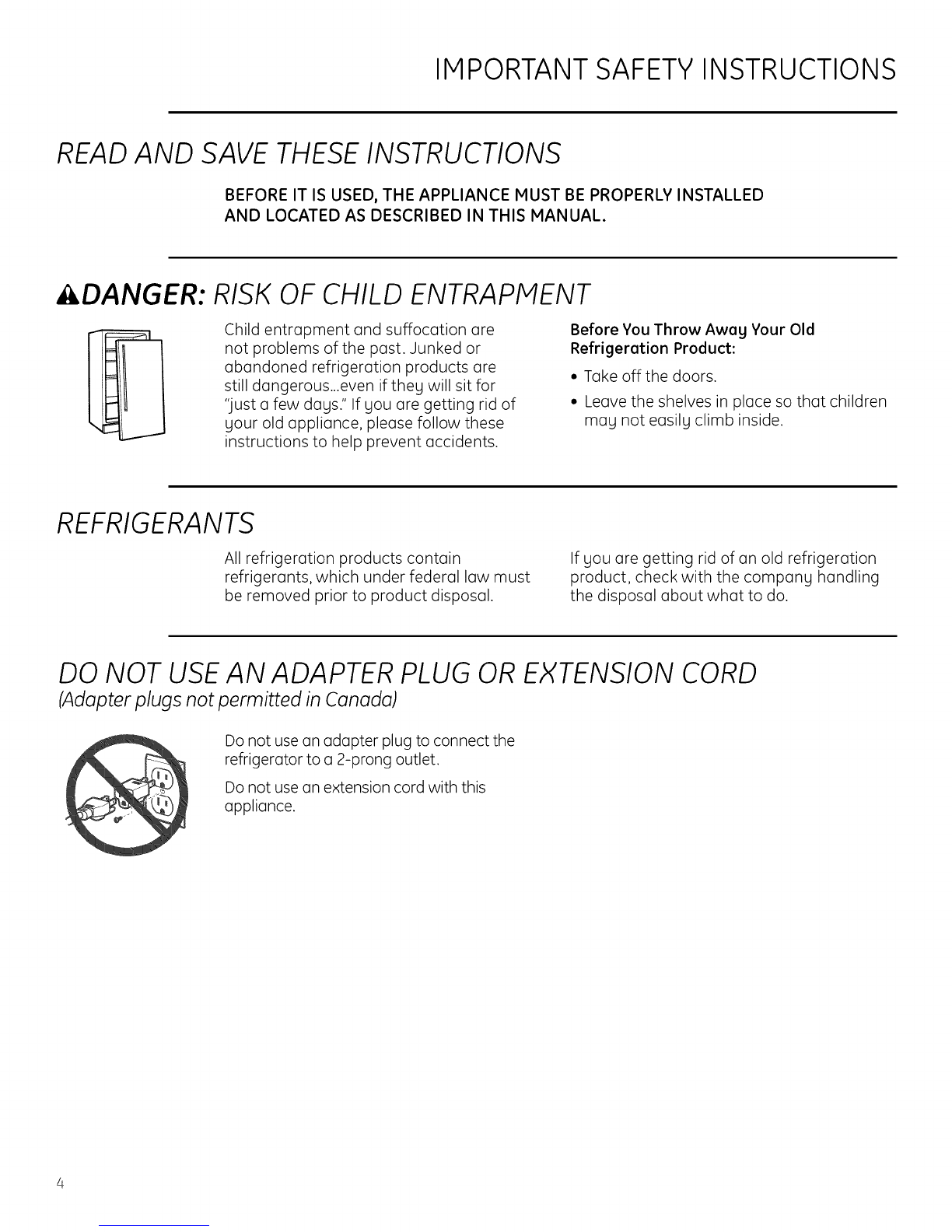

IMPORTANTSAFETYINSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
BEFORE IT IS USED, THE APPLIANCE MUST BE PROPERLY INSTALLED
AND LOCATED AS DESCRIBED IN THIS MANUAL.
_DANGER: RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are
not problems of the past. Junked or
abandoned refrigeration products are
still dangerous...even if they will sit for
"just a few days." If you are getting rid of
your old appliance, please follow these
instructions to help prevent accidents.
Before You Throw Awag Your Old
Refrigeration Product:
• Take off the doors.
• Leave the shelves in place so that children
may not easily climb inside.
REFRIGERANTS
All refrigeration products contain
refrigerants, which under federal law must
be removed prior to product disposal.
If you are getting rid of an old refrigeration
product, check with the company handling
the disposal about what to do.
DO NOT USE AN ADAPTER PLUG OR EXTENSION CORD
(Adopterplugs not permitted in Canada)
Do not use an adapter plug to connect the
refrigerator to a 2-prong outlet.
Do not use an extension cord with this
appliance.

IMPORTANTES INSTRUCTIONS DE SI:CURITI_
LIREETCONSERVERCESINSTRUCTIONS
AVANT D'ETRE UTILISI_, L'APPAREIL MI_NAGER DOlT ETRE BIEN INSTALLI_ ET
SE TROUVER A L'ENDROIT D¢CRIT DANS CETTE MANUEL.
_DANGER! RISQUES POUR LES ENFANTS
Les enfants pris au pi@geou marts
d'asphyxie sont toujours d'actualit@.
Les appareils de r@frig@ration abandon@s
sont toujours aussi dangereux, m@me si
on n'attend que "quelquejours" pour
s'en d@barasser. Si vous ne gardez pas
votre ancien appareil, veuillez suivre les
directives ci-dessous afin de pr@venir
les accidents.
Avent de vous d@beresser de votre vieux
eppereil de r@frig@retion :
• D@montez les portes.
• Laissez les clogettes en place afin
d'emp@cher les enfants de grimper
6 I'int@rieur.
RdLFRIGdLRANTS
Tous les appareils de r_frig_ration
contiennent des refrigerants qui,
conform_ment aux lois f_d_rales, doivent
_tre enlev_s avant toute _limination de
I'appareil.
Si vous vous d_barrassez de vieux appareils
de r_frig_ration, v_rifiez, aupr_s de la soci_t_
qui s'occupe de leur _limination, ce que vous
devez faire.
NE PAS UTILISER DE FICHE D'ADAPTATION OU
DE CORDON PROLONGATEUR
(Fichesd'odaptationnonpermisesau Canada)
N'utilisez pas de fiche d'adaptation pour
brancher le r@frig@rateurdans une prise @
2 broches.
N'utilisez pas de cordon prolongateur avec
cet appareil.

IMPORTANTSAFETYINSTRUCTIONS
HOW TOCONNECT ELECTRICITY
Do not, under ang circumstances, cut
or remove the third (groundJ prong from
the power cord. For personal safety, this
appliance must be properly grounded.
The power cord of this appliance is equipped
with o 3-prong (grounding} plug which mutes
with o standard 3-prong (grounding} wall
outlet to minimize the possibilitg of electric
shock hazard from this appliance.
Hove the well outlet and circuit checked
by a qualified electrician to make sure
the outlet is properlg grounded.
Where e standard 2-prong wail outlet
is encountered, it is your personal
responsibility and obligation to have
it replaced with o properlg grounded
3-prong wail outlet.
The appliance should always be plugged into
its own individual electrical outlet which has
o voltage rating that matches the rating
plate. This provides the best performance
and also prevents overloading house wiring
circuits which could cause a fire hazard from
overheated wires.
Never unplug on appliance by pulling on
the power cord. Alwoys grip the plug firmly
and pull straight out from the outlet.
Repair or replace immediately alI power
cords that have become frayed or otherwise
damaged. Do not use a cord that shows
cracks or abrasion damage along its length
or at either end.
When moving the appliance, be careful not
to roll over or damage the power cord.
SAVETHESEINSTRUCTIONS

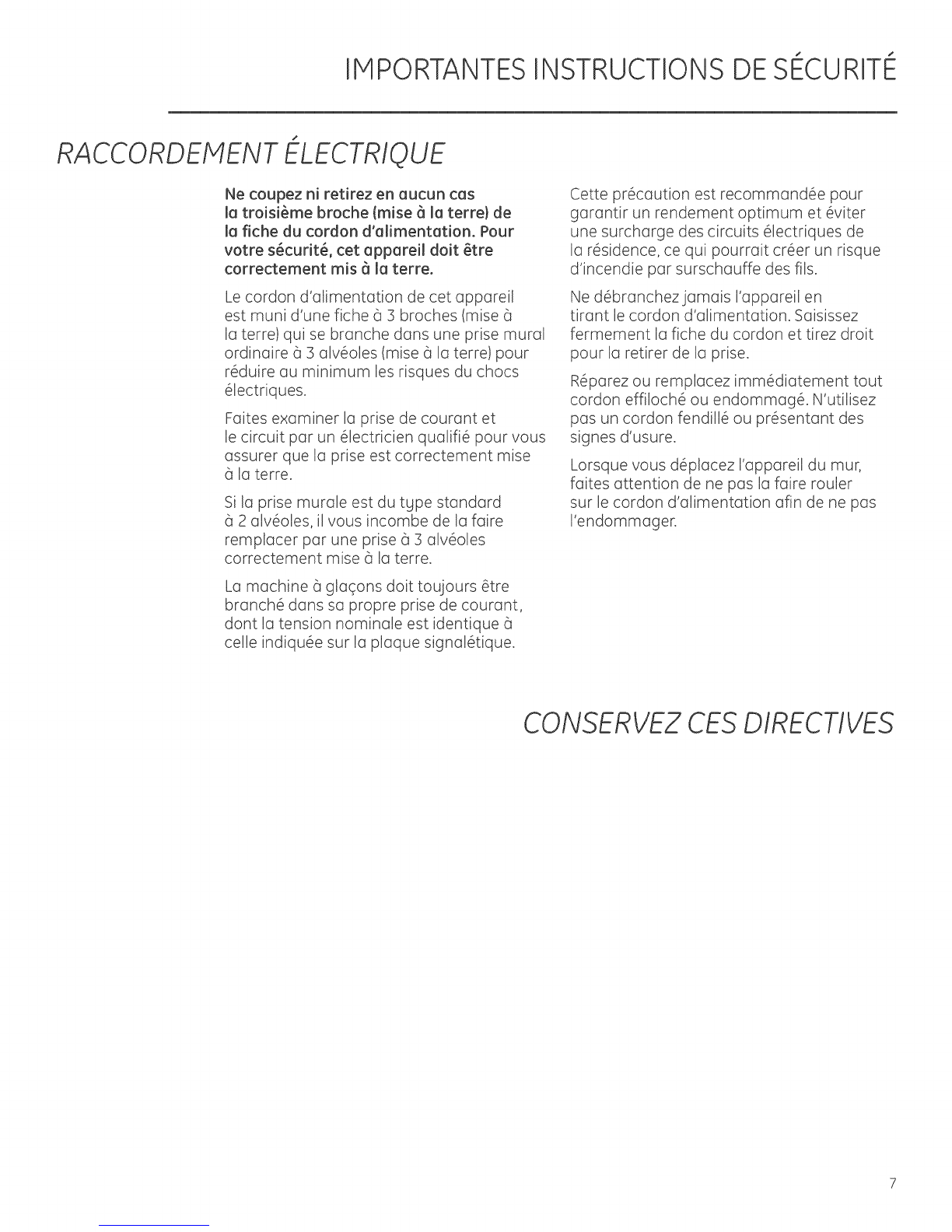

IMPO ANTESINSTRUCTIONSDESI'CURITE"
RACCORDEPIENT ELECTRIQUE
Ne coupez ni retirez en aucun cas
la troisi_rne broche (raise 6 la terre} de
le fiche du cordon d'eJimentetion. Pour
votre s_curit_, cet eppereiJ dolt @tre
correctement mis 6 le terre.
Le cordon d'alimentation de cet appareil
est muni d'une fiche 6 3 broches (mise 6
Ia terre} qui se branche dans une prise mural
ordinaire 6 3 alv6oles (mise 6 la terre) pour
r6duire au minimum Ies risques du chocs
6Iectriques.
Faites examiner la prise de courant et
Ie circuit par un 61ectricien qualifi6 pour vous
assurer que Ia prise est correctement mise
6 Ia terre.
Si la prise murale est du tgpe standard
6 2 alv6oles, il vous incombe de la faire
remplacer par une prise 6 3 alv6oles
correctement mise 6 Ia terre.
La machine 6 glaqons dolt toujours _tre
branch6 dans sa propre prise de courant,
dont Ia tension nominale est identique 6
celIe indiqu6e sur Ia plaque signaI6tique.
Cette pr6caution est recommand6e pour
garantir un rendement optimum et 6viter
une surcharge des circuits 61ectriques de
Ia r6sidence, ce qui pourrait cr6er un risque
d'incendie par surschauffe des ills.
Ne d6branchezjamais I'appareiI en
tirant Ie cordon d'alimentation. Saisissez
fermement Ia fiche du cordon et tirez droit
pour Ia retirer de Ia prise.
R6parez ou remplacez imm6diatement tout
cordon effiloch6 ou endommag6. N'utilisez
pas un cordon fendilI6 ou pr6sentant des
signes d'usure.
Lorsque vous d6placez I'appareiI du mur,
faites attention de ne pas Ia faire rouler
sur le cordon d'alimentation afin de ne pas
I'endommager.
CONSERVEZ CESDIRECTIVES

Controls (]nd Features
Wine Reserve
Temperature
control TEMP. CONTROL
®. ®.
RED WINE WHITE WINE
The temperature range of the wine reserve is
from 40% to 65%.
Do not install the wine reserve where the
temperature will go below 55% or above
90°F.
The temperature displog shows the actual
temper(]ture of the wine reserve. The (]ctual
temperature mug vary slightly from the set
temperature based on factors such Gsdoor
openings, amount of wine and room
temper(]ture. After making (]djustments,
allow 12 to 24 hours for the wine reserve
to reach the temperature gou h(]ve set and
before making any further adjustments. The
f(]ctorg setting is the REDWINE setting (55°F).
Note: On olI three temperature selections,
the light beside the pod wil! remain lit,
indic(]ting the selection m(]de.
The REDWINE setting wil! provide a storage
temperature of upproximatelg 55%, which
is optimum for the storage of red wine. Press
the REDWINE pod to displag 55°F. Sever(]I
seconds after the REDWINE pad is pressed,
the octuGI temperature will be displGyed
while the wine reserve temperature moves
toward 55°F.
The WHITE WINE setting will provide a
storage temperature of approxim(stelg 45%,
which is optimum for white wine. Press the
WHITE WINE pad to display 45%. Several
seconds after the WHITE WINE pad is
pressed, the actual temperature will
be displayed while the wine reserve
temperature moves tow(srd 45%.
The CUSTOM setting will provide a storage
temperature range of 40°F to 65%. This
setting provides the ability to customize
the temperature to the optimum setting
for the particular wine. To change the
temperature setting, press and hold the
CUSTOM pad until the display begins to
flush the set temperature. Then press the
+ or - pads until you reach the desired set
temperature. Once you reach the desired
temperature, stop pressing the pads. After
several seconds, the displGg will return
to the actual temperature. The actu(]I
temper(]ture will be displaged while the wine
reserve moves tow(]rd the set temperature.
In general, temperatures at the bottom of
the c(]binet will be cooler than temperatures
at the top of the cabinet.
Position gout wine inventorg (]ccordinglg
(i.e.,white wines in the cooler zones and red
wines in the w(]rmer zones}.
Child
control
lockout
This child control lockout feature prevents
unwanted changes to gour temperature
settings.
After the desired temperature is set the
temperature can be locked. To lock, press
both the + and- pads at the same time for
five seconds. To unlock, press both + and -
pads for five seconds.

Controls and Features
Wine Reserve
Interior
lighting
and gloss
activation

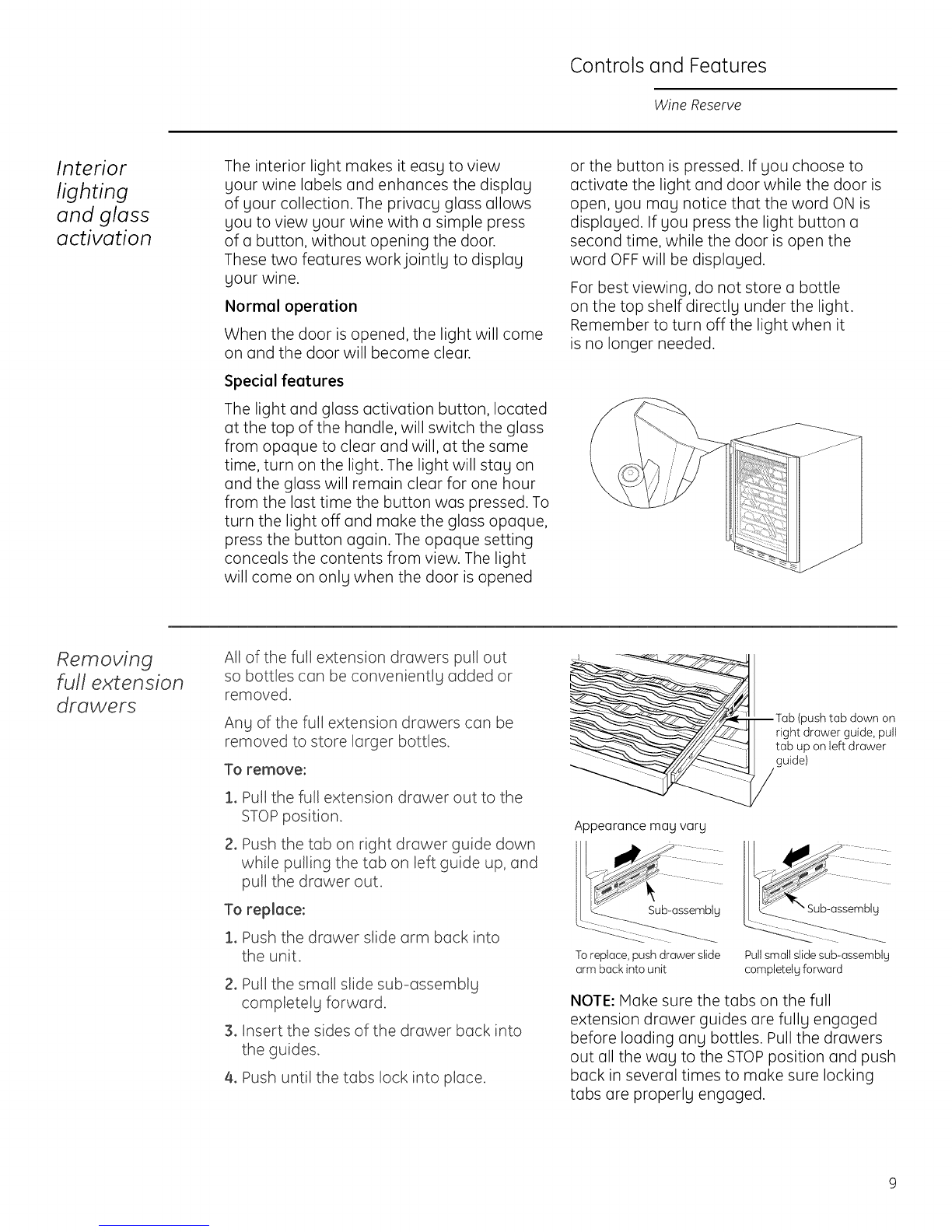

The interior light makes it easy to view
your wine labels and enhances the display
of your collection. The privacy glass allows
you to view your wine with a simple press
of a button, without opening the door.
These two features work jointly to display
your wine.
Normal operation
When the door is opened, the light will come
on and the door will become clear.
Special features
The light and glass activation button, located
at the top of the handle, will switch the glass
from opaque to clear and will, at the same
time, turn on the light. The light will stay on
and the glass will remain clear for one hour
from the last time the button was pressed. To
turn the light off and make the glass opaque,
press the button again. The opaque setting
conceals the contents from view. The light
will come on only when the door is opened
or the button is pressed. If you choose to
activate the light and door while the door is
open, you may notice that the word ON is
displayed. If you press the light button a
second time, while the door is open the
word OFF will be displayed.
For best viewing, do not store a bottle
on the top shelf directly under the light.
Remember to turn off the light when it
is no longer needed.
Removing
full extension
drawers
All of the full extension drawers pull out
so bottles can be convenientlg added or
removed.
Any of the full extension drawers can be
removed to store larger bottles.
To remove:
1. Pull the full extension drawer out to the
STOPposition.
2. Push the tab on right drawer guide down
while pulling the tab on left guide up, and
pull the drawer out.
To replace:
1. Push the drawer slide arm back into
the unit.
2. Pull the small slide sub-assembly
completely forward.
3. Insert the sides of the drawer back into
the guides.
4. Push until the tabs lock into place.
_.._m-_ Tab (push tab down on
__/_................._ right drawer guide, pull
_-"_-_'_.__"----_/_Z _1 tab up on left drawer
gulde)
Appearance may vary
To replace, push drawer slide
arm back into unit Pullsmall slide sub-assembly
completely forward
NOTE: Make sure the tabs on the full
extension drawer guides are fully engaged
before loading ang bottles. Pull the drawers
out all the wag to the STOPposition and push
back in several times to make sure locking
tabs are properlg engaged.

Controls and Features
Wine Reserve
Insert wine
bottles The top five full extension drawers each
hold eight bottles, two deep with the necks
alternating front to back or nine bottles,
alternating with necks pointing inward.
The bottom two full extension drawers hold
six bottles each and are loaded with necks
facing the rear. Toll bottles should not be
loaded on the bottom drawer because
theg mog prevent the door from closing.
8 bottle arrangement 9 bottle arrangement Bottom drawer
Loading
tips and
suggestions
The bottles on the top full extension
drawer, directlg under the light, will be
exposed to a slightlg higher temperature
when the light is on. Position gour wines
accordinglg and remember to turn off
the light when it is no longer needed.
Keep wines that Llou plan to use for
everLldaLl drinking and entertaining on
the front half of the full extension drawers
where labels are completelLl visible. Place
wines for aging or longer term storage in
the rear.
Do not allow children to climb, stand or
hang on the wine reserve full extension
drawers. TheLl could seriouslLl injure
themselves and possiblLl cause damage
to the wine reserve.
In general, temperatures at the bottom
of the cabinet will be cooler than
temperatures at the top of the cabinet.
Position gour wine inventorg accordinglg
(i.e.,white wines in the cooler zones and
red wines in the warmer zones).
Wood drawer
fronts The full extension drawer fronts on the wine
reserve are unfinished cherrg wood. During
use, oil from hands mag accumulate and
stain the wood.
• The drawer fronts mag be stained and
sealed to match adjacent cabinetrg. The
tinted glass will make the stained wood
appear darker.A truecolormatch can be
seen onlgwhen the door isopened.
• Applg the stain and sealer according to
the manufacturer's instructions. To avoid
unpleasant odor, keep the door open to
ventilate and allow the stain/sealer to drLl
completelLl before using the product.
NOTE: Natural wood mag varg slightlg in
grain and color.
10
