Features and Packing List
Features
• Compliant with Medical Standards EN60601-1 and EN60601-1-2, 3rd Edition
• Extends DVI up to 132 feet (40 meters) over CAT-6a
• Extends DVI up to 100 feet (30 meters) over CAT-5e
• Provides up to 5kV galvanic isolation between the source and the downstream
equipment
• Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
• HDCP pass-through
• Switchable Deep Color support
• HPD pass-through
• EDID management switch for rapid integration of source and display
• EQ adjustment 8-position switch for cable skew compensation
• Secure grounding terminals on both Sender and Receiver units
• Locking power supply connectors
• Surface-mountable
Packing List
The DVI over 1 CAT6 /w Galvanic Isolator ships with the items listed below. If any of these
items are not present in the box when you rst open it, immediately contact your dealer or
Gefen.
• 1 x DVI over 1 CAT6 w/ Galvanic Isolator (Sender unit)
• 1 x DVI over 1 CAT6 w/ Galvanic Isolator (Receiver unit)
• 1 x 6 ft. Dual Link DVI cable
• 2 x 5V DC Power Supples
• 1 x Quick-Start Guide

viii
Table of Contents
1 Getting Started
Introduction............................................................................................................ 2
Sender unit.................................................................................................... 2
Receiver unit ................................................................................................. 4
Installation ............................................................................................................. 6
Connection Instructions................................................................................. 6
Sample Wiring Diagram ................................................................................ 6
2 Basic Operation
DIP Switch Conguration .................................................................................... 10
Default Settings........................................................................................... 10
EDID Management...................................................................................... 11
Color Management...................................................................................... 11
Adjusting the Signal Quality ................................................................................ 12
3 Appendix
Surface Mounting Instructions............................................................................. 16
Specications ...................................................................................................... 17

DVI over 1 CAT6
w/ Galvanic Isolator
1 Getting Started
Introduction............................................................................................................ 2
Sender unit.................................................................................................... 2
Receiver unit ................................................................................................. 4
Installation ............................................................................................................. 6
Connection Instructions................................................................................. 6
Sample Wiring Diagram ................................................................................ 6

page | 2
Page TitleIntroduction

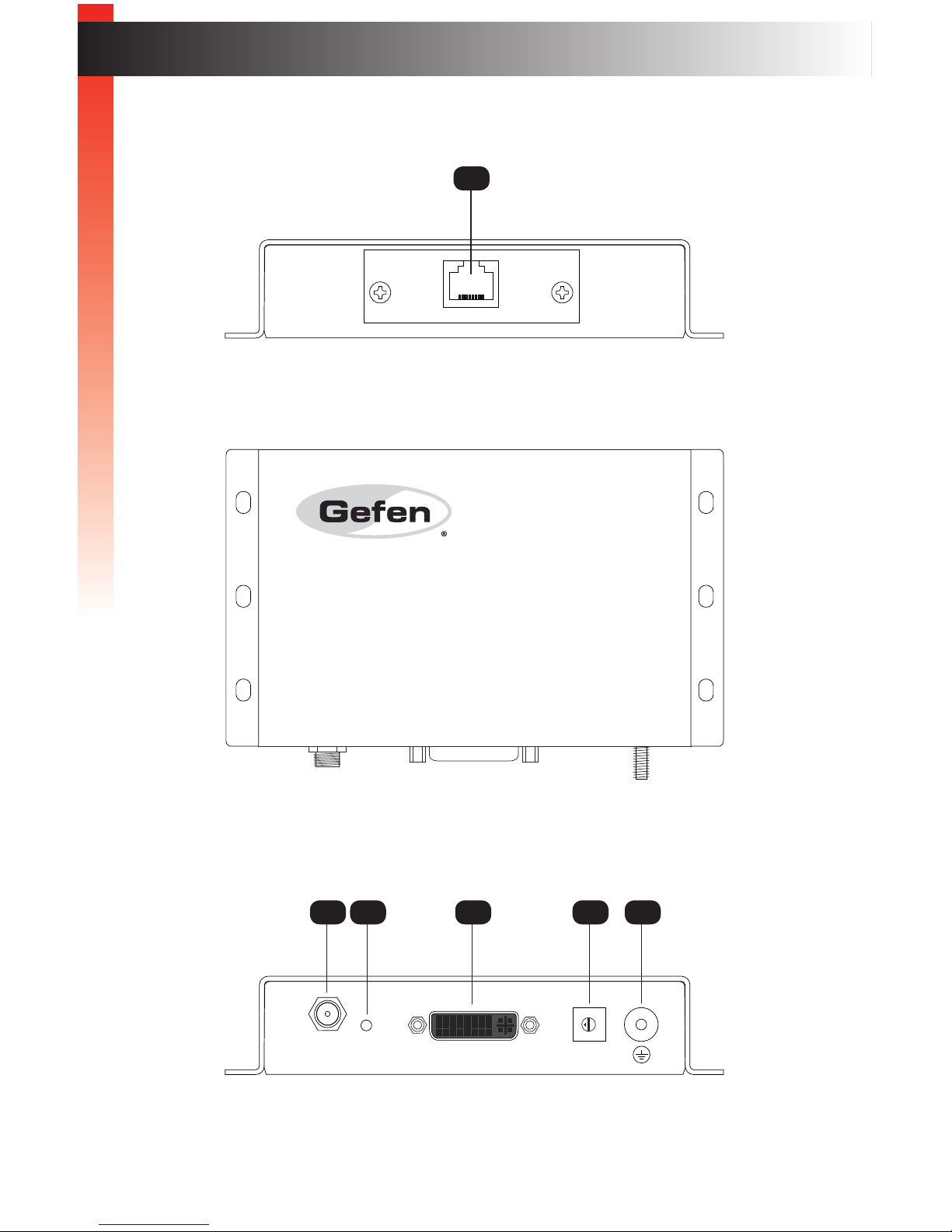

Sender unit
DVI
over 1 CAT6
w/ Galvanic Isolator S
5V DC Power DVI In
Link
EXT-DVI-1CAT6-GIS
Gefen
DVI
over 1 CAT6
w/ Galvanic Isolator S
5V DC Power DVI In
Link
EXT-DVI-1CAT6-GIS
Gefen
DVI
over 1 CAT6
w/ Galvanic Isolator S
5V DC Power DVI In
Link
EXT-DVI-1CAT6-GIS
Gefen
4 52 3
1
Getting Started Getting Started

page | 3
Page TitleIntroduction
ID Name Description
1 Link Connect a CAT-5e cable (or better) from this
port to the Link port on the Receiver unit.
2 5V DC Connect the included 5V DC power supply to
this power receptacle.
3 Power This LED will glow bright blue once the
included 5V DC power supply has been
properly connected between the locking
power receptacle and an available
electrical outlet.
4 DVI In Connect the included DVI cable between
the imaging source (e.g. imaging camera)
and the DVI In port.
5Grounding Terminal Connect a grounding wire from this terminal
to an approved Earth ground. The grounding
wire should not be less than 16 AWG.
Getting Started

page | 4
Page TitleIntroduction
Getting Started Getting Started
Receiver unit
DVI
over 1 CAT6
w/ Galvanic Isolator R
5V DC Power DVI Out EQ
Link
EXT-DVI-1CAT6-GIR
Gefen
1
2
3
4
5
6
7
0
DVI
over 1 CAT6
w/ Galvanic Isolator R
5V DC Power DVI Out EQ
Link
EXT-DVI-1CAT6-GIR
Gefen
1
2
3
4
5
6
7
0
DVI
over 1 CAT6
w/ Galvanic Isolator R
5V DC Power DVI Out EQ
Link
EXT-DVI-1CAT6-GIR
Gefen
1
2
3
4
5
6
7
0
4 652 3
1

page | 5
Page TitleIntroduction
Getting Started
ID Name Description
1 Link Connect a CAT-5e cable (or better) from this
port to the Link port on the Sender unit.
2 5V DC Connect the included 5V DC power supply to
this power receptacle.
3 Power This LED will glow bright blue once the
included 5V DC power supply has been
properly connected between the locking
power receptacle and an available
electrical outlet.
4 DVI Out Connect a DVI cable between the imaging
system (display) and the DVI Out port.
5EQ Use this EQ pot to optimize the output
signal based on extension distance and
cable skew. See Adjusting the Signal
Quality (page 12) for more information.
6Grounding Terminal Connect a grounding wire from this terminal
to an approved Earth ground. The grounding
wire should not be less than 16 AWG.

page | 6
Connection Instructions
1. Connect the included DVI cable from the imaging source (e.g. camera) to the DVI In
port on the Sender unit.
2. Connect a DVI cable from the DVI Out port, on the Receiver unit, to a video scaler or
high-resolution imaging display.
3. Connect a single CAT-5e or better cable from the Link jack on the Sender unit to the
Link jack on the Receiver unit.
4. Connect a ground wire from the grounding terminals, on both the Sender and
Receiver unit, to an approved Earth ground. The ground wire should not be less
than 16 AWG.
5. Use the included locking power supplies to connect the Sender and Receiver unit to
available electrical outlets. Do not overtighten the locking power connectors.

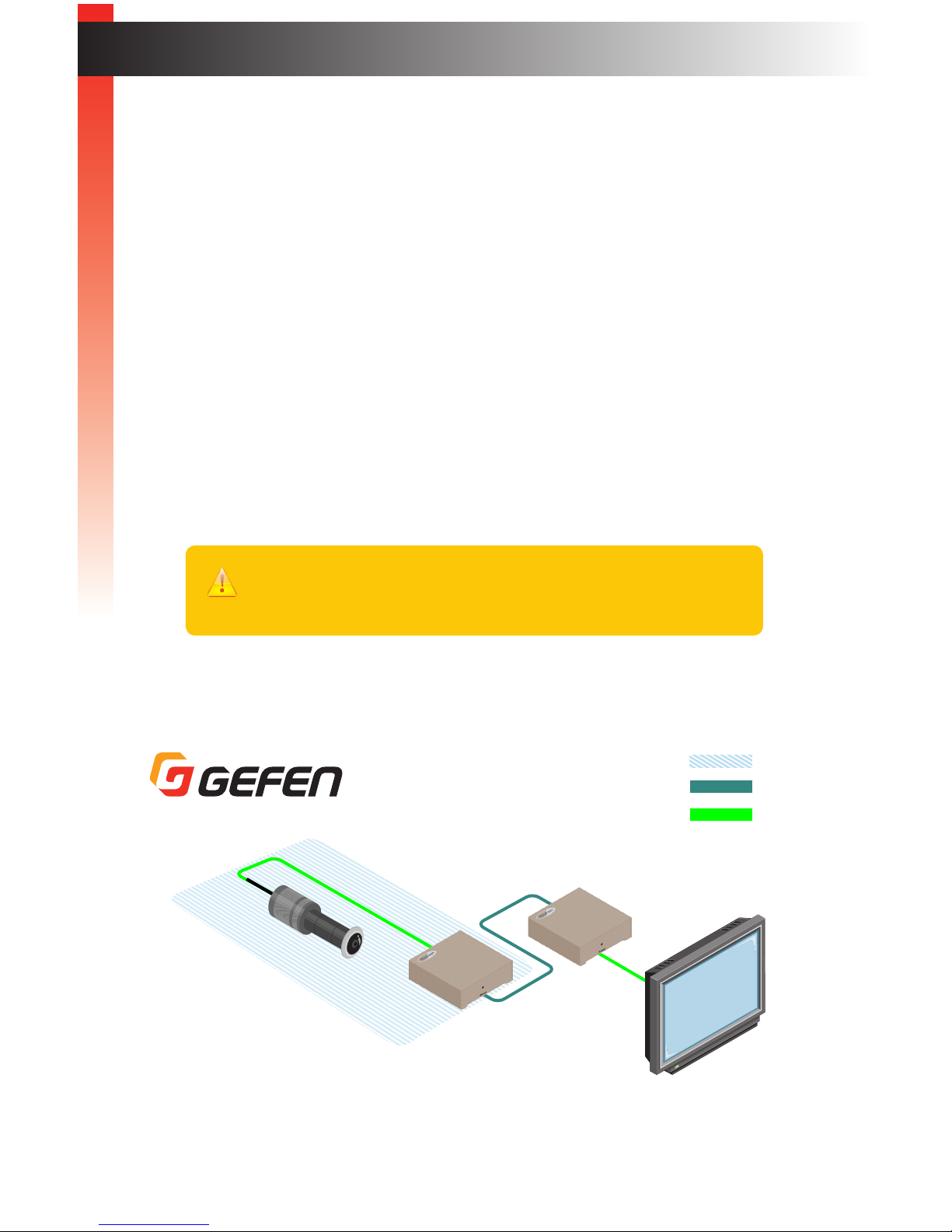

Sample Wiring Diagram
Installation
Getting Started
EXT-DVI-1CAT6-GI
Sender
Receiver
(such as a Medical Imaging Camera)
DVI Display
DVI CABLE
CAT-5e or CAT-6A CABLE
Galvanically Isolated
DVI Source
Important!
The grounding terminal must be permanently connected to an approved Earth
ground by wiring not less than 16 AWG.

DVI over 1 CAT6
w/ Galvanic Isolator
2 Basic Operation
DIP Switch Conguration .................................................................................... 10
Default Settings........................................................................................... 10
EDID Management...................................................................................... 11
Color Management...................................................................................... 11
Adjusting the Signal Quality ................................................................................ 12

page | 10
DIP Switch Conguration
Basic Operation Basic Operation
On the bottom panel of the Sender unit is a bank of 4 DIP switches. Remove the piece of
colored tape to reveal the DIP switch bank. These DIP switches provide control over EDID
management and color depth. DIP switches 3 and 4 are not used.
Default Settings
The following table lists the default (factory) settings of each DIP switch. See the following
page for details on each DIP switch function.
DIP Switch Description
1 ON
• Uses pass-through (downstream)
EDID mode
2 OFF
• Deep color is disabled.
5V DC Power DVI In
Link
EXT-DVI-1CAT6-GIS
Gefen
CTS
117
219
ON
1 2 3 4
5V DC Power DVI In
Link
EXT-DVI-1CAT6-GIS
Gefen
CTS
117
219
ON
1 2 3 4
1 2 3 4
ON
219
117
CTS
