Gehl 1448 Plus User manual

1448 Plus
Asphalt Paver
Beginning with Serial Number 18101
®
Form No.
918215
OPERATOR’S MANUAL
Revision C
04/07
Courtesy of Machine.Market

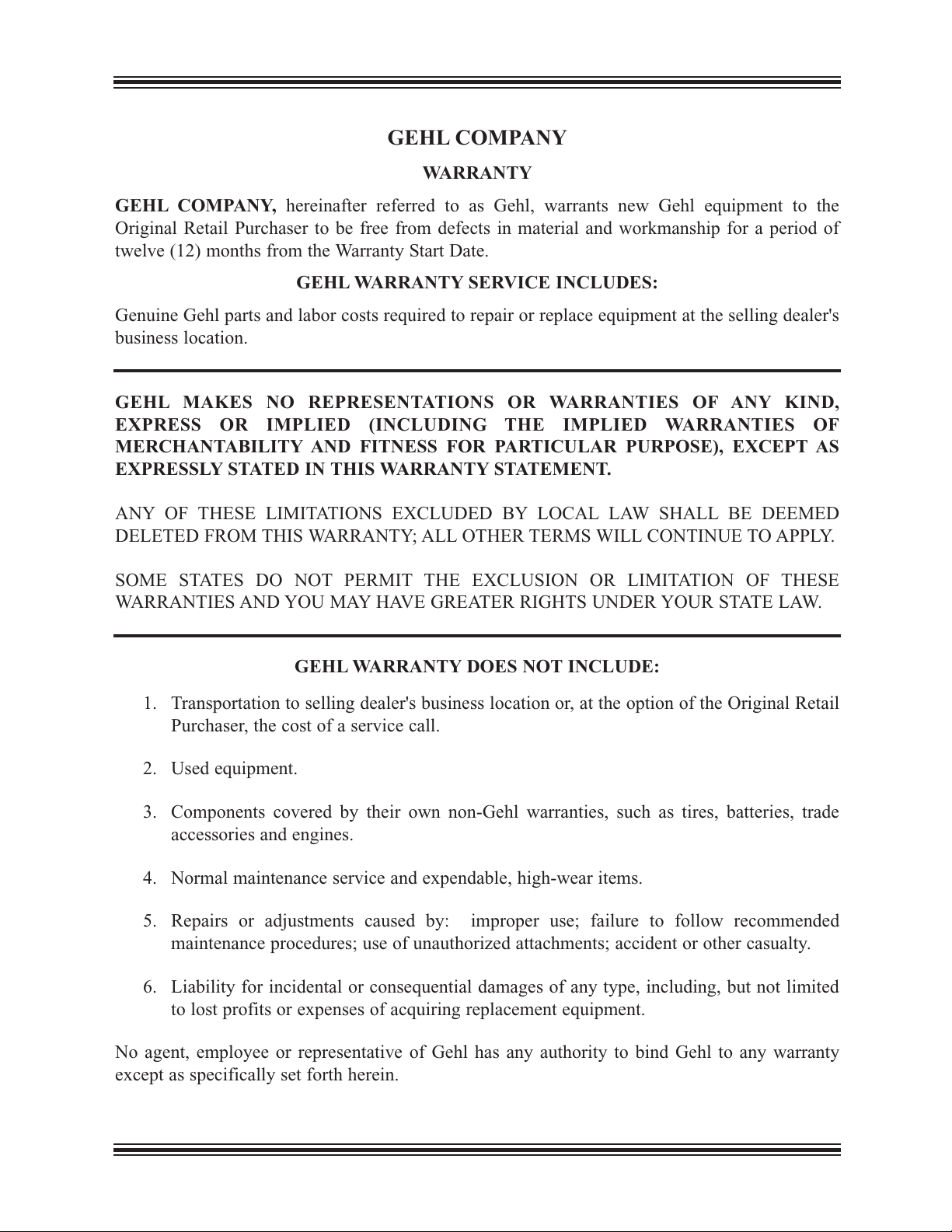

GEHL COMPANY
WARRANTY
GEHL COMPANY, hereinafter referred to as Gehl, warrants new Gehl equipment to the
Original Retail Purchaser to be free from defects in material and workmanship for a period of
twelve (12) months from the Warranty Start Date.
GEHL WARRANTY SERVICE INCLUDES:
Genuine Gehl parts and labor costs required to repair or replace equipment at the selling dealer's
business location.
GEHL MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND,
EXPRESS OR IMPLIED (INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE), EXCEPT AS
EXPRESSLY STATED IN THIS WARRANTY STATEMENT.
ANY OF THESE LIMITATIONS EXCLUDED BY LOCAL LAW SHALL BE DEEMED
DELETED FROM THIS WARRANTY; ALL OTHER TERMS WILL CONTINUE TO APPLY.
SOME STATES DO NOT PERMIT THE EXCLUSION OR LIMITATION OF THESE
WARRANTIES AND YOU MAY HAVE GREATER RIGHTS UNDER YOUR STATE LAW.
GEHL WARRANTY DOES NOT INCLUDE:
1. Transportation to selling dealer's business location or, at the option of the Original Retail
Purchaser, the cost of a service call.
2. Used equipment.
3. Components covered by their own non-Gehl warranties, such as tires, batteries, trade
accessories and engines.
4. Normal maintenance service and expendable, high-wear items.
5. Repairs or adjustments caused by: improper use; failure to follow recommended
maintenance procedures; use of unauthorized attachments; accident or other casualty.
6. Liability for incidental or consequential damages of any type, including, but not limited
to lost profits or expenses of acquiring replacement equipment.
No agent, employee or representative of Gehl has any authority to bind Gehl to any warranty
except as specifically set forth herein.
Courtesy of Machine.Market

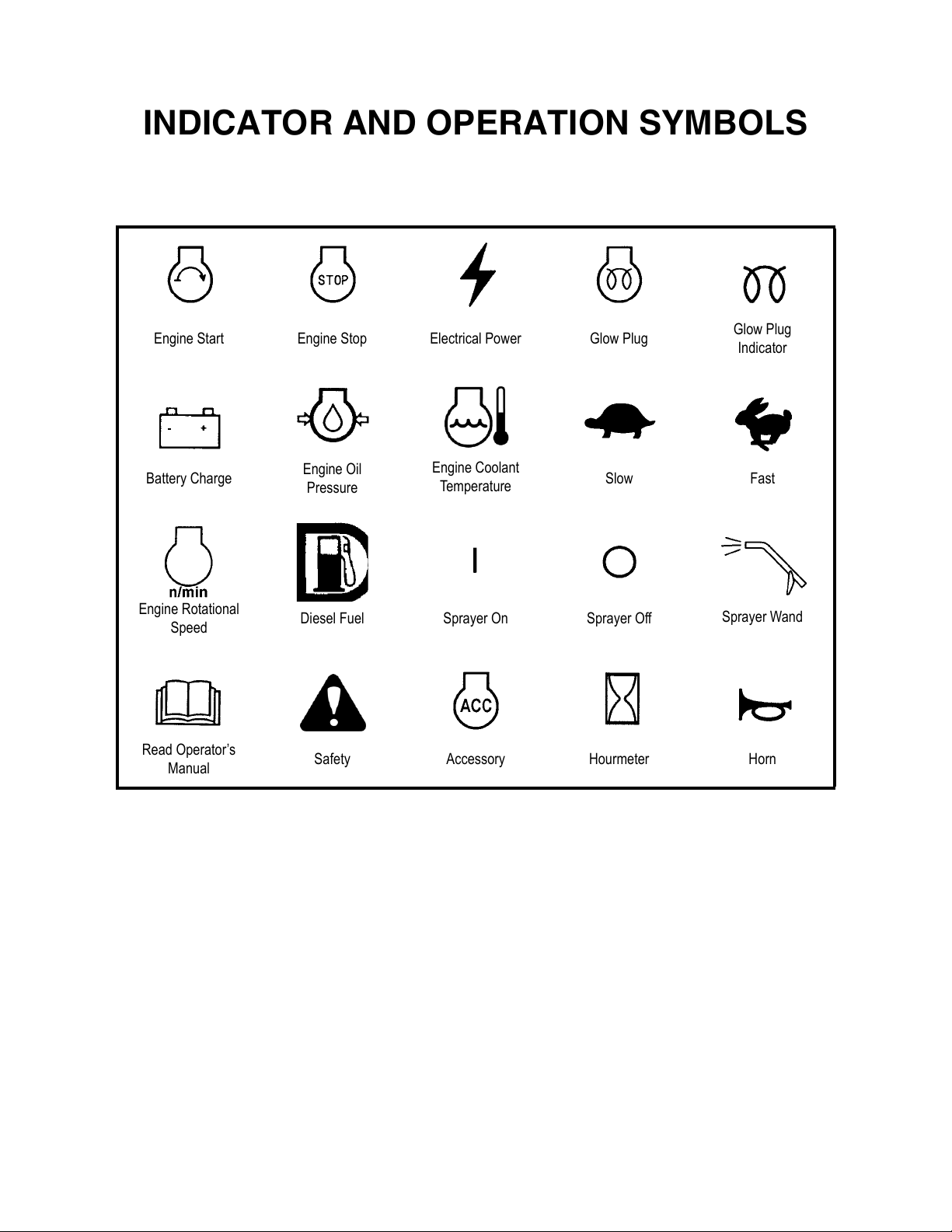

INDICATOR AND OPERATION SYMBOLS
Engine Start Engine Stop Electrical Power Glow Plug Glow Plug
Indicator
Battery Charge Engine Oil
Pressure
Engine Coolant
Temperature Slow Fast
Engine Rotational
Speed Diesel Fuel Sprayer On Sprayer Off Sprayer Wand
Read Operator’s
Manual Safety Accessory Hourmeter Horn
Courtesy of Machine.Market

NOTES
Courtesy of Machine.Market

Printed in U.S.A 1 918215/CP0407
TABLE OF CONTENTS
Chapter 1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Model/Serial Number Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Paver Controls/Components Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 2
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Chapter 3
Checklists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mandatory Safety Shutdown Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Safety Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Pre-operation Safety Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Operation Safety Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Service Safety Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Screed Propane Heater Safety Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Modifications, Nameplates, Markings and Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Protective Guards and Warning Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chapter 5
Indicators and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Guards and Shields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Circuit Breaker and In-line Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Indicator and Control Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Ignition Keyswitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Instrument Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Engine Throttle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Fuel Level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Engine Coolant Temperature Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Hourmeter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Washdown Sprayer System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Hydraulic Fluid Reservoir Fill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Paving Alignment Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Travel Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Hydraulic Pump Variable-Speed Control Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Travel Control Levers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Hopper Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Hopper Floor Control Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Flow Gate Control Levers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Courtesy of Machine.Market

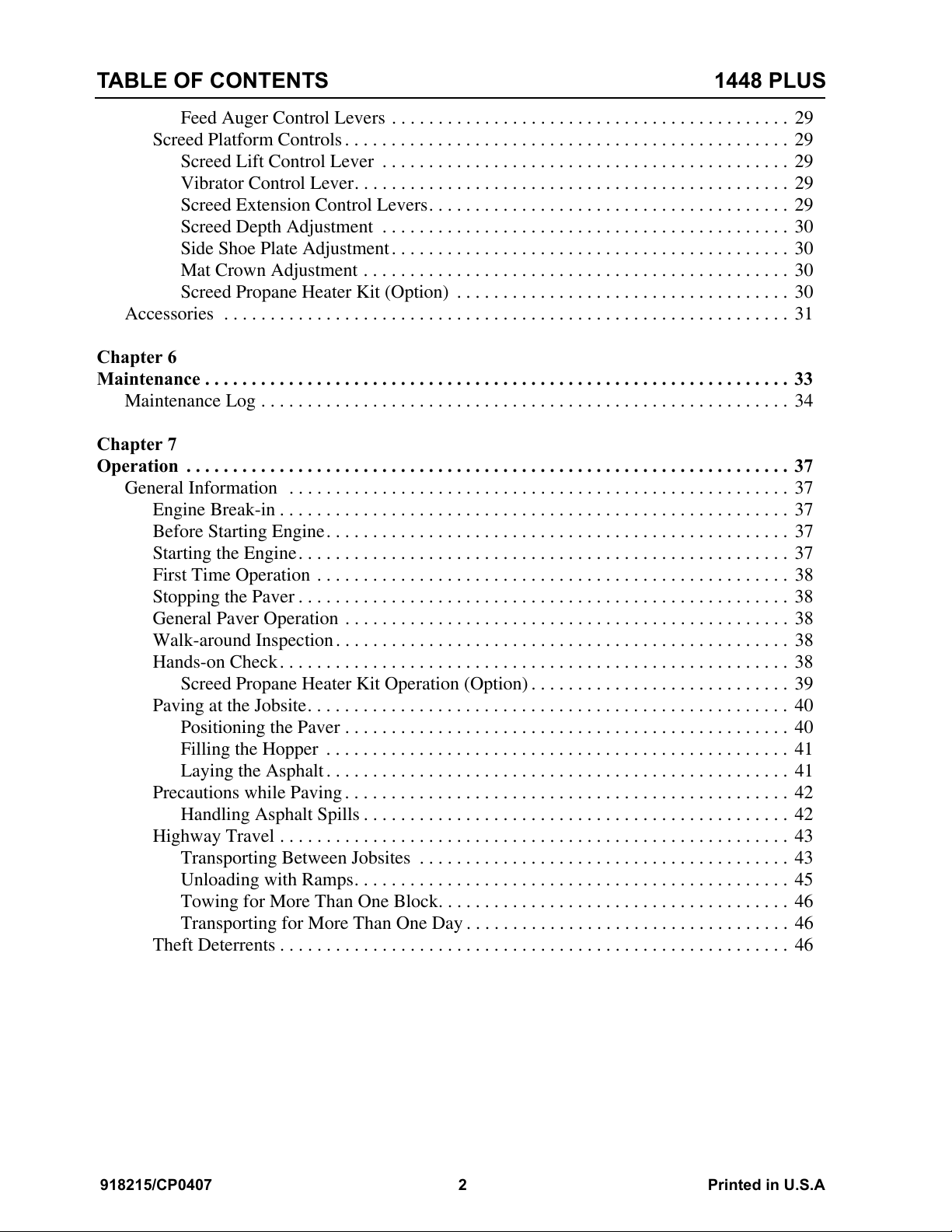

TABLE OF CONTENTS 1448 PLUS
918215/CP0407 2 Printed in U.S.A
Feed Auger Control Levers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Screed Platform Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Screed Lift Control Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Vibrator Control Lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Screed Extension Control Levers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Screed Depth Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Side Shoe Plate Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Mat Crown Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Screed Propane Heater Kit (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Chapter 6
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Maintenance Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Chapter 7
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Engine Break-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Before Starting Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Starting the Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
First Time Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Stopping the Paver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
General Paver Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Walk-around Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Hands-on Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Screed Propane Heater Kit Operation (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Paving at the Jobsite. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Positioning the Paver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Filling the Hopper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Laying the Asphalt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Precautions while Paving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Handling Asphalt Spills . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Highway Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Transporting Between Jobsites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Unloading with Ramps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Towing for More Than One Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Transporting for More Than One Day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Theft Deterrents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Courtesy of Machine.Market

1448 PLUS TABLE OF CONTENTS
Printed in U.S.A 3 918215/CP0407
Chapter 8
Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Greasing and Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Hydraulic Fluid Reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
All Grease Fittings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Engine Crankcase Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Torque Hubs Gear Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Grease Fitting Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Chapter 9
Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Electrical Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Hydraulic Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Chapter 10
Service and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Dealer Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Engine Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Hydraulic System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Electrical Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Operator Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Service Every 10 Hours or Daily. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Spraying Asphalt Contact Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Check Fuel Tank Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Check Engine Oil Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Check Radiator Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Check Instrument Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Check Paver Operation and Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Service Every 50 Hours or Weekly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Check Fan Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Check Hydraulic Oil Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Check Battery Connections/Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Air Cleaner Element Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Lubricate Grease Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Service Every 250 Hours. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Check Screed Bottom Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Change Hydraulic Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Change Engine Oil and Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Check Torque Hub Oil Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Service Every 500 Hours. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Change Fuel Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Service Every 1000 Hours
or Each Season. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Change Radiator Coolant. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Courtesy of Machine.Market

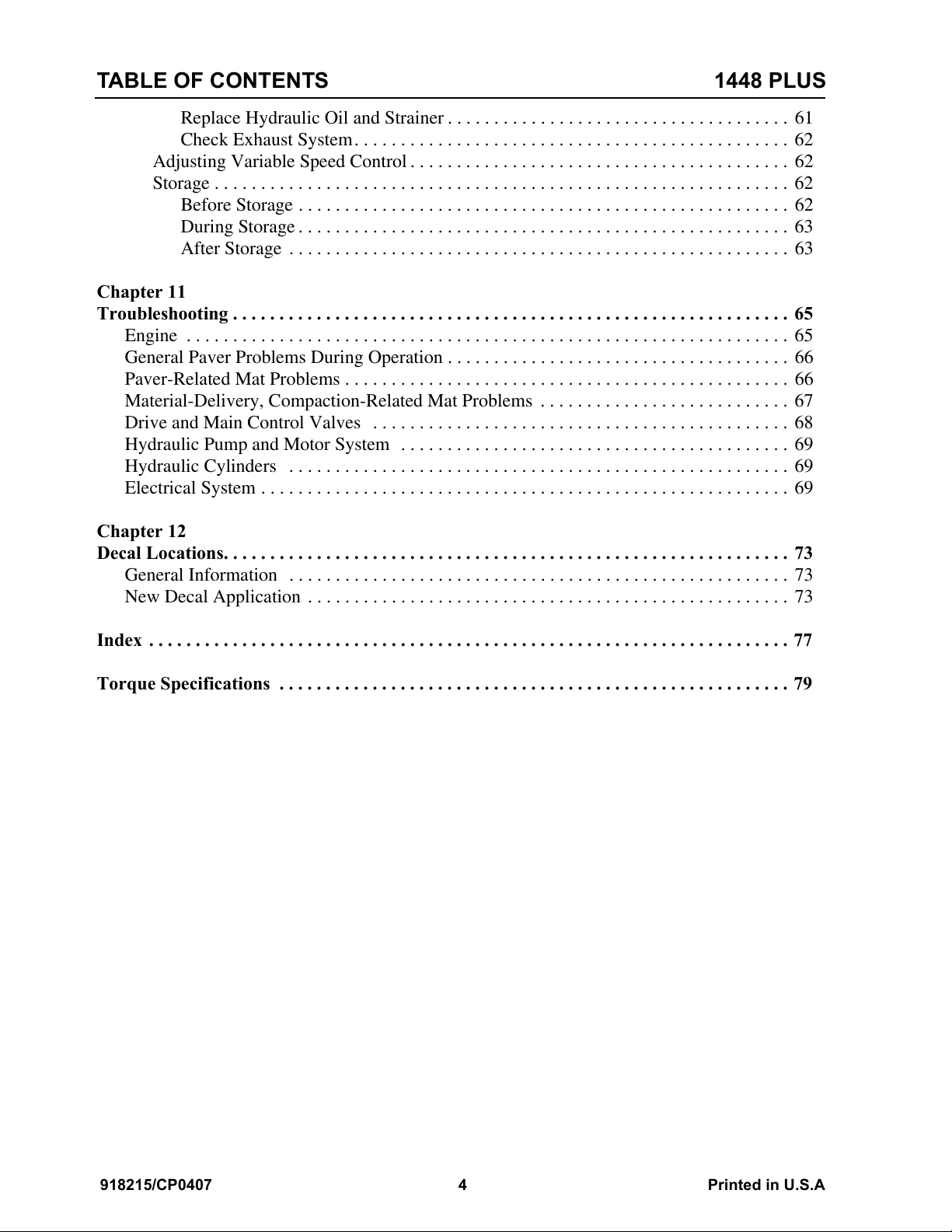

TABLE OF CONTENTS 1448 PLUS
918215/CP0407 4 Printed in U.S.A
Replace Hydraulic Oil and Strainer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Check Exhaust System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Adjusting Variable Speed Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Before Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
During Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
After Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Chapter 11
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
General Paver Problems During Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Paver-Related Mat Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Material-Delivery, Compaction-Related Mat Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Drive and Main Control Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Hydraulic Pump and Motor System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Hydraulic Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Chapter 12
Decal Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
New Decal Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Torque Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Courtesy of Machine.Market

Printed in U.S.A 5 918215/CP0407
Chapter 1
INTRODUCTION
The information in this Operator’s Manual was written to give the owner/operator assistance in preparing,
adjusting, maintaining and servicing of the paver. More important, this manual provides an operating plan
for safe and proper use of the machine. Major points of safe operation are detailed in the SAFETY chapter
of this manual.
GEHL Company asks that you read and understand the contents of this manual COMPLETELY and
become familiar with the machine, before operating it.
The use of this asphalt paver (referred to as paver throughout the rest of the manual) is subject to certain
hazards that cannot be eliminated by mechanical means, but only by the exercise of intelligence, care and
common sense. It is therefore essential to have competent and careful operators, who are not physically or
mentally impaired, and who are thoroughly trained in the safe operation of the equipment.
Throughout this manual information is provided that is set in italic type and introduced by the word
IMPORTANT or NOTE. Be sure to read carefully and comply with the message or directive given. Fol-
lowing this information will improve operating and maintenance efficiency, help to avoid breakdowns and
damage, and extend the machine’s life. A chart of standard hardware torques is located in the back of this
manual. “Right” and “left” are determined from a position standing on the screed and facing forward.
A storage compartment is provided on the unit for storing the Operator’s Manual. After using the manual,
please return it to the storage compartment and keep it with the unit at all times! If the machine is resold,
GEHL Company recommends that this manual be given to the new owner.
If this machine was purchased "used," or if the owner's address has changed, please provide your GEHL
dealer or GEHL Company Service Department with the owner's name and current address, along with the
machine model and serial number. This will allow the registered owner information to be updated, so that
the owner can be notified directly in case of an important product issue, such as a safety update program.
The wide GEHL dealership network stands ready to provide any assistance that may be required, including
genuine GEHL service parts. All parts should be obtained from or ordered through your GEHL dealer.
Give complete information about the part and include the model and serial number of the machine. Record
the serial number in the space provided in “Model/Serial Number Information” on page 6, as a handy
record for quick reference.
GEHL Company reserves the right to make changes or improvements in the design or construction of any
part without incurring the obligation to install such changes on any unit previously delivered.
GEHL Company, in cooperation with the Society of Automotive
Engineers, has adopted this
Safety Alert Symbol
to identify potential safety hazards, which, if not properly avoided, could
result in injury. When you see this symbol in this manual or on the
machine itself, you are reminded to BE ALERT! Your personal safety is
involved!
Courtesy of Machine.Market

918215/CP0407 6 Printed in U.S.A
INTRODUCTION 1448 PLUS
Model/Serial Number Information
As a handy reference, record the purchase informa-
tion, and the model and serial numbers in the fol-
lowing spaces.
Purchased from: ________________________
Date of Purchase: _______________________
Model No.: ____________________________
Serial No.: _____________________________
Fig. 1 - Serial Number Decal
Courtesy of Machine.Market

Printed in U.S.A 7 918215/CP0407
1448 PLUS INTRODUCTION
Paver Controls/Components Identification
Fig. 2 - Paver Controls/Components
Right Side
Control Levers
Air
Cleaner
Fuel Filler
Cap
Wash
Down Wand
and Tank
Screed Engine and
Hydraulic Pump
Screed
Adjust
Screw
(each side)
Screed
Extension
Drive Track
(each side)
Hopper and
Hopper
Wings
Left Side
Control Levers
Control
Panel
Exhaust
Push
Rollers
Hydraulic
Reservoir
(lower frame)
Muffler
Courtesy of Machine.Market

918215/CP0407 8 Printed in U.S.A
INTRODUCTION 1448 PLUS
NOTES
Courtesy of Machine.Market

Printed in U.S.A 9 918215/CP0407
Chapter 2
SPECIFICATIONS
DIMENSIONS, MEASURES AND WEIGHTS
Overall Height (top of exhaust pipe) 6’11” (2108 mm)
Minimum Width (transport) 8’5” (2565 mm)
Maximum Width (operating) 10’9” (3277 mm)
Length 7’4” (2235 mm)
Truck Clearance (height from ground to
asphalt hopper floor)
23” (584 mm)
Weight (approximate) 7775 lbs. (3527 kg)
ENGINE
Engine Model Yanmar 3TNV88-XGP
Type Vertical In-line 3-cylinder
Water-cooled Diesel
Horsepower (net) @ Engine Speed 36 (27 kW) @ 3000 rpm
Displacement 100 cu. in. (1.642 L)
Aspiration Natural
Bore and Stroke 3.46” x 3.54” (88 x 90 mm)
Weight 342 lbs. (155 kg)
Power Take Off Location Flywheel side
Direction of Rotation Counter-clockwise (viewed from flywheel side)
Dimensions (L x W x H) 22.2 x 19.1 x 24.4” (564 x 486 x 622 mm)
Max. Torque @ Engine Speed 80 lb.-ft. (108 Nm) @ 1200 rpm
Max. Engine Speed (with no load) 3210±25 rpm
Lubricating System Forced lubrication with trochoid pump
Fuel Injection System Direct Injection
Engine Cooling System 4.0 qts. (3.8 L)
Engine Oil Capacity 7 qts. (6.7 L)
Cooling Fan 14-11/16” (373 mm) dia., 8-blade, pusher type
Starting Aid Intake Air Heater (preheating time: 15 seconds)
SCREED
Main Width 8”-12” (2438-3658 mm)
Hydraulic Vibrator 2500 vpm - maximum
Heat Medium Exhaust (standard); Propane (option)
Variable Hydraulic Screed Extension -
Max. Extension Length
24” (610 mm) w/ 6”strike-off
Maximum Variable Crown/Invert 0”-2” (0-51 mm)
Extension Width 24” (610 mm)
Single-Span Operator Platform Type Stationary (standard)
MATERIAL FLOW
Independent Hyraulic Operated Gates Standard
Gate Cut-Off Plates Option, 6”-36” (152-915 mm)
Gravity-Flow Asphalt Hopper Capacity 4 Tons (3629 Kg)
Independent Hydraulic Operating Augers Located on Gate
Courtesy of Machine.Market

918215/CP0407 10 Printed in U.S.A
SPECIFICATIONS 1448 PLUS
DRIVE CONFIGURATION
Type Hydrostatic
Track Type Self-adjusting, Steel
Track Link Dimensions 12” x 3” (305 mm x 76 mm)
Counter-Rotating Standard
Track Length 43” (1092 mm)
OPERATOR STATION
Platform Single-span
Controls Left and Right Sides
Muffler w/Exhaust Diverter Valve Standard
Wash-Down Stations Single, 5 gal. (18.9 L)
HYDRAULIC SYSTEM
Variable Hydrostatic Drive Pump - Maximum
Flow
17 gpm (64 L/min)
Variable Hydrostatic Drive Pump - Maximum
Relief Pressure
Track System: 2100 psi (145 bar)
Hydraulic Auger Drive Pump - Maximum
Flow
7.5 gpm (28.4 L/min)
Hydraulic Auger Drive Pump - Maximum
Relief Pressure
1800 psi (124 bar)
Track Relief Pressure 300-350 psi (21-24 bar)
Return Filter 5 Micron
Suction Strainer 100 Mesh
Auxiliary Oil Cooler Capacity 12 gpm (45 L/min)
ELECTRICAL SYSTEM
Alternator 12-V, 40-A
Starter 12-V, 1.4-kW
Battery 12-V, Group Size 24, 675 CCA
PERFORMANCE
Minimum Paving Width 4’ (1219 mm)
Standard Paving Width 8’ (2438 mm)
Maximum Paving Width 12’ (3658 mm)
Paving Depth 0-6” (0-152 mm)
Gravity Feed Hopper Capacity 4 Tons (3629 kg)
Hydraulic Feed Auger 2
Hydraulic Material Flow Gates 2
Operating Speed 0-80 fpm (0-24 m/min)
Left and Right Side Operator Controls Standard
SERVICE CAPACITIES
Engine Cooling System 4 qts. (3.8 L)
Engine Oil Capacity 7.8 qts. (7.4 L)
Hydraulic Reservoir 18 gal. (68 L)
Fuel Tank 8 gal. (30 L)
Washdown Tank w/Electric Pump 5 gal. (19 L)
Courtesy of Machine.Market

Printed in U.S.A 11 918215/CP0407
Chapter 3
CHECKLISTS
Pre-Delivery
The following Checklist is an important reminder of
valuable information and inspections that MUST be
made before delivering the machine to the customer.
Check off each item after the prescribed action is
taken.
Check That:
RNo parts of Paver have been damaged in shipment.
Check for such things as dents and loose or missing
parts; correct or replace components as required.
RBattery is securely mounted and not cracked. Cable
connections are tight.
RCylinders, hoses and fittings are not damaged, leaking
or loosely secured.
ROil, fuel and air filters are not damaged leaking or
loosely secured.
RAll grease fittings have been properly lubricated and no
fittings are missing; see Lubrication chapter of this
manual.
RHydraulic system reservoir, engine crankcase, and
engine coolant are filled to the proper operating levels.
RAll adjustments have been made to comply with the
settings given in this manual and in the separate engine
manual.
RAll guards, shields and decals are in place and securely
attached.
RModel and serial number for this unit are recorded in
space provided on this page and page 6.
Start the engine and test run the unit while
checking that all controls operate properly.
Check That:
RAll indicators (lamps, meters, etc.) function properly.
RProper operation of all hopper and screed controls.
RDynamic braking in effect with drive motors in neutral.
RNo hydraulic system leaks when under pressure.
RListen for abnormal noises or vibrations; if detected,
determine their cause and repair as necessary.
I acknowledge that pre-delivery procedures were
performed on this unit as outlined on this page.
____________________________________________
Dealership’s Name
____________________________________________
Dealer Representative’s Name
____________________________________________
Date Checklist Filled Out
____________________________________________
Paver Model # Serial # Engine Serial #
Delivery
The following Checklist is an important reminder of
valuable information that MUST be passed on to the
customer at the time the unit is delivered. Check off
each item as you explain it to the customer.
Check That:
Review with the customer the contents of this manual;
especially:
RThe index at the back, for quickly locating topics;
RThe Safety, Indicators and Controls and Operation
chapters for information regarding safe use of the
machine.
RThe Lubrication, Service and Storage and
Troubleshooting chapters, for information regarding
proper maintenance of the machine. Explain that regular
lubrication and maintenance are required for continued
safe operation and long life.
RGive this Operator’s Manual and the AEM Safety
Manual to the customer and instruct them to be sure to
read and completely understand the contents before
operating the unit.
RExplain that the customer must consult the engine
manual (provided) for related specifications, operating
adjustments and maintenance instructions.
RCompletely fill out the Owner’s Registration, including
customer’s signature, and return it to the Company.
RExplain that a copy of the product warranty is included
on the inside front cover of this operator’s manual.
____________________________________________
Customer’s Signature
____________________________________________
Date Delivered
Courtesy of Machine.Market

918215/CP0407 12 Printed in U.S.A
CHECKLISTS 1448 PLUS
NOTES
Courtesy of Machine.Market

Printed in U.S.A 13 918215/CP0407
CHECKLISTS
Pre-Delivery
The following Checklist is an important reminder of
valuable information and inspections that MUST be
made before delivering the machine to the customer.
Check off each item after the prescribed action is
taken.
Check That:
RNo parts of Paver have been damaged in shipment.
Check for such things as dents and loose or missing
parts; correct or replace components as required.
RBattery is securely mounted and not cracked. Cable
connections are tight.
RCylinders, hoses and fittings are not damaged, leaking
or loosely secured.
ROil, fuel and air filters are not damaged leaking or
loosely secured.
RAll grease fittings have been properly lubricated and no
fittings are missing; see Lubrication chapter of this
manual.
RHydraulic system reservoir, engine crankcase, and
engine coolant are filled to the proper operating levels.
RAll adjustments have been made to comply with the
settings given in this manual and in the separate engine
manual.
RAll guards, shields and decals are in place and securely
attached.
RModel and serial number for this unit are recorded in
space provided on this page and page 6.
Start the engine and test run the unit while
checking that all controls operate properly.
Check That:
RAll indicators (lamps, meters, etc.) function properly.
RProper operation of all hopper and screed controls.
RDynamic braking in effect with drive motors in neutral.
RNo hydraulic system leaks when under pressure.
RListen for abnormal noises or vibrations; if detected,
determine their cause and repair as necessary.
I acknowledge that pre-delivery procedures were
performed on this unit as outlined on this page.
____________________________________________
Dealership’s Name
____________________________________________
Dealer Representative’s Name
____________________________________________
Date Checklist Filled Out
____________________________________________
Paver Model # Serial # Engine Serial #
Delivery
The following Checklist is an important reminder of
valuable information that MUST be passed on to the
customer at the time the unit is delivered. Check off
each item as you explain it to the customer.
Check That:
Review with the customer the contents of this manual;
especially:
RThe index at the back, for quickly locating topics;
RThe Safety, Indicators and Controls and Operation
chapters for information regarding safe use of the
machine.
RThe Lubrication, Service and Storage and
Troubleshooting chapters, for information regarding
proper maintenance of the machine. Explain that regular
lubrication and maintenance are required for continued
safe operation and long life.
RGive this Operator’s Manual to the customer and
instruct them to be sure to read and completely
understand the contents before operating the unit.
RExplain that the customer must consult the engine
manual (provided) for related specifications, operating
adjustments and maintenance instructions.
RCompletely fill out the Owner’s Registration, including
customer’s signature, and return it to the Company.
RExplain that a copy of the product warranty is included
on the inside front cover of this operator’s manual.
____________________________________________
Customer’s Signature
____________________________________________
Date Delivered
Remove dealer’s file copy at this line.
Courtesy of Machine.Market

918215/CP0407 14 Printed in U.S.A
CHECKLISTS 1448 PLUS
NOTES
Courtesy of Machine.Market

Printed in U.S.A 15 918215/CP0407
Chapter 4
SAFETY
The above safety alert symbol means
ATTENTION! BE ALERT! SAFETY IS
INVOLVED! It stresses an attitude of “safety
awareness” and can be found throughout this
operator’s manual and on the paver.
Before operating the paver, read and study the
following safety information. In addition,
anyone who operates or works with the paver
must be familiar with these safety precautions.
Gehl Company always takes operator’s safety into
consideration during the design process. Guards
and shield are provided, protecting the operator
and bystanders from moving parts or other hazards.
Owners and operators must be alert, however,
because some areas cannot be guarded or shielded
without preventing or interfering with proper
operation. Additionally, this operator’s manual and
decals on the paver warn of additional hazards and
should be read and observed closely.
DANGER
“DANGER” indicates an imminently hazardous
situation that, if not avoided, will result in death
or serious injury.
WARNING
“WARNING” indicates a potentially hazardous
situation that, if not avoided, could result in
death or serious injury.
CAUTION
“CAUTION” indicates a potentially hazardous
situation that, if not avoided, may result in
minor injury or property damage. It also alerts
users to unsafe practices.
REMEMBER: It is the owner’s responsibility to
communicate information about the safe use and
proper maintenance of the paver! This includes
providing understandable interpretations of these
instructions for operators who are not fluent in
reading English.
Pavers should be operated only by qualified
operators. It is the responsibility of the operator to
read and understand this operator’s manual and to
follow correct operating procedures.
MANDATORY SAFETY
SHUTDOWN PROCEDURE
BEFORE cleaning, adjusting, lubricating or
servicing the paver:
1. Bring paver to full stop on a level surface.
NEVER park on a slope or hillside, but if it
is not possible to avoid, park across the
slope and block the tracks at both ends.
2. Place all controls in neutral.
3. Move the throttle to low idle.
4. Shut off the engine and remove the key.
5. Lower the hopper and screed assembly to
the “full down” position. Allow the screed
to cool before lowering for transport.
ONLY when you have taken these precautions
can you be sure it is safe to proceed. Failure to
follow the above procedure could lead to death
or serious injury.
Safety Reminders
• User/operator safety practices are included in
this operator’s manual and are intended to
promote the safe operation of the paver. These
guidelines do not preclude the use of good
judgment, care and common sense as indicated
by the specific jobsite work conditions.
• It is essential that operators be physically and
mentally fit and free of mind-altering drugs
and chemicals.
Courtesy of Machine.Market

918215/CP0407 16 Printed in U.S.A
SAFETY
(Continued)
• It is essential that operators be thoroughly
trained in the safe operation of the paver. Such
training should be presented completely to all
new operators and not condensed for those
claiming previous experience.
• Some illustrations in this manual may show
doors, guards and shields open or removed.
This is for illustration purposes only. Be sure
that all doors, guards and shields are in their
proper operating positions before starting the
engine to operate the paver.
Pre-operation Safety Reminders
• Always wear personal protective equipment
appropriate for the job and working conditions.
Hard hats, safety glasses, protective shoes,
gloves, reflective vests, respirators and ear
protection are examples of types of equipment
that may be required. Do not wear loose-fitting
clothing, long hair, jewelry or loose personal
items while operating or servicing the paver.
• Always check the job site for obstructions and
bystanders.
• Always perform a daily inspection of the paver
before using it. Look for damage, loose or
missing parts, leaks, etc.
• Walk around the paver and warn all nearby
personnel before starting the paver.
Operation Safety Reminders
• Do not use ether or other starting fluids to start
the paver engine. Doing so may void the
engine warranty.
• Do not attempt to move hot asphalt mix with
your hands or feet. Contact with hot asphalt
can cause serious skin burns.
• Do not allow minors or any unqualified
personnel to operate or be near the paver
unless properly supervised.
• Do not operate the paver in an enclosed area
without adequate ventilation. Internal
combustion engines deplete the oxygen supply
within enclosed spaces and may create a
serious hazard unless the oxygen is replaced.
• Do not leave the paver unattended with the
engine running. Always lower the hopper to
“full down” position, shut off the engine, and
place all controls in neutral before leaving the
paver.
• Do not jump off the paver. Do not dismount
from the paver while it is moving.
• Check paver for proper functioning of controls
before operating. Observe all gauges and
instruments, and correct any malfunctions
before operating.
• Do not lift the hopper if pushing a dump truck
with the paver. Damage to the paver/truck may
result.
Service Safety Reminders
• Never use your hands to search for hydraulic
fluid leaks. Use a piece of paper or cardboard
instead. Escaping fluid under pressure can be
invisible and can penetrate the skin and cause
serious injury. If any fluid is injected into your
skin, see a doctor at once. Injected fluid must
be surgically removed by a doctor familiar
with this type of injury or gangrene may result.
• Never attempt to bypass the keyswitch to start
the engine. Only use the jump starting
procedure described in this manual. See
“Jump-starting” on page 57.
• Never use fuel for cleaning purposes.
• Always position the safety props up when
leaving the hopper raised for inspection,
cleaning or service.
Courtesy of Machine.Market
