GEIGER 446F6 Series User manual

Installation instructions
Bevel gears
Series 444F6../446F6../456F6..
Installation and rotation direction
Switching of the rotation direction
For gears pre-set for right tting, turn tube
drive to the right …
… until the latching elements of the overrun
clutch are released and the switch mecha-
nism is free (before the overrun clutch locks in
again!)
Turn switch mechanism to the left until it
stops …
… and turn tube drive to the left until the
latching elements of the overrun clutch
snap into place.
Front-mounted rolling shutter
LL
RR
Built-in rolling shutter
Gerhard Geiger GmbH & Co. KG | 100W0331 EN 1118

1 2 3
4 5 6
7

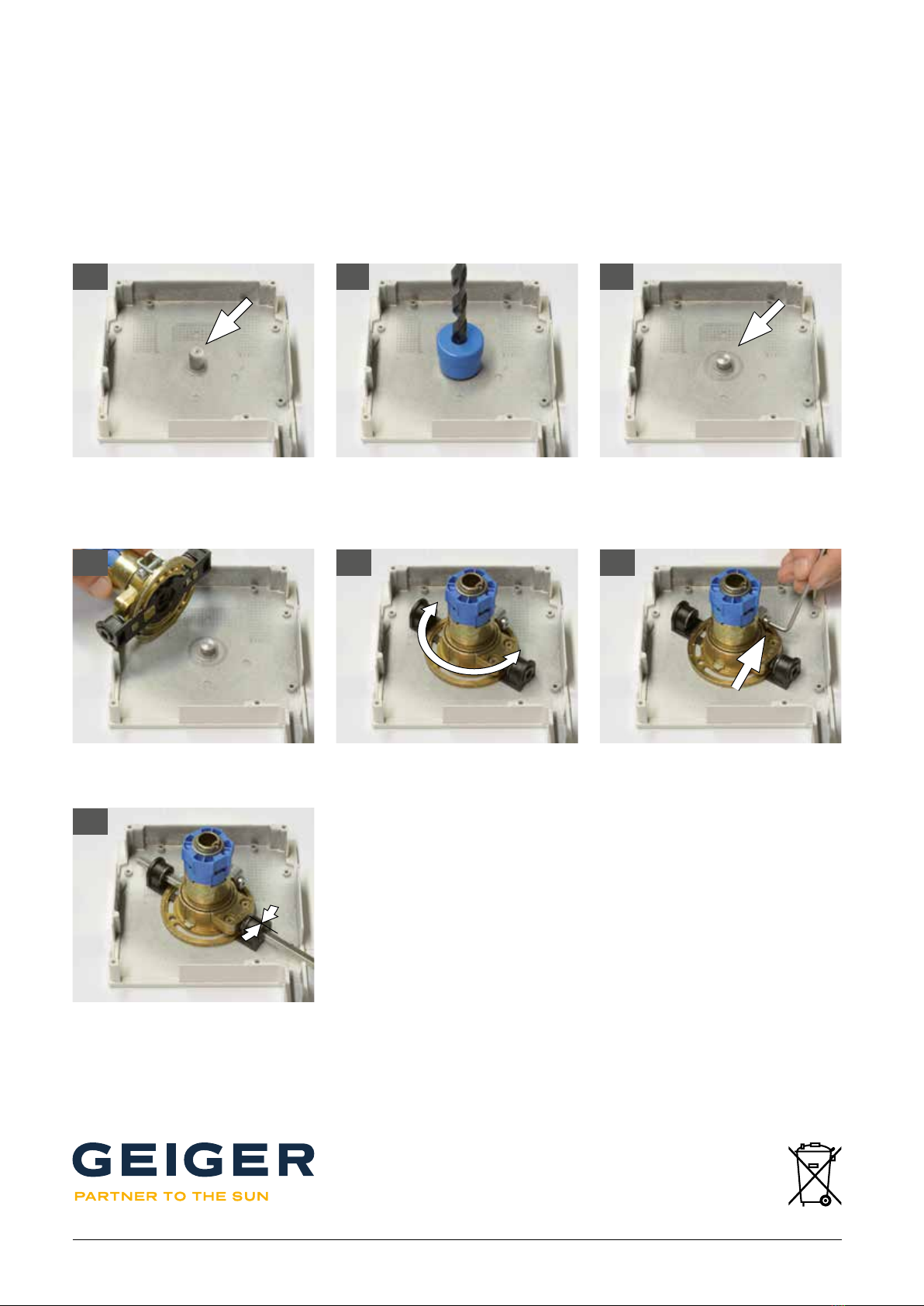

Installation instructions
Quick assembly system
1. Fitting of the bracket
Since the trunnion of the bracket is
too high …
… it must be shortened to the dimen-
sion of 8,5 mm. Please use therefore
the GEIGER assembly aid 444F500.
When the trunnion has been reduced
to the specied dimension, you can
proceed with the gear installation.
Align roughly the gear with the drive
rod (45° or 90°)
Place the bevel gear with the quick
assembly system and the clamping
plate on the trunnion.
Tighten the screw on the clamping
plate (screwable from both sides)
with a 3 mm Allen key.
Tightening torque: 3-4 Nm.
The nal alignment with the drive rod
is made on site without removing the
clamping screw.
2. Installation of the bevel gear with the quick assembly system
For technical questions, please call our service team at: [phone].
They will be happy to assist you.
Gerhard Geiger GmbH & Co. KG
Schleifmühle 6 | D-74321 Bietigheim-Bissingen
T [phone] | F [phone]
[e-mail] | www.geiger.de
Gerhard Geiger GmbH & Co. KG | 100W0331 EN 1118
