GemOro CZ Master Set Pro 3 User manual

CZ MASTER SET PRO 3 ®
FOR DIAMOND COLOR
COMPARISON AND GRADING
FEATURING EXCLUSIVE
COLORLAST®TECHNOLOGY &
NATURAL DAYLIGHT/
UV LED GRADING CASE
PATENTED
WORLD’S
FIRST
11 STONE
CZ MASTER SET!

GEMORO CZ MASTER SET PRO3®2
OPERATING PROCEDURE &
OWNERS MANUAL
Congratulations on your purchase of
the CZ Master Set Pro 3 from GEMORO
Superior Instruments, the most trusted
name in gemological instrumentation
for the jewelry industry. As the leading
manufacturer of CZ master sets for over
three decades, you’ve made a great
choice, because the best diamond
color comparison set just got better.
Professionally color grade and detect
fluorescence in diamonds in seconds with
GEMORO’s new 11 stone CZ Master Set
Pro 3!
Each stone in the precision CZ Master
Set Pro 3 is treated with GEMORO’s
proprietary COLORLAST®technology to
ensure permanent color saturation. They
are meticulously hand-graded by experts
in the GEMORO grading laboratory to
master diamond color standards using the
GIA grading scale. The jewelry industry’s
most popular CZ master set now comes
in GEMORO’s PATENTED LED illuminated
grading and storage case, featuring
natural daylight and UV LED’s, powered

3
by rechargeable NiMH batteries and a
micro-USB power/charging system.
PLEASE READ BEFORE USING THE
PROVIDED NiMH RECHARGEABLE
BATTERIES
Before using the NiMH rechargeable
batteries that have been provided with
your CZ Master Set Pro 3, to increase their
life it is recommended to fully charge the
batteries as shown by the small round LED
indicator located in the center of the rear
side of the grading case. The indicator
will light up YELLOW when charging and
GREEN when fully charged. While the
batteries are being charged, the grading
case may be used as desired while
powered by the AC current.
CONDITIONS FOR IDEAL OPERATION
1. The CZ case should be placed on
a level surface such as a desk,
workbench, or showcase.
2. It is best if the lighting in the room is
either turned off or dimmed.
3. Color grading is best performed
in the morning while your eyes
are fresh and not fatigued.

GEMORO CZ MASTER SET PRO3®4
CZ MASTER SET PRO 3 FEATURES
1. Largest range of reference available
(11 stones!): D, E, F, G, H, I, J, K,
L, M and N comparison stones
in 1.00ct diamond size.
2. Featuring proprietary
COLORLAST®technology.
3. Standard GIA grading scale with laser
inscribed color ID on each stones girdle.
4. Portable LED illuminated grading and
storage case with built-in grading tray.
5. Daylight illumination & UV
fluorescence detection capability.
6. NiMH rechargeable battery
powered with micro-USB
power/charging system.
7. Includes: Simulated white and yellow
gold solitaire display ring stone
holders for comparing mounted
stones, 2 AAA NiMH rechargeable
batteries, micro-USB power cord
and UL/CE Listed 100V-240V
AC universal voltage adapter.
8. Lifetime Limited Warranty
against color change.
SPECIFICATIONS
• Working Voltage: DC 1.2V (2) ×
AAA NiMH or its universal voltage

5
100V-240V AC adapter.
• NiMH Battery Working Time:
Approximately 3.5 hours
of continuous use.
• Net Weight: Approximately 110g
(including stones, batteries,
grading and storage case).
•
CAUTION
DO NOT attempt to disassemble the
GEMORO CZ Master Set Pro 3 other than
to replace the batteries or the warranty
will become void. Simply hand clean the
stones to remove hand or body oil with
a clean, dry cloth as needed. DO NOT
clean the stones under a steamer, within
an ultrasonic cleaning machine or with any
cleaning agents. Doing so could damage
your stones and void its warranty.
OPERATION - NiMH BATTERY USAGE
1. Remove the battery compartment door
located on the bottom of the GEMORO
CZ Master Set Pro 3 by inserting your
fingernail or coin into the crescent
shaped opening in the center bottom of
the case and prying it open.
To activate the (2) NiMH rechargeable

GEMORO CZ MASTER SET PRO3®6
batteries, REMOVE THE BATTERY
DISCHARGE INSULATOR TAB
located at the end of the battery and
then carefully replace the battery
compartment door. To increase the life
of the NiMH rechargeable batteries,
after removing the discharge insulator
tab, fully charge the batteries prior to
use.
If you wish to replace the NiMH
batteries, after removing the battery

7
compartment door as described above,
insert (2) new AAA NiMH batteries or
(2) high-quality AAA alkaline batteries
into the battery compartment. The
proper polarity positioning is indicated
on the side of the battery compartment
wall showing the direction of positive
(+) and negative (-) polarity so that it
is correctly positioned in the battery
holder. Carefully replace the battery
compartment door. To increase the life
of the NiMH rechargeable batteries,
after removing the discharge insulator
tab, fully charge the batteries prior to
use.
2. The CZ Master Set Pro 3 NiMH
rechargeable batteries may be charged
by plugging its supplied micro-USB
power cord into the rear of the case and
the USB adapter cube directly into a
wall outlet. Once the case is connected
to the AC adapter, the case will switch

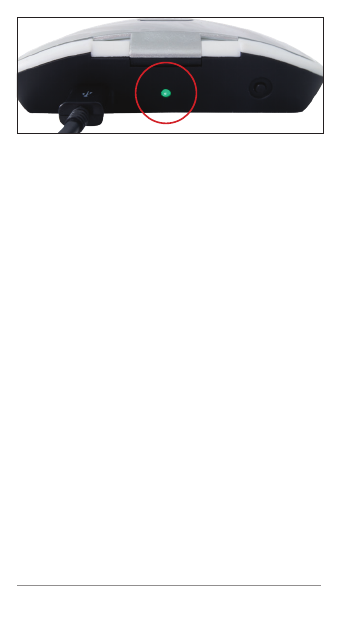

to its DC power mode. The round LED
battery indicator light in the middle
of the rear of the case will light up as
follows:
GREEN = Fully Charged
YELLOW = Charging
RED = Low Batteries

GEMORO CZ MASTER SET PRO3®8
The tester’s built-in Intelligent Charging
Circuit ICC will automatically identify
the type of batteries installed (NiMH
rechargeable batteries or alkaline
batteries). If alkaline batteries are
installed, the circuit will automatically
cut off the power supply to the
batteries. If NiMH rechargeable
batteries are installed, the batteries
will be recharged and at the same
time the CZ Master Set Pro 3 may
be used with the AC adapter.

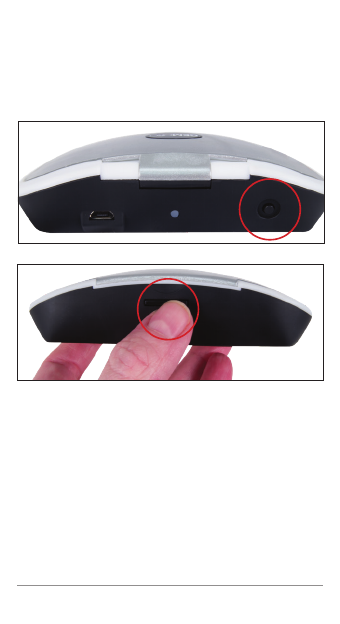

3. To power the CZ Master Set Pro 3
press the round white button located
on the rear side of the case and the
white natural daylight LED’s will light
up. Press the button again to turn on
the UV LED’s. Press the button again to
turn it off.
4. To open the CZ Master Set Pro 3 case
to access the CZ’s, press the thin white
rectangular shaped button on the front

9
center of the case with one hand, while
pulling open the lid up and open with
the other hand. To close the CZ Master
Set Pro 3 case, simply lower the lid until
the lock is securely engaged.

GEMORO CZ MASTER SET PRO3®10
GRADING DIAMOND COLOR OR
FLUORESCENCE
1. To color grade a diamond, simply place
it in the middle of the grooved tray,
positioned with the table (flat part of the
stone) down at a 45° angle while laying
the table of the stone against the front of
the groove.
2. For best results, it is recommended to
turn off or dim the overhead lights in
the room you are in. Turn on the cases
natural daylight LED’s when color
grading or UV LED’s when grading
fluorescence.
3. By process of elimination, lay the master
stones next to the diamond until you are
able to visually match the color to the
diamond.
4. Store the CZ Master Set Pro 3 in its
leatherette pouch with the lid closed in a
climate-controlled room. Never expose
it to extreme heat and/or UV radiation.
DAYLIGHT UV

11
ATTENTION

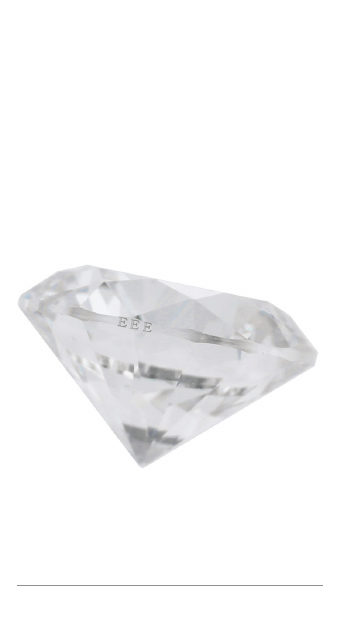

The location of the color grade
inscription on our CZ Master Set
Pro 3 stones has changed to a more
traditional format. When using a 20x or
greater magnification loupe, inscription
viewer or microscope, the color grades
are now clearly visible on the girdle of
each stone.

GEMORO CZ MASTER SET PRO3®12
MAINTENANCE
1. The CZ Master Set Pro 3 is a
professional instrument and proper care
should always be applied when using it.
2. Always insert the CZ Master Set Pro 3
case into its protective pouch when not
in use.
3. To clean the CZ Master Set Pro
3 grading tray, use a paper towel
moistened with water and a mild pH
soap that is suitable for use on plastic,
and gently wipe off any dust or grime
that may have accumulated on the tray.
Remove any soap residue by using a
moistened paper towel with water and
then dry it off. Never submerge the case
in water or allow the electronics to get
wet or the warranty will be void.
4. If using alkaline batteries, always
replace the batteries after long periods
of time to prevent premature corrosion
or battery leakage, which is common
with old or spent alkaline batteries after
a period of time. Be aware that damage
to the CZ Master Set Pro 3 case may
occur if there is battery leakage and it
will void the warranty.
5. In the event the CZ Master Set Pro
3 case is not used for an extended

13
period of time, the batteries should be
removed.
6. The CZ Master Set Pro 3 case is not
user serviceable other than battery
replacement. If service is required,
please contact your supplier or the
GEMORO. Any attempt to repair
the CZ Master Set Pro 3 case by
a user will void the warranty.
IMPORTANT DISCLAIMER
The CZ Master Set Pro 3 is a helpful
tool that by design is meant to assist in
the process of estimating the color and
fluorescence of diamonds. All grading
is subjective and determined by the
individual. Neither GEMORO nor any of its
affiliates, dealers, or distributors shall be
held liable for any loss and/or damages
associated with the use of the CZ Master
Set Pro 3. No warranties exist with respect
to the CZ Master Set Pro 3 or its use other
than those expressly contained herein. All
other warranties of any kind or character
whatsoever, whether expressed or implied,
including warranties of merchantability
or fitness for a particular purpose, are
hereby disclaimed and are excluded from

GEMORO CZ MASTER SET PRO3®14
the warranties hereunder. In the event that
a claim is made with respect to the CZ
Master Set Pro 3 or its use, the maximum
liability of GEMORO, and its affiliates,
dealers, and distributors shall be the
amount paid for the CZ Master Set Pro 3.
WARRANTY
Congratulations on your purchase of the
GEMORO CZ Master Set Pro 3! Your
CZ Master Set Pro 3 features a 1-YEAR
WARRANTY on the storage case and a
LIFETIME LIMITED WARRANTY against
color change on the master stones.
Damage caused by abuse will void the
warranty. These warranties become
effective from the date of the original
purchase assuming the purchaser fills out
the WARRANTY REGISTRATION FORM
at sykessler.com/warranty-registration/
or the purchaser provides a copy of
their invoice (bill of sale) when making a
warranty claim. In the event the CZ Master
Set Pro 3’s owner has not registered their
set or provided a copy of their invoice for
when they purchased the CZ Master Set
Pro 3, warranty service will be determined
by the serial number tracking system as

15
interpreted by the factory. In the event the
CZ Master Set Pro 3 is no longer available
or has been discontinued and warranty
coverage is applicable, at the factory’s
sole discretion, an equivalent CZ master
set and/or case may be substituted for
the defective part. The purchaser shall
incur the cost for postage, insurance,
and handling for all warranty and non-
warranty repairs. Warranty repairs and/
or replacements will be shipped back
to the customer FOB Destination to the
location of the customer’s choosing if
within the Continental United States.
Non-warranty repairs will be shipped back
to the customer FOB Factory. Should
the customer require the repair and/or
replacement to be shipped outside the
Continental United States, the customer
will be required to pay any related shipping
charges and any related taxes/duties
for the respective destination country,
regardless of whether it is a warranty or
non-warranty claim.

GEMORO CZ MASTER SET PRO3®16
GEMORO Superior Instruments
Attention: CZ Master Set Pro 3
Warranty Registration
10455 Olympic Drive
Dallas, Texas 75220 USA
214.351.0380 or 800.527.0719
FAX [phone] or 800.832.9871
sykessler.com/warrantyregistration
gemoroproducts.com
