Genave MP3 Node User manual
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 2 of 21 Genave Electronics
Important Safety Information
Installation & Service Precautions
•Electrocution, severe personal injury and damage to equipment can
occur during installation or servicing this equipment. All electrical work should be
performed by, or under the supervision of an experienced electrician and in
accordance with all applicable electrical, fire, building and safety codes.
•This equipment can start at any time from local controls, automatic
timers, radio remote, commands from a computer and many other
sources. Attached equipment can cause personal injury when they engage. Whenever
working in or around the equipment you must assume it could activate at any moment,
and take appropriate precautions to protect yourself and others. You should
completely disable the equipment before working on or in close proximity to any part
of it.
•You must test the system and equipment to insure it is operating correctly after the
installation, as well as after any work has been performed.
System Operation
•Training is necessary to ensure those responsible can correctly control the system. It
is also necessary that everyone understand the purpose of the equipment and the
protective actions they need to take when the system is activated.
•You must carefully read and completely understand all the information about the
system including its abilities and its limitations.
Warning
If incorrectly used, this equipment can cause severe injury. Those who
use and maintain the equipment should be trained in its proper use,
warned of its dangers, and should read the manuals before attempting
to set up, operate, adjust or service the equipment. Keep this manual
for future reference.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 3 of 21 Genave Electronics
©2018, Genave/NRC, Inc.
MP3 NodeHardware
Phone 952-236-6540
PRINTED IN USA
The contents of this manual are the property of Genave/NRC, Inc. and are copyrighted. Any reproduction in whole or in part is strictly
prohibited. For additional copies of this manual or software, please contact Genave/NRC, Inc.
Warranty:
Genave/NRC, Inc. products are warranted to be free from defects in material and workmanship for a
period of ONE (1) year from the date of shipment. Genave, during this period, will repair or replace any
parts, which upon our examination appear to be defective in materials or workmanship. This warranty
does not apply to defects, malfunctions or breakage due to improper installation, servicing, handling or
use thereof, nor to units that have been damaged by lightening or other “Acts of God”, excess current,
reversed supply connection, nor to units that have had their serial numbers altered or removed.
Equipment damaged in Acts of War, abuse, misuse, tampering, submersion or willful destruction will
also void this warranty.
Prior to returning equipment for warranty repair, contact the Genave Customer Service Department for
an RMAnumber. They can be reached by using the telephone number or fax number listed above.
Genave/NRC, Inc. (Genave) and its licensers offer this warranty in lieu of any and all other guarantees or
warranties, either express or implied, including without limitation the implied warranties of
merchantability and fitness for a particular purpose, regarding hardware or software. Genave and its
licensors do not warrant, guarantee or make any representations regarding the use or the results of the
use of the software or hardware in terms of its correctness, accuracy, reliability, most recent or
otherwise. You assume the entire risk as to the results and performance. The exclusion of implied
warranties is not permitted by some jurisdictions. The above exclusion may not apply to you.
In no event will Genave, its licensors, directors, officers, employees or agents (collectively Genave’s licensor) be liable to you for
any consequential, incidental or indirect damages (including damages for loss of business profits, business interruption, loss of
business information, and the like) arising out of the use or inability to use the software or hardware even if the Genave and/or its
licensor has been advised of the possibility of such damages. Because some jurisdictions do not allow the exclusion or limitation
of liability for consequential or incidental damages, the above limitations may not apply to you. Genave and its licensors liability to
you for actual damages from any cause whatsoever, and regardless of the form of the action (whether in contract, tort, (including
negligence), product liability or otherwise), are expressly excluded.
Genave reserves the right to make changes in specifications at any time and without notice. The information furnished by Genave
is believed to be accurate and reliable, however, no responsibility is assumed by Genave for its use, nor infringements of patents
or other rights of third parties resulting from its use. No license is granted under any patents or patent rights of Genave/NRC, Inc.,
its licensors or suppliers.
Life Support Policy:
Genave/NRC, Inc. products are not authorized for use as critical components in life support devices or systems without the
express written approval of the president of Genave/NRC, Inc. As used herein:
1) Life support devices or systems are devices or systems which, (a) are intended for surgical implants into the body, or (b)
support or sustain life, or whose failure to perform, when properly used in accordance with instructions, can reasonably be
expected to result in a significant injury to the user.
2) Critical component is any component of a life support device or system whose failure to perform can be reasonably expected to
cause the failure of the life support device or system, or to affect its safety or effectiveness.
CSP, Communications Signal Processor, Genave Operating System, GOS, CSP-105, RXC-3000, LR900, LR-900, MP3 Node and
RXCPro are Trademarks of Genave/NRC, Inc. The Genave name and logo are Registered trademarks of Genave/NRC, Inc.
Other names used in this manual are trademarks of their respective companies.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 4 of 21 Genave Electronics
This page intentionally blank.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 5 of 21 Genave Electronics
MP3 Node
Table of Contents
Specifications ....................................................................................................................................... 6
General Specifications....................................................................................................................... 6
Overview .............................................................................................................................................. 7
How it Works..................................................................................................................................... 7
Menu Map.......................................................................................................................................... 9
Changing the Channel Settings........................................................................................................ 10
Inputs ............................................................................................................................................... 11
Source.............................................................................................................................................. 11

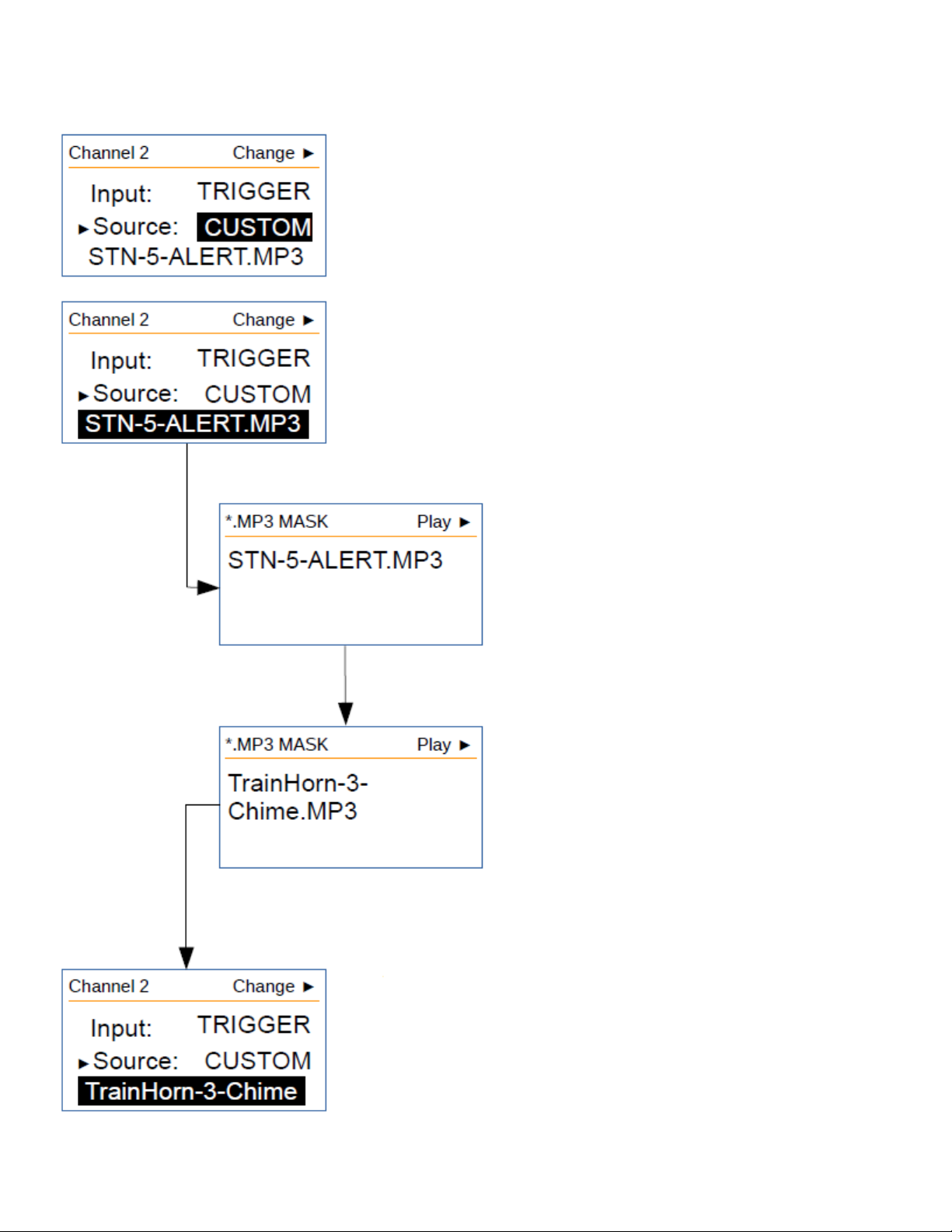

Custom Source................................................................................................................................. 12

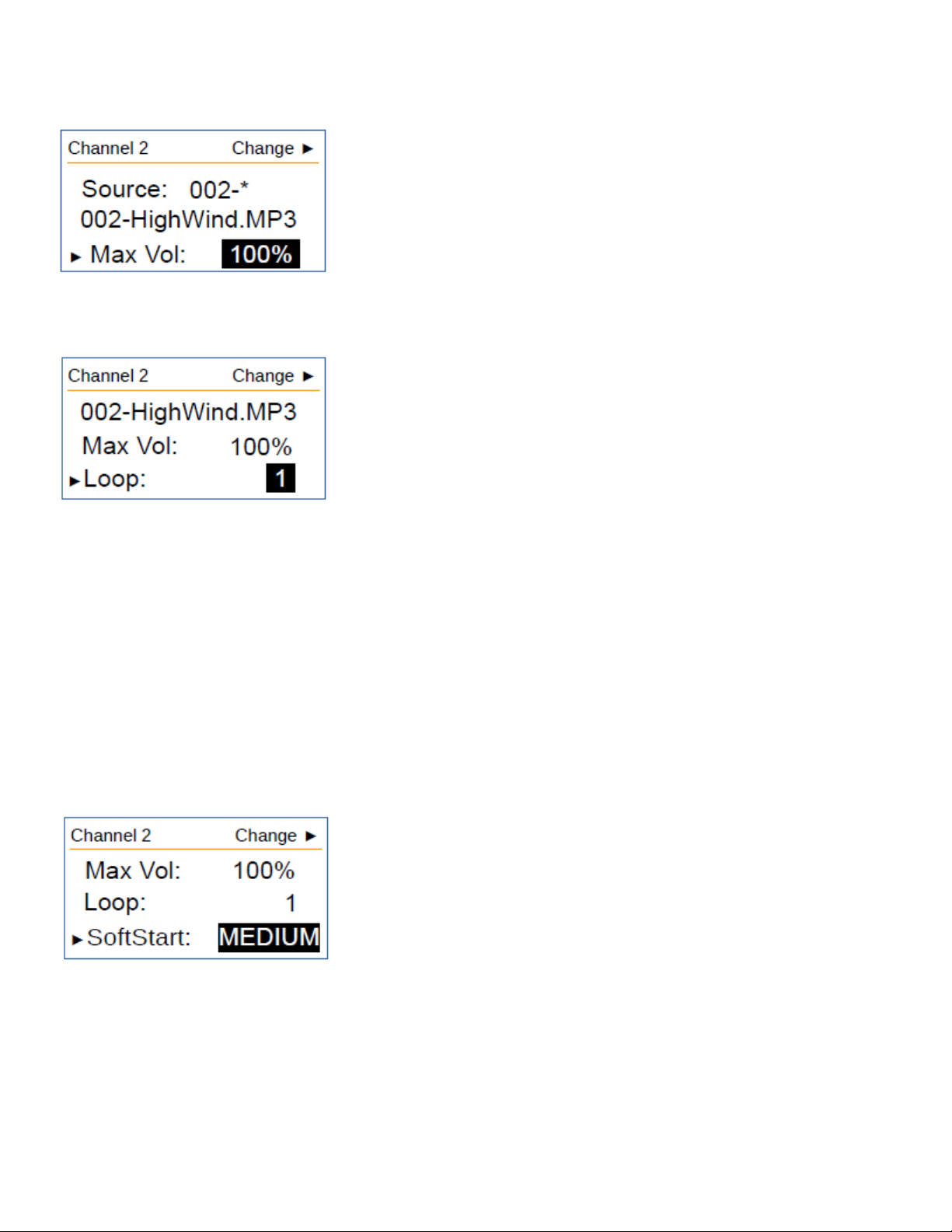

Max Vol (Per channel) .................................................................................................................... 13
Loop................................................................................................................................................. 13
SoftStart........................................................................................................................................... 13
Equalizer (On/Off per channel)....................................................................................................... 14
Max Run Time................................................................................................................................. 14

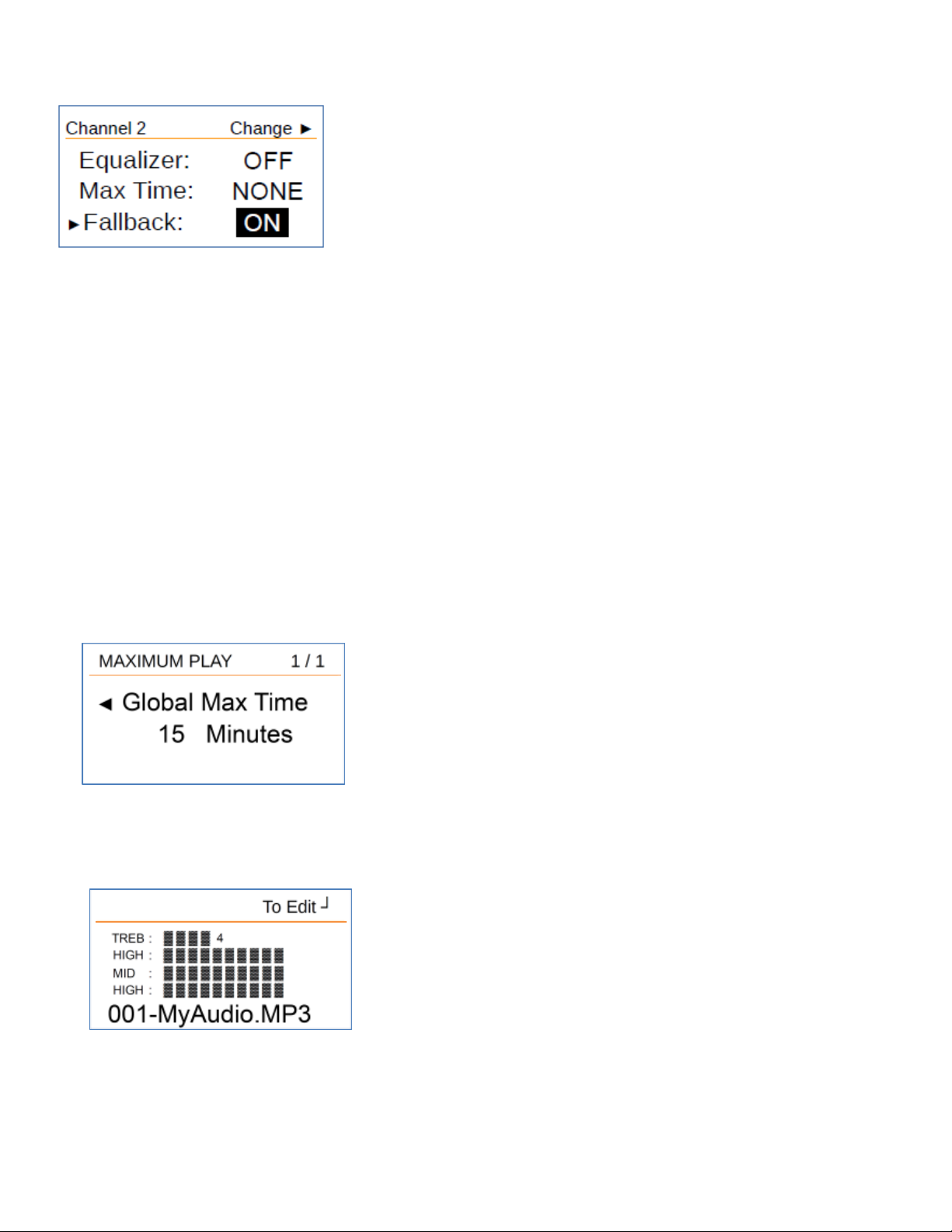

Fallback ........................................................................................................................................... 14
Changing Global Settings................................................................................................................. 15
Global Max Time............................................................................................................................. 15
Equalizer.......................................................................................................................................... 15

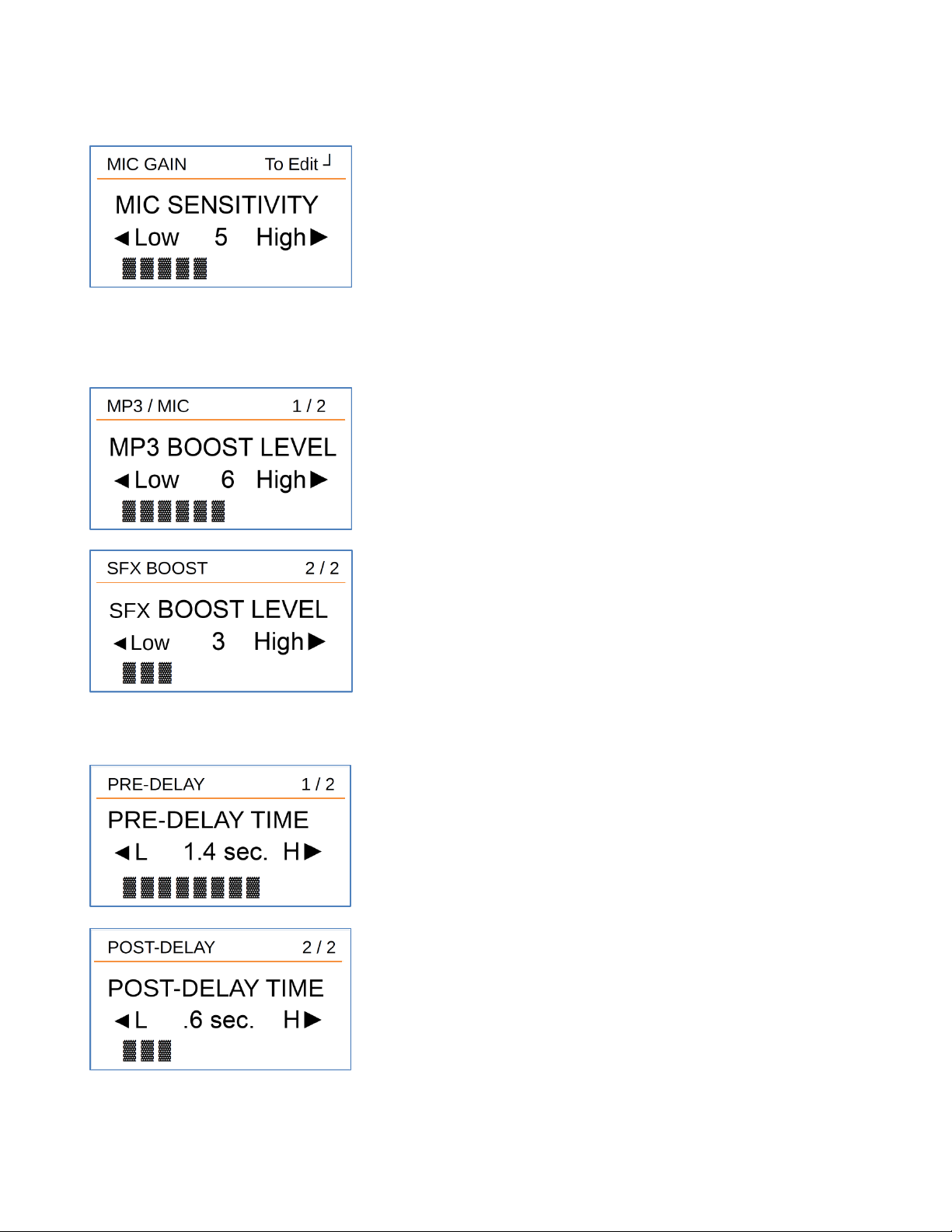

Mic Sensitivity................................................................................................................................. 16
Amplifier Boost............................................................................................................................... 16
Audio Delays................................................................................................................................... 16
Import Config .................................................................................................................................. 17
Export Config.................................................................................................................................. 17
Com Baud Rate................................................................................................................................ 17
Monitor Inputs................................................................................................................................. 17
Config Name.................................................................................................................................... 18
Firmware Info.................................................................................................................................. 18
Factory Reset ................................................................................................................................... 18
Installing & Use................................................................................................................................. 19
Mounting the MP3 Node................................................................................................................. 19
Power Connection............................................................................................................................ 19
Microphone Port.............................................................................................................................. 19
Line Out........................................................................................................................................... 20
Amplifier Port.................................................................................................................................. 20
Inputs.................................................................................................................................................. 21
Input Header Characteristics ........................................................................................................... 21
Input Header Pinout......................................................................................................................... 21
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 6 of 21 Genave Electronics
Specifications
General Specifications
Enclosure
Width:
36mm (1.417 inches)
Length:
100mm (3.937 inches)
Height:
80mm (3.149 inches)
Weight:
114.6 grams (5.10oz)
Input Connector
Header:
9 pos., 2.5mm
Mating Connector:
9 pos. cage clamp
28-16 AWG
0.25” Strip length
P/N 6000-0101-124
Max Input Voltage:
30VDC (Pull to GND for active)
Output Connector
Header:
10 position dual row
Mating Connector:
10 pos. dual row female
TE 1658621-1 or eqv.
P/N 6000-0035-010
Audio Output
600 Ohms
Max Control Voltage:
12 VDC
Max Control Current:
70mA
Power Connector
Header:
2 pos., 3.81mm
Mating Connector:
2 pos. screw clamp
26-16 AWG
0.25” Strip length
P/N 6000-0048-003
Input Voltage:
7.5 to 28 VDC
Display
Type:
OLED
Size:
128 x 64
Colors:
Blue & Yellow
MicroSD Card Slot
Accepts:
Transflash MicroSD
SDHC, Class 10, FAT32,
4GB to 32GB
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 7 of 21 Genave Electronics
Overview
How it Works
The MP3 Node is a stand-alone MP3 player which has 8 independent inputs (Channels)
which are used as triggers to play 1 of up to 255 different MP3 files stored on a microSD card,
or to play 1 of 8 internally stored files. There are actually 16 channels but only the first 8 are
available as external inputs for user interfaces.
Each MP3 Node has an output port which is used to control an external amplifier.
The MP3 Node has the ability to change the acoustics of the MP3 file by altering the volume
treble and bass.
Additionally, the MP3 node has a microphone input which can be used to record MP3 files as
well as be used for Live PA messages.
Each of the 8 external inputs has 3 different audio files that it can play:
1) When an SD card is installed, the unit can play an MP3 (SFX) file that begins
with the same number as the input… i.e. Input 4 (Channel 4) can play “004-
Hotel California.MP3”
2) When there is no SD card installed, the unit can play an MP3 file that is stored
in its internal memory that is associated with the input.
3) Play an MP3 file that was created with the microphone that is associated with
the input….. i.e. Input 4 can play “MIC-004.MP3” (Requires SD card)
There are methods to associate any of the 255 MP3 files on a card with any input. This is
called “Masking”. This user guide is a beginner’s guide and does not delve deeply into
masking. For more information see “Custom Source”
When one of the 8 inputs is triggered (Pulled low to pin 9 of the input port), the unit looks to
find which audio file has been assigned to the input (SD card file, Internal SFX file, or
Microphone file). The Node then turns on the external amplifier, waits for a short time to let
things settle, then it begins playing the MP3 file out of the amplifier port. At the same time, it
plays the file out of the “Line Out” port, but the line out audio is raw audio. It has no volume
control nor treble and bass adjustments.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 8 of 21 Genave Electronics

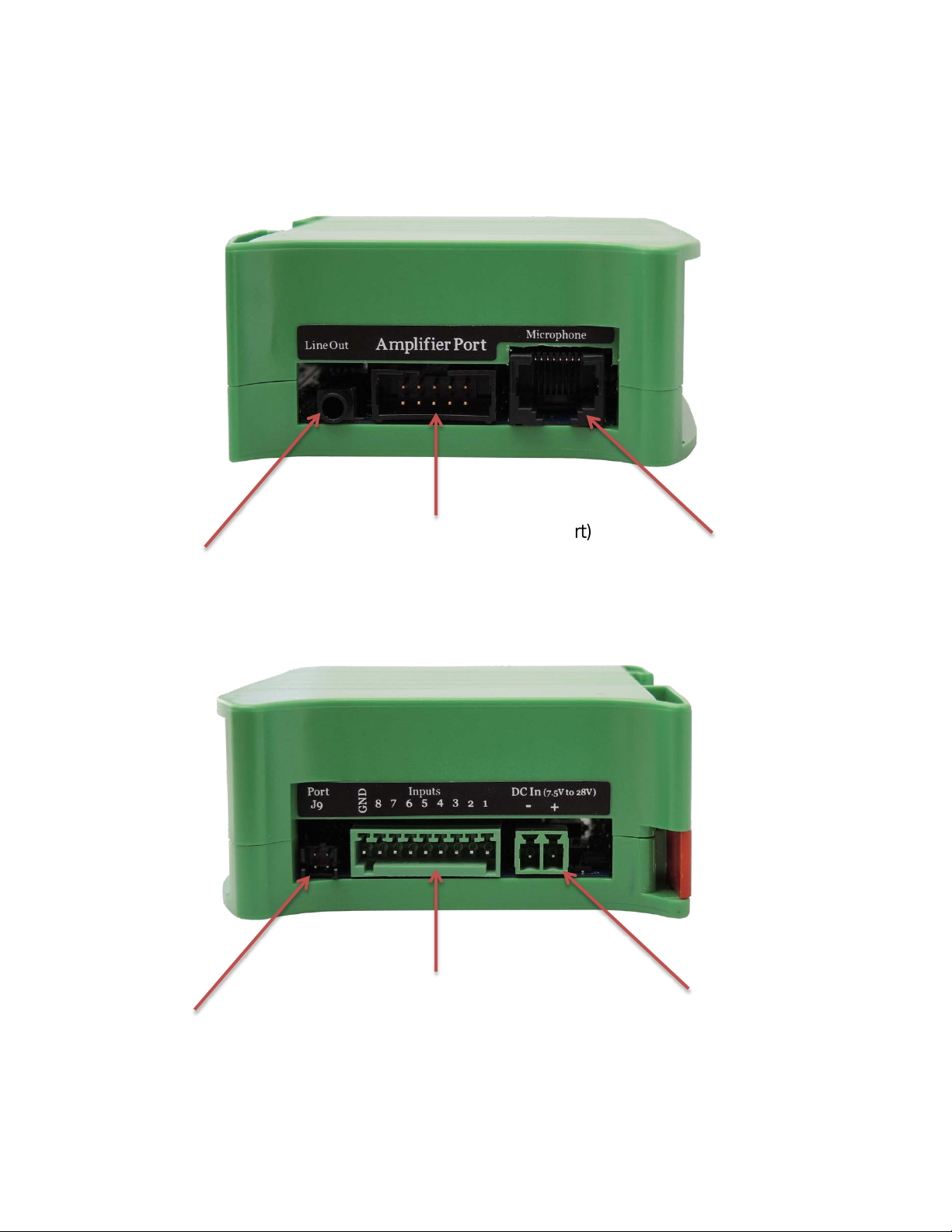

Line out for testing.
(See Line Out)
Amplifier Port. (See Amplifier Port)
Microphone Input.
(See Microphone Port)
Communications Port.
Do not use.
Inputs. (See Inputs)
Power In.
(See Power Connection)
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 9 of 21 Genave Electronics
Menu Map
When SD card is inserted, this is
the default screen showing the
MP3 channel file information and
what to do to play it again.
Import Config.
Import Config.
Import Config.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 10 of 21 Genave Electronics

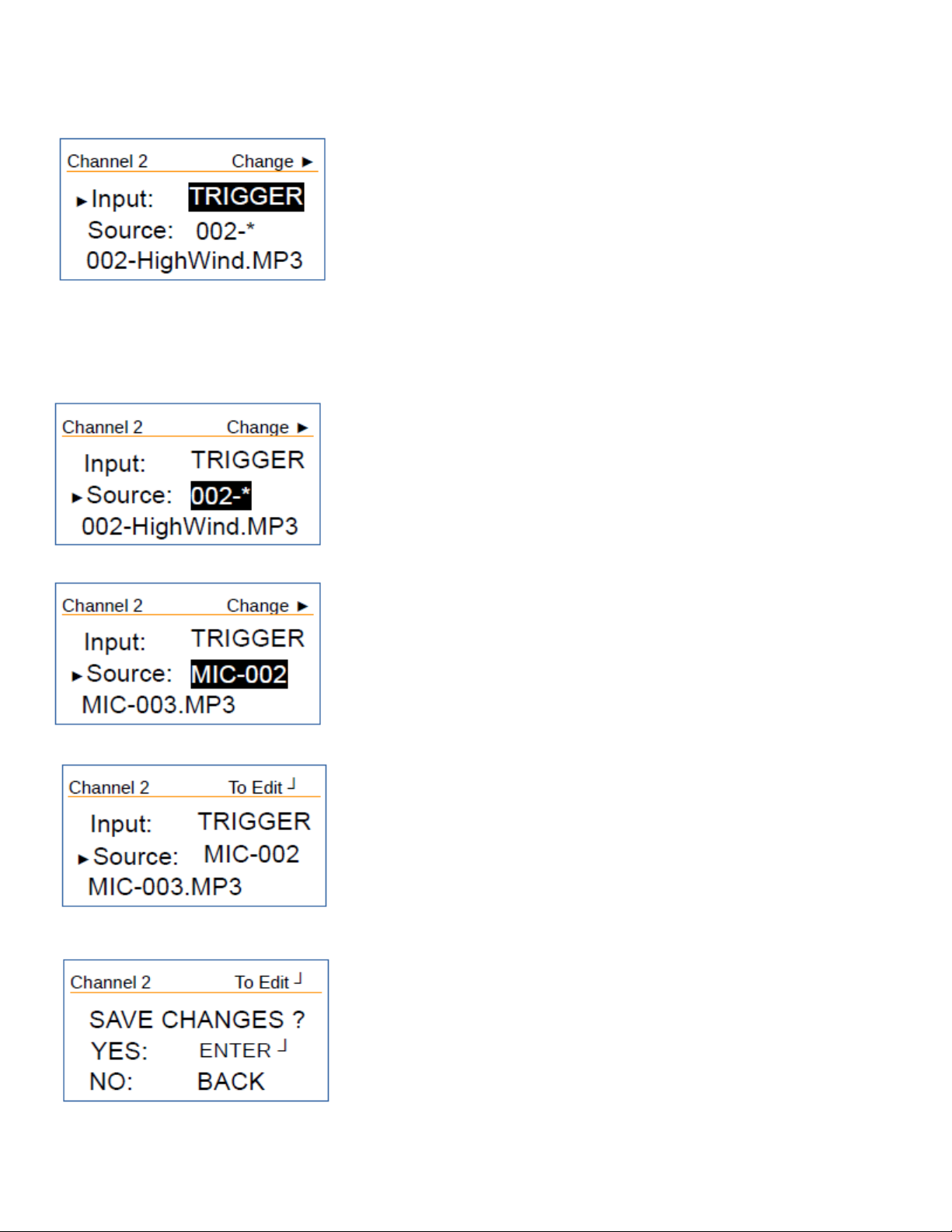

Changing the Channel Settings
Press the Enter button to begin editing.
Top menu bar will change from “To Edit ┘” to “Change ►“.
A pointer on screen left will show which line you’re editing
and the value on that particular line will be highlighted.
Use the Up and Down buttons to scroll to a different line.
Use the Left and Right buttons to select new values on the
highlighted item.
In this example, the Right button was pressed once to select
a microphone file as the source and the filename
automatically updated to show the recording name.
Pressing the Enter button will stop the editing process.
The top menu bar will again display “To Edit ┘”.
When you press the Back key to exit the menu, or change
channels, you will be asked if you want to save any changes.
Press the Back button to discard changes. Press the Enter
button to save and update the system with the new
information.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 11 of 21 Genave Electronics
Inputs
This determines what type of input will start and stop the
channel.
DISABLED: The input does not perform any actions.
TRIGGER: The input activates the audio when it is turned on.
The input may remain active or be turned off at any time, but
the audio will have been started and will run to its completion.
HOLD DN: The audio runs as long as the input is turned on. It
will stop when the input is turned off or when the audio has
run to its completion, whichever is first.
CANCEL: The input will stop currently running audio.
Source
Selects which type of audio will be played.
Note: The letter X in this group is filled in with the channel
number currently being edited. The example to the left is
Channel 2 which would make 00X-* in below descriptions
actually be presented as shown. In this instance it is shown as
002-*.
00X-*: Use any MP3 file beginning with three digits (the last
digit matching the channel number) and a hyphen as the
fourth character in the name.
MIC-00X: Use MP3 file beginning with the work MIC- and the
following three digits (the last digit matching the channel
number). MIC- is a reserved keyword which the MP3-NODE
automatically assigns new microphone messages.
ALERT-2: The SFX alert sound assigned to this input.
CUSTOM: An MP3 selected by browsing the SD memory
card. The name does not need to follow the 00X- naming
convention. Press the > button on the custom filename line to
scroll and find the desired file. After finding the file, press the
Enter button to select and transfer to the channel, or press
Back to return to this edit screen without changing the
filename.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 12 of 21 Genave Electronics
Custom Source
CUSTOM: The Custom source allows any mp3 file to be
played.
Select the Custom option.
Move the cursor down to the filename.
Press the Right button to search for the MP3 filename.
MP3 file will be presented one screen at a
time.
The Up and Down buttons scroll thru the
files on the micro SD memory card.
Filenames are sorted by directory location,
not alphabetically.
Pressing the Right button will play the
audio.
In this example, pressing the Up button
shows the next file on the SD memory
card.
Pressing the Enter button will exit file
browsing and enter the current MP3 into
the Custom filename.
Press the Back button to exit without
change.
The Enter button was pressed in this example so the
selected audio is entered into the Custom filename.
Move the cursor down to the filename.
Press the Right button to search for the MP3 filename.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 13 of 21 Genave Electronics
Max Vol (Per channel) This is the channel volume in relation to the Master Volume.
Use the Left and Right buttons to select the percentage value.
The values change in 10% steps.
Loop The number of times the audio will play from the beginning
after the first run is completed.
In this example, the audio will play twice. The first run plus
one loop.
SoftStart
To help prevent startling or hearing damage to persons close to the speakers when the audio
begins, MP3 audio, pre-recorded messages, SFX alerts and live PA can be set to ramp the
volume up from minimum to maximum over a period of time. This feature is named SoftStart.
SoftStart has five settings. The timing shown is approximate.
OFF: SoftStart is disabled.
FAST: Three seconds.
MEDIUM: Eight seconds.
NORMAL: Twelve seconds.
SLOW: Fifteen seconds.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 14 of 21 Genave Electronics
Equalizer (On/Off per channel)
The MP3-Node includes a four channel audio equalizer to
help match the response of your audio to the amplifier and
speakers. Value range is OFF or ON. Factory default is OFF.
The equalizer settings are adjusted in the Global Settings.
This setting adjusts if the specific channel should use the
equalizer.
OFF: Equalizer is disabled for this channel.
ON: This channel will use the equalizer.
Max Run Time Maximum time in seconds for a channel to remain active and
playing audio. Value range is None to 60000 seconds.
Factory default is NONE.
To prevent overheating to some amplifiers or speakers, or to
conserve battery power on solar charging systems, it may be
useful to limit the run time of any audio or SFX.
NONE: No limit on the channel run time.
To change the time, use the Left and Right buttons to
increase or decrease the time in seconds. While adjusting the
time, the count speed will increase as the button remains
pressed to quickly traverse a large number range.
Fallback Enable or disable the fallback feature. Valid range is OFF or
ON. Factory default is ON.
If the SD memory card is missing or the MP3 file cannot be
found on the card, this feature enables the MP3-NODE to
substitute a computer generated SFX sound for the missing
audio file.
Each input has its own unique SFX sound.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 15 of 21 Genave Electronics
Enable or disable the fallback feature. Valid range is OFF or
ON. Factory default is ON.
If the SD memory card is missing or the MP3 file cannot be
found on the card, this feature enables the MP3-NODE to
substitute a computer generated SFX alert sound for the
missing audio file.
Each input has its own unique SFX alert sound.
Channel 1 - ~ALERT WAIL
Channel 2 - ~ALERT STEADY
Channel 3 - ~HI-LOW-A
Channel 4 - ~ALERT STUTTER
Channel 5 - ~DOUBLE HI-LOW
Channel 6 - ~WHOOP UP
Channel 7 - ~WHOOP DOWN
Channel 8 - ~PHASER
Changing Global Settings
Global Max Time
The Global Max Time sets the cumulative run time allowed
for any set of MP3 files. If this value is exceeded, the unit will
stop playing completely. It can be retriggered again.
Equalizer
The Equalizer makes global adjustments to the audio
levels. If you highlight the audio file shown at the bottom of
the screen, you can play that file as you make adjustments.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 16 of 21 Genave Electronics
Mic Sensitivity
Mic Sensitivity adjusts the amplification of the incoming
audio from a microphone.
Amplifier Boost
Amplifier boost is used to adjust levels between the
embedded SFX MP3 files and the MP3 files stored on the
card.
Audio Delays
Audio delays adjust the time between power up of the
amplifier (pre-delay) and playing of the MP3, as well as the
time from end of MP3 until power down (post-delay).
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 17 of 21 Genave Electronics
Import Config
Used to read the CFG file from the SD card. The CFG file
holds the configuration of the MP3 node. When cloning
nodes or changing configuration of multiple nodes, reading
the CFG file is the easiest method to make changes.
Export Config
Used to write the CFG file to the SD card. The CFG file
holds all of the configuration data of the MP3 node.
Com Baud Rate
Do not change. Please call Genave if you want to use the
Com Port.
Monitor Inputs
Used to see if an input is working when pulled low
(triggered) the input number is highlighted.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 18 of 21 Genave Electronics
Config Name
Change config name (MP3-Node.cfg).
Firmware Info
Shows which firmware is installed in the node. Only Genave
can change the firmware.
Factory Reset
Return the settings on the channel to the Factory Default.
Valid range is YES or NO. Factory default is NO.
Individual channels may have their settings restored to the
original factory defaults.
To restore factory defaults for this channel only, use the
left right buttons to select YES, then press the ENTER
button.
The Confirm screen will appear.
Press the ENTER button to proceed and restore Factory
Default Settings to this channel.
Press the BACK button to abort changing back to defaults.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 19 of 21 Genave Electronics
Installing & Use
Mounting the MP3 Node
To remove the node from a Din rail, use a screw driver to pull and hold down on the red latch
on the enclosure while pulling the bottom of the case forward.
Power Connection
The MP3 Node operates from 7.5VDC to 28 VDC. The power input is also reverse voltage
protected. The polarity of the connections is displayed on the label.
Microphone Port
The Microphone Port is used to create MP3 files for storage on the SD card as well as a
store-and-forward PA function. Use only Genave 8032-0000-004 microphones. The
microphone is biased with a 5 Volt supply.
MP3 Node Hardware Installation and User Guide
9000-0000-127 Revision 01 20 of 21 Genave Electronics
Line Out
The “Line Out” port is a direct output from the MP3 player. Line Out is not buffered.
It does not go through the final amplifier, hence the volume of audio from Line Out cannot be
adjusted. Line Out is to be used for testing purposes only.
Amplifier Port
The “Amplifier Port” is specially designed to control a Genave amplifier type but it can control
other amplifiers as well. There are two control lines (Power Up and Mute) and a 600
Ohm isolated audio output.
The Power Up line is pulled low before the audio begins. Power Up is used to control a relay
or mosfet which in turn supplies power to an amplifier. The maximum voltage controlled by
Power Up is 60 VDC and the maximum current passed by Power Up is ½ Amp.
When the MP3 Node is playing sequential files, Power Up is kept on for the entire run.
The second control line is “Mute” which is used to mute and unmute the amplifier between
sequential MP3 files.
Both control lines are active Low (Mute = 0 and Power Up = 0)
The 600 Ohm output has a DC resistance of 58 Ohms. Do not apply and DC voltages to the
audio output.
Table of contents
