Generac Portable Products 2,300 PSI Pressure Washer
2
EQUIPMENT DESCRIPTION
CONGRATULATIONS on your purchase of a
GENERAC high pressure washer. It has been
designed, engineered and manufactured to give you
the best possible dependability and performance.
This manual contains information for an high pressure
washer that operates at 2,300 PSI at a flow rate of
2.2 gallons per minute. This high quality residential
system features large 10 wheels, a pump equipped
with an automatic cool down system, a chemical
injection system, adjustable nozzle extension, safety
goggles, a heavy duty 25 hose, and more.
Please read and retain this manual. The instructions
will enable you to assemble your unit, and maintain
your high pressure washer properly.
Every effort has been made to ensure that the
information in this manual is both accurate and
current. However, Generac reserves the right to
change, alter or otherwise improve the product and its
documentation at any time without prior notice.
Should you experience any problem you cannot easily
fix, call the pressure washer helpline at
1-800- 70-1408.
CUSTOMER
RESPONSIBILITIES
 Read and observe the safety rules.
 Follow regular schedule in maintaining, caring for
and using your high pressure washer.
 For off-season storage, review Preparing The Unit
For Storage on page 14.
SAFETY RULES
CAUTION! When setting up, transporting,
adjusting or making repairs to your high
pressure washer, always disconnect the spark
plug wire from the spark plug and place the
wire where it cannot contact spark plug.
DANGER! Engine exhaust contain DEADLY
carbon monoxide gas. This dangerous gas, if
breathed in sufficient concentrations, can cause
unconsciousness or even death. Operate this
equipment only in the open air where adequate
ventilation is available.
DANGER! Gasoline is highly FLAMMABLE
and its vapors are EXPLOSIVE. Do Not permit
smoking, open flames, sparks or heat in the
vicinity while handling gasoline. Avoid spilling
gasoline on a hot engine. Allow unit to cool for
2 minutes before refueling. Comply with all laws
regulating storage and handling of gasoline.
Read this manual carefully and become familiar
with your pressure washer. Know its applications,
its limitations, and any hazards involved.
 Locate this pressure washer in areas away from
combustible materials, combustible fumes or dust.
 The high pressure equipment is designed to be
used with Generac authorized parts ONLY. If you
use this equipment with parts that Do Not comply
with minimum specifications, the user assumes all
risks and liabilities.
Do Not allow CHILDREN to operate the pressure
washer at any time.
 Always be certain the spray gun, nozzles and
accessories are correctly attached.
Do Not wear loose clothing, jewelry or anything that
may be caught in the starter or other rotating parts.
The engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects, or other
reproductive harm.
WARNING:

Generac Portable Products 2,300 PSI Pressure Washer
3
 Before starting the pressure washer in cold weather,
check all parts of the equipment and be sure ice has
not formed there.
 Units with broken or missing parts, or without
protective housing or covers, should NEVER be
operated.
Do Not secure the spray gun in the open position.
 Use a respirator or mask whenever there is a
chance that vapors may be inhaled. Read all
instructions with mask so you are certain the mask
will provide the necessary protection against
inhaling harmful vapors.
 Always wear eye protection when you use this
equipment or when you are in the vicinity where the
equipment is in use.
 The cleaning area should have adequate slopes and
drainage to reduce the possibility of a fall due to
slippery surfaces.
Do Not bypass any safety device on this machine.
 Keep the hose connected to machine or the spray
gun while the system is pressurized. Disconnecting
the hose while the unit is pressurized is dangerous.
 Operate and store this unit on a stable surface.
 Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea, fainting
or poisoning. The harmful elements may cause
property damage or severe injury.
Do Not spray flammable liquids.
Never allow any part of the body to come in contact
with the fluid stream. Do Not come in contact with a
fluid stream created by leaks in high pressure hose.
 High pressure spray can cause paint chips or other
particles to become airborne.
Do Not operate the pressure washer above the
rated pressure.
 High pressure spray may damage fragile items
including glass. Do Not point spray gun at glass
when in the jet spray mode.
 Keep water spray away from electric wiring or fatal
electric shock may result.
Never use a spray gun which does not have a
trigger lock or trigger guard in place and in working
order.
Never aim the spray gun at people, animals or
plants. The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.
 Hold the spray gun firmly in your hand before you
start the unit. Failure to do so could result in an
injury from a whipping spray gun. Do Not leave the
spray gun unattended while the machine is running.
Never move the machine by pulling on the high
pressure hose. Use the handle provided on the unit.
 High pressure hose can develop leaks from wear,
kinking, abuse, etc. Water spraying from a leak is
capable of injecting material into skin. Inspect hose
each time before using it. Check all hoses for cuts,
leaks, abrasions or bulging of cover, or damage or
movement of couplings. If any of these conditions
exist, replace hose immediately. Never repair high
pressure hose. Replace it with another hose that
exceeds maximum pressure rating of your unit.
 Check the fuel system for leaks or signs of
deterioration, such as chafed or spongy hose, loose
or missing clamps, or damaged tank or cap. Correct
all defects before operating the pressure washer.
 Operate engine only at governed speed. Running
the engine at excessive speeds increases the
hazard of personal injury. Do Not tamper with parts
which may increase or decrease the governed
speed.
 The muffler and engine heat up during operation
and remain hot immediately after shutting it down.
Avoid contact with a hot muffler or engine as you
could be severely burned.
 The muffler and air cleaner must be installed and in
good condition before operating the pressure
washer. These components act as spark arresters if
the engine backfires.
In the State of California a spark arrester is required
by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws.
Federal laws apply on federal lands.
NOTE: If you equip the muffler with a spark arrester, it
must be maintained in effective working order. You can
order a spark arrester through your authorized Honda
service dealer.

Generac Portable Products 2,300 PSI Pressure Washer
4
Adjustable Nozzle  Always attached to nozzle
extension. Adjustable nozzle allows you to adjust force
of spray and spray pattern.
Air Cleaner  Dry type filter element limits the
amount of dirt and dust that gets into the engine.
Automatic Cool Down System  Cycles water
through pump when internal water temperature
reaches 140°-145°F. Warm water will discharge
from pump onto ground.
Chemical Inject Hose  Siphons detergent into the
spray pattern.
Choke Rod Prepares a cold engine for starting.
Goggles  Always use the enclosed goggles or other
eye protection when running your pressure washer.
High Pressure Hose  Connect one end to water
pump and the other end to spray gun.
High Pressure Outlet  Connection for high
pressure hose.
Nozzle Extension  Attach to spray gun to use
adjustable nozzle.
Oil FillOil input area.
Pump  Develops high pressure.
Recoil Starter  Used for starting the engine
manually.
Spray Gun  Controls the application of water onto
cleaning surface with trigger device. Includes safety
latch.
Throttle Lever Sets engine in starting mode for
recoil starter and stops a running engine.
Water Inlet  Connection for garden hose.

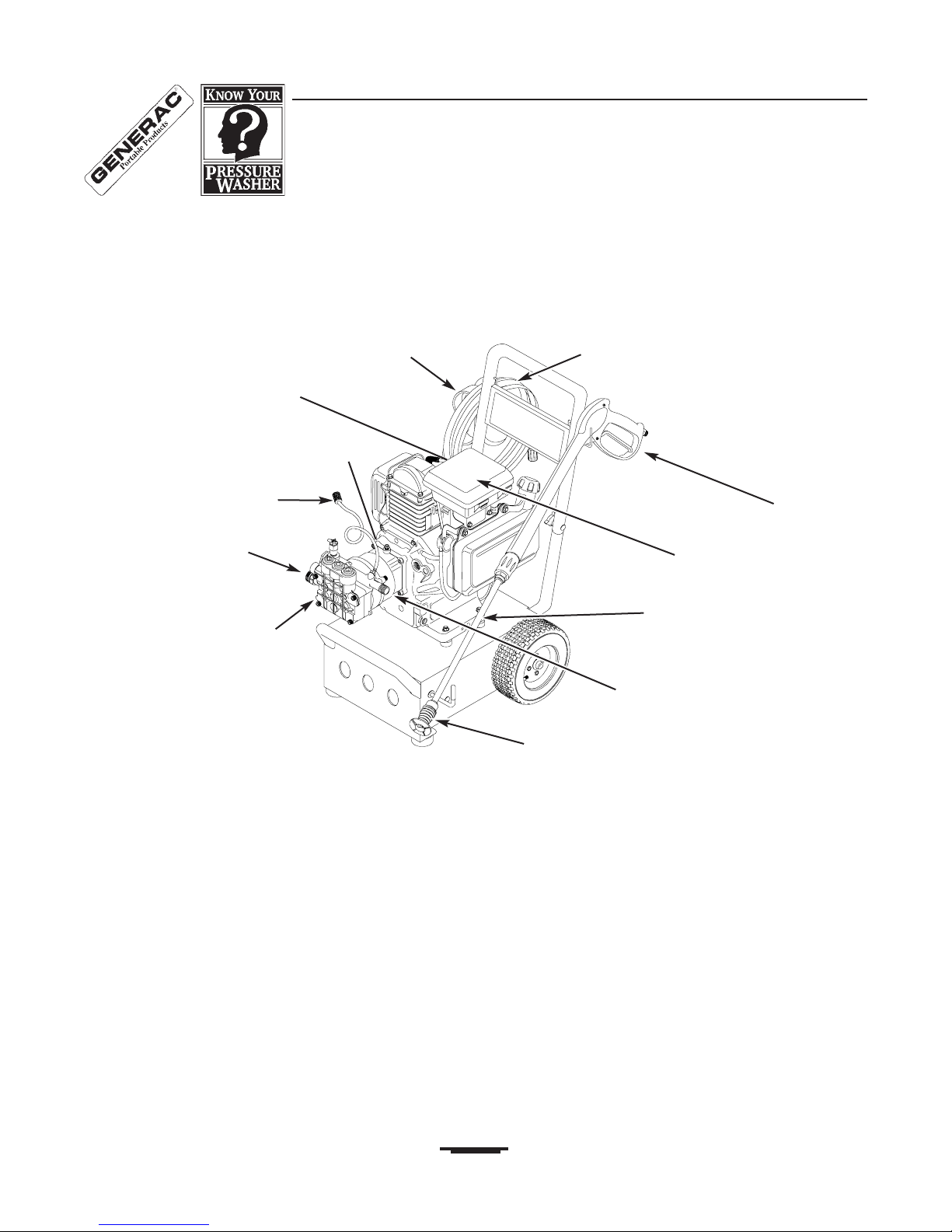

KNOW YOUR PRESSURE WASHER
Read this owners manual and safety rules before operating your pressure washer.
Compare the illustration below with your pressure washer to familiarize yourself with the locations of various
controls and adjustments. Save this manual for future reference.
High Pressure Hose
Adjustable Nozzle
Nozzle Extension
Safety Goggles
High Pressure Outlet
Pump equipped with
Automatic Cool Down
System
Spray Gun
Water Inlet
Chemical Inject Hose
Oil Fill
Recoil Starter, Throttle
Lever, Choke Rod
(Located near recoil starter)
Air Cleaner

Generac Portable Products 2,300 PSI Pressure Washer
5
Read entire owners manual before you attempt
to assemble or operate your new pressure
washer.
REMOVE PRESSURE
WASHER FROM CARTON
 Remove the handle and parts box included with
pressure washer.
 Slice two corners at the end of carton from top to
bottom so the panel can be folded down flat, then
remove all packing material.
 Roll pressure washer out of carton.
CARTON CONTENTS
Items in the carton include:
 Main Unit
 Parts Box (includes the following):
- Adjustable Nozzle Extension
- Emissions Control Warranty
- Engine Manual
- Engine Warranty
- Goggles
- Handle and Handle Hardware Bag
- High Pressure Hose
- Nozzle Cleaning Kit
- O-Ring Maintenance Kit
- Oil Bottle
- Owner's Manual
- Spray Gun
- Warranty Card
- Wireform
If any of the above parts are missing or damaged, call
the pressure washer helpline at 1800 701408.
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged,
call the pressure washer helpline at 1800 701408.
To prepare your pressure washer for operation
you will need to perform these tasks:
 Attach the handle and wire form.
 Add oil to the engine.
 Add fuel to the fuel tank.

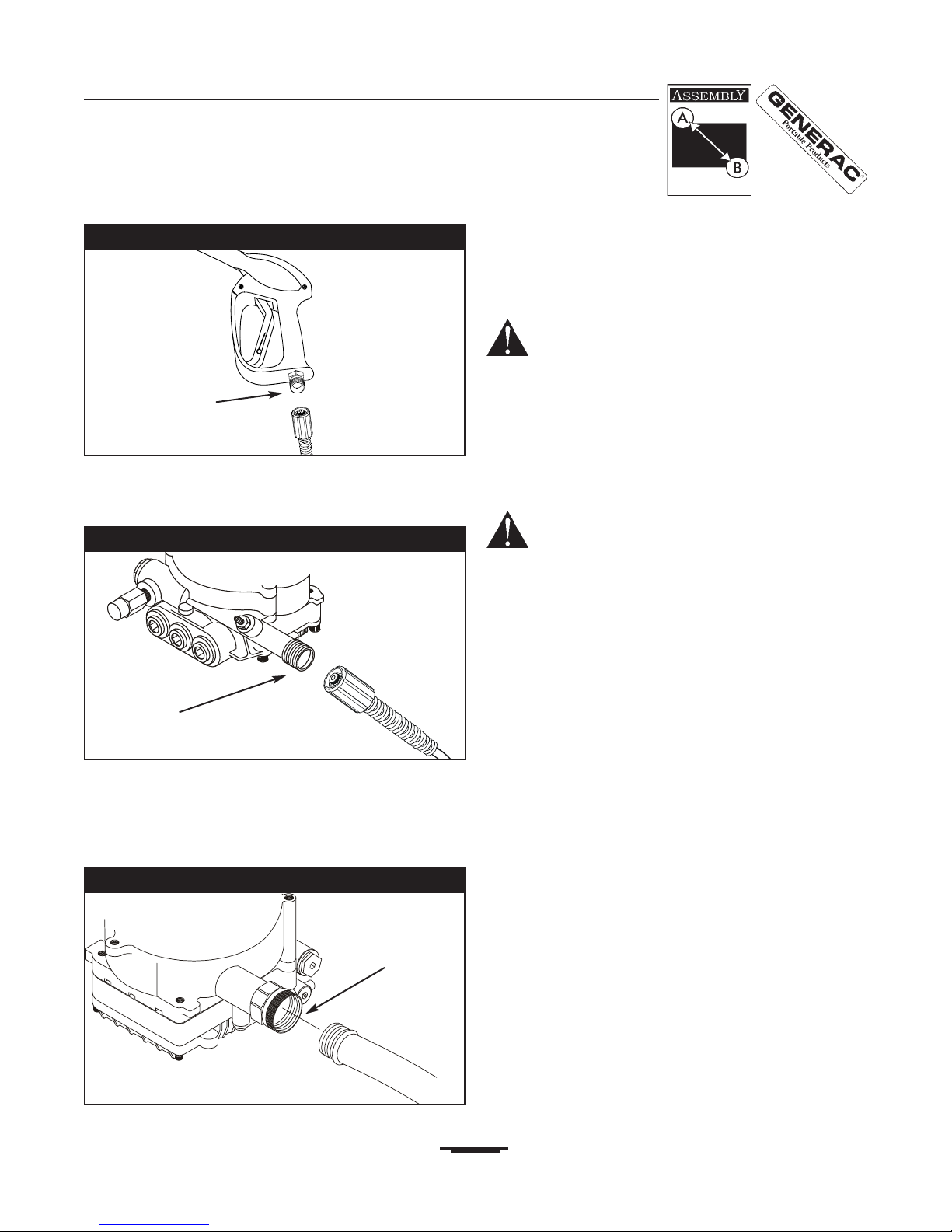

 Connect the high pressure hose to the spray gun
and the pump.
 Connect the water supply to the pump.
Attach the Handle

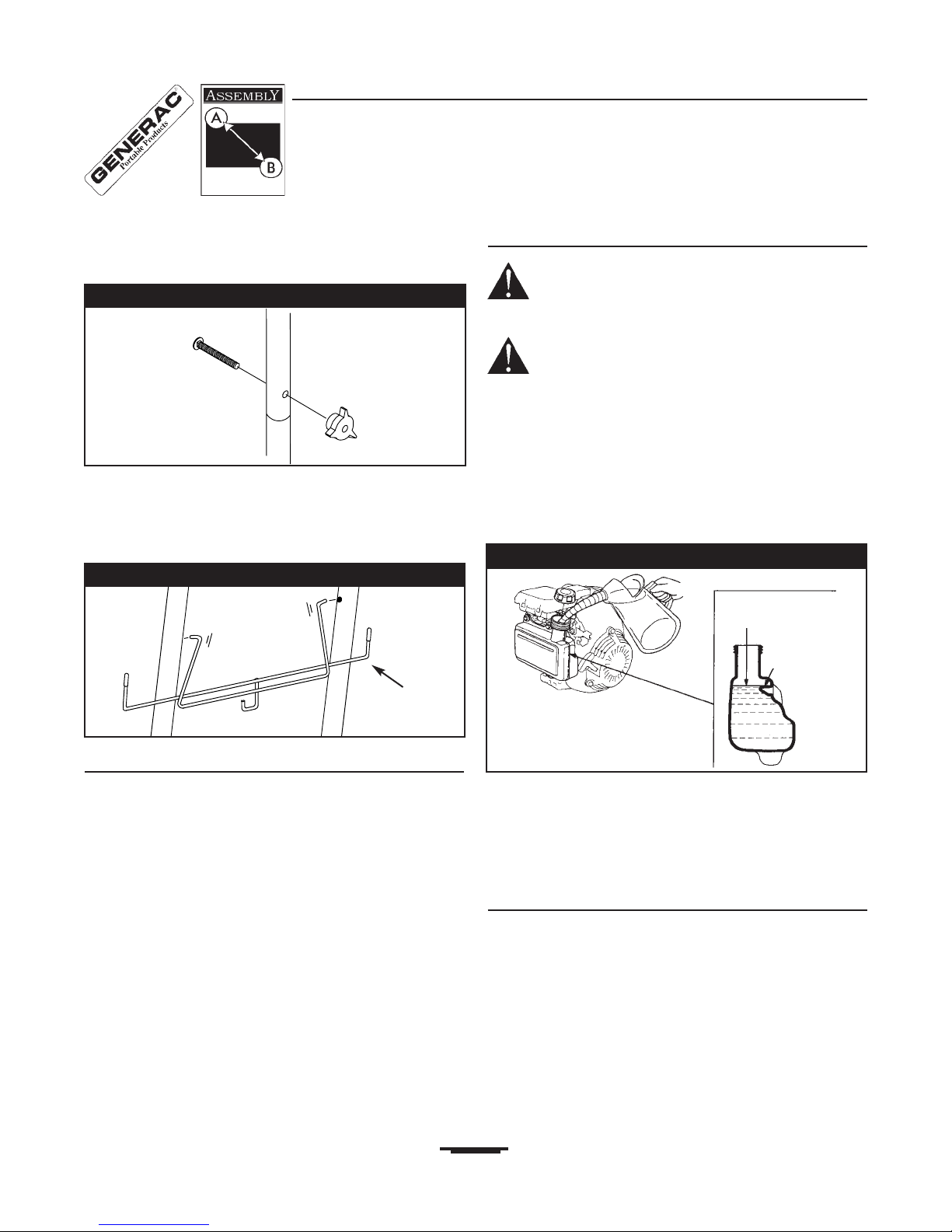

 Place the handle onto the handle supports already
connected to the units base. Make sure the holes in
the handle align with the holes on the handle
supports (Figure 1).
NOTE: It may be necessary to move the handle
supports from side to side in order to align the handle
so it will slide over the handle supports.
Make sure the
holes on the
handle are
aligned with
the holes on
the handle
supports
Handle
Handle
Supports
Figure 1  Attach Handle to Base

Generac Portable Products 2,300 PSI Pressure Washer
6
 Insert the carriage bolts through the holes on the
handle and attach the plastic knobs. Tighten the
knobs by hand (Figure 2).
 Insert the wire support with the longer arm
positioned on the right, as viewed from the rear of
the unit. The chemical bottle hook should resemble
a J (Figure 3).
Add Engine Oil
IMPORTANT: Any attempt to crank or start the engine
before it has been properly serviced with the
recommended oil may result in an engine failure.
 Place pressure washer on a level surface.
 Refer to the engine owners manual to add
recommended oil to engine.
NOTE: Check oil often during engine breakin. Refer
to engine owners manual for recommendations.
NOTE: The pump is pre-lubricated and sealed,
requiring no additional lubrication for the life of the
pump.
Add Gasoline
DANGER! Never fill fuel tank indoors. or when
engine is running or hot. Do Not smoke when
filling fuel tank.
WARNING! Never fill fuel tank completely full.
Fill tank to provide space for fuel expansion.
Wipe away any fuel spillage from engine and
equipment before starting.
 Use clean fuel and store in approved, clean covered
containers. Use clean fill funnels. Never use stale
gasoline left over from last season or gasoline
stored for long periods.
 Clean the area around the fuel fill cap, remove the
cap (Figure 4).
 Slowly add regular unleaded gasoline to fuel tank.
Use a funnel to prevent spillage.
 Install the fuel cap and wipe up any spilled gasoline.
Connect Hose and Water Supply to
Pump
IMPORTANT: You must attach all hoses before you
start the engine. Starting engine without all hoses
connected and water supplied will damage the pump.
 Uncoil the high pressure hose and attach one end of
the hose to the base of the spray gun (Figure 5).
Tighten by hand.
Maximum Fuel
Level
Fuel Level
Mark
Longer Arm
Figure 4  Add Gasoline to Fuel Tank
Figure 2  Secure Handle
Figure 3  Attach Wire Form to Handle

Generac Portable Products 2,300 PSI Pressure Washer
7
 Attach the other end of the high pressure hose to
the high pressure outlet on the pump (Figure 6).
Tighten by hand.
 Before you connect your garden hose to the water
inlet, inspect the inlet screen (Figure 7). Clean the
screen if it contains debris or have it replaced if
damaged. DO NOT RUN THE PRESSURE
WASHER IF THE SCREEN IS DAMAGED.
 Run water through your garden hose for 30 seconds
to clean out any debris.
 Connect the garden hose to the water inlet. Tighten
by hand (Figure 7).
WARNING! There MUST be at least ten feet
of unrestricted garden hose between the
pressure washer inlet and any flow shut off
device, such as a Y shut-off connector or other
convenience-type water shut-off valve. Damage
to pressure washer resulting from disregarding
this warning will not be covered by the warranty.
 Turn ON the water and squeeze the trigger on the
gun to purge the pump system of air and impurities.
CAUTION! Before starting the pressure
washer, be sure you are wearing adequate eye
protection.
CHECKLIST BEFORE
STARTING ENGINE
Review the units assembly to ensure you have
performed all of the following.
 Check that the handle is secure.
 Check that the wireform is properly installed.
 Check that oil and fuel has been added to the
engine.
 Check for properly tightened hose connections.
 Check to make sure that there are no kinks, cuts, or
damage to the high pressure hose.
 Provide a proper water supply (not to exceed
140° F) at an adequate flow.
 Be sure to read Safety Rules and How To Start
Your Engine before using the pressure washer.
Connect high
pressure hose
here.
Connect
high
pressure
hose here.
Inspect inlet
screen, Do Not
use if damaged;
clean if dirty.
Figure 5  Connect High Pressure Hose to Spray Gun
Figure 6  Connect High Pressure Hose to Pump
Figure 7  Connect the Garden Hose to Water Inlet

Generac Portable Products 2,300 PSI Pressure Washer
HOW TO USE YOUR
PRESSURE WASHER
If you have any problems operating your pressure
washer, please call the pressure washer helpline at
1-800- 70-1408.
How to Start Your Engine
The best way to start your enginepowered pressure
washer for the first time is to follow these instructions
stepbystep. This starting information also applies
whenever you start the engine after you have let the
pressure washer sit idle for at least a day.
 Place the pressure washer in an area close enough
to an outside water source that provides flow rate of
2.4 gallons per minute minimum.
 Make sure the unit is in a level position.
 Check that the high pressure hose is tightly
connected to the spray gun and to the pump.
 Connect the garden hose to the water inlet on the
pressure washer pump. Turn ON the water.
WARNING! Do Not run the pump without the
water supply connected and turned on. You
must follow this caution or the pump will be
damaged.
 Pull the Choke rod to the CLOSED position (all the
way out, Figure ).
NOTE: For a warm engine, be sure the choke is in the
OPEN position (no choke).
 Move the Throttle Control lever to the Fast position
(Figure 9). Always keep the throttle in the Fast
position while pressure washing.
 Ensure that the nozzle extension is NOT attached to
the spray gun. The spray gun should be held in the
left hand, as shown in Figure 10. The left hand
should also be used to steady the unit.
Choke Rod
Open
Closed
Throttle Lever
Fast
Slow
Stop
Figure  Choke Positions
Figure 9  Throttle Control Lever Positions
Figure 10  Recommended Engine Starting Posture
Right Hand
pulls recoil
starter handle
Safety Goggles
Left Hand
stabilizes
unit and
squeezes
trigger
Do Not
attach
nozzle
extension

Generac Portable Products 2,300 PSI Pressure Washer
9
 Standing at the rear of the unit, squeeze the trigger
on the spray gun. Water will flow out of the spray
gun in a thin stream. Continue to squeeze the
trigger.
 Grasp the recoil starter handle with your right hand
and pull slowly until you feel some resistance. Then
pull rapidly to start the engine.
 Return the starter handle slowly. Do Not let the rope
snap back against the starter.
 If the engine fails to start repeat above steps or refer
to the engine owners manual.
 If the choke was pulled to the CLOSED position to
start the engine, slowly push it to the OPEN position
as the engine runs smoother.
 Engage the safety latch to the spray gun trigger
(Figure 11).
 Attach the nozzle extension to the spray gun.
Tighten by hand (Figure 12).
How to Stop Your Pressure Washer
 Move the throttle lever to the Stop position.
Squeeze trigger on the spray gun to relieve
pressure in the hose.
NOTE: A small amount of water will squirt out from the
spray gun when you squeeze the trigger.
How to Use the Adjustable Nozzle
You now should know how to start your pressure
washer and how to stop it. The information in this
section will tell you how to adjust the spray pattern
and apply detergent or any other cleaning chemicals.
DANGER! Never adjust spray pattern when
spraying. Never put hands in front of nozzle to
adjust spray pattern.
Your pressure washer is equipped with an adjustable
nozzle that permits you to adjust the spray pattern and
spray pressure, as follows:
 Slide the nozzle forward when you wish to adjust the
spray to low pressure mode (Figure 13). Slide the
nozzle backward to achieve high pressure.
 Point the nozzle down towards a hard surface and
press the trigger to test the pattern (Figure 14).
Figure 13 - Adjusting Spray Pressure
Slide nozzle backward
for high pressure
mode.
Slide nozzle forward
for low pressure mode
and detergent
application.
Figure 14 Testing the Spray Pattern
Safety Latch
Figure 11  Engage Safety Latch
Figure 12  Connect Nozzle Extension to Spray Gun

Generac Portable Products 2,300 PSI Pressure Washer
10
 Twisting the nozzle adjusts the spray pattern from a
narrow pattern to a fan pattern (Figure 15).
 For most effective cleaning, keep spray nozzle
between to 24 inches away from cleaning surface.
 If you get the spray nozzle too close, especially
using high pressure mode, you may damage the
cleaning surface.
Do Not get closer than 6 inches when cleaning
automobile tires.
Applying Detergent with the
Adjustable Nozzle
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could
damage the pump.
IMPORTANT: You must attach all hoses before you
start the engine. Starting the engine without all the
hoses connected and without the water turned ON will
damage the pump.
To apply detergent follow these steps:
 Review the use of adjustable nozzles.
 Prepare detergent solution as required by the job.
 Hang the detergent solution on hook of the wireform
on the handle (Figure 16).
 Place small filter end of the plastic chemical inject
tube into the detergent container.
CAUTION! Keep the plastic chemical inject
tube from coming in contact with the hot muffler.
This will damage the tube. When inserting the
filter into a cleaning agent bottle, route the tube
so as to keep it from inadvertently contacting
the hot muffler.
 Make sure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray
gun and pump.
IMPORTANT: Detergent cannot be applied without the
water source turned on.
 Start engine and attach nozzle extension.
 Slide the adjustable nozzle forward to low pressure
mode. Detergent cannot be applied with nozzle in
high pressure position.
 Apply detergent to a dry surface, starting from the
bottom and working up.
 Allow the detergent to soak in between 3-5 minutes
before washing and rinsing. Reapply as needed to
prevent surface from drying.
 For washing, start at lower portion of area to be
washed and work upward, using long, even
overlapping strokes.

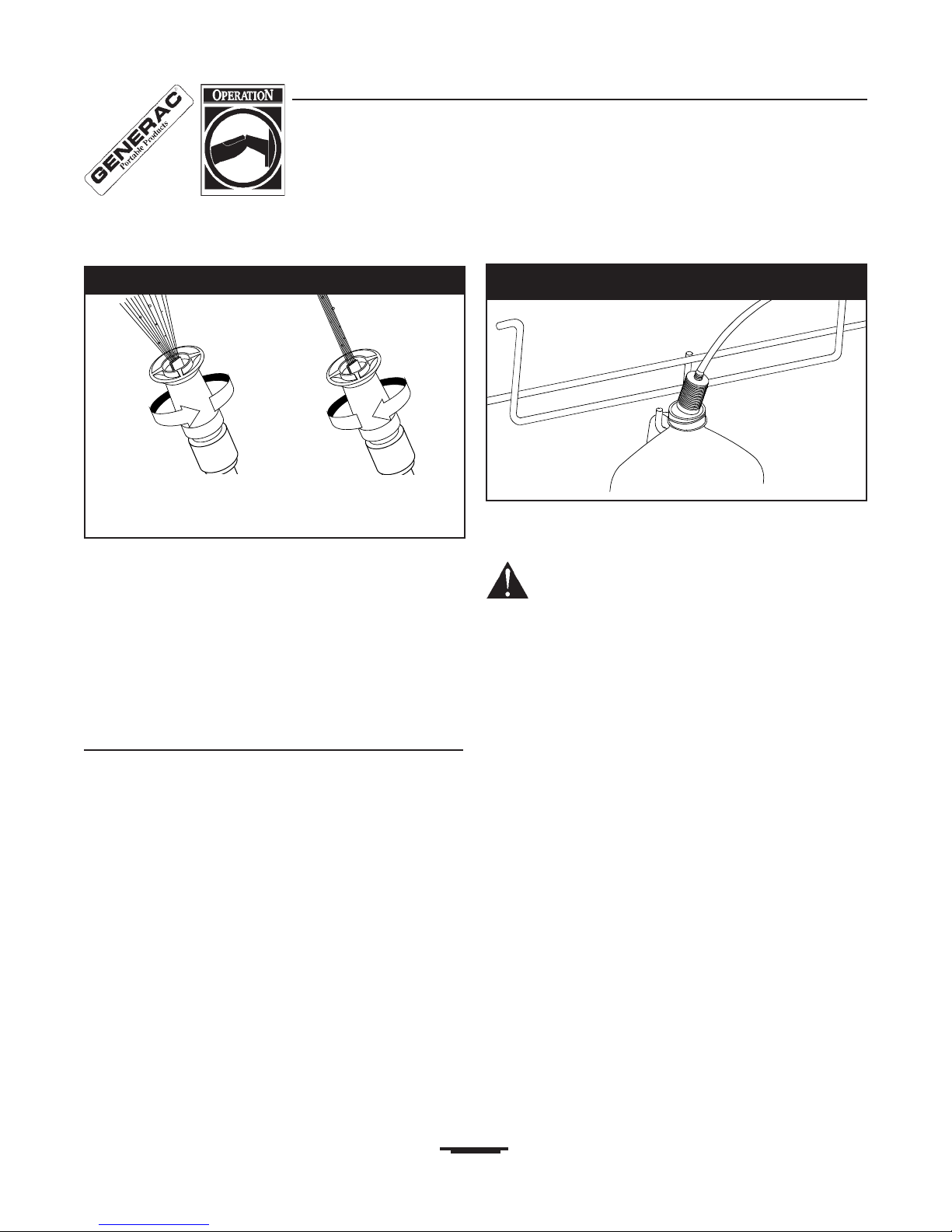

Twist nozzle
counterclockwise for
fan spray pattern.
Twist nozzle clockwise
for narrow spray
pattern.
Figure 16  Insert the Small Filter Into Container of
Cleaning Solution
Figure 15 - Adjusting Spray Pattern

Generac Portable Products 2,300 PSI Pressure Washer
11
Pressure Washer Rinsing
WARNING! Be extremely careful if you must
use the pressure washer from a ladder,
scaffolding or any other unstable location.
Pressure in a running washer builds as you
climb. When you press the trigger, the initial
spray recoil could cause you to fall. The high
pressure spray could also cause you to fall if
you are too close to the cleaning surface.
For Rinsing:
 Slide nozzle backward to high pressure and wait for
detergent to clear.
 Keep the spray gun a safe distance from the area
you plan to spray.
 Apply a high pressure spray to a small area and
then check the surface for damage. If no damage is
found, you can assume it is okay to continue
cleaning.
 Start at top of area to be rinsed, working down with
same overlapping strokes as you used for cleaning.
NOTE: You can also stop detergent from flowing by
simply removing siphon from bottle.
Automatic Cool Down System
(also known as Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray
gun, circulating water in the pump can reach a
temperature between 140145°F. When the water
reaches this temperature, the automatic cool down
system engages and cools the pump by discharging
the warm water onto the ground. This system
prevents internal damage to the pump.
SPECIFICATIONS
Outlet Pressure . . . . 2,300 psi
Flow Rate . . . . . . . . . 2.2 gallons per minute (gpm)
Detergent . . . . . . . . . Use detergent approved for
pressure washers
Water Supply . . . . . . Not to exceed 140°F
Temperature
Automatic Cool . . . . Will cycle when water
Down System reaches 140°-145°F

Generac Portable Products 2,300 PSI Pressure Washer
12
GENERAL MAINTENANCE
RECOMMENDATIONS
The warranty of the high pressure washer does not
cover items that have been subjected to operator
abuse or negligence. To receive the full value from the
warranty, the operator must maintain the high pressure
washer as instructed in this manual.
 Some adjustments will need to be made periodically
to properly maintain your high pressure washer.
 All adjustments in the Maintenance section of this
manual should be made at least once each season.
 Once a year you should clean or replace the spark
plug and clean or replace the air filter and check the
spray gun and nozzle extension assembly for wear.
A new spark plug and clean air filter assure proper
fuelair mixture and help your engine run better and
last longer.
Before Each Use
 Check engine oil level.
 Check water inlet screen for damage.
 Check high pressure hose for leaks.
 Check chemical injection tube and filter for damage.
 Check spray gun and adjustable nozzle extension
assembly for leaks.
 Rinse out garden hose to flush out debris before
attaching to pressure washer.
PRESSURE WASHER
MAINTENANCE
Check and Clean Inlet Screen
Examine the screen on the water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.
Check High Pressure Hose
The high pressure hose can develop leaks from wear,
kinking, or abuse. Inspect the hose each time before
using it. Check for cuts, leaks, abrasions or bulging of
cover, damage or movement of couplings. If any of
these conditions exist, replace the hose immediately.
DANGER! Water spraying from a leak is
capable of injecting material into skin. Inspect
hose each time before using it. Never repair a
high pressure hose. Replace it with another
hose that exceeds the maximum pressure
rating of your pressure washer.
Check Chemical Injection Tube
Examine the filter on the detergent hose and clean if
clogged. The tube should fit tightly on the barbed
fitting. Examine the tube for leaks or tears. Replace
the filter or tube if either is damaged.
Check Gun and Adjustable Nozzle
Extension
Examine the hose connection to the spray gun and
make sure it is secure. Test the trigger by pressing it
and making sure it springs back into place when you
release it. Put the safety latch in the On position and
test the trigger. You should not be able to press the
trigger.
Check In-Line Filter

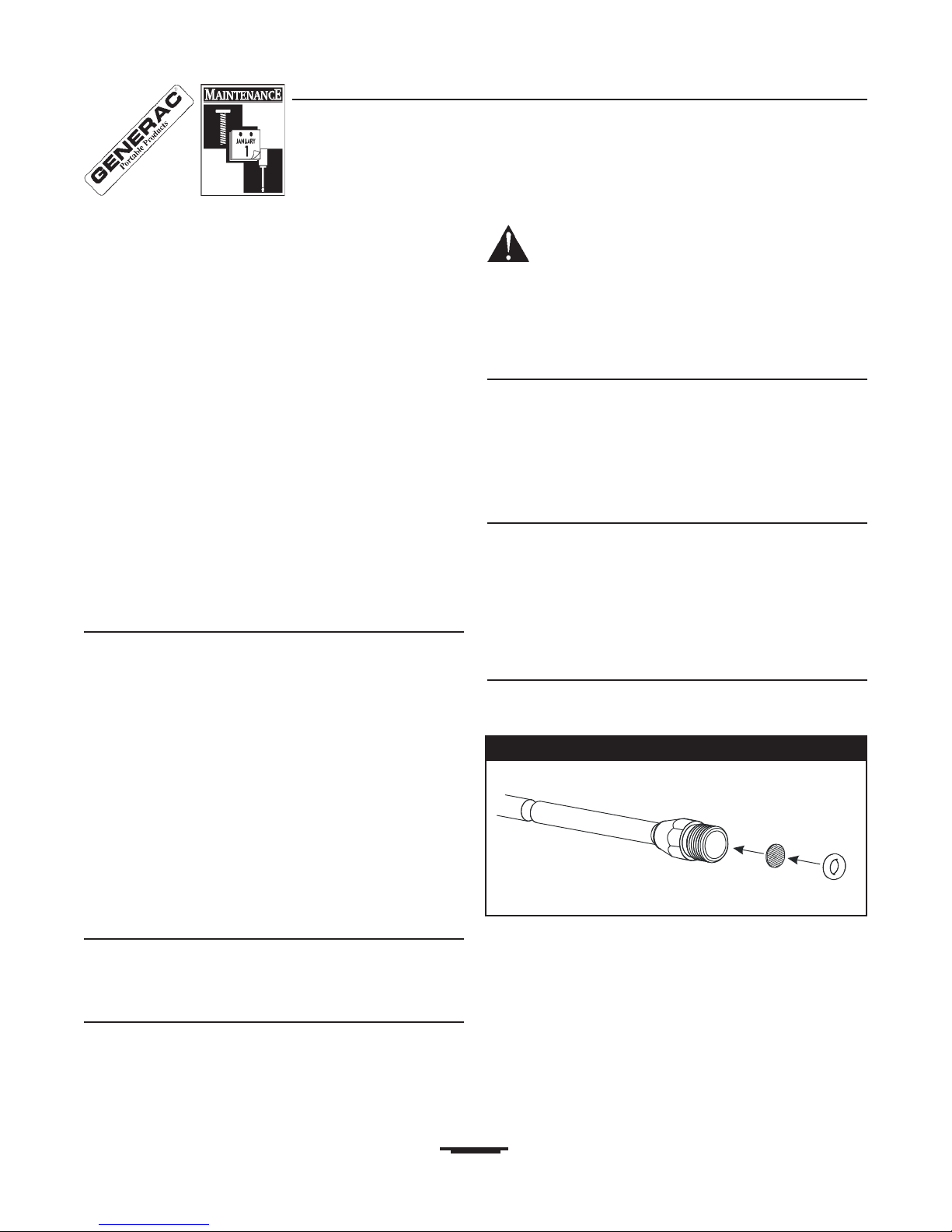

Refer to Figure 17 and service the in-line filter if it
becomes clogged, as follows:
1. Detach spray gun and nozzle extension from high
pressure hose. Detach nozzle extension from
spray gun and remove o-ring and screen from
nozzle extension. Flush the screen, spray gun,
and nozzle extension with clean water to clear
debris.
2. If the screen is damaged, the o-ring kit contains a
replacement in-line filter screen and an o-ring. If
undamaged, reuse screen.
Filter Screen
Nozzle Extension
O-Ring
Figure 17  Service In-Line FIlter

Generac Portable Products 2,300 PSI Pressure Washer
13
3. Place the in-line filter screen into the threaded end
of the nozzle extension. Direction does not matter.
Push the screen in with the eraser end of a pencil
until it rests flat at the bottom of the opening. Take
care to not bend the screen.
4. Place the o-ring into the recess. Push the o-ring
snugly against the in-line filter screen.
5. Assemble the nozzle extension to the spray gun,
as described earlier in this manual.
Purge Pump of Air and
Contaminants
To remove air from the pump, follow these steps:
 Set up the pressure washer as described in the
Preparing Pressure Washer for Use section and
connect the water supply.
 Pull the trigger on the spray gun and hold.
To remove contaminants from the pump, follow
these steps:
 Set up the pressure washer as described in
Preparing Pressure Washer for Use and connect
the water supply.
 Remove the nozzle extension from the spray gun.
 Start the engine according to instructions in How To
Start Your Engine.
 Squeeze the trigger on the spray gun and hold.
 When the water supply is steady and constant,
engage the safety latch and refasten the nozzle
extension.
Cleaning Chemical Injection Tube
If you have used the chemical injection tube you must
flush it with clean water before stopping the engine.
 Place the chemical injection tube in a bucket full of
clean water.
 Flush for 12 minutes.
 Shut off the engine.
IMPORTANT: Simply shutting OFF engine will not
release pressure in the system. When the engine has
shut down, squeeze the trigger on the spray gun to
relieve the pressure in the hose.
Nozzle Maintenance
If the adjustable nozzle becomes restricted or clogged
with foreign materials, such as dirt, excessive pump
pressure may develop. If this nozzle becomes partially
clogged, it can cause a pulsing sensation during use.
This generally is not a pump related problem, but
rather a clogged or partially restricted adjustable
nozzle.
Immediately clean a clogged nozzle with the kit
included with your pressure washer by following these
instructions:
 Shut off the engine and turn off the water supply.
 Separate the nozzle extension from the spray gun.
 Adjust the nozzle extension to the stream position.
 Remove nozzle from the end of the nozzle extension
(Figure 1 ) using a 2mm or 5/64 allen wrench.
 Use the wire included in the kit (Figure 1 ) or a
small paper clip to free the foreign materials
clogging or restricting the nozzle.
Figure 1  Remove and Clean Nozzle
Nozzle

Generac Portable Products 2,300 PSI Pressure Washer
14
 Remove additional debris by back flushing water
supply through nozzle extension (Figure 19). Back
flush between 30 to 60 seconds. Turn nozzle
extension to stream spray and move nozzle from
low to high while flushing.
 Reinstall nozzle into the nozzle extension. Do Not
over tighten.
 Reconnect the water supply, turn on the water, and
start the engine.
 Attach the nozzle extension to the spray gun.
 Test pressure washer operation with the adjustable
nozzle in both high and low positions.
ORing Maintenance
Orings keep the connections of the hoses and spray
gun tight and leakfree. Through the normal operation
of your pressure washer, o-rings may become worn or
damaged.
Provided with your pressure washer is an ORing
Maintenance Kit which includes replacement o-rings,
rubber washer and water inlet filter. Refer to the
instruction sheet provided in the kit to service your
units o-rings. Note that not all of the parts in the kit
will be used on your unit.
To remove a worn or damaged oring:
 Use a small flathead screwdriver to get underneath
the o-ring and pry it off.
ENGINE MAINTENANCE
See the engine owners manual for instructions on
how to properly maintain the engine.
PREPARING THE UNIT FOR
STORAGE
Water should not remain in the unit for long periods of
time. Sediments of minerals can deposit on pump
parts and freeze pump action. If you do not plan to
use the pressure washer for more than 30 days, follow
this procedure:
1. Flush chemical injection tube by placing the filter
into a pail of clean water while running pressure
washer in low pressure (adjustable nozzle in
forward position). Flush for one to two minutes.
2. Shut off the engine and let it cool, then remove all
hoses.
3. Place the throttle lever in Stop position.
WARNING! Be sure lever is in Stop position
before you continue. If you start engine without
proper water supply connected, you can
damage pump.
4. Empty the pump of all pumped liquids by pulling
the recoil handle about 6 times. This should
remove most of the liquid in the pump.
NOTE: To protect the unit from freezing temperatures,
draw RV antifreeze (no alcohol) into the pump by
pouring the antifreeze into a 3foot section of garden
hose connected to inlet adapter and pulling recoil
handle twice.
5. Store in a clean, dry area.
STORING THE ENGINE
See the engine owners manual for instructions on
how to properly store the engine.
Figure 19  Backflush the Nozzle

Generac Portable Products 2,300 PSI Pressure Washer
15
TROUBLESHOOTING
Problem Cause Solution
Pump has the following
problems:
Failure to produce adequate
pressure, erratic pressure,
chattering, loss of pressure
or low water volume.
1. Lance in low pressure.
2. Water inlet is blocked.
3. Inadequate water supply.
4. Garden hose is kinked or leaking.
5. Clogged water inlet screen.
6. Water supply is over 140°F.
7. Outlet hose is blocked or leaks.
. Gun leaks.
9. Nozzle is obstructed.
10. Pump is faulty.
1. Adjust chemical valve handle to
high pressure.
2. Clear inlet.
3. Make sure you have at least a 2.4
GPM flow for your garden hose.
4. Straighten garden hose or patch
leak.
5. Check and clean water inlet
screen.
6. Provide cooler water supply.
7. Clear blocks in outlet hose.
Replace immediately if leaking.
. Replace gun.
9. Clear nozzle.
10. Contact Generac service facility.
Detergent fails to mix with
spray.
1. Chemical injector hose is not
submerged.
2. Chemical injector hose is
clogged.
3. Lance is in high pressure mode.
1. Insert chemical line into detergent.
2. Clean or replace filter/chemical
injector hose.
3. Put dual lance into low pressure
mode.
Engine runs well when not
spraying but bogs down
when trigger is squeezed.
Engine speed is too slow. Contact Honda service facility.
Engine will not start; or
starts and runs rough.
1. Low oil level.
2. Dirty air cleaner.
3. Out of gasoline.
4. Stale gasoline.
5. Spark plug wire not connected to
spark plug.
6. Bad spark plug.
7. Water in gasoline.
. Excessively rich fuel mixture.
9. Intake valve stuck open or
closed.
10. Engine has lost compression
1. Fill crankcase to proper level.
2. Clean or replace air filter.
3. Fill fuel tank.
4. Drain gas tank; fill with fresh fuel.
5. Connect wire to spark plug.
6. Replace spark plug.
7. Drain as tank fill with fresh fuel.
. Contact Honda service facility.
9. Contact Honda service facility.
10. Contact Honda service facility.
Engine shuts down during
operation. 1. Out of gasoline.
2. Low oil level.
1. Fill fuel tank.
2. Fill crankcase to proper level.
Engine lacks power. Dirty air filter. Replace air filter.
Engine hunts or falters. Engine is not operating properly. Contact Honda service facility.

Generac Portable Products 2,300 PSI Pressure Washer
16

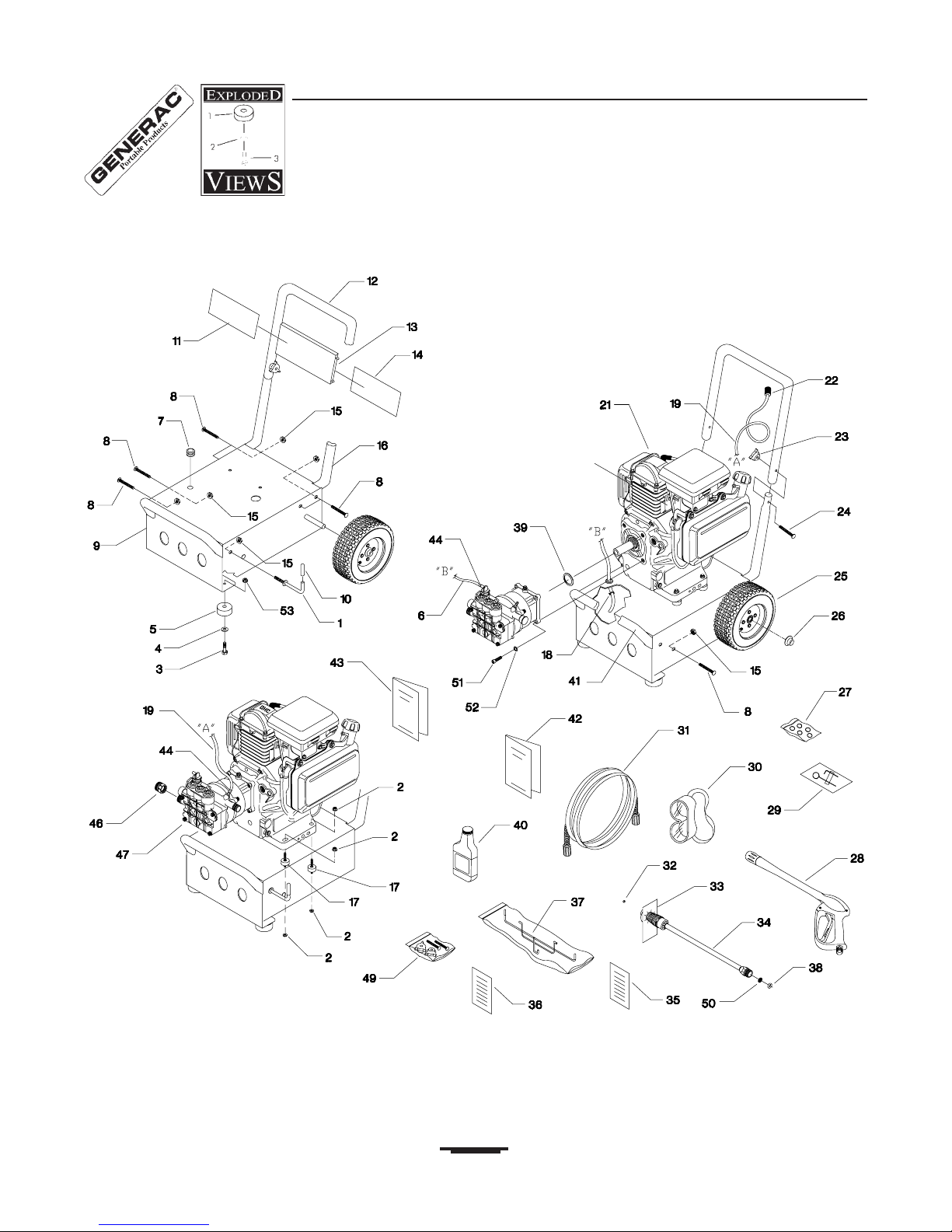

EXPLODED VIEW  UNIT

Generac Portable Products 2,300 PSI Pressure Washer
17
PART LIST  UNIT
Item Part # Qty Description
1 B2150 1 HOOK, Gun
2 679 9 NUT, M Flange Serr.
3 42909 2 HHCS, M 1.25 x 30
4 50190 2 WASHER, M Flat
5 27007 2 MOUNT, Donut Type Vibration
6 B3107 1 HOSE, Thermal Drain
7 30 09 1 GROMMET, Rubber
B2043 7 BOLT, 5/16"-1 x 1-3/4"
Carriage
9 AB5721 1 BASE
10 B2516 1 CAP, Vinyl (black)
11 1 6153 1 DECAL, Logo
12 B19 3 1 HANDLE
13 B1631A 1 BILLBOARD, Plastic
14 B2796 1 DECAL, Instructions, Start
15 995 3 9 NUT, Flange Lock 5/16"-1
16 B19 1 2 SUPPORT, Handle
17 21217 4 MOUNT, Rubber Shock
1 4 031B 1 CLAMP, Hose Band
19 A1040D 1 HOSE, 4-1/2' Chemical Clear
21 NSP 1 ENGINE
22 A1041 1 FILTER, Chemical Hose
23 9717 2 KNOB, Handle 1/4" - 20 PW
24 31669 2 BOLT, 1/4" - 20 x 1-3/4"
Carriage
25 B4966 2 TIRE, 10"
26 75402C 2 PUSHNUT, 5/ " Dia.
Item Part # Qty Description
27 B5 30 1 KIT, "O" Ring
2 B3263 1 GUN, High Pressure
29 B2163 1 KIT, Nozzle Cleaning
30 7 15 1 GOGGLES, Safety
31 B5642 1 HOSE, High Pressure
32 21761 1 NOZZLE, 1.05 Yellow
Replacement
33 97566 1 TAG, Nozzle Instructions
34 B3335 1 LANCE, Nozzle Hi/Lo
35 NSP 1 WARANTY, Honda Emissions
36 NSP 1 WARANTY, Honda Engine
37 B216 A 1 WIREFORM, Hose, Gun, Jug
3 97 37 1 O RING, Hi Pressure Transfer
39 B221 1 O-RING, 1.625 I.D.
40 BB3061B 1 OIL
41 B19 2 1 BUMPER
42 NSP 1 MANUAL, Engine
43 1 6145 1 MANUAL
44 4 031G 2 CLAMP, Hose Band
46 21424 1 CONNECTOR, Garden Hose
47 B4925B 1 ASSEMBLY, Pump
49 B2203 1 KIT, Handle Fastening
50 B4224 1 SCREEN, Gun Inlet
51 23707 4 SHCS, 5/16 - 24 x 1
52 92479 4 WASHER, M Conical Ribbed
53 52 5 2 NUT, Locking M - 1.25

Generac Portable Products 2,300 PSI Pressure Washer
1
EXPLODED VIEWPUMP

Generac Portable Products 2,300 PSI Pressure Washer
19
PART LISTPUMP
Item Part # Qty Description
1 B 18 1 O-RING, 1.6 5 ID x .103
9796 3 SHCS, M6 - 1 x 5
3 B5710 1 VALVE, 1/8 npt 1-5 PSI
4 97835 1 O-RING, Housing Seal
5 B3090 1 VALVE, Thermal Relief
6 93680 3 SEAL, Oil Piston
7 97831 3 SPACER, Pilot
8 B 70 1 HOUSING, Piston
9 B4813 1 ADAPTER, Engine
10 97841 3 CAP, Outlet Check Valve
11 40946 4 SHCS, M6-1.0 x 35
1 185715 0 KIT, AXIAL CAM
1 . . . . . . 1 O-RING, Engine Seal
2 . . . . . . 3 SHCS, M6 - 1 x 25
4 . . . . . . 1 O-RING, Housing Seal
13 . . . . . . 1 WASHER, Brg. 36 x 65 x
6Thk
14 . . . . . . 2 ASSY., Brg. Cage 45 x 65
15 . . . . . . 3 WASHER, Brg. 45 x 65 x 1
16 . . . . . . 1 CAM, Axial 5.6 3/4"SAE
17 185 87 0 KIT, CHEM INJECT
1 . . . . . . 1 FITTING, Chem Inject
19 . . . . . . 1 BALL, Chem Inject
20 . . . . . . 1 SPRING, Chem Inject
21 . . . . . . 1 O-RING, Venturi & Seat, Black
22 . . . . . . 1 VENTURI, Chem Inject
2 . . . . . . 1 O-RING, Venturi, Yellow
3 185711 0 KIT, UNLOADER 300
21 . . . . . . 1 O-RING, Venturi & Seat, Black
24 . . . . . . 1 CAP, Unloader
25 . . . . . . 1 O-RING, Unloader Cap
26 . . . . . . 1 SPRING, Unloader
27 . . . . . . 1 PISTON, Unloader
29 . . . . . . 1 SEAT, Unloader
Item Part # Qty Description
31 18571 0 KIT, CHECK VALVES
11 . . . . . . 4 SHCS, M6-1.0 x 35
32 . . . . . . 3 O-RING, Check Valve
33 . . . . . . 6 ASSY., Check Valve
45 . . . . . . 3 O-RING, Check Valve, White
34 185531 0 KIT, HEAD BRASS EG
11 . . . . . . 4 SHCS, M6-1.0 x 35
35 . . . . . . 1 HEAD, Pump
36 . . . . . . 1 PLUG, 1/ -2
46 . . . . . . 4 WASHER, M6 Flat
37 185713 0 KIT, PISTON & SPRING
1 . . . . . . 1 O-RING, Engine Seal
2 . . . . . . 3 SHCS, M6 - 1 x 25
4 . . . . . . 1 O-RING, Housing Seal
3 . . . . . . 3 RETAINER, Piston Spring
39 . . . . . . 3 PISTON, Dia. 15 x 65
40 . . . . . . 3 SPRING, Piston Return
41 185714 0 KIT, O-RING/SEAL 300
1 . . . . . . 1 O-RING, Engine Seal
2 . . . . . . 3 SHCS, M6 - 1 x 25
4 . . . . . . 1 O-RING, Housing Seal
6 . . . . . . 3 SEAL, Oil Piston
11 . . . . . . 4 SHCS, M6-1.0 x 35
21 . . . . . . 2 O-RING, Venturi & Seat, Black
25 . . . . . . 1 O-RING, Unloader Cap
2 . . . . . . 1 O-RING, Venturi, Yellow
32 . . . . . . 3 O-RING, Check Valve
42 . . . . . . 3 SEAL, Double-Lip
43 . . . . . . 1 O-RING, High Pressure
Transfer
44 . . . . . . 3 O-RING, Outlet CV Cap
45 . . . . . . 3 O-RING, Check Valve, White
Item numbers 12, 17, 23, 31, 34, 37, and 41 are
service kits and include all parts shown within the box.
Certain parts may only be available as components of
a kit.

LIMITED PRESSURE WASHER WARRANTY
GENERAC PORTABLE PRODUCTS (hereafter referred to as the COMPANY) warrants to the original retail
purchaser, the pressure washer manufactured by the COMPANY to be free from defects in material and
workmanship for the period(s) set forth below from the date of original purchase. This warranty is not
transferable. The term original purchaser means the person for whom the pressure washer is originally
purchased.
Warranty Schedules
Electric Power Washer 1 year (does not apply to commercial or rental applications)
CONSUMER* COMMERCIAL*
All Other Engine-driven Engine: Warranted solely by Warranted solely by
Engine Manufacturer Engine Manufacturer
Pump: 1 year 90 days
* NOTE: For the purpose of this warranty consumer use means personal residential household use by
original purchaser. Commercial use means all other uses, including rental, construction, commercial
and income producing purposes. Once a pressure washer has experienced commercial use, it shall
thereafter be considered a commercial use pressure washer for the purposes of this warranty.
During said warranty period, the COMPANY will, at its option, repair or replace any part which, upon examination
by the COMPANY or COMPANY-Authorized Dealers, is found to be defective under normal use and service**. All
transportation costs under warranty, including return to the factory if necessary, are to be borne by the purchaser
and prepaid by the purchaser.
** NORMAL WEAR: As with all mechanical devices, pressure washers need periodic parts service and
replacement to perform well. This warranty does not cover repair when normal use has exhausted the life
of a part or pressure washer pump.
This warranty does not include: Used products and demonstration equipment. Parts, such as GUNS, HOSES,
WANDS, NOZZLES or other wear items such as quick couplers, oil, gauges, belts, o-rings, filters, pump packing,
etc. Pumps which have been run without water supplied. Damage or malfunctions resulting from: accidents,
abuse, modifications, alterations, or improper servicing. Freezing or chemical deterioration. Normal maintenance
such as adjustments, fuel system cleaning and obstruction (due to chemical, dirt, carbon or lime, etc.).
THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
SPECIFICALLY, THE COMPANY MAKES NO OTHER WARRANTIES AS TO MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. THE DURATION OF ANY IMPLIED WARRANTIES
WHICH CANNOT BE DISCLAIMED IS LIMITED TO THE TIME PERIOD AS SPECIFIED IN THE
EXPRESS WARRANTY. LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, OR SPECIAL
DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED, EVEN IF SUCH DAMAGES ARE
A DIRECT RESULT OF THE COMPANY'S NEGLIGENCE. THE COMPANY ALSO DISCLAIMS ANY
RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SUCH AS THE LOSS OF
TIME OR THE USE OF THE POWER EQUIPMENT, OR ANY COMMERCIAL LOSS DUE TO THE
FAILURE OF THE EQUIPMENT: AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE
DURATION OF THIS WRITTEN WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights and you may also have other rights, which vary from state to state.
For service, see your nearest COMPANY-Authorized warranty service facility or call 1- 77-544-09 2. Warranty
service can be performed only by a COMPANY-Authorized service facility. This warranty will not apply to service
at any other facility. At the time of requesting warranty service, evidence of original purchase date must be
presented.
Generac Portable Products
Jefferson, Wisconsin U.S. A.
